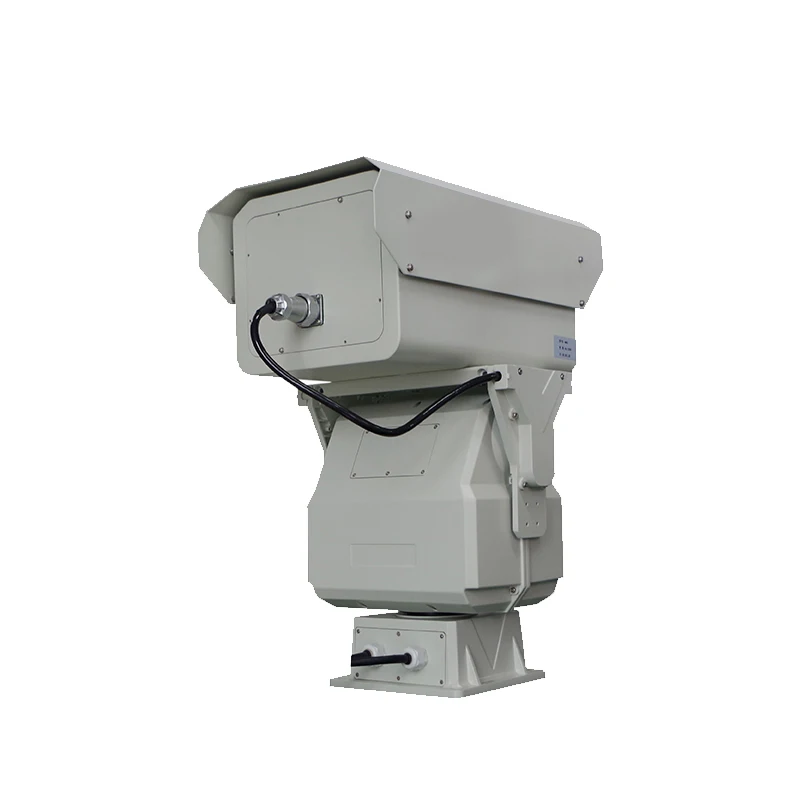

18km Long Range PTZ IR High Definition thermal security camera infrared thermal camera

Model

HP-TC12615C-TG

Detection

Vehicle: 13000m

Human: 4800m

Recognition

Vehicle: 3400m

Human: 1600m

Sensor

1、Detector：5th generation UFPA Vox Detector ;
2、Resolution：1280×1024
3、NETD：50mK（@25℃ F1.0）
4、Spectral range：12μm

NETD

50mK（@25℃ F1.0）

Focal length

1、Length: 25~150mm
2、FOV：34.2°×27.6°～5.9°×4.7°
3、optical zoom, auto focus ;
4、AS+DOE advanced optical design, high infrared transmission;
5、Applied 3CAM high precision design;

IFOV

0.08～0.48mrad

Image processing

2. SDE digital image processing

3. 10 pseudo color and B/W, B/W inverse

4. AGC

5.1-8X continuous digital amplification，Optical electronic relay zoom

Housing

1、Material：aluminum alloy housing，waterproof;
2、Structure：Integral single window design ;
3、Surface：PTA coating, anti sea water corrosion;
4、Sealing rate：IP66
5、Built-in temperature controller，thermal balance design;
6、Interface：aviation waterproof connector ;

PTZ（optional）

1、Load：30kg military level digital PT ;
2、Angle：pan 0～360°，tilt -45°～+45°
3、Speed：0.01～30°/S high precision variable speed control and locking ;
4、Preset：80 presets，support lens zoom and focus memory，variable speed scanning 0～30°/S ，support apple peel scanning function;

Consumption ,weight

1、Consumption（PT included）：min.40W，max.120W
2、weight（PT included）：≤45kg

Interface

1. RJ45 interface

2. Remote OSD setting

3. PAL/NTSC video output

4.AC/DC24V, anti-reverse connection protection

5. Waterproof connector

Environment indicator

1、Working temperature：-25℃～+55℃（-40℃ optional）
2、Storage temperature：-35℃～+75℃
3、Humidity：<90%
4、Anti-shock：0.2g（GB/T15211—20135.4 harshest level 2 standard）
5、Anti-resistance：15g（GB/T15211—20135.3 harshest level 3 standard）
6、Anti-lightening：power 4000V，signal 2000V
7、Anti salty：PH6.5～7.2，continuous sprarying 48 hours ;
8、Protection rate：IP66
