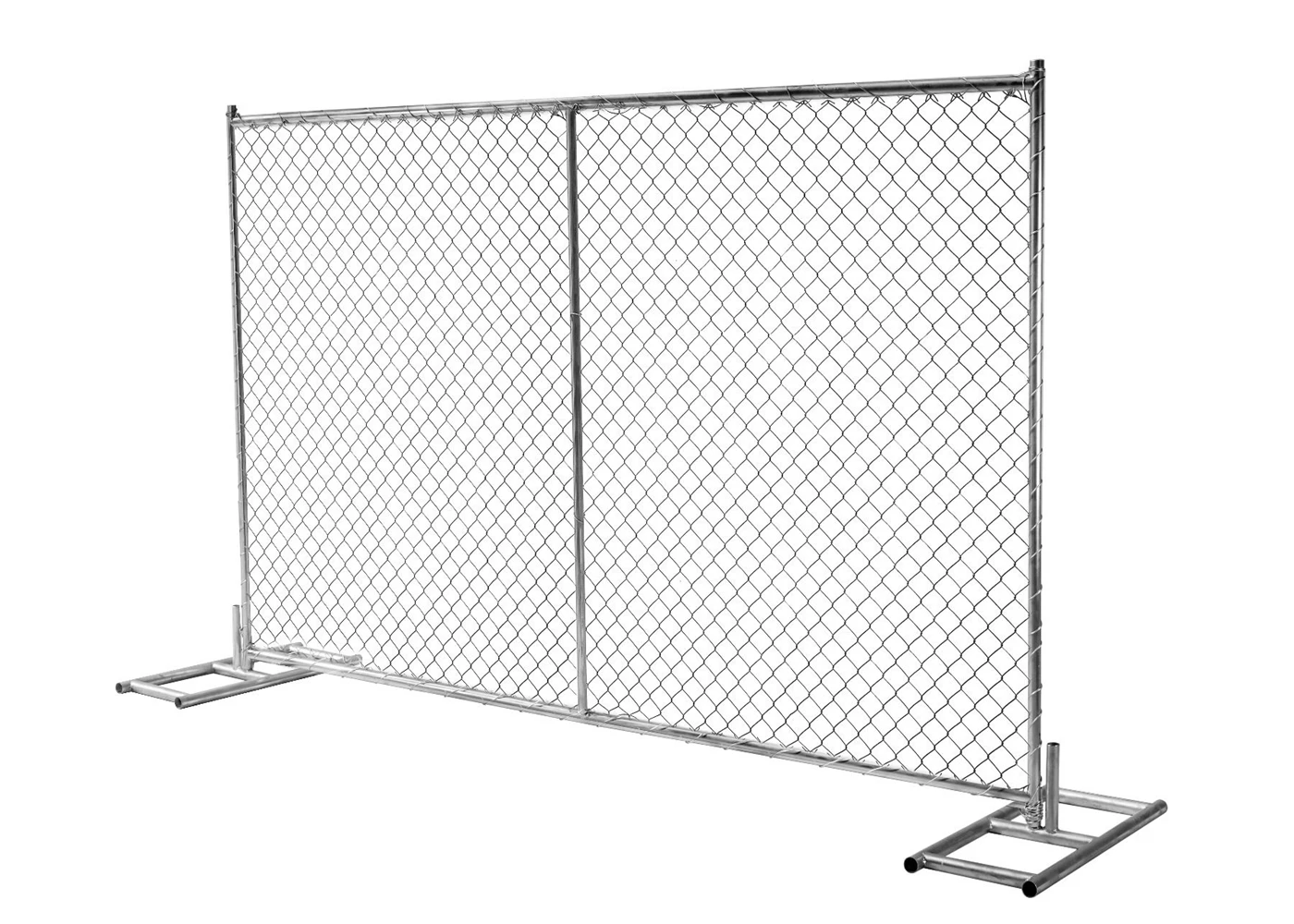

TEMPORARY CHAIN LINK FENCE ROBUST, EASY SET UP AND TEAR DOWN.
- Category: >>>
- Supplier: Anping Hongjin Metal Wire Mesh Products Co. Ltd
Share on (1600938338667):
Product Overview
Description
Product Description
Anti-Corrosion & Visible Temp Chain Link Fencing
Temporary chain link fence is made up of chain link mesh panels weaved by hot dip galvanized steel wire, tubular welded frame,clamps and stable fencing block. All panels are hand made by traditional craft from beginning to end. Technical workers use tension bars and tension bands to wrap the tie wire tightly around the tubular frame. And then a self-supporting and modular temporary fencing system is formed.
As a professional manufacturer, our temporary chain link fence mainly exported to the United States and Australia, and has been praised unanimously by our comprehensive service. Welcome to your customized orders form different panel dimensions and mesh opening.
As a professional manufacturer, our temporary chain link fence mainly exported to the United States and Australia, and has been praised unanimously by our comprehensive service. Welcome to your customized orders form different panel dimensions and mesh opening.
Features & Benefits
Hand Craft Technology

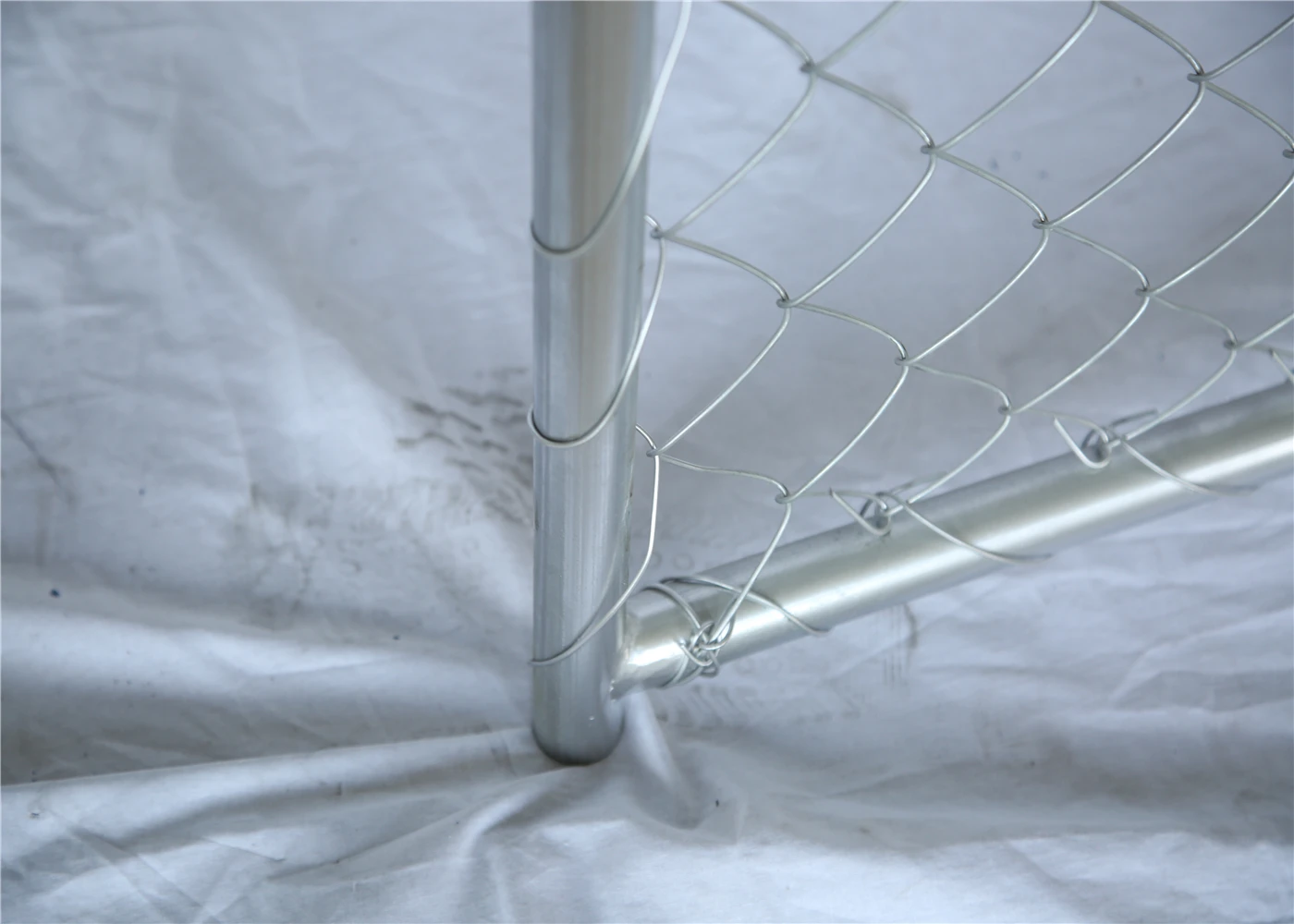

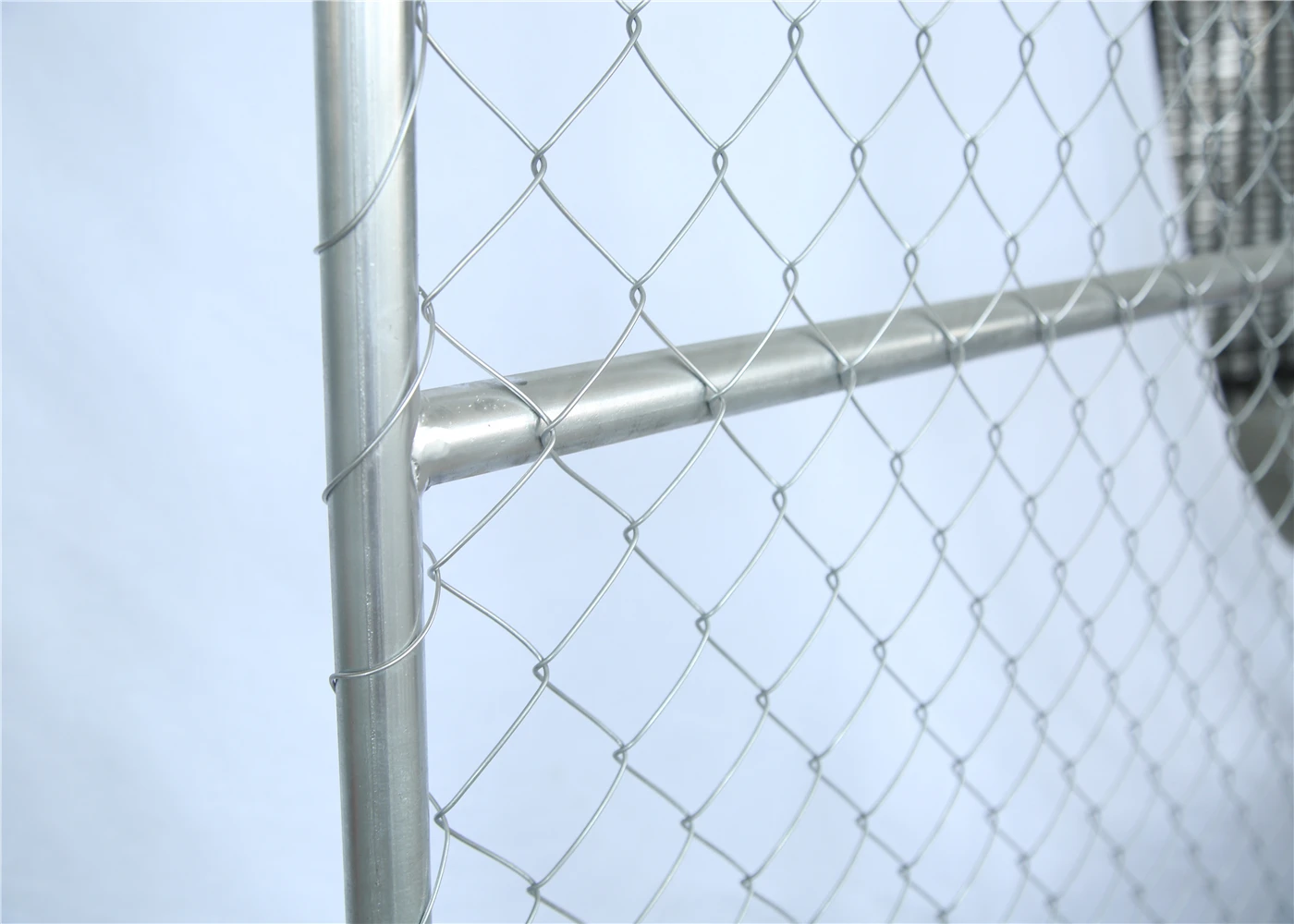

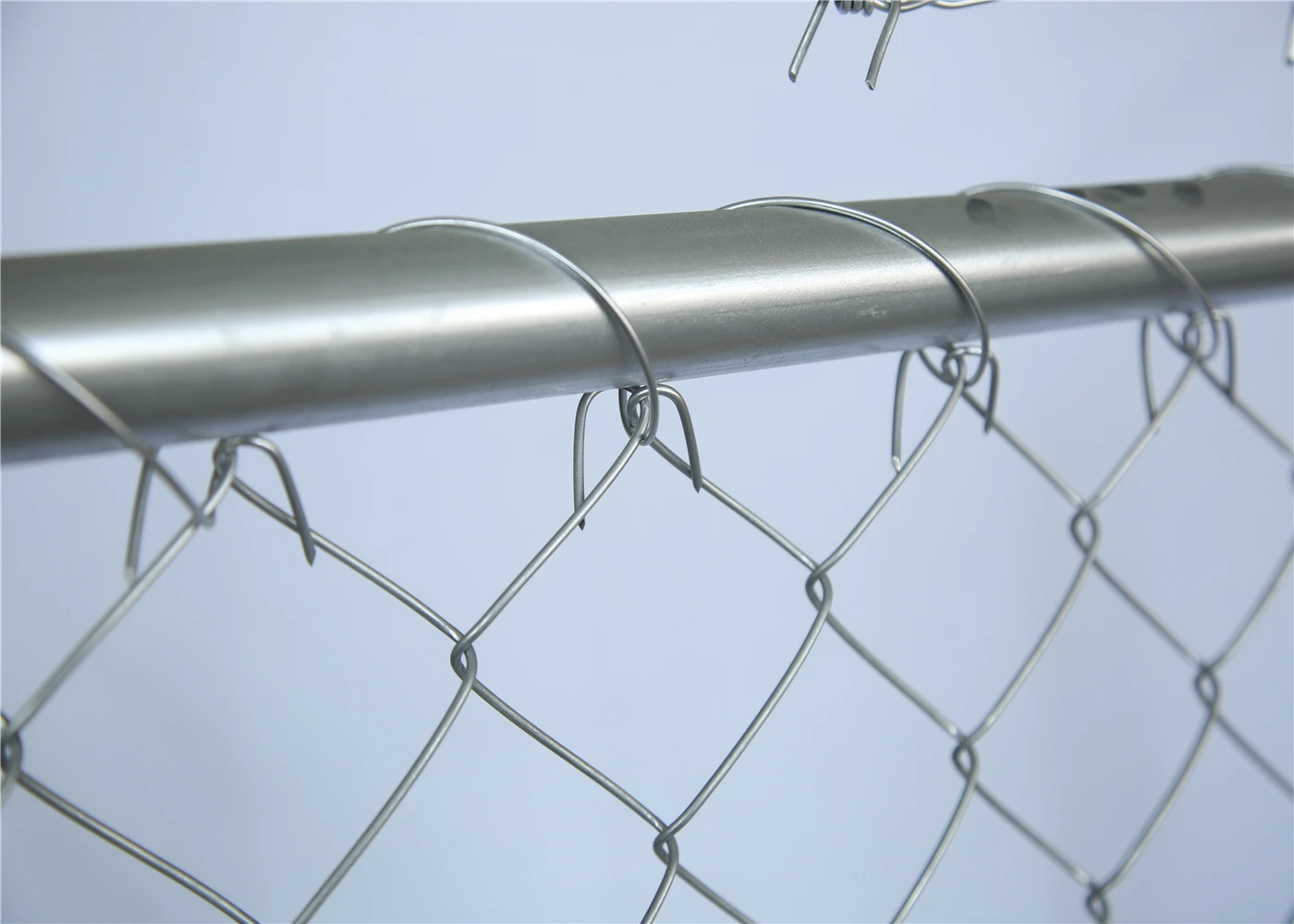

Workers use galvanized wire wrapped the chain link mesh with steel frame together by tension bars and tension bands in a rather tension way
Stable Fence Frame
360° full welding by hand and hot dipped galvanized surface treatment to prevent cracks and corrosion.
Quick Installation
No need to dig holes or laying foundations, just connect the panel and the feet with a pre-designed plug-in way
Adaptable
Three types of stable fence feet available can find the best anchor point, even uneven ground, sloping sites.
Technical Details

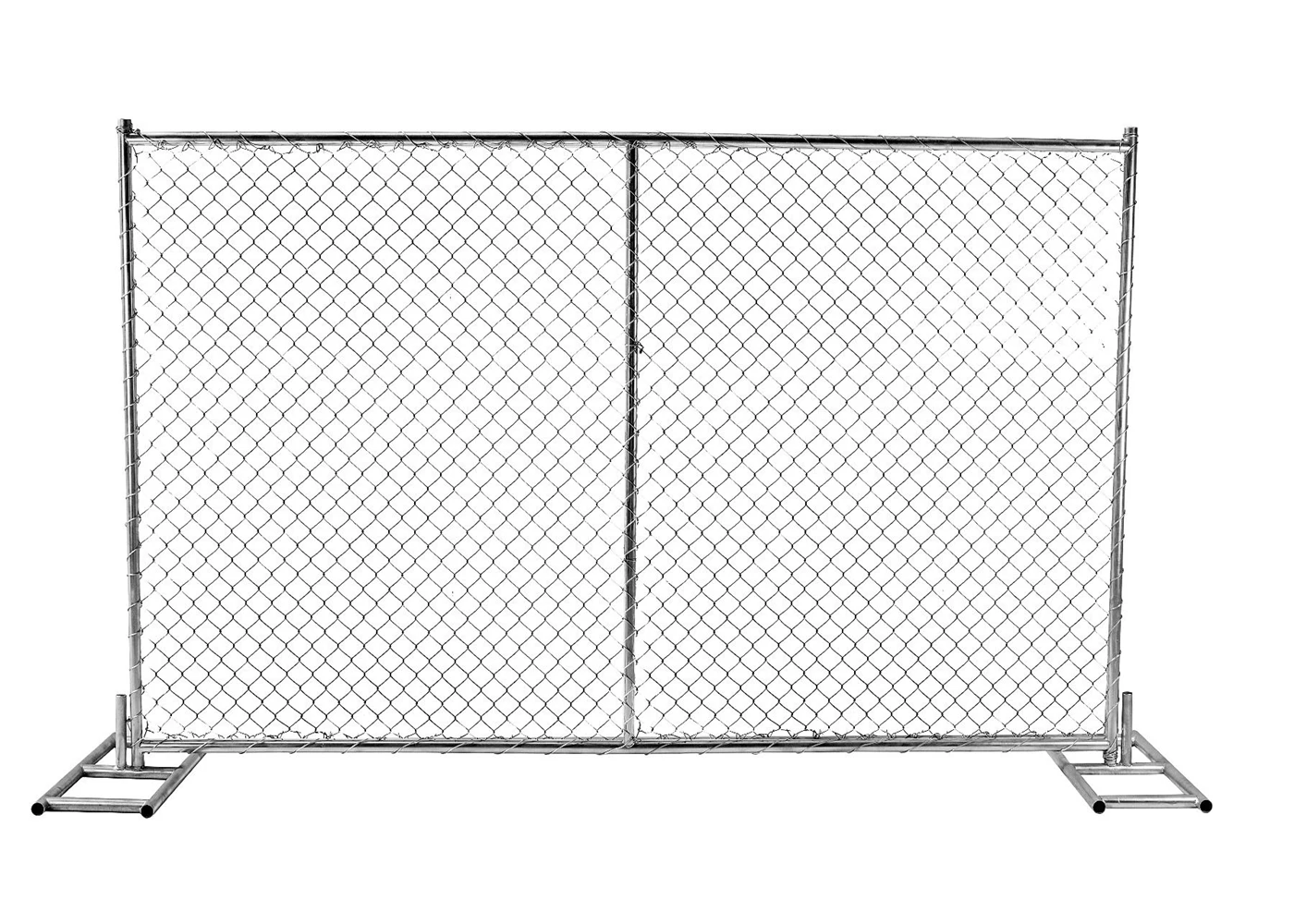

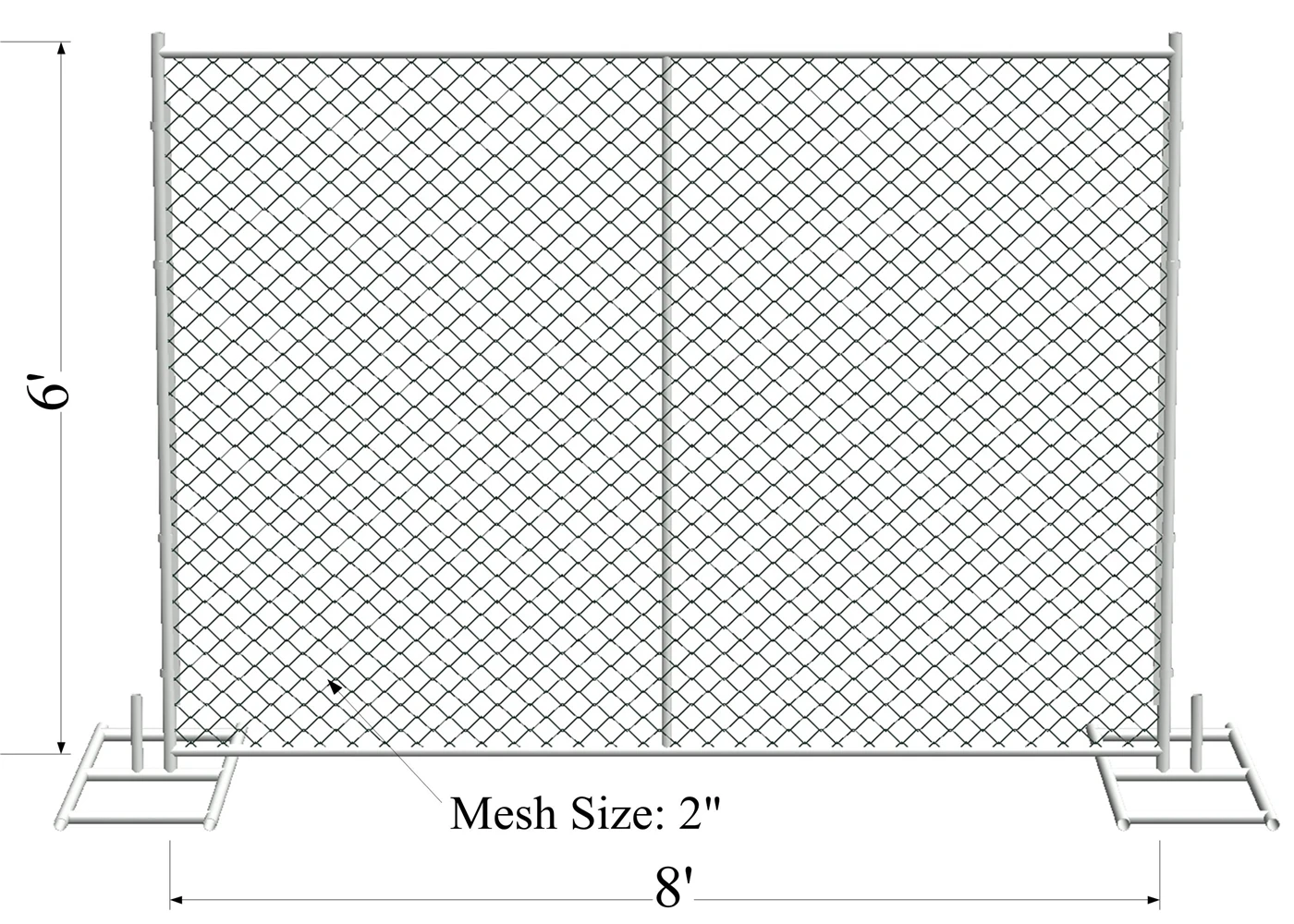

6' × 8' Temp Chain Link Fencing
Dimensions (H × L): 6' × 8'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.
Finish: Hot dipped galvanized & Pre-galvanized.

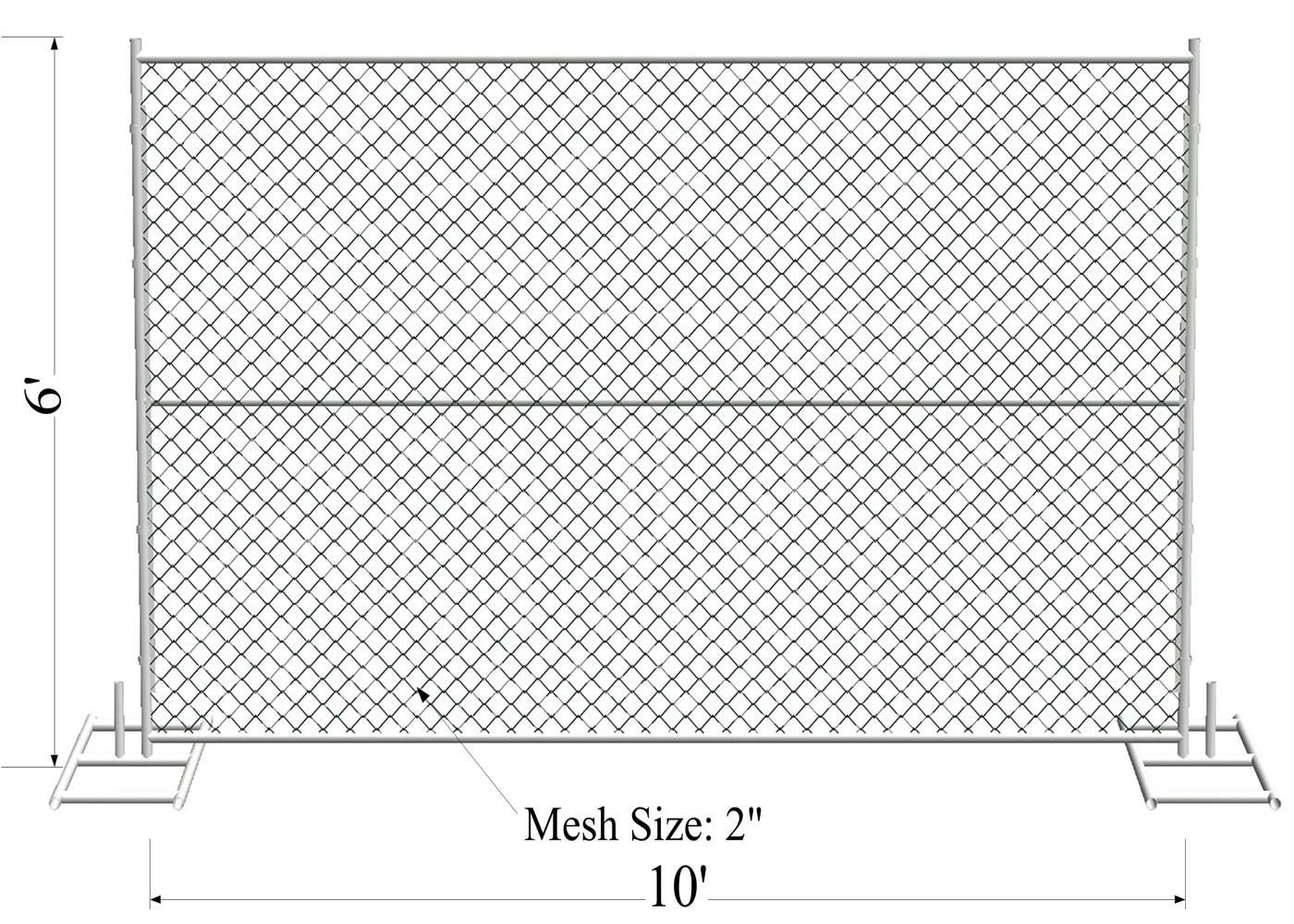

6' × 10' Temp Chain Link Fencing
Dimensions (H × L): 6' × 10'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.
Finish: Hot dipped galvanized & Pre-galvanized.

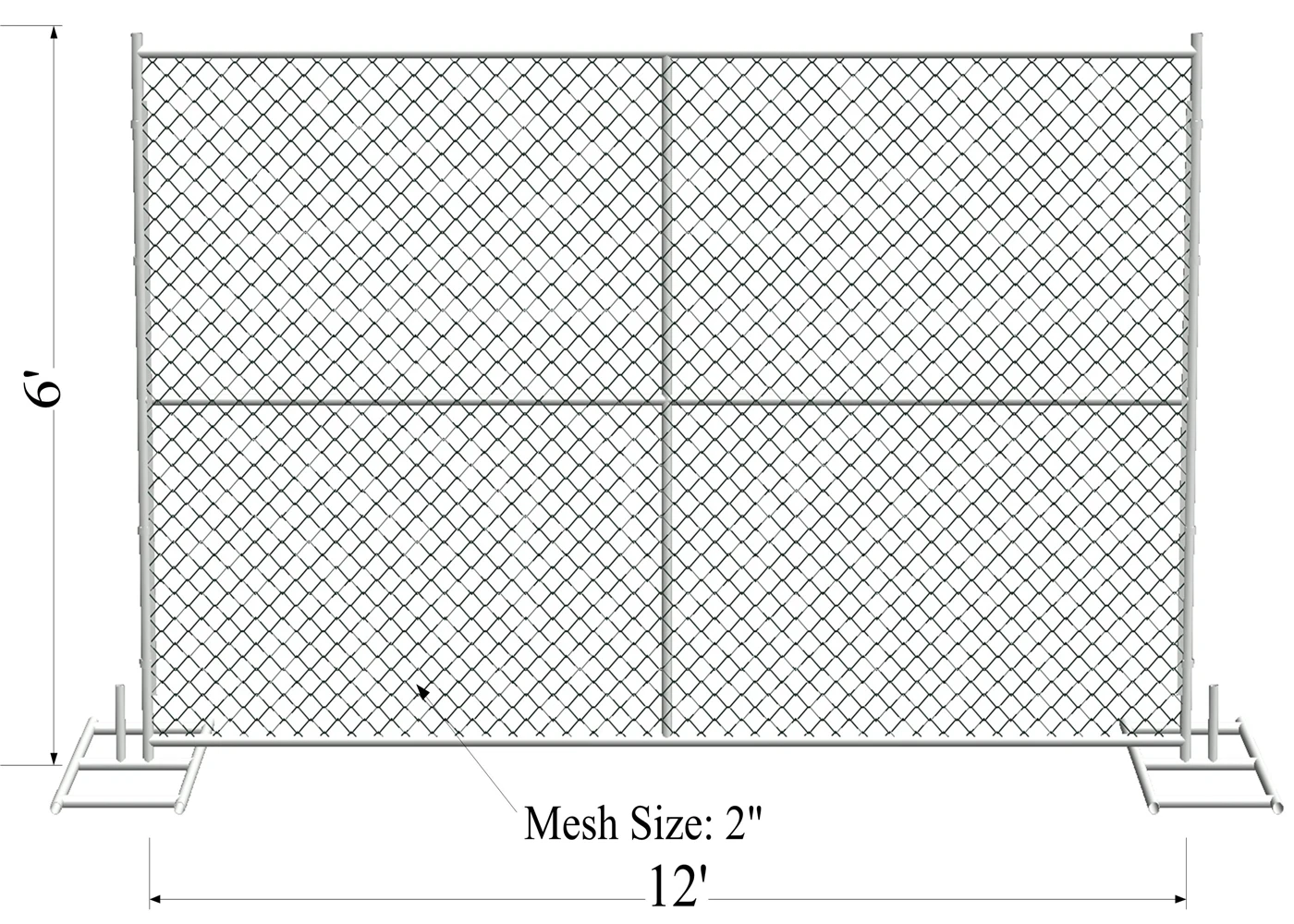

6' × 12' Temp Chain Link Fencing
Dimensions (H × L): 6' × 12'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.

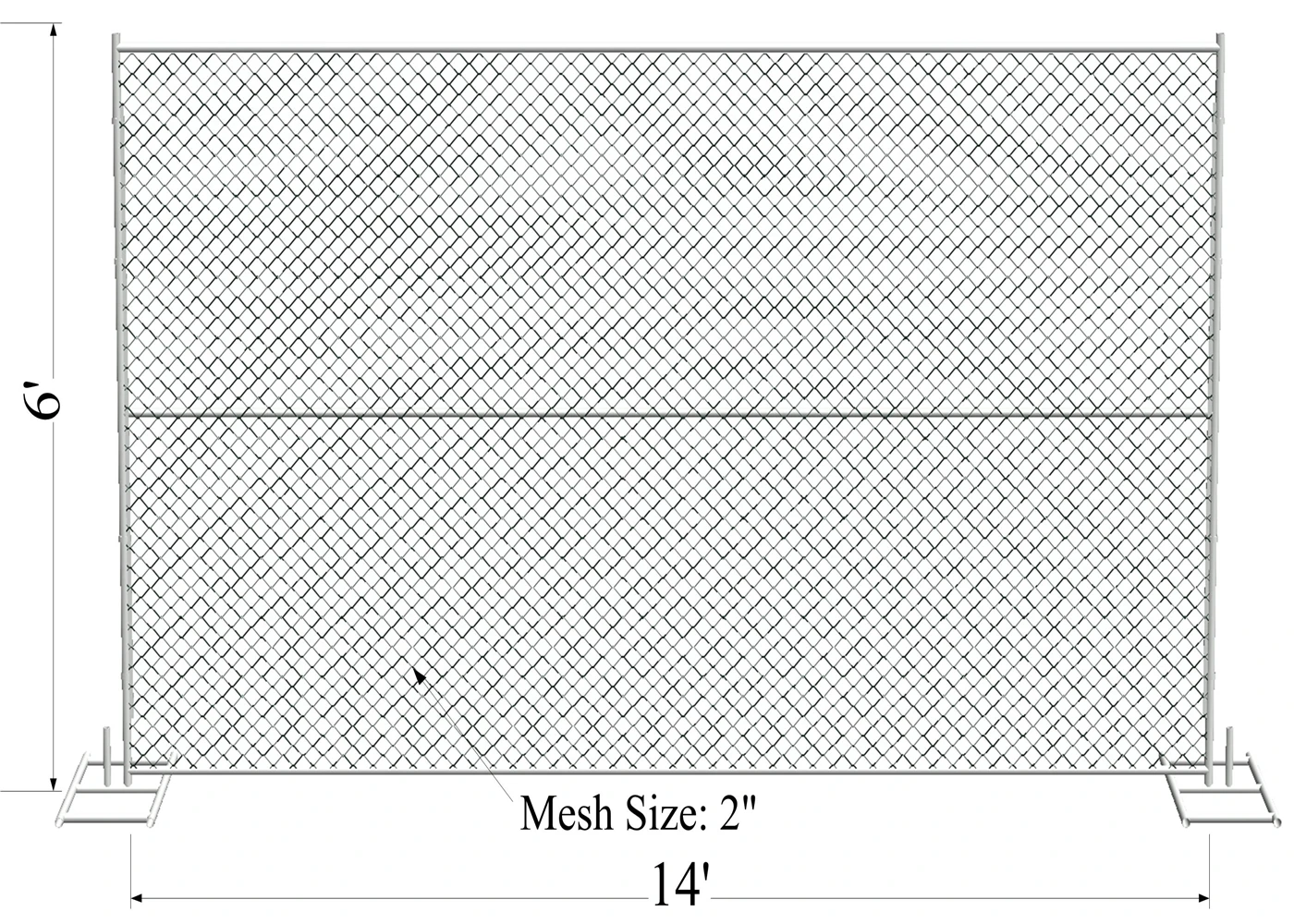

6' × 14' Temp Chain Link Fencing
Dimensions (H × L): 6' × 14'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.
Finish: Hot dipped galvanized & Pre-galvanized.

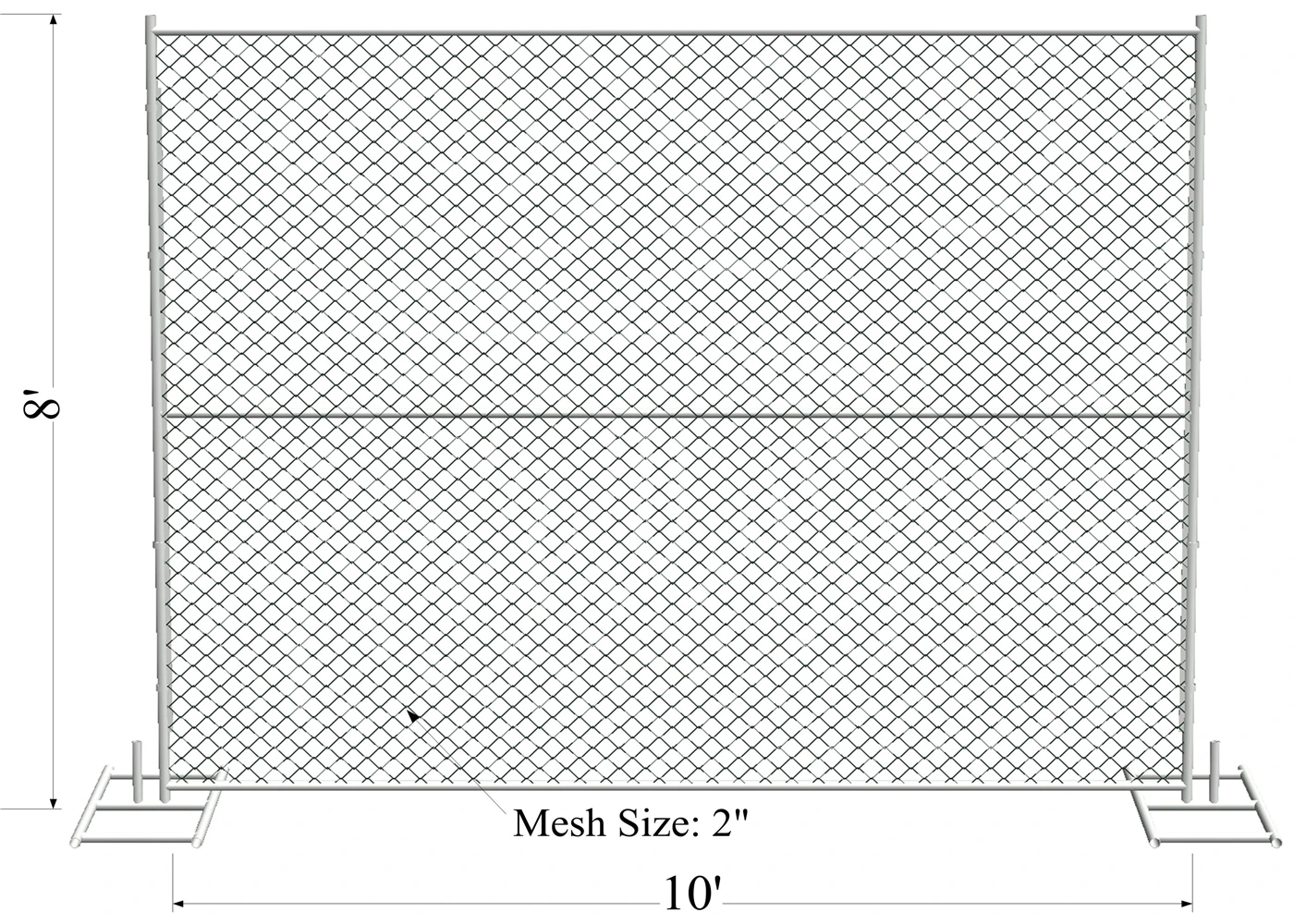

8' × 10' Temp Chain Link Fencing
Dimensions (H × L): 8' × 10'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized.
Finish: Hot dipped galvanized & Pre-galvanized.

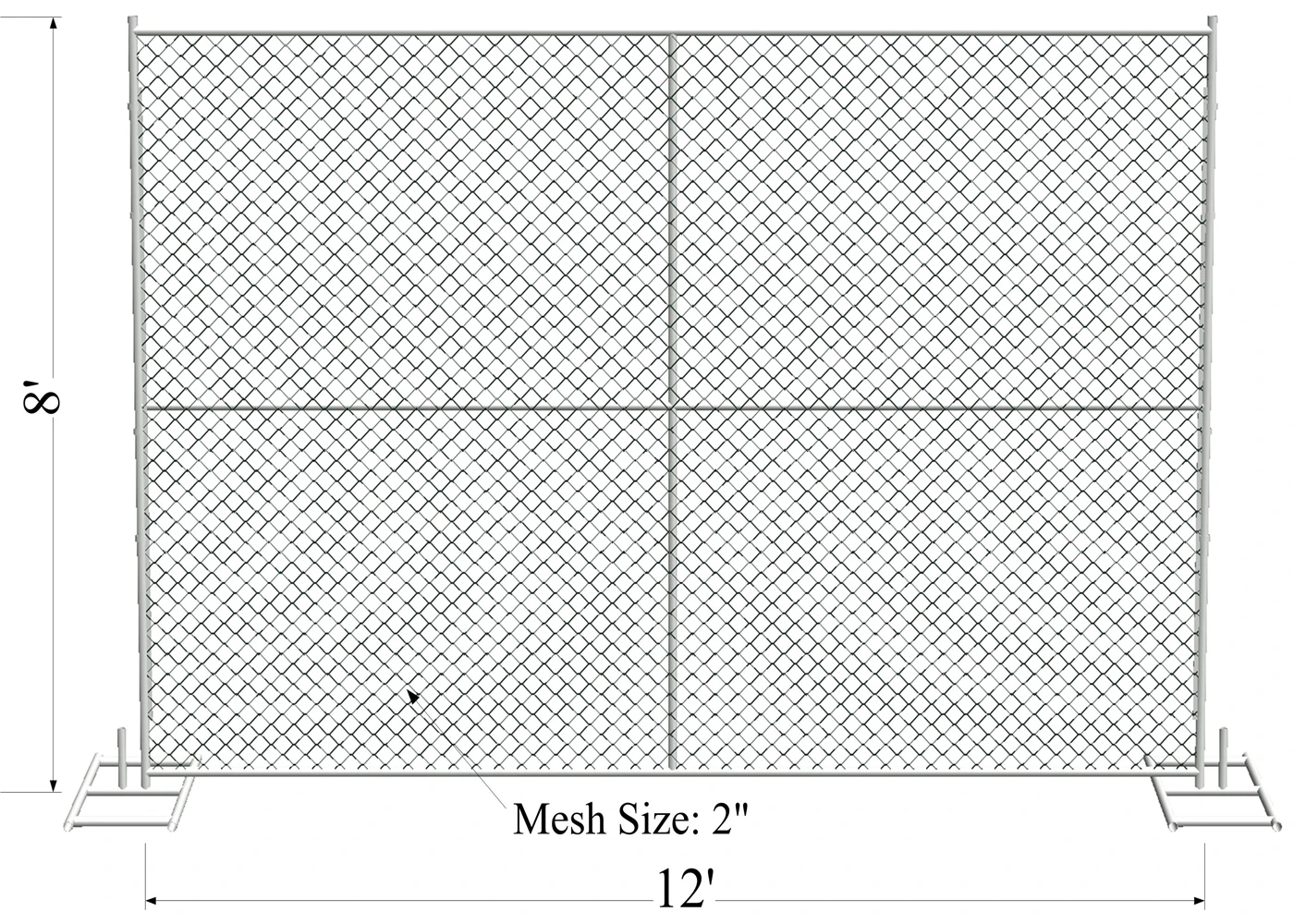

8' × 12' Temp Chain Link Fencing
Dimensions (H × L): 8' × 12'.
Frame O.D.: 1.25", 1.5", 1.6" round optional. Brace: Cross, vertical, horizontal brace with 1" round or the same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized
Finish: Hot dipped galvanized & Pre-galvanized
ASSOCIATED ACCESSORIES

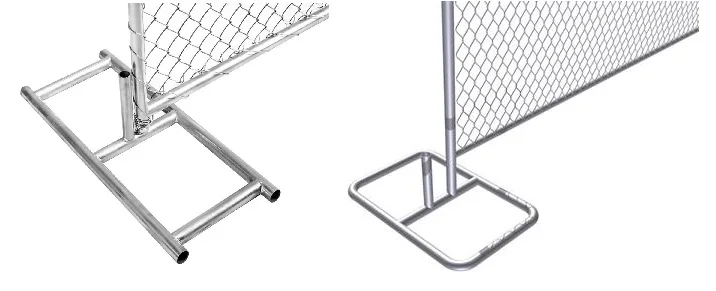

Square/Oval fence feet
Dimensions (H × W × TH):
36" × 13.75" × 20",
30" × 18" × 20" optional.

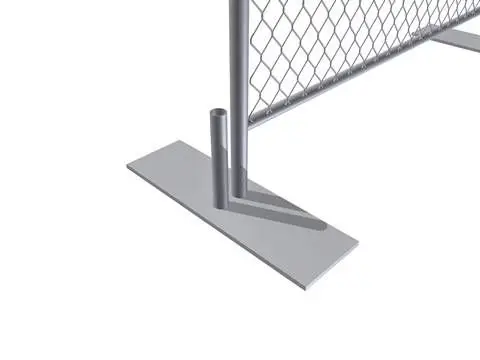

Flat fence feet
Dimensions (H × W × TH):
23.6" × 4.3" × 0.3", 35.4" × 3.0" × 0.25" optional.
Hole size O.D.: 19 mm.
Interior round steel rod/pipe:
30 mm O.D. × 150 mm H.
30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe:
30 × 30 × 150 mm.
Rod space: 30 mm.

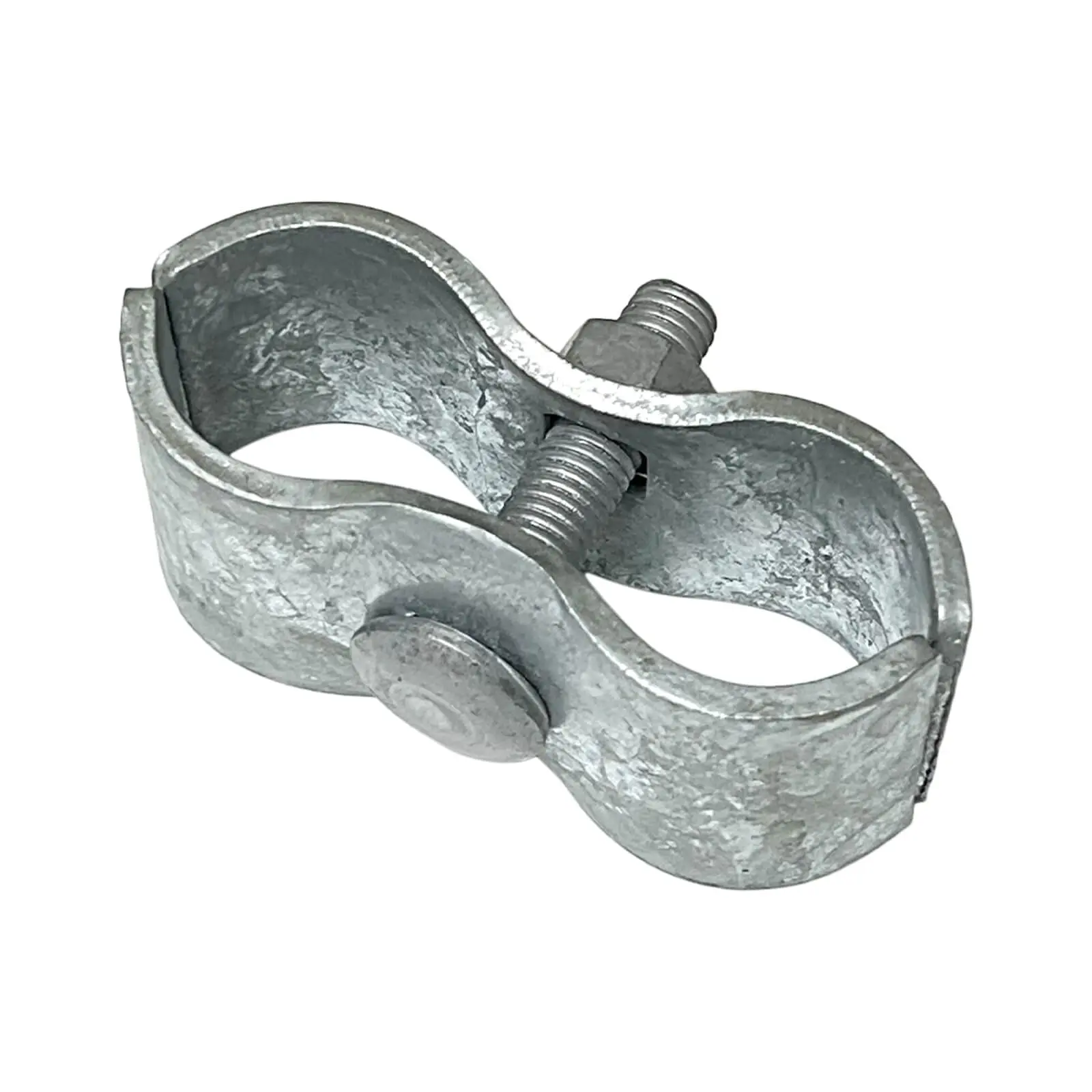

Clamp
Clamp center distance: 80, 90, 100 mm optional.
Applied post O.D.: 25, 28, 32, 38, 40, 42 mm optional.
Accessory List: 2 pieces clamps with 1 bolt and 1 nut.
Finish: Hot dipped galvanized& Pre-galvanized.

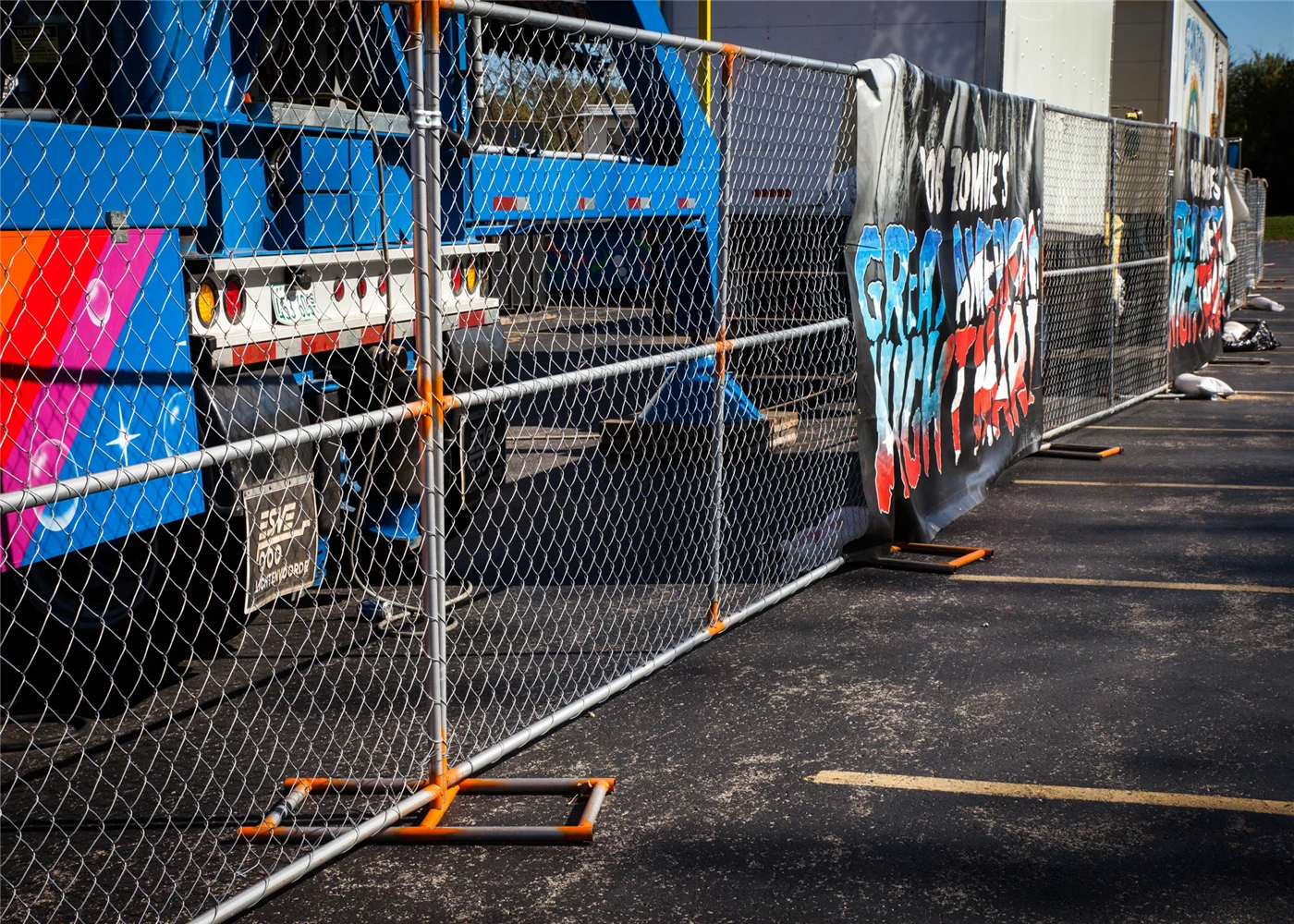

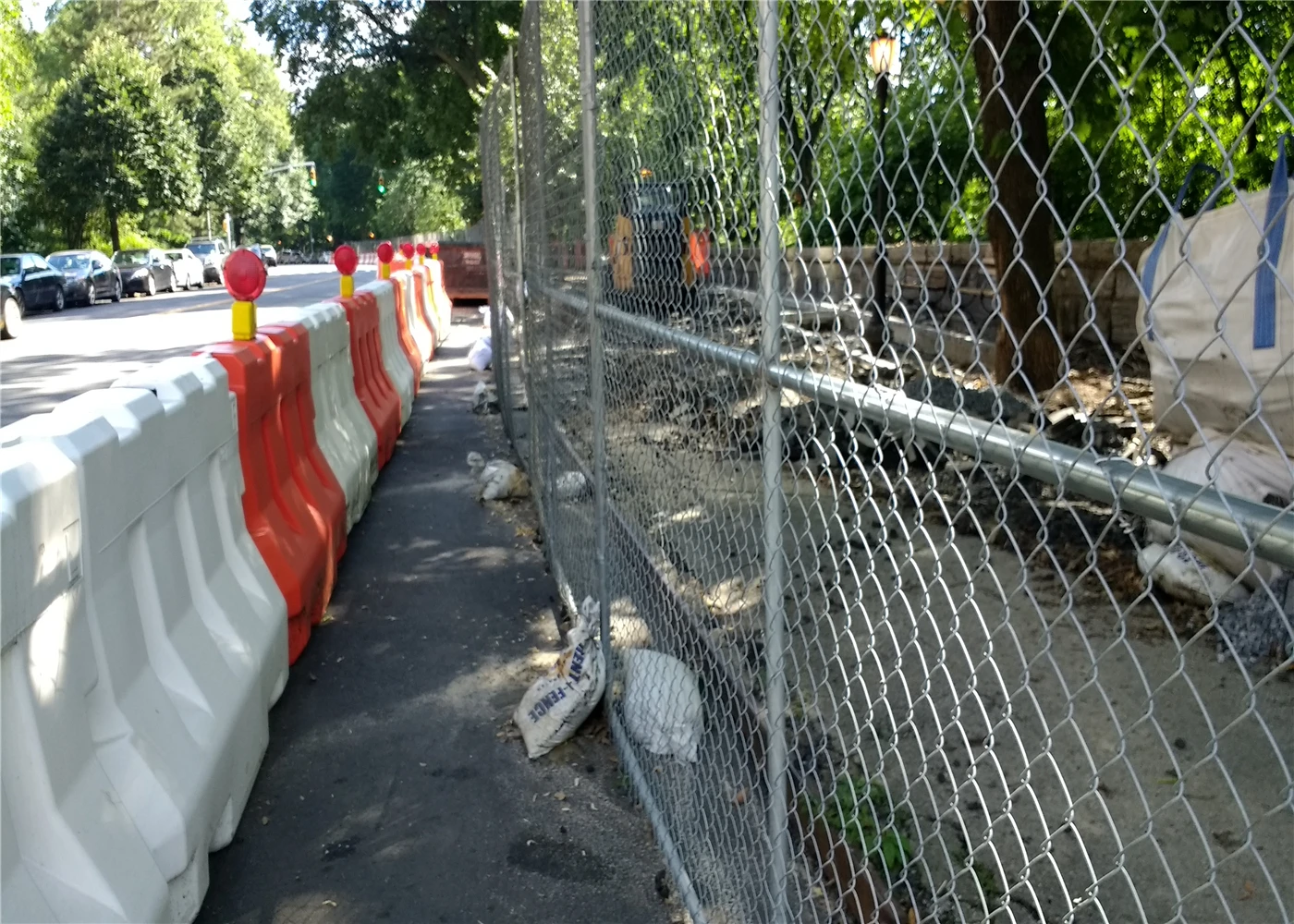

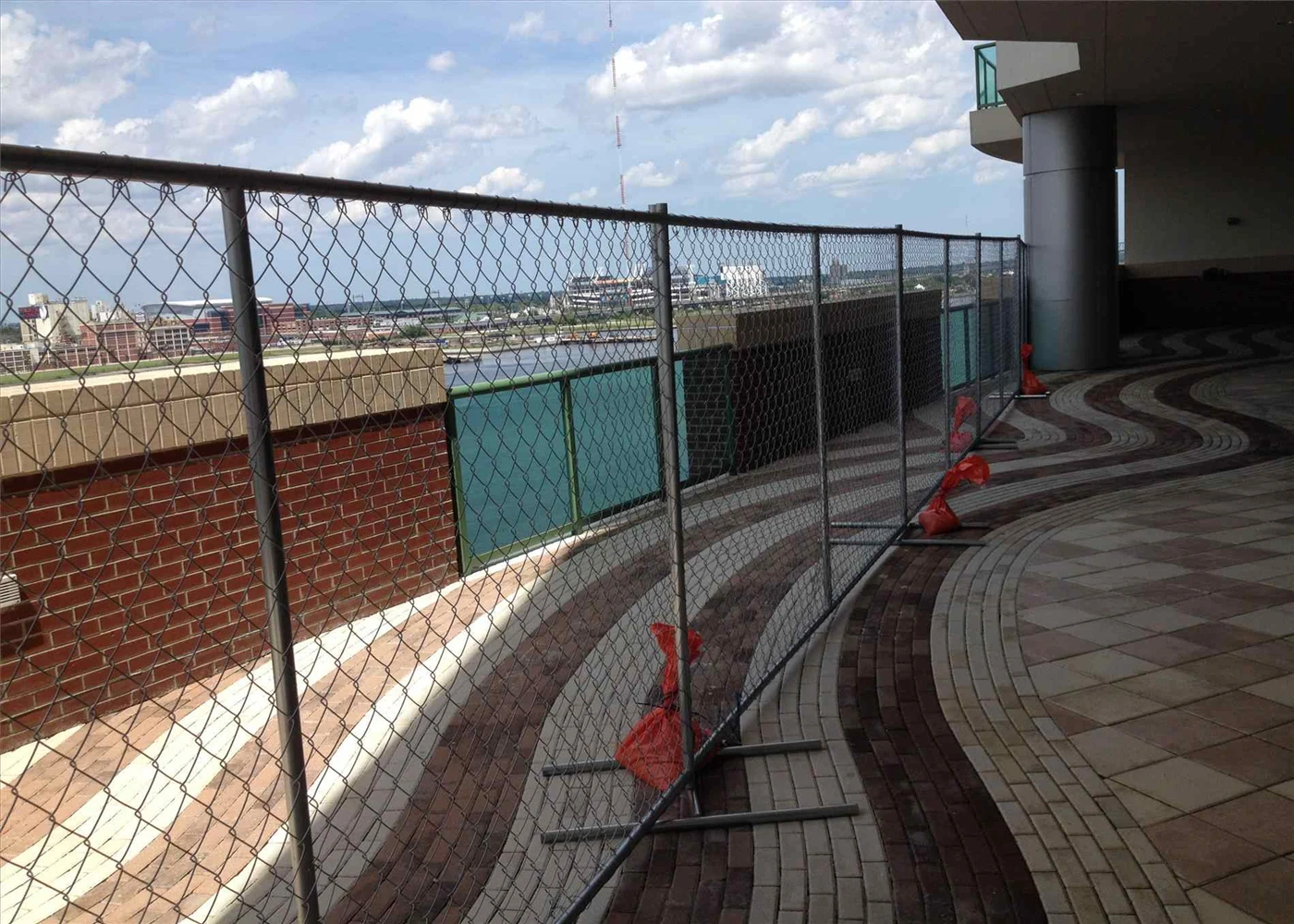

Products Application
Garden Centres,Renovations,Property Restoration,Site Security,Construction Sites,Parades,Festivals,Sporting Events,Concerts,Crowd Control,Christmas Tree Sales,School Grounds.
Other uses for temporary fencing include venue division at large outdoor events, parking lots and public restriction on
industrial construction sites.
Other uses for temporary fencing include venue division at large outdoor events, parking lots and public restriction on
industrial construction sites.

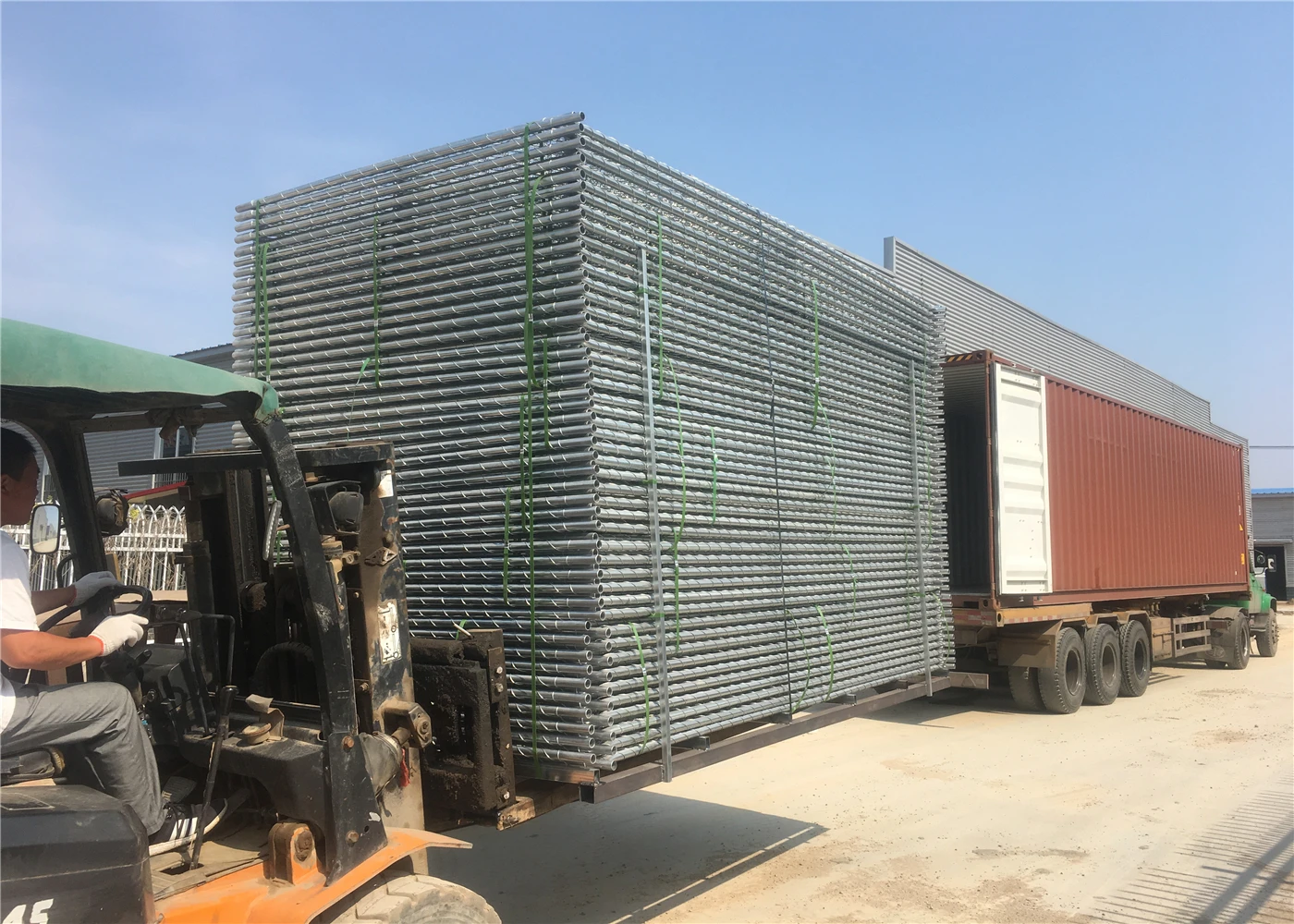

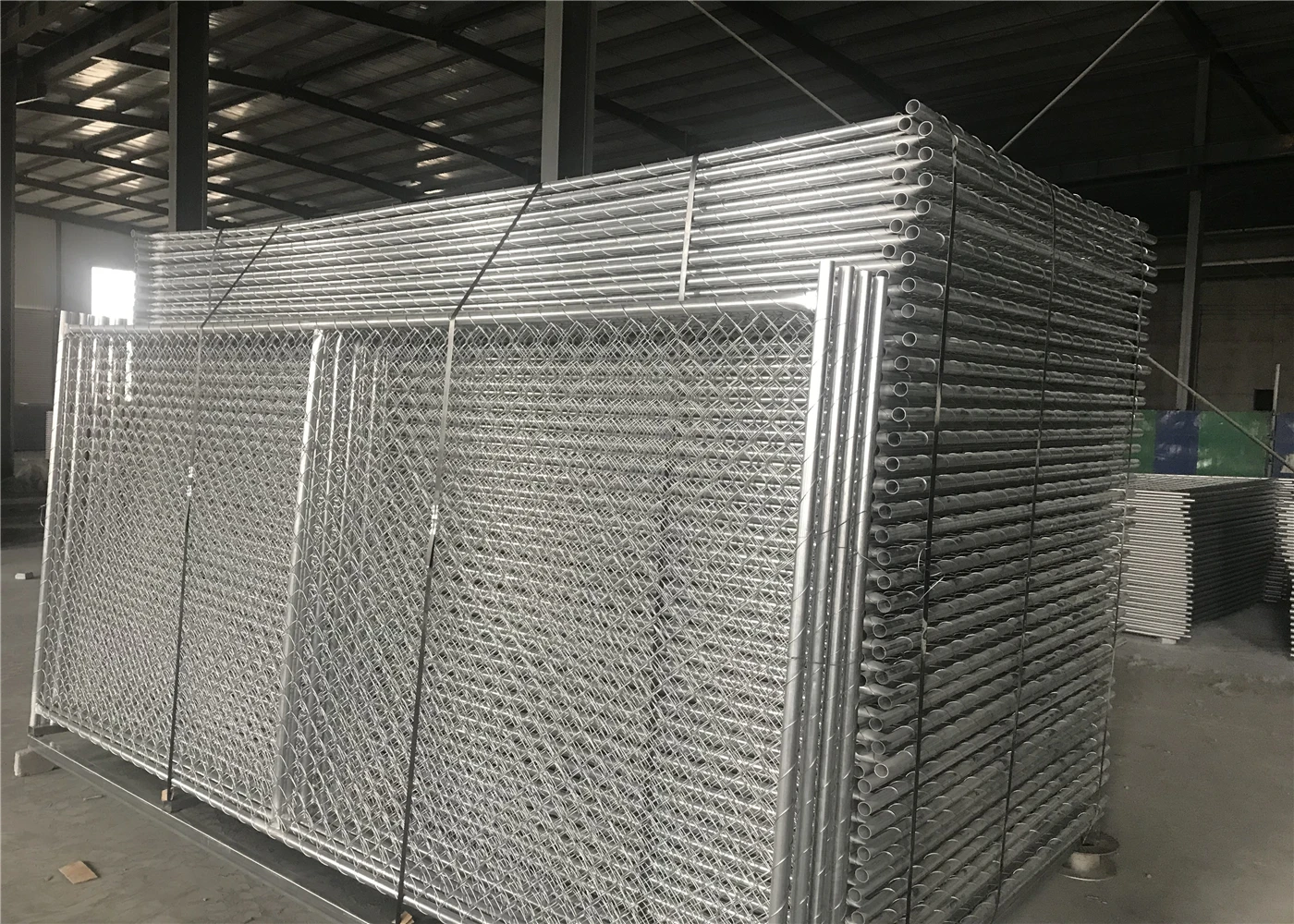

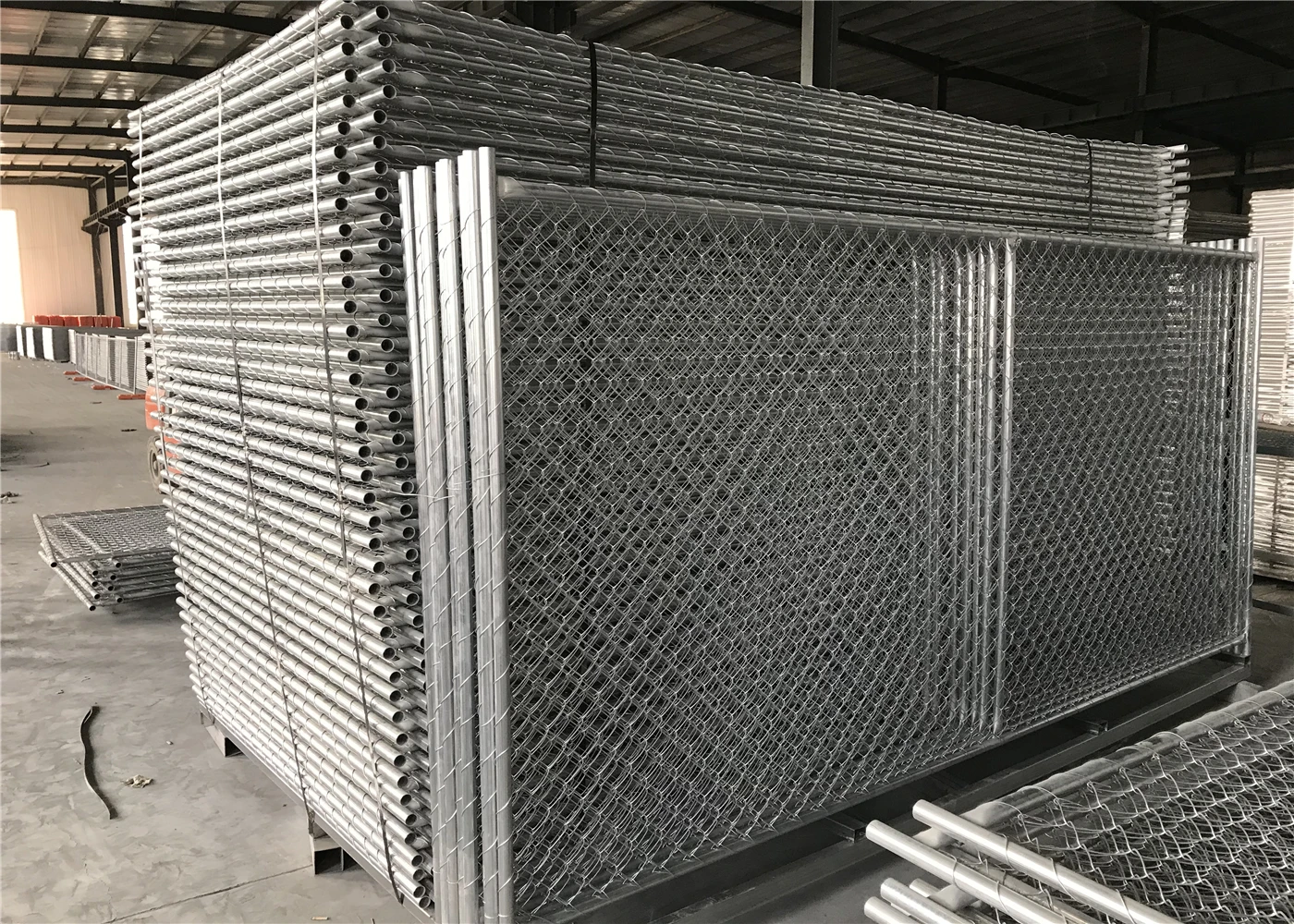

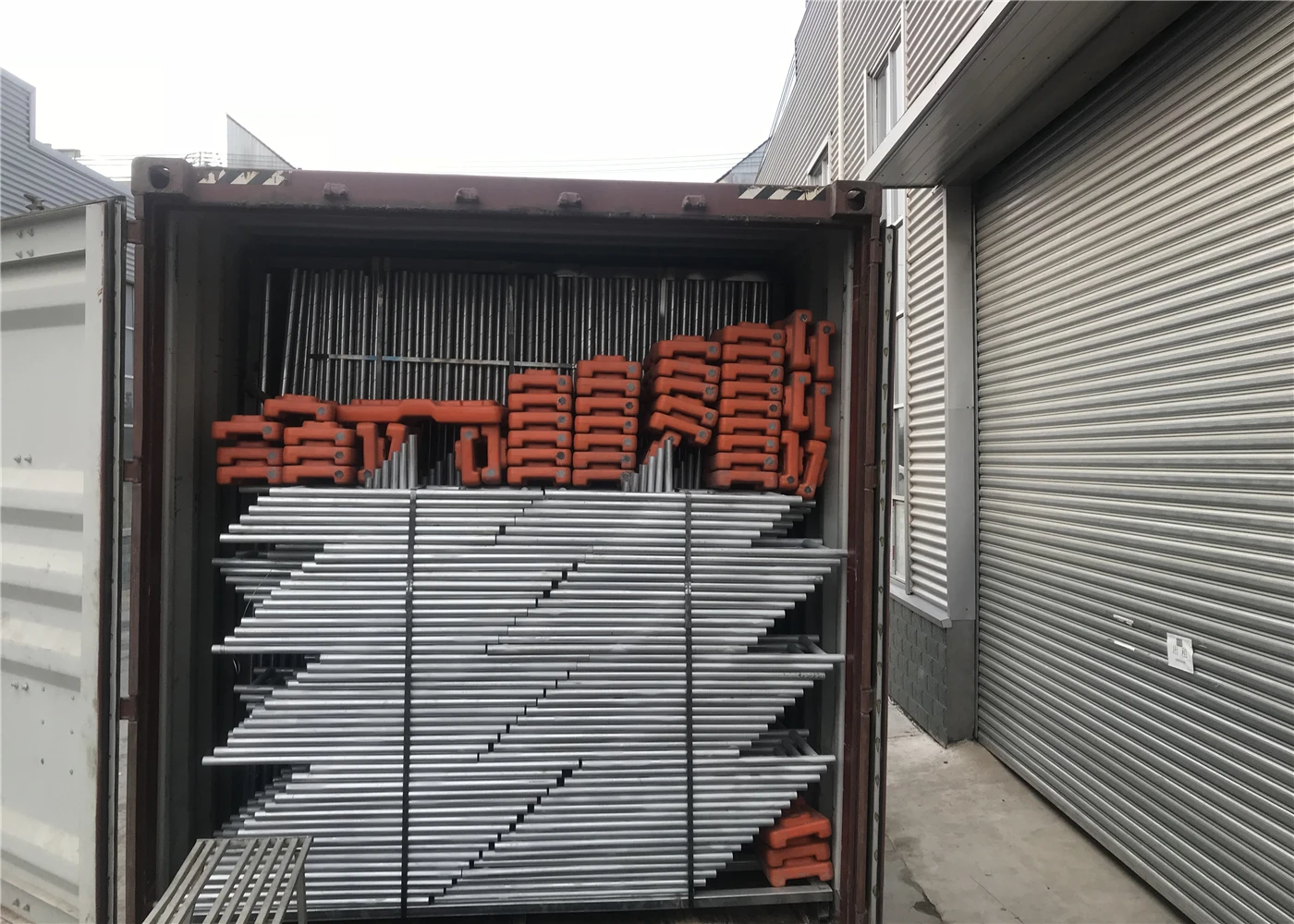

Product packaging
Packaging of America temporary fence
1>it has soft sponge at the bottom of the pallet to avoid the bottom fence panel to be damaged by metal pallet.
2>it has 4 metal corners to keep the pallet be more strong.
3>it has metal plate under the plastic bandage to avoid the bandage to pressure the fence panel.

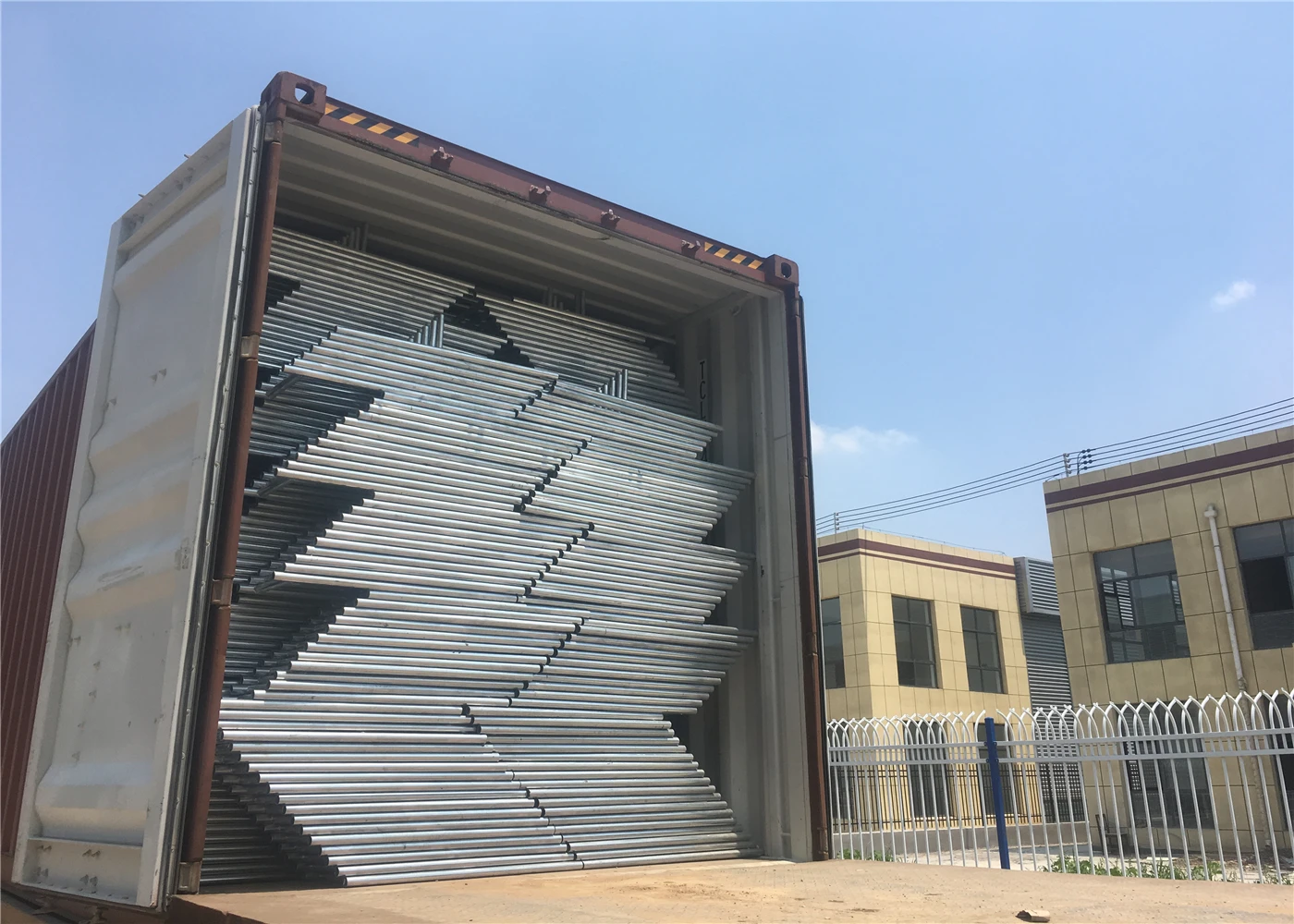

Shipping: 7-30 working days after supplier confirm received the deposit.
1>it has soft sponge at the bottom of the pallet to avoid the bottom fence panel to be damaged by metal pallet.
2>it has 4 metal corners to keep the pallet be more strong.
3>it has metal plate under the plastic bandage to avoid the bandage to pressure the fence panel.
Shipping: 7-30 working days after supplier confirm received the deposit.
Company Profile
Why Choose Us
* Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.
* Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.
* Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating.Service life can reach more than ten years.
* One-stop supply system. All needed hardware are included in the bulk cargo.
* Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.
* Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
* Free value-added service. Each container will be equipped with extra 20 clamps, bolts and screws for replacement.
* Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.
* Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating.Service life can reach more than ten years.
* One-stop supply system. All needed hardware are included in the bulk cargo.
* Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.
* Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
* Free value-added service. Each container will be equipped with extra 20 clamps, bolts and screws for replacement.
