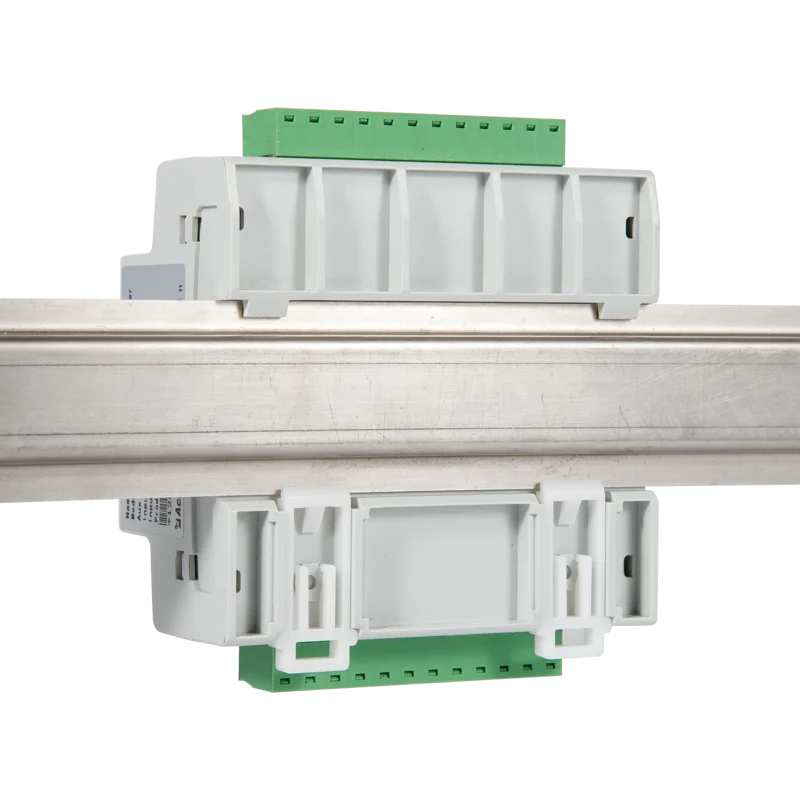

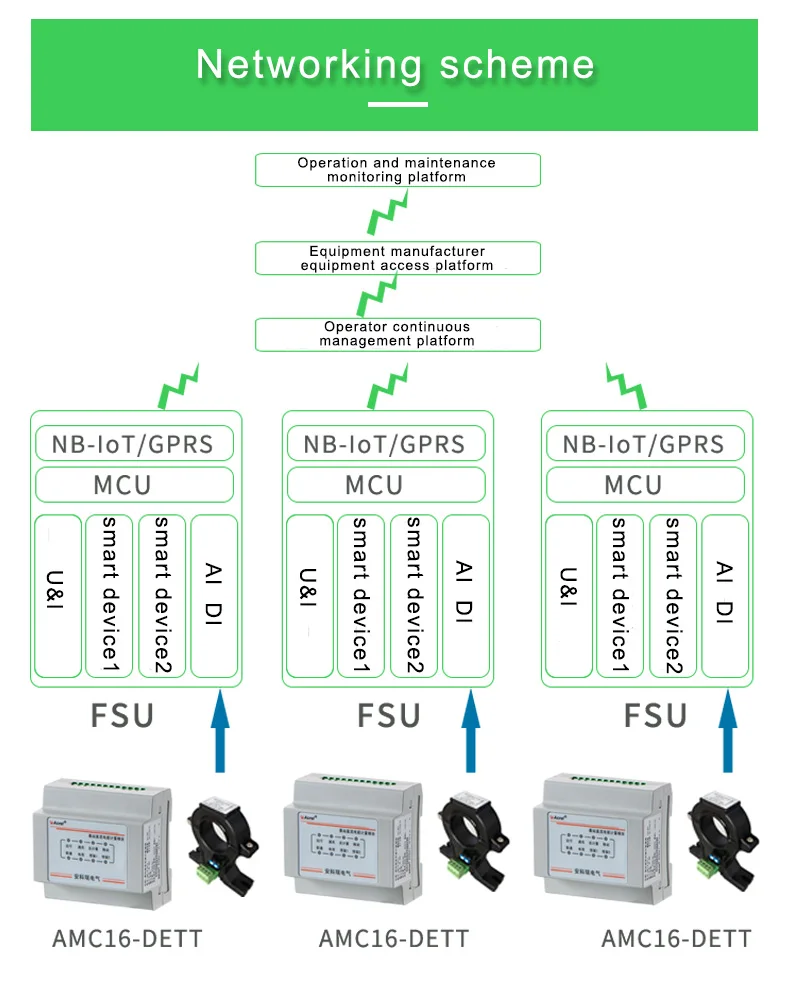

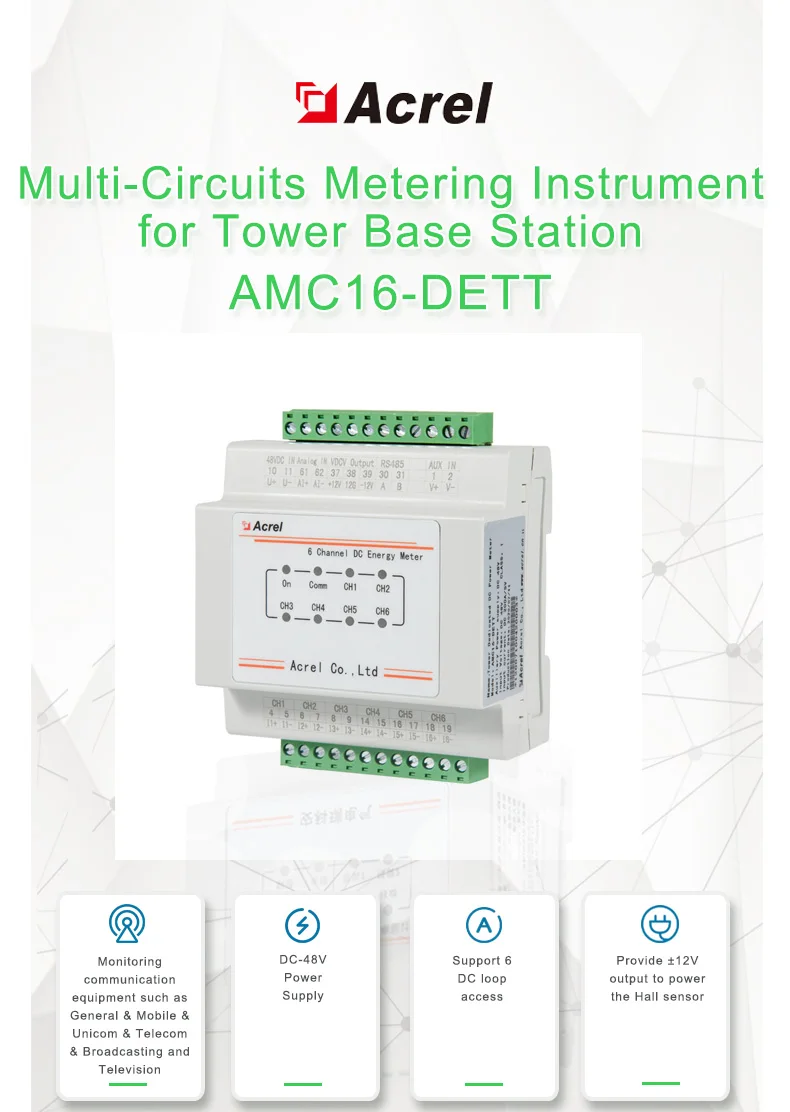

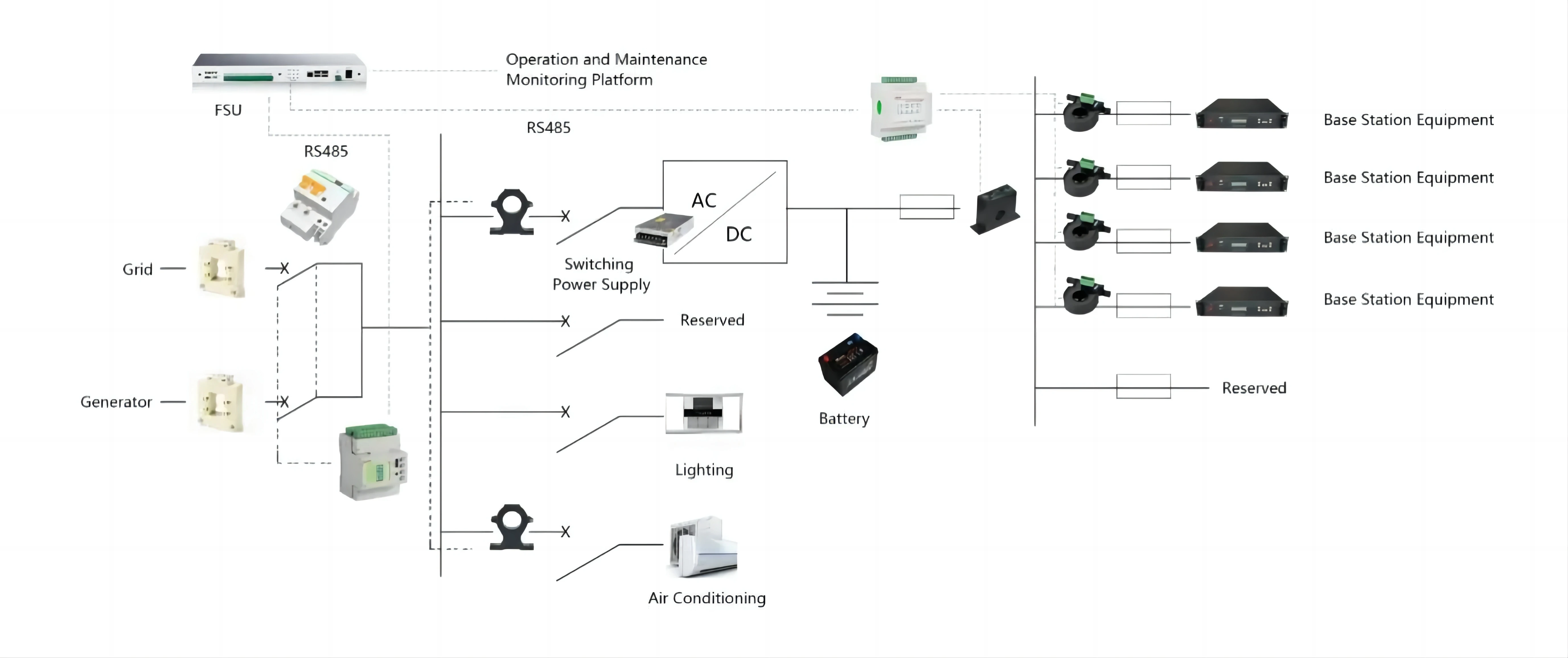

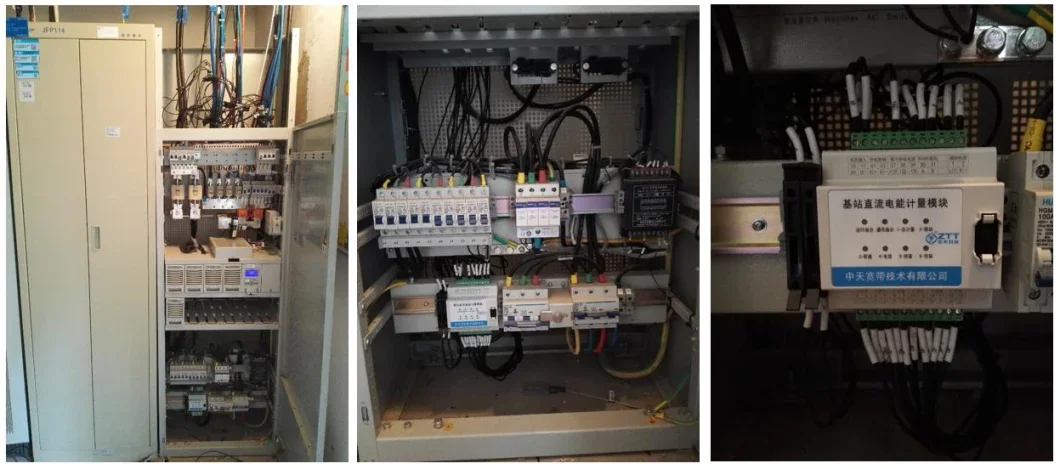

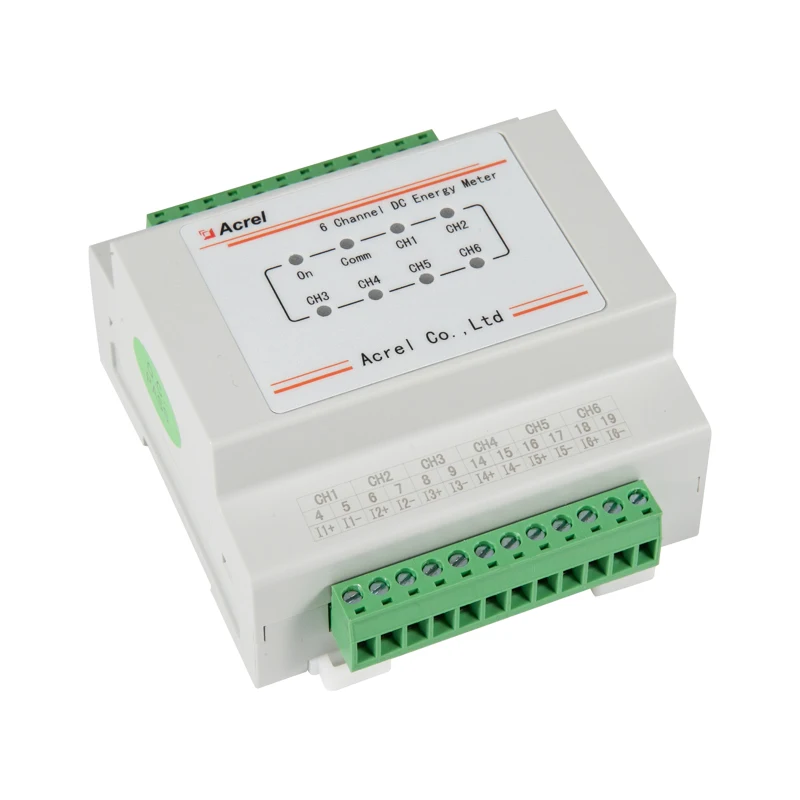

Acrel AMC16 DETT DC Energy Electric Meter rs485 Modbus for Telecom Tower Base Station Equipment Power Monitoring

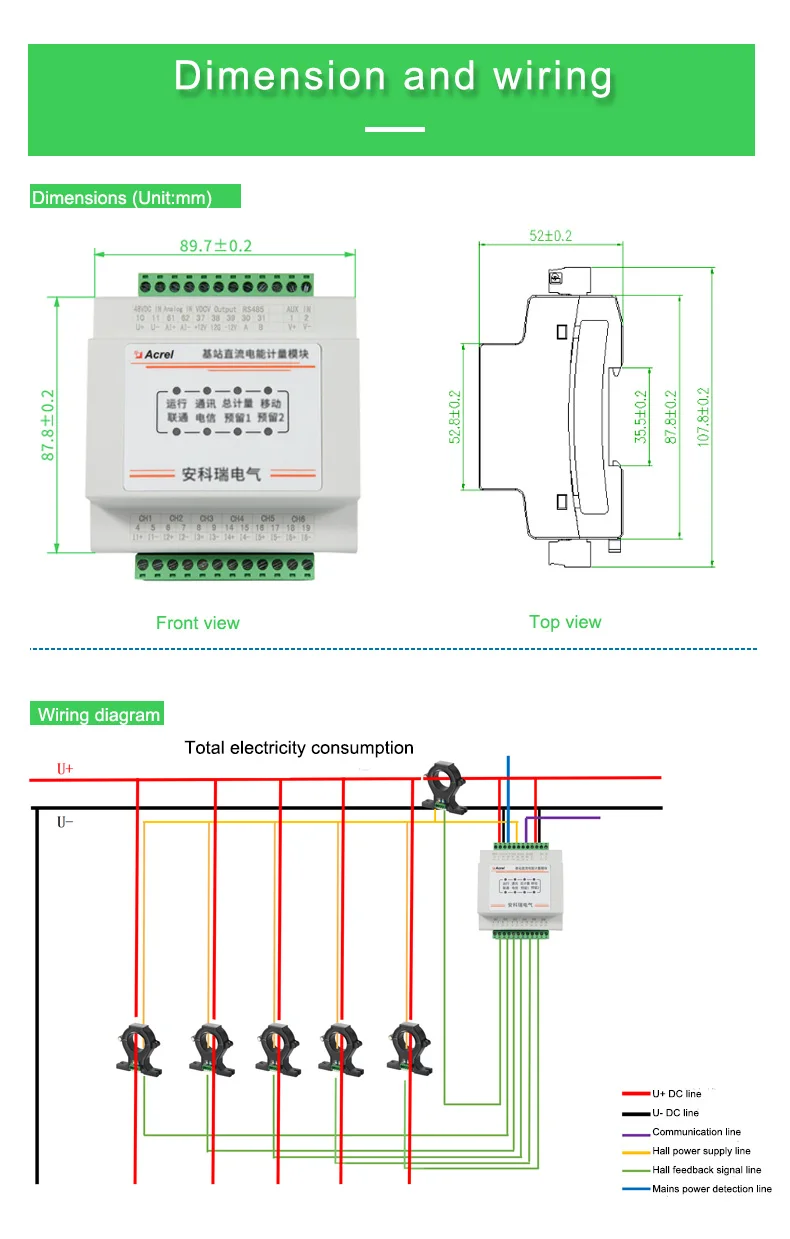

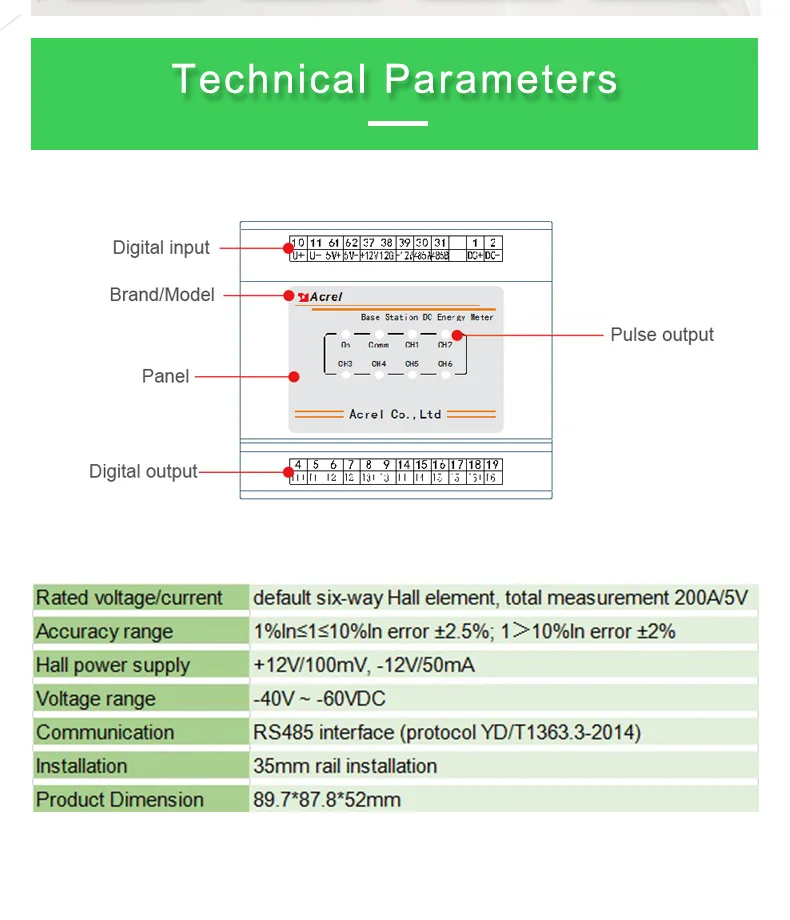

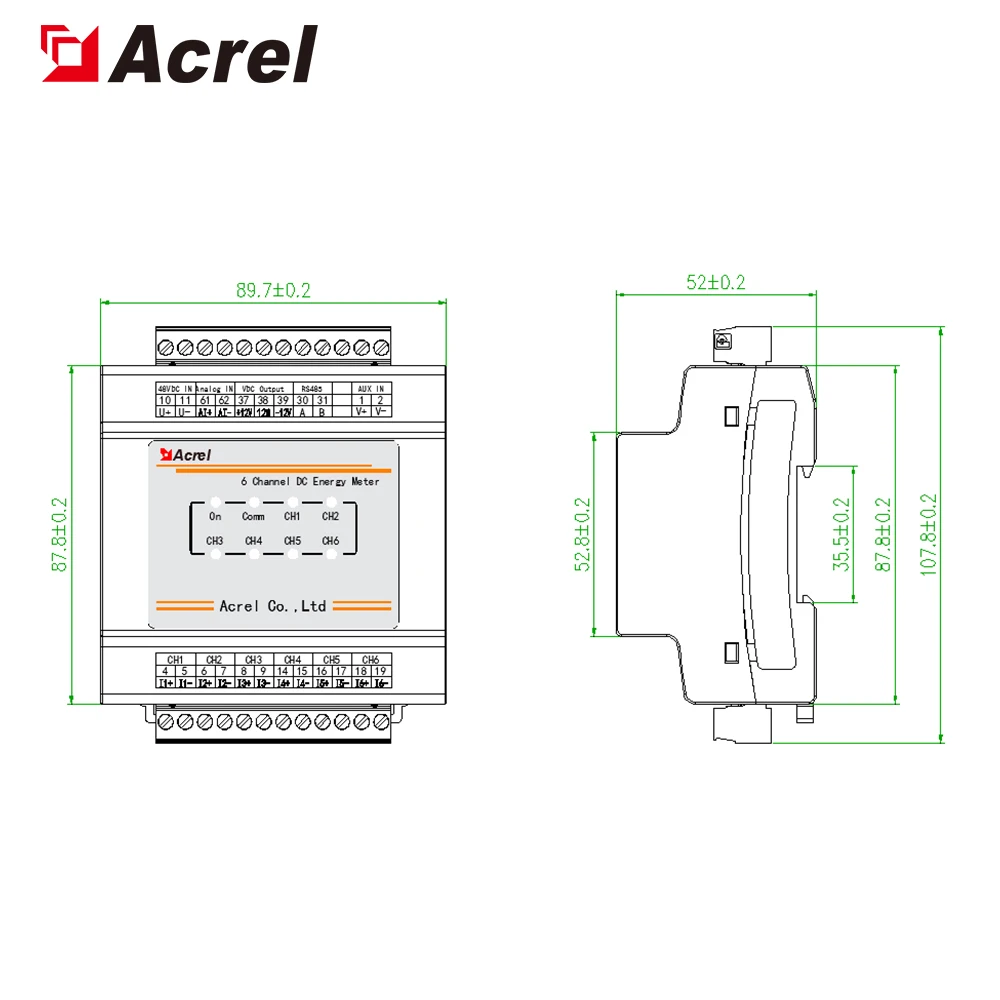

Input

DC voltage

1 channel: -48VDC

DC current

6 channel hall current sensor,total DC200A/5V,Telecom, Mobile,Unicom and the 1st channel reserve 50A/5V, 2nd
channel reserve 100A/5V.

Grid power
monitoring

1 channel: 0-5VDC

Overload capacity

Voltage:1.2times continued,2 times continued 1s;
Current: 1.2 times continued,10 times continued 1s.

Accuracy (superposition hall sensors)

1%In≤I≤10%In error±2.5%; I>10%In error±2%

resolution

Voltage output accuracy 0.01V; current output accuracy 0.01A;
power output accuracy 0.01kw; energy output accuracy 0.01kwh

Functions

Basic function

Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED
indicator display;485 communication

Metering function

Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter
starts.
Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied
on the voltage circuit, the calculator shall not have more than

Alarm function

DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error
alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm

Timing function

support broadcast timing, could remote timing to the meter by RS485

Hall CT power supply

:Power supply output:+12V/100Ma, -12V/50mA

Clock accuracy

≤0.5s/d（23℃），≤1s/d（-20℃～60℃）

Powe supply for ther meter

-40VDC~ -60VDC

Power consumption

≤2W
