high density polyethylene geocell geo grid geocel ground stabilizer Gravel Geocells For Road
- Category: >>>
- Supplier: Feicheng Boyuan Geosynthetics Co. Ltd
Share on (1600938375553):
Product Overview
Description
Product Description
Product Name | Geocell |
Color | Yellow,Black,Green |
Size | 5.5*6.2,customized |
Specifications | 50-1000,100-800,200-1000 |
Material | HDPE |
Application | Earthwork Apllication |
Service | 24 Hours Online Service |
Quality | high-quality |
Introduction
Geocell is a new geosynthetics.It is efficacious for reinforcing cohesionless wind-drift sand.It is three-dimensional, permeable, polymeric ( synthetic or natural) honeycomb or similar cellular structure, made of linked strips of geosynthetics.
Forthe ill subgrade in use, concrete rammed cast-in-situ pile and concrete rammed cast-in-situ pile combined with geocell are swift and high-efficient methods, worth popularizing.The application results also show that, the effect of geocell structure is the best one followed by the three-dimensional net and the diamond wire net. The geocell reinforcement can reduce the settlement of the subgrade, but a size effect is existed.The total settlement is not affected by the thickness of geocell layer, but the horizontal displacement is affected distinctly by the thickness.The geocell flexible retaining wall is a new type of retaining structures for the slope protection; and it is widely used in highway engineering.
Forthe ill subgrade in use, concrete rammed cast-in-situ pile and concrete rammed cast-in-situ pile combined with geocell are swift and high-efficient methods, worth popularizing.The application results also show that, the effect of geocell structure is the best one followed by the three-dimensional net and the diamond wire net. The geocell reinforcement can reduce the settlement of the subgrade, but a size effect is existed.The total settlement is not affected by the thickness of geocell layer, but the horizontal displacement is affected distinctly by the thickness.The geocell flexible retaining wall is a new type of retaining structures for the slope protection; and it is widely used in highway engineering.
Product Function
Stabling the roadbed of railway
Geocells provent detritus and gradation moving in landscape orientation, firm the whole roadbed, stop collapse occurring, increase road using time obviously in area where traffic is heavy.
Staling the roadbed of highway
Outspreaded geocells produces high elastic force, reduce more then 50% foundation thickness liken to traditional stone foundation
and detract gravity and press in landscape orientation.
Bearing loading press in dykes and walls
Geocells form a certain construction to prevent press in landscape orientation, can be projected staged.

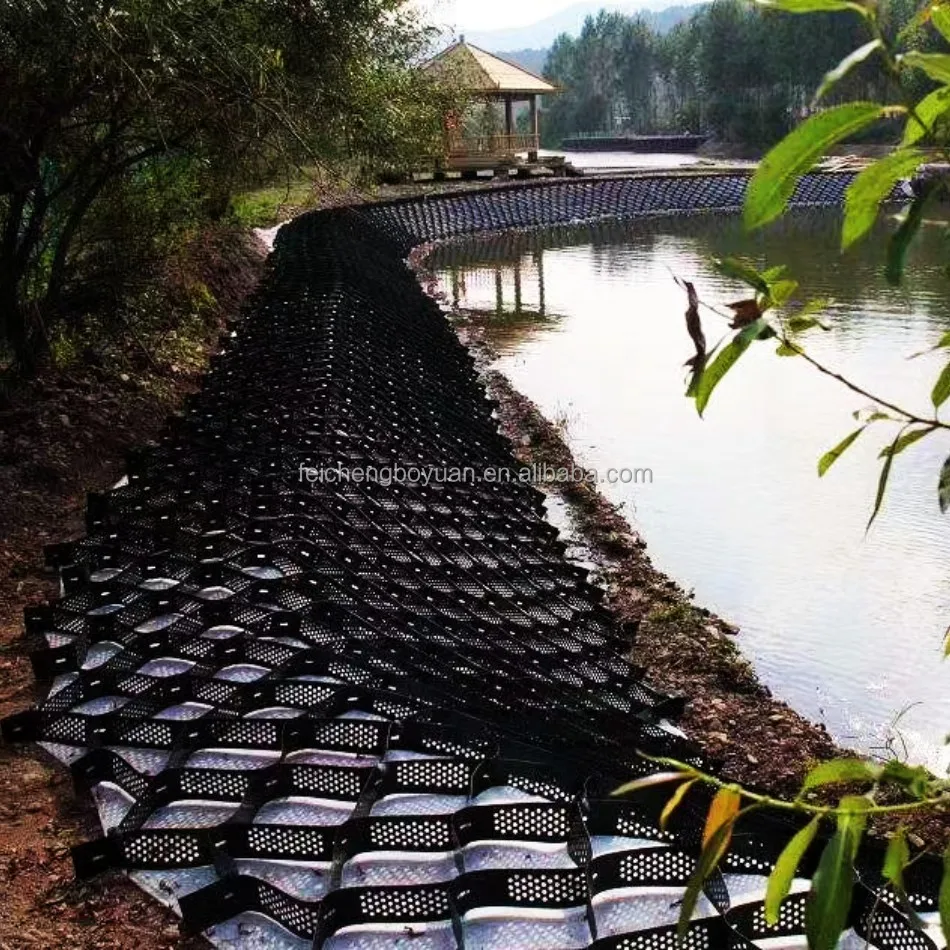

Administering shallow water river way
Be paved in riverside slopes in outspreading form, geocells slow up water walloping, stable riversides bed and support procreation to grow.
Geocells provent detritus and gradation moving in landscape orientation, firm the whole roadbed, stop collapse occurring, increase road using time obviously in area where traffic is heavy.
Staling the roadbed of highway
Outspreaded geocells produces high elastic force, reduce more then 50% foundation thickness liken to traditional stone foundation
and detract gravity and press in landscape orientation.
Bearing loading press in dykes and walls
Geocells form a certain construction to prevent press in landscape orientation, can be projected staged.
Administering shallow water river way
Be paved in riverside slopes in outspreading form, geocells slow up water walloping, stable riversides bed and support procreation to grow.
Product Parameters
Item | Property | Units | Value | |
Material | Polymer Density | g/cm3 | 0.94 | |
Carbon Black Content | % | 2.0 | ||
Oxidative Induction Time | Min | 20 | ||
Low Temperature Brittleness | ℃ | ≤-50 | ||
Vicat softening temperature | ℃ | ≧112 | ||
Environment Stress Crack Resistance F50 | hours | ≧800 | ||
Strip Properties | Sheet Thickness | mm | 1.1/1.2/1.5 | |
Sheet Tensile Strength | Mpa | ≧20 | ||
Sheet Surface | / | Smooth/Textured Perforated/ Not perforated | ||
Color | / | Black/Yellow/Green | ||
Cell Depth | mm | 50/75/100/150/200/250 | ||
Seam Properties | Seam Peel Strength | N/10cm | ≧1000 |
Main products
Company Profile
Certifications
Packing&Shipping
FAQ
1.What is your packaging?
Strips packaging or Pallet Packaging
Strips packaging or Pallet Packaging
2.How long is the lead time?
10-15 days after receiving the deposit payment.
10-15 days after receiving the deposit payment.
3.What is your producing capacity?
100000m2 per week.
100000m2 per week.
4.What is the payment?
TT 30% as the deposite and the balance before shipment or L/C.
TT 30% as the deposite and the balance before shipment or L/C.
