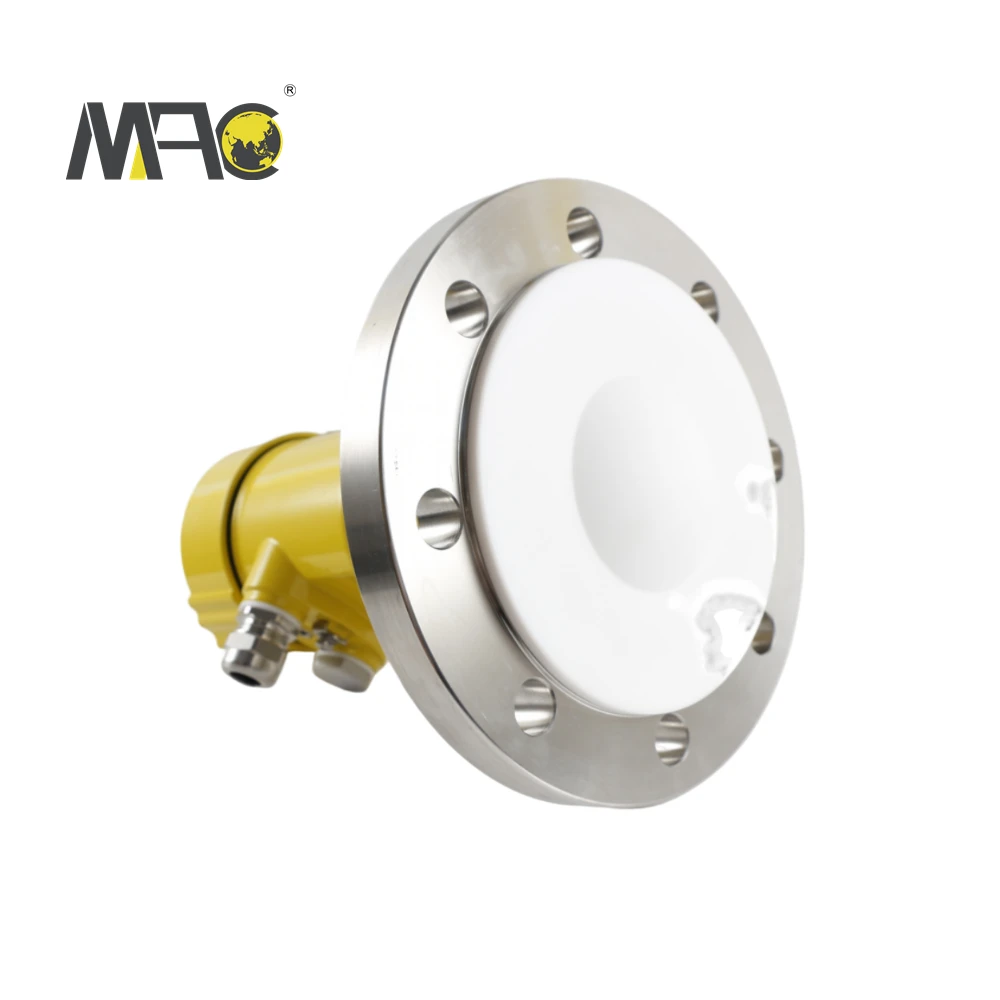

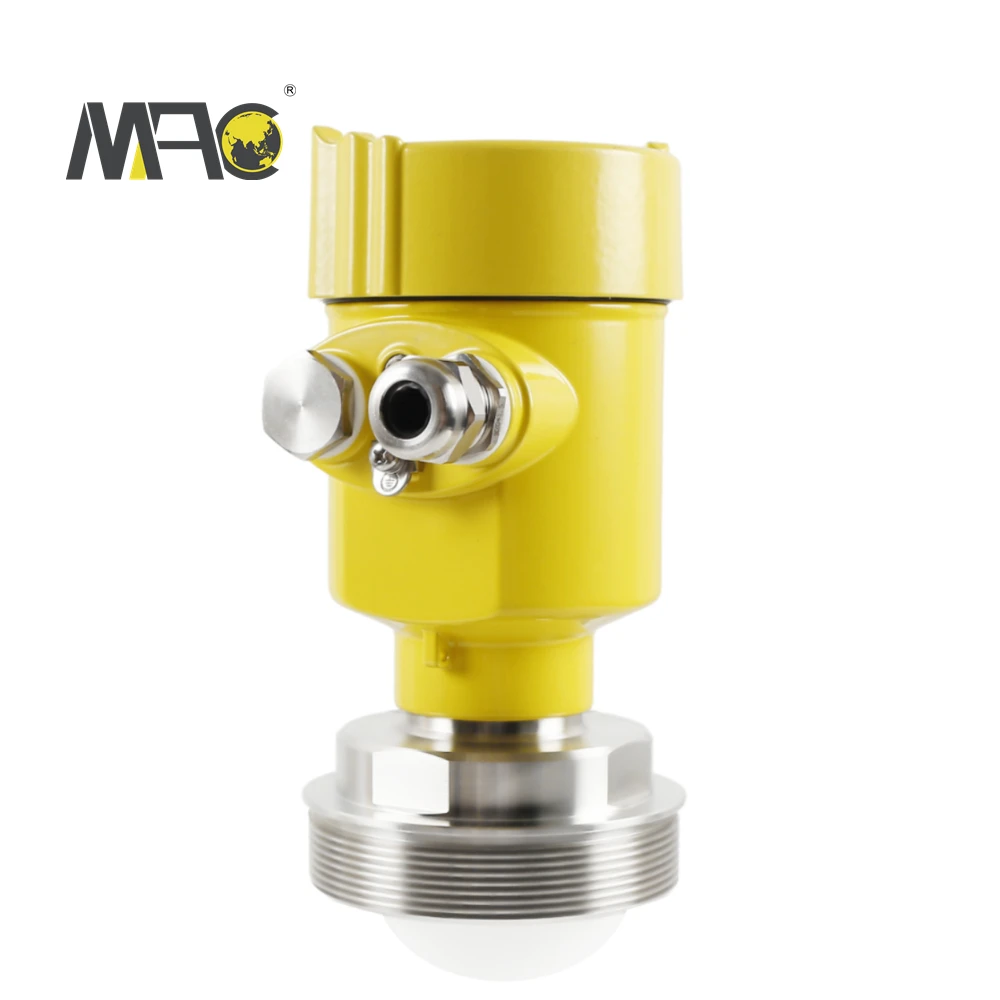

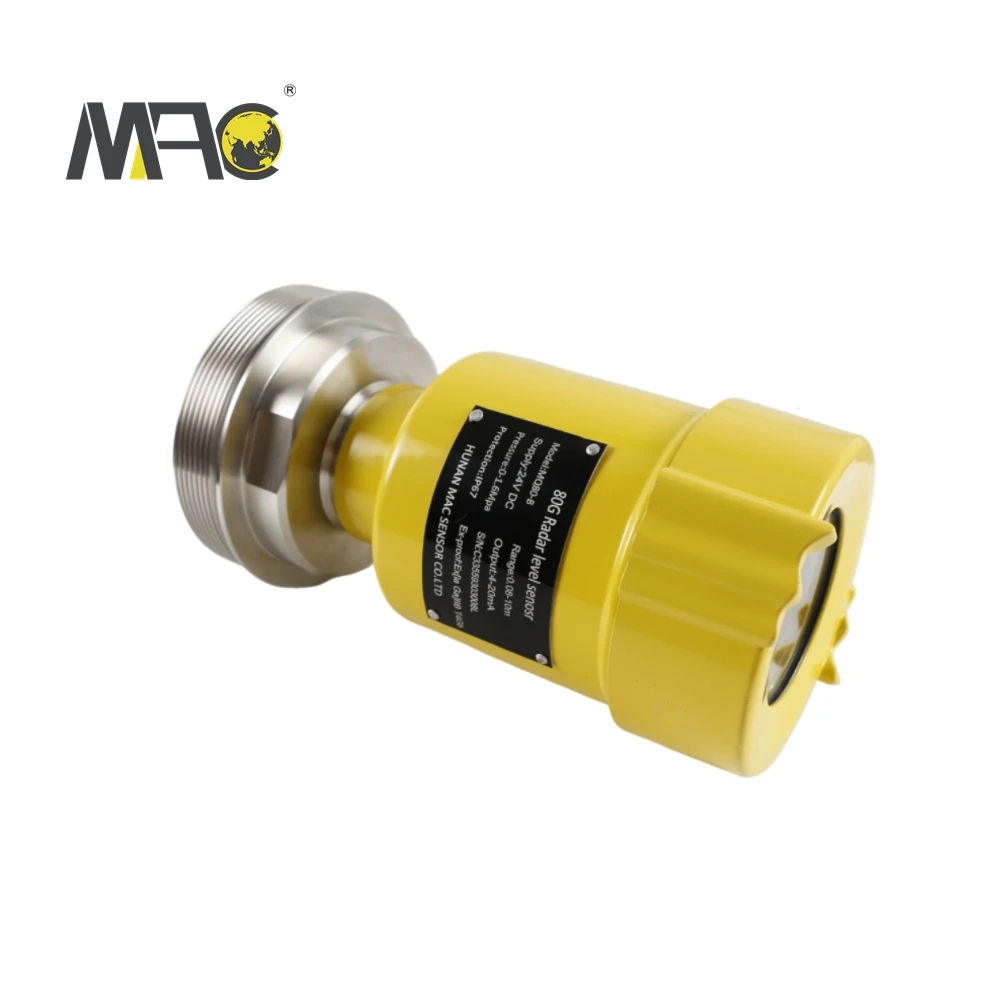

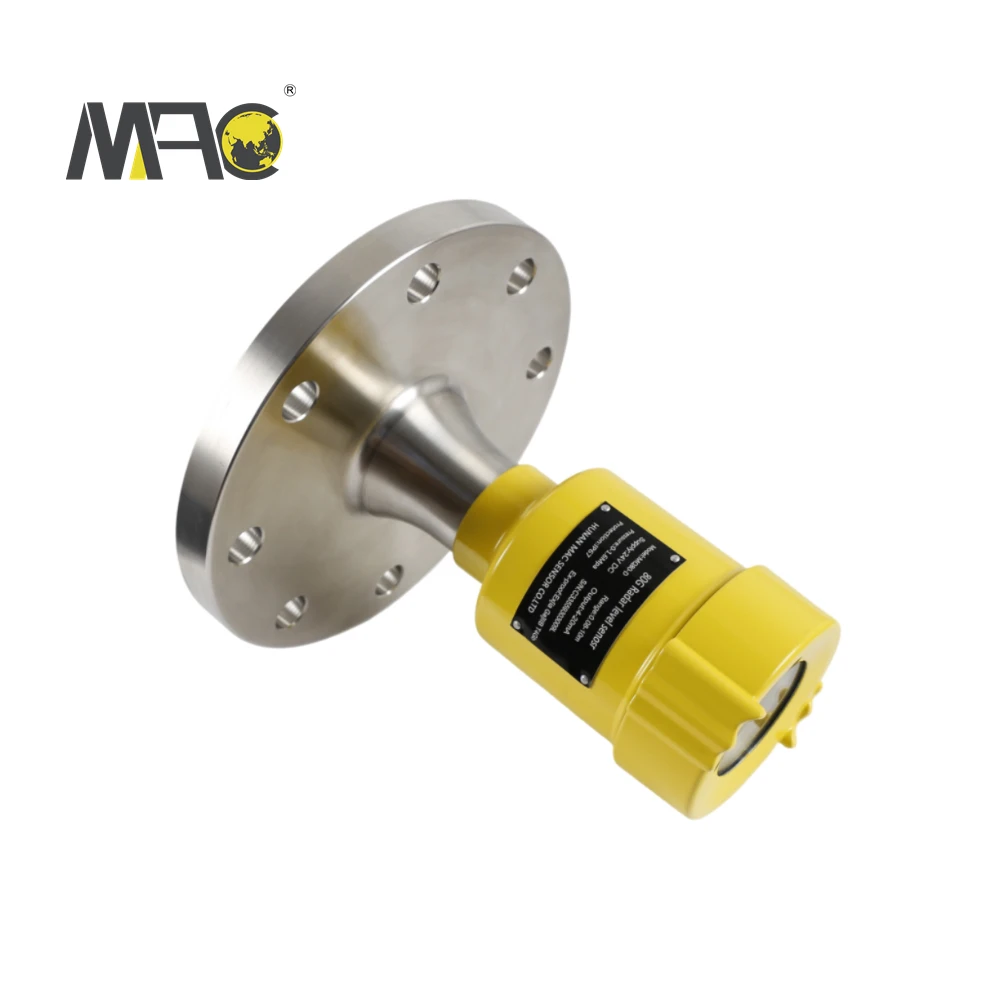

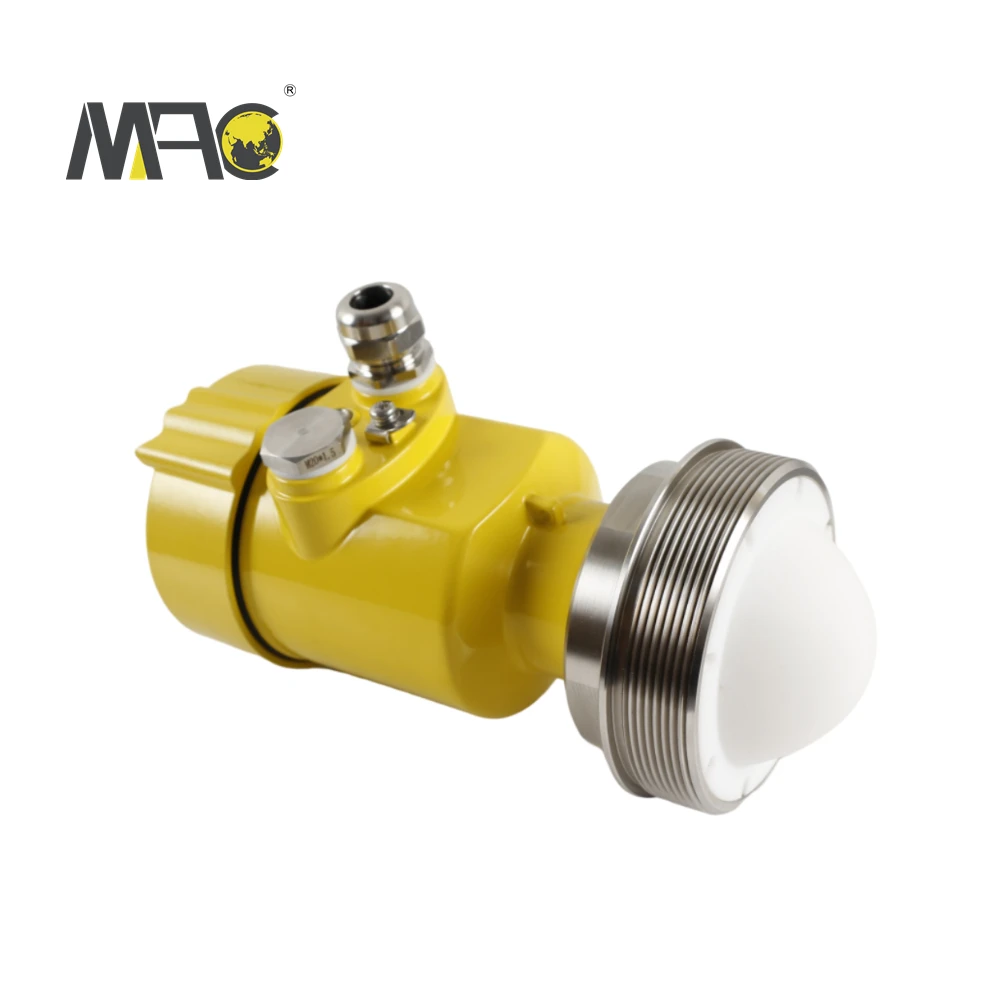

80g Ghz Intelligent Cement Silo Radar Level Control Gauge Transmitter Sensor
- Category: >>>
- Supplier: Hunan Mac Sensor Co. Ltd.
Share on (1600938410943):
Product Overview
Description
Products Description
MQ8 76-81GHz FM wave FMCW radar product (also called millimeter wave radar), because it uses a millimeter wave band with a higher frequency than Ku-band radar, it can achieve long-distance imaging and multi-spectral imaging in remote target detection and strong smoke and dust environments. It has important applications, and can detect smaller targets
than microwave radar and achieve more precise positioning, with higher resolution and stronger confidentiality.
What is millimeter wave electromagnetic wave: Usually the electromagnetic wave in the frequency domain of 30-300GHz (wavelength is 1~10 mm) is called millimeter wave. It is located in the overlapping wavelength range of microwave and far-infrared wave, so it has the characteristics of two kinds of waves. . The 76-81GHz band of this product is the area with the least understanding and application development of human beings so far, and it has the following characteristics.
than microwave radar and achieve more precise positioning, with higher resolution and stronger confidentiality.
What is millimeter wave electromagnetic wave: Usually the electromagnetic wave in the frequency domain of 30-300GHz (wavelength is 1~10 mm) is called millimeter wave. It is located in the overlapping wavelength range of microwave and far-infrared wave, so it has the characteristics of two kinds of waves. . The 76-81GHz band of this product is the area with the least understanding and application development of human beings so far, and it has the following characteristics.
Product Parameter
Frequency | 76GHz ~ 81GHz, 5GHz FMCW bandwidth |
Measuring range | 0.1m ~ 120m |
Measurement accuracy | ±1mm |
Beam angle | 3°/6° |
Minimum measured dielectric constant | >=2 |
Power | 15~28VDC |
Signal output | 2x: 4 ~ 20mA or RS-485 3x: 4~20mA |
Fault output | 3.8mA, 4mA, 20mA, 21mA, hold |
Enclosure | Aluminum alloy, stainless steel |

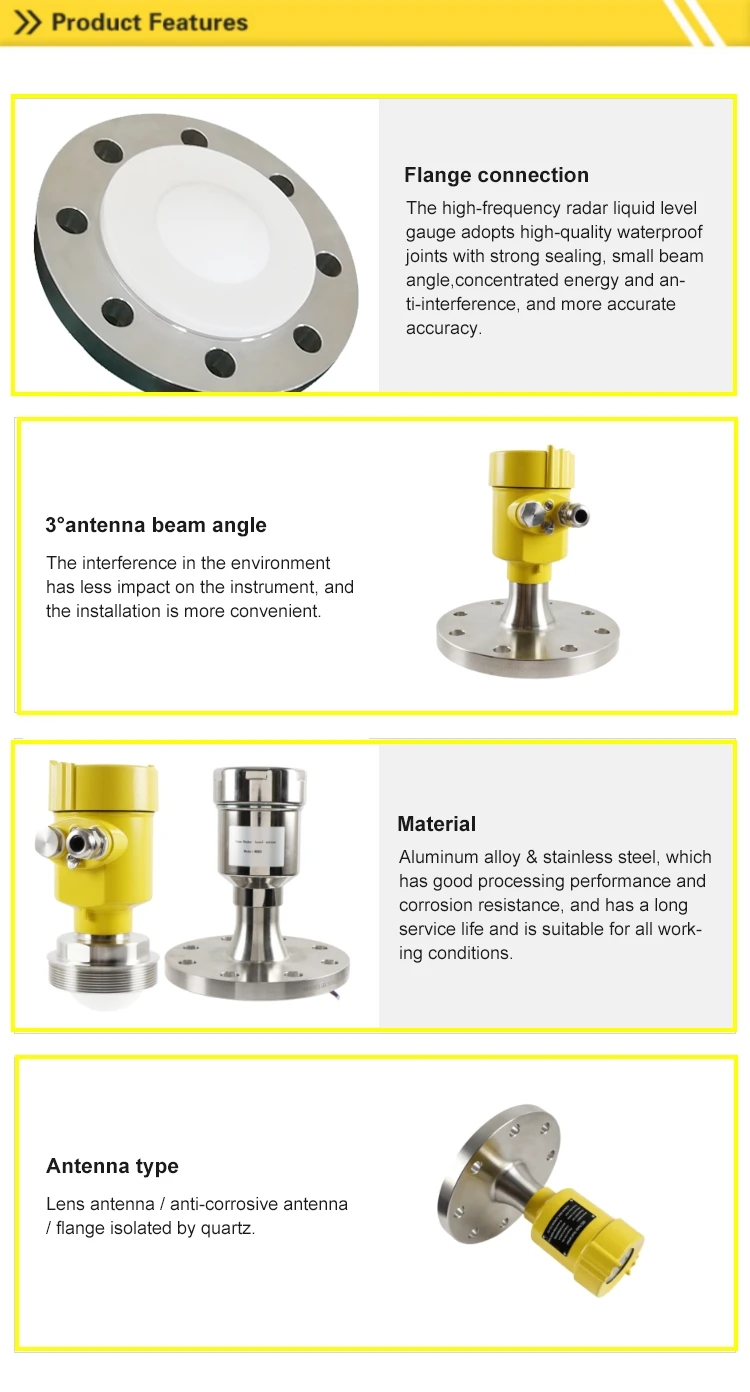

Antenna type | Lens antenna/anti-corrosive antenna / flange isolated by quartz |
Process temperature | T0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃ |
Process pressure | -0.1~1.6MPa |
Product Size | Ø100*270mm |
Cable entry | M20*1.5 |
Recommended cables | AWG18 or 0.75mm² |
Protection class | IP67 |
Explosion-proof grade | ExdiaIICT6 |
Installation method | Thread or flange |
Price Notification
The price is just for reference. Each product will be customized based on your project demand, please send inquiry to get the optimized product solutions and best price.
