CHINCAN Gentier 96E Real Time PCR System 1 96 Quantitative Fluorescence DNA PCR System Real Time test
- Category: >>>
- Supplier: Hangzhou Chincan Trading Co. Ltd.
Share on (1600938413087):
Product Overview
Description
Product Description

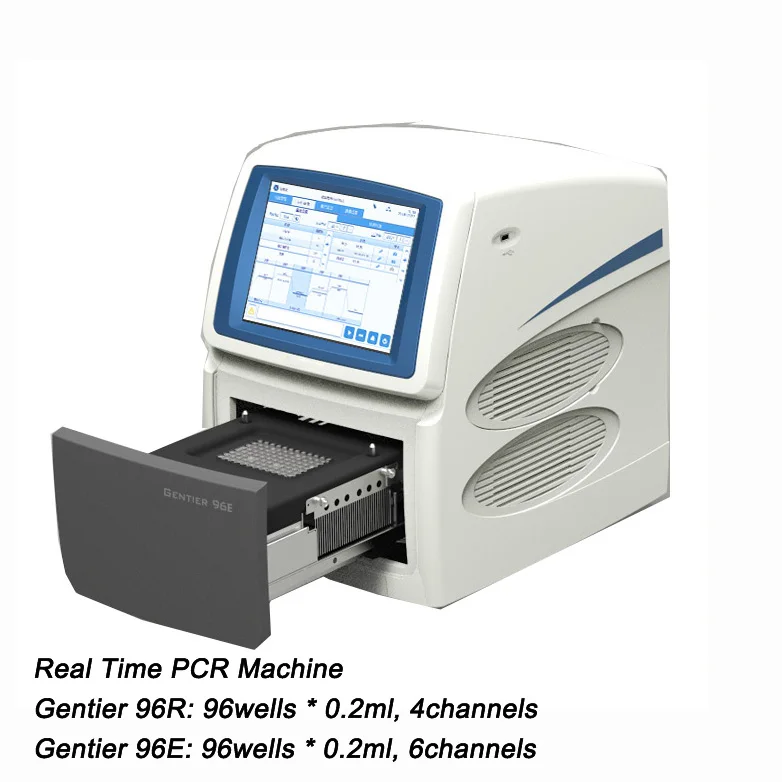

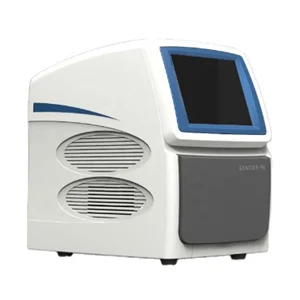

Gentier 96E Real-Time PCR System
The Gentier 96E real-time PCR system is a PCR test machine designed to meet the specific needs of high-end laboratories. Featuring five fluorescence channels, the Gentier 96E is capable of processing 96 samples in one test run. Indulge in the powerful and efficient temperature control system, easy-to-use software, and user-friendly operational designs. Gentier 96E real-time PCR system can provide maximal reliability and efficiency for all your real-time PCR needs.
Features
01
96 samples to be scanned in 7s: Only 7s for all 96 wells of fluorescence scanning can significantly reduce testing time and improve efficiency for lab professionals.
Efficient temperature control: Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design:
Power failure protection design can recover the experiment automatically, with no more concern about instantaneous power failure.
02
More convenient with two configurations Standalone configuration:10.4-inch touch screen PC control configuration: PC software control via connection.
Powerful software analysis: Gentier 96 E/R offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.
Specifications
Model | Gentier 96E |
Throughput | 1- 96 |
Fluorescence Channels | 6 |
Fluorescence Scanning Time | 7s |
Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
Optical System |
|
Light Source | High-brightness, long life and maintenance-free LED light source, excitation from the top |
Detector | Photodiodes (PDs), top scanning |
Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
Fluorescence Dynamic Range | Adjustable |
Sample Dynamic Range | From 101 to 1010copies |
Thermal Black |
|
Heating Method | Peltier |
Heating Rate | ≥6.1 ℃/s |
Cooling Rate | ≥5.0 ℃/s |
Temperature Uniformity | ±0.1 ℃ |
Temperature Accuracy | ≤0.1 ℃ |
Gradient Range | 1℃-40 ℃ |
Gradient Block | 12 row |
Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
Software Functions |
|

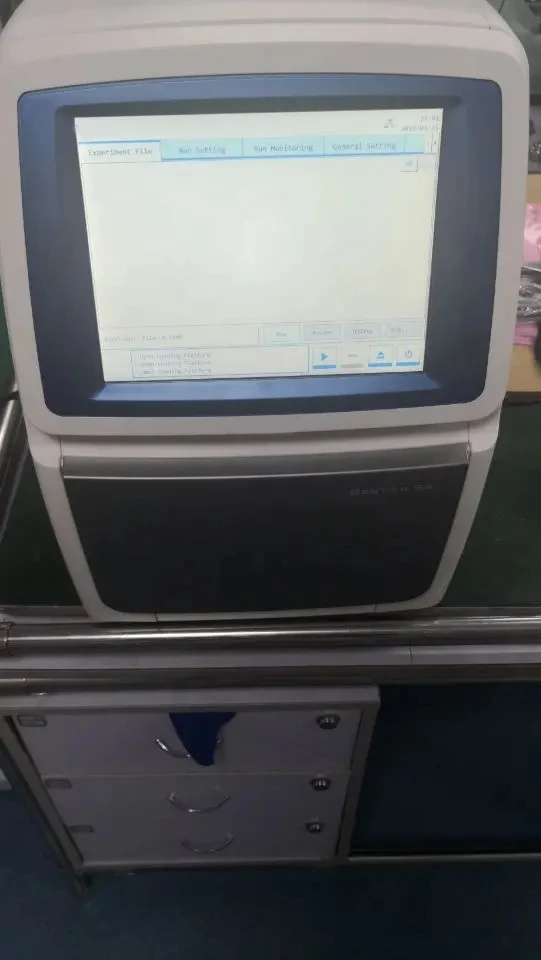

Control Modes | Model 1: 10.4 inch touch screen |
Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
Reporting Function | Templates reserved; customized experiment report |
Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
Others |
|
Operating System for PC | Win7/Win10/Win11 |
Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
Weight | 30 Kg (net) |
Instrument Dimension | 555*475*484mm (W*L*H) |
Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
Hot Selling Products
Company Information
Buyer Feedback
Our Services
As one part of Chincan Sales Group, each factory has technical support staffs available offering repair and maintenance of the products exported by Chincan. We promise that all of our products will be easily accessible to technical support and manufacturer's representatives who are always ready and able to assist when needed.

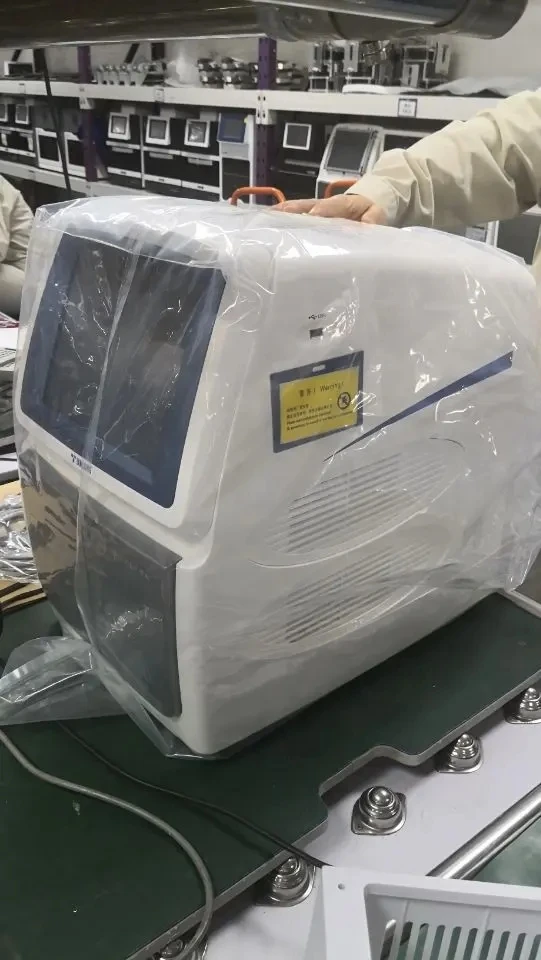

Packaging & Shipping
FAQ
Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
CHINCAN also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
Q: How long is your delivery time?
A: Usually, delivery time is 10-15 days depend on the order quantity & inventory.
Q: How about your quality warranty ?
A: Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment.
Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
