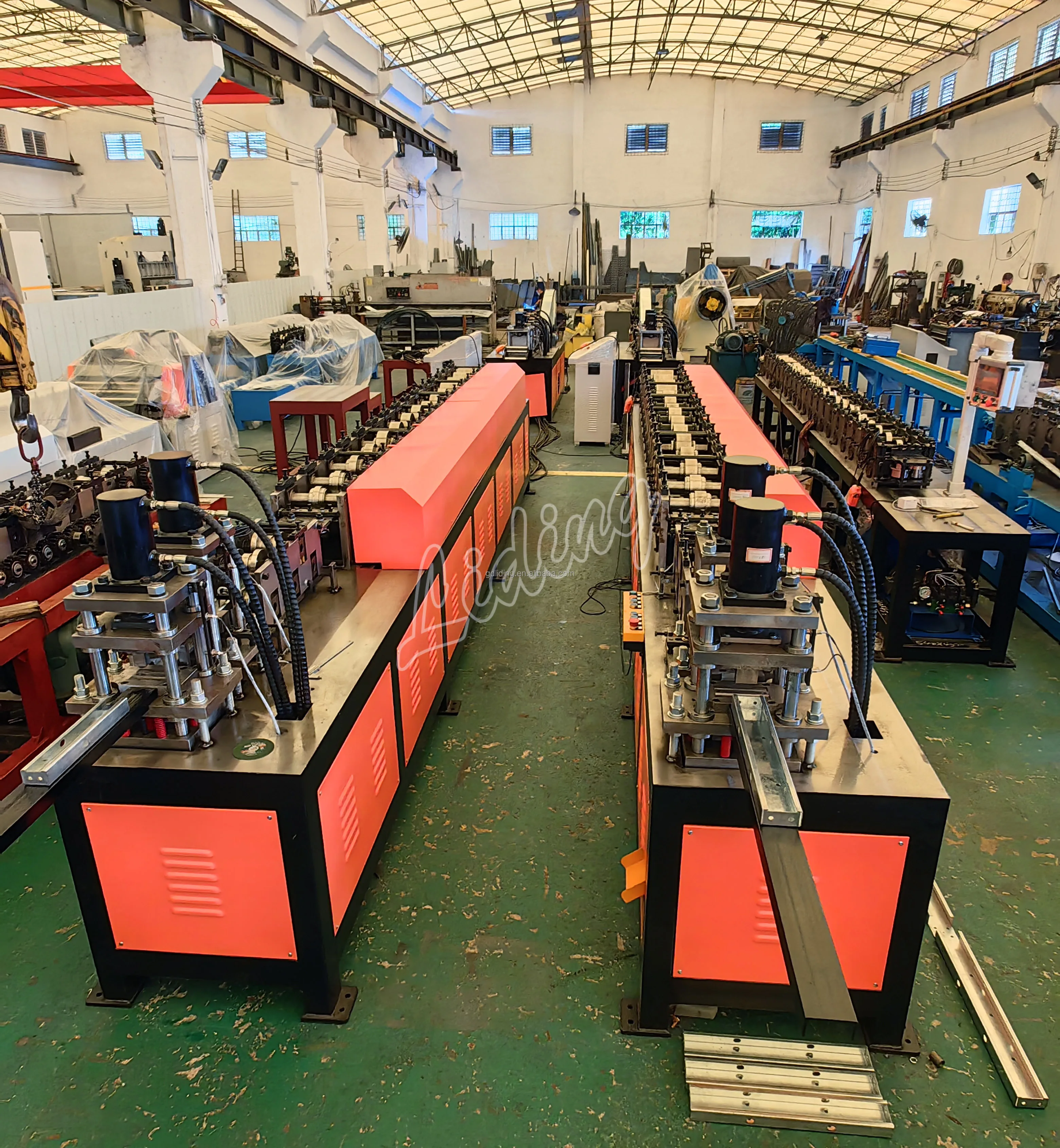

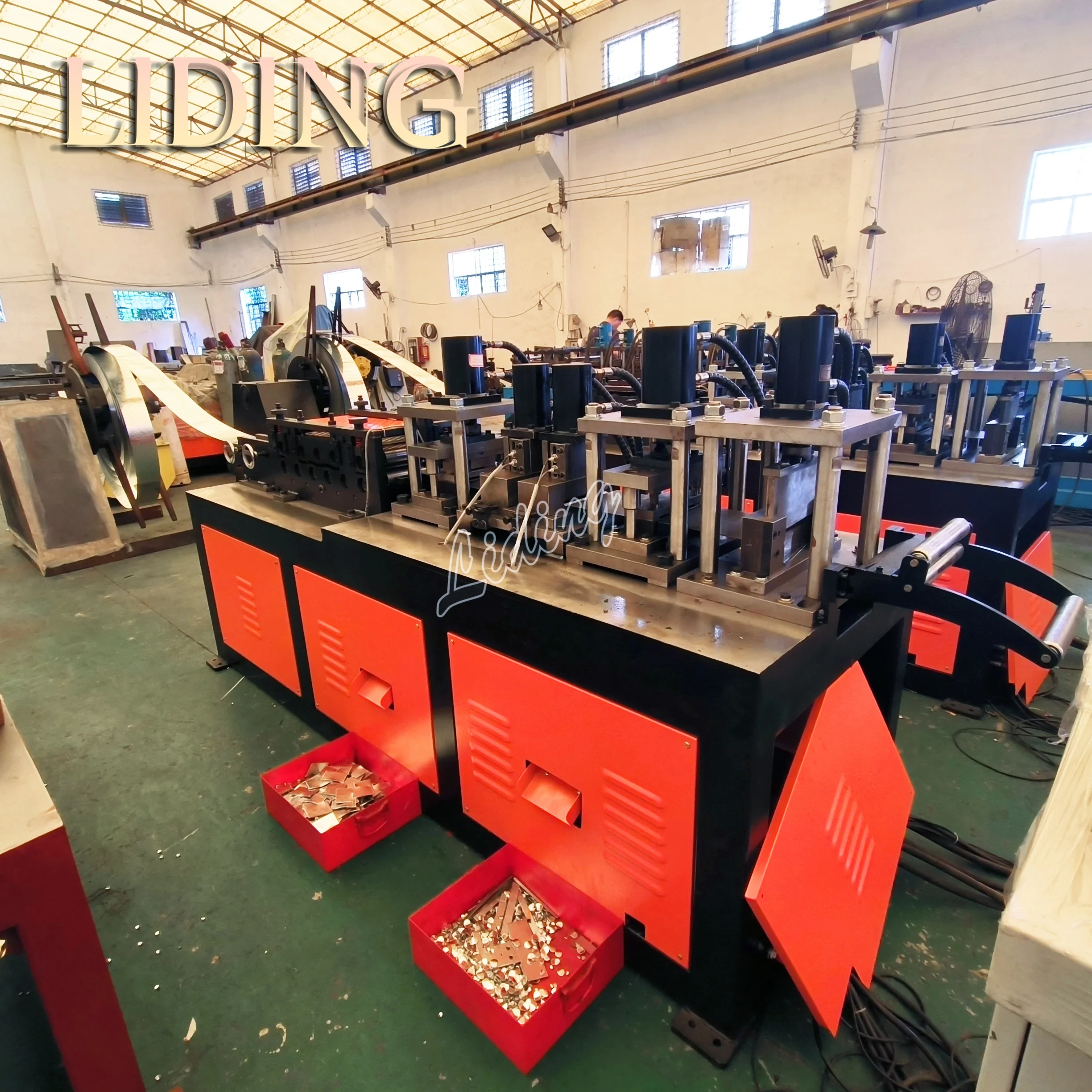

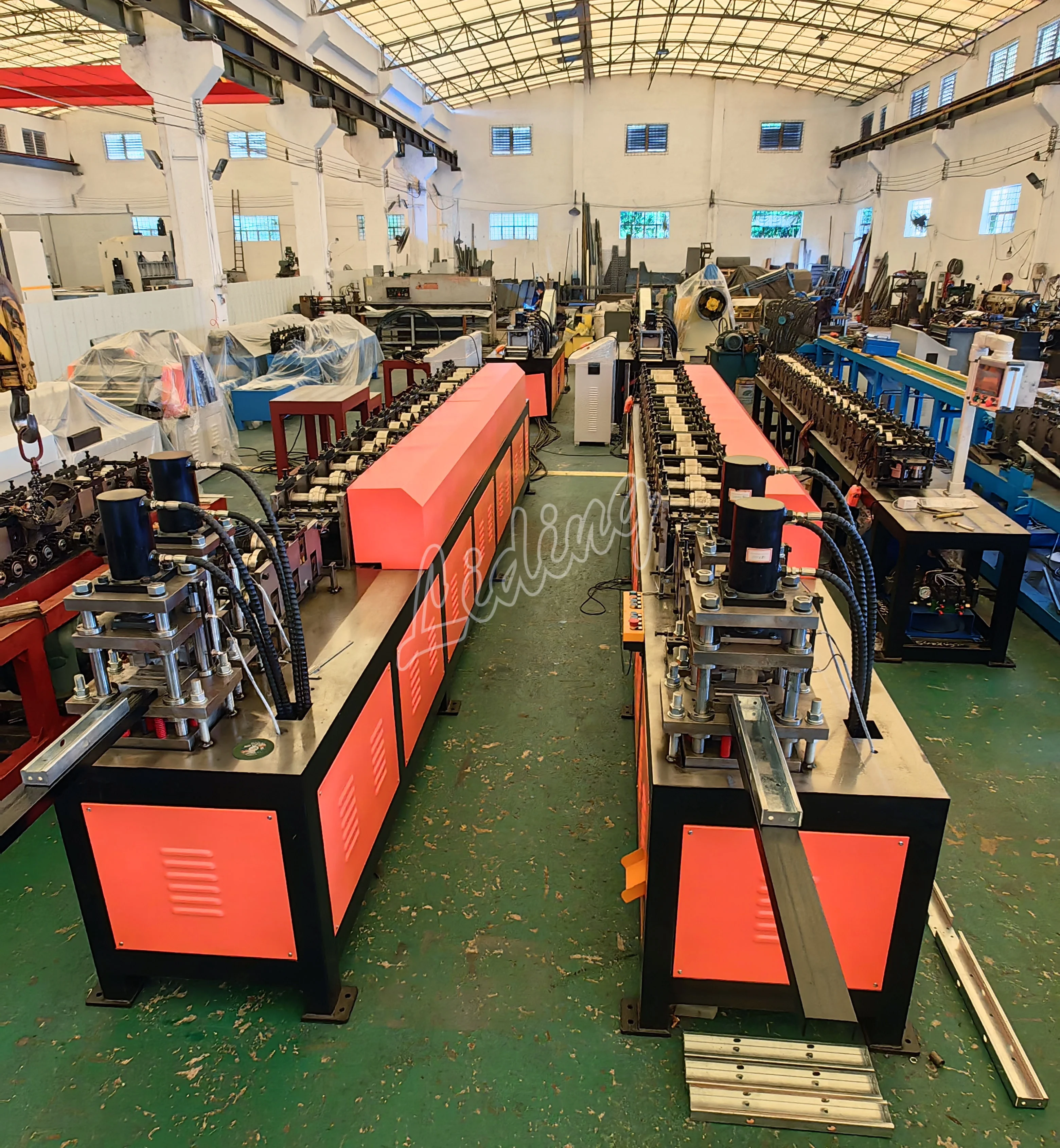

air blower base roll forming machine Metal Steel C Z U Profile Interchangeable Purlin Cold Roll Forming Making Machine
- Category: >>>
- Supplier: Foshan Liding Technology Co. Ltd.
Share on (1600938424044):
Product Overview
Description
Product Description

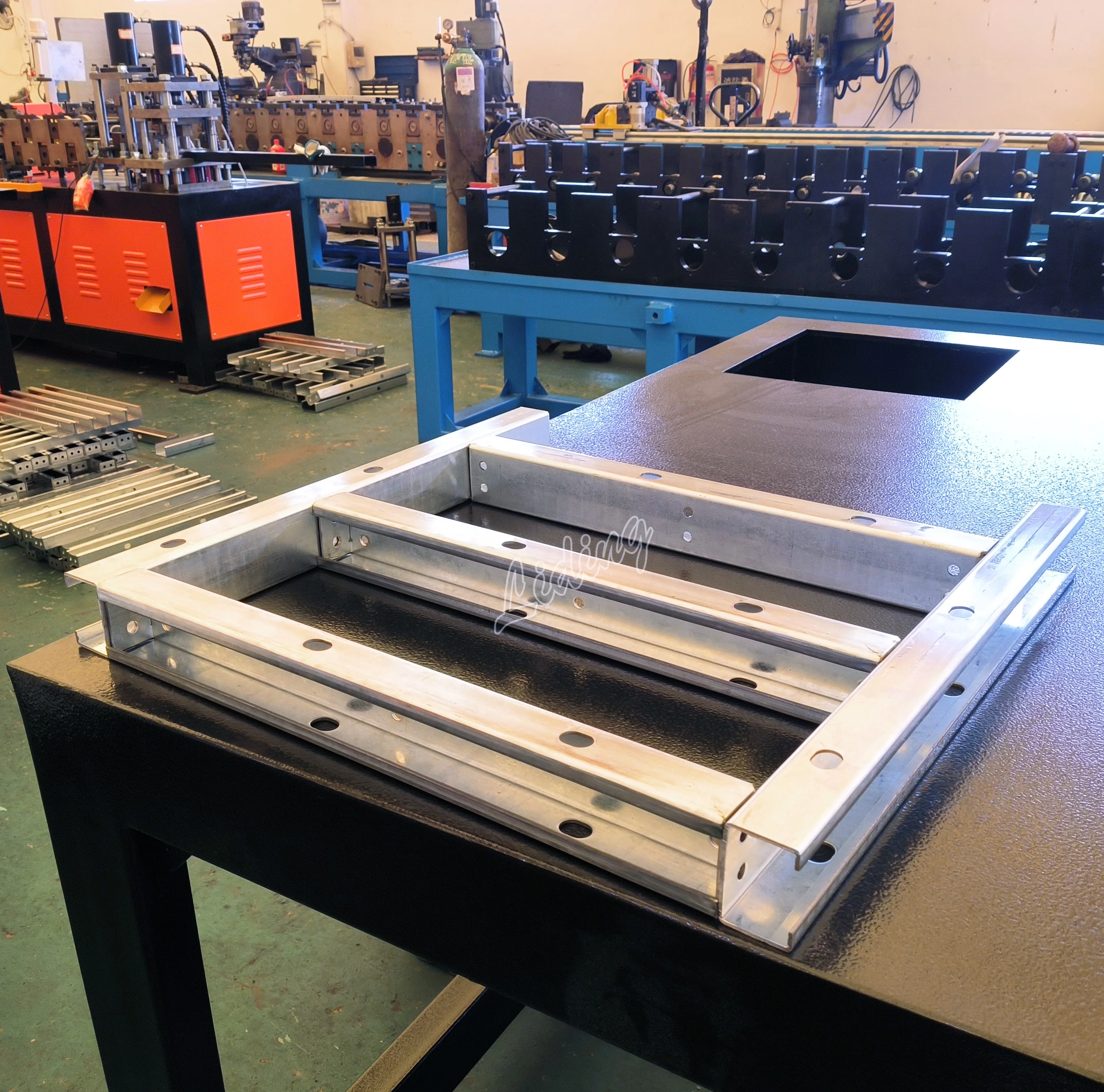

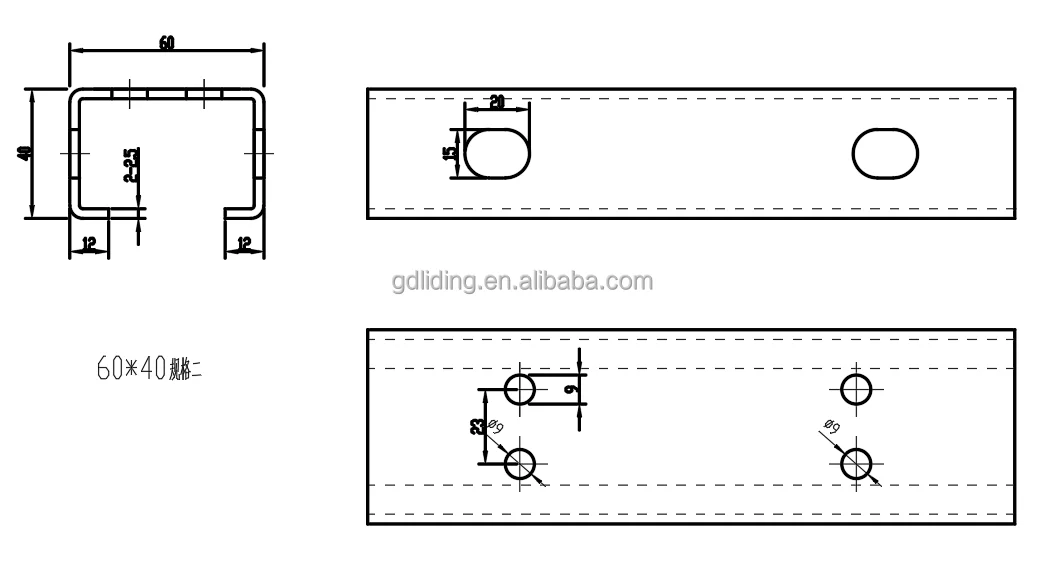

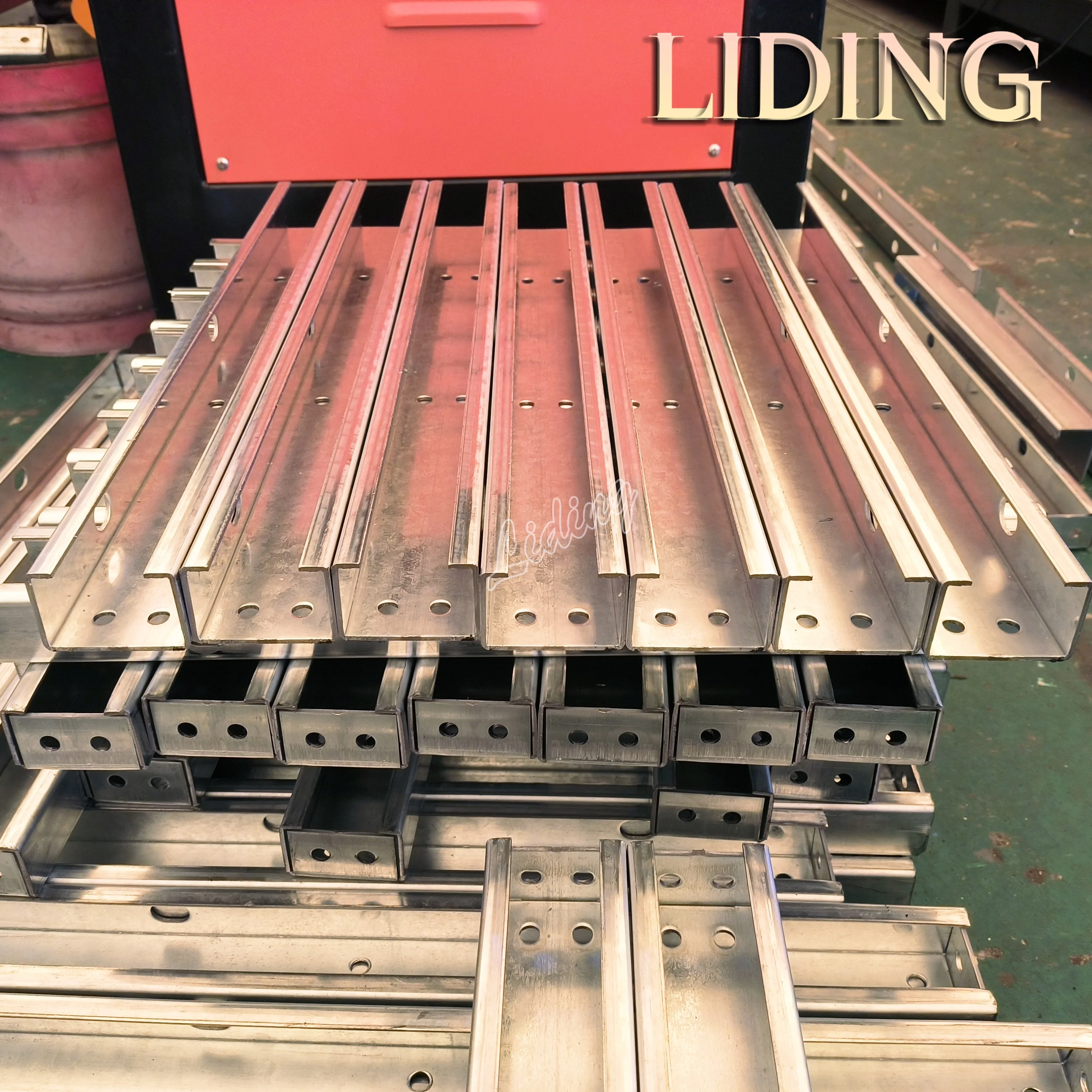

C Profile Air Blower Base roll forming machine
Serial number | composition | data |

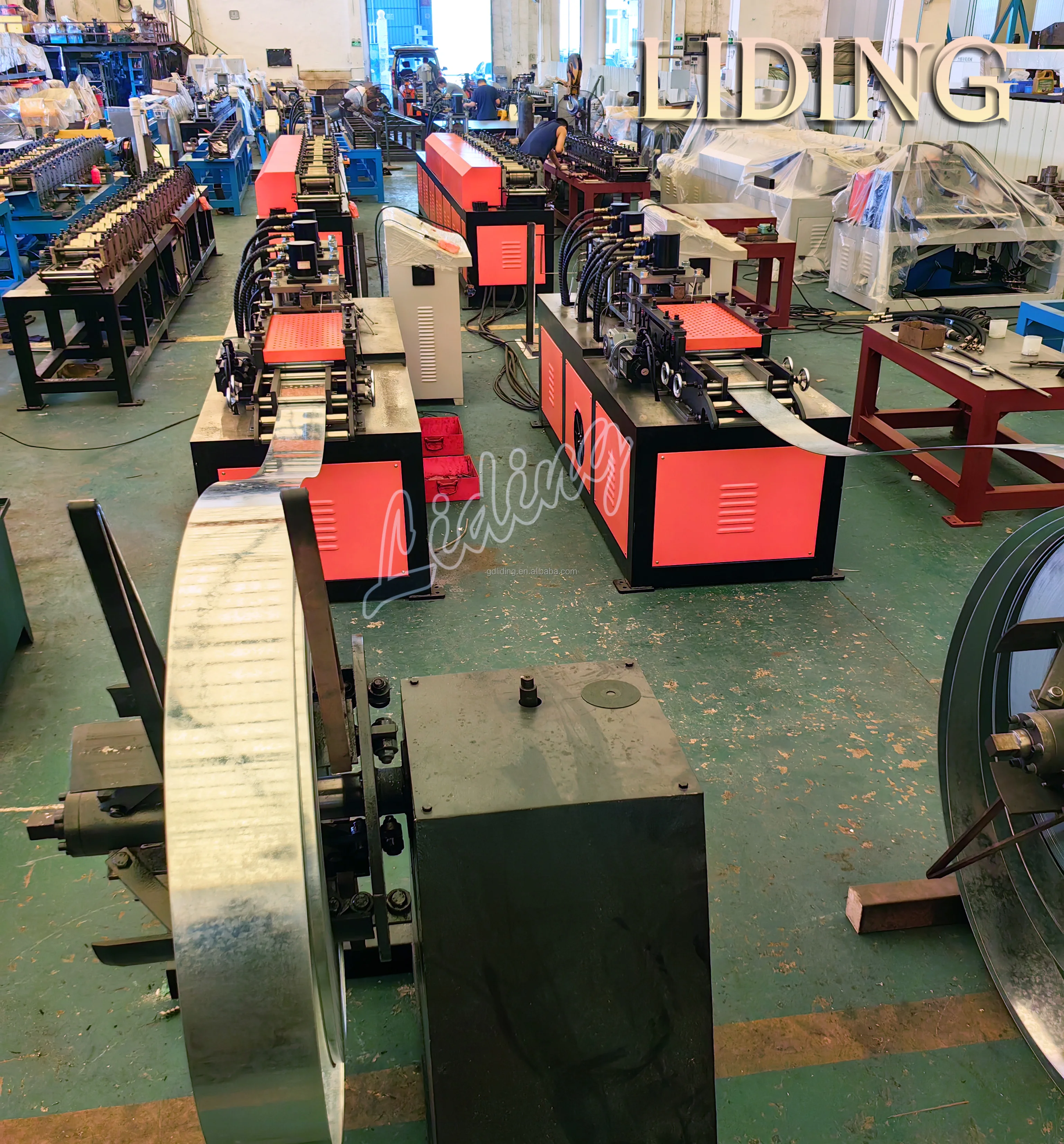

1 | Manual Decoiler | Max. bearing load capacity 2000kg |
2 | Servo leveling feeder | Feeding speed: 15 meters / min |

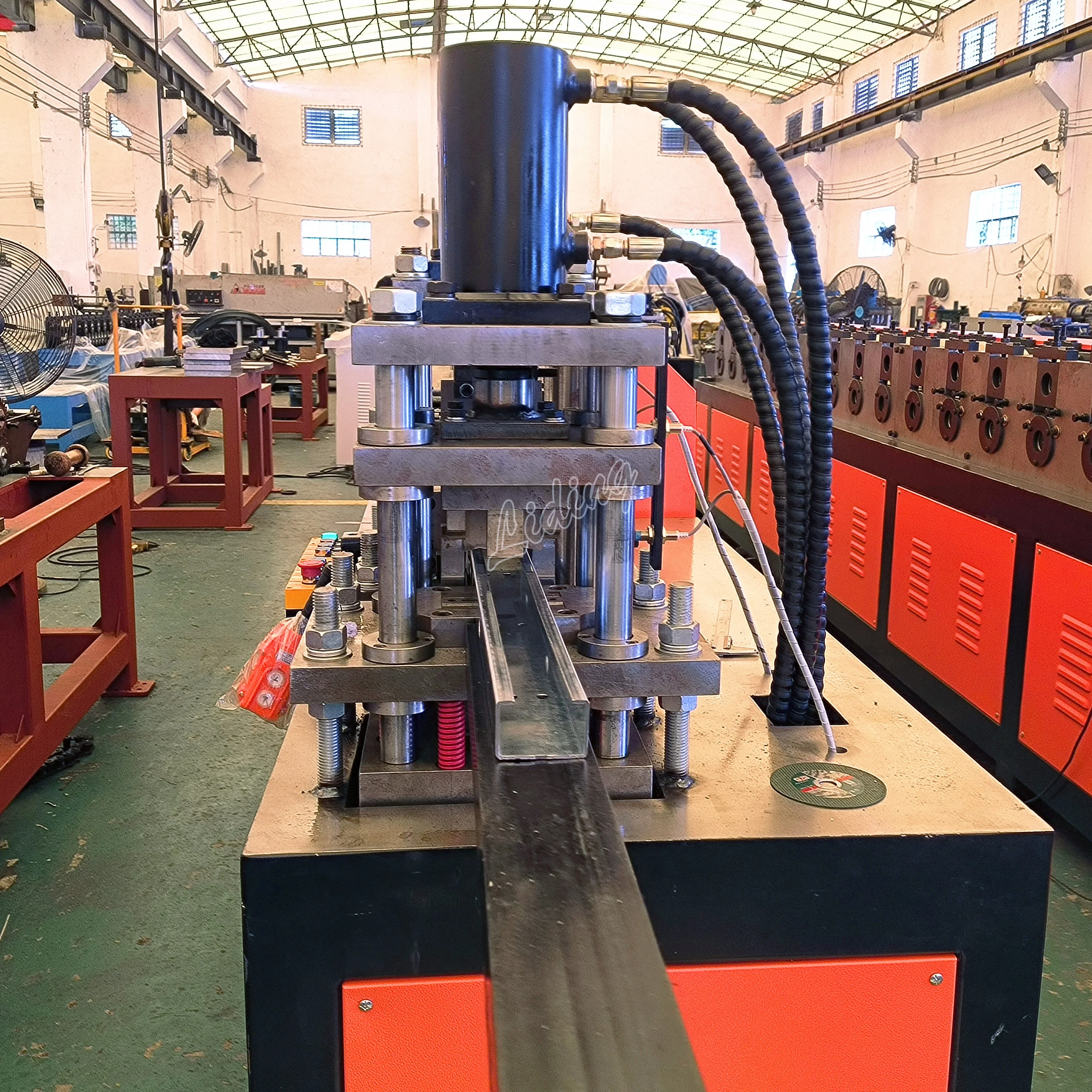

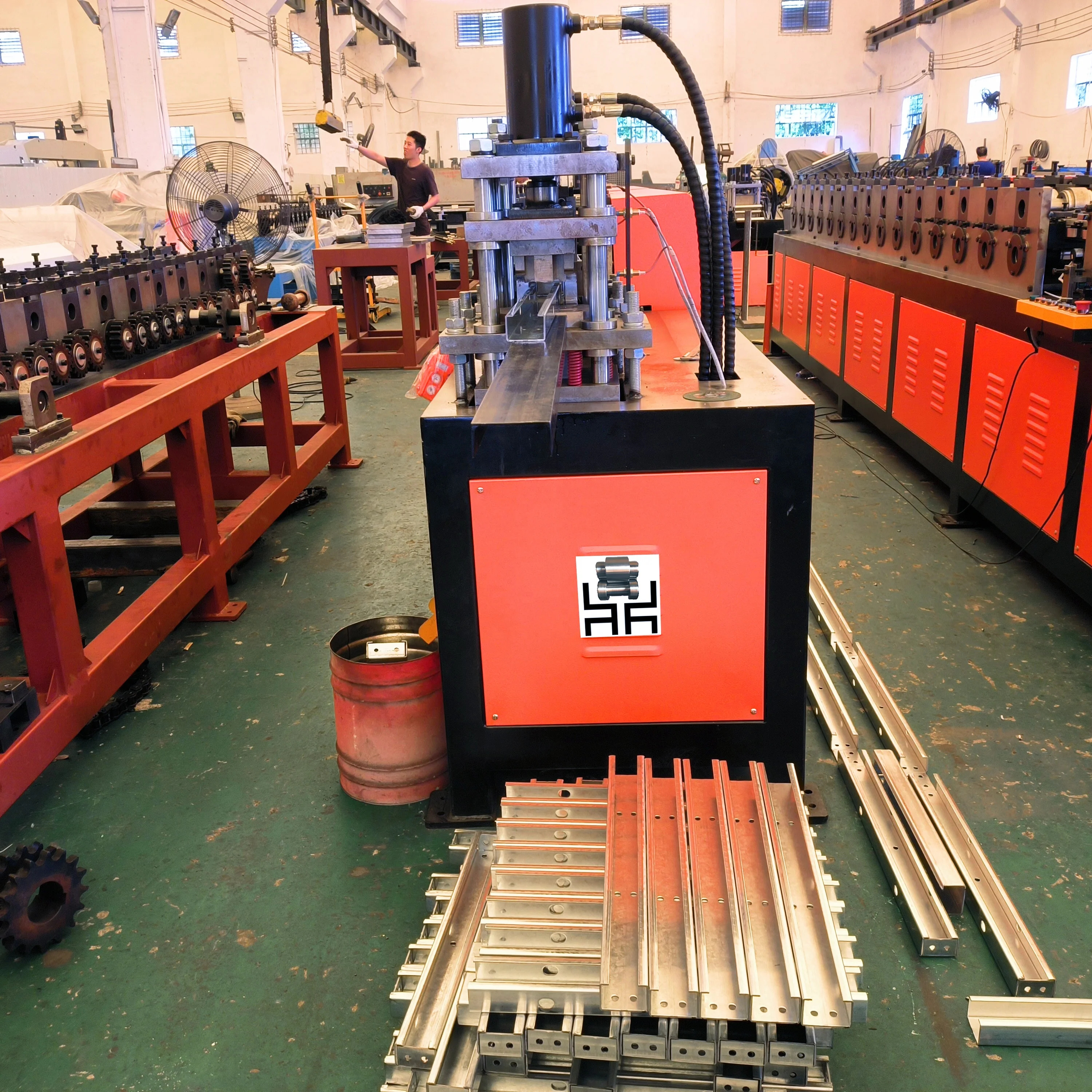

3 | Hydraulic punching machine | 25-ton cylinder hydraulic station with a power of 7.5kw |
4 | Punching mold, 4 sets | Mold material CR12MOV |
5 | Tail material cutting mold | 1 set |
6 | Cold roll forming machine | 15 stations |
7 | Forming and cutting mold | material Cr12MOV |
8 | Cutting and folding mold | material Cr12MOV |
9 | Hydraulic system | 7.2KW |
10 | PLC automatic control equipment | Adopt Panasonic PLC, human-machine interface control, and domestic inverter for speed regulation. |

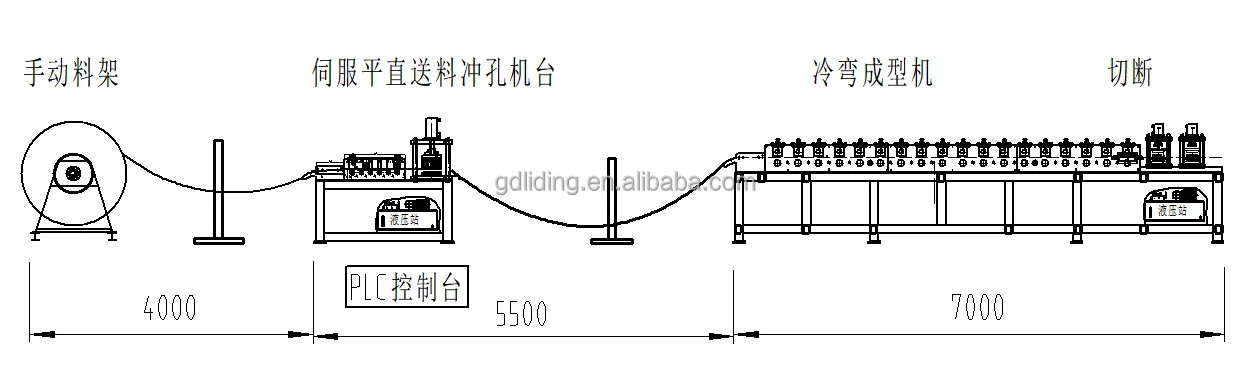

Production process
Powerless uncoiling - servo flat feed -hydraulic punching round hole & punching square hole mold (4 sets), cut off the tail material - cold roll forming - cut off - cut off folding - finish
Specification
Condition | New |
Production Capacity | 0-8m/min |
Place of Origin | China,Guangdong |
Brand Name | Liding |
Voltage | 380V 50Hz 3phases |
Dimension(L*W*H) | 6000*800*1200mm |
Weight | 4000kg |
Warranty | 1 Year |
Key Selling Points | High-accuracy |
Rolling thinckness | 2.0-2.5mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Product name | C Profile Air Blower Base roll forming machine |
Roller material | cr12mov |
Cutting blade material | CR12mov |
Servo motor | 7.5kw+7.5kw |
Transmission | Chain & gear transmission. |
Packing & Delivery
Main machine,motor ,pump and control box are packaged by plastic paper.
Company Profile
Foshan Liding Machinery Technology Co., Ltd. was established in 2014,specializing in the design and manufacture of cold-forming equipment automatic production lines,such as TDC flange machine, elliptical pipe machine, spiral duct machine, C/Z-shaped steel machine, color tile machine, highway guardrail machine,cold cabinet accessories machine, shelf column machinery, doors and windows frame machinery, shaped pipe machine, etc.
Liding provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection. And high precision cold-forming equipment with programmable PLC computer control makes the process of forming more stable and efficient.
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. What's your payment terms ?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. What's your payment terms ?
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.
Q5. How to get a quotation?
Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q6. What is the after- sale service?
A6: 1. The warranty is 12 months after the client receives the machine. 2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. 3. We offer technical support for the entire life of our machines. 4. We can send our technicians to install and train the workers in the clients' factories with extra cost. 5.After the quality guarantee period, only charge the production cost of the spare parts.
Q7. Can you provide some spare parts?
A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q6. What is the after- sale service?
A6: 1. The warranty is 12 months after the client receives the machine. 2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. 3. We offer technical support for the entire life of our machines. 4. We can send our technicians to install and train the workers in the clients' factories with extra cost. 5.After the quality guarantee period, only charge the production cost of the spare parts.
Q7. Can you provide some spare parts?
A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
