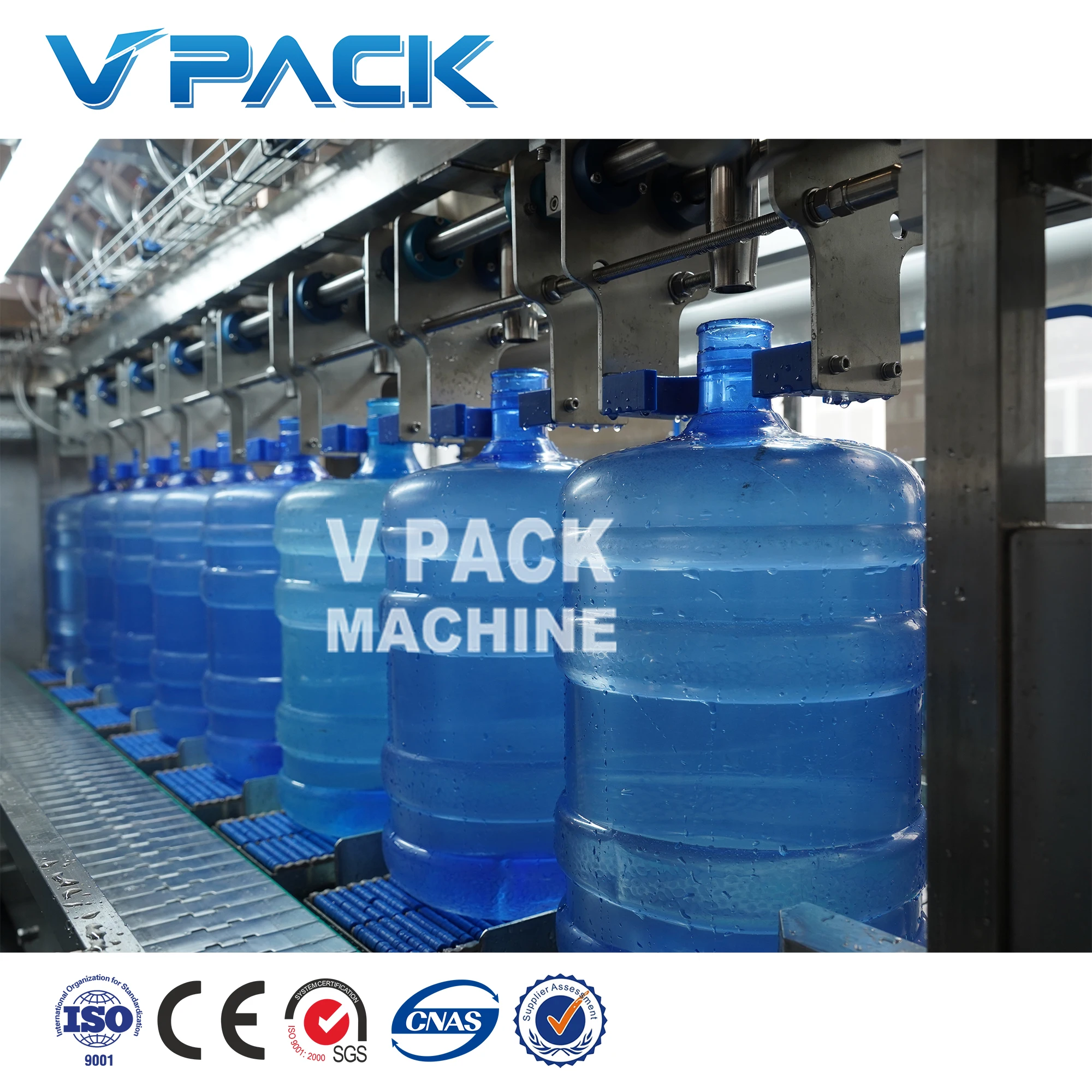

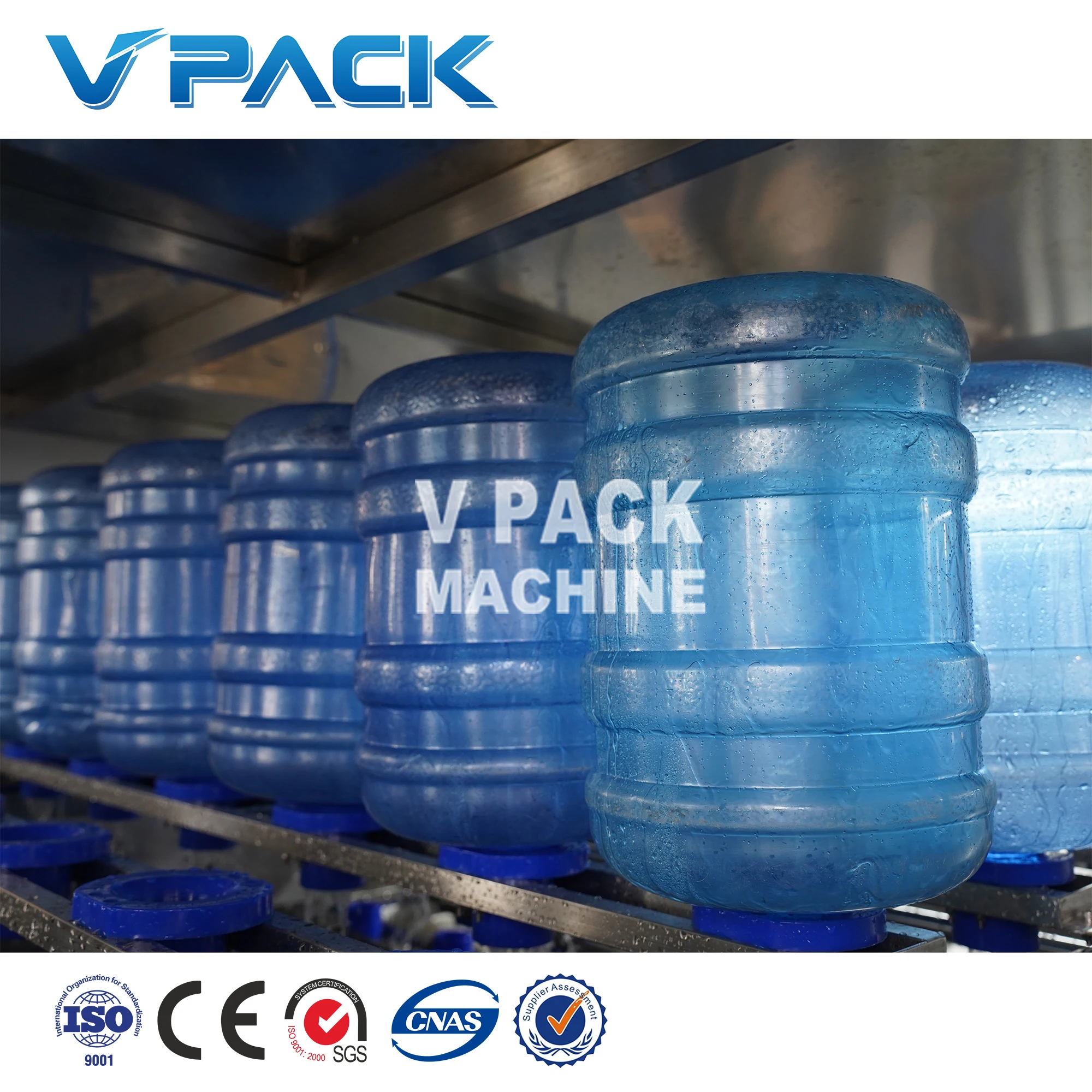

Automatic 1200BPH 5 gallon 18.9L PET PC barrel bottle drinking water filling machine
- Category: >>>
- Supplier: Zhangjiagang V Pack Machinery Co. Ltd.
Share on (1600938475198):
Product Overview
Description
Product Description
QGF-100 QGF-300
QGF-450 QGF-600 QGF-1000 QGF-1200

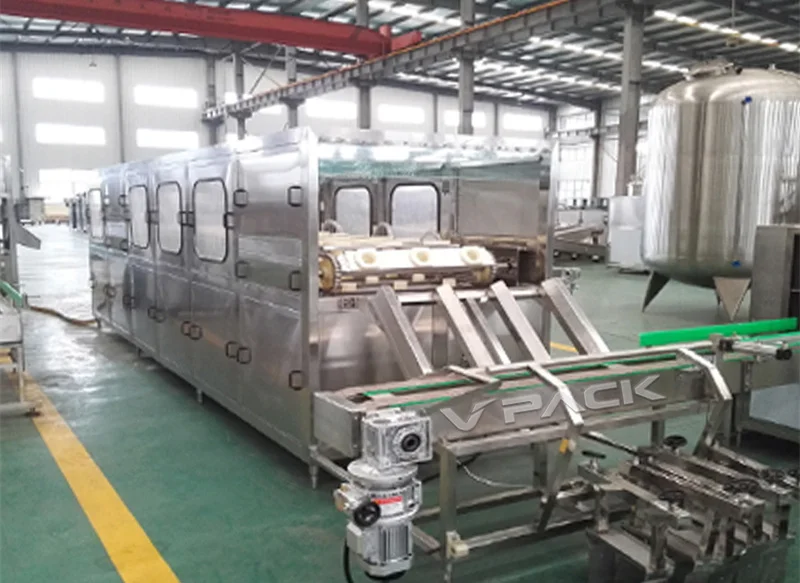

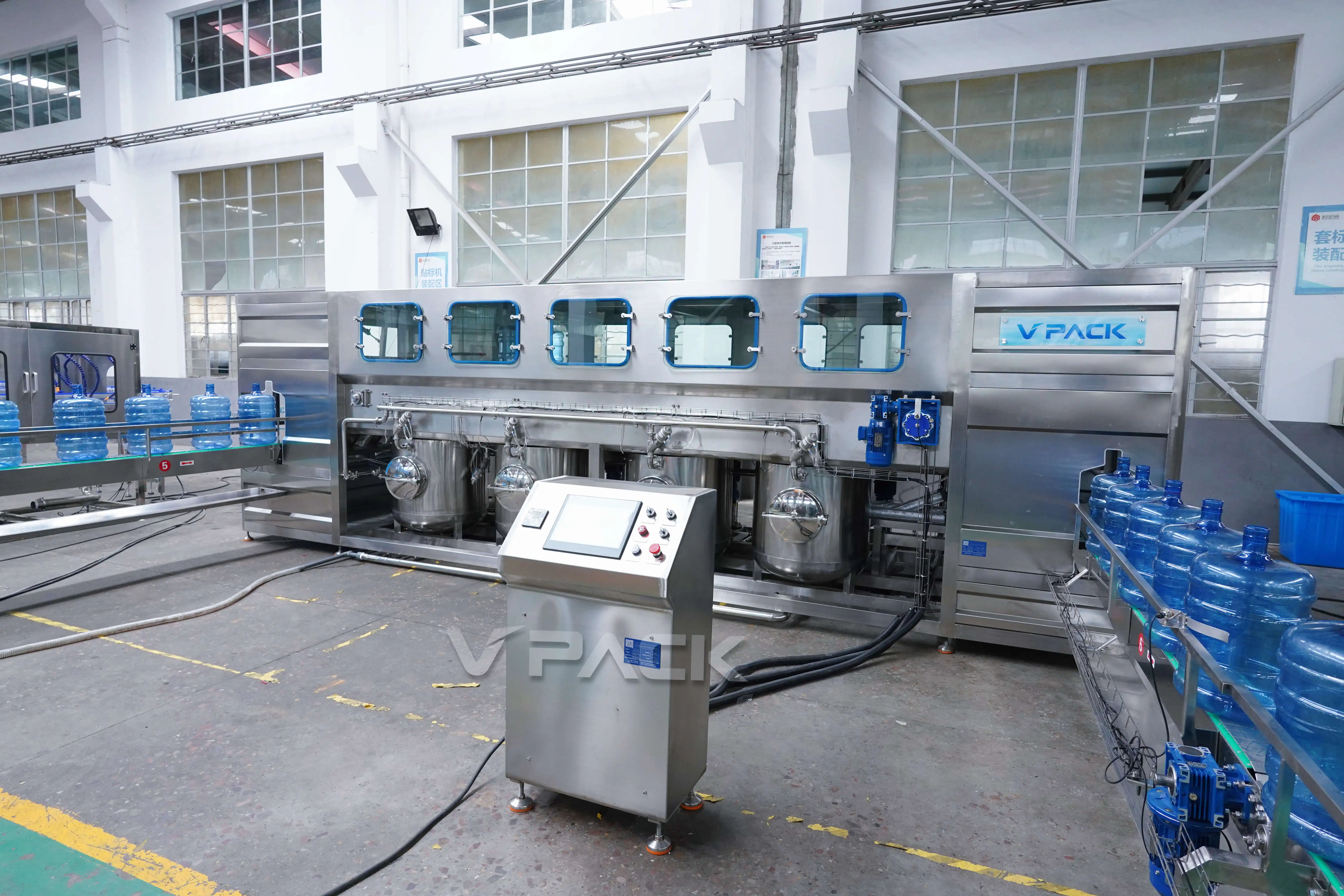

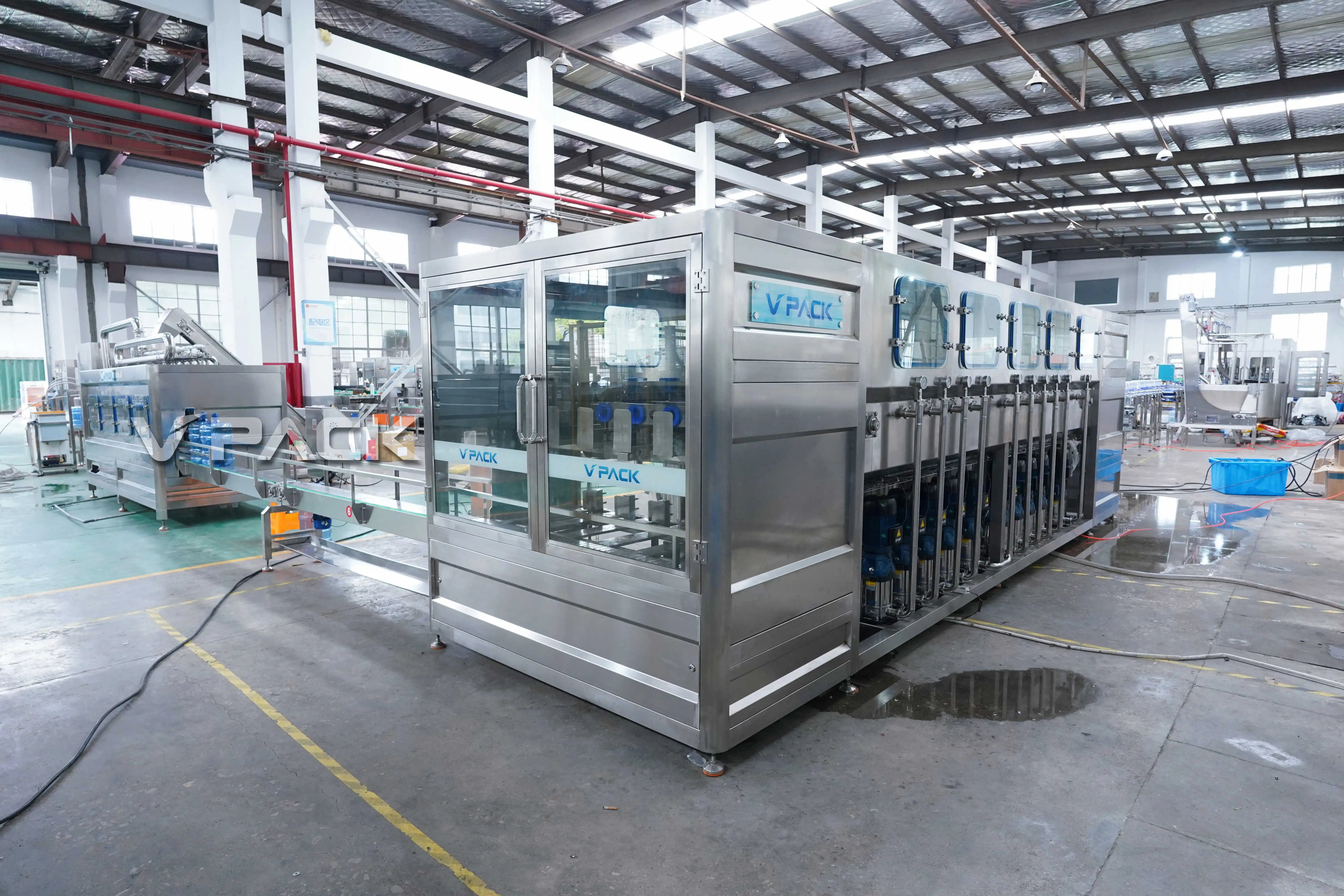

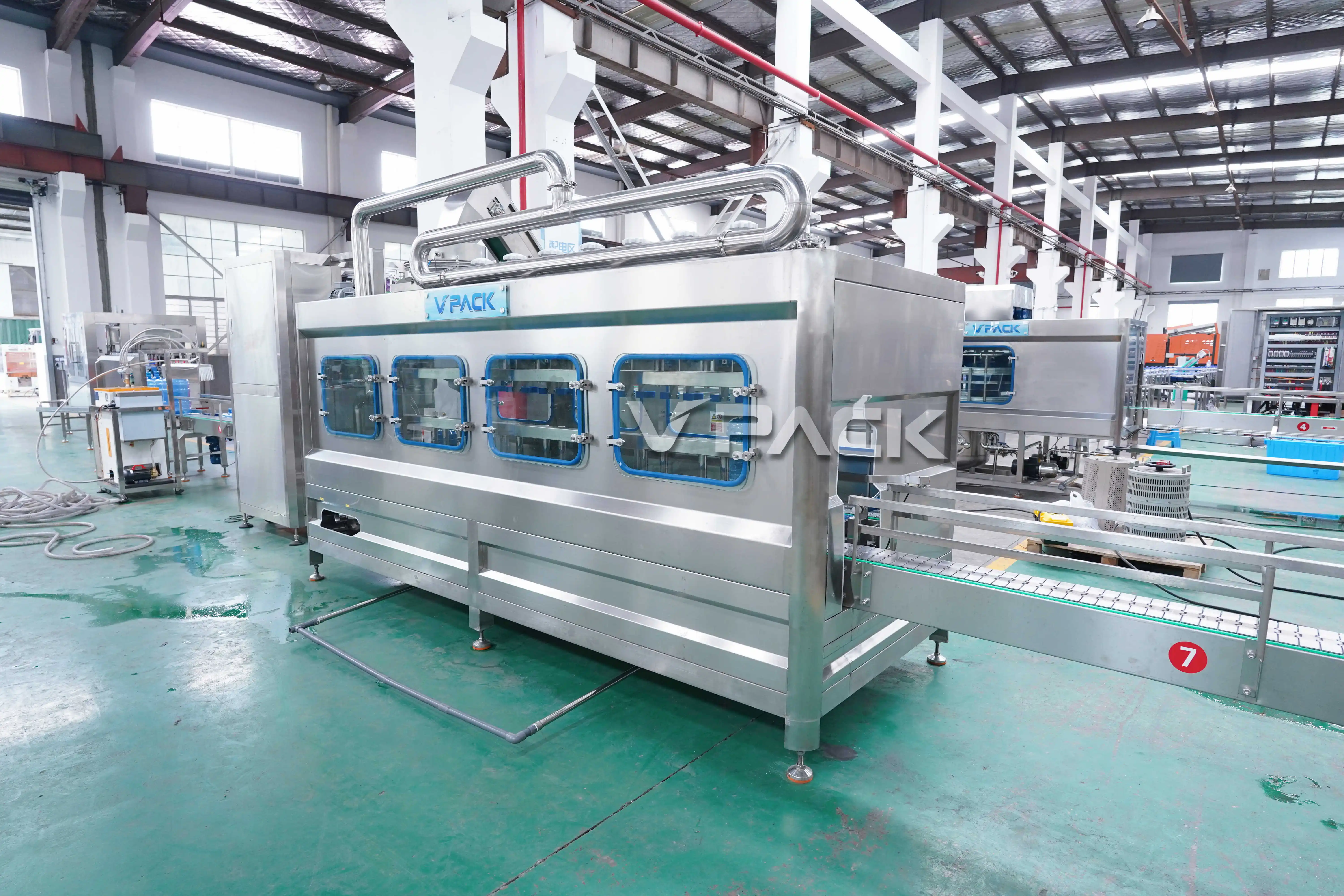

Full Automatic Barrel Production Line
The filling line special for 3-5 gallons barreled drinking water,with type of QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The capping machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Main Features
This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and
fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
Product Paramenters
Model | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
Volume(Gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
Barrel size(mm) | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 |
Capacity(b/h) | 100 | 240 | 300 | 450 | 600 | 900 | 1200 |
Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.8 | 13.5 |
Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Detailed Images

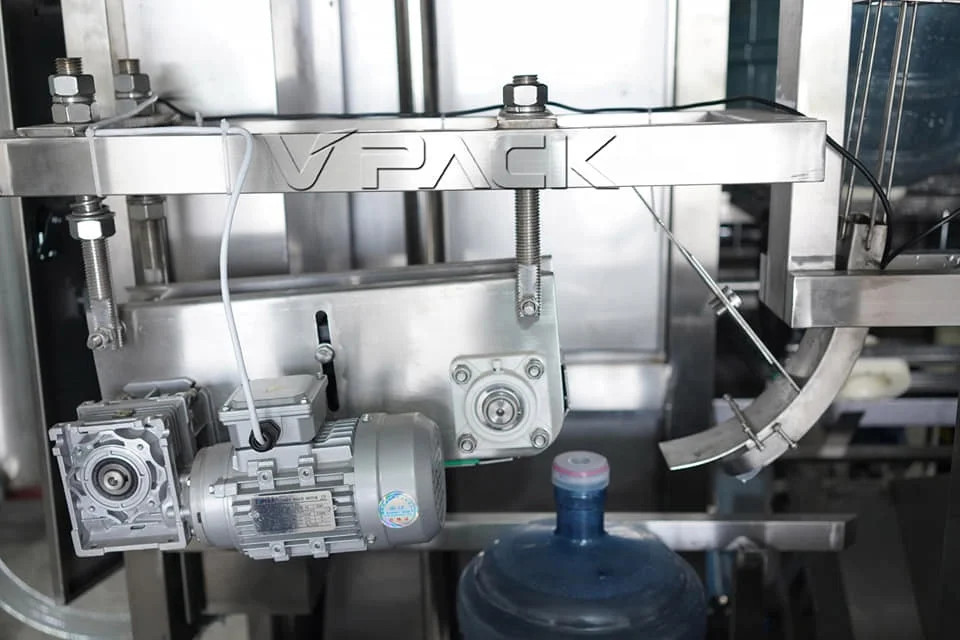

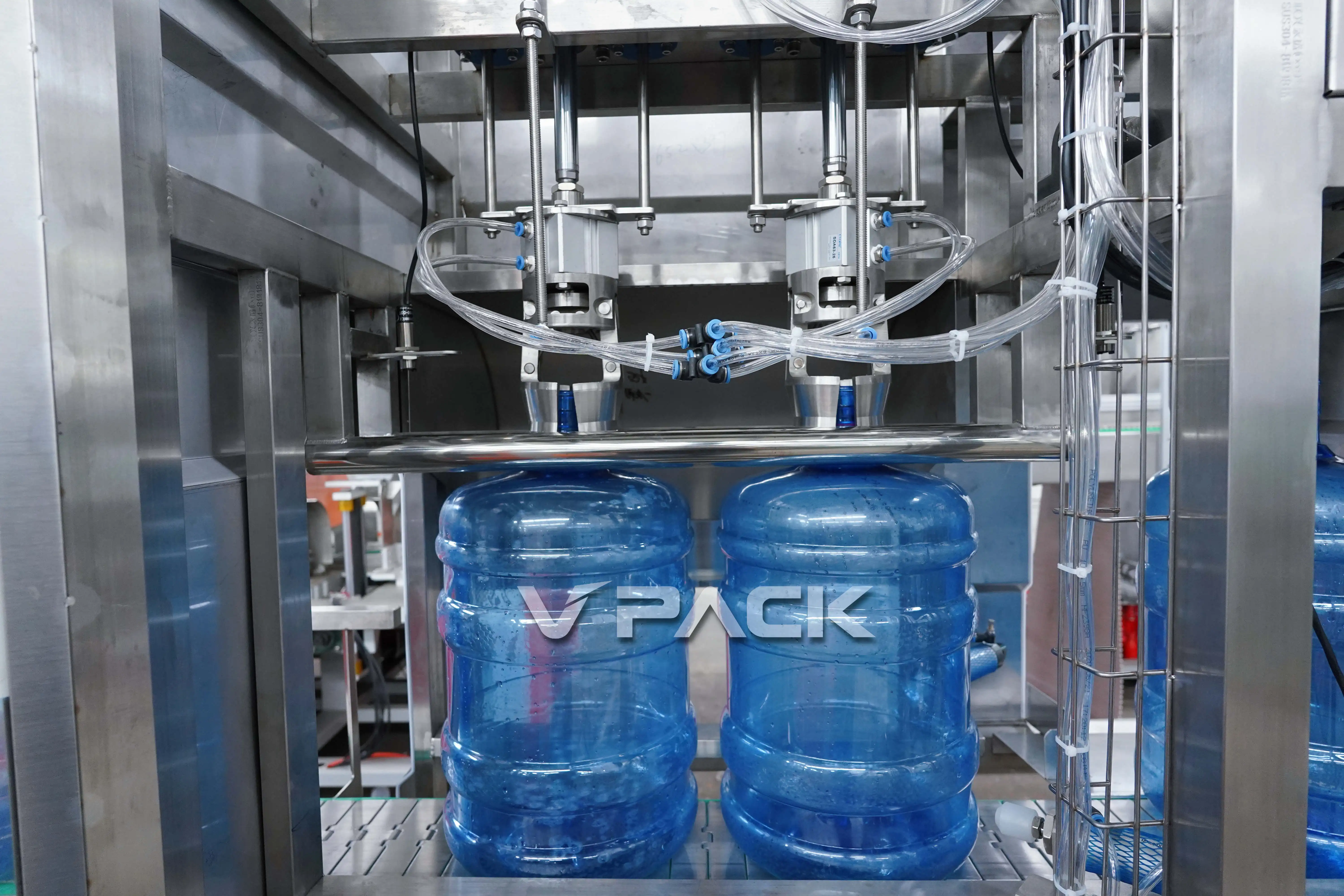

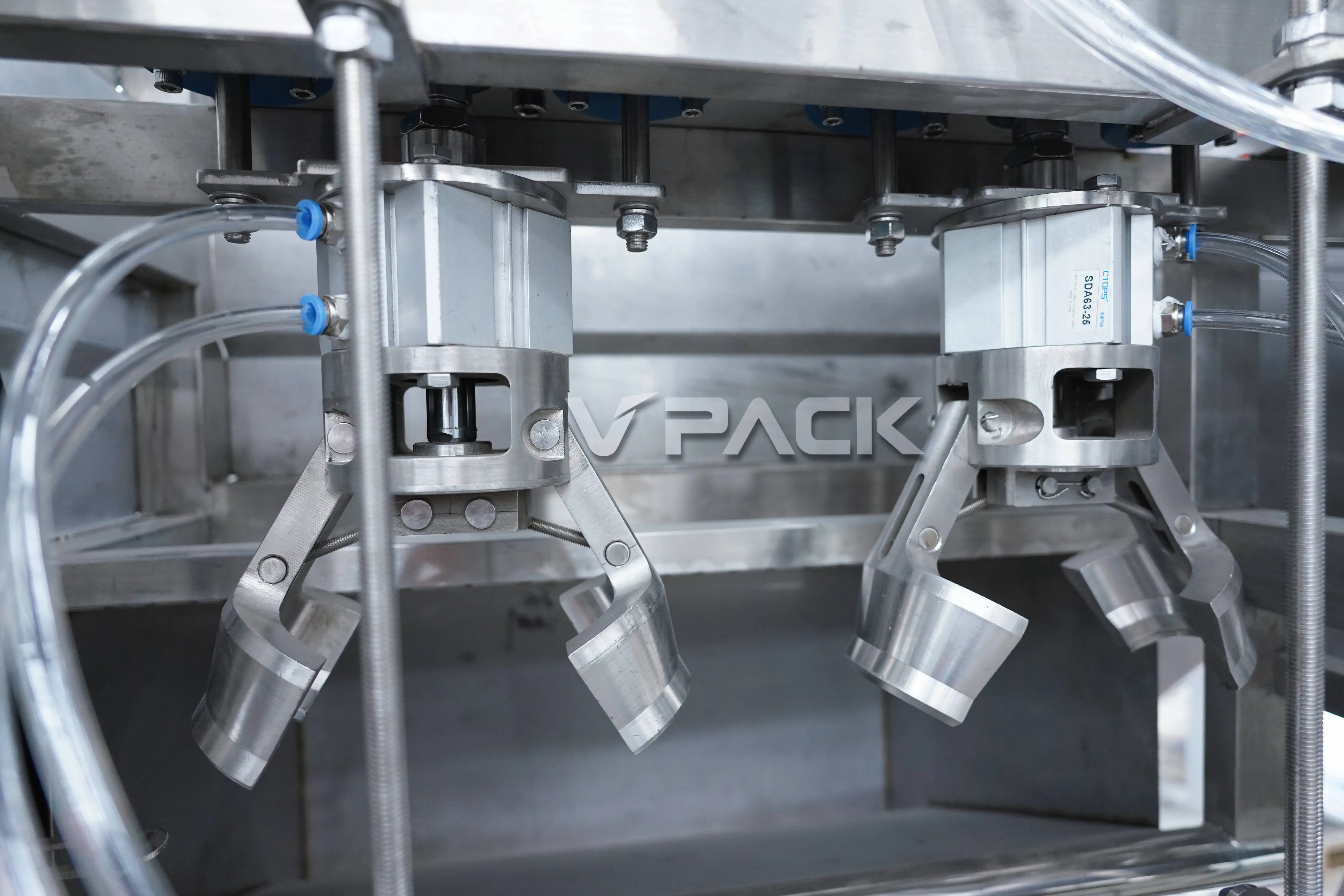

Decapping machine
Automatic cap remover machine is used to remove 5 gallon bottle cap ,easy operation and maintenance.
(1) Simple structure in linear type ,easy in installation and maintation.
(2) SUS304 material frame.
(3) Need euqipped with air compressor to provide compressor air .
(4) Capacity 100-2500caps per hour is optional.
(2) SUS304 material frame.
(3) Need euqipped with air compressor to provide compressor air .
(4) Capacity 100-2500caps per hour is optional.

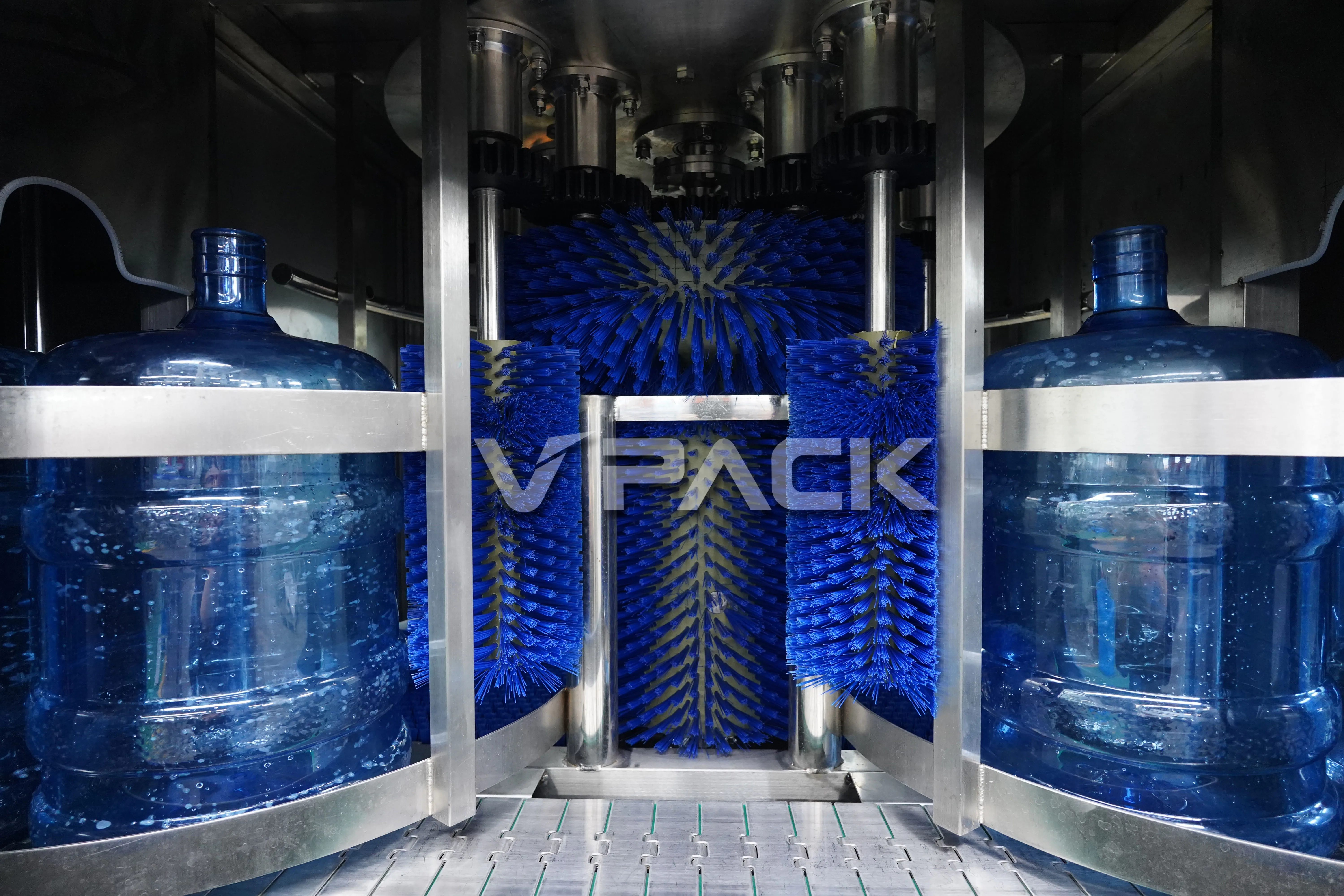

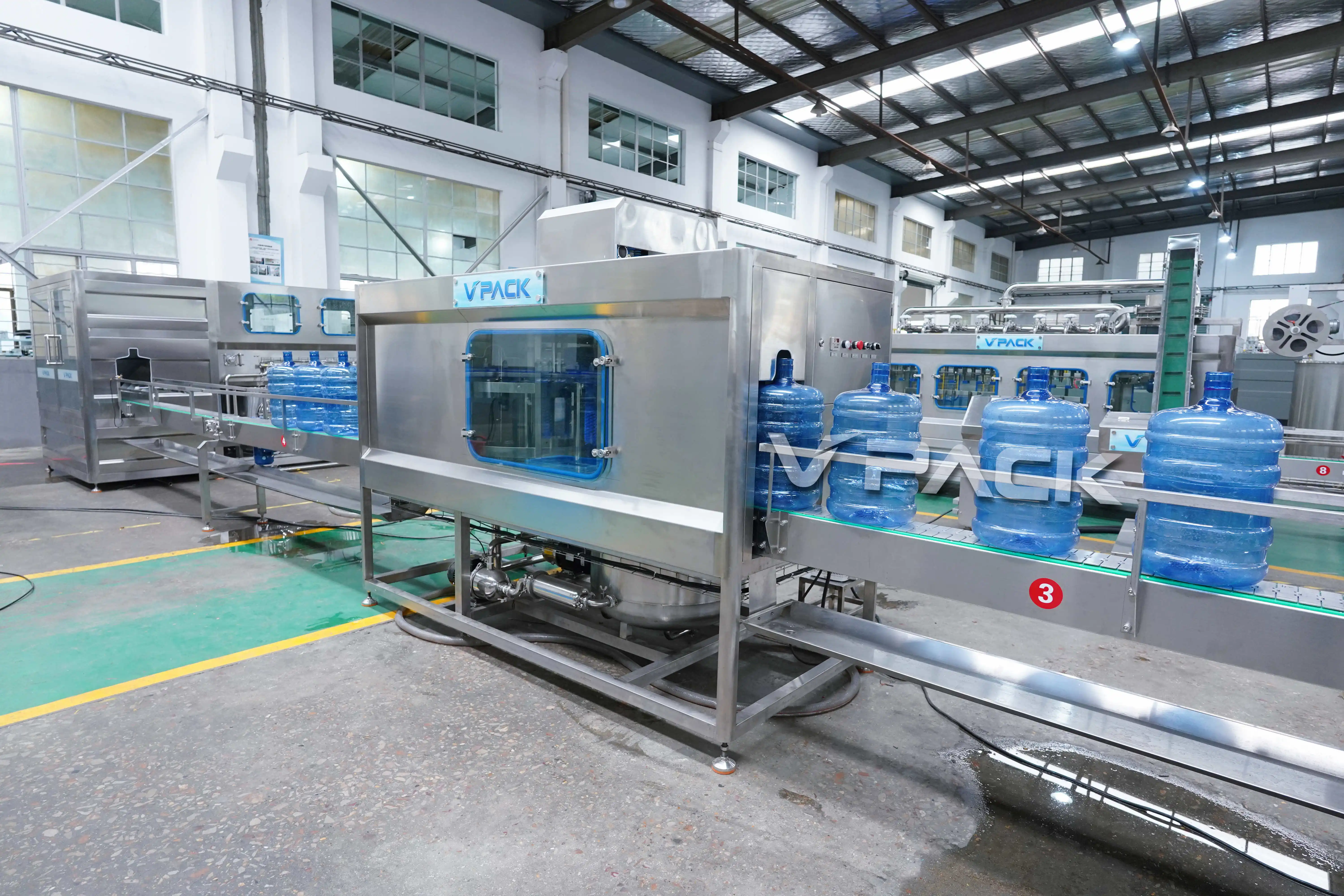

Outside Washing Parts
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

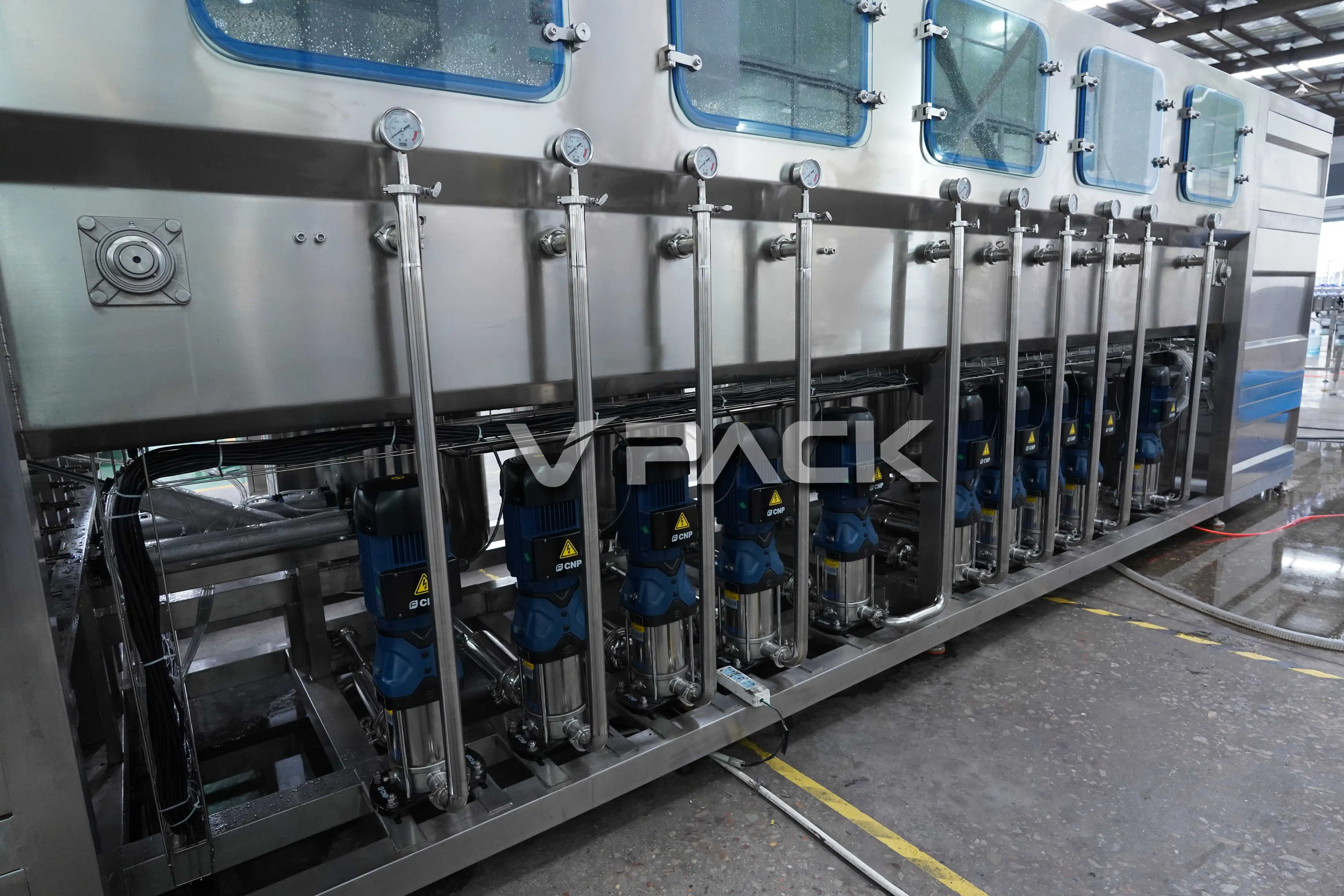

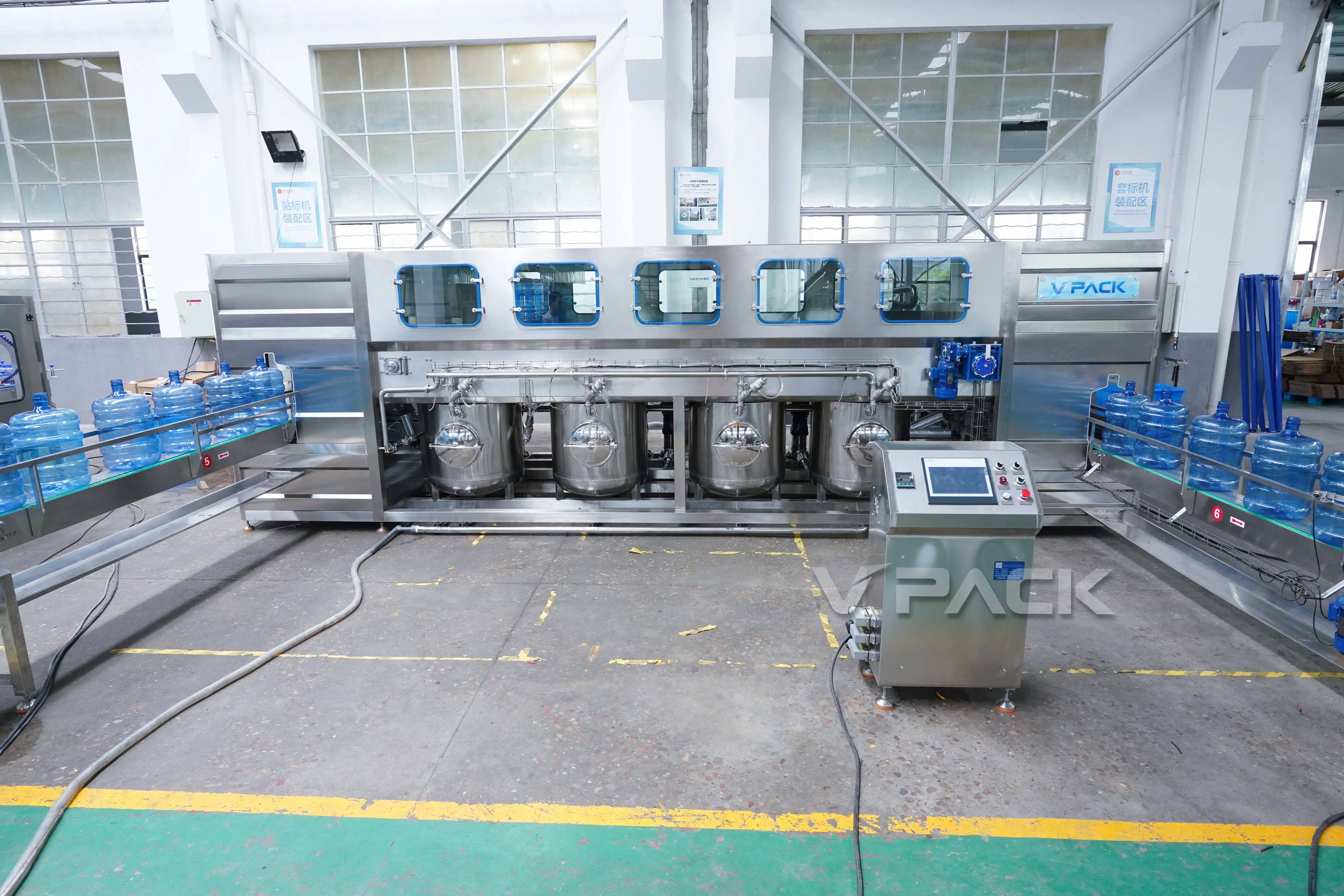

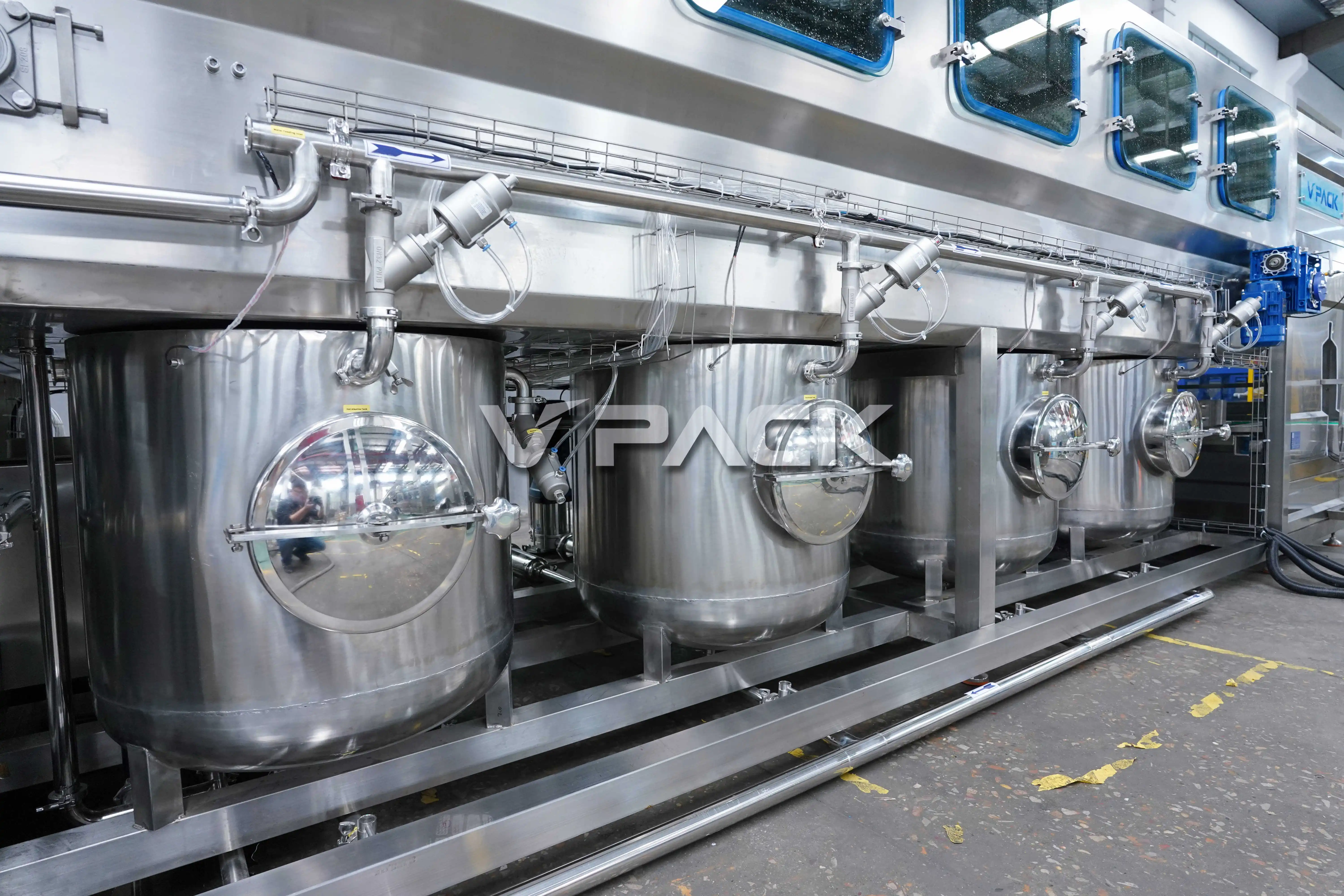

Inside Washing Parts
Using three steps to make the barrel inside clean. hot alkali-----disinfectant liquid-----pure water

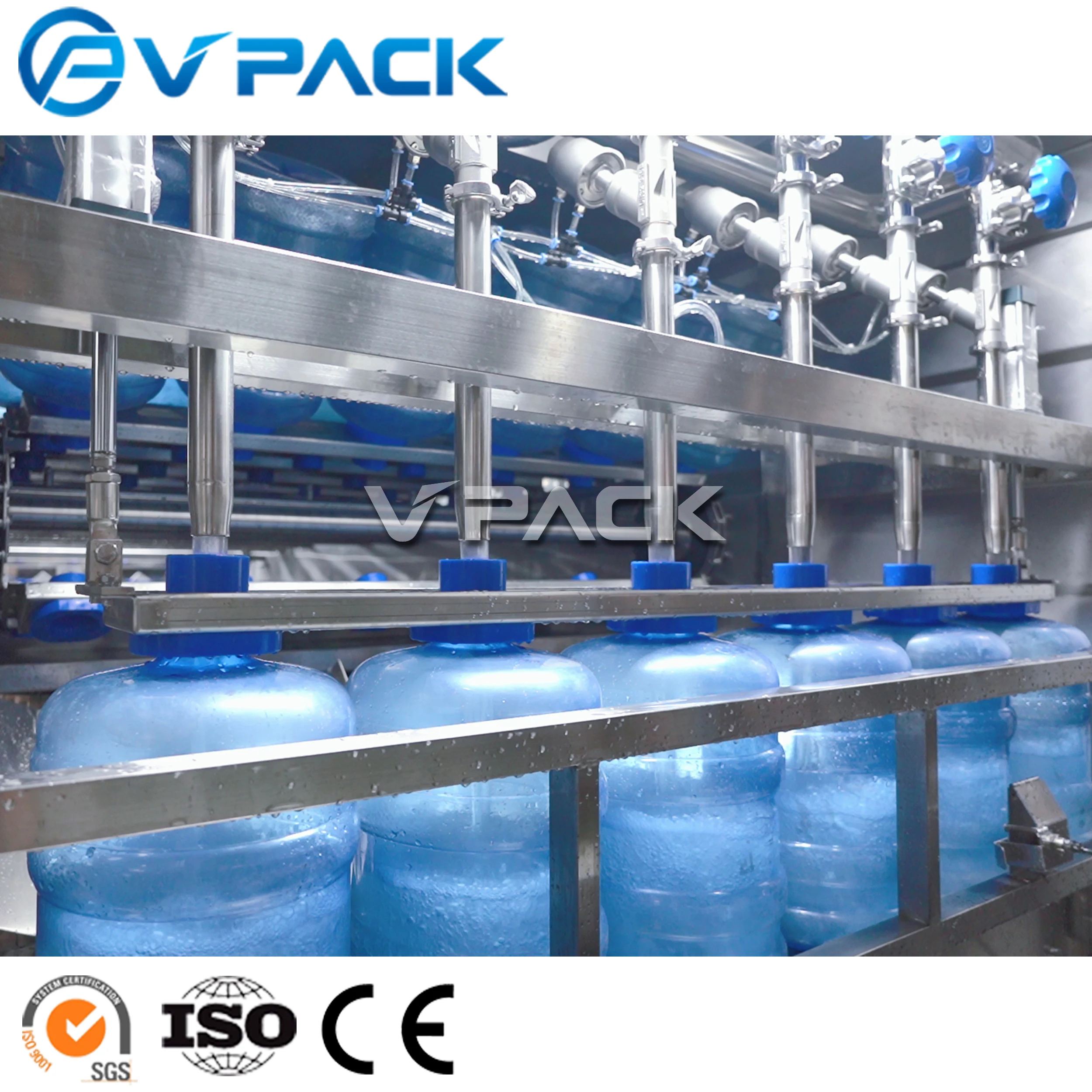

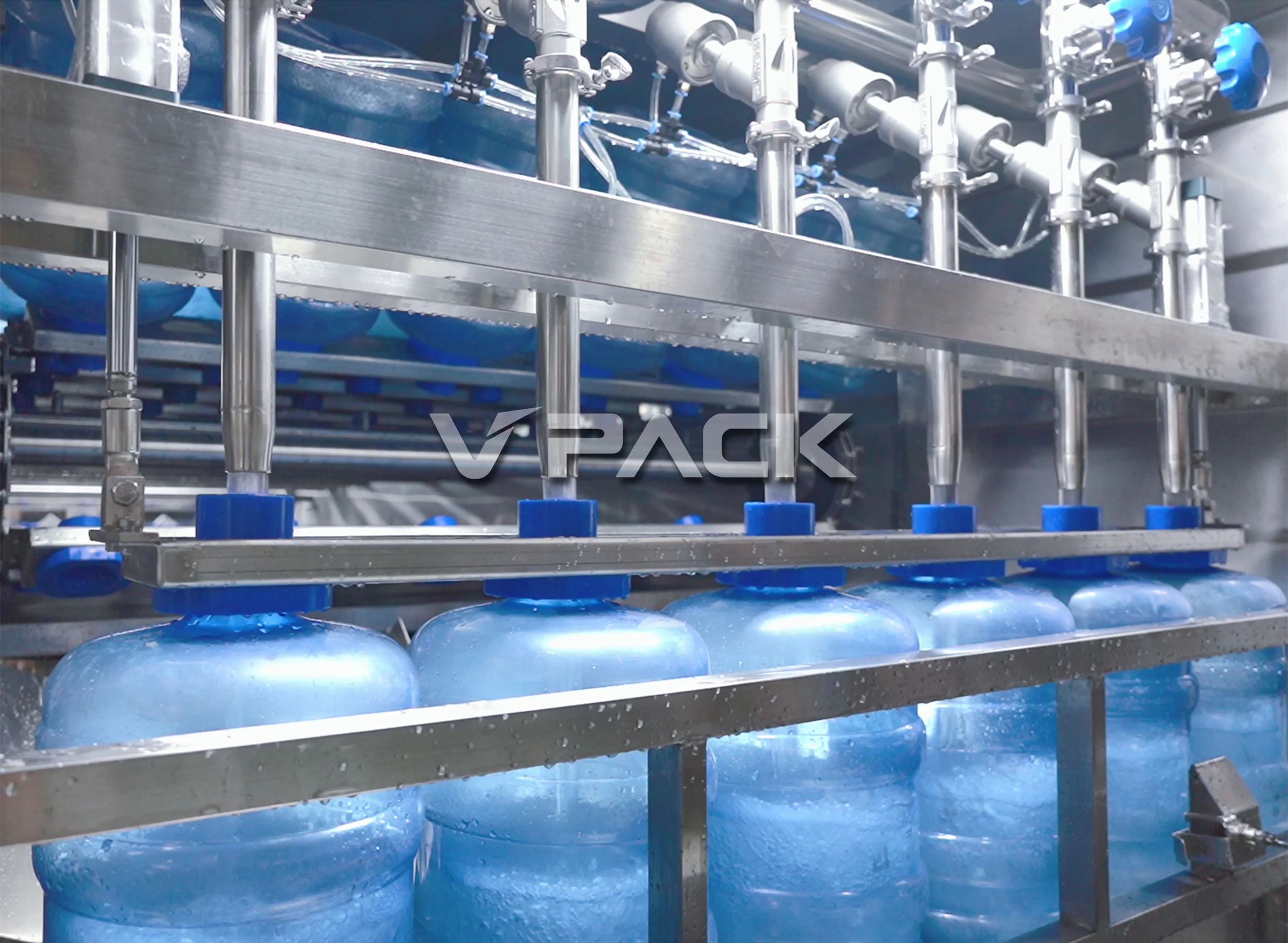

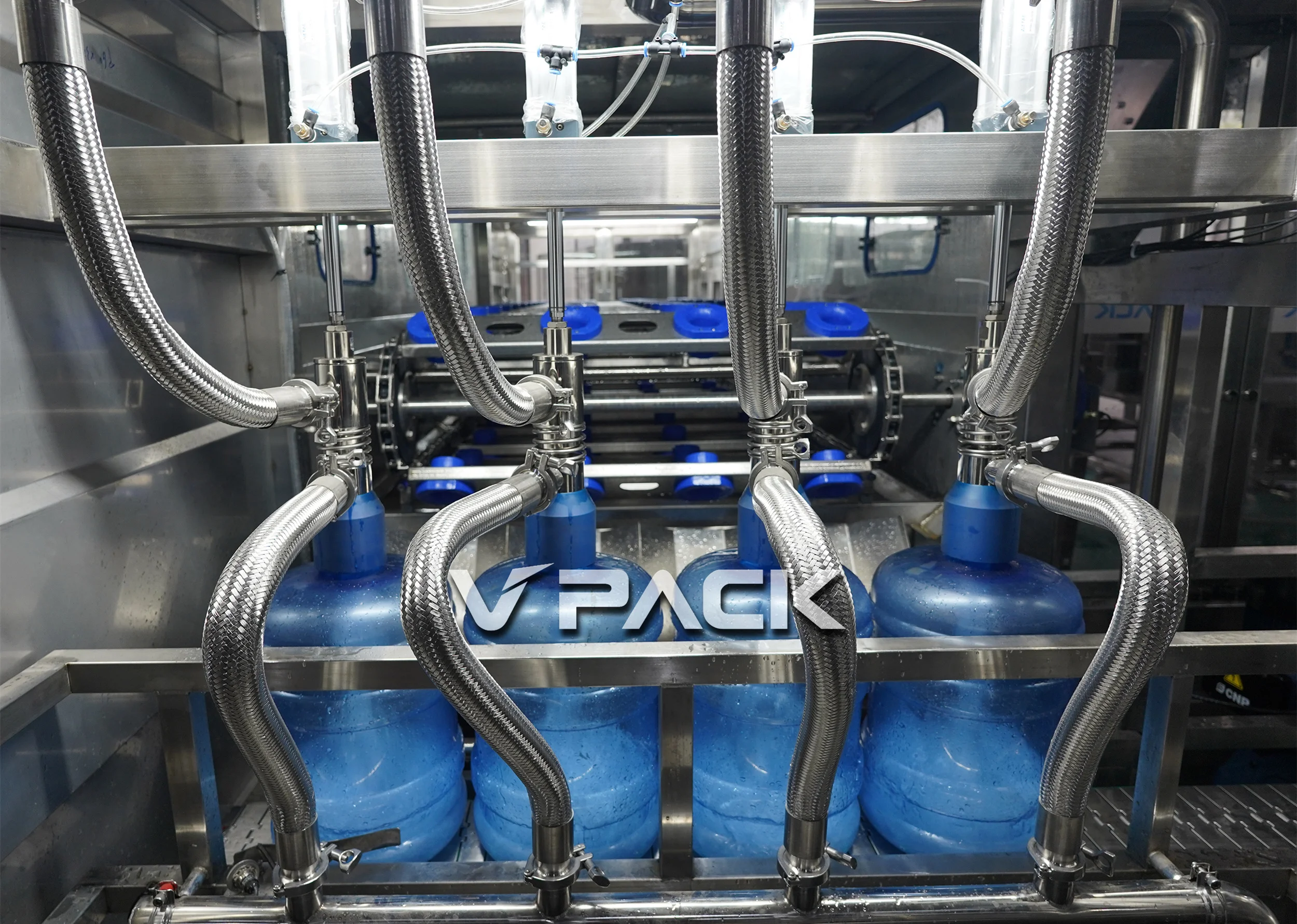

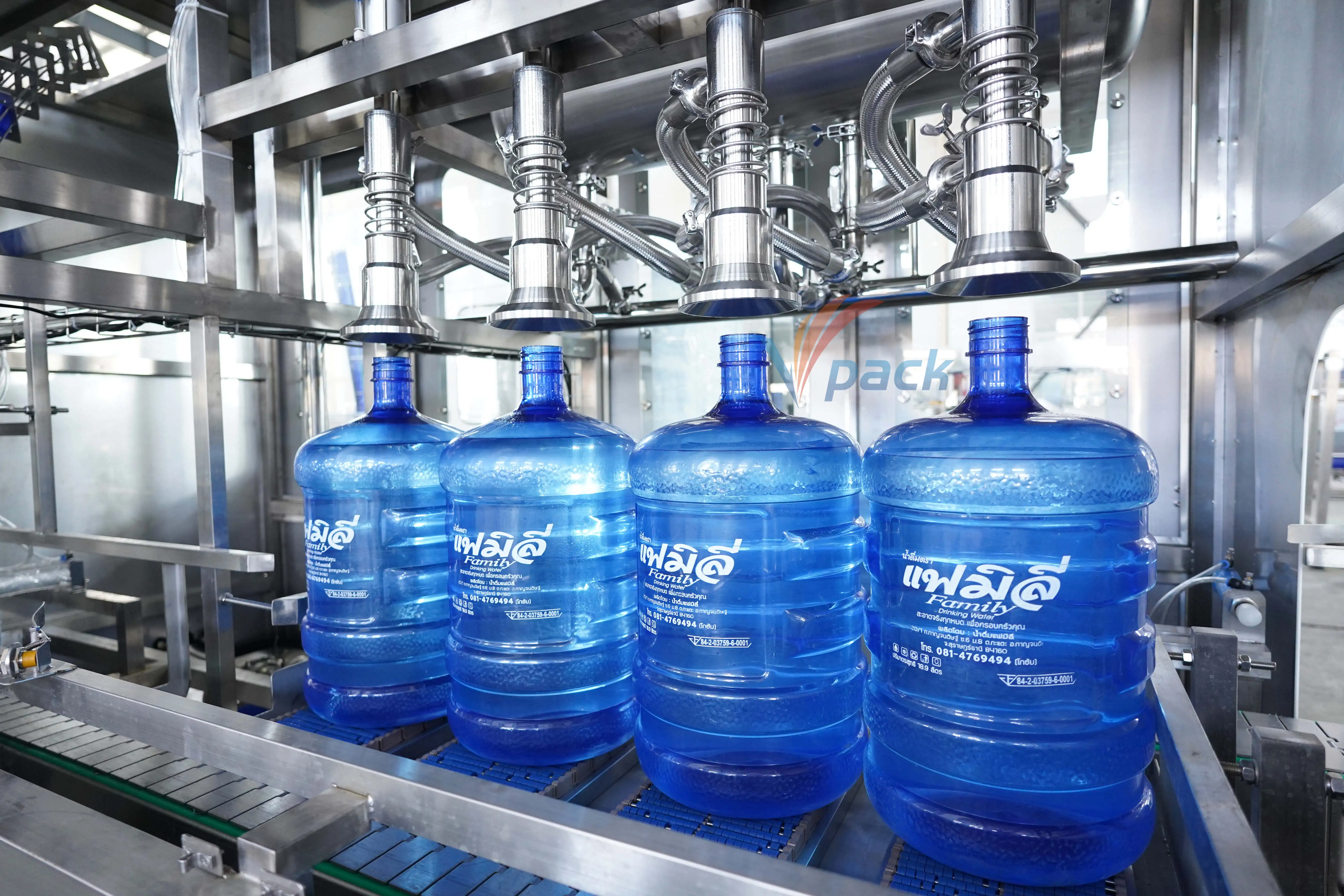

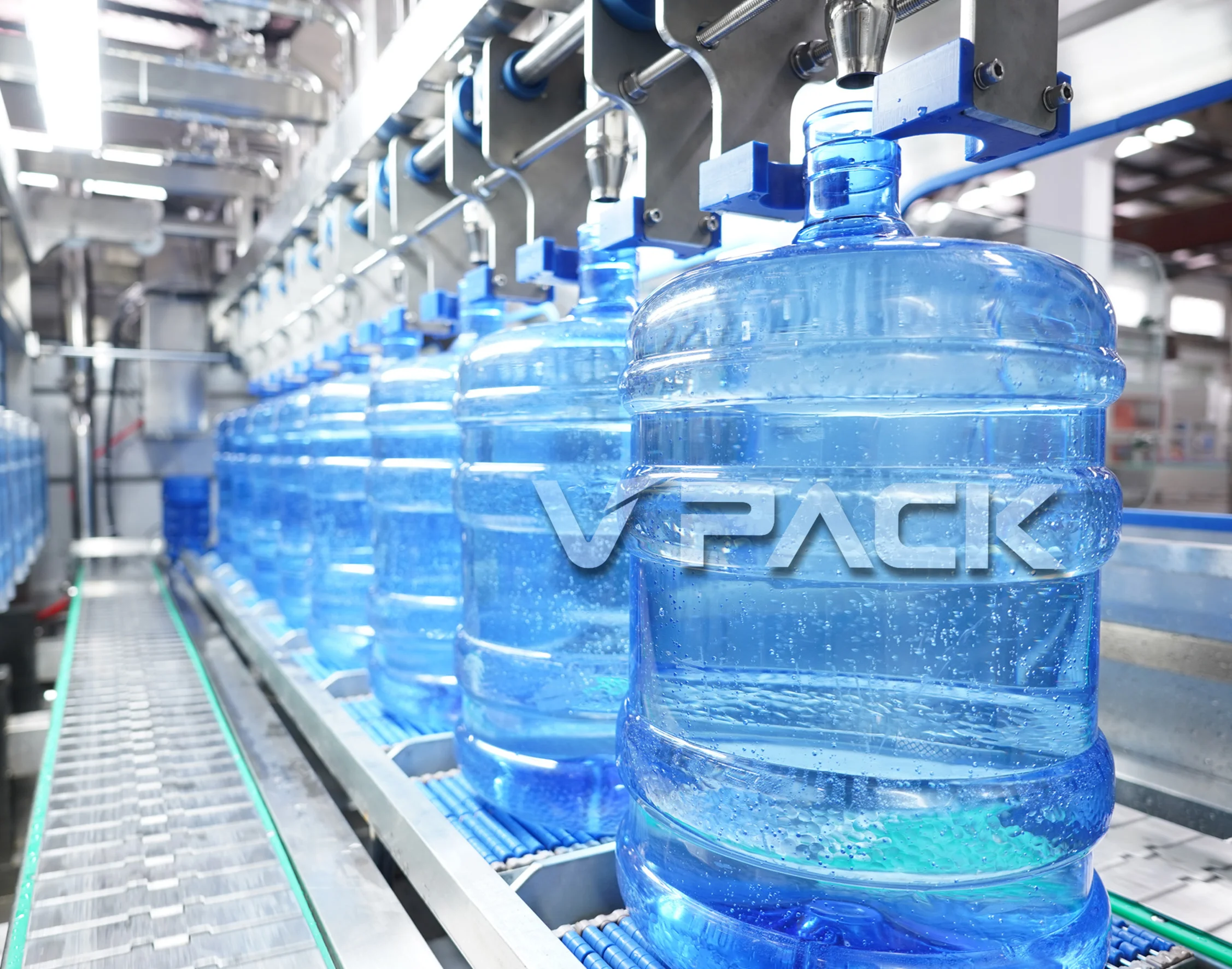

Filling parts
1.Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
2.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

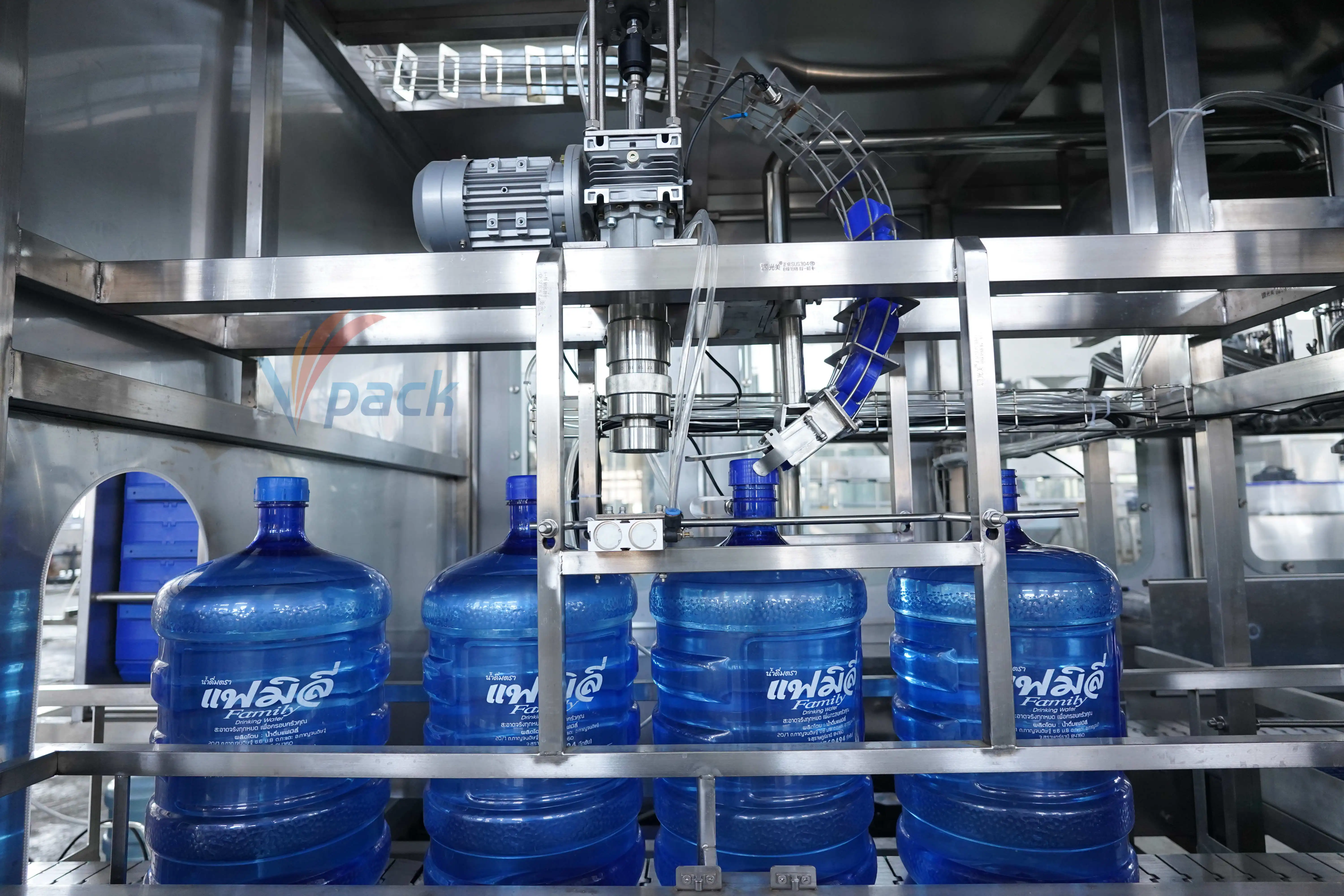

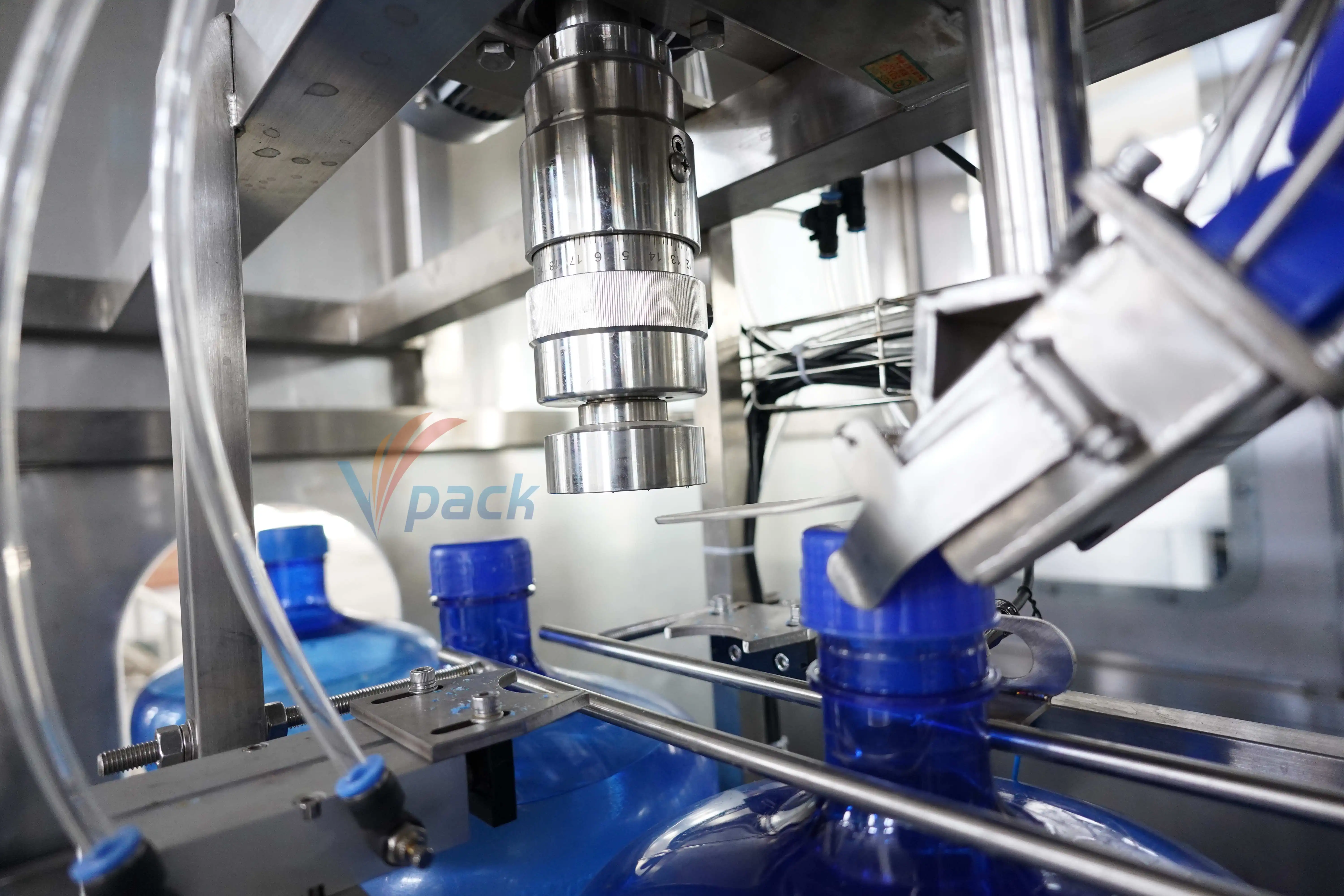

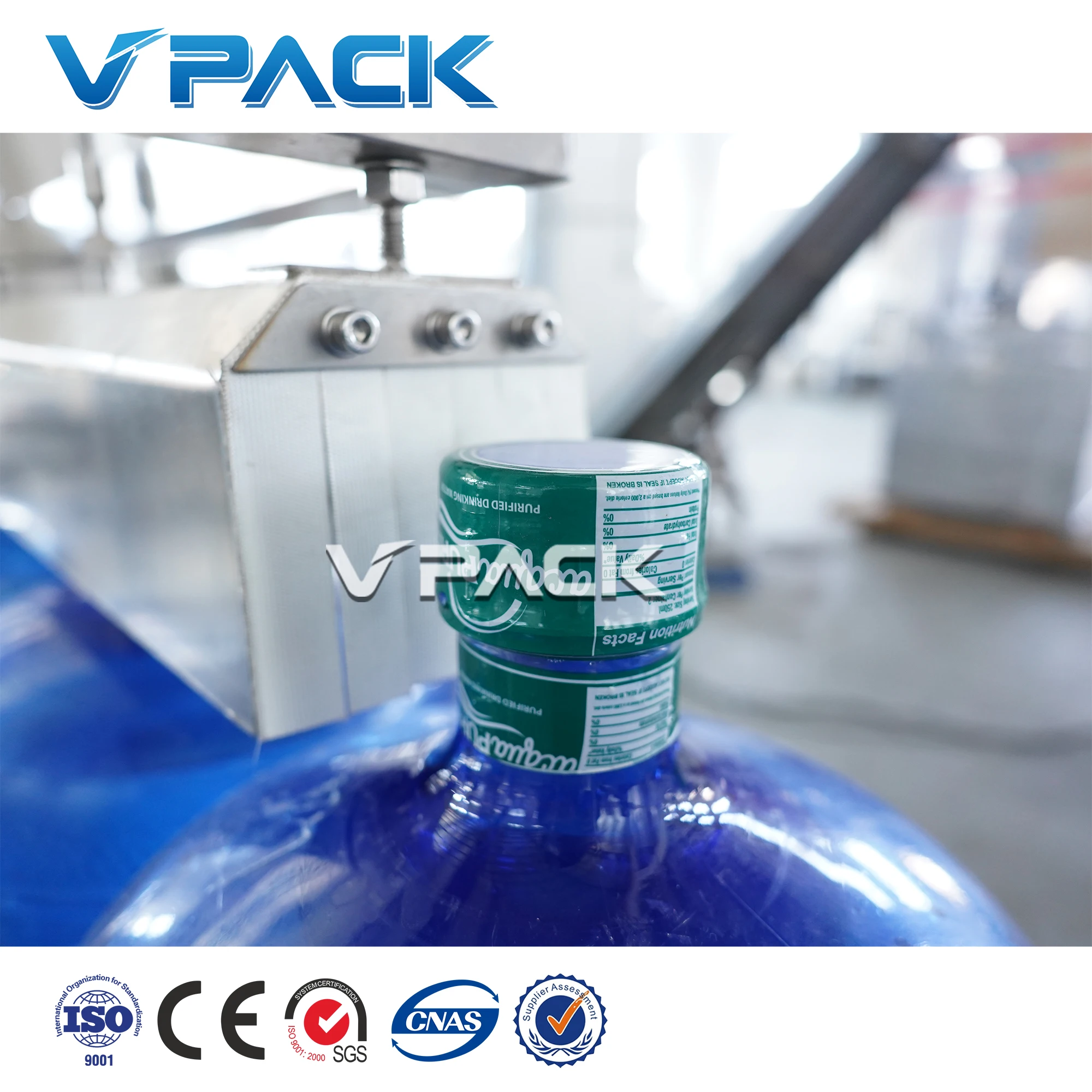

Capping parts
1.Liquid level difference is controlled in 1cm.

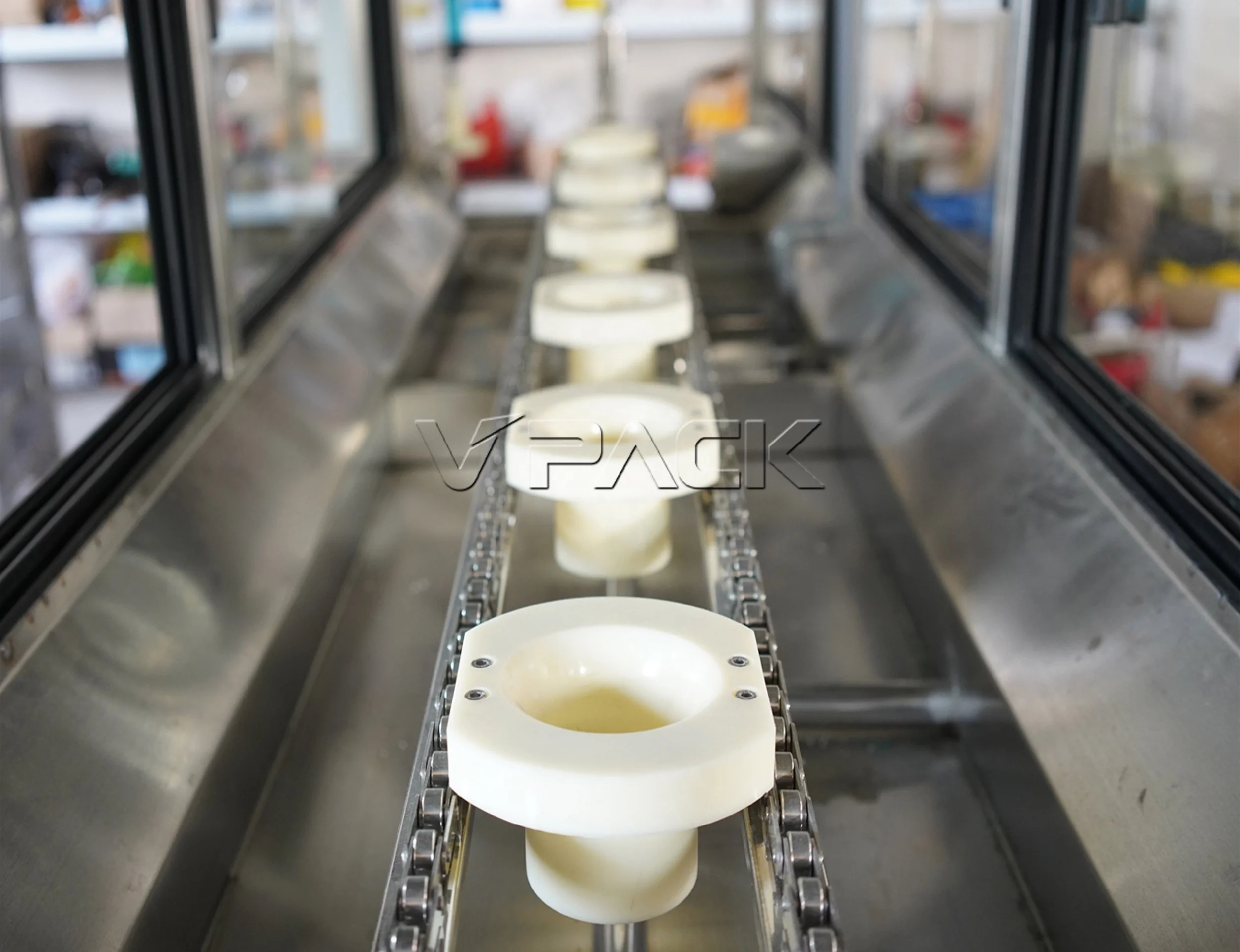

2.Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
2.Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
240BPH 5GL Water Line Video
500BPH 5GL Water Line Video
600BPH 5GL Water Line Video
900BPH 5GL Water Line Video
1200BPH 5GL Water Line Video
Auxiliary Equipment
5 Gallon PET Bottle Blowing Machine
5 Gallon Cap Injection Machine
5 Gallon Bottle Sticker Labeling Machine
5 Gallon Bottle Neck Labeling Machine
5 Gallon Cap Labeling Machine
5 Gallon Cap Spacer Inserting Machine
