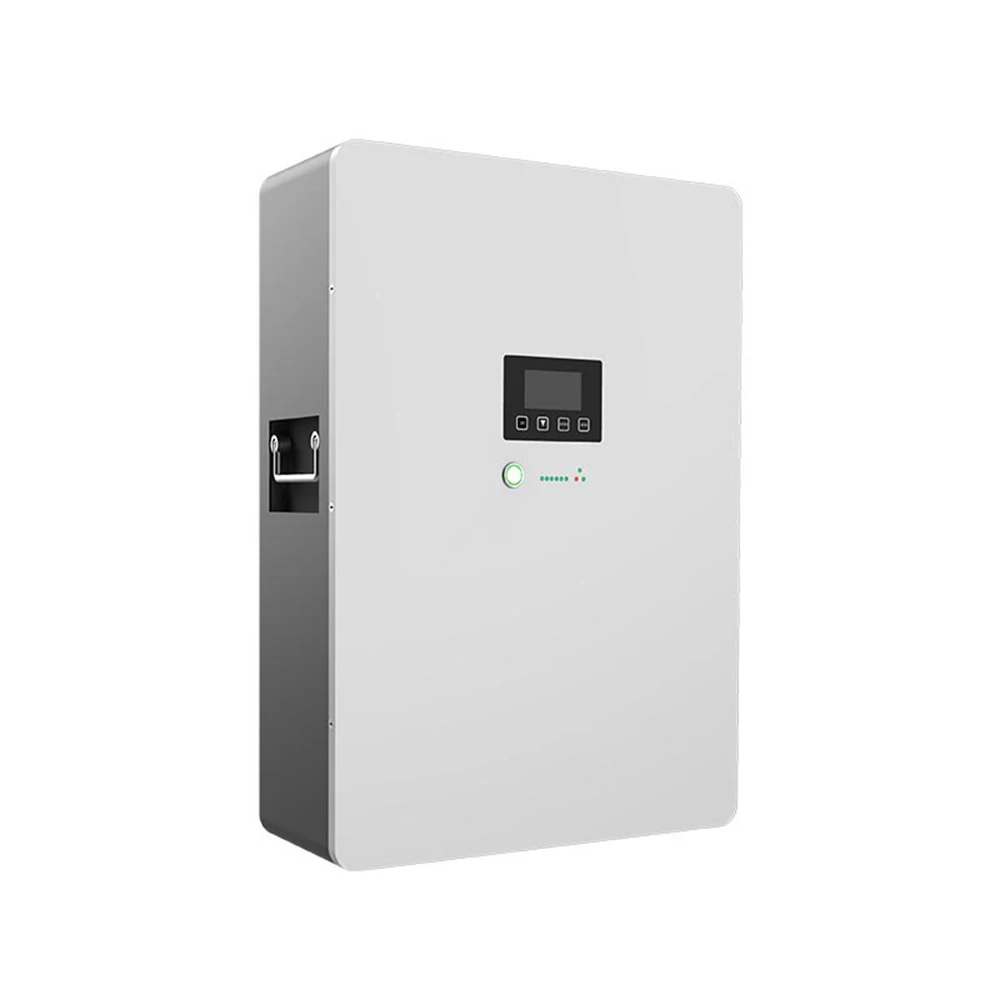

Project | Specifications | Project | Specifications |
Nominal voltage | 51.2V | Standard discharge current | 20A |
Typical capacity | 100Ah | Maximum discharge current | 100A |
Energy | 5120Wh | Combination method | 16S2P |
Battery internal resistance | ≤180mΩ | Cell model | LFP 3.2V 50Ah |
Charging limit voltage | 58.4V | Shell main material | Cold rolled steel plate |
Working voltage | 44.8~58.4V | Protection level | IP51 |
Standard charging current | 20A | Cooling method | Natural cooling |
Maximum charging current | 100A | Overall dimensions | 636*430*183.5士5mm |
Discharge cut-off voltage | 44.8V | Battery weight | =52kg |
