Cnc Marking Stud Welding Compound Machine Capacitor Energy Storage Welding Machine Stud Welding Automation Equipment
- Category: >>>
- Supplier: Dongguan Hongjin Test Instrument Co. Ltd.
Share on (1600938513672):
Product Overview
Description
Product Paramenters
Product Description

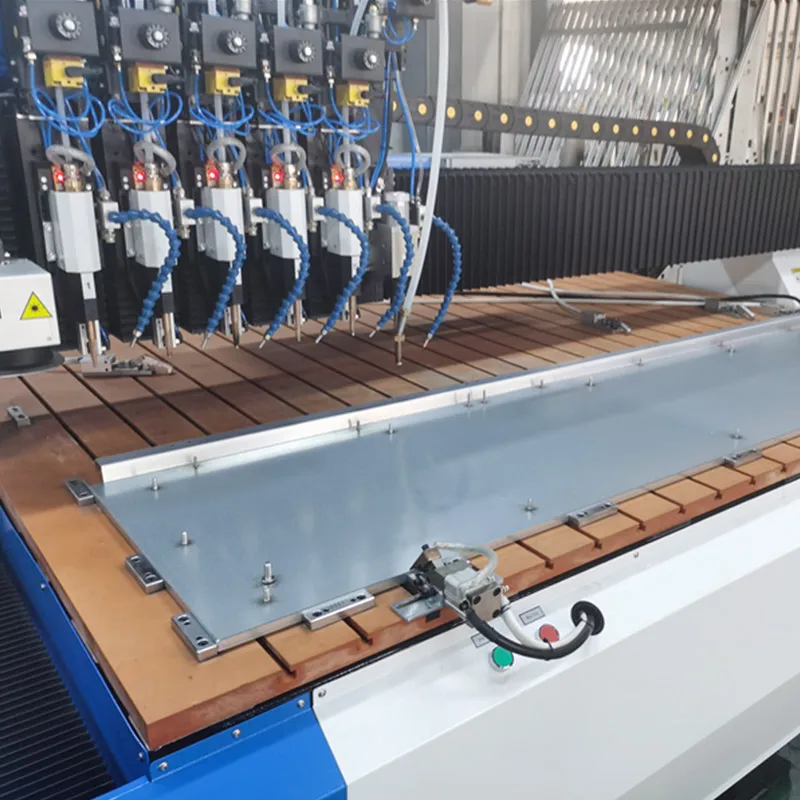

CNC marking stud welding compound machine is suitable for: stainless steel cabinets, wind energy generator rooms, galvanized sheets, large variety of welding stud products
Product Usage:

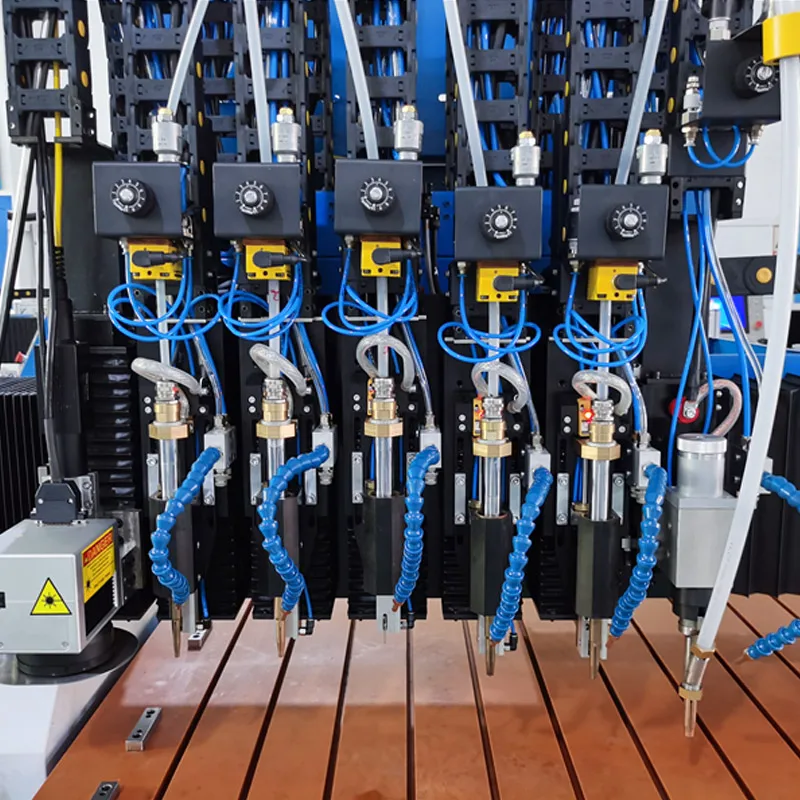

The equipment adds a 50W pulse laser and an automatic spray system on the basis of 6 automatic welding torches. The main function of the laser is to remove the zinc layer at the nailing position before nailing the galvanized sheet, which not only ensures the firmness of the welding but also ensures The original characteristics of the zinc plate; the laser can also be used for flat marking. Automatic lubrication is automatic spray before welding to remove welding slag around the welding stud. 6 automatic welding torches can automatically weld up to 6 kinds of welding studs of different sizes and 12 different lengths, which is the first choice for large and complex products.
Name | content | Name | content | ||||||
machine type | HJ-200 | drive | Servo/Pneumatic | ||||||
Maximum processing stroke/mm | 2000*1500 | Number of control axes | 8 | ||||||
X, Y fastest moving speed | 50m/min | Z-axis travel | welding | 40mm | |||||
Maximum welding speed/min | 30 pieces | position | 80mm | ||||||
Gas source | Gas consumption | 0.3 M3/min | Machining accuracy/m | ±0.15 mm | |||||
pressure | 0.6Mpa | Repeat positioning accuracy/m | 0.02mm | ||||||
Energy storage welding machine/set | 1 | Bed structure | Longmen double drive | ||||||
Automatic welding torch/table | 6 | Platform pad | Bakelite | ||||||
Automatic nail feeder/station | 6 | Working power | 380V/50HZ | ||||||
Stud diameter/mm | 3-8 | Total power/KW | 6 | ||||||
Stud length/mm | 6-30 | Machine weight/kg | 1300 | ||||||
Press plate clamp quantity/PCS | 6 | Length (including shelves)*width*height/mm | 4000*2300*1700 | ||||||
Pulse laser/W | 50 | Laser marking efficiency/min | 20-30 holes | ||||||
