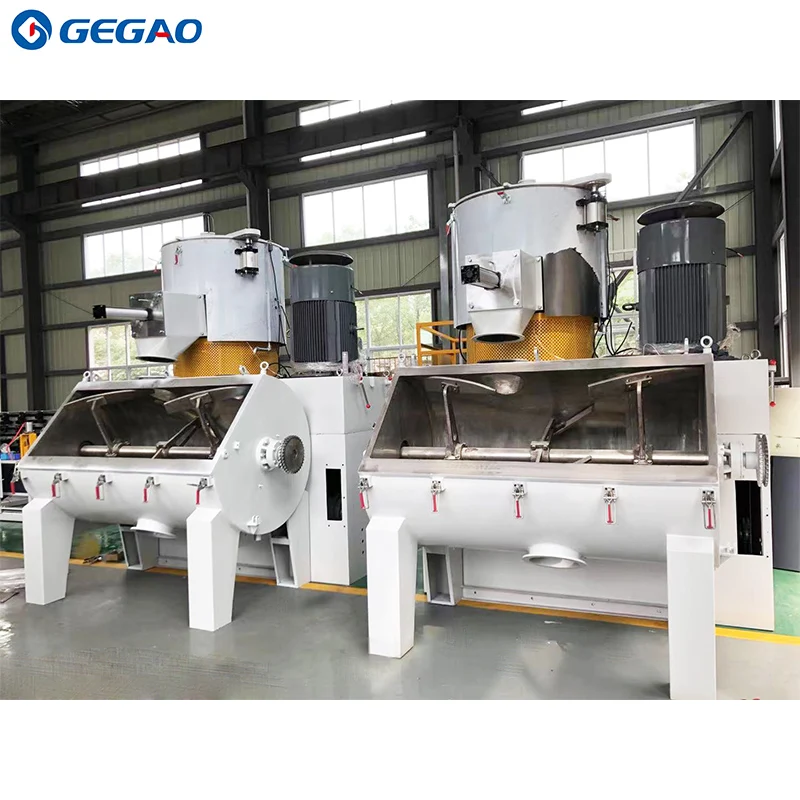

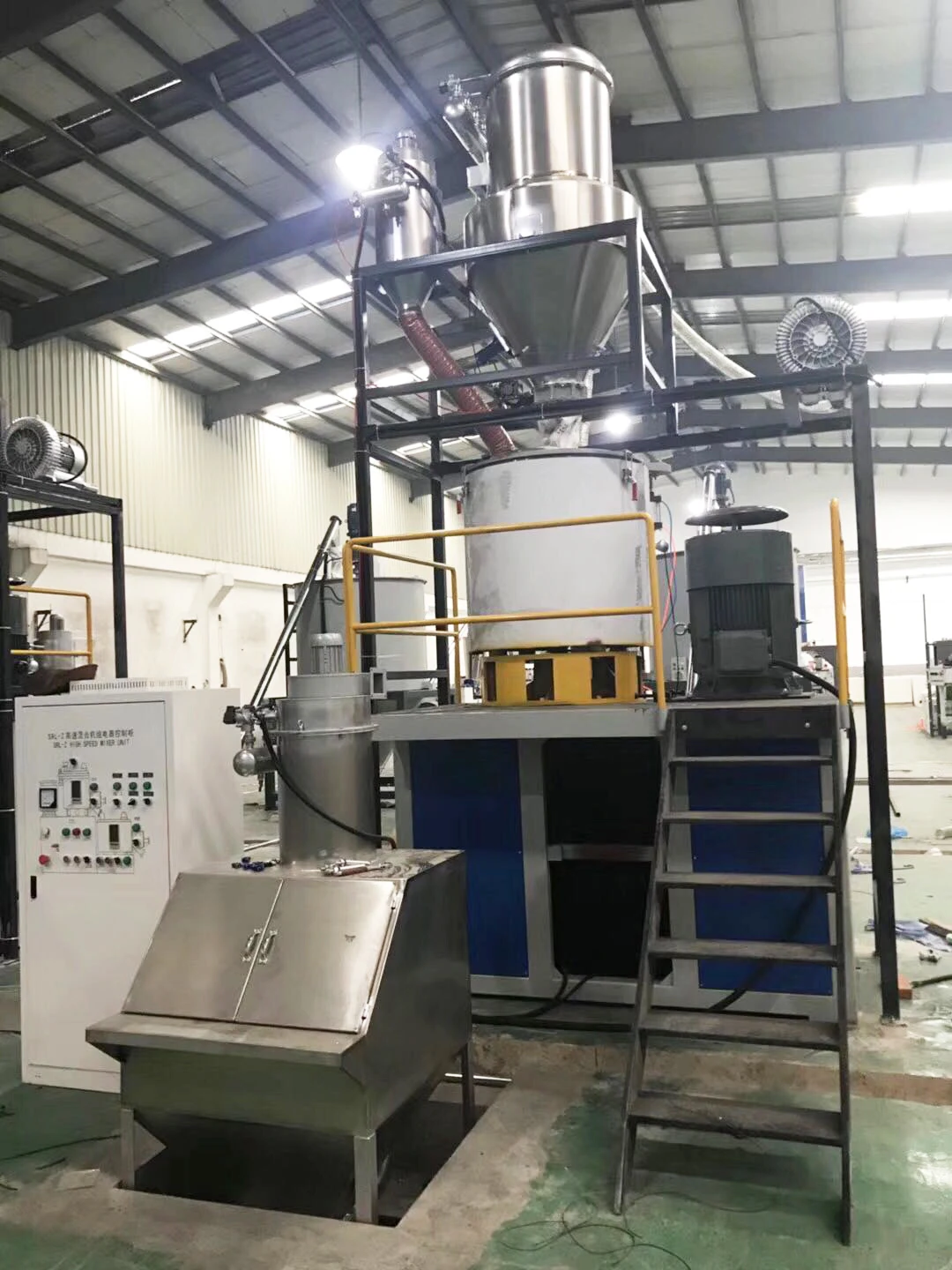

PVC and CaCO3 powder hot mixer and cooling mixer machine Plastic Mixing Machine PVC Mixer With Feeding Conveying System
- Category: >>>
- Supplier: Zhangjiagang Gegao Machinery Co. Ltd.
Share on (1600938517519):
Product Overview
Description
VR
Product Description

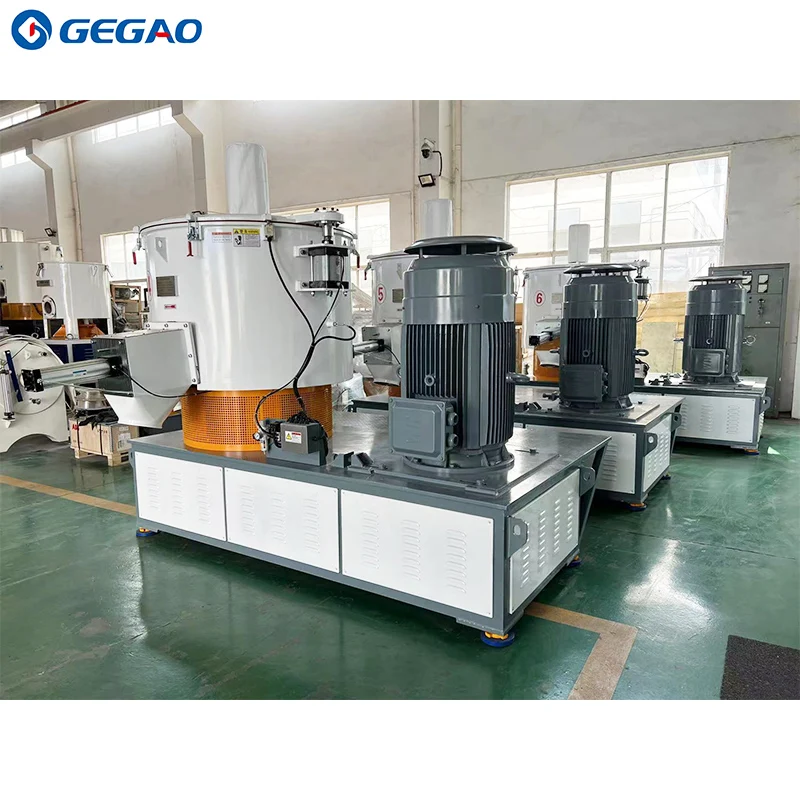

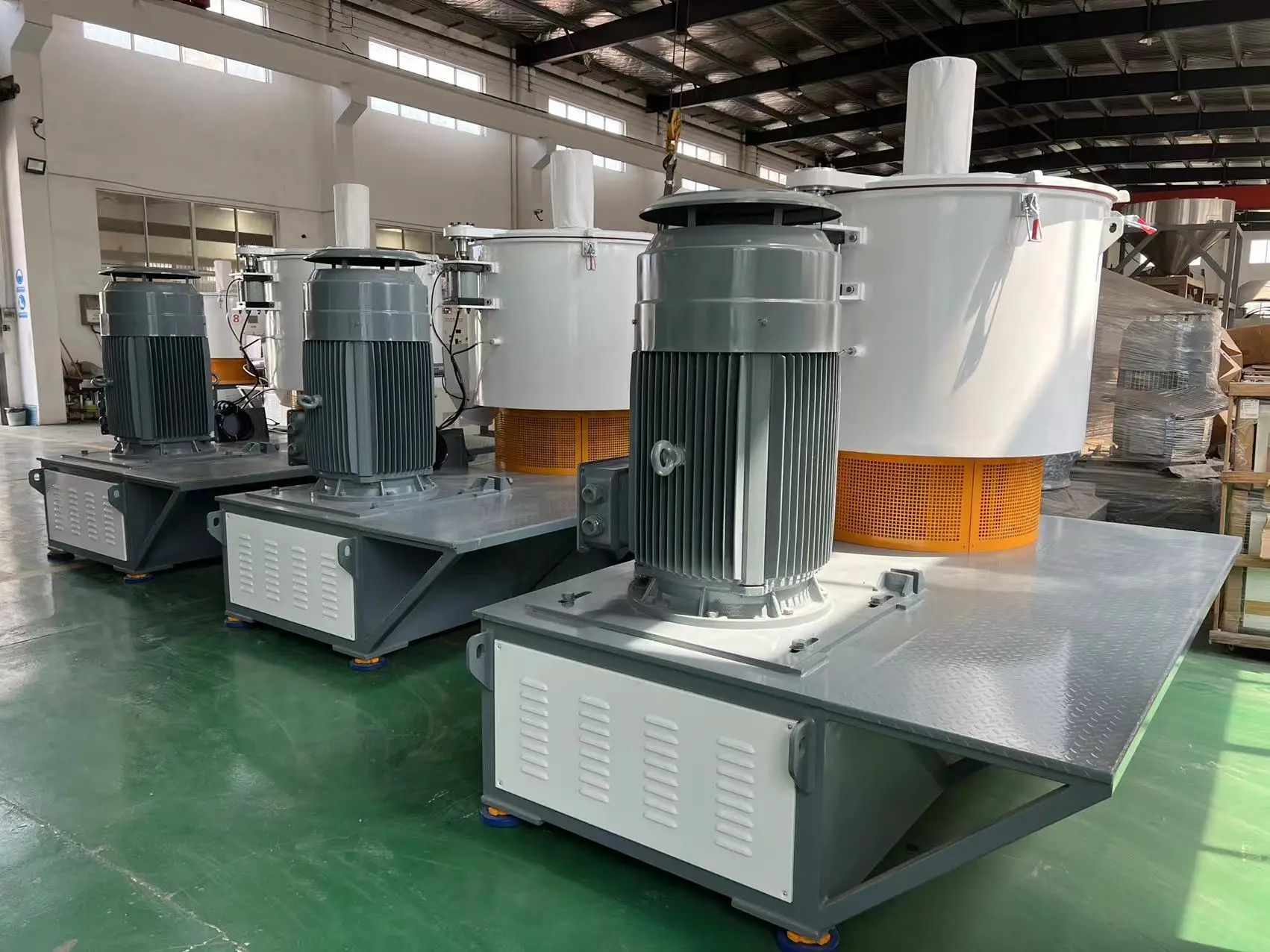

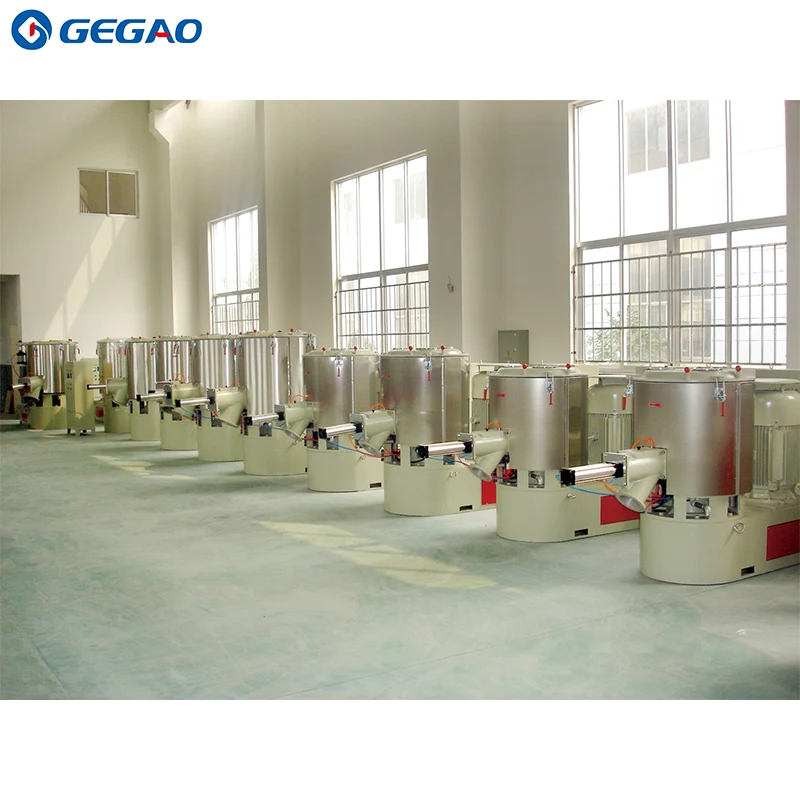

SHR SERIES HIGH-SPEED MIXER
SHR series high-speed mixer is used in mixing, blending, drying, coloring materials in plastic, rubber and chemical industries.SHR series high-speed mixer adopts advanced desgin, it is convenient and safe for operation. It offers small size, light weigth, high effciency, low energy consumption, and low noise.

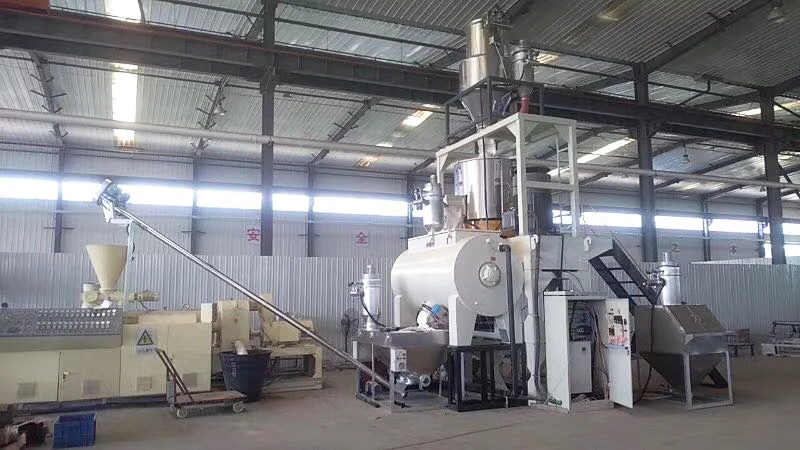

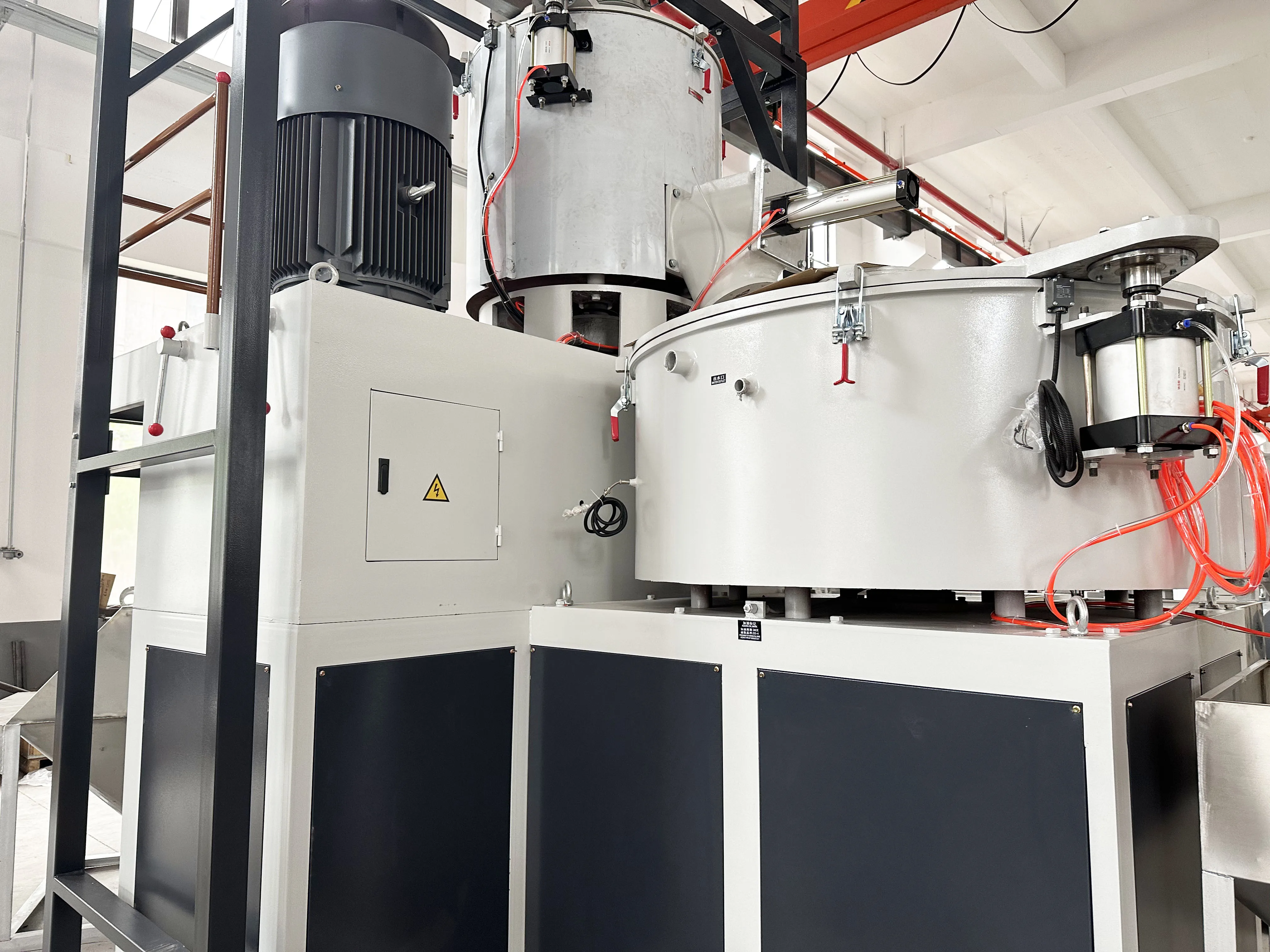

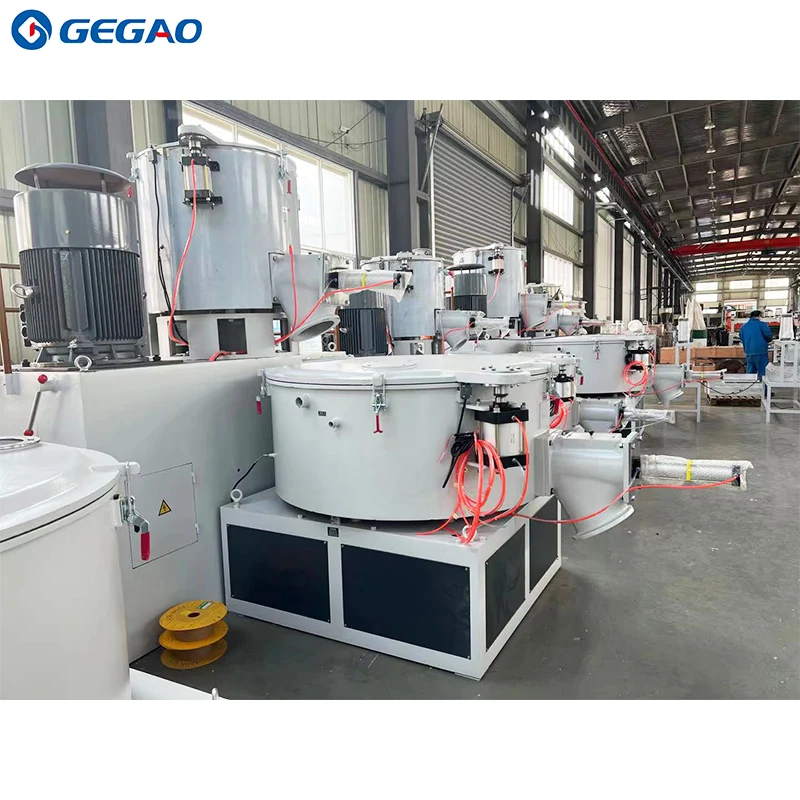

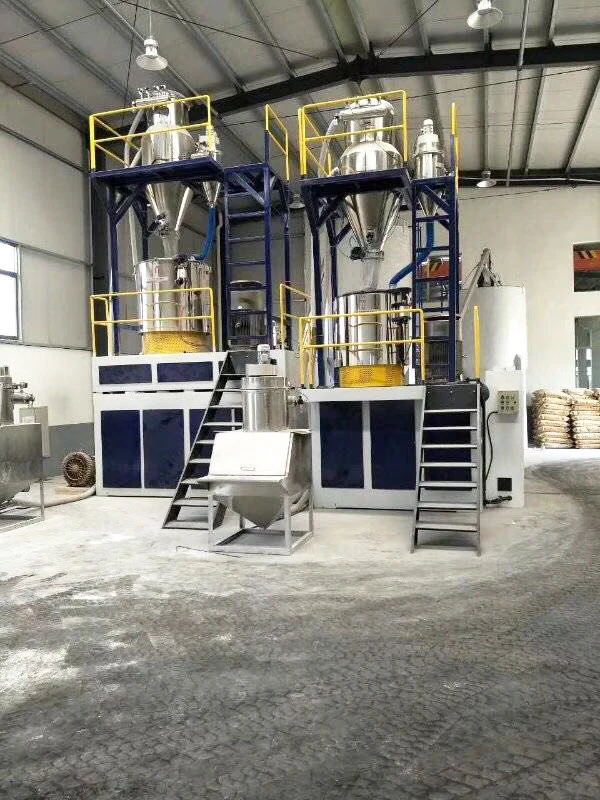

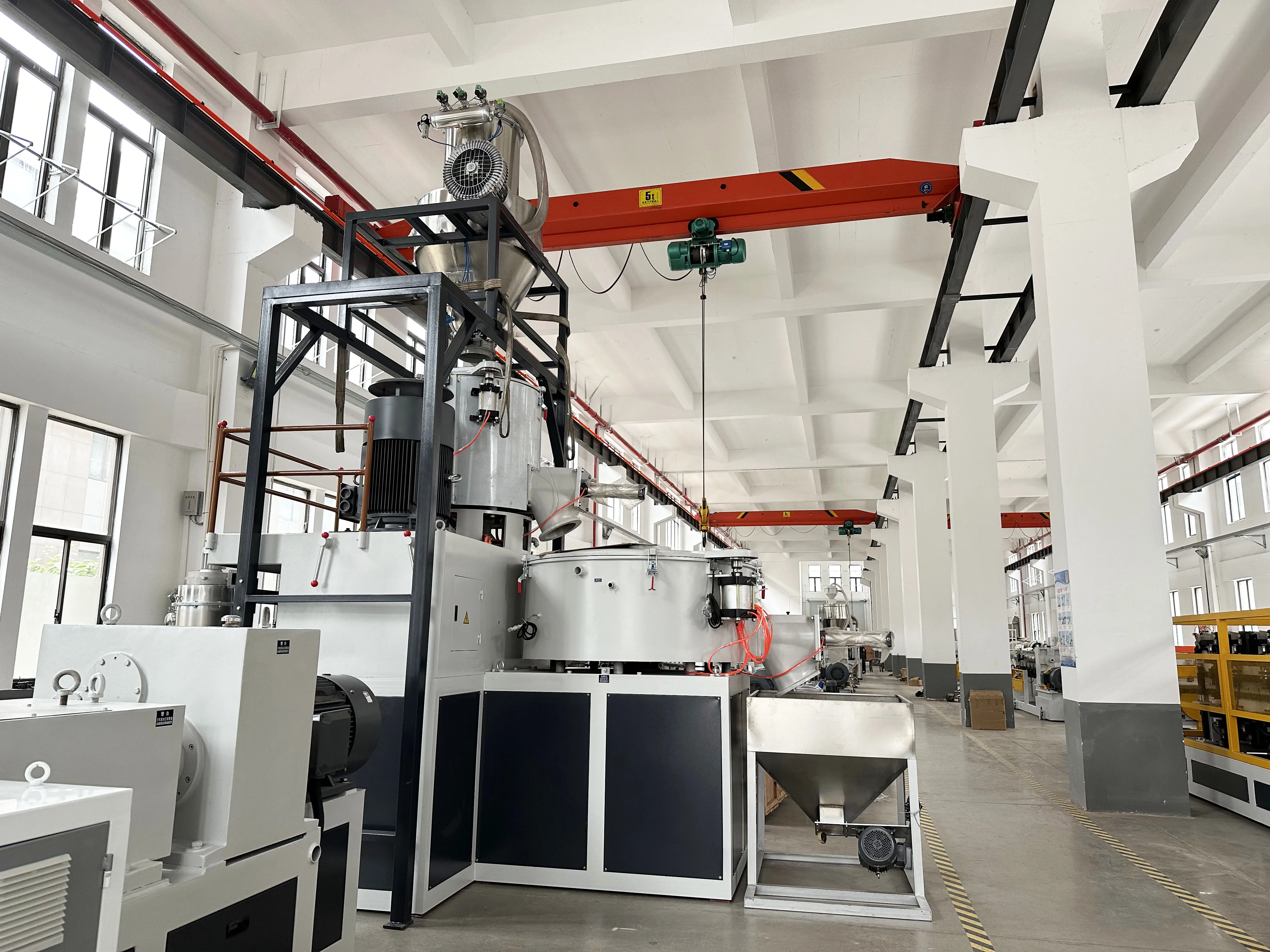

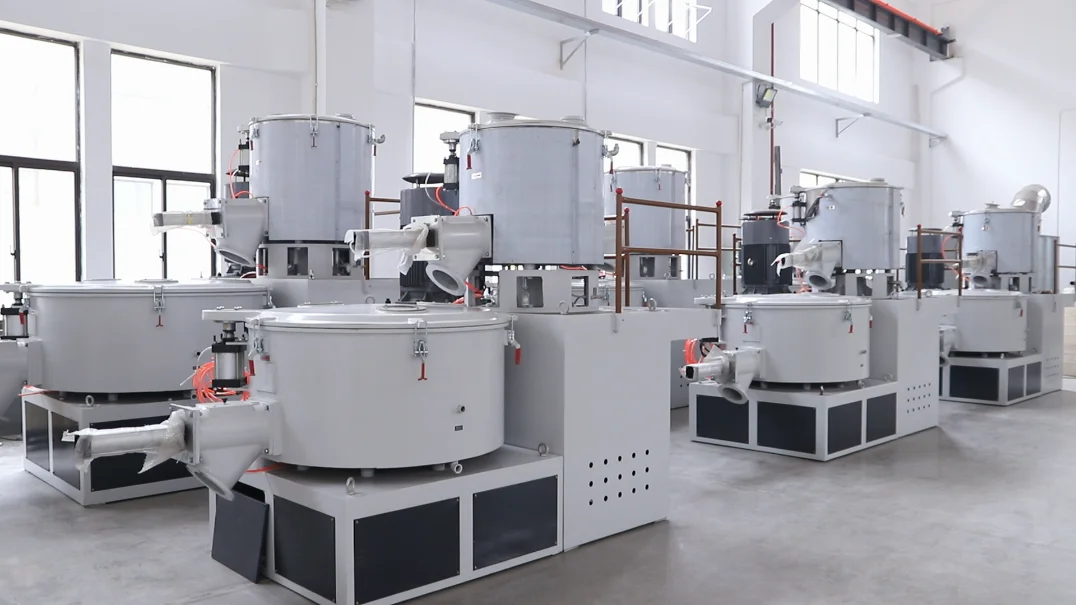

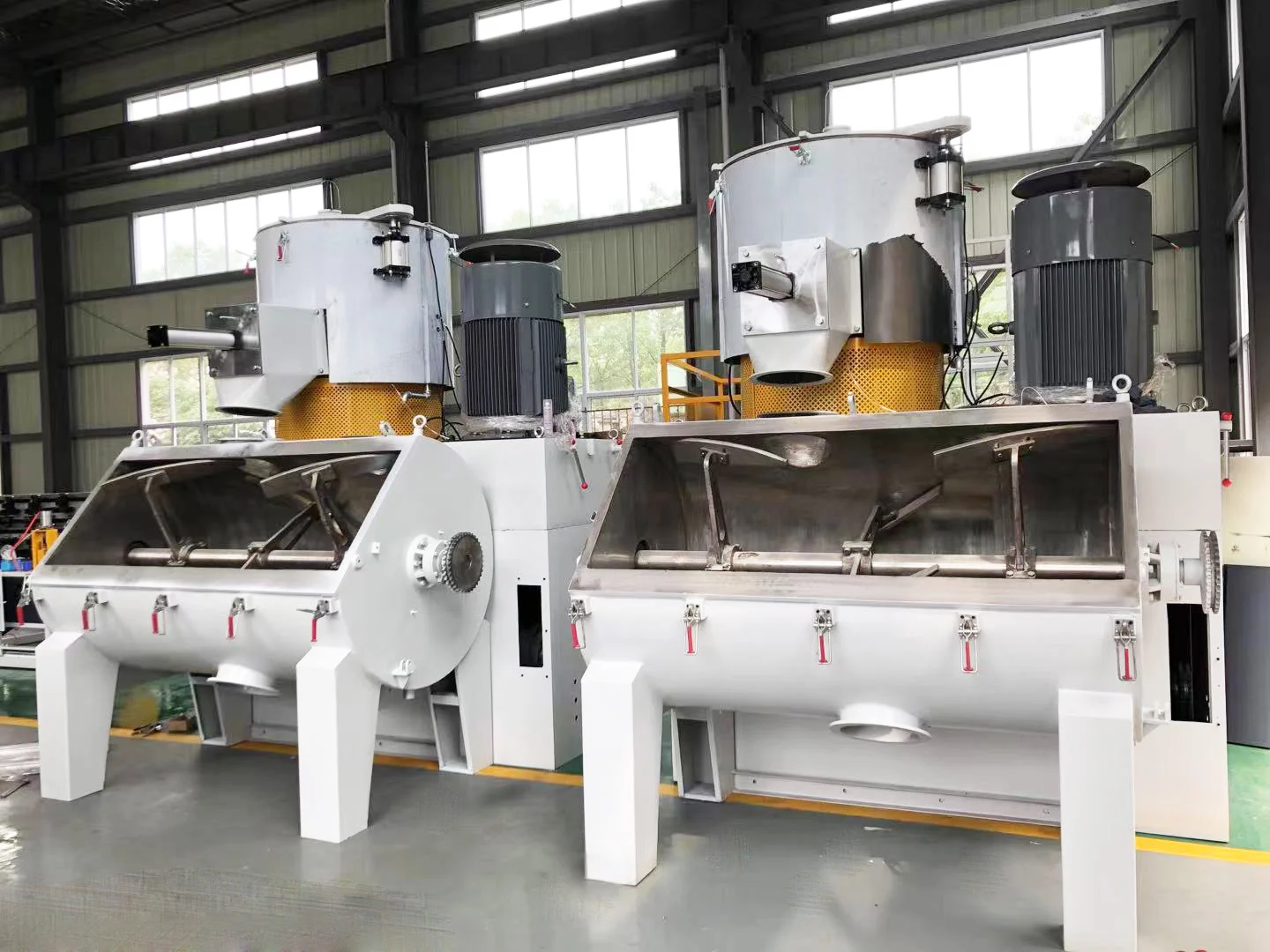

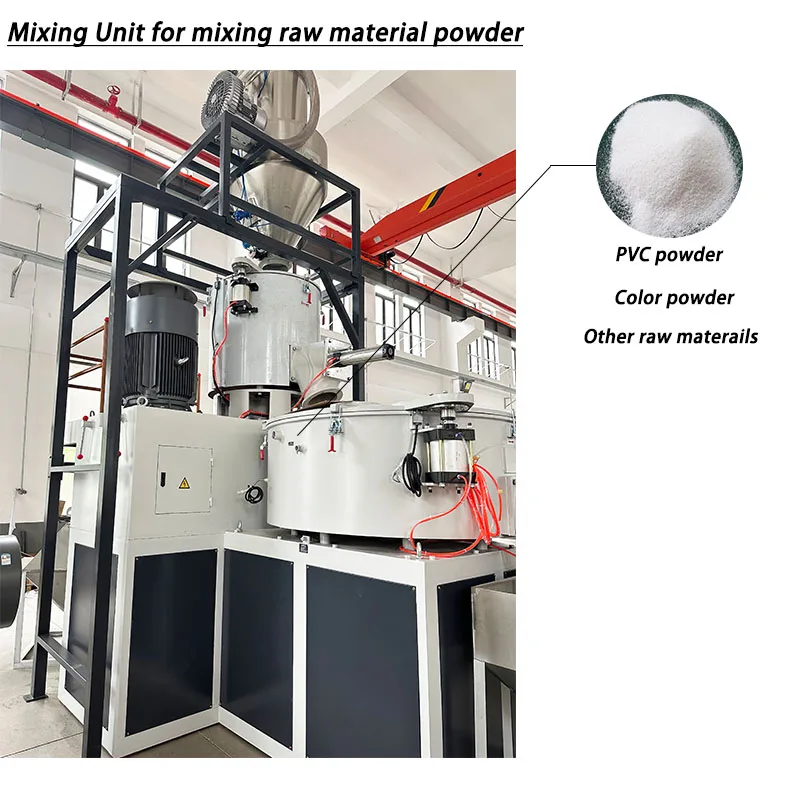

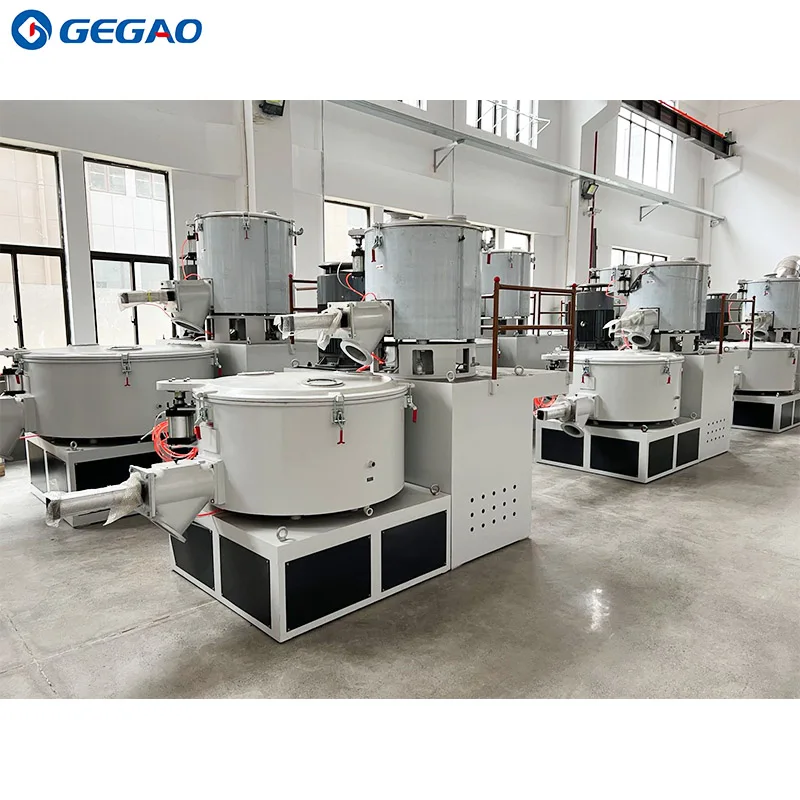

SRL-Z SERIES VERTICAL MIXING UNIT
SRL-Z series mixing unit is applicable for mixing, colouring and drying of various resin such as poiyethylene, polypropylene,
poiyvinyl chloride etc, and in the process of drying and volatilization of engineering plastic such as ABS polycarbonate etc
before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing together,the materials after heat mixing can be goting into cool mixer for cooling
automatically, exhaust remaining gasses and avoids agglomerates.
poiyvinyl chloride etc, and in the process of drying and volatilization of engineering plastic such as ABS polycarbonate etc
before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing together,the materials after heat mixing can be goting into cool mixer for cooling
automatically, exhaust remaining gasses and avoids agglomerates.

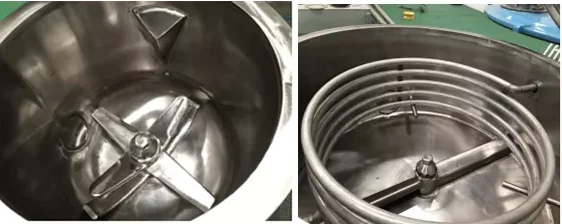

Details Images
Specification
Model | Total Volume（L） | Effective Volume (L) | Motor Power (kw) | Paddle speed (rpm) | Heating | Discharging |
SHR-10A | 10 | 7 | 3 | 600-3000 | self-friction | Manual |
SHR-50A | 50 | 30 | 7/11 | 750/1500 | Electric | Pneumatic |
SHR-100A | 100 | 75 | 14/22 | 650/1300 | Electric | Pneumatic |
SHR-200A | 200 | 150 | 30/42 | 460/920 | Electric | Pneumatic |
SHR-300A | 300 | 225 | 40/55 | 475/950 | Electric | Pneumatic |
SHR-500A | 500 | 370 | 47/67, 55/75, 60/90 | 430/860 | Electric | Pneumatic |
SHR-800A | 800 | 500 | 83/110 | 370/740 | Electric | Pneumatic |
SHR-1000A | 1000 | 700 | 110/150 | 330/600 | Electric | Pneumatic |
SHR-1300A | 1300 | 1000 | 132/200 | 330/600 | Electric | Pneumatic |
Model | Total Volume(L) | Effective Volume (L) | Paddle speed | Motor Power(kw) | Water Consumption | Discharging | Weight |
SRL-Z100/200 | 100/200 | 75/160 | 650/1300/90 | 14/22/7.5 | 3.5t/h | Pneumatic | 3T |
SRL-Z200/500 | 200/500 | 150/320 | 460/920/90 | 30/42/11 | 5t/h | Pneumatic | 3.5T |
SRL-Z300/600 | 300/600 | 200/360 | 475/950/90 | 40/55/11 | 5.8t/h | Pneumatic | 3.8T |
SRL-Z500/1000A | 500/1000 | 375/650 | 475/950/90 | 47/67/15 | 6.9t/h | Pneumatic | 5.8T |
SRL-Z800/1600A | 800/1600 | 600/1024 | 370/740/68 | 60/90/22 | 10t/h | Pneumatic | 8T |
SRL-Z800/2000A | 800/2000 | 600/1500 | 370/740/68 | 83/110/22 | 12t/h | Pneumatic | 8.5T |
SRL-Z1000/3000A | 1000/3000 | 800/2200 | 66/68 | 160/30 | 15/h | Pneumatic | 10T |
Model | Overall size |
SRL-Z100/200 | 2500×2000×2200 |
SRL-Z200/500 | 4580×2240×2470 |
SRL-Z300/600 | 4580×2240×2500 |
SRL-Z500/1000A | 4600×3000×4050 |
SRL-Z800/1600A | 6230×4230×4480 |
SRL-Z800/2000A | 4580×3860×6550 |
SRL-Z1000/3000A | 5800×4500×7300 |

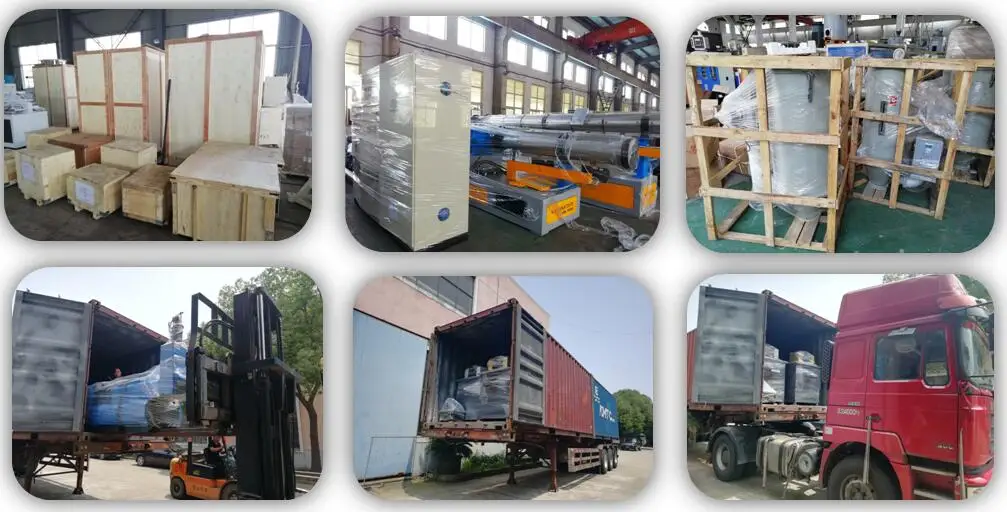

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Services

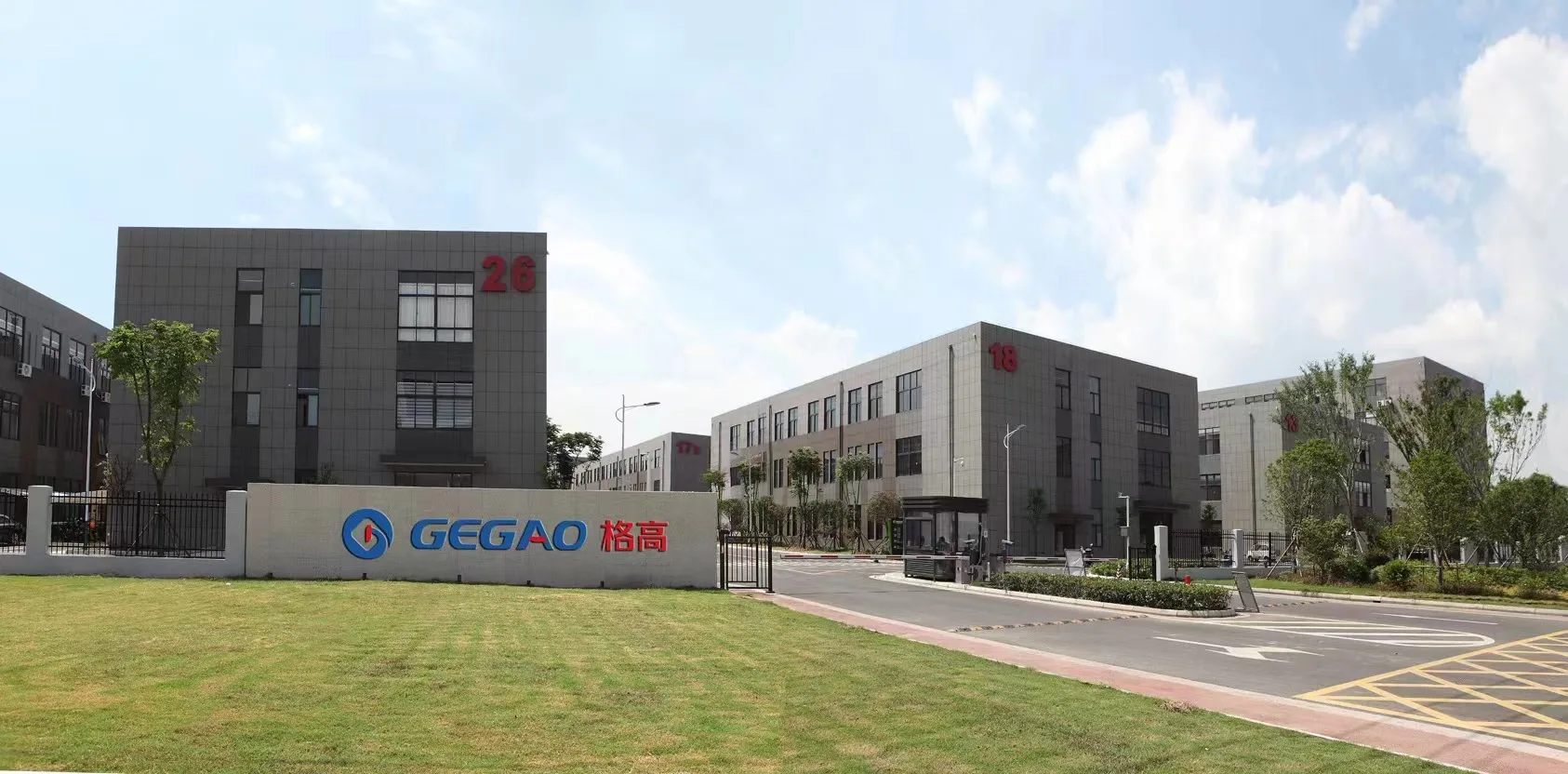

Company Profile
Located in Zhangjiagang City of Jiangsu Province, Zhangjiagang Gegao Science & Technology Development Co., Ltd. is a plastic machine manufacturer.
We enjoy convenient traffic conditions. Our company occupies an area of 20,000 square meters, and we own 7,000-square-meter international standard factory building. Our company is a professional comprehensive plastic machinery manufacturer which integrates researching, developing and manufacturing together. We have obtained the ISO9001 certificate.
We produce various plastic machines, such as single-screw-stem extruders, cone double -screw-stem extruders, high-speed mixers, sets of production lines of pipes, plates, sheet materials and various kinds of auxiliary machines. They are well sold in Chin and about 30 foreign countries, such as Russia, Malaysia, Lebanon, Myanmar and South Africa. They are praised by masses of our consumers.
We always follow the management idea of "Treat person with faith, take credit as our base, win markets with high quality". We seriously hope we will have chances that we can make cooperation with personages of various circles to develop our causes hand in hand. Wishing to establish long-term steady business relationships, our company warmly welcomes our old and new consumers to inspect our company.
We enjoy convenient traffic conditions. Our company occupies an area of 20,000 square meters, and we own 7,000-square-meter international standard factory building. Our company is a professional comprehensive plastic machinery manufacturer which integrates researching, developing and manufacturing together. We have obtained the ISO9001 certificate.
We produce various plastic machines, such as single-screw-stem extruders, cone double -screw-stem extruders, high-speed mixers, sets of production lines of pipes, plates, sheet materials and various kinds of auxiliary machines. They are well sold in Chin and about 30 foreign countries, such as Russia, Malaysia, Lebanon, Myanmar and South Africa. They are praised by masses of our consumers.
We always follow the management idea of "Treat person with faith, take credit as our base, win markets with high quality". We seriously hope we will have chances that we can make cooperation with personages of various circles to develop our causes hand in hand. Wishing to establish long-term steady business relationships, our company warmly welcomes our old and new consumers to inspect our company.
Certifications
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2020,sell to Domestic Market(50.00%),Africa(25.00%),Southeast Asia(10.00%),South America(3.00%),Mid East(3.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(1.00%),South Asia(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC+ASA GLAZED TILE SYNTHETIC RESIN TILE PRODUCTINO LINE,PVC WAVE TILE COMPOSITE TRAPEZOIDAL TILE PRODUCTION LINE,PVC HOLLOW COMPOSITE TILE PLATE PRODUCTION LINE,PVC PIPE EXTRUSION LINE,SHR SERIES HIGH SPEED MIXER
4. why should you buy from us not from other suppliers?
We have more than 20 years experience
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2020,sell to Domestic Market(50.00%),Africa(25.00%),Southeast Asia(10.00%),South America(3.00%),Mid East(3.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(1.00%),South Asia(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC+ASA GLAZED TILE SYNTHETIC RESIN TILE PRODUCTINO LINE,PVC WAVE TILE COMPOSITE TRAPEZOIDAL TILE PRODUCTION LINE,PVC HOLLOW COMPOSITE TILE PLATE PRODUCTION LINE,PVC PIPE EXTRUSION LINE,SHR SERIES HIGH SPEED MIXER
4. why should you buy from us not from other suppliers?
We have more than 20 years experience
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
