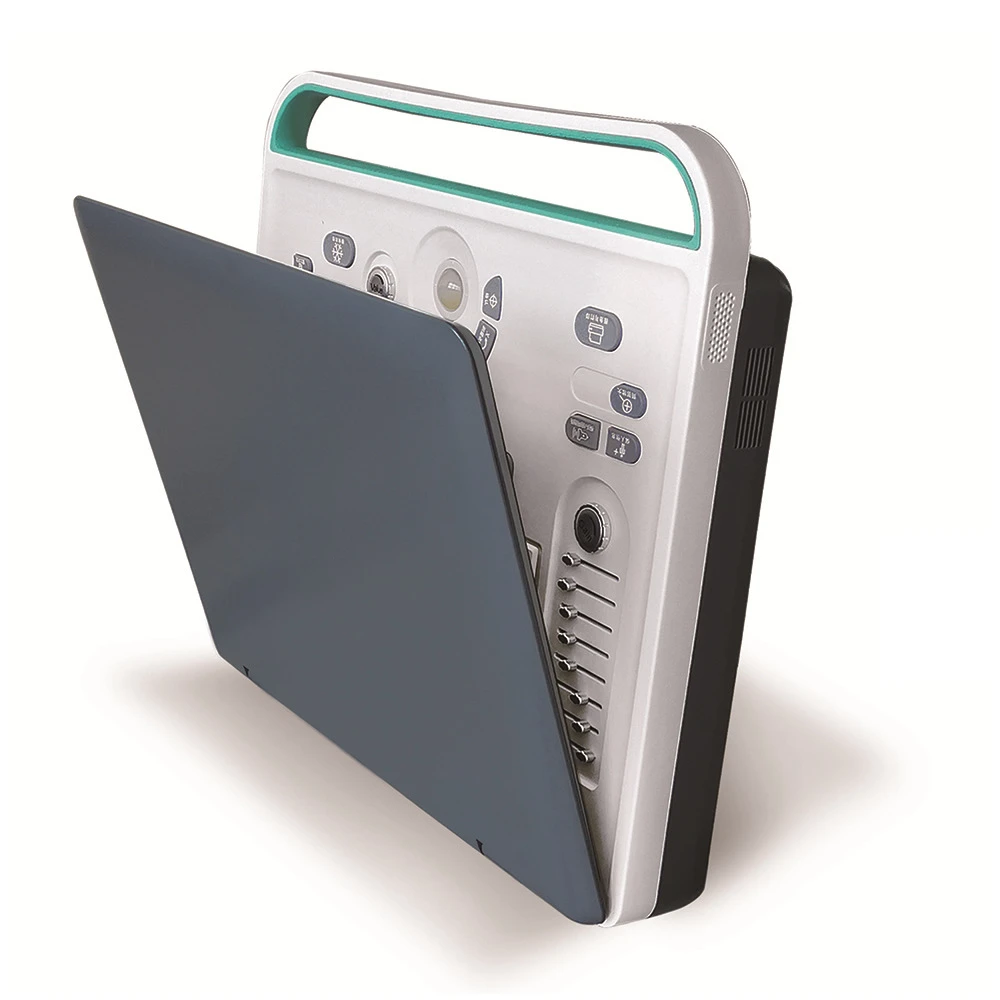

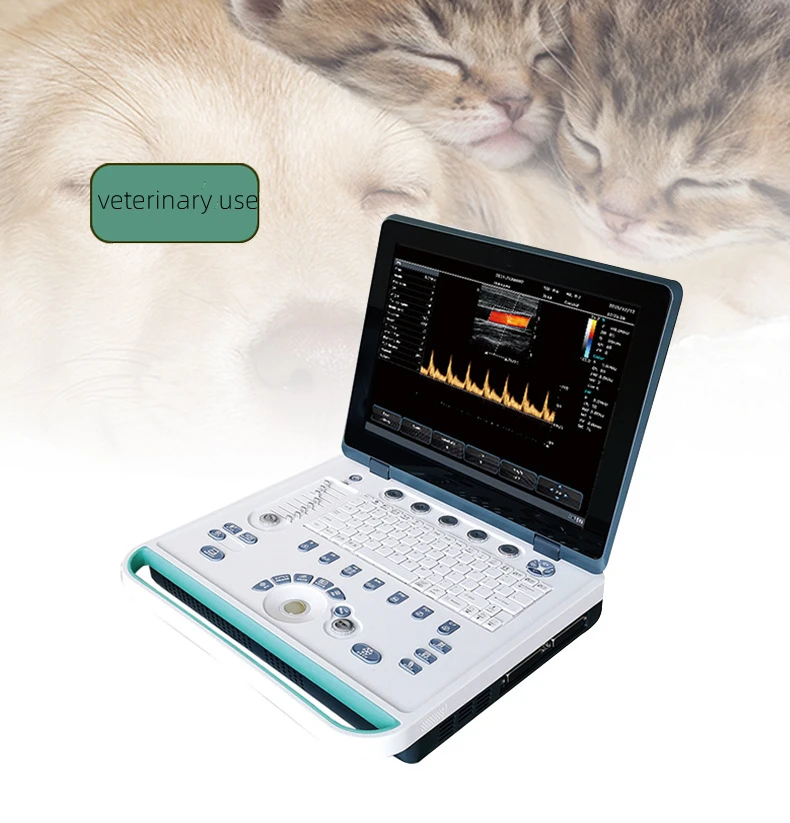

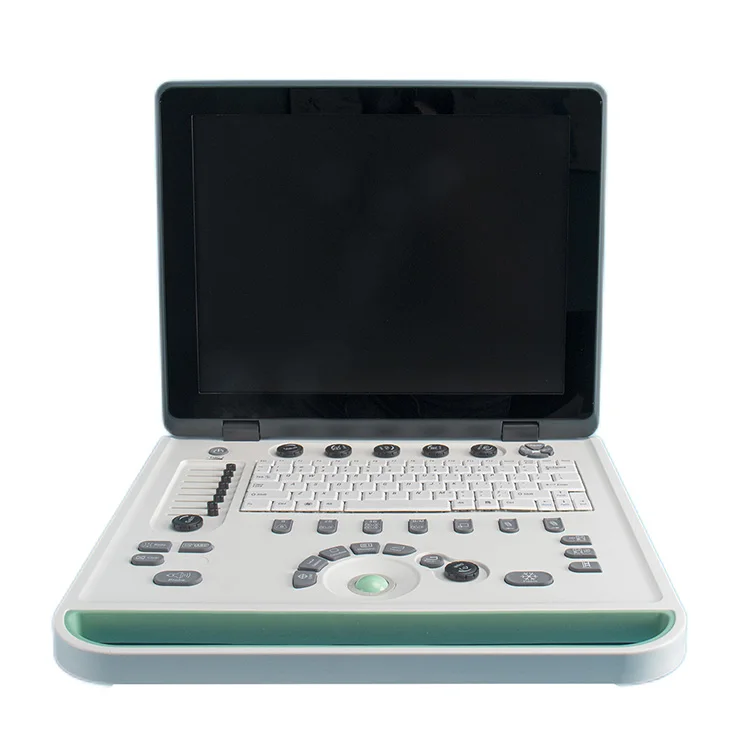

Sonoscape Ultrasound Scanner Color Doppler Sonoscape Ultrasound Diagnostic System for Pet Use
- Category: >>>
- Supplier: Guangzhou Daoke Biomedical Technology Co. Ltd.
Share on (1600938517586):
Product Overview
Description
Product Description
vet ultrasound machine price
Type:portable notebook
Material:PVC
Size:400*85*400mm
Usage: Ultrasound examination of various animals in veterinary clinics, farms, zoos, and wild places
Feature:-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Model Number | DK-2288Z |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Plastic |
Shelf Life | 3 years |
Quality Certification | CE |
Instrument classification | Class II |
Safety standard | None |
Product name | Medical Ultrasound Equipment |
Type | Portable Ultrasonic Diagnostic Devices |
Application | Hospital |
Certificate | CE Approved |
Feature | Convenience |
Color | Whtie |
Display | 12 Inch LED Monitor |
Language | Multi Language |
Specifications
Specifications:
-Display size: 15 inch LCD screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor：1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 5 hours-Output interface: USB port, video.
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)
Standard configuration:

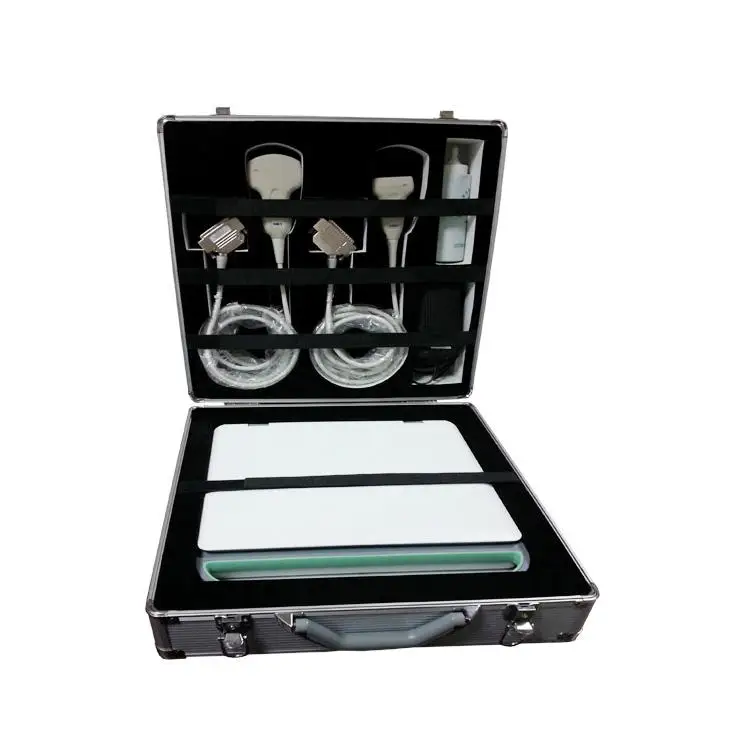

One host, one convex probe, one aluminum trunk
Optional:
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
-Display size: 15 inch LCD screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor：1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 5 hours-Output interface: USB port, video.
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)
Standard configuration:
One host, one convex probe, one aluminum trunk
Optional:
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
Packing & Delivery
1 set in a carton
