SS316 Steel Housing 12000Gs Magnetic Oil Filter Magnetic Water Filter
- Category: >>>
- Supplier: Hangzhou SDM Magnetics Co. Ltd.
Share on (1600938526416):
Product Overview
Description

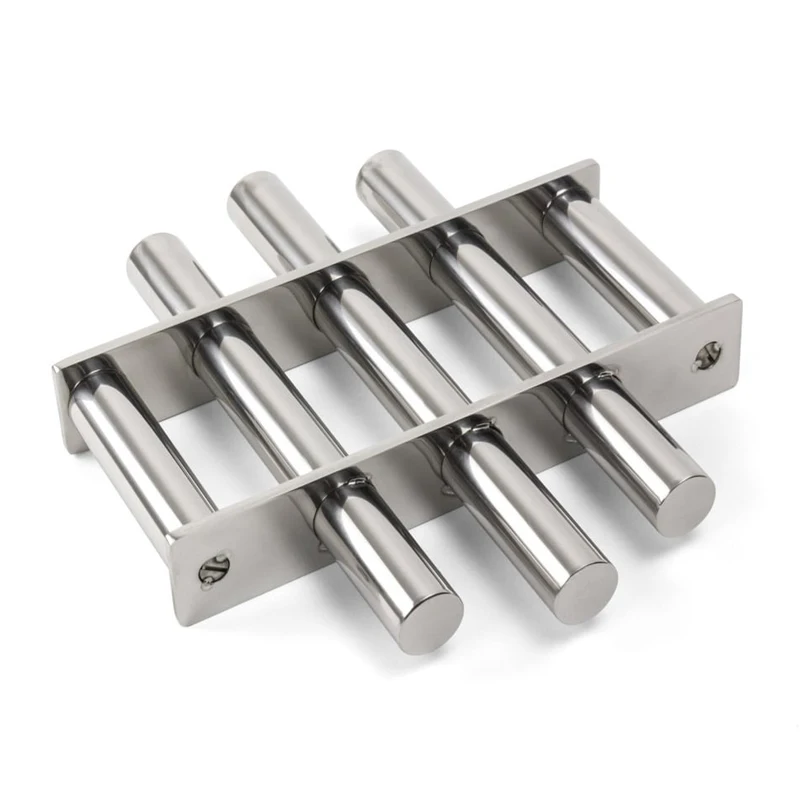

SS316 Steel Housing 12000Gs Magnetic Oil Filter Magnetic Water Filter
Company Profile
About SDM
SDM Magnetics Co., Ltd. is a leading Chinese manufacturer of high quality permanent magnet and magnetic assemblies since 2014. SDM serves a variety of markets include automotive, industrial automation, consumer electronics, green energy, household appliances, and aerospace. To meet the more and more demanding markets, SDM has been concentrating on manufacturing technologies for quality stability and cost reduction. With grain boundary diffusion technology, SDM can offer competitive prices for high coercivity Neodymium magnets. SDM has also built up a strategic cooperation with China’s No.1 rare earth miner CHINALCO, which gives us strong and safe backup for rare earth raw materials.
Certifications
SDM obtained IATF 16949: 2016 and ISO9001:2015 quality management system certification from international certification institutions. SDM regularly arranges RoSH and REACH Testing in external third-party laboratory, and all testing results are satisfying relevant directives.
Products Description
What is the Magnetic Filter Bar?
The magnetic filter bar is a kind of common magnetic assembly, and widely used in many industries. The surface of magnetic filter bar will generate strong magnetic field strength rely on its particular internal designing, then removing iron contained impurities and magnetic substance from pending material. The magnetic filter bar is also the most important component for magnetic separator system. The magnetic filter bar is the main consumers of the permanent magnet industry.

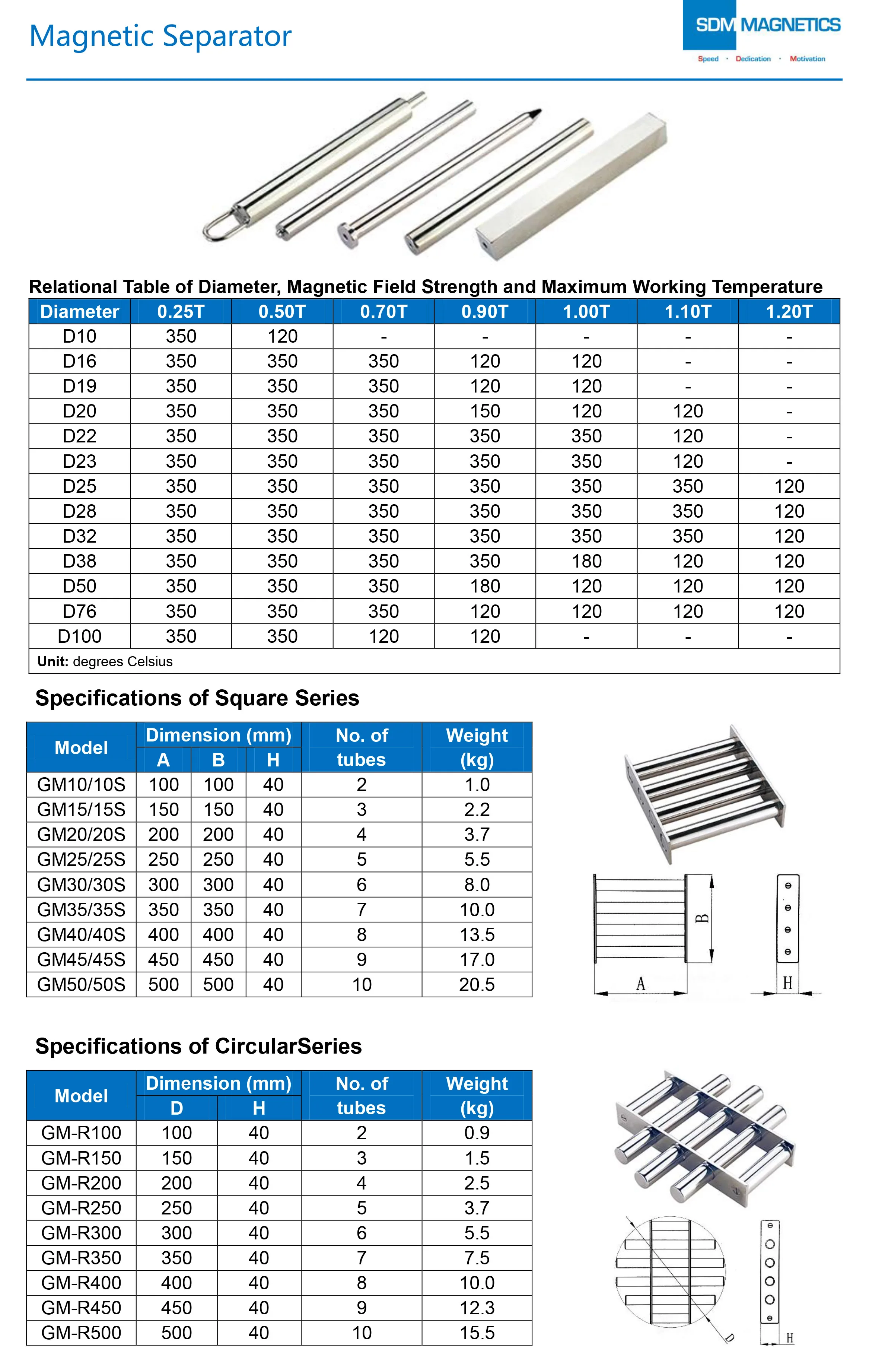

Specifications

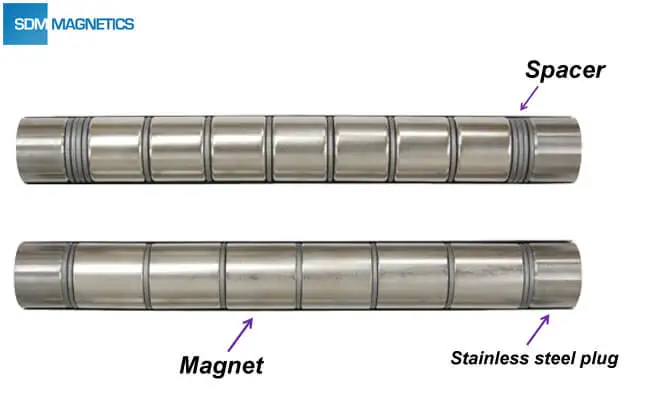

1. The Structure of Magnetic Filter
The structure of magnetic filter can be divided into four parts:
-Stainless steel tube.
-Permanent Magnets.
-Spacers
-Stainless steel plug.
-Stainless steel tube.
-Permanent Magnets.
-Spacers
-Stainless steel plug.

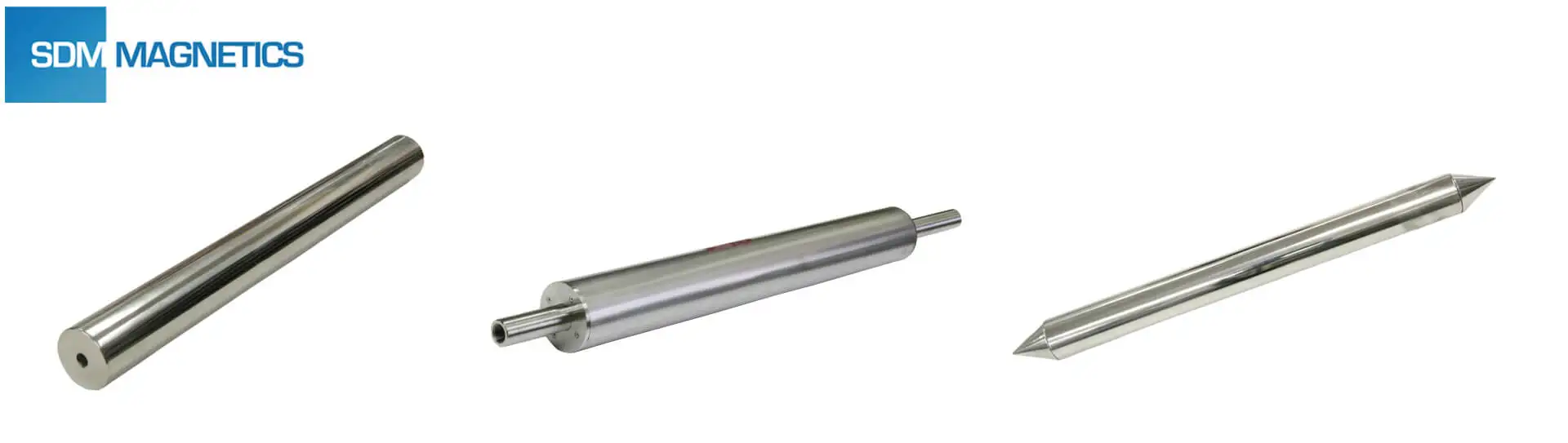

2. The Type of Magnetic Filter Bar
The type of magnetic filter bar can be divided into three types according to magnetic filter bar’s end surfaces:
-Threaded hole-type.
-Double screw bolt-type.
-Tip-type.
-Threaded hole-type.
-Double screw bolt-type.
-Tip-type.
Manufacturing Technique

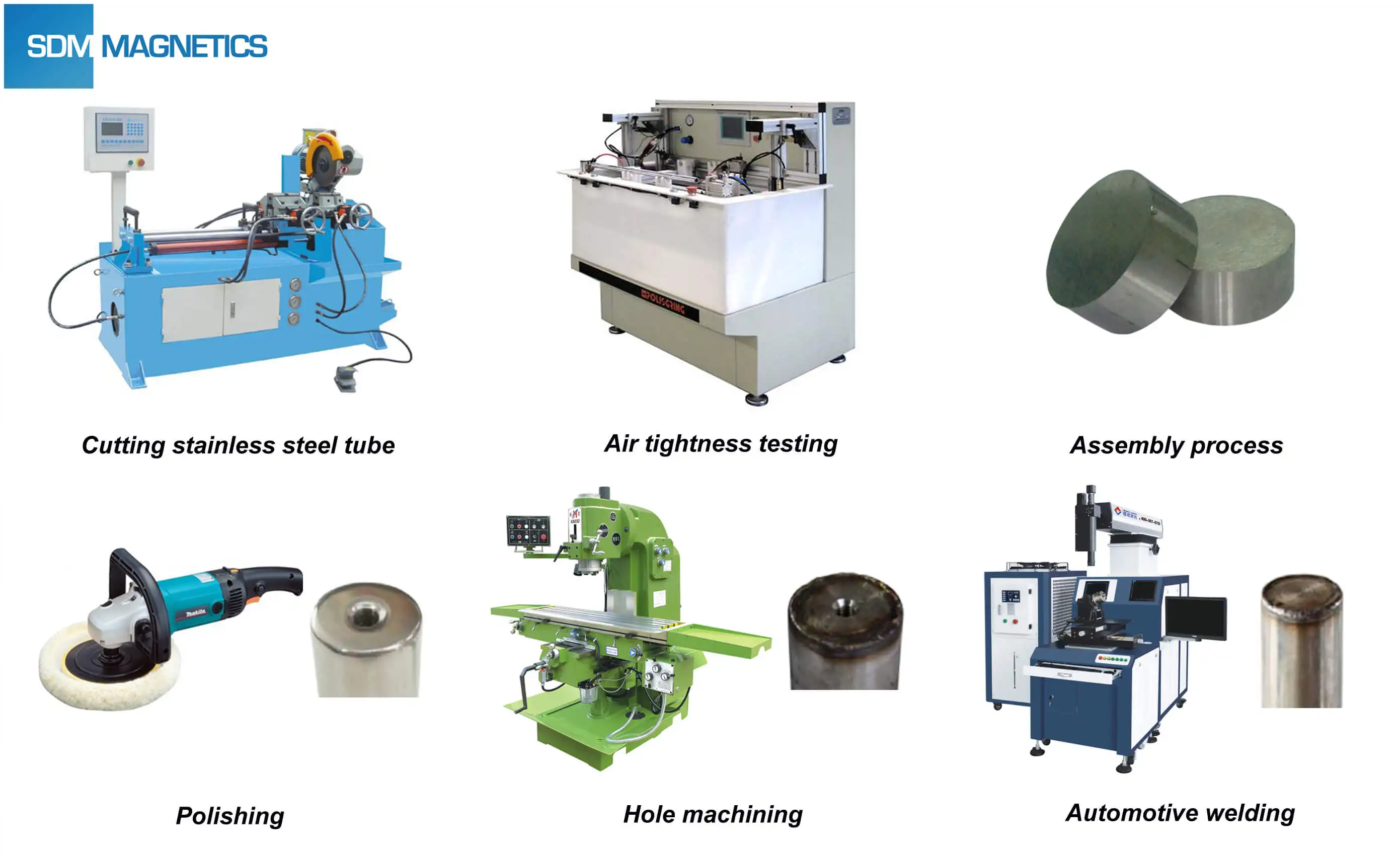

Production Process of Magnetic Filter Bar
The magnet in magnetic filter bar

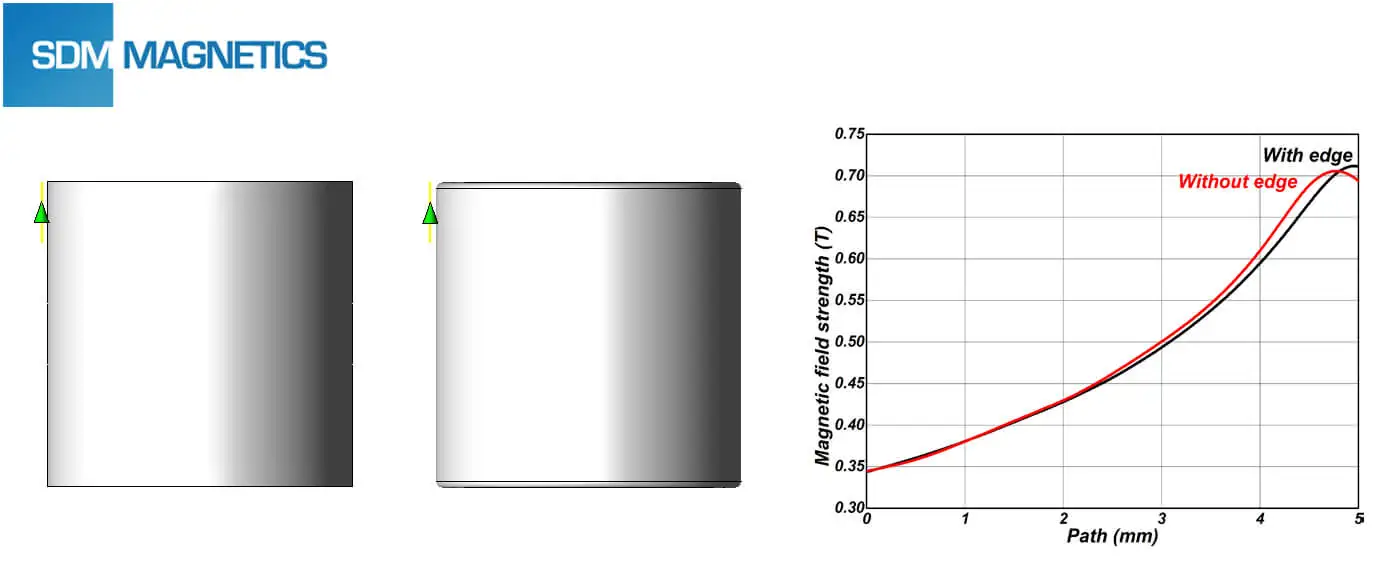

The type and grade of the magnet in a magnetic filter bar base on the different requirements of Max. Operating Temperature and Max. Surface Gauss Value. The Ferrite, NdFeB and SmCo can all be applied in magnetic filter bar. It is important to emphasize that the majority of magnets in magnetic filter bar are non-coated magnets. According to the simulation results and practical production experience, the magnet with the sharp corner is more apt to help magnetic filter bar to get higher Max. Surface Gauss Value. In general, there is no need to worry about the magnets in magnetic bar will be corroded, and the chamfer process before surface treatment will remove the sharp corner of magnets.
Inspection Capabilities
Finite Element Analysis (FEM) Service
Finite element analysis (FEA) is a very effective tool to obtain relatively reliable results before building a prototype. FEA can simulate customer’s most demanding engineering challenges on the early stage of development, including magnetic field strength, attractive force, torque, and many more parameters.
Exhibition
Safety Tips for Magnets
FAQ
Q: Are you trading company or manufacturer ? |
A: We are professional manufacturer of neodymium magnet and magnetic products in China. |
Q: How long is the production lead time? |
A: Generally it is 5-10 days if the products are in stock. or 25-30 days if the goods are not in stock. |
Q: How to solve the quality problems after sales? |
A: Take photos of the problems and send to us, after we comfirm the problems, within three days,we will make a satisfied solution for you. |
