Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

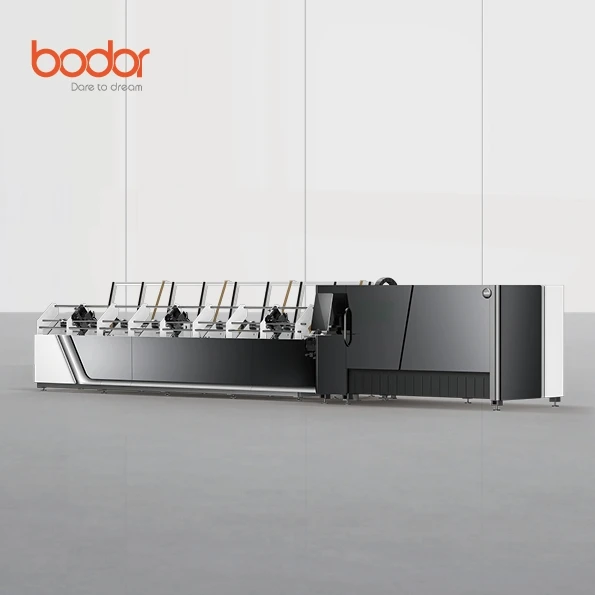

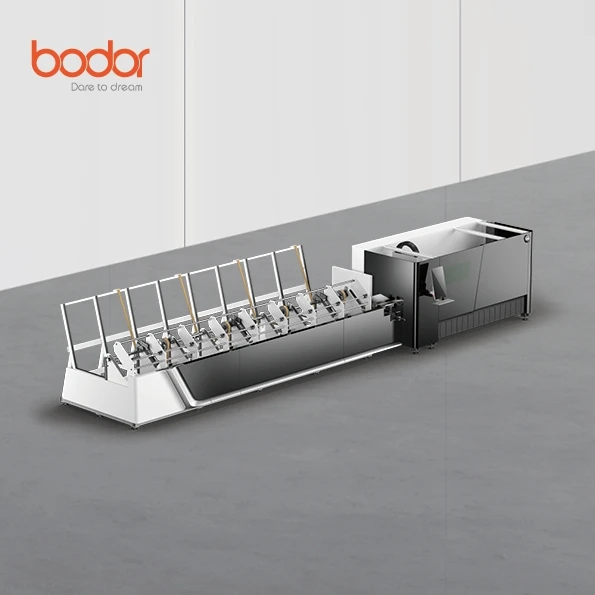

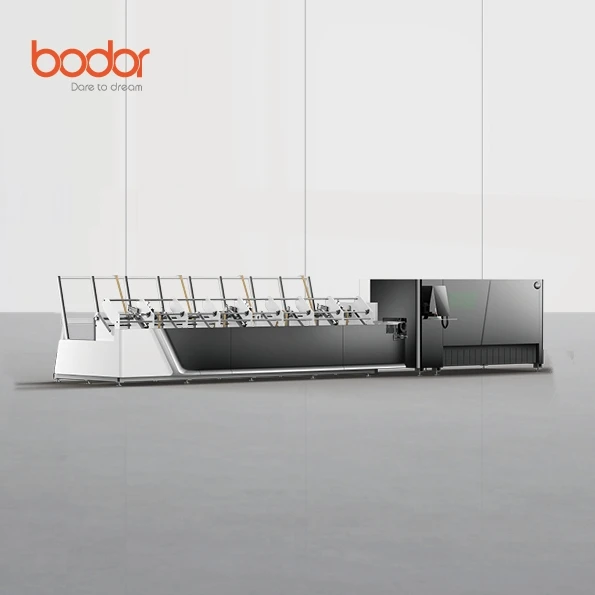

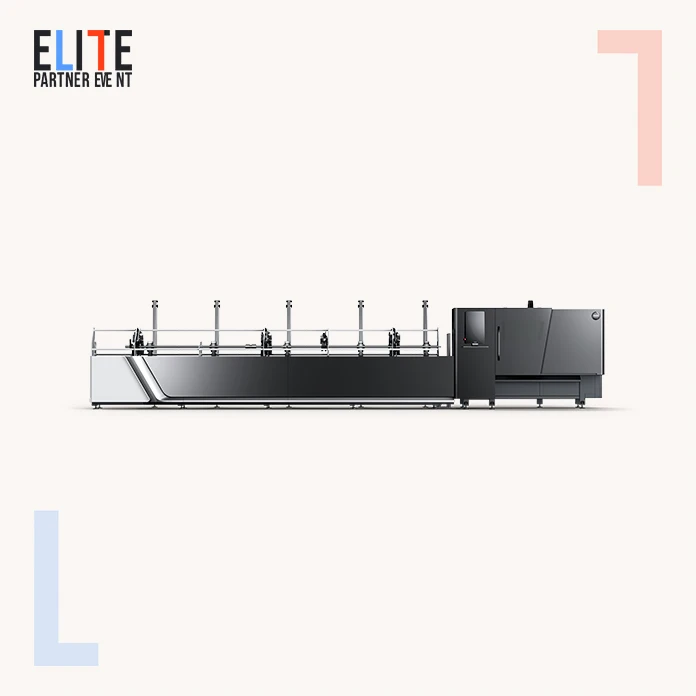

Bodor High Performance Q Series fiber laser steel stainless tube cutting machine with automatic loading device
- Category: >>>
- Supplier: Jinan Bodor CNC Machine Co. Ltd.
Share on (1600938535918):
Product Overview
Description
Marketing Campaign
5-year warranty offer
When purchasing a new Bodor laser
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).
Safeguarding your metal cutting success
A reliable and valuable warranty gives your metal cutting process and business a promise of long-term succes. That's why we want
to help you protect your investment and ensure your productivity by extending the warranty for you.
to help you protect your investment and ensure your productivity by extending the warranty for you.
Product Overview

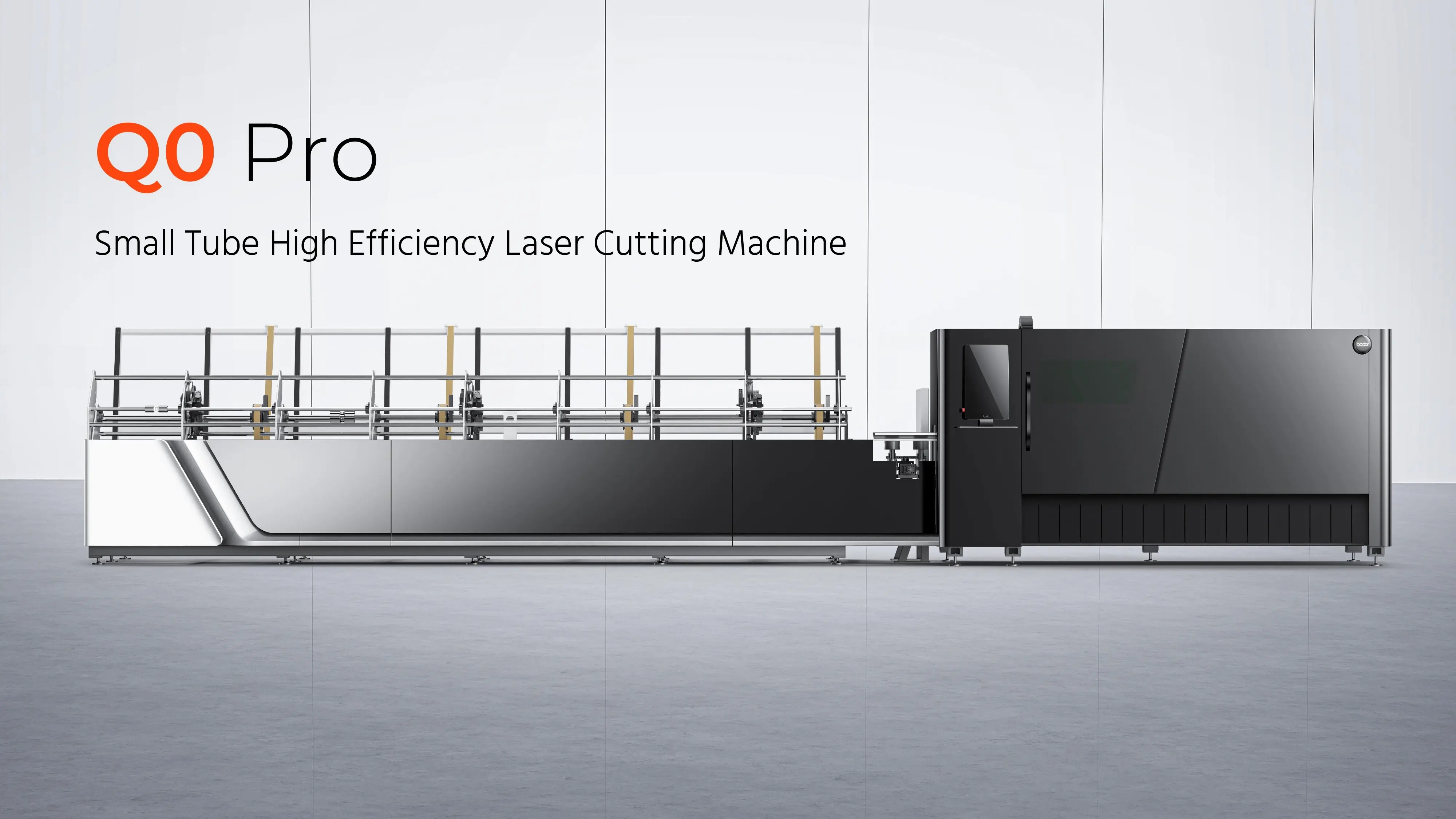

Small Tube High Efficiency Laser Cutting Machine
Ideal small tube cutting solution, Superior high-efficiency
Penumatic Chuck
Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision

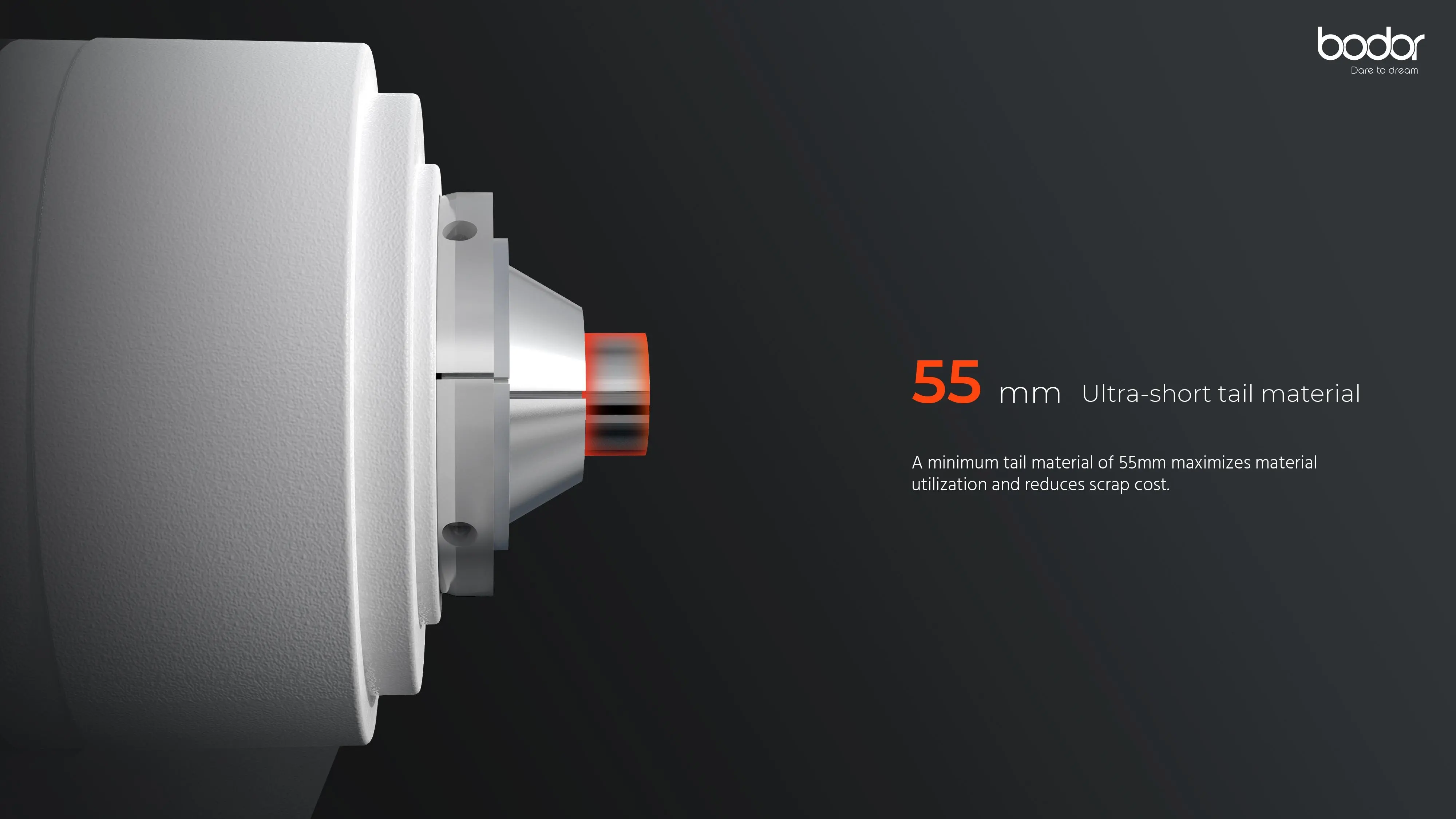

55mm Ultra-short tail material
A minimum tail material of 55mm maximizes material utilization and recuces scrap cost

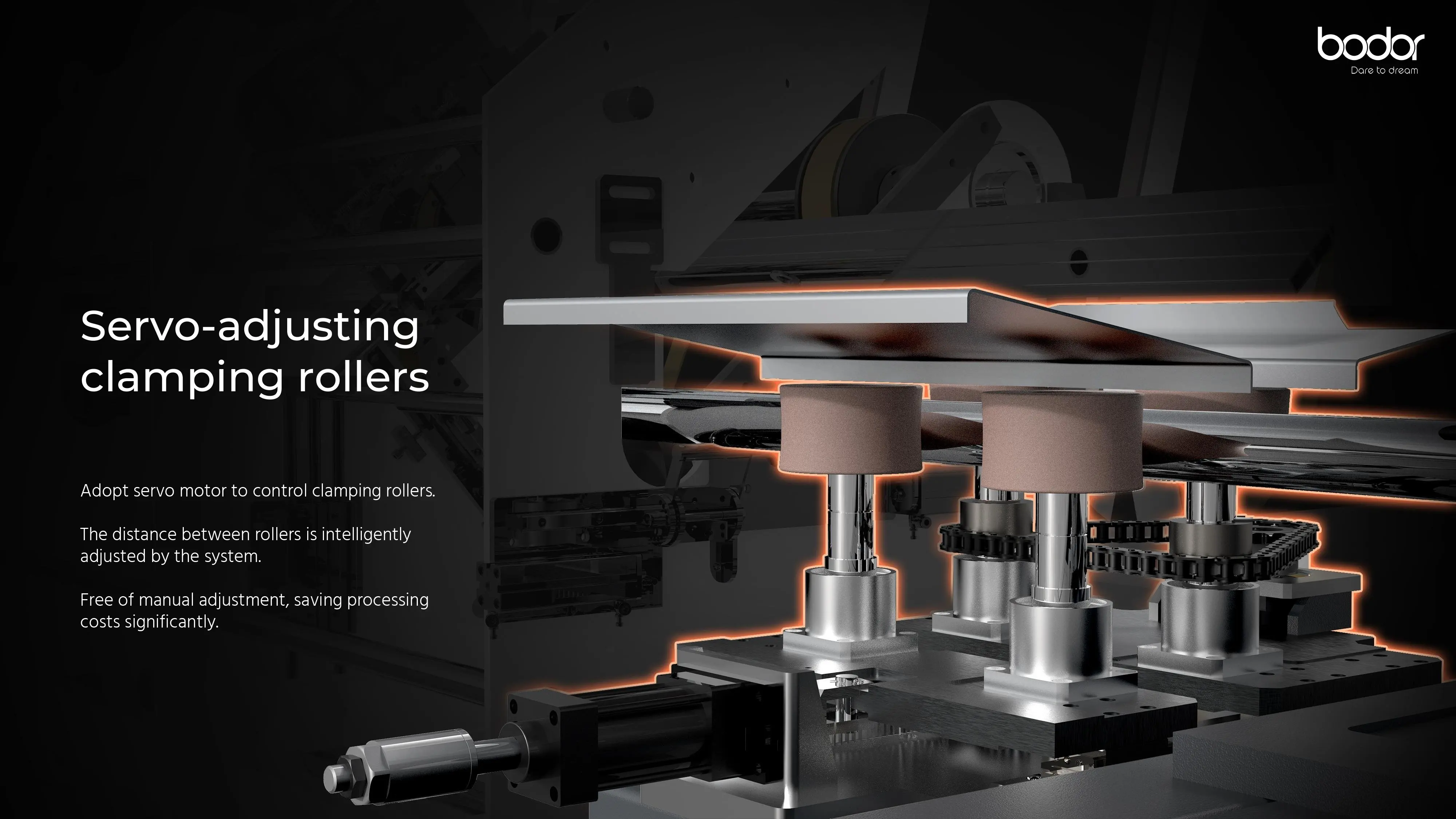

Servo-adjusting clamping rollers
Adopt servo motor to control clamping rollers.
The distance between rollers is intelligently adjusted by the system
Free of manual adjustment, saving processing costs significantly.
Fixed-diameter tube chuck collet
Q0 Pro adopts fixed-diameter tube chuck collet.
No tube surface damage.
Special structure design allows 5-minute check replacement.
Remote Control
A mango shape and convenient magnetic securing help you control with just one hand
PRODUCT SPECIFICATIONS
Tube size range | Round tube: φ10-φ60mm Square tube: □10-□60mm Rectangular: 10mm≤Side length≤60mm |
Tube loading range | 4500mm-6500mm |
Max. tube cutting length | 2000mm |
Puller cylinder control mode | Automatic |
Max. tube weight | 50kg |
Bin bearing capacity | 1.5T |
Ultra-short tail material | 55mm |
Dimensions | 11500mm*2900mm*1820mm |
Overall weight | 5T |
Positioning accuracy | ±0.1mm/m |
Repositioning accuracy | ±0.1mm |

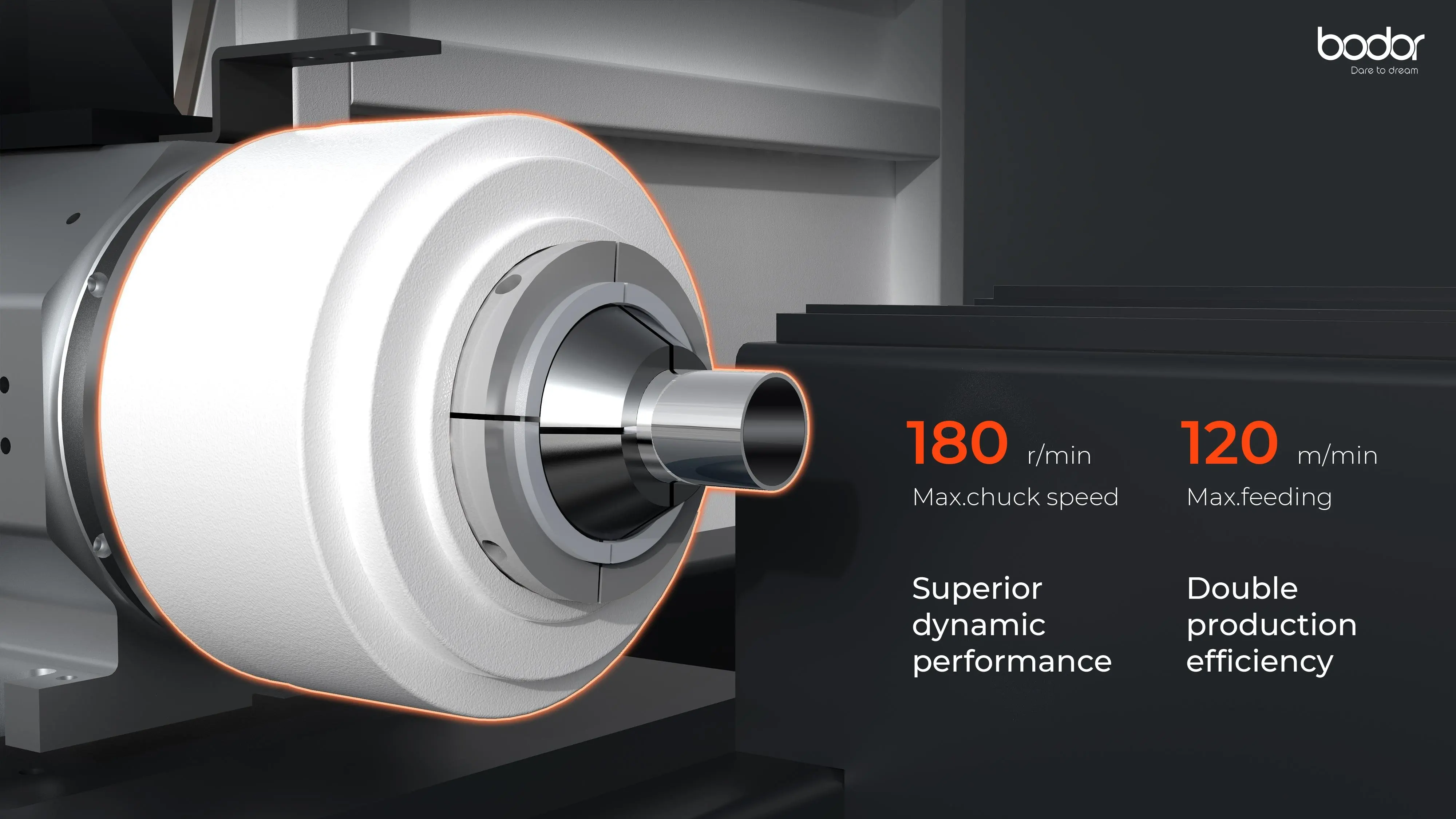

Max. chuck speed | 180r/min |
Max. x-axis speed | 120m/min |
Max. feeding acceleration | 1.5G |
APPLICABLE INDUSTRIES
Railings
Q0 Pro handles different shapes and sizes of tubes, such as round, square, rectangular, and oval. You can produce high-quality
railings that are durable and attractive.
railings that are durable and attractive.
Lighting Equipment
Q0 Pro enables high-level manufacturing of stainless steel and aluminum metal parts for lighting equipment.
Metal Furniture
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PRODUCT CONFIGURATION
Six-in-one laser technology full ecology
Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.
