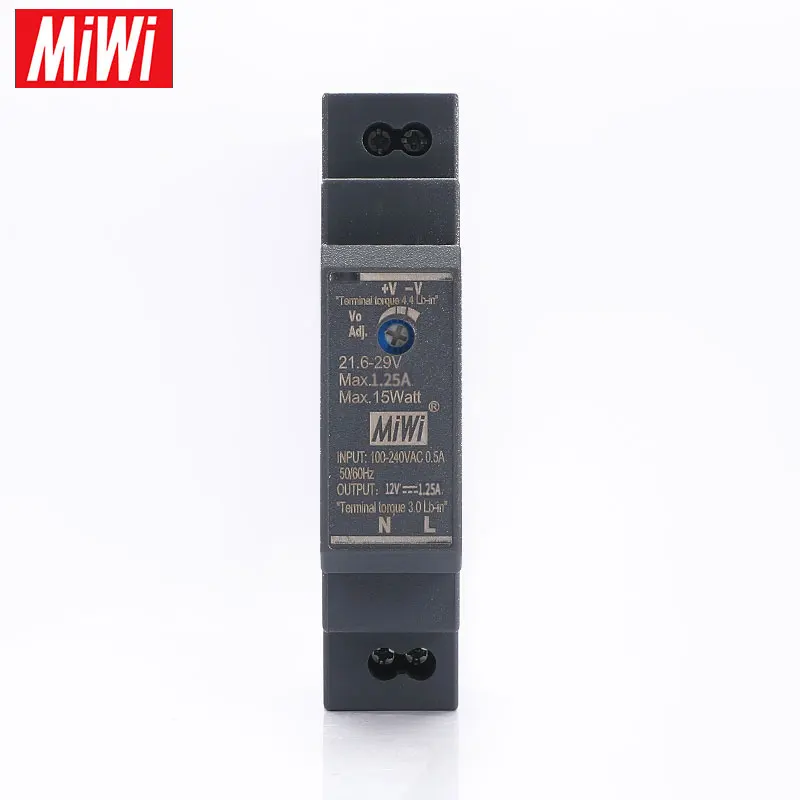

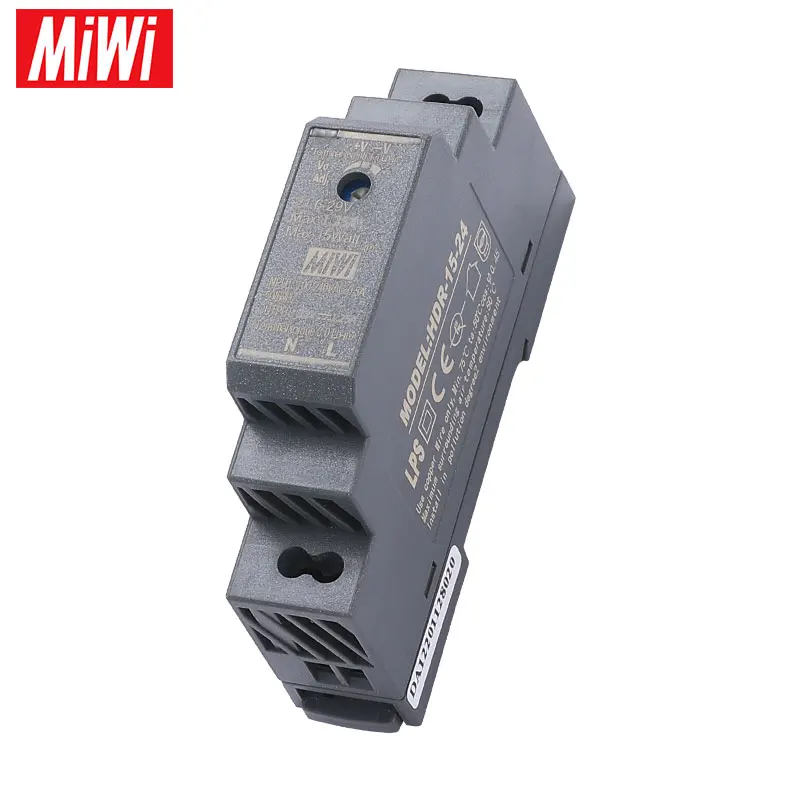

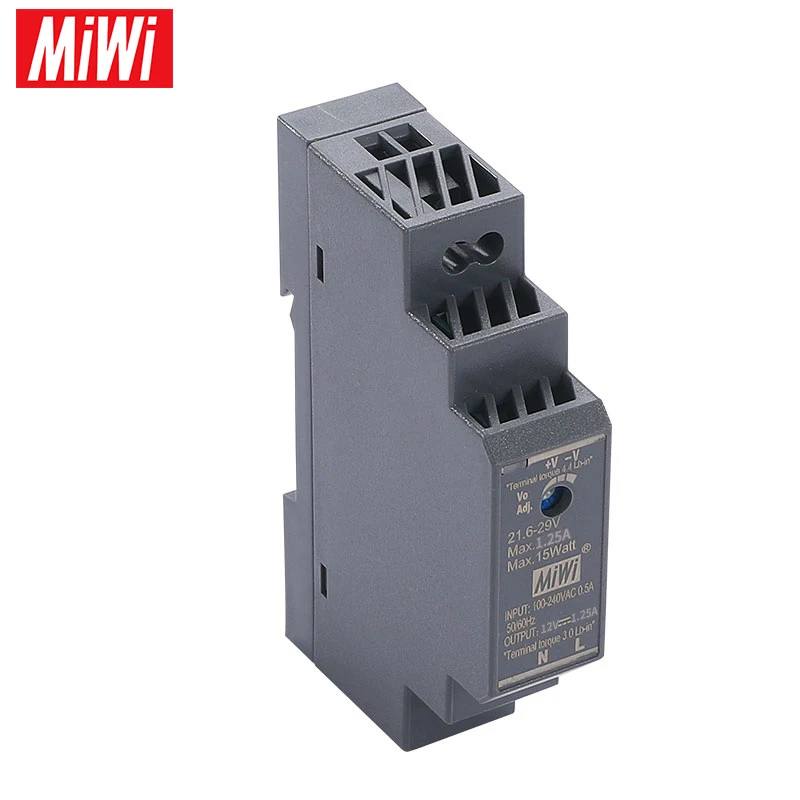

MiWi HDR 15 48 High quality din rail SMPS ac 230v to dc 48v power supply 15w with 2 years warranty
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (1600938587339):
Product Overview
Description
You are here:Home>>Din Rail Series>>DR Series
Product Description

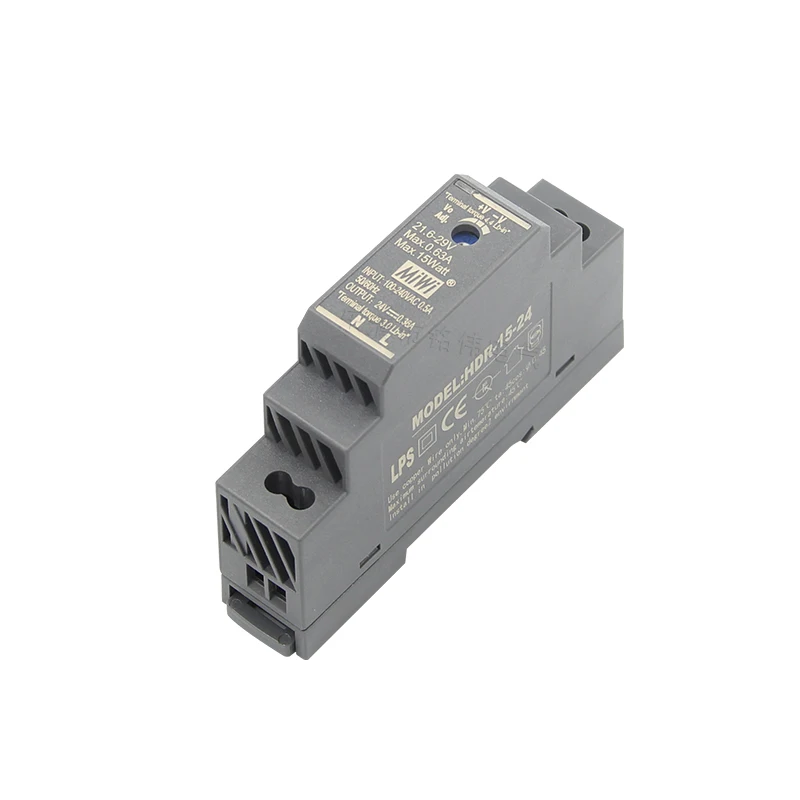

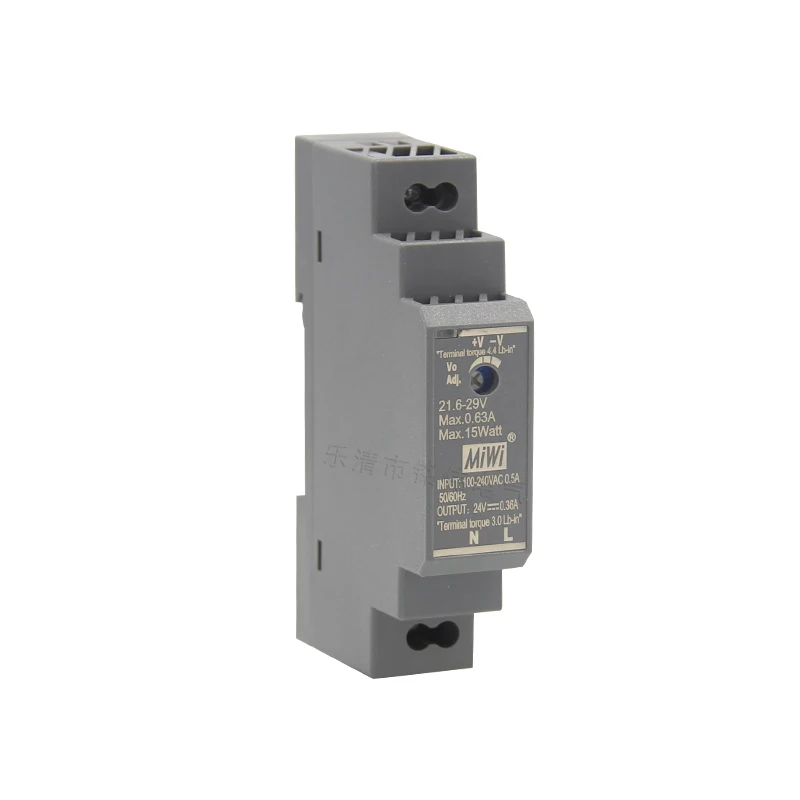

MiWi HDR-15-24 ultra slim din rail mounting 120V/220VAC to 24VDC 15w led power supply
- Ultra slim design with 17.5mm width
- No load power consumption<0.3W
- Isolation class II
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Cooling by free air convection (working temperature: -30°C ~ +70°C)

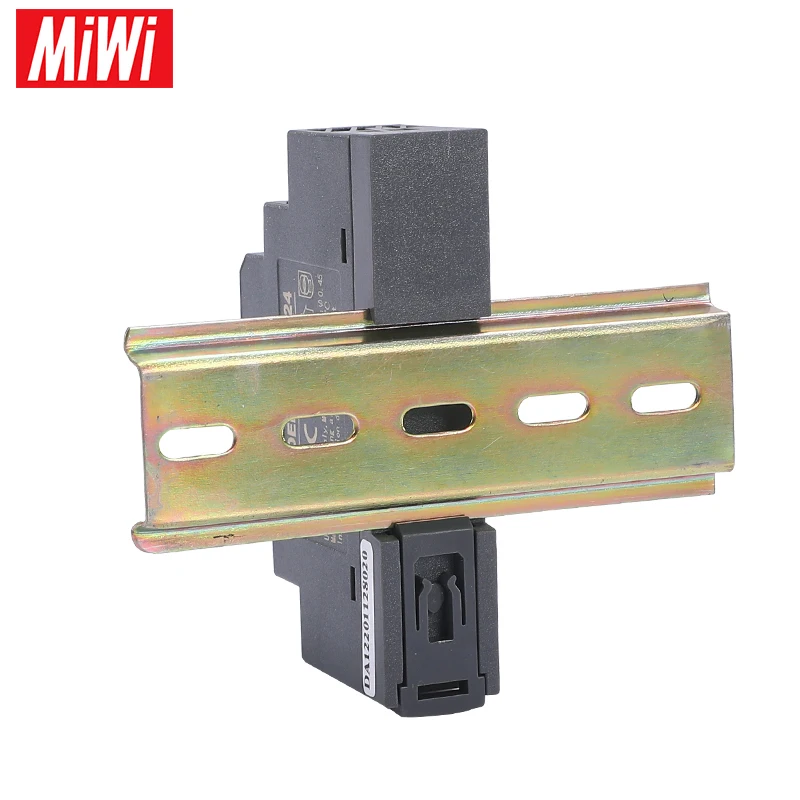

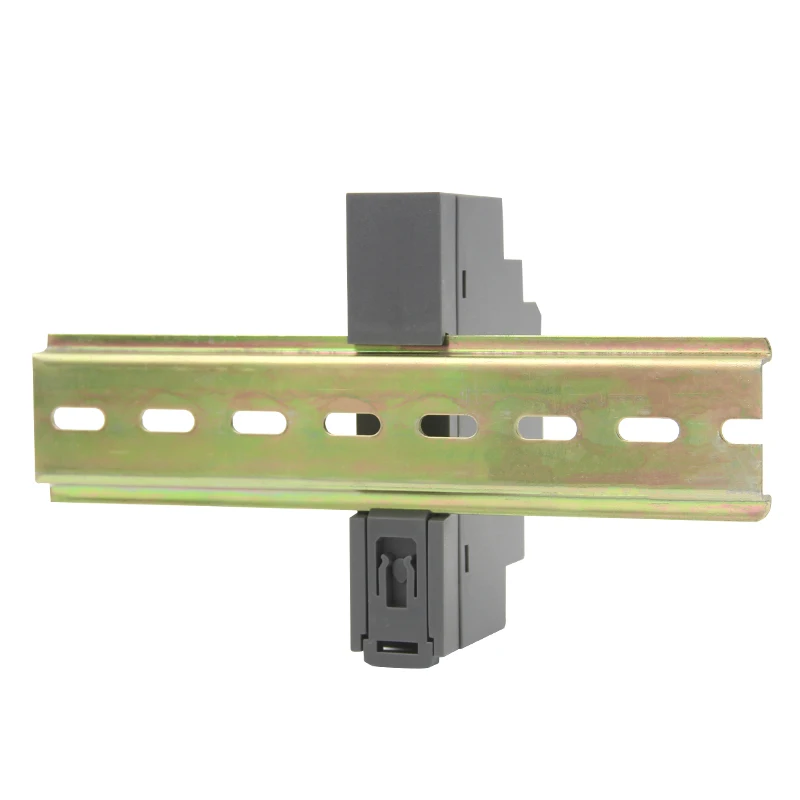

- DIN rail RS-35/7.5 or 15 mountable
- LED indicator for power on
- Over voltage catagory Ⅲ
- 2 years warranty
| MODEL | HDR-15-5 | HDR-15-12 | HDR-15-15 | HDR-15-24 | HDR-15-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 2.4A | 1.25A | 1A | 0.63A | 0.32A | |
| CURRENT RANGE | 0 ~ 2.4A | 0 ~1.25A | 0 ~ 1A | 0 ~ 0.63A | 0 ~ 0.32A | |
| RATED POWER | 12W | 15W | 15W | 15.2W | 15.4W | |
| RIPPLE & NOISE | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load | |||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC available) 120 ~ 370VDC(390VDC available) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY | 80% | 85% | 86% | 86% | 87% | |
| AC CURRENT | 0.5A/115VAC 0.25A/230VAC | |||||
| INRUSH CURRENT | COLD START 25A/115VAC 45A/230VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 145% rated output power | ||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to Derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) RH non-condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | UI60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | |||
| Conducted | EN55032(CISPR32) | Class B | ||||
| Radiated | EN55032(CISPR32) | Class B | ||||
| Harmonic Current | EN61000-3-2 | Class A | ||||
| Voltage Flicker | EN61000-3-3 | ------- | ||||
| EMC IMMUNITY | EN55024, EN55035, EN61000-6-2, EN61204-3 | |||||
| Parameter | Standard | Test Level /Note | ||||
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | EN61000-4-4 | Level 3, criteria A | ||||
| Surge | EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods | ||||
| OTHERS | MTBF | 1166K hrs min. MIL-HDBK-217F (25℃) | ||||

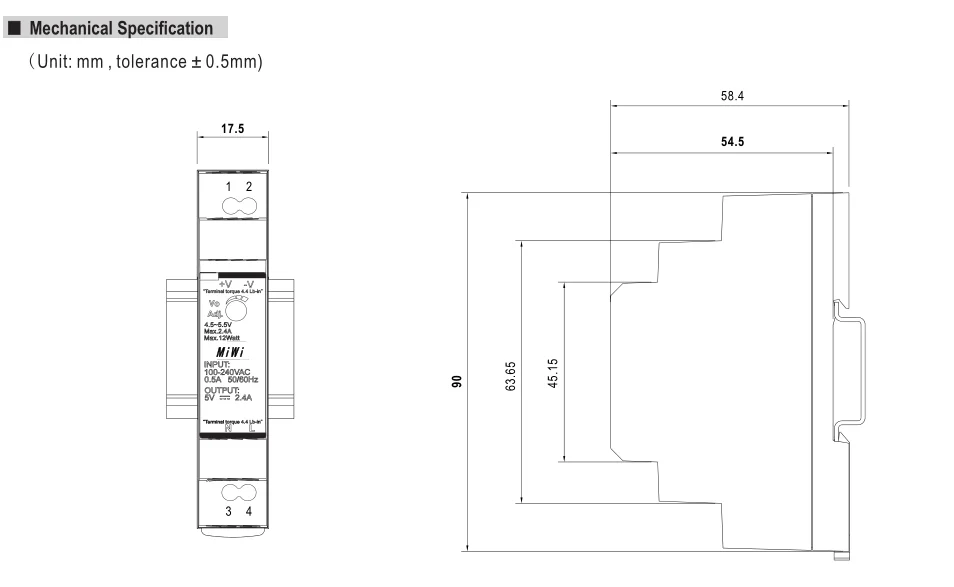

| DIMENSION | 17.5*90*54.5mm (W*H*D) | |||||
| PACKING | 78g;160pcs/13.5Kg/1.19CUFT | |||||
