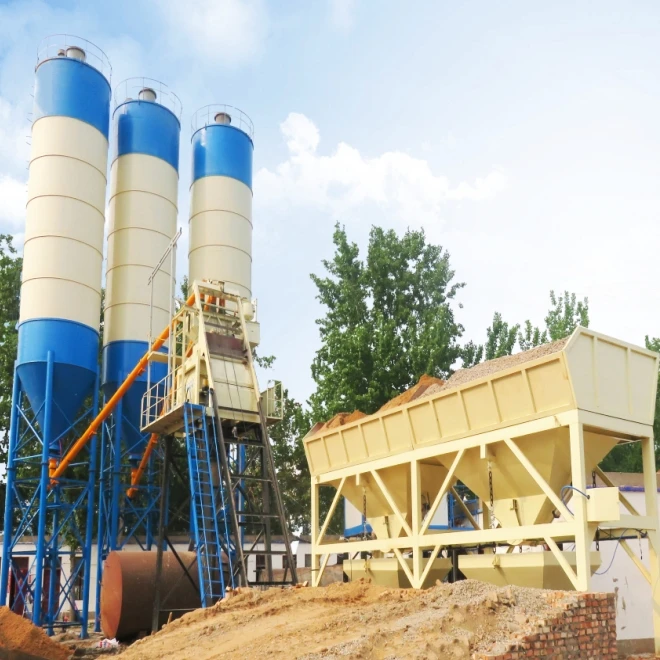

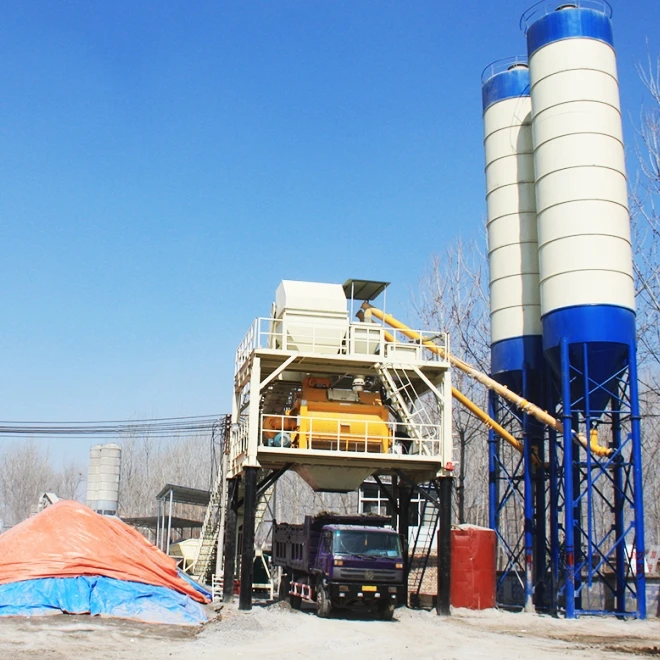

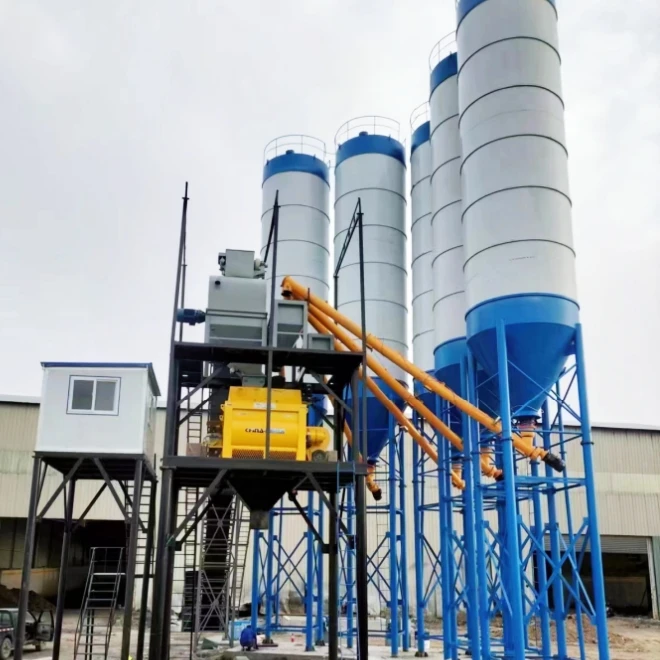

HZS60 China Top Brand 60 m3/h Concrete Machines Concrete Mixing Batching Plant with Factory Price
- Category: >>>
- Supplier: Zhengzhou Vantage Machinery Co. Ltd.
Share on (1600938594366):
Product Overview
Description
Product Overview
Concrete Batching Plant
HZS Series Concrete Batching Plant is a plant which is an ideal equipment to produce the commercial concrete, which is used to produce plastic concrete, dry concrete and so on. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
Equipped with accurate weighing system (aggregate, cement, water, additive), PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time, save the data of production perimeters in computer, print daily, monthly, annual statistic reports of production. Due to its high efficiency, it is being widely used in big and medium scale construction project, road and bridges and factories to produce the prefabricated concrete components.
FEATURES AT A GLANCE
HZS Concrete Batching Plant
1.Easy to transport, install and debug.
2. 50-300T Bolted cement, fly ash silos
3. Long service life of steel wire rope.
4. JS (or SICOMA) biaxial strong concrete mixer, high efficiency, good mixing quality.
5.PLC control system, intelligent and stable operation.
4. JS (or SICOMA) biaxial strong concrete mixer, high efficiency, good mixing quality.
5.PLC control system, intelligent and stable operation.
6. Weighing Accurately, Control Humanization.
7. Good Mixing Quality.
8. The main mixer will be cleaned by a high-pressure pump with water, which enables the continuous operation and improves work efficiency.

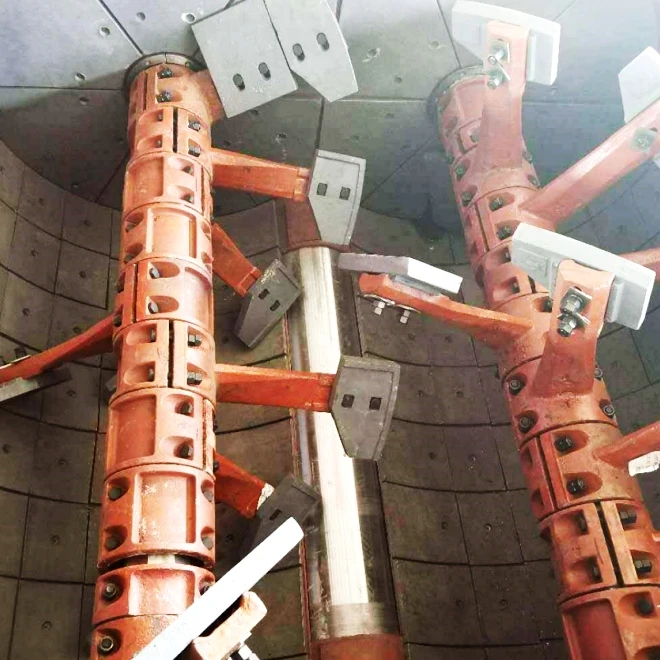

JS Concrete Mixer
Screw Conveyor
Smart Control System

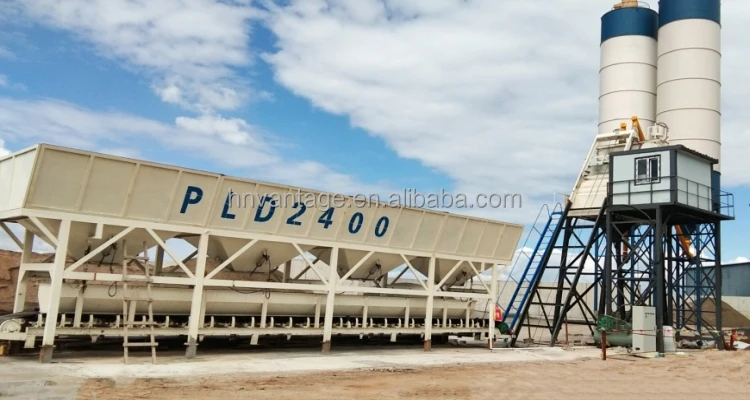

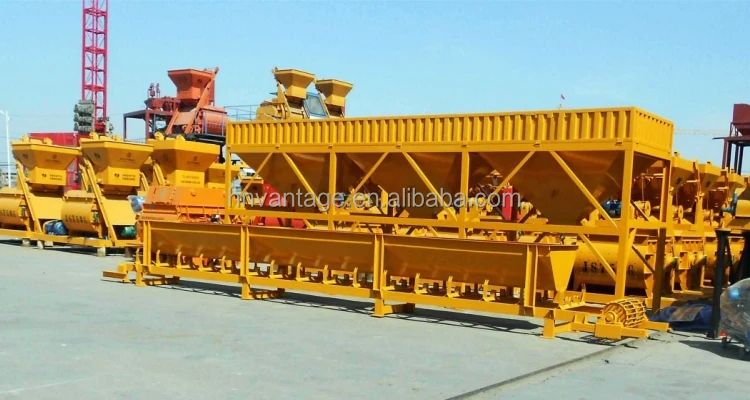

Aggregate Batcher

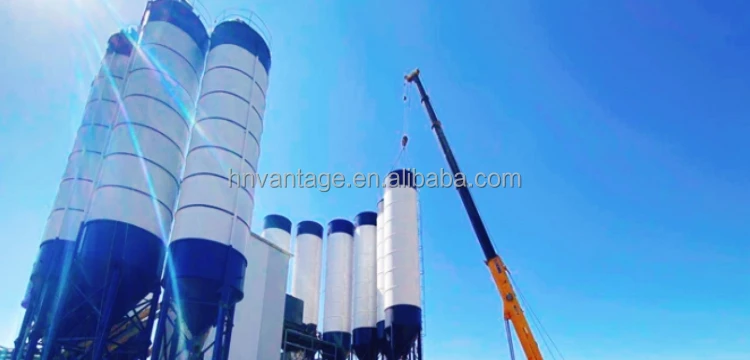

Cement/Flyash Silo
Weighing System
PRODUCT SPECIFICATIONS
Main Technical Data | ||||||
Description | Model | HZS35 | HZS60 | |||
Max. Capacity | 35m³/h | 60m³/h | ||||
Discharge Height | 1.5-3.8m | 4m | ||||
Working Cycle Time | 6072s | 60s | ||||
Overall Dimension | 18815x11525x13250mm | 24120x9940x17190mm | ||||
Total Power | 64.4kw | 105kw | ||||
Concrete Mixer | Model | JS750 | JS1000 | |||
Aggregate Batcher | Model | PLD1600 | PLD1600 | |||
Air compressor | VA-0.36/8 | VA-0.67/10 | ||||
Motor Power | 2.2kw | 4kw | ||||
Weighing System | Weighing Precision of Aggregate | ±2% | ±2% | |||
Weighing Precision of Cement | ±1% | ±1% | ||||
Weighing precision of water | ±1% | ±1% | ||||
Company Profile
Zhengzhou Vantage Machinery Co.,ltd
Established in 2020, Zhengzhou Vantage Machinery Co.,ltd can trace its history back to 2007 when the founder began to engage equipment and resources in several key hydro and civil projects in Zimbabwe, Nigeria, Sri Lanka and other countries.
Now our company has become a comprehensive enterprise by integrating research with the manufacture of concrete batching plants.
In recent years, we are growing healthily and rapidly with our long-time accumulated international operation experience and global market development capability.
Now our company has become a comprehensive enterprise by integrating research with the manufacture of concrete batching plants.
In recent years, we are growing healthily and rapidly with our long-time accumulated international operation experience and global market development capability.

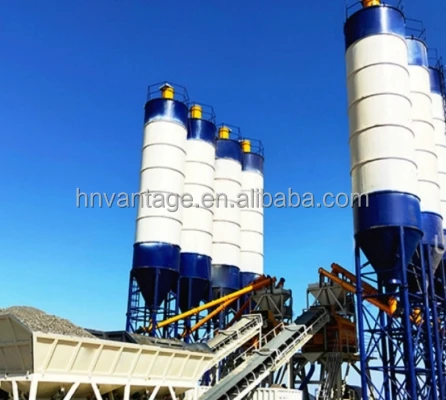

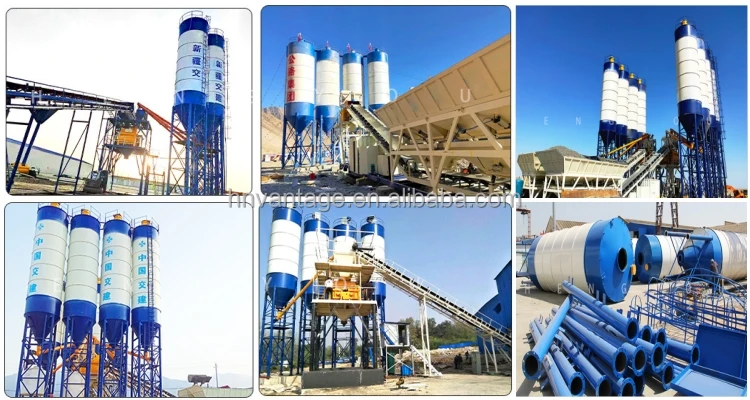

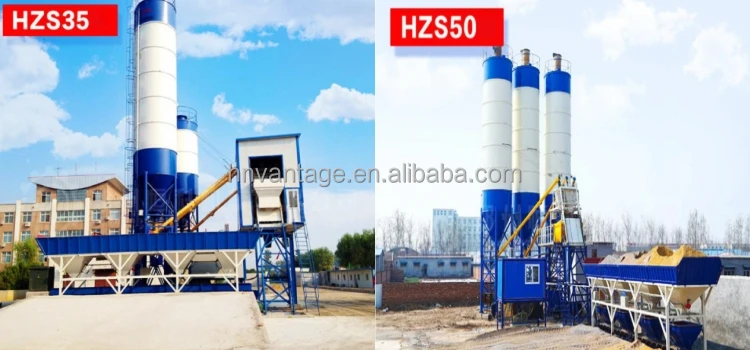

Customer Site
SIMILAR PRODUCTS

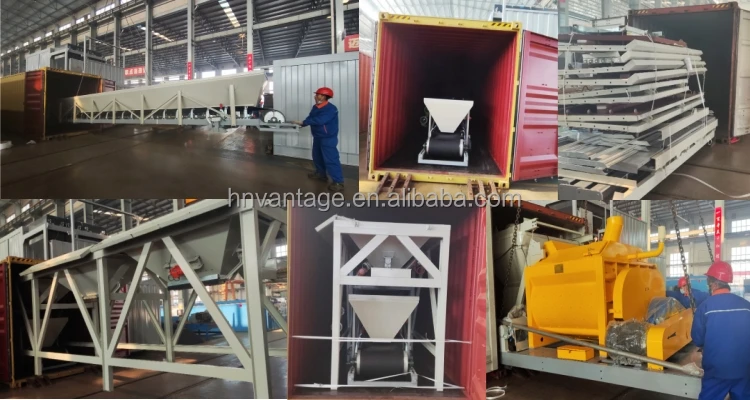

Packing and Delivery
FAQ
Q1: What is your product range as regards the concrete machines?
A1: Stationary Batching plant ranging from HZS25-HZS180
Hoist Bucket Type (Compact structure, save space, low cost):
HZS25 25cbm/h, HZS35 35cbm/h, HZS50 50cbm/h, HZS75 75cbm/h

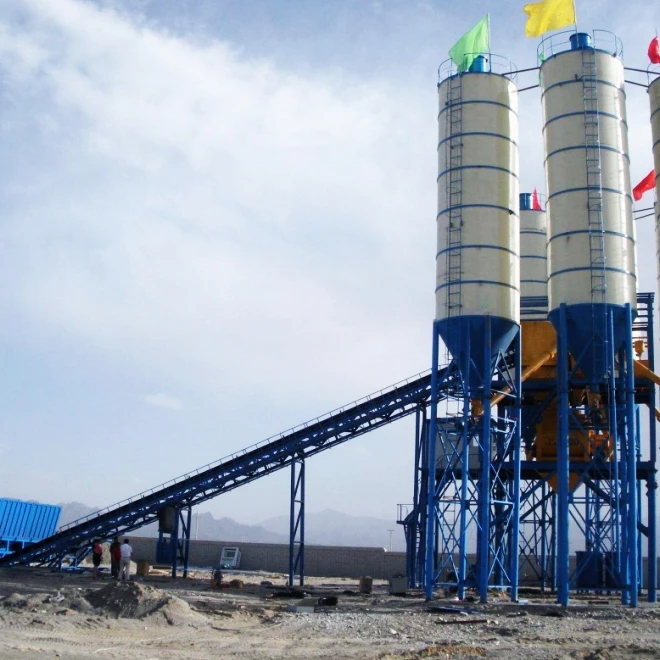

Belt Conveyor Type (High working efficiency, high production capacity, large space, high cost):
HZS60 60cbm/h, HZS90 90cbm/h or above.
HZS25 25cbm/h, HZS35 35cbm/h, HZS50 50cbm/h, HZS75 75cbm/h
Belt Conveyor Type (High working efficiency, high production capacity, large space, high cost):
HZS60 60cbm/h, HZS90 90cbm/h or above.
Mobile Concrete Batching Plant
Stabilized Soil Mixing Station WBZ300/400/500/600
Q2: What about the delivery time?
A2: Generally, 10-15 days after receiving the deposit.
Q3: Can you describe your after-sales Service?
Q3: Can you describe your after-sales Service?
A3: 12-Month Warranty for main machine, excluding the wearable parts. On-site installation, commissioning, training.
Q4: What are the payment terms?
A4: We usually accept T/T (Telegraphic Transfer), western union, money gramL/C at sight, trade assurance. 30% deposit before production,70% should be paid before delivery.
Q5: What shall we do while encountering a technical fault during operation.
A6: We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q6: What`s your international large-scale project experience?
A6: Sri Lanka Southern Expressway HZS50
Bosnia and Herzegovina Hydro Power Plant Project
Nigeria Kaduna State Highway Project and Bridges
A6: Sri Lanka Southern Expressway HZS50
Bosnia and Herzegovina Hydro Power Plant Project
Nigeria Kaduna State Highway Project and Bridges
