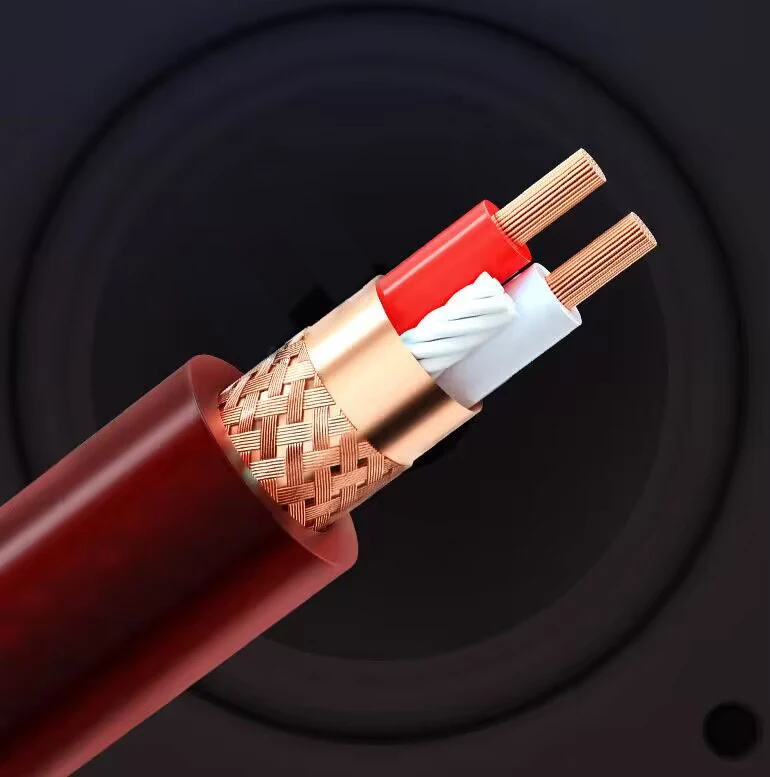

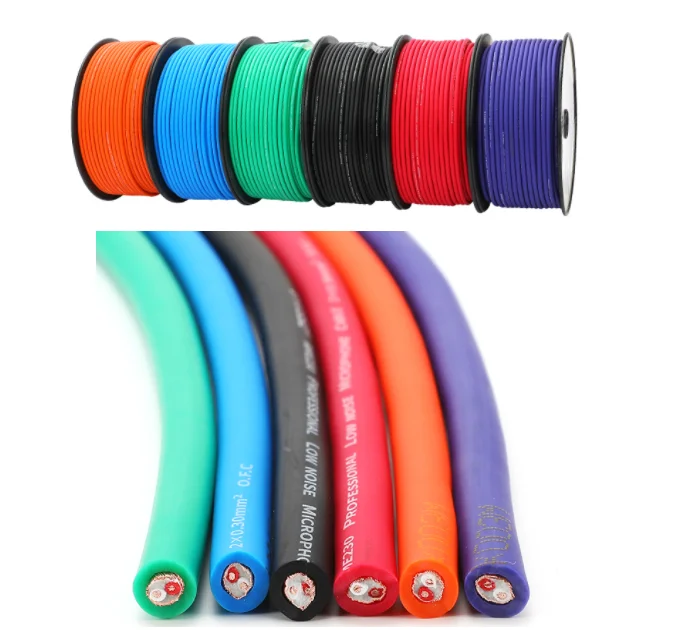

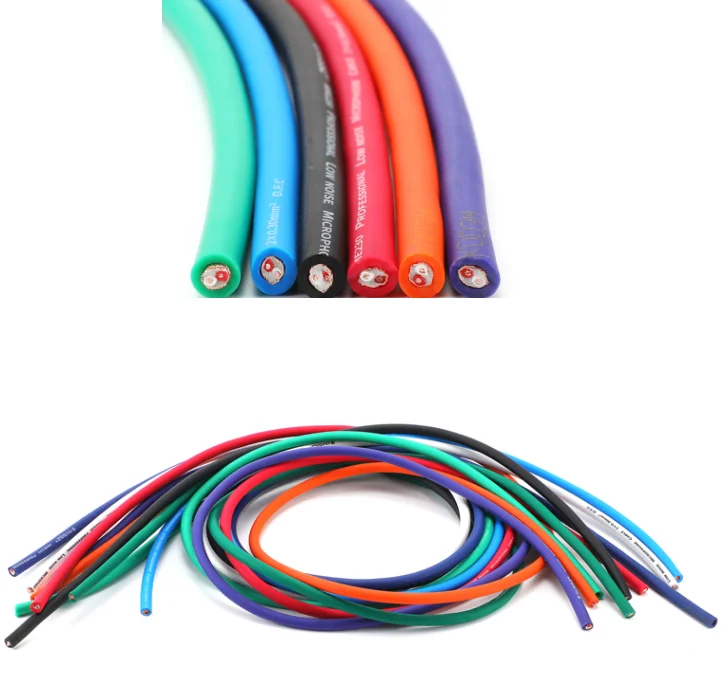

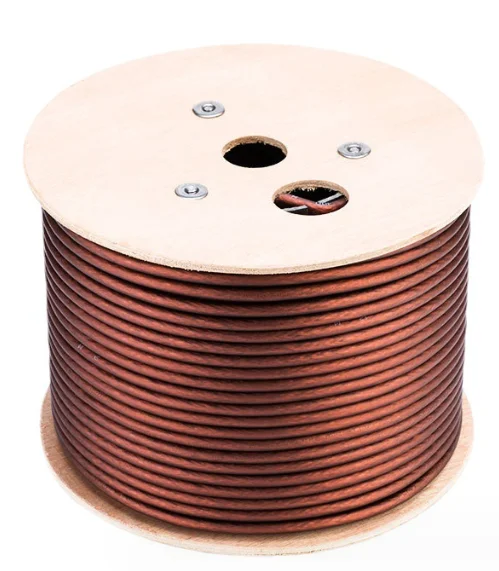

Black 2 x 0.18mm Screened Microphone cable 100m reel
- Category: >>>
- Supplier: Zhongshan Hejia Electrical Industrial Co. Ltd.
Share on (1600938625720):
Product Overview
Description
Product Description
Black 2 x 0.18mm Screened Microphone cable 100m reel
* High End Connection Cable
*99.995% OXYGEN FREE COPPER CONDUCTORS
These provide a low resistance pathway for the audio signal
These provide a low resistance pathway for the audio signal
*DUAL ELECTRICAL SCREENING FOR IMPROVED SIGNAL INTEGRITY
Combines a 99.995% OFC braid and aluminium foil wrap for 100% coverage
– Professional recording studio, home recording studio, live performance, video production.
– Connect the microphone to a professional audio recorder, audio interface, and mixer.
– Connect the mixer output to a studio monitor or powered speakers and many other professional audio
equipment.
Specifications and characteristics:
– OD 6.0mm, 24AWG,16/0.12 OFC*2C+COPPER BRAIDED 64/0.12 OFC
– UL List RoHS soft PVC sheath
– Double shielding
– 4N oxygen-free copper
– Bare copper braided shield
– Heavy metal connectors
– High tensile strength
– Cotton yarn wrapped to reduce noise and hum
– Temperature range: 14℉ – 572℉ (-10℃-300℃)
Combines a 99.995% OFC braid and aluminium foil wrap for 100% coverage
– Professional recording studio, home recording studio, live performance, video production.
– Connect the microphone to a professional audio recorder, audio interface, and mixer.
– Connect the mixer output to a studio monitor or powered speakers and many other professional audio
equipment.
Specifications and characteristics:
– OD 6.0mm, 24AWG,16/0.12 OFC*2C+COPPER BRAIDED 64/0.12 OFC
– UL List RoHS soft PVC sheath
– Double shielding
– 4N oxygen-free copper
– Bare copper braided shield
– Heavy metal connectors
– High tensile strength
– Cotton yarn wrapped to reduce noise and hum
– Temperature range: 14℉ – 572℉ (-10℃-300℃)
Hejia microphone cable is for both in- and outdoor use. Flexible PVC, diameter 3,5 mm/6.0mm.

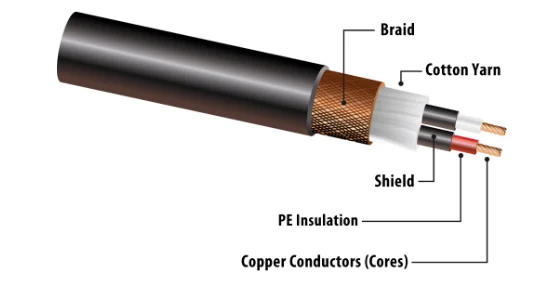

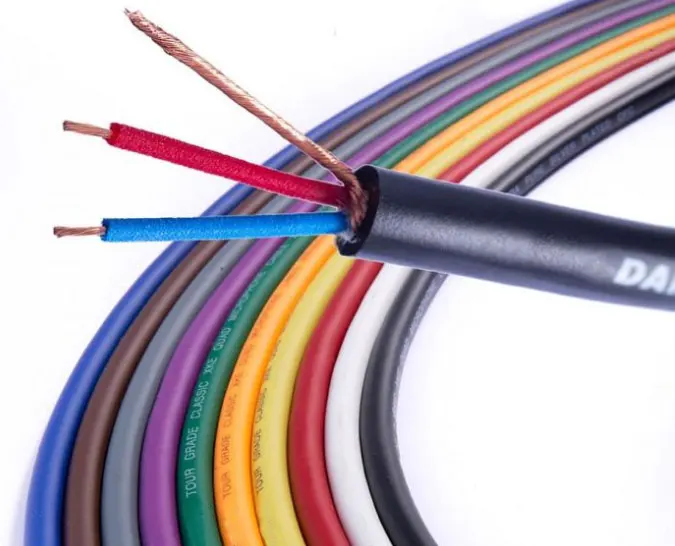

CONDUCTOR
* Material - Pure oxygen free copper wire
* Stranding - 16 x 0.12mm
* Material - Pure oxygen free copper wire
* Stranding - 64 x 0.12mm
INSULATION
* Material - XLPE Cross linked polyethylene
* Diameter - 1.50mm ±0.10
* Colour coding - Red, White
CABLING
* Type Twisted pair with cotton yarn fillers & paper wrap
* Lay length:100mm
SCREEN
* Type - 64 x 0.12mm close lap spiral bare oxygen free copper wire
JACKET
* Material - Flexible PVC/Neoprene composite
* Average thickness - 1.40mm
* Overall diameter - 6.0mm ±0.15
* Material - Pure oxygen free copper wire
* Stranding - 16 x 0.12mm
* Material - Pure oxygen free copper wire
* Stranding - 64 x 0.12mm
INSULATION
* Material - XLPE Cross linked polyethylene
* Diameter - 1.50mm ±0.10
* Colour coding - Red, White
CABLING
* Type Twisted pair with cotton yarn fillers & paper wrap
* Lay length:100mm
SCREEN
* Type - 64 x 0.12mm close lap spiral bare oxygen free copper wire
JACKET
* Material - Flexible PVC/Neoprene composite
* Average thickness - 1.40mm
* Overall diameter - 6.0mm ±0.15
Type 1:Spiral shield

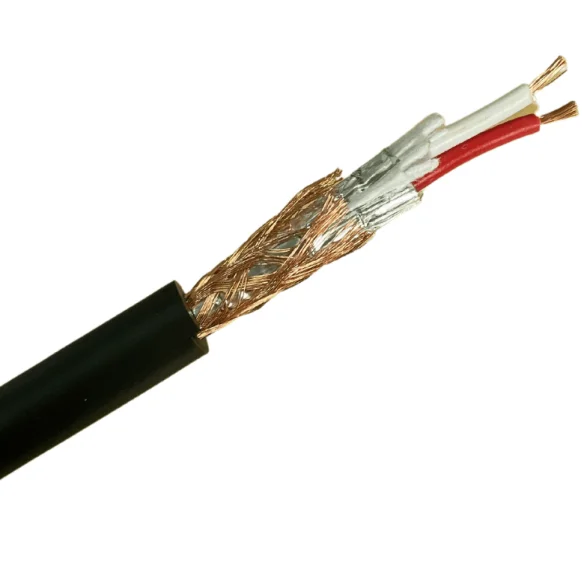

Type 2:Braided shield

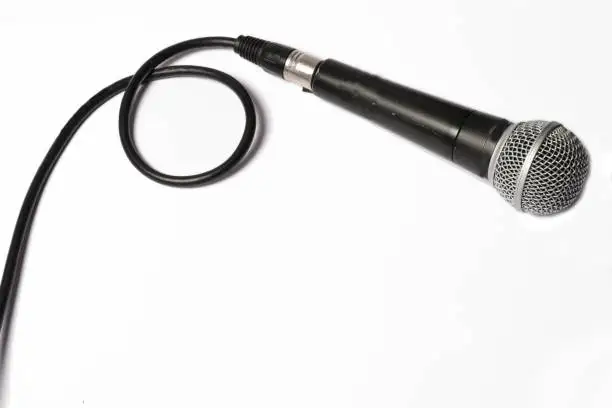

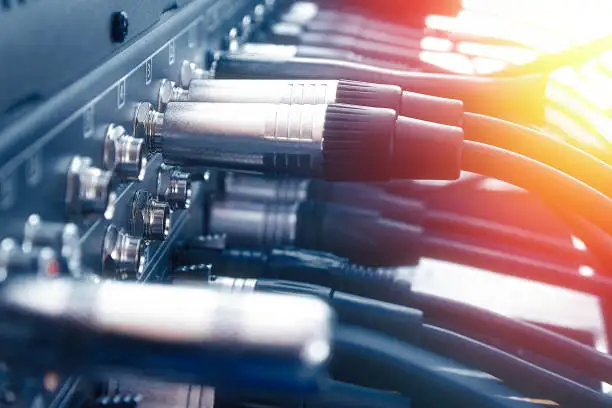

Connects microphone to Mixer or Speaker system
Company Profile
Workshop
Certifications
Exhibition
Packing and Sipping
Why Choose Us
HEJIA GROUP
Zhongshan Hejia Electronic Co., Ltd, which mainly produces Audio Cable,and
satellite system products such as multiswitch, amplifiers, splitters, taps and etc. And in this field, we have provided products and services to many repuated clients such as Televees, Tatasky, Technisat and etc.
satellite system products such as multiswitch, amplifiers, splitters, taps and etc. And in this field, we have provided products and services to many repuated clients such as Televees, Tatasky, Technisat and etc.
In the year of 2013, Hejia Group set up another subsidiary Jiangxi Hejia Technology Co. Ltd with the area of more than 20000 square meters in Shangrao city, Jiangxi province. It mainly produces new energy products such as PV cables, wire harness, copper
busbar and Battery.And we are still moving on !!
busbar and Battery.And we are still moving on !!
With nearly 16 years of international operation and more than 18 years of professional research and development, hejia has become a well-known company in the field of home theater audio and signal transmission.At the same time, the company has passed
ISO9001:2000 certification, ISO14001:2004, OSAH18000 system certification and HDMI association member, and meets UL,FCC,CE,CSA and other national safety standards certification.
ISO9001:2000 certification, ISO14001:2004, OSAH18000 system certification and HDMI association member, and meets UL,FCC,CE,CSA and other national safety standards certification.
Our Services:
1. Your inquiry related to our products or prices will be replied in 24hours. 2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time
delivery, reliable warranty etc.
3. OEM ODM is available.
4. Sample is available.
About US
* 19 Years Manufacture Of Cable
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Warmly welcome you trust Hejia and choose Hejia for your partner.
* 19 Years Manufacture Of Cable
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Warmly welcome you trust Hejia and choose Hejia for your partner.
FAQ
Q1:Are you trading company or manufacturer?
A: We are the factory.and we can export the goods by ourselves.
Q2.How long is the delivery time?
A: We have fast delivery time
Sample leading time:Within 10 days
Production leading time: Within 20 days
Q3.Can you provide the free sample? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost.If you need many items, or need more qty for each item, we will charge for the samples.
Q4.How does your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.
Q5:What's your terms of payment?
A: Usually by TT, Western Union and Alibaba assurance order.
If other terms,welcome to discuss with us.
Q6:Can you make customized products and customized packing?
A:Yes.We made a lot of customized products for our customer before.
And we made many models for our customers already.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.
Q7:For the cables,May i know the method of packing you have now?
A:The method of packing as below for you reference:
A: We are the factory.and we can export the goods by ourselves.
Q2.How long is the delivery time?
A: We have fast delivery time
Sample leading time:Within 10 days
Production leading time: Within 20 days
Q3.Can you provide the free sample? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost.If you need many items, or need more qty for each item, we will charge for the samples.
Q4.How does your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.
Q5:What's your terms of payment?
A: Usually by TT, Western Union and Alibaba assurance order.
If other terms,welcome to discuss with us.
Q6:Can you make customized products and customized packing?
A:Yes.We made a lot of customized products for our customer before.
And we made many models for our customers already.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.
Q7:For the cables,May i know the method of packing you have now?
A:The method of packing as below for you reference:
a.Paper Reel,
b.Plastic Reel,
c. Wooden Durm
d.Gift box e.Pull box
Q8:How about the afer-sale service?
A: Any feedback or comment are welcomed,we will try to make the best assistant to let you maximum satisfaction.
Q8:How about the afer-sale service?
A: Any feedback or comment are welcomed,we will try to make the best assistant to let you maximum satisfaction.
