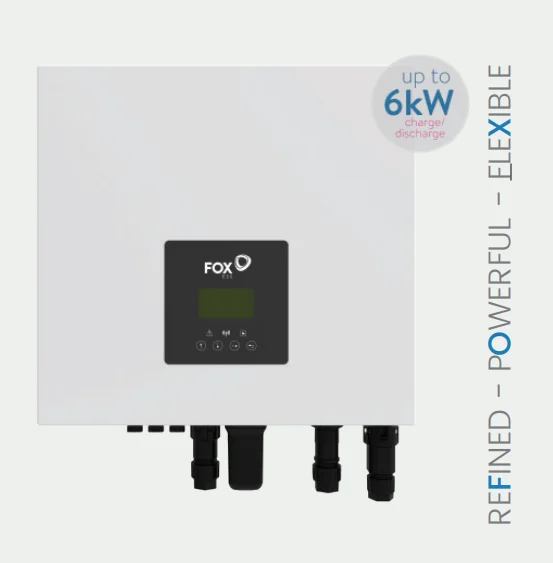

Hybrid wechselrichter FOX ESS inverter hybrid 6kw 6000w single phase H1 6.0 E on off grid solar inverter
- Category: >>>
- Supplier: Ningbo Skycorp Solar Co. Ltd.
Share on (1600938736607):
Product Overview
Description

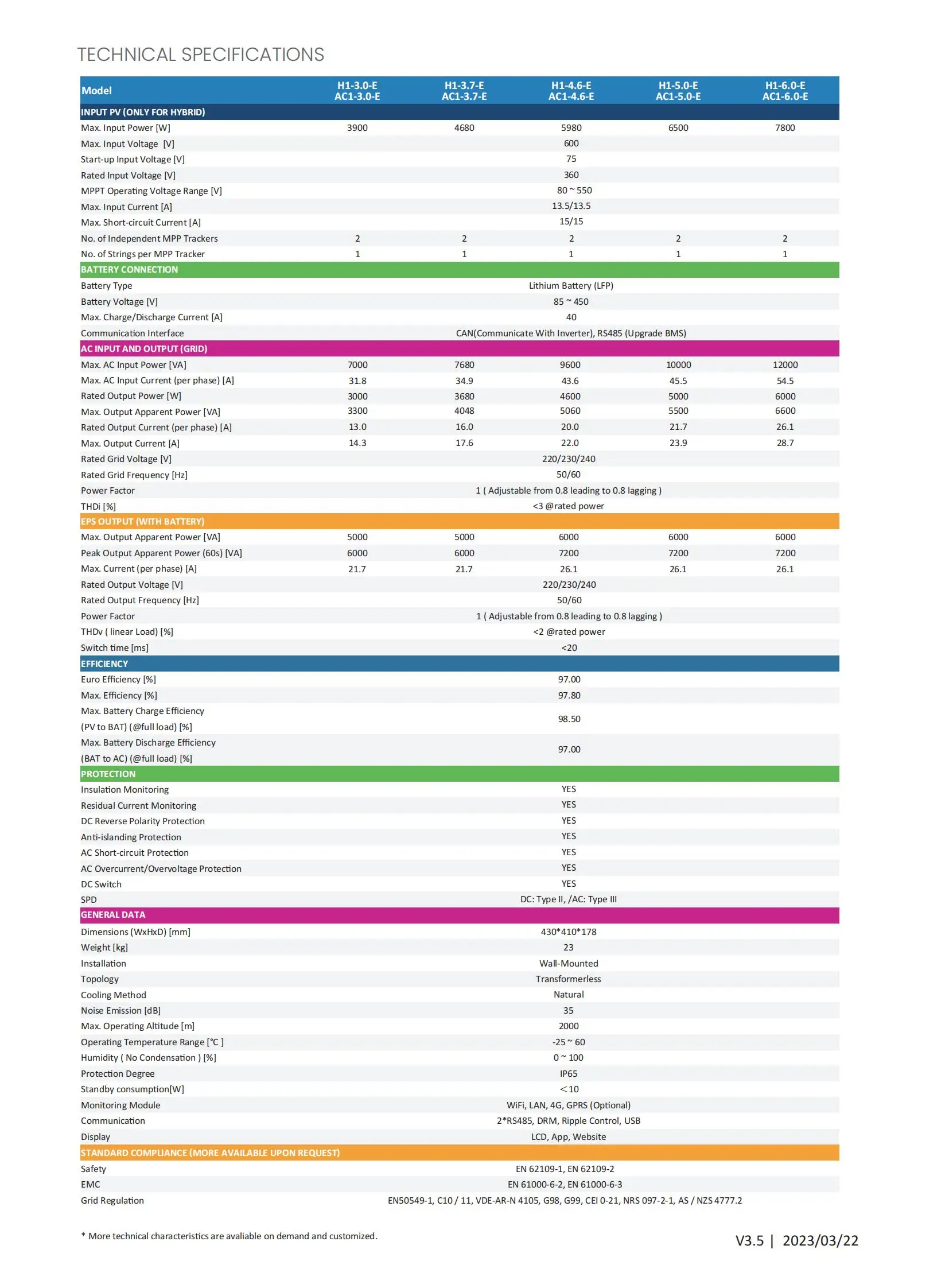

Model | H1-3.0-E AC1-3.0-E | H1-3.7-E AC1-3.7-E | H1-4.6-E AC1-4.6-E | H1-5.0-E AC1-5.0-E | H1-6.0-E AC1-6.0-E | |||||
INPUT PV (ONLY FOR HYBRID) | ||||||||||
Max Input Power [W] | 3900 | 4680 | 5980 | 6500 | 7800 | |||||
Max Input Voltage [V] | 600 | |||||||||
Start-up Input Voltage [V] | 75 | |||||||||
Rated Input Voltage [V] | 360 | |||||||||
MPPT Operating Voltage Range [V] | 80～550 | |||||||||
Max Input Current [A] | 13.5/13.5 | |||||||||
Max.Short-circuit Current[A] | 15/15 | |||||||||
No.of Independent MPP Trackers | 2 | |||||||||
No.of Strings per MPP Tracker | 1 | |||||||||
BATTERY CONNECTION | ||||||||||
Battery Type | Lithium Battery (LFP) | |||||||||
Battery Voltage [V] | 85~450 | |||||||||
Max. Charge/Discharge Current [A] | 40 | |||||||||
Communication Interface | CAN(Communicate With Inverter), RS485 (Upgrade BMS) | |||||||||
ACINPUT AND OUTPUT(GRID) | ||||||||||
Max.AC Input Power [VA] | 7000 | 7680 | 9600 | 10000 | 12000 | |||||
Max. AC Input Current (per phase)[A] | 31.8 | 34.9 | 43.6 | 45.5 | 54.5 | |||||
Rated Output Power [W] | 3000 | 3680 | 4600 | 5000 | 6000 | |||||
Max. Output Apparent Power [VA] | 3300 | 4048 | 5060 | 5500 | 6600 | |||||
Rated Output Current (per phase)[A] | 13.0 | 16.0 | 20.0 | 21.7 | 26.1 | |||||
Max Output Current [A] | 14.3 | 17.6 | 22.0 | 23.9 | 28.7 | |||||
Rated Grid Voltage [V] | 220/230/240 | |||||||||
Rated Grid Frequency [Hz] | 50/60 | |||||||||
Power Factor | 1( Adjustable from 0.8 leading to 0.8 lagging) | |||||||||
THDi[%] | <3 @rated power | |||||||||
EPS OUTPUT (WITH BATTERY) | ||||||||||
Max Output Apparent Power [VA] | 5000 | 5000 | 6000 | 6000 | 6000 | |||||
Peak Output Apparent Power(60s)[VA] | 6000 | 6000 | 7200 | 7200 | 7200 | |||||
Max. Current (per phase)[A] | 21.7 | 21.7 | 26.1 | 26.1 | 26.1 | |||||
Rated Output Voltage [V] | 220/230/240 | |||||||||
Rated Output Frequency [Hz] | 50/60 | |||||||||
Power Factor | 1(Adjustable from 0.8 leading to 0.8lagging) | |||||||||
THDv (linear Load)[%] | <2 @rated power | |||||||||
Switch time [ms] | <20 | |||||||||
EFFICIENCY | ||||||||||
Euro Efficiency [%] | 97.00 | |||||||||
Max. Efficiency [%] | 97.80 | |||||||||
Max.Battery Charge Efficiency (PVto BAT)(@full load)[%] | 98.50 | |||||||||
(BAT to AC)(@full load)[%] | 97.00 | |||||||||
PROTECTION | ||||||||||
Insulation Monitoring | YES | |||||||||
Residual Current Monitoring | YES | |||||||||
DC Reverse Polarity Protection | YES | |||||||||
Anti-islanding Protection | YES | |||||||||
AC Short-circuit Protection | YES | |||||||||
AC Overcurrent/Overvoltage Protection | YES | |||||||||
DC Switch | YES | |||||||||
SPD | DC:TypeII,/AC: Type Ⅲ | |||||||||
GENERAL DATA | ||||||||||
Dimensions (WxHxD)[mm] | 430*410*178 | |||||||||
Weight[kg] | 23 | |||||||||
Installation | Wall-Mounted | |||||||||
Topology | Transformerless | |||||||||
Cooling Method | Natural | |||||||||
Noise Emission [dB] | 35 | |||||||||
Max. Operating Altitude [m] | 2000 | |||||||||
Operating Temperature Range [℃] | -25~60 | |||||||||
Humidity(No Condensation)[%] | 0～100 | |||||||||
Protection Degree | IP65 | |||||||||
Standby consumption[W] | <10 | |||||||||
Monitoring Module | WiFi, LAN,4G, GPRS (Optional) | |||||||||
Communication | 2*RS485, DRM, Ripple Control, USB | |||||||||
Display | LCD, App, Website | |||||||||
STANDARD COMPUANCE(MORE AVANLABLE UPON REQUEST) | ||||||||||
Safety | EN 62109-1,EN 62109-2 | |||||||||
EMC | EN 61000-6-2,EN 61000-6-3 | |||||||||
Grid Regulation | EN50549-1, C10/11,VDE-AR-N 4105, G98, G99,CEIO-21,NRS 097-2-1, AS /NZS 4777.2 | |||||||||
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
