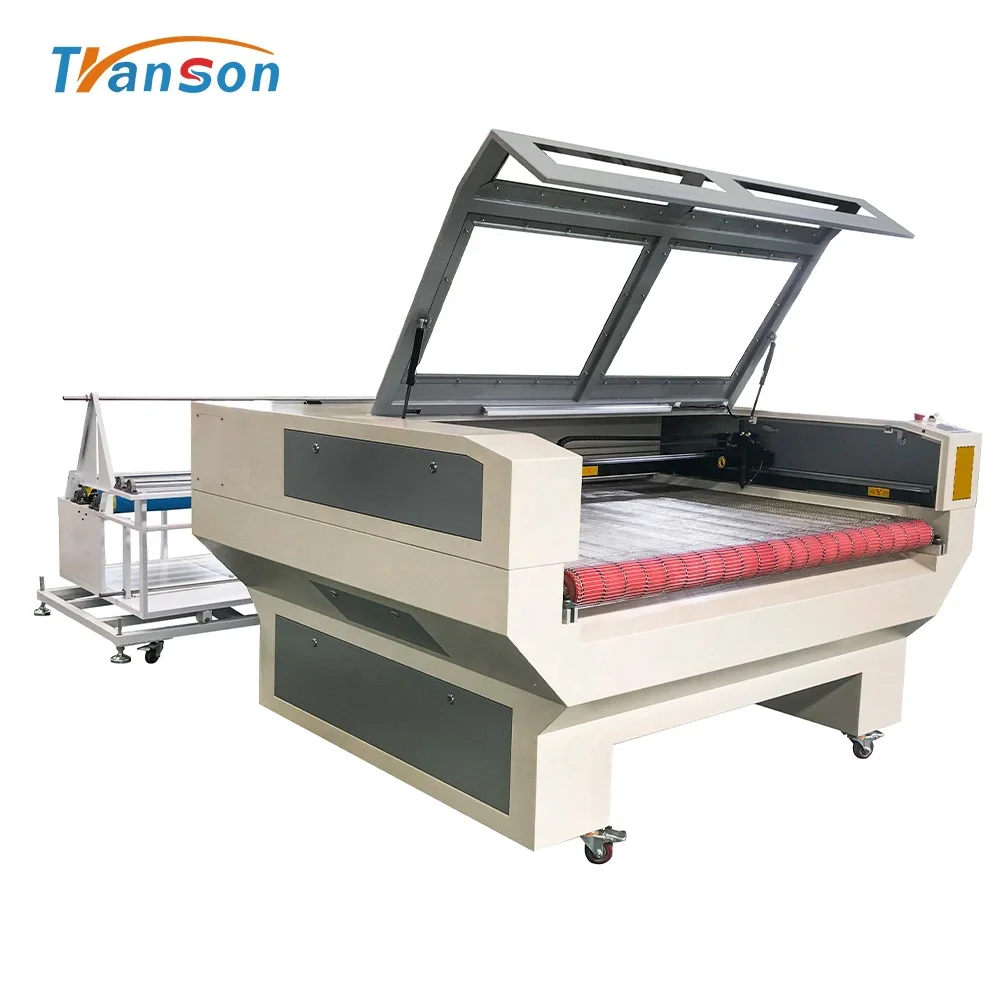

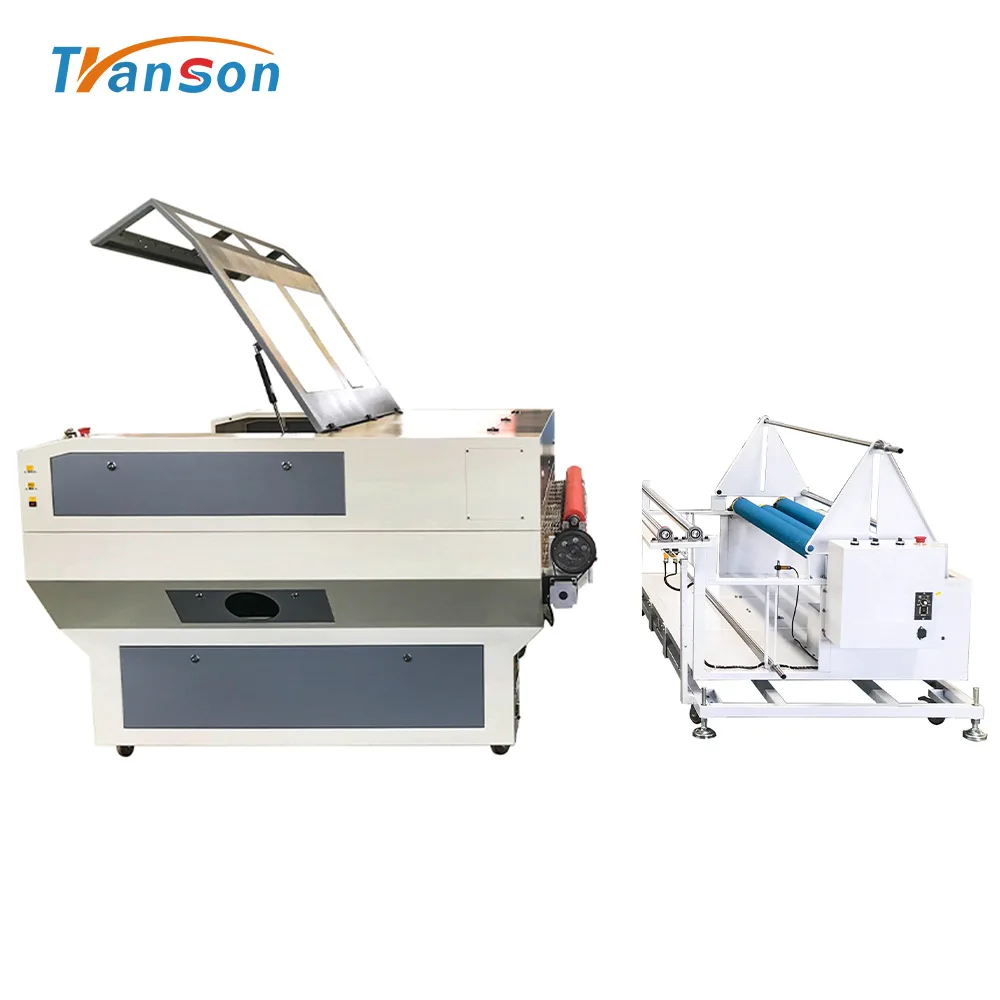

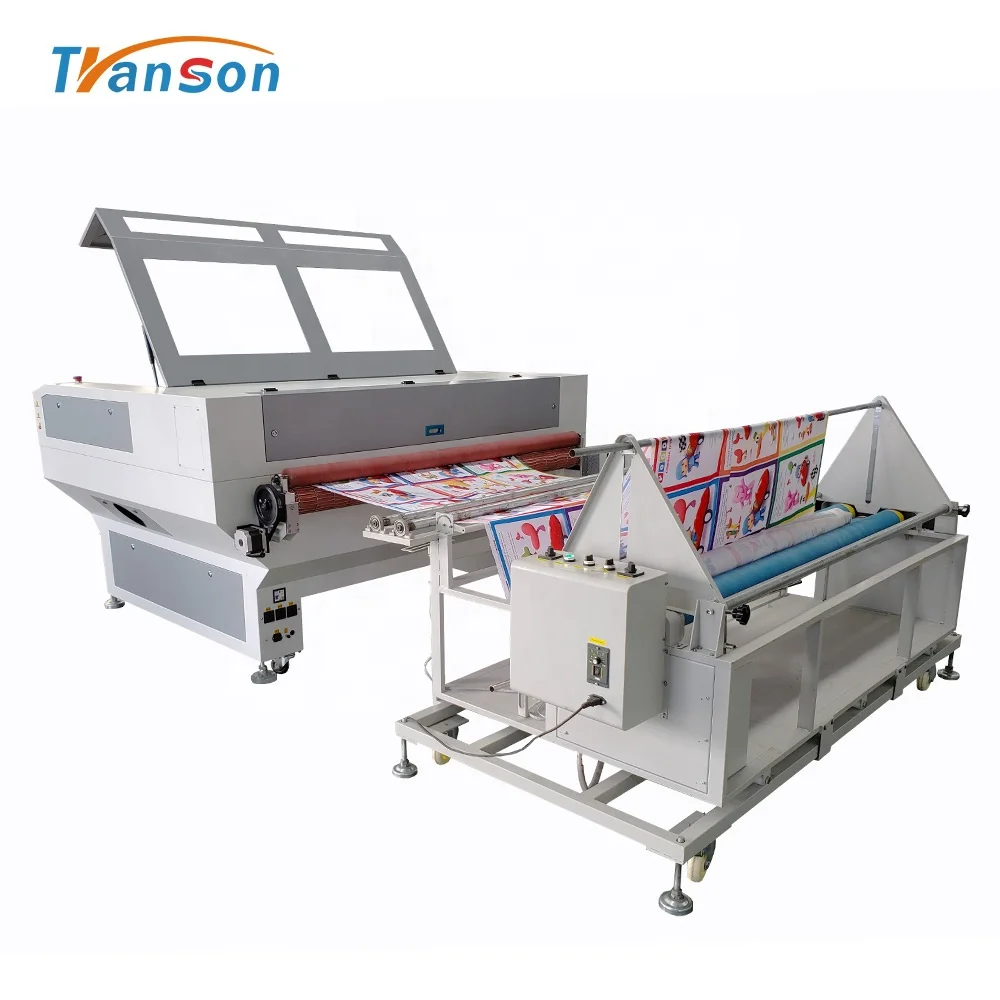

Large Size High Productivity Fabric Laser Cutting Machine 150W 130W CO2 Laser Auto Feeding Fabric Cutting Machine
- Category: >>>
- Supplier: Jinan Transon CNC Equipment Co. Ltd.
Share on (1600938782020):
Product Overview
Description
Product Description
Large size Roll Fabric Textile 150W 130W auto feeding leather fabric cloth co2 laser cutting cutter machine price for fabric

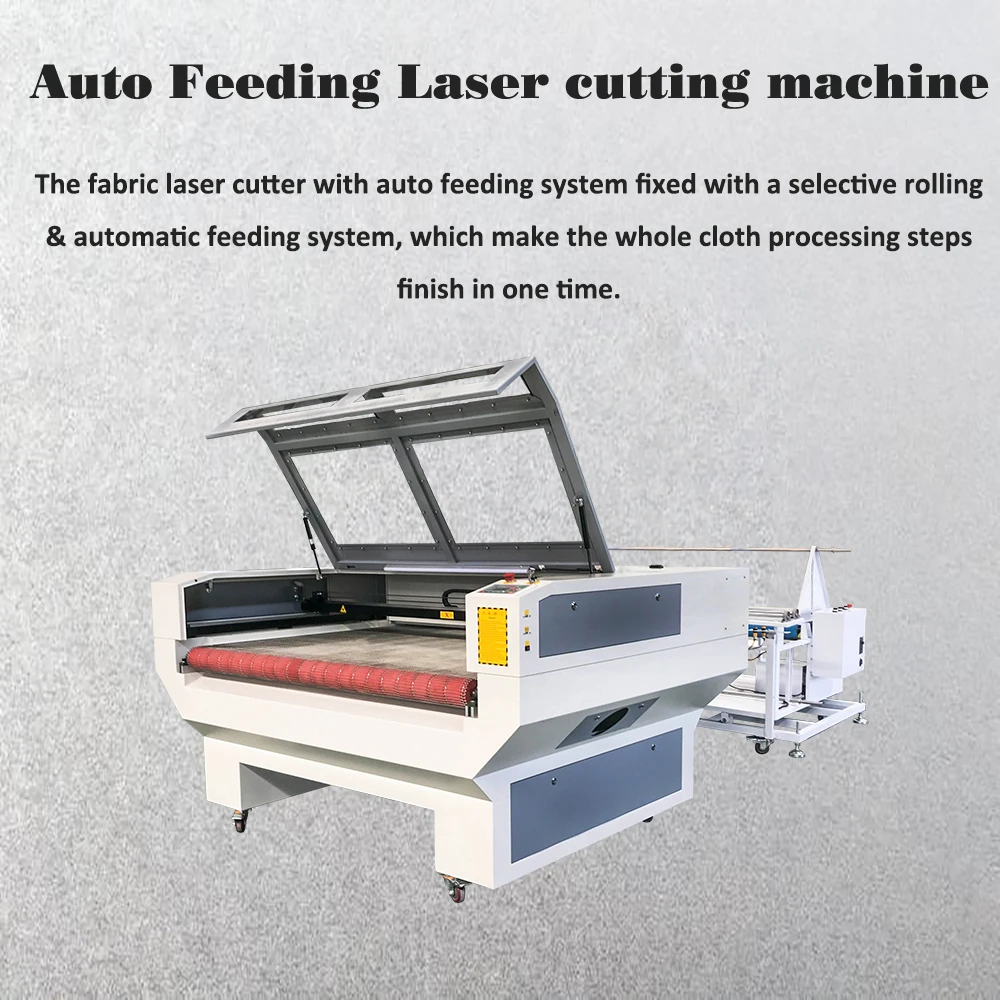

The fabric laser cutter with auto feeding system fixed with a selective rolling & automatic feeding system, which make the whole cloth processing steps finish in one time.
The laser cutter engraver for sale is suitable for engraving and cutting on very long work piece, such as one roller of
cloth,fabric, leather, garment. This laser cutter engraver for sale is especially applied in fabric and garments industry.
The laser cutter engraver for sale is suitable for engraving and cutting on very long work piece, such as one roller of
cloth,fabric, leather, garment. This laser cutter engraver for sale is especially applied in fabric and garments industry.
Specification
Model | TSH1390/ TSH1610/ TSH1325/ TSH1530 |
Working area | 1300cm*900mm/ 1600*1000mm/ 1300*2500mm/ 1500*3000mm |
Laser power | Reci W6 130W-150W glass tube/ W8 150-180W glass tube/ LJK300W |
Laser type | CO2 sealed laser tube,water-cooled |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 220V/50HZ , 110V/60HZ |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI, etc. |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | stepper motor |
Net/Gross Weight | 460kg/ 526kgs (for TSH1390 model) |
Product details
Standard Reci W2 90W-100W Laser Tube
China top brand Reci brand W2 90-100W CO2 laser tube, with estimate 10,000 hours life span and 18 month warranty.
Optional power:
Reci W1 75-90W/ W4 100-130W
W6 130-150W/ W8 150-180W
Optional glass tube: EFR, Yongli, SPT,
Optional RF tube: Synrad, Coherent, DAVI
Optional power:
Reci W1 75-90W/ W4 100-130W
W6 130-150W/ W8 150-180W
Optional glass tube: EFR, Yongli, SPT,
Optional RF tube: Synrad, Coherent, DAVI

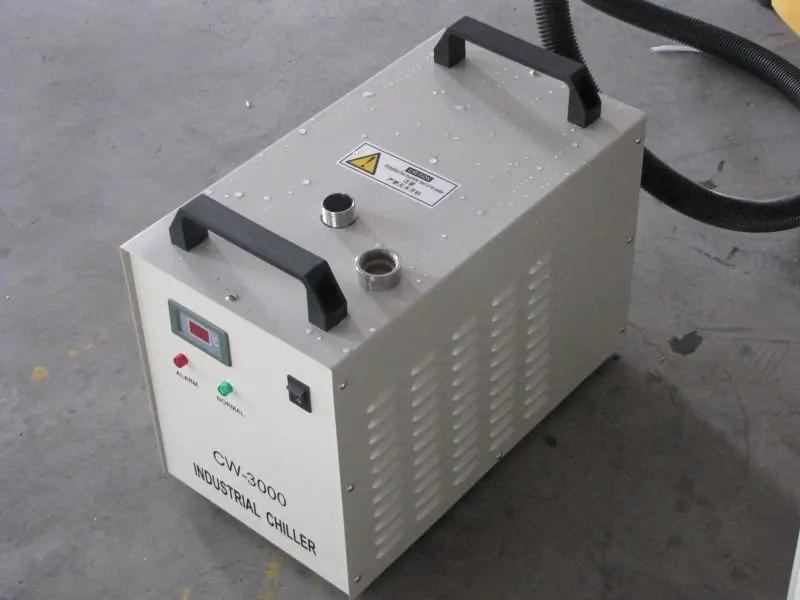

Advanced CW3000 water chiller for cycle water, with water temperature display and water circle unsuccessful alarm function. With signal line connect to machine water flow signal port, if machine detect water flow unsuccessful, the laser machine will stop work to protect laser tube.
Optional: CW5200, CW6000 with refrigerants.

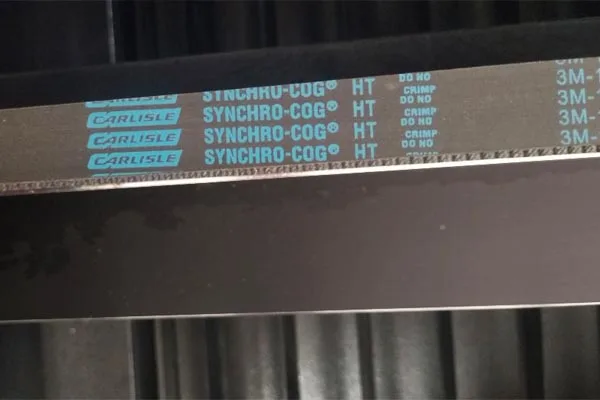

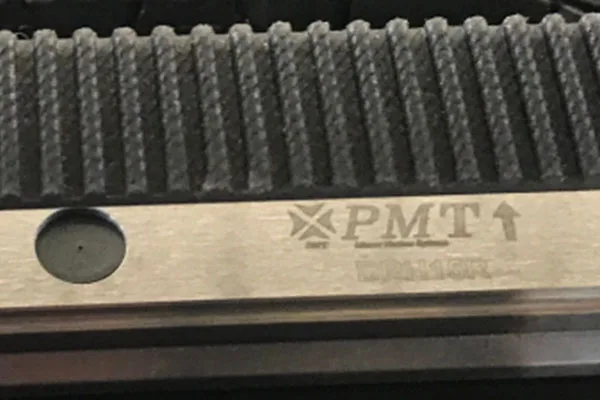

Square Rail Guide + USA Carlisle Belt
PMT square rail guide and USA brand Carlisle belt, high precise and high smooth, durable with long life span than normal belt.

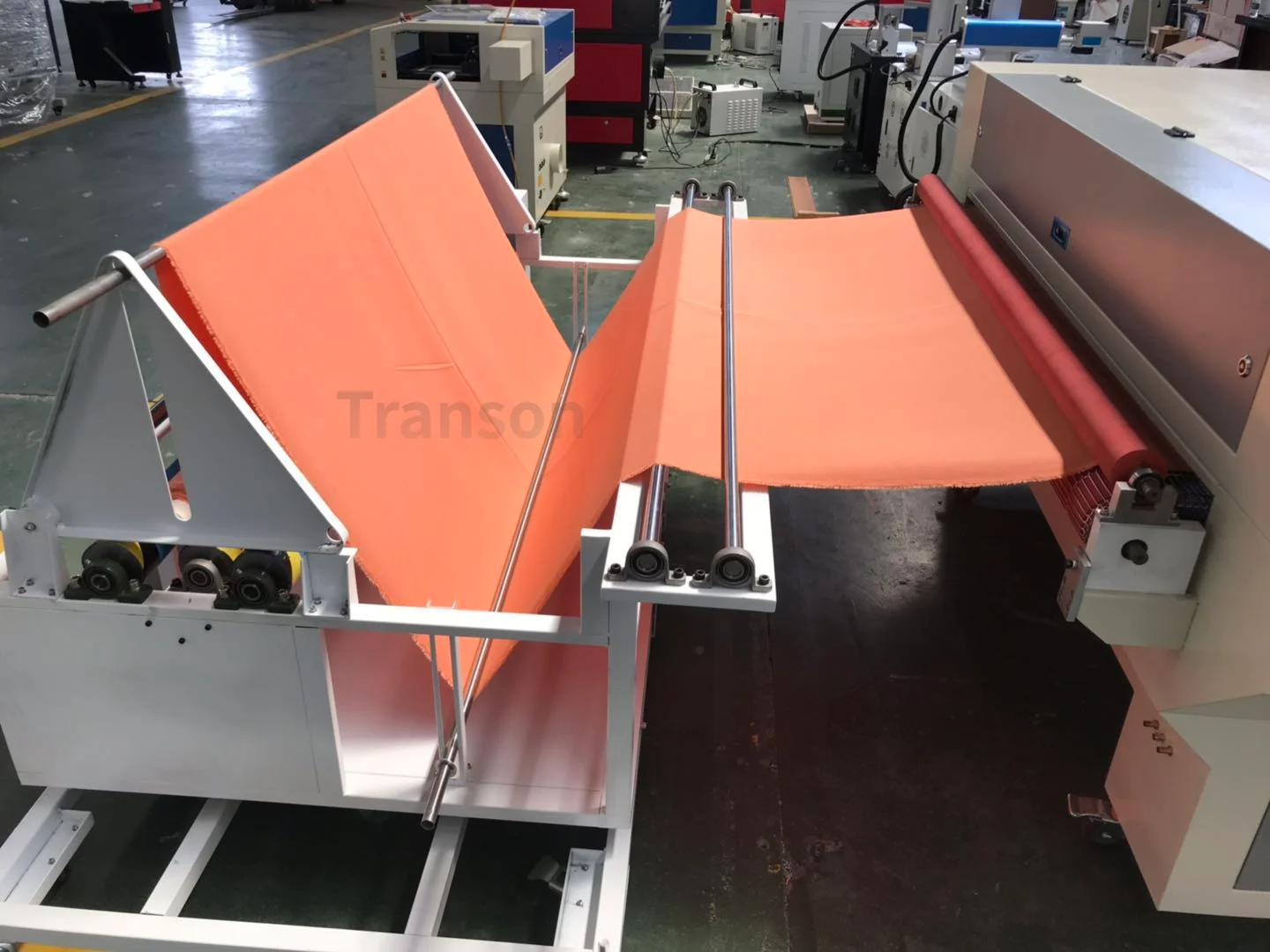

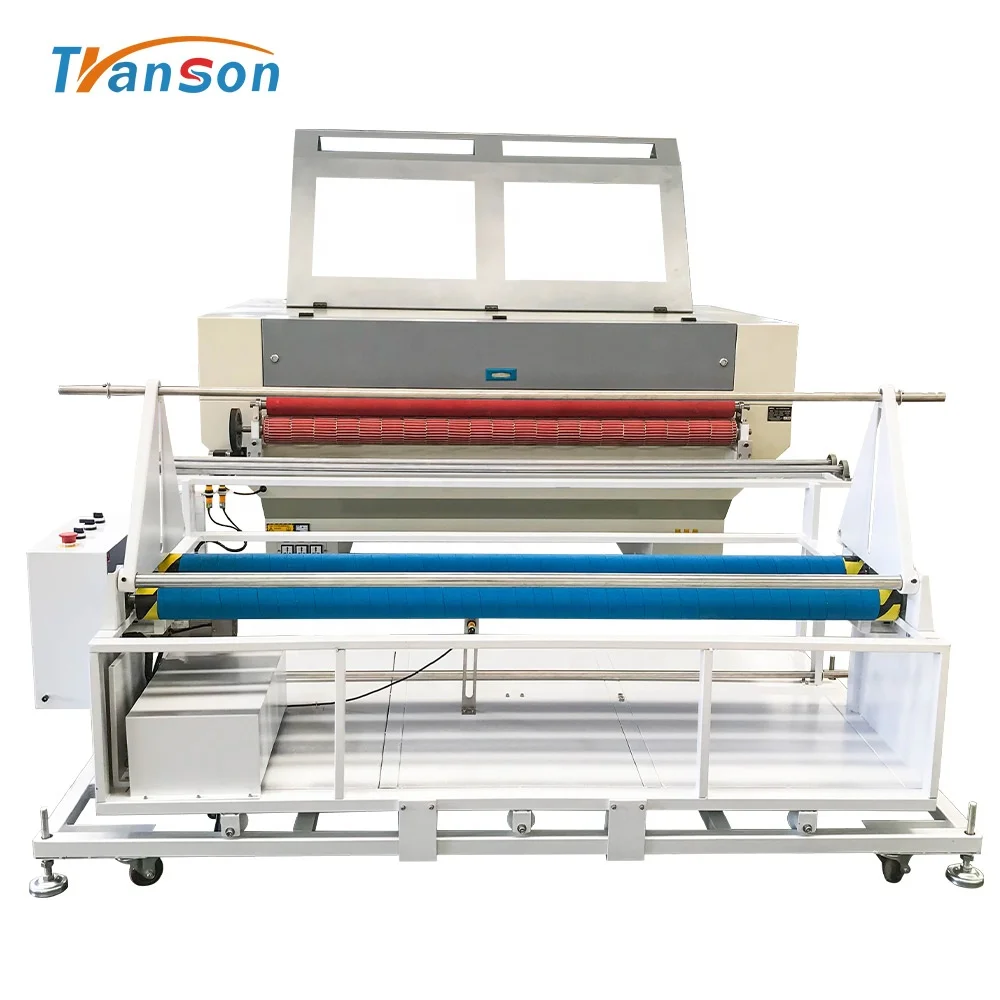

automatic deviation correction feeding
This automatic deviation correction feeding machine is independently controlled, with automatic deviation correction left and right, automatic front and rear feeding, and truly realizes the function of automatic deviation correction and feeding.
Sample & Application
1, Cut metal thickness for reference.（ Reci W6 tube: 130-150W, Reci W8 tube: 150-180W）
Stainless steel: Reci W6 max 1.2mm, Reci W8 max 2mm, 300W max 3mm
Carbon steel: Reci W6 max 2mm, Reci W8 max 3mm, 300W max 4mm
More other big power tube available like 260W, 300W, 350W, 400W.
2, Cut nonmetal thickness for reference, W6 130-150W tube
Stainless steel: Reci W6 max 1.2mm, Reci W8 max 2mm, 300W max 3mm
Carbon steel: Reci W6 max 2mm, Reci W8 max 3mm, 300W max 4mm
More other big power tube available like 260W, 300W, 350W, 400W.
2, Cut nonmetal thickness for reference, W6 130-150W tube
material | Wood | Plywood | Acrylic | Leather | Rubber | PVC | MDF | Paper | Glass, Marble |
Thickness(mm) | 15 | 15 | 20 | 8 | 7 | 10 | 8 | 10 | engrave |

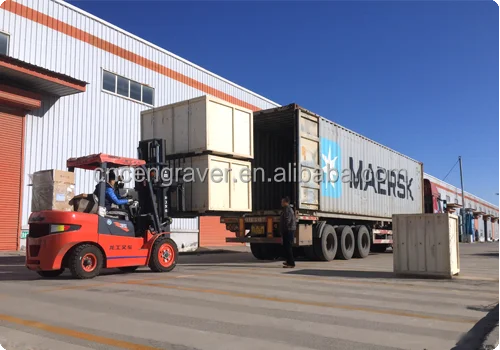

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

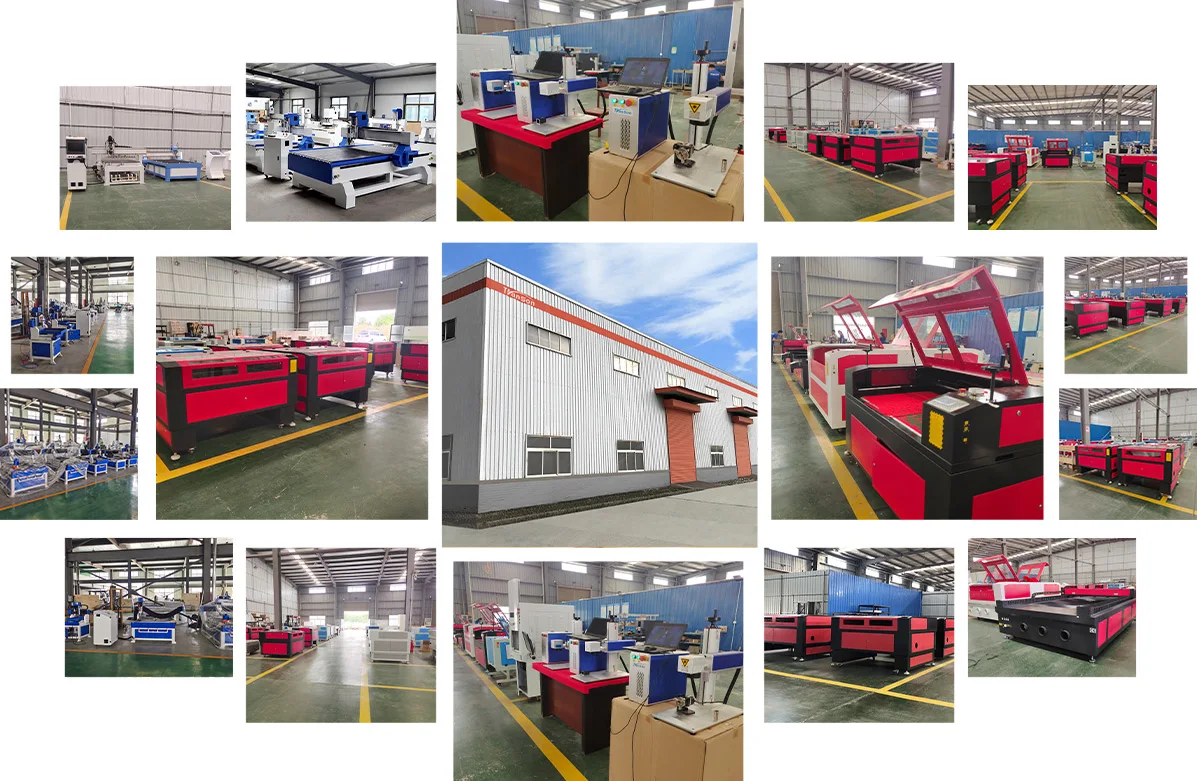

Factory&Exhibition
