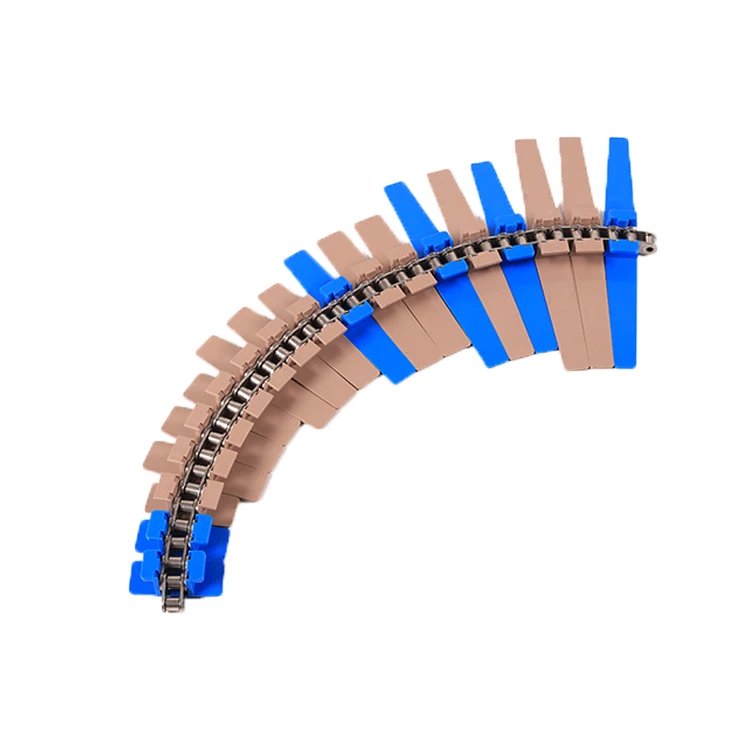

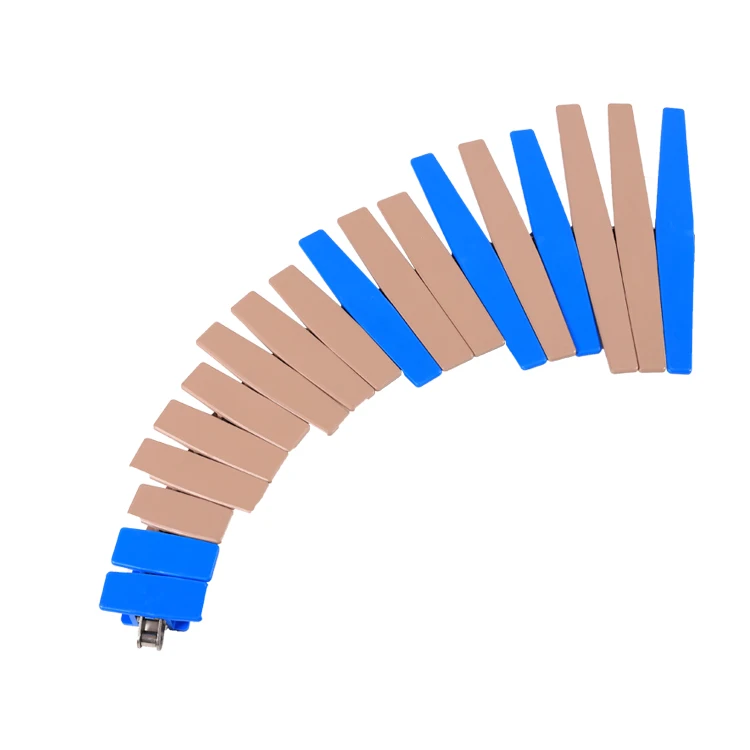

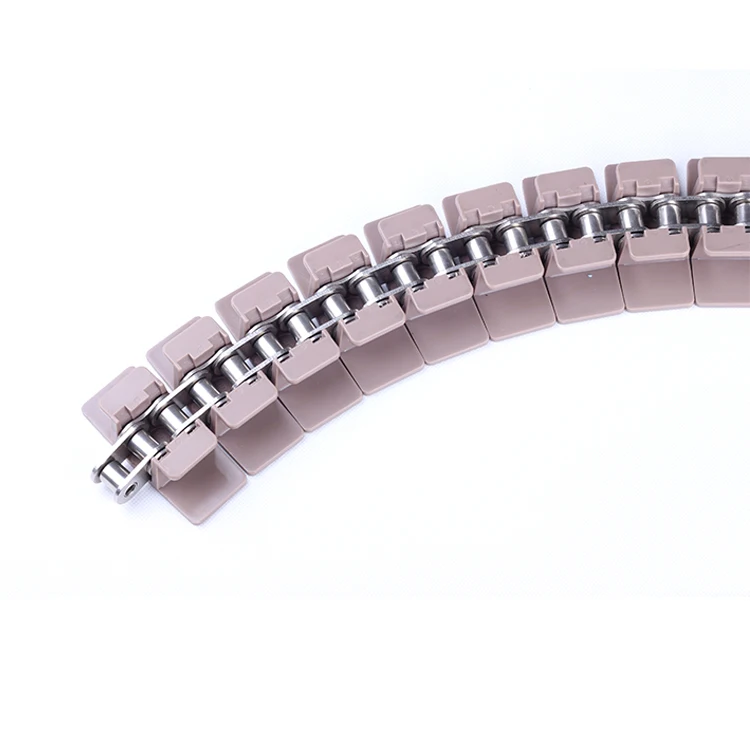

1873TAB Series side flexing top conveyor chain with roller chain
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (1600938873952):
Product Overview
Description
Short Description

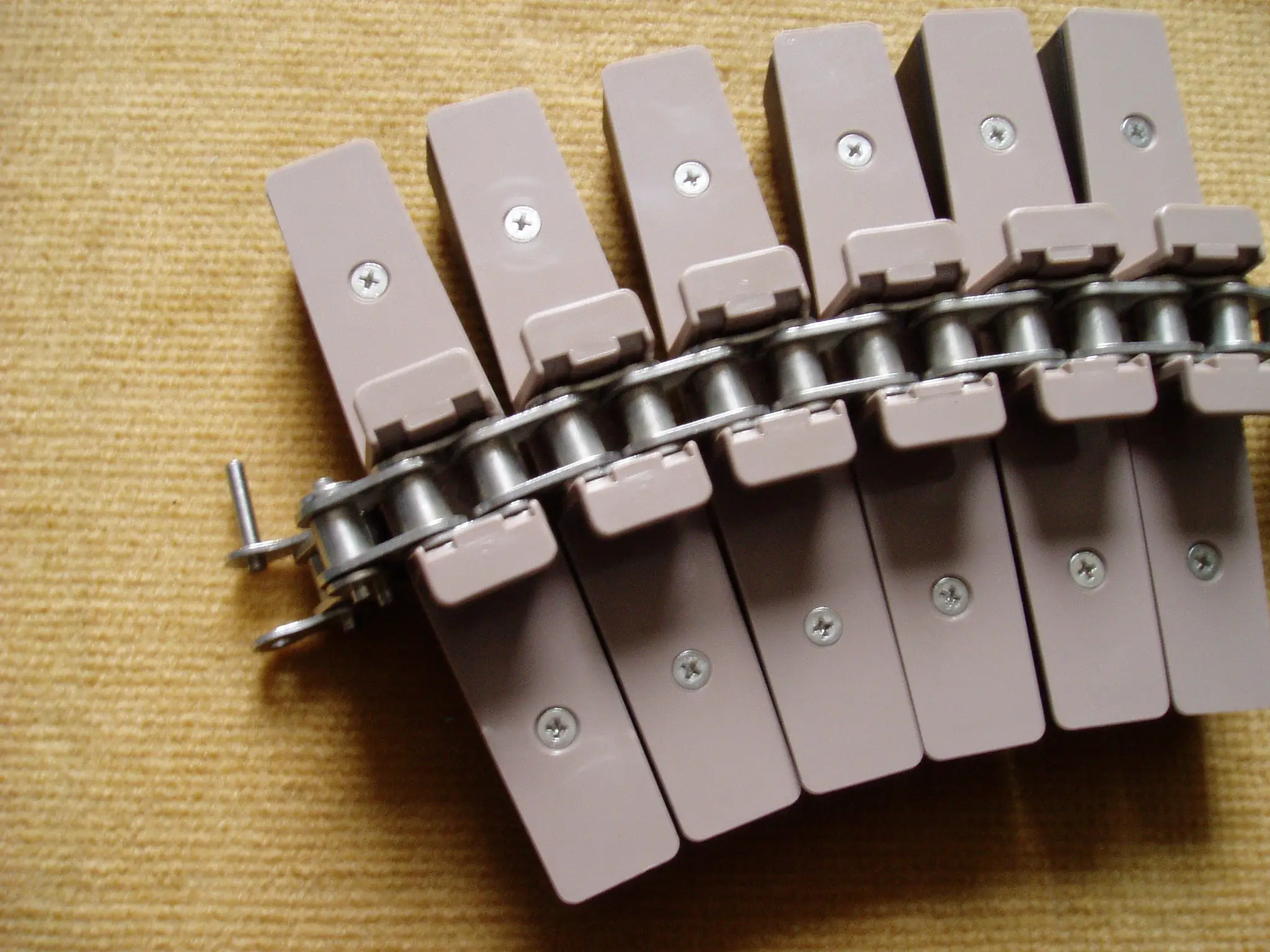

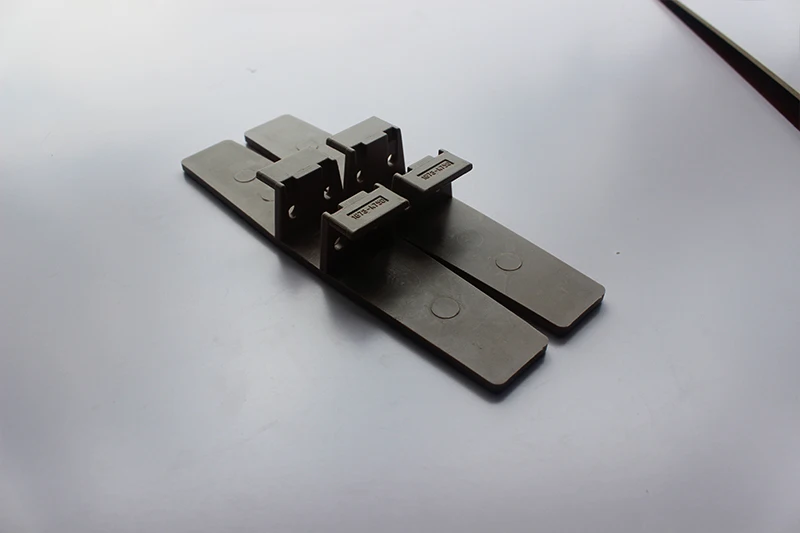

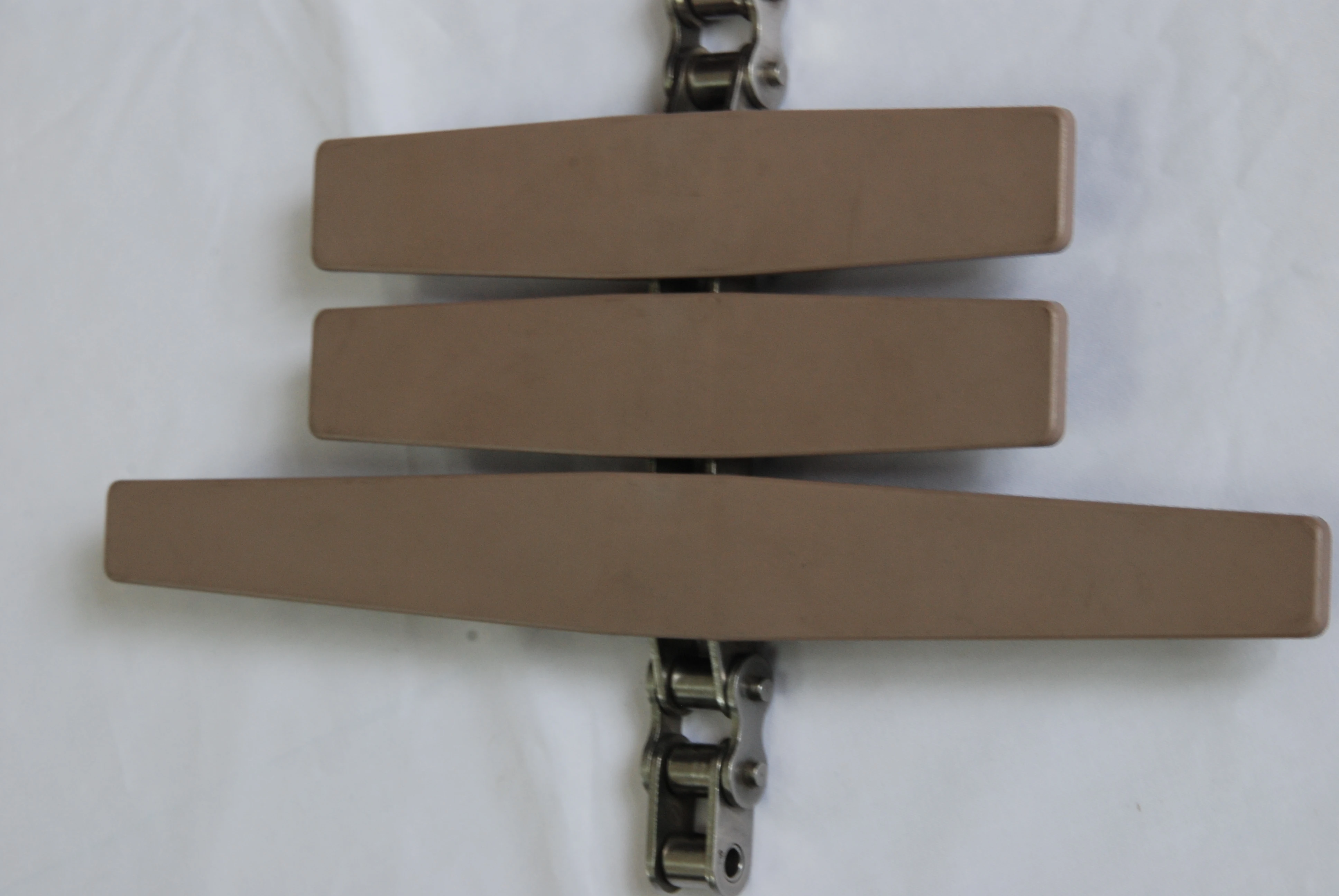

The chain is designed with plastic flights
assembled on a special roller chain with extended pins. Application in high-speed curve conveyors in food industry.
Material of chain plate :POM
Material of pin:stainless steel/ carbon steel
Color: coffer Pitch38.1mm
Operation temperature:-20℃~+80℃
Min speed <25 m/min
Conveyor length≤24m
Packing:10 feet=3.048 M/box 26pcs/M
assembled on a special roller chain with extended pins. Application in high-speed curve conveyors in food industry.
Material of chain plate :POM
Material of pin:stainless steel/ carbon steel
Color: coffer Pitch38.1mm
Operation temperature:-20℃~+80℃
Min speed <25 m/min
Conveyor length≤24m
Packing:10 feet=3.048 M/box 26pcs/M

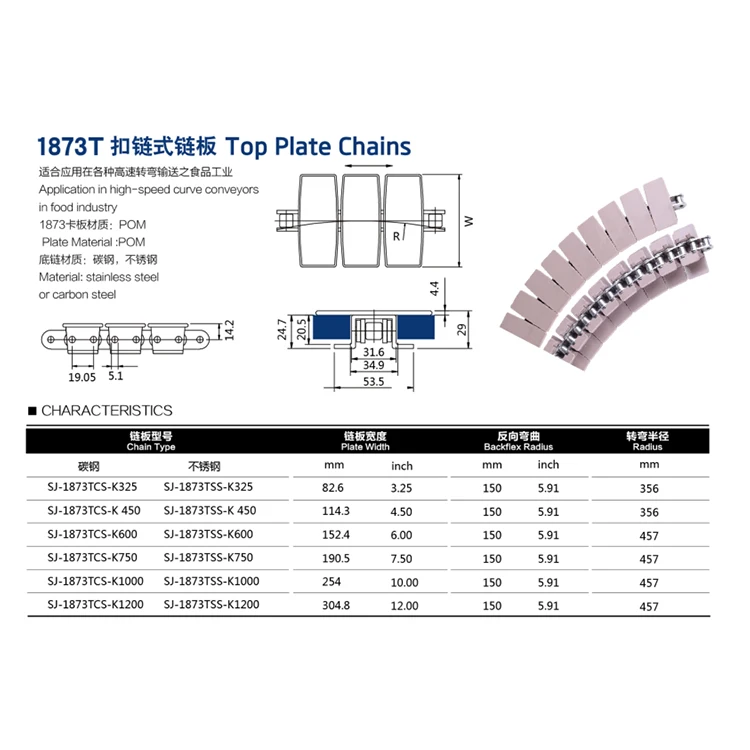

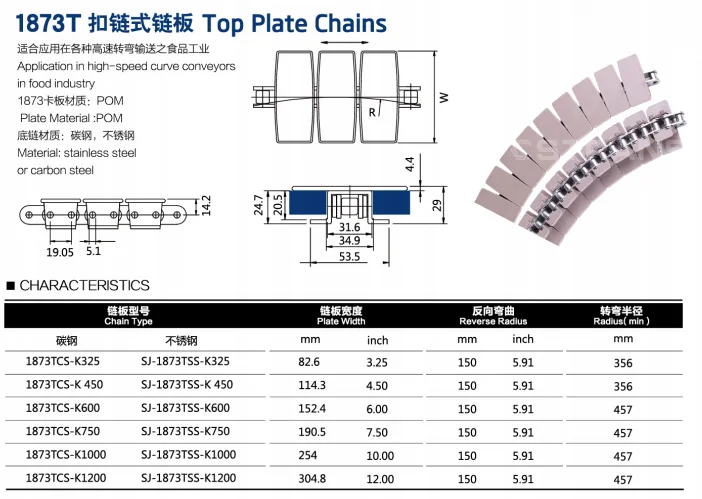

Product Paramenters
Chain Type | Plate Width | Reverse Radius | Radius (min) | ||||||
Carbon Steel | Stainless Steel | mm | inch | mm | inch | mm | |||
1873TCS-K325 | 1873TSS-K325 | 82.6 | 3.25 | 150 | 5.91 | 356 | |||
1873TCS-K450 | 1873TSS-K450 | 114.3 | 4.50 | 150 | 5.91 | 356 | |||
1873TCS-K600 | 1873TSS-K600 | 152.4 | 6.00 | 150 | 5.91 | 457 | |||
1873TCS-K750 | 1873TSS-K750 | 190.5 | 7.50 | 150 | 5.91 | 457 | |||
1873TCS-K1000 | 1873TSS-K1000 | 254 | 10.0 | 150 | 5.91 | 457 | |||
1873TCS-K1200 | 1873TSS-K1200 | 304.8 | 12.0 | 150 | 5.91 | 457 | |||
Advantage
Metal bottom chain is suitable for heavy load and long distance transportation.
The chain plate body is clamped on the chain for easy replacement.
the above speed is under turning transportation condition, the linear transportation speed is less than 60m/min.
Application Industries
Application in high-speed curve conveyors in food industry.
