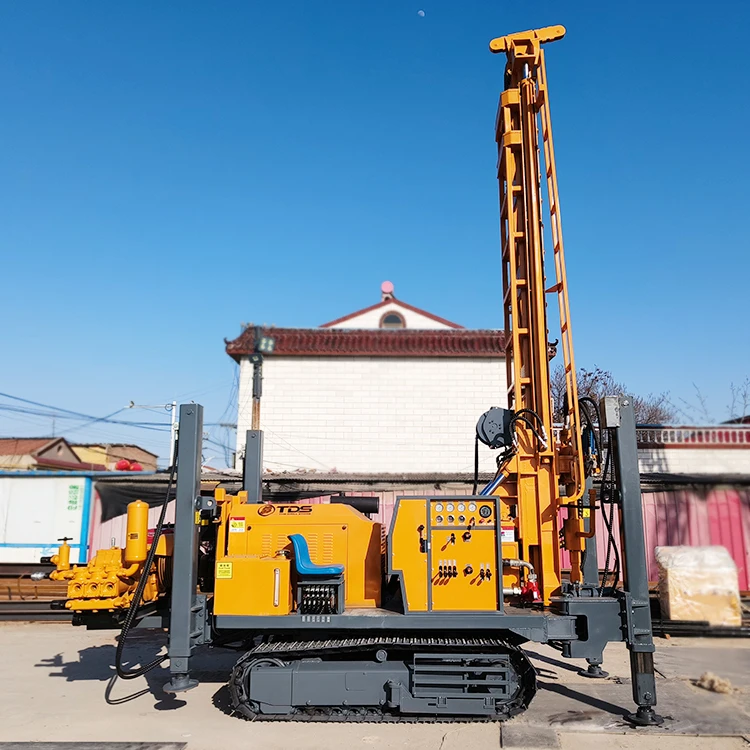

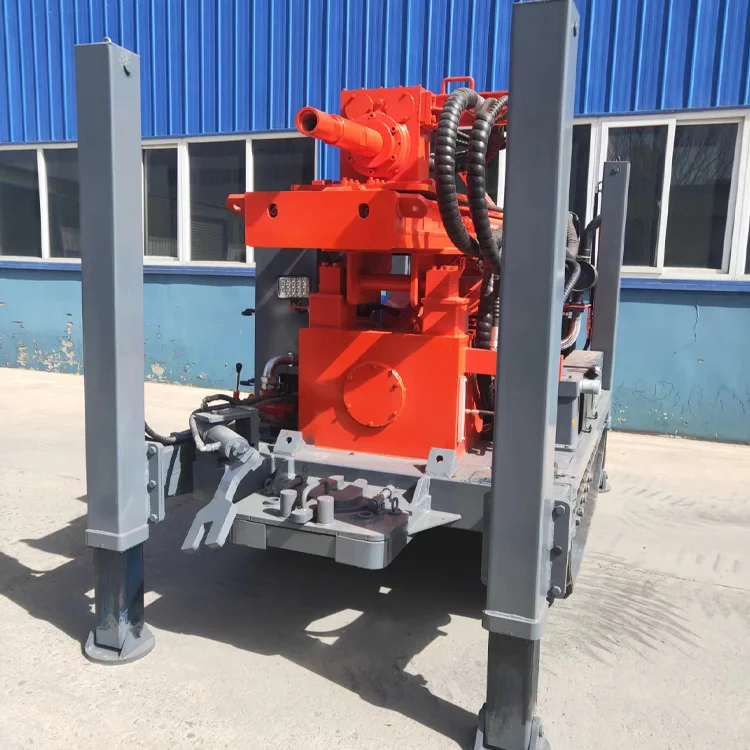

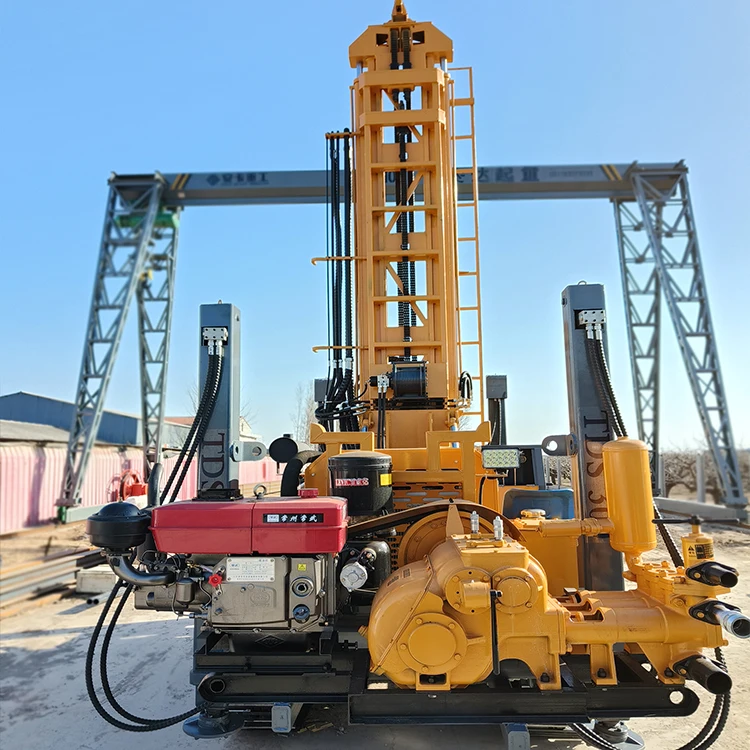

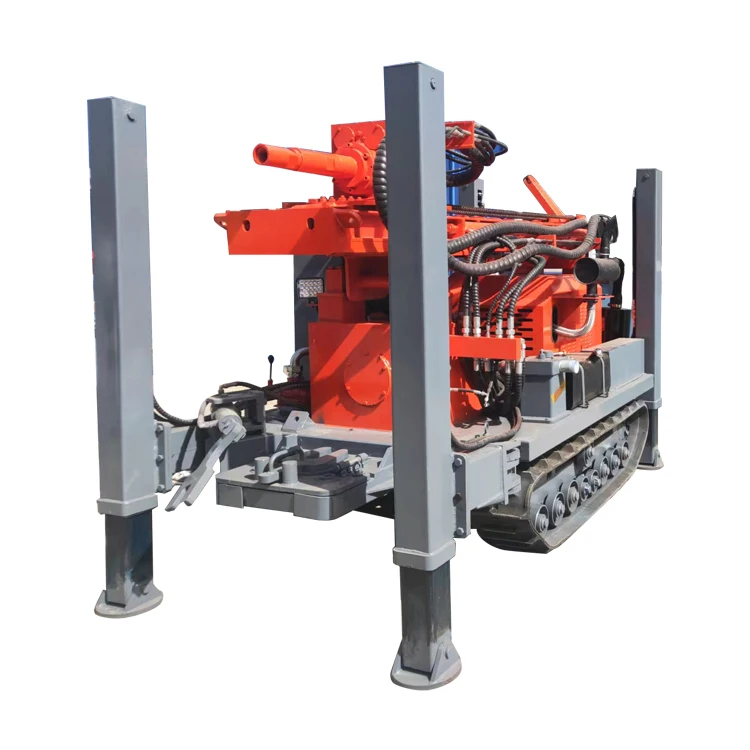

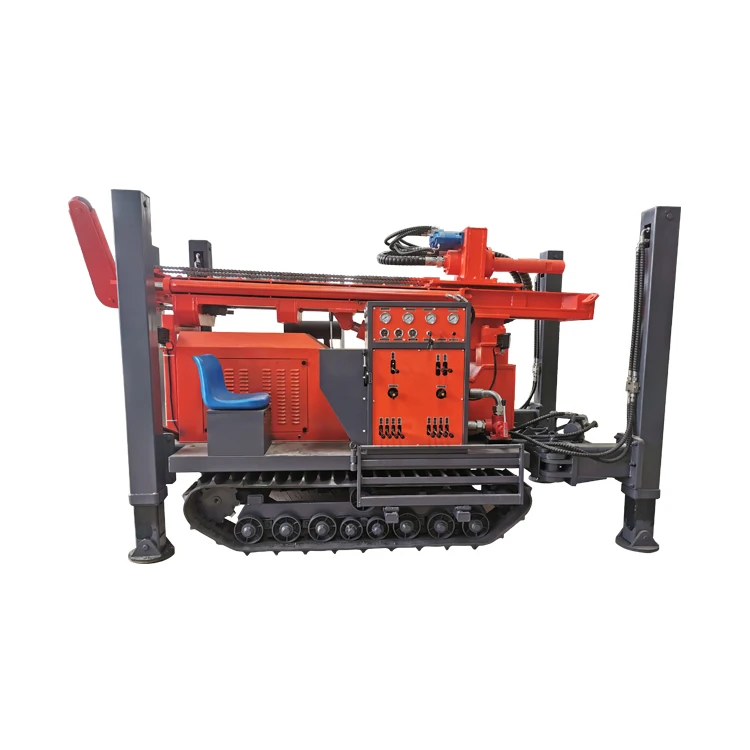

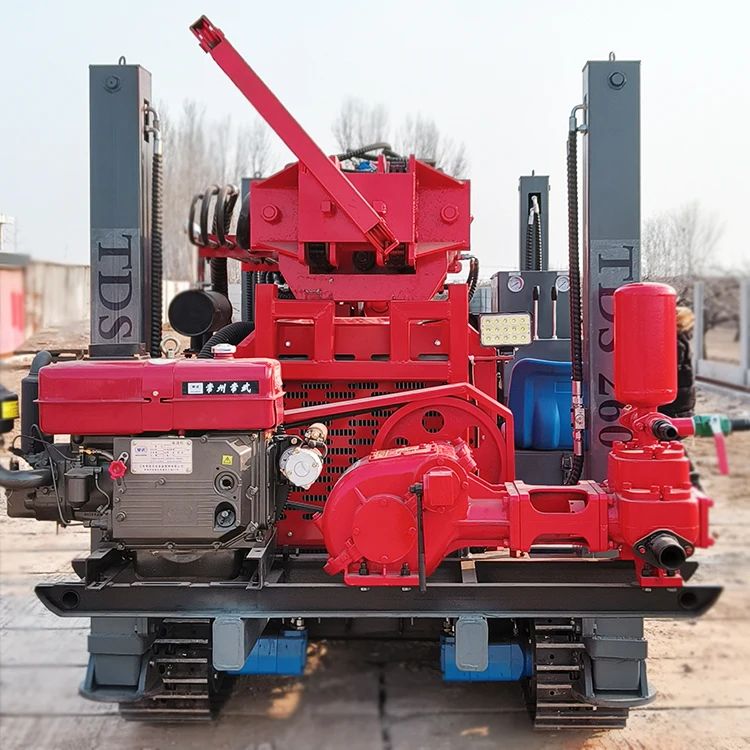

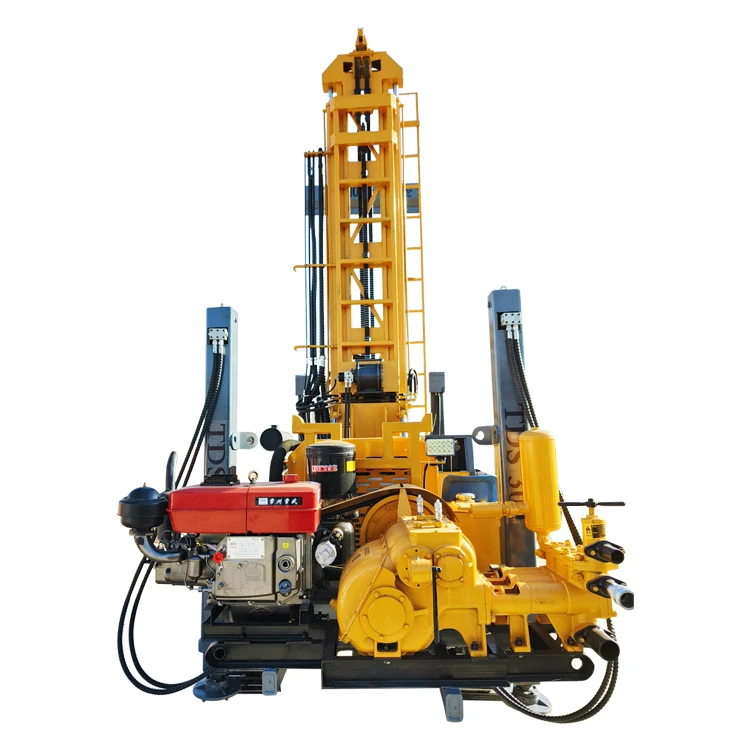

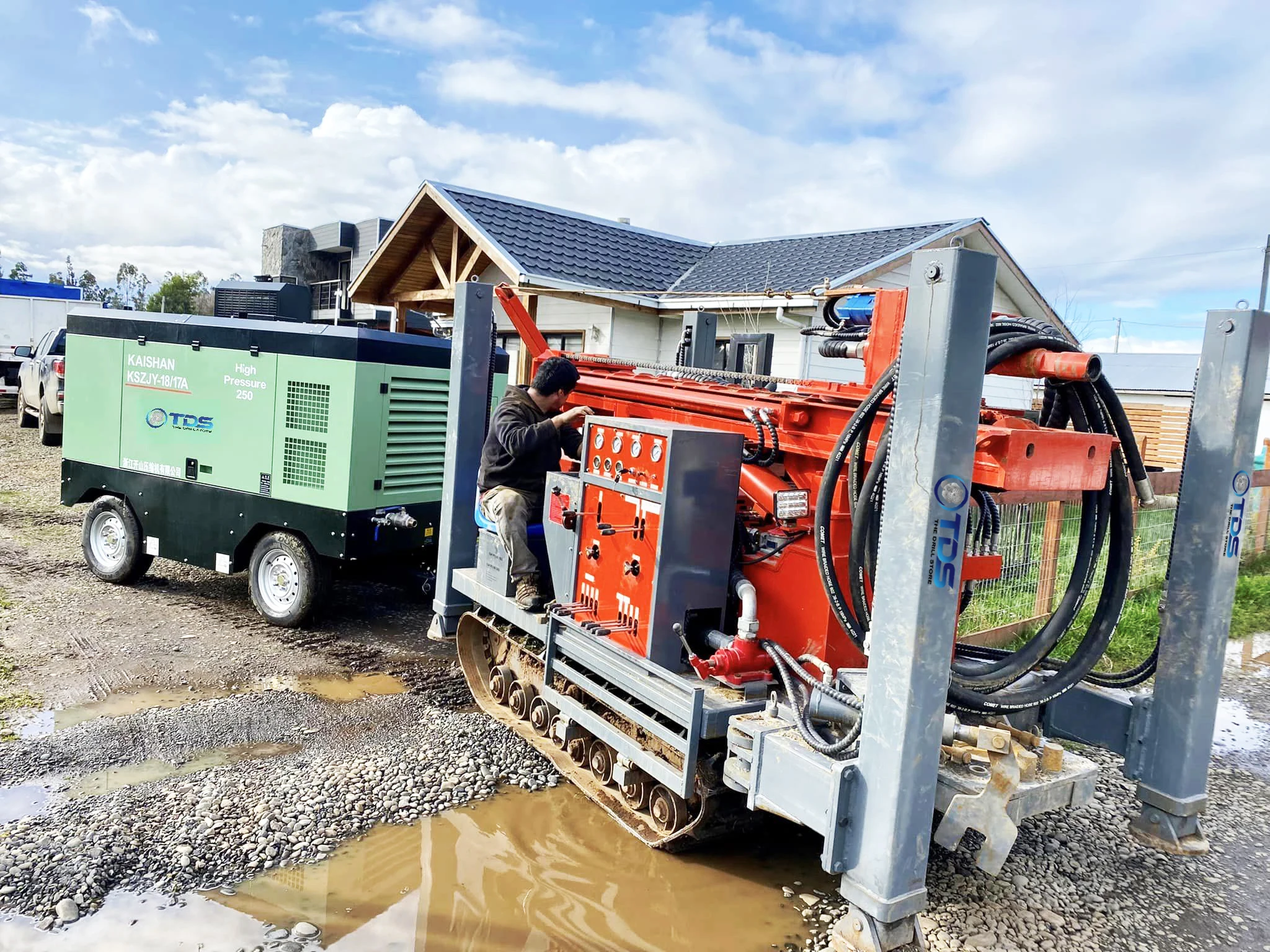

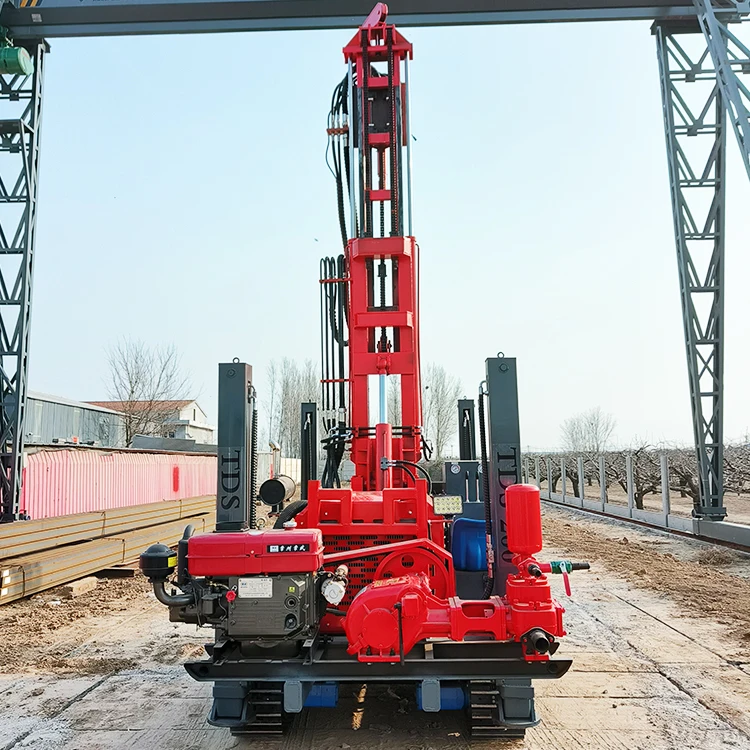

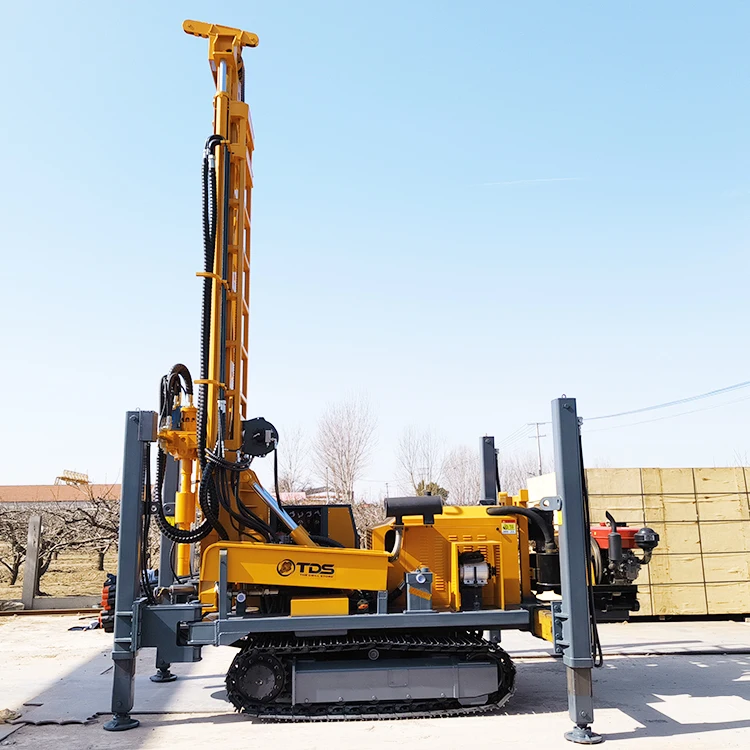

200m 300m 400m depth Rock wells Air Drilling water well drill borehole drilling rig machine for sale
- Category: >>>
- Supplier: Beijing The Drill Store Machinery Equipment Co. Ltd.
Share on (1600938990900):
Product Overview
Description
Parameters
400m Crawler Water Well Drilling Rig | ||||||
Drilling Depth (m) | 400 | Air Consumption (m³/min) | 17-35 | |||
Hole Diameter (mm) | 140-325 | Drill Pipe Diameter (mm) | Φ76 Φ89 | |||
Using Air Pressure (Mpa) | 1.7-3.5 | Drill Pipe Length (m) | 1.5/2.0 /3.0/ 6.0 | |||
One-time Advance Length (m) | 6.6 | Rig Lifting Force (Tons) | 24 | |||
Walking Speed (Km/h) | 2.5 | Rotary Speed (rpm) | 45-115 | |||
Climbing Angles (Max) | 30 | Rotary Torque (N.m) | 8500-10000 | |||
Equipped Capacitor (Kw) | 95 | Weight (kg) | 10000 | |||
Online 24 hours
Whatsapp: +86 138 1126 7124
Email: summer@thedrillstore.com
Product Details
All Models
1- TDS Truck Mounted Water Well Drilling Rig
2- TDS Crawler Type Water Well Drilling Rig
TDS800 Water Well Drill Rig TDS600 Water Well Drill Rig TDS500 Water Well Drill Rig TDS400 Water Well Drill Rig
TDS350 Water Well Drill Rig TDS300 Water Well Drill Rig TDS 200 Water Well Drill Rig TDSX180 Water Well Drilli Rig
3-TDS Portable Water Well Drilling Rig
Diesel Type Air Drilling Diesel Type Mud Drilling Electric Type Mud Drilling Electric Type Mud Drilling
Detailed Specification:
Click On Model | Rig Type | Drilling Depth (m) | Hole Diameter (mm) | Weight (Kgs) | ||||
KQZ180D | Portable Type | 150 | 100-219 | 1000 | ||||
KQZ200D | Portable Type | 200 | 100-254 | 1800 | ||||
TDS130 | Wheeled Type | 130 | 100-219 | 3000 | ||||

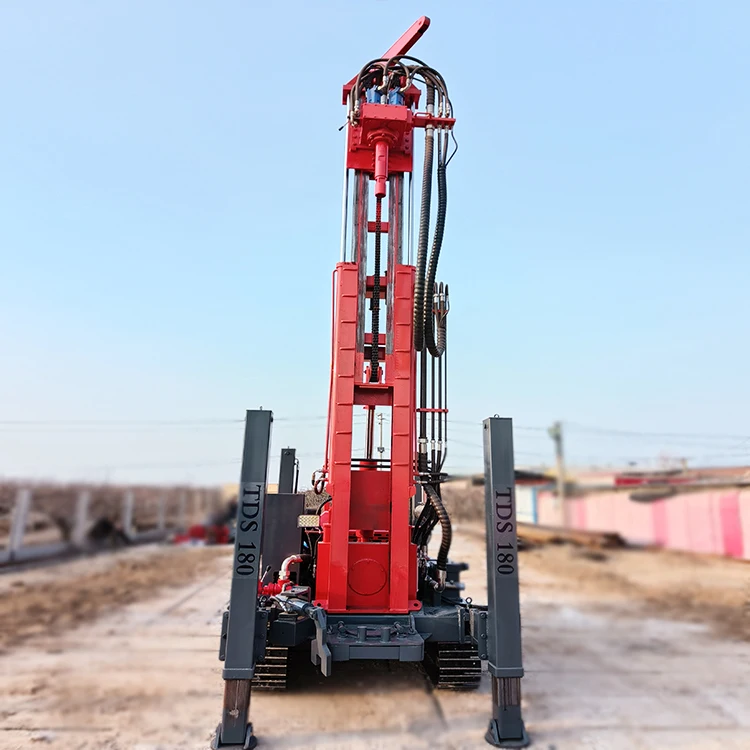

TDSX180 | Crawler Type | 180 | 140-254 | 4500 | ||||
TDSL200 | Vehicle-Mounted | 200 | 140-203 | 5000 | ||||
TDSX200 | Crawler Type | 200 | 140-203 | 5000 | ||||

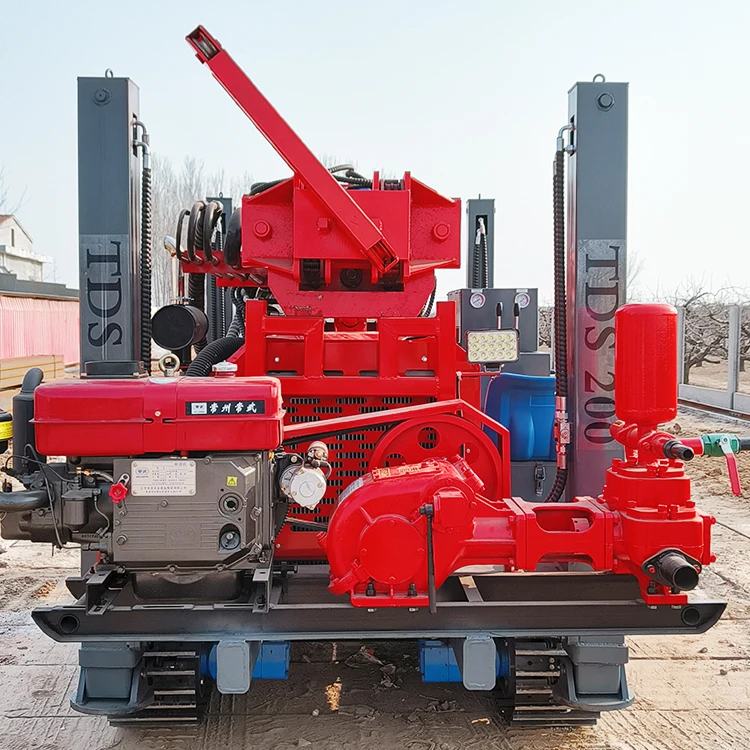

TDS200 | Crawler Type | 200 | 140-305 | 5800 | ||||
TDS300 | Crawler Type | 300 | 140-325 | 7000 | ||||
TDS350 | Crawler Type | 350 | 140-325 | 9000 | ||||
TDS400 | Crawler Type | 400 | 140-325 | 10000 | ||||
TDS500 | Crawler Type | 500 | 140-325 | 11500 | ||||
TDS600 | Crawler Type | 600 | 140-350 | 12000 | ||||
TDS800 | Crawler Type | 800 | 140-500 | 13000 | ||||
Customized services | ||||||||
