China manufacture woodworking cross cut saw machine wood pallet cut off end saw machine
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (1600939006990):
Product Overview
Description
Product Description

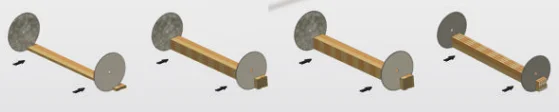

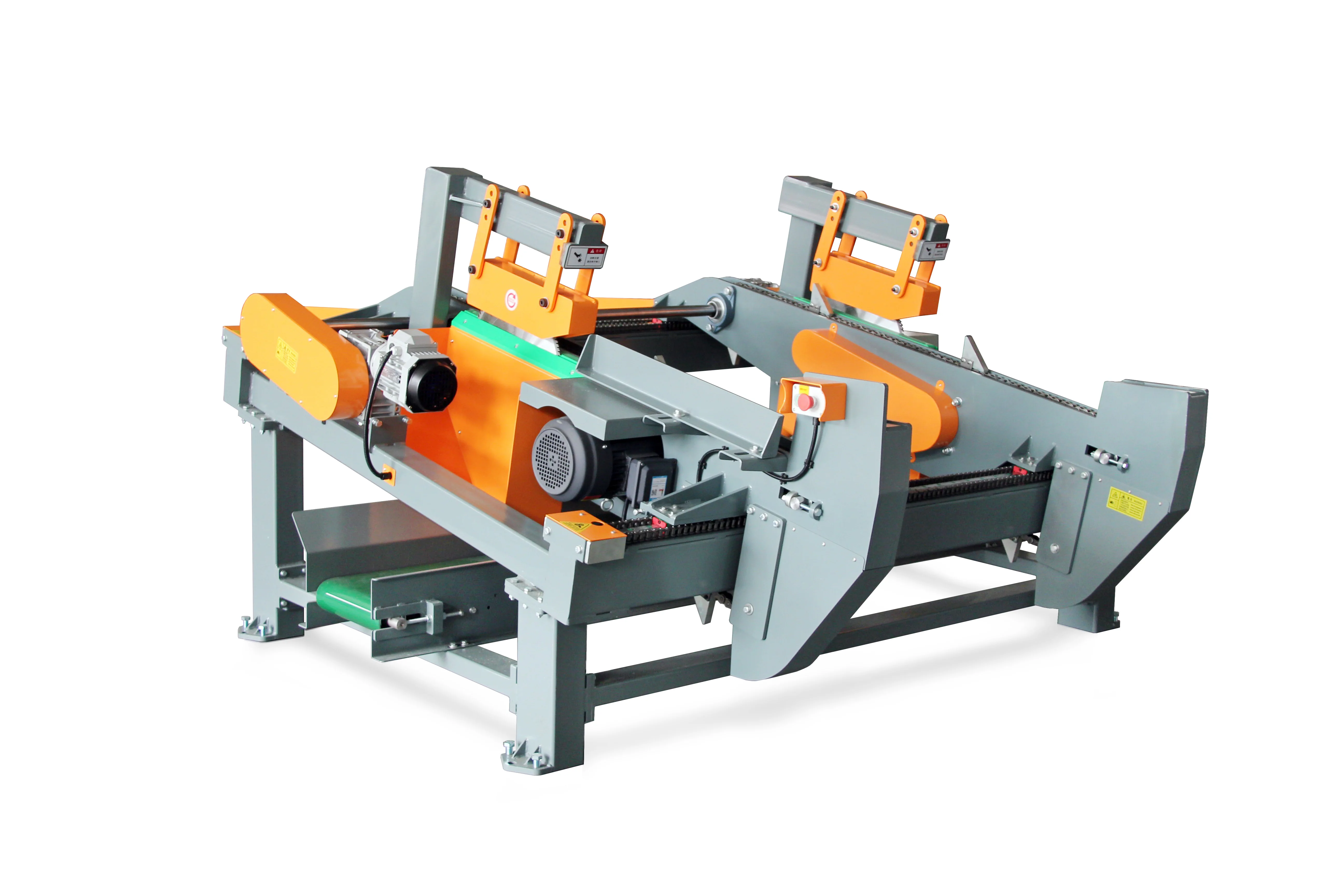

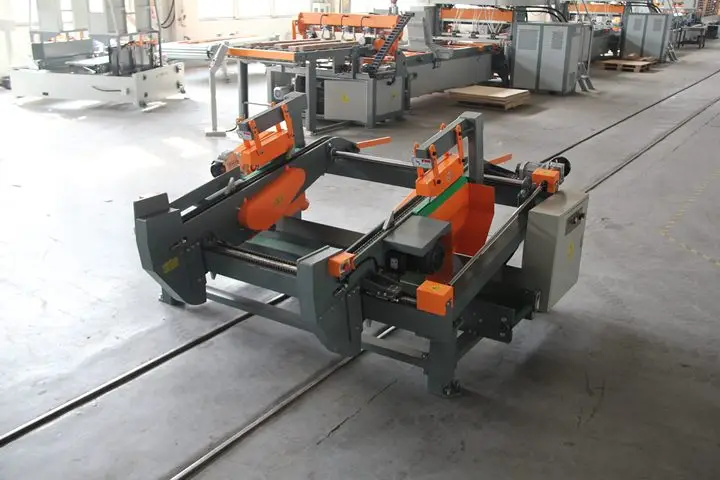

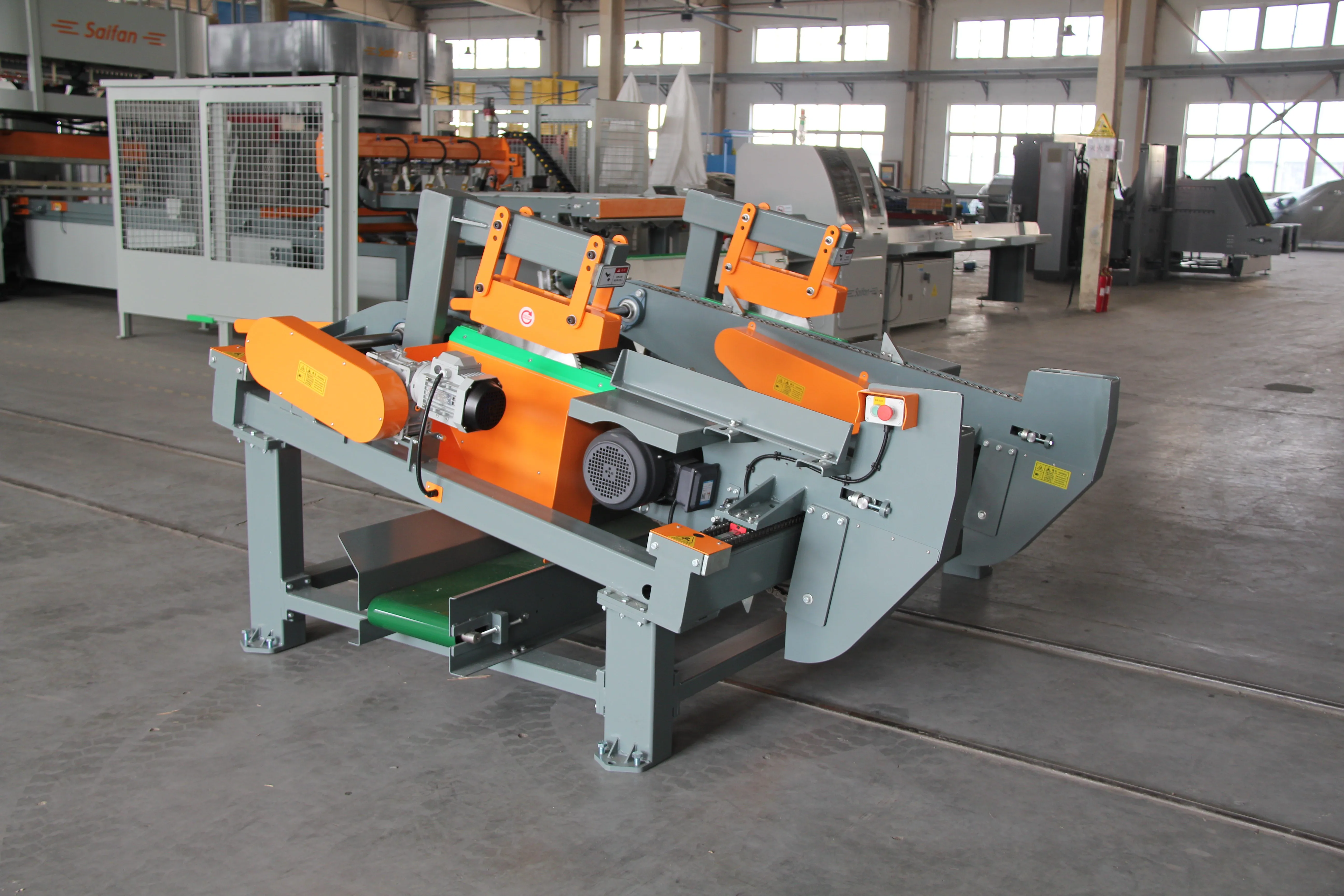

This is automatic double head trim saw, left is fixed, right head movable with hand crank, and with measure tape can know the cutting length.
Product Paramenters
Model | SF6021 |
Cutting length | 520-1500/2000mm |
Cut off length | Left side max. 95mm, right side no limit |
Cutting thickness | 10-110mm |
Cutting width | 10-300mm |
Feeding speed | Fixed 20m/min |
Saw blade diameter | Inside Ø30mm outside Ø450mm 120T |
Cutting accuracy | ±1mm |
Cutting motor | 2*4kw |
Cutting motor rotation speed | 2830RPM |
Feeding motor | 2.2kw |
Total motor power | 10.2kw |
Voltage | 380v 50Hz 3 phase Could be customized as per client’s local voltage |
Dust collection port | 150mm*2pc+100mm*2pc |
Machine size | 2272*2426*1408mm |
Packing size | 2380*2150*1550mm |
Machine weight | 1355kg |

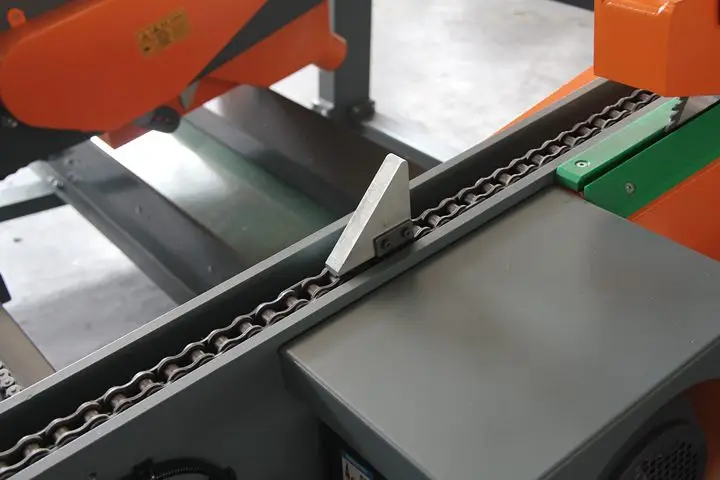

Product Details

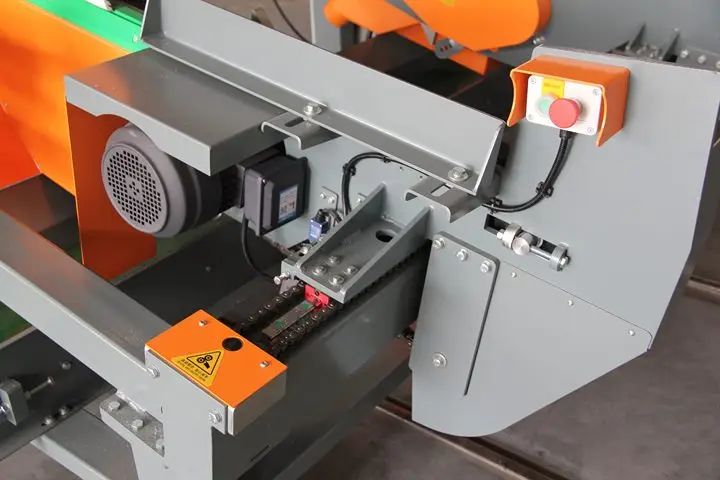

Control panel
Simple control with few buttons
Width adjust hand crank
With measure tape, can see the distance clear
Saw blades
450mm diameter

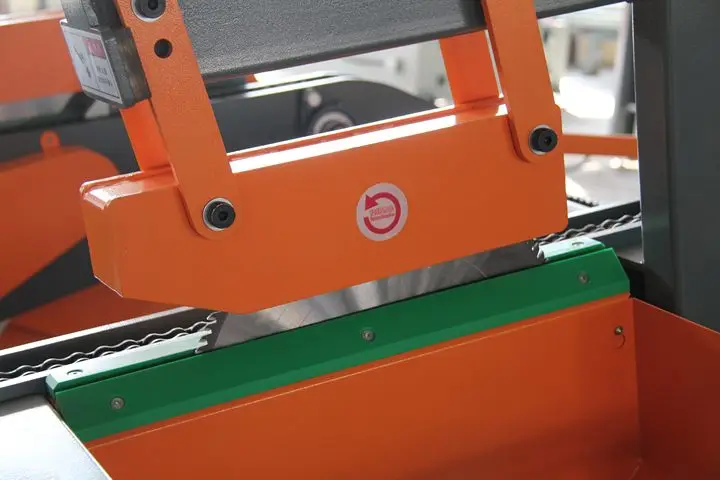

Saw blade with safety cover
Better for dust collection
Motor with safety cover
To protect worker and machine
Width measure tape
Can see the cutting width clearly
Detailed Images
Company Profile
Our Company：
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless
plywood box.
plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training. 6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using ,then let us give
Very easy to choose. Just tell us what you want to do by using ,then let us give
you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and English manual with the machine.If you still have some doubts,
we can talk by telephone or skype.
Q3: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.
Q3: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just us know,we will give you solutions in 30 minuets.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
