50 Years Warranty Construction Materials Golan Type Color Coating Aluminum Roof Tile Stone Coated Shingle
- Category: >>>
- Supplier: Singer Cailin (tianjin) Building Tech. Co. Ltd.
Share on (1600939064282):
Product Overview
Description
Product Description

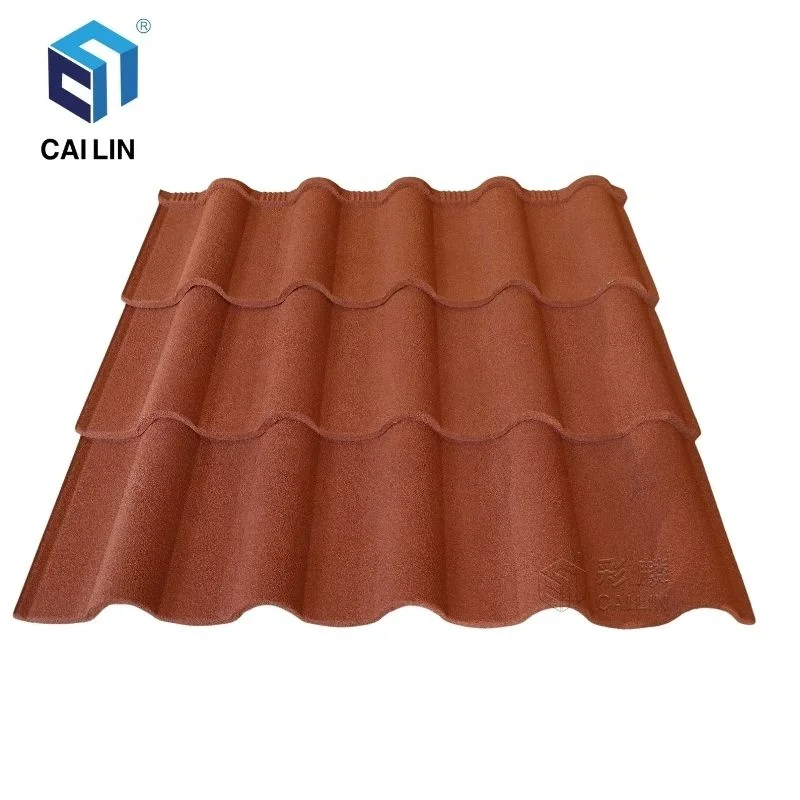

Stone coated metal roofing tile is a kind of new concept of roofing materials that is sprayed with beautiful basalt sintered particles on a Alu-zinc alloy coated steel plate that has been treated with multiple protective films.
Stone coated metal roofing tile uses alu-zinc alloy steel with multiple protective films as the substrate, pressed under the mould with well-developed technology, combining with colorful basalt grannuals as the surface, to become the best roofing tile materials.
High technic stone coated metal roofing tile combines multiple protective films galvalume steel, which contains 55% of aluminum, together with acrylic base layer, basalt grannuals layer, and also acrylic top layer, to become one multiple layers of roofing tile. It makes up the defects of other roofing materials such as PPGI sheet etc. Because of its long life, beautiful appearance, excellent durability, conveniently installed, environment-friendly, economic, and easy overlapping construction as well, stone coated metal roofing tiles enjoys great popularity worldwide.
Stone coated metal roofing tile uses alu-zinc alloy steel with multiple protective films as the substrate, pressed under the mould with well-developed technology, combining with colorful basalt grannuals as the surface, to become the best roofing tile materials.
High technic stone coated metal roofing tile combines multiple protective films galvalume steel, which contains 55% of aluminum, together with acrylic base layer, basalt grannuals layer, and also acrylic top layer, to become one multiple layers of roofing tile. It makes up the defects of other roofing materials such as PPGI sheet etc. Because of its long life, beautiful appearance, excellent durability, conveniently installed, environment-friendly, economic, and easy overlapping construction as well, stone coated metal roofing tiles enjoys great popularity worldwide.
Specification
Product Name | Stone Coated Metal Roofing/ Roof Tile |
Model No. | Roof / Roof Shingle/ Roofing Sheet/ Roof Shingle Tile |
Materials | 1. Stone Chips ( Beautiful look, effective heat / UV resistant, noise reduction, anti-slip and etc features) 2. Galvalume Steel Plate ( Eco-friendly and recyable material, strong, light-weight, anti-corrosion, waterproof) 3. Acrylic Glue ( Premium sealing performance, strong adhesion, anti-algae) 4. Colored stone (Basalt granules are ceramicized and fired at high temperature, add natural beauty, never fade) |
Effective Size | 1345*440mm |
Coverage Area | 1290*375mm |
Thickness | 0.30mm/0.40mm/0.45mm/0.50mm/ 0.55mm |

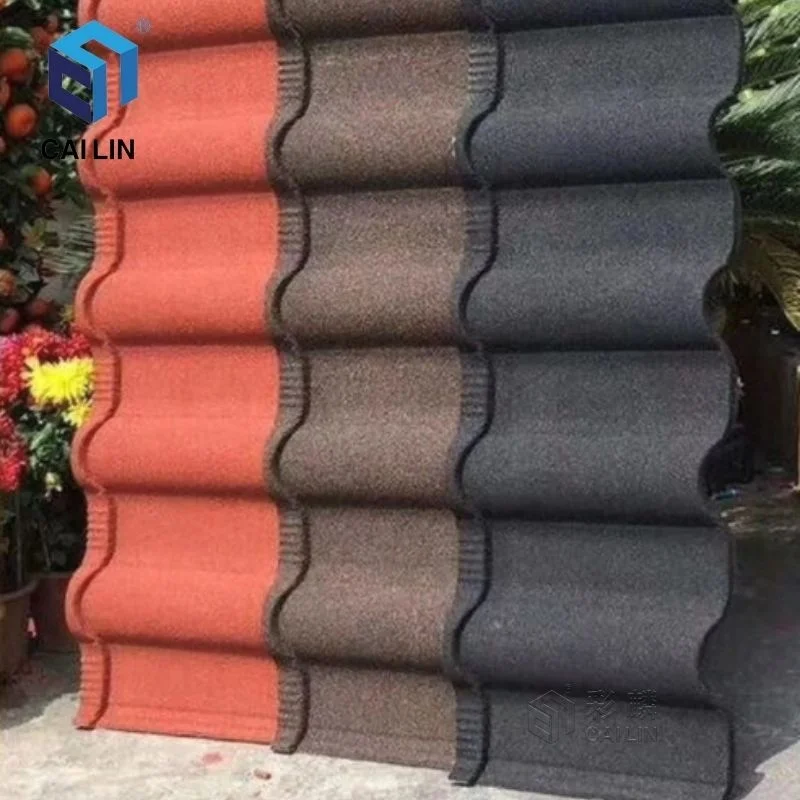

Color | Red/ Blue/ Teak/ Coffee/ Green/ Dark Green/ Charcoal Black/ Weathered Brown/ Grey/ Sapphire/ Customized |
Weight: | 2KGS to 3.5KGS |
Advantage | Anti Corrosion, Fire Proof, Rich Colors,Durable,UV Resistant,Eco-Friendly,Amazing Economic |
Benefits | Heat Insulation, Noice Reduction, High Quality |
Pros | Easy Installation, No Rust, No Sand Fall off |
Feature | 1.Waterproof, UV/heat resistance, against hail/snow/strong wind, anti-algae, anti-frame 2.Noise reduction, lightweight and easy to install, amazing economic,colroful and modern designs, eco friendly 3.Rich colors and no sand fall off: Natural sand color is rich and uses high-quality water-based acrylic resin as the adhesive. 4.Long life and 50 years warranty: The mental tile is composed of corrosion-resistant Alu-zinc alloy steel plate And nature color stone particles to ensure its long-term service life |
Scope of Application | This kind of tiles could be widely used at all kinds of buildings, such as residences, hotels, villas, horticultural structures,etc. |
Technology | New Zealand |
Lifespan | 20 Years to 50 Years |
Package | 450- 650 PCS per Pallet, 9000-13000 PCS per 20FT Container |
Advantages
1)Reduce heat insulation and nioce
The surface is covered with natural sand.
2)Rich colors and no sand fall off
Natural sand color is rich and use high quality water-based acrylic resin as the adhesive.
3) Easy installation and amazing economic
Easy installation and amazing economic only sixths of the traditional tile or cement tile's weight----lightweight,big size.
4) Long life and 50 years warranty
The mental tile is composed of corrosion-resistant alu-zinc alloy steel plate And nature color stone particles to ensure it long-term service life, so its life is longer.
The surface is covered with natural sand.
2)Rich colors and no sand fall off
Natural sand color is rich and use high quality water-based acrylic resin as the adhesive.
3) Easy installation and amazing economic
Easy installation and amazing economic only sixths of the traditional tile or cement tile's weight----lightweight,big size.
4) Long life and 50 years warranty
The mental tile is composed of corrosion-resistant alu-zinc alloy steel plate And nature color stone particles to ensure it long-term service life, so its life is longer.

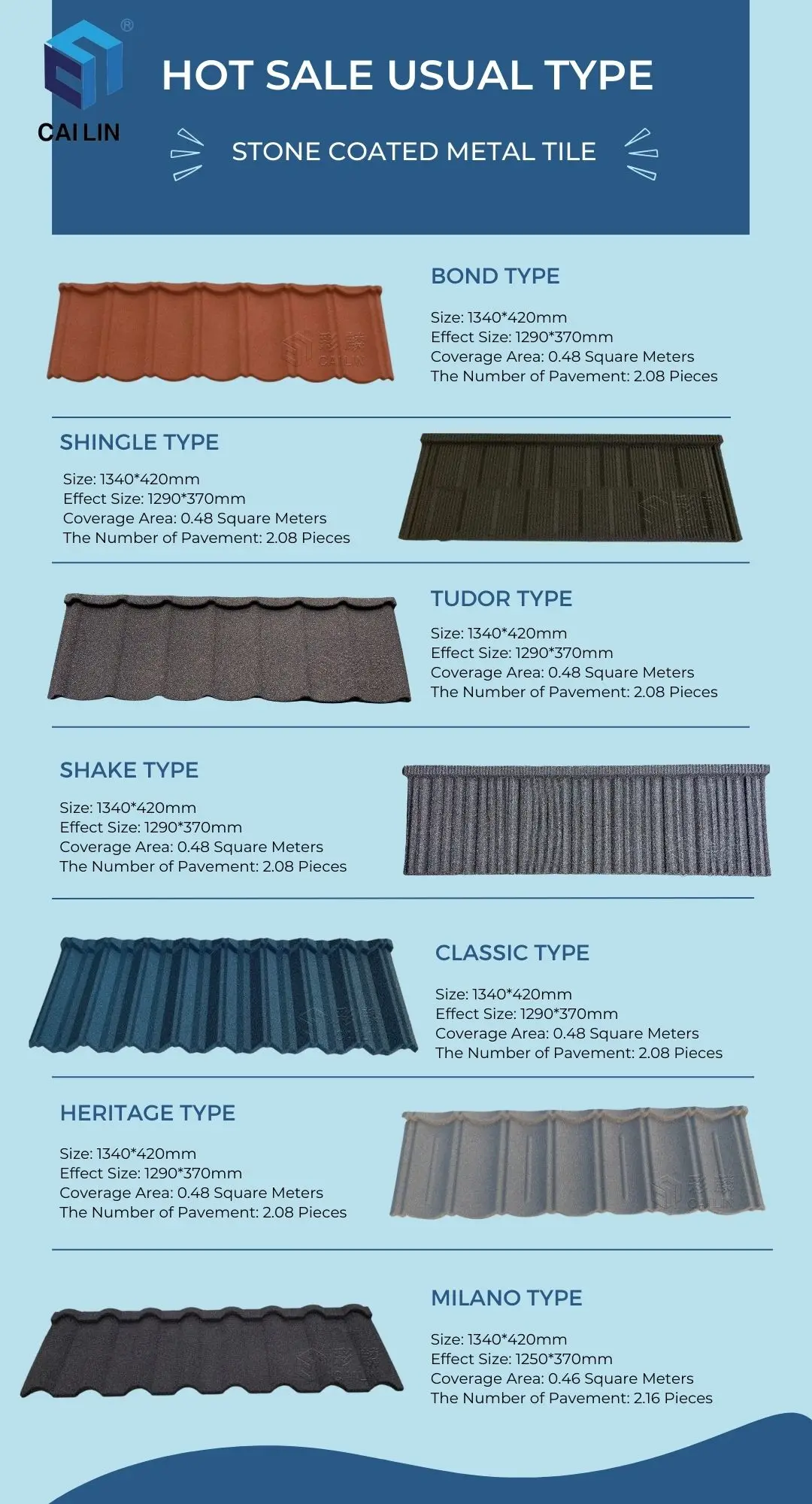

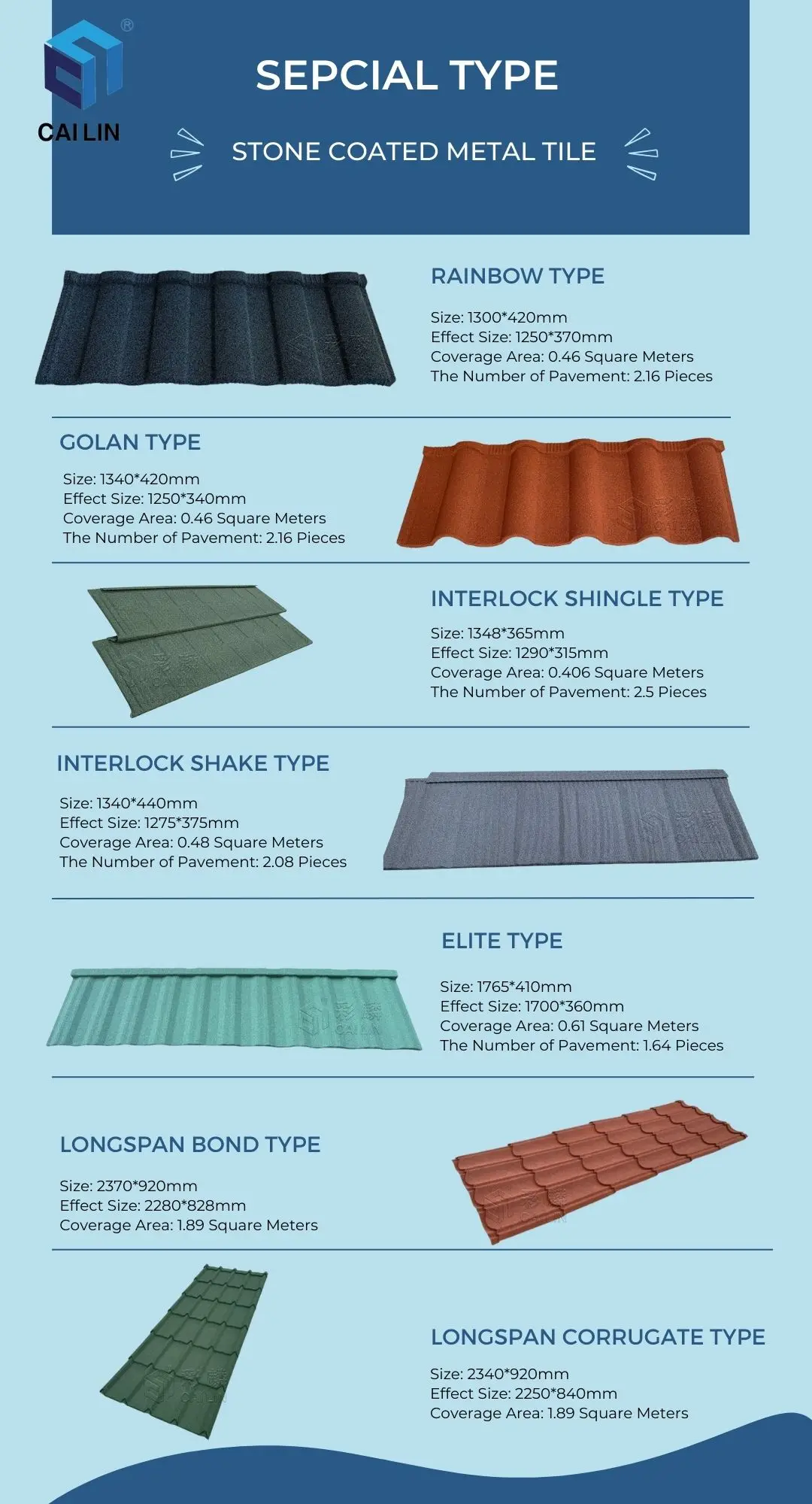

Other Type and Color Chart

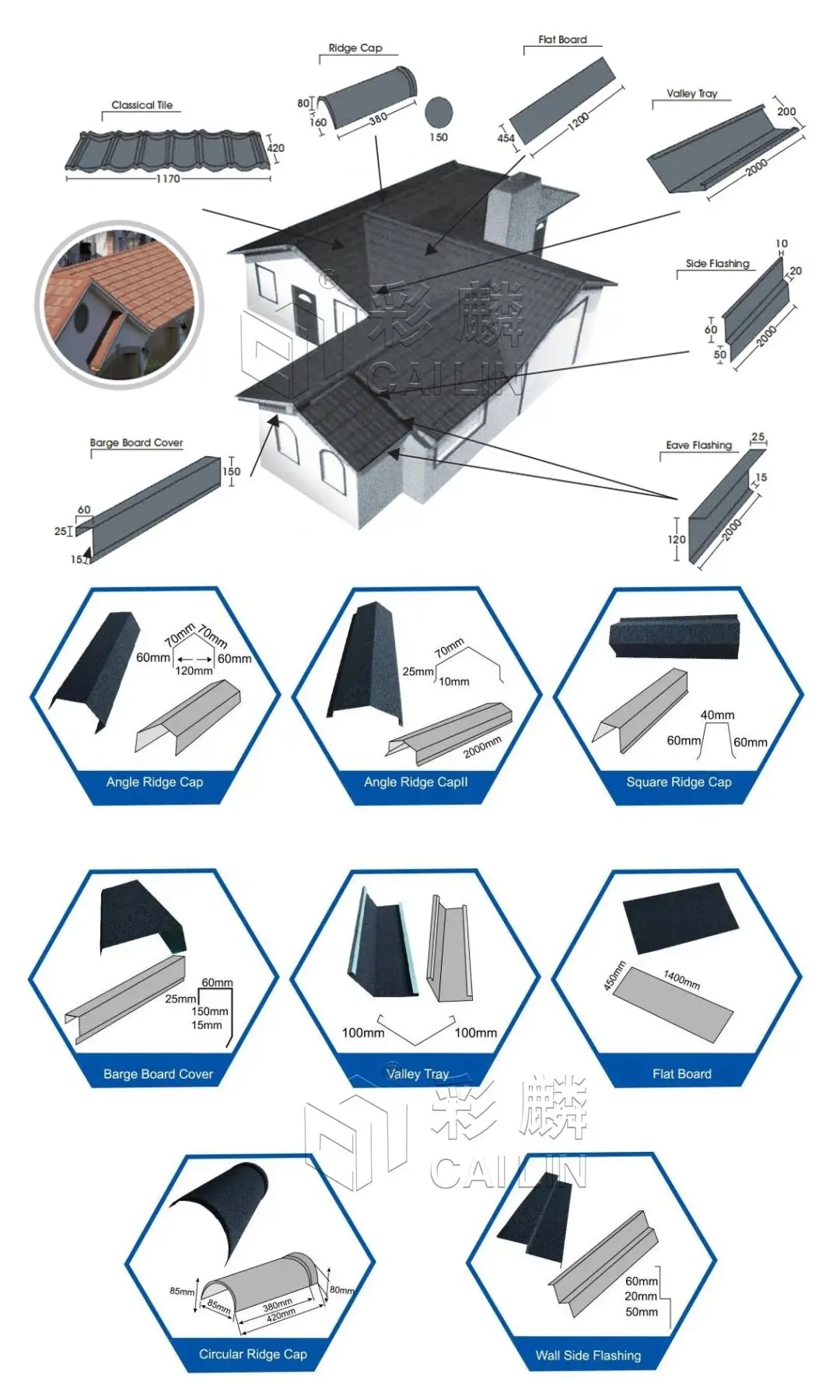

Accessories and Installation
Accessiories: Circular Ridge Cap, Angle Ridge Cap, Square Ridge Cap, Barge Board Cover, Valley Tracy

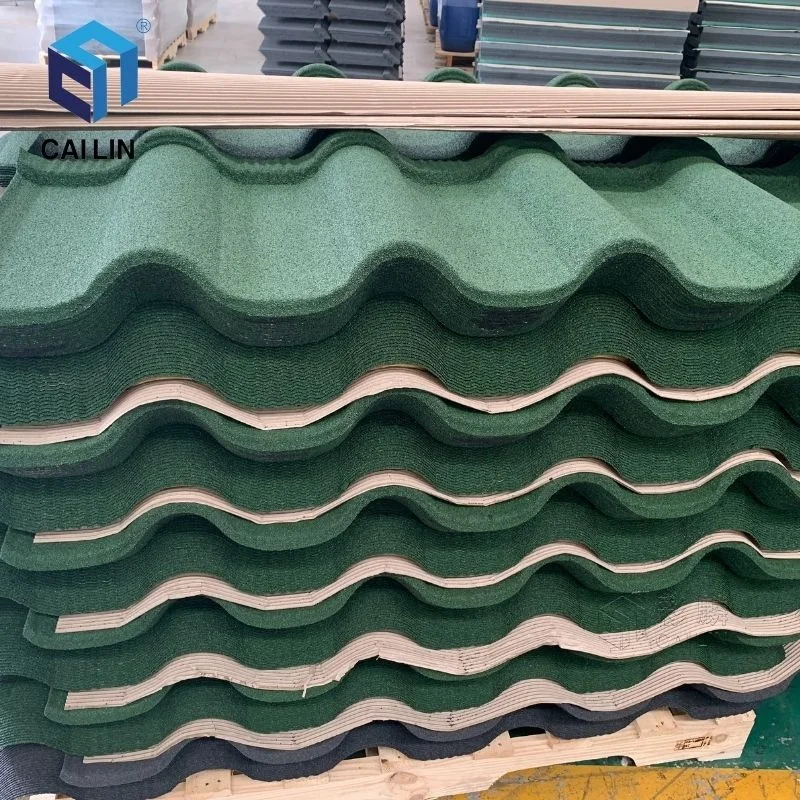

Packing & Delivery
Every 500-700 pieces are placed on a wooden pallet, packaged in paper, and wrapped in plastic sheeting on the outside.16 wooden pallets per container
Company Profile
FAQ
Q: Are you a trading company or factory?
A：we are a professional manufacturer factory.
Q: How do I know your quality?
A: High solution detailed photos and free sample will be able to verify our quality.
Q: Can you produce the goods as the customer design?
A: Welcome to send us your design or sample, we will calculate and confirm as soon as possible
Q: Could I install the stone coated roof tile on the 0 degress roof?
A: The stone coated roof tile should install the roof which have 20 degress roof pitch.If the roof pitch is below 20 degress,it will be easy to leaking.
Q: What kinds of roof is suitable to install stone coated roof tile?
A: Both concrete roof and wooden roof could install the stone coated roof tile,but it must install the roof batten before install the roof tile,except interlock tile.
Q: Is necessary to install the roof batten before install roof tile?
A: Yes,it must install the roof batten before install roof tile,except Interlock tile.Becasue we need to fix the roof tile on the roof batten when installment.
Q:How long is the stone coated tile's sevice time?
A: The aluminum-zinc steel plate is strong the other building material.The glue spraying in surface also adopt new technology. So our roof tiles can be used for more than 50 years.
Q : Will a Steel roof make my home hot in summer?
A :No. A properly vented steel roof system moves air both between the shingles and the underlying deckas well as moving air from vents under the decking. Heated air is allowed to dissipate through the ridgelineas cooler air is drawn through eave vents. Reduced energy bills can result from airflow both under andover the decking.
Q : Can you walk on a steel roof?
A :Yes. Some care must be exercised while walking on the roof, but note that roofers walk all over the shingles during the installation process.
Q : Is stone coated metal roofing tile noisy?
A :No! The dead air space between Stone coated metal roofing Panel sand the roof decking combined with the stone coating dampensexterior noise even in a rainstorm.
Q : Is stone coated metal roofing system Heavy?
A :Stone coated roofing tiles truly lightweight! Concrete and clay roofs can weigh up to 15 lbs per squarefoot! In fact stone coated roof tile is even lighter than most high-grade asphalt roof shingles.
Q : Is stone metal roofing tile durability ?
A :Yes, The average life of a non-metal roof is 17 years. Asphalt can require re-roofing every 10 to 20years, often sooner. But a metal roofing system offers unmatched durability, lasting 2 to 3 times longer.
Q : How long does it take to install a steel roof?
A :Usually only a few days. The complexity of the buildings roofs cape is the primary factor in determiningthe time required. Complex roofs require more time than basic designs.
Q: Will the stone chips fall down after installment?
A:Sangobuild use the advanced technology "pour glue" to make the stone chips stick firmly with steel sheet.And it also solve the problem of uneven color which caused by traditional handmake spray glue in the same time.
Q:Is there any matters need attention when install stone coated roof tile?
A: The up and down roof tiles should be staggered,if install it straightly,it will be easy to leaking.
Q: What is your payment terms?
A: T/T, L/C , Western Union and OA are all acceptable
A：we are a professional manufacturer factory.
Q: How do I know your quality?
A: High solution detailed photos and free sample will be able to verify our quality.
Q: Can you produce the goods as the customer design?
A: Welcome to send us your design or sample, we will calculate and confirm as soon as possible
Q: Could I install the stone coated roof tile on the 0 degress roof?
A: The stone coated roof tile should install the roof which have 20 degress roof pitch.If the roof pitch is below 20 degress,it will be easy to leaking.
Q: What kinds of roof is suitable to install stone coated roof tile?
A: Both concrete roof and wooden roof could install the stone coated roof tile,but it must install the roof batten before install the roof tile,except interlock tile.
Q: Is necessary to install the roof batten before install roof tile?
A: Yes,it must install the roof batten before install roof tile,except Interlock tile.Becasue we need to fix the roof tile on the roof batten when installment.
Q:How long is the stone coated tile's sevice time?
A: The aluminum-zinc steel plate is strong the other building material.The glue spraying in surface also adopt new technology. So our roof tiles can be used for more than 50 years.
Q : Will a Steel roof make my home hot in summer?
A :No. A properly vented steel roof system moves air both between the shingles and the underlying deckas well as moving air from vents under the decking. Heated air is allowed to dissipate through the ridgelineas cooler air is drawn through eave vents. Reduced energy bills can result from airflow both under andover the decking.
Q : Can you walk on a steel roof?
A :Yes. Some care must be exercised while walking on the roof, but note that roofers walk all over the shingles during the installation process.
Q : Is stone coated metal roofing tile noisy?
A :No! The dead air space between Stone coated metal roofing Panel sand the roof decking combined with the stone coating dampensexterior noise even in a rainstorm.
Q : Is stone coated metal roofing system Heavy?
A :Stone coated roofing tiles truly lightweight! Concrete and clay roofs can weigh up to 15 lbs per squarefoot! In fact stone coated roof tile is even lighter than most high-grade asphalt roof shingles.
Q : Is stone metal roofing tile durability ?
A :Yes, The average life of a non-metal roof is 17 years. Asphalt can require re-roofing every 10 to 20years, often sooner. But a metal roofing system offers unmatched durability, lasting 2 to 3 times longer.
Q : How long does it take to install a steel roof?
A :Usually only a few days. The complexity of the buildings roofs cape is the primary factor in determiningthe time required. Complex roofs require more time than basic designs.
Q: Will the stone chips fall down after installment?
A:Sangobuild use the advanced technology "pour glue" to make the stone chips stick firmly with steel sheet.And it also solve the problem of uneven color which caused by traditional handmake spray glue in the same time.
Q:Is there any matters need attention when install stone coated roof tile?
A: The up and down roof tiles should be staggered,if install it straightly,it will be easy to leaking.
Q: What is your payment terms?
A: T/T, L/C , Western Union and OA are all acceptable
