Pallet Block Truncating Saw Chop Saw pneumatic timber Crosscut Saw Machine
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1600939178332):
Product Overview
Description

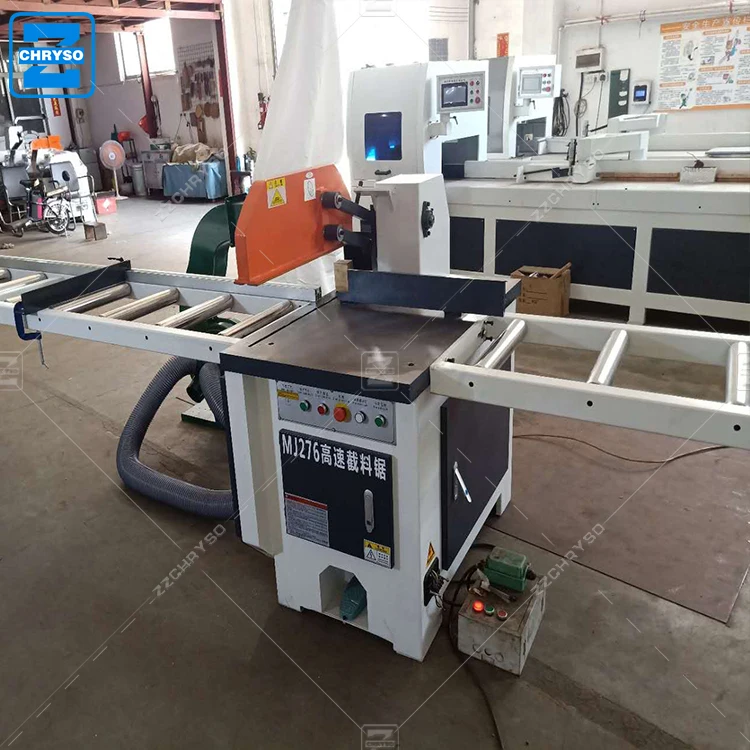

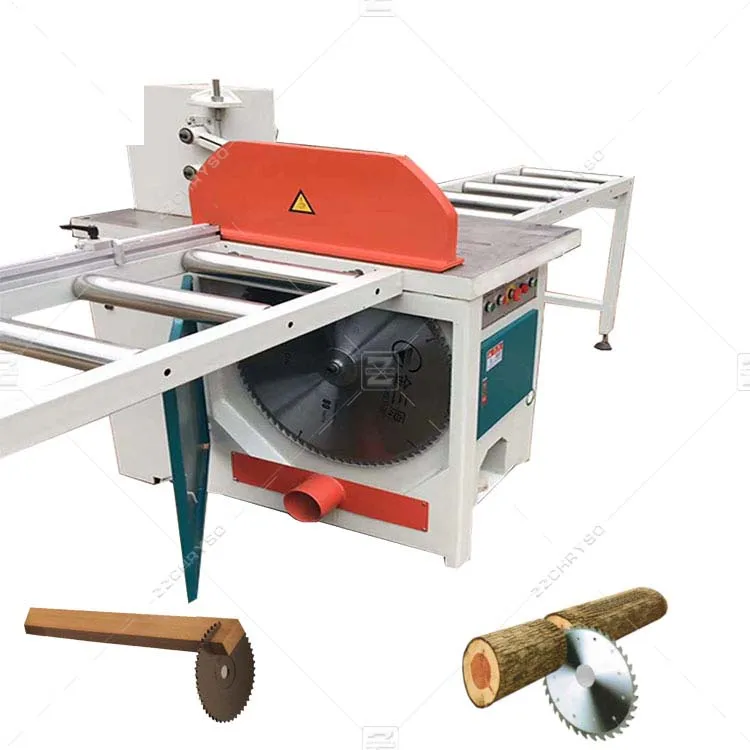

High speed pneumatic cross cut wood cut off saw machine
Product Description
High speed cut off saw machine

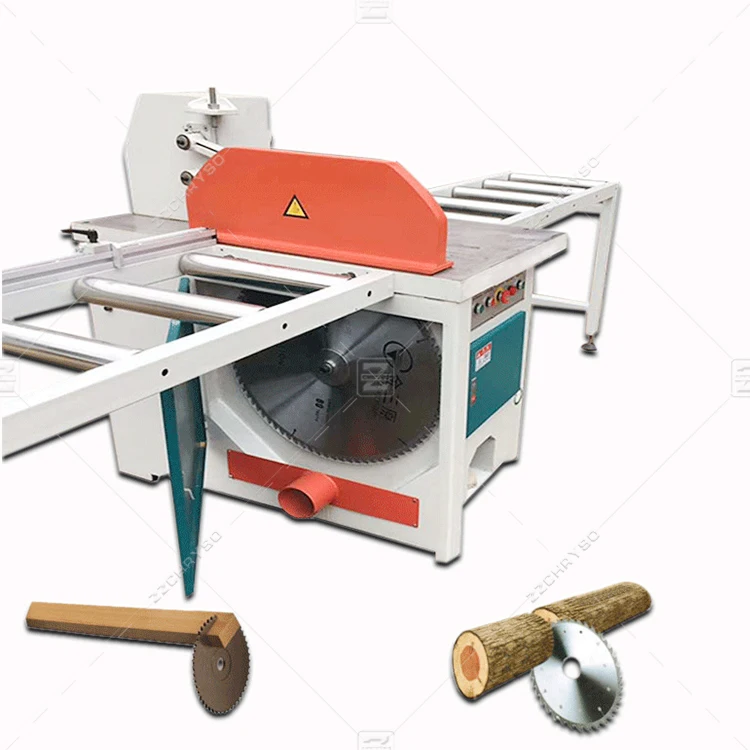

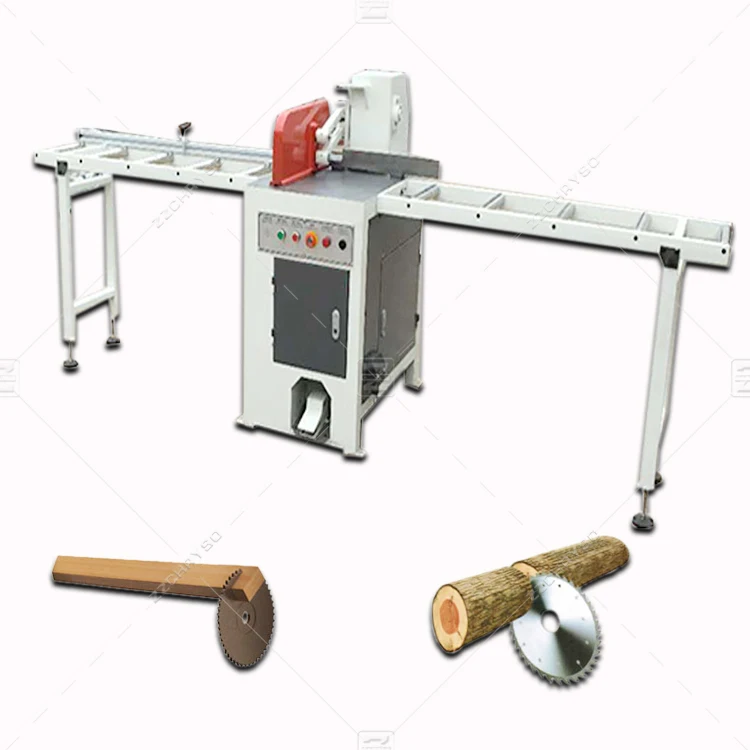

This is a semi-automatic wood cut off saw,it can cut wood panels,timber,logs,square wood,wood board,pallet board etc.Equipped with ruler and positioning foot.Optional dust collector for clients.
Wood cut off saw machine,cross cut off saw,pneumatic cut saw,truncation saw,274,275,276 saw,cut saw
Specification
Model | ZZCHRYSO-274 | ZZCHRYSO-275 | ZZCHRYSO-276 |
Wood specification (H*W) | 40*320 60*290 80*245 100*190 105*150mm | 40*430 60*405 80*380 100*340 120*29 125*280mm | 40*530 60*510 80*490 100*460 120*420 140*380 160*330 180*260 190*210mm |
Saw blade diameter | 400mm | 500mm | 600mm |
Voltage | 380V,50HZ , Customized | 380V 50HZ , Customized | 380V 50HZ , Customized |
Main shaft diameter | 25.4mm | 30mm | 30mm |
Main shaft speed | 2800r/min | 2400r/min | 1800r/min |
Installation power | 4kw | 5.5kw | 7.5kw |
Machine weight | 180kg | 400kg | 480kg |
Machine size | 2840*839*1068mm | 2950*830*1200mm | 305*1050*1200mm |
The cutting size is for reference,please tell us your raw wood size, we will check for you and choose the suitable model for you. Customized is optional.
Wood cut off saw machine,cross cut off saw,pneumatic cut saw,truncation saw,274,275,276 saw,cut saw
Feature
Positioning ruler,Rescise sawing of wood, nonmetallic,aluminium,plastic and wood-based timber, logs, square wood,complete the fixed length of wood processing
Equipment operation safe , easy debugging

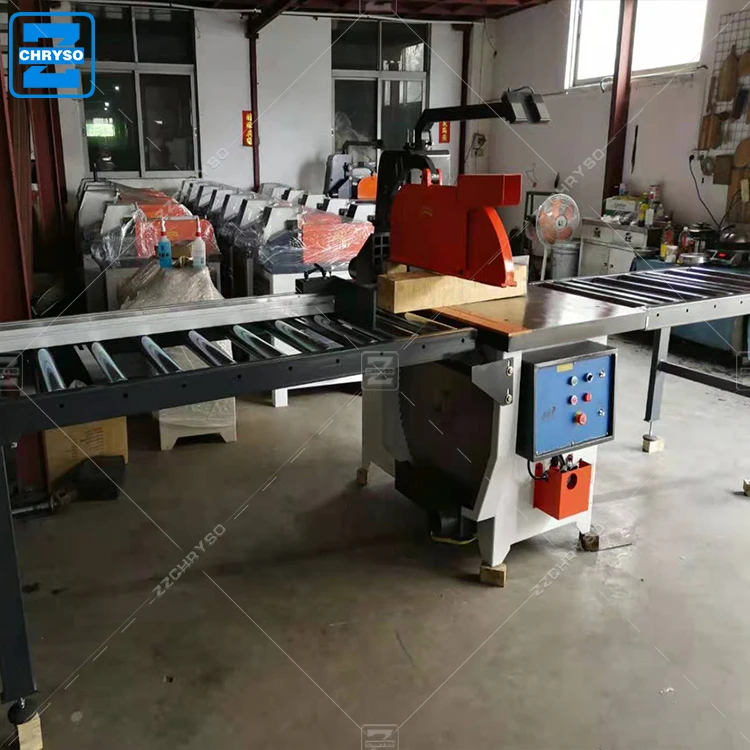

Feed direction can be customized

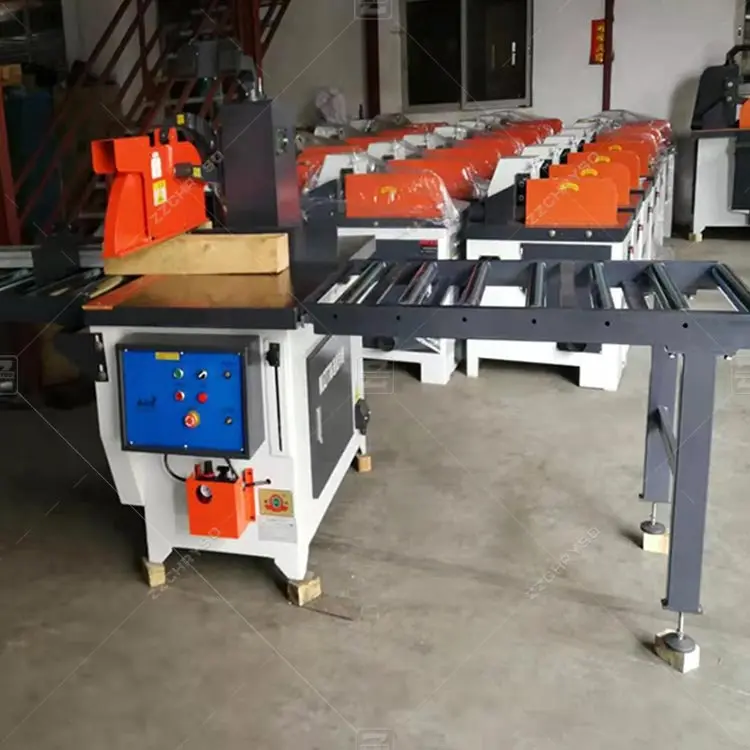

Feed direction can be customized
Lengthen positioning frame for lumbers
The lengthen positioning frame is customzied for clients especially for cutting bundles of square wood. Its convenient to align whole bundle of wood.

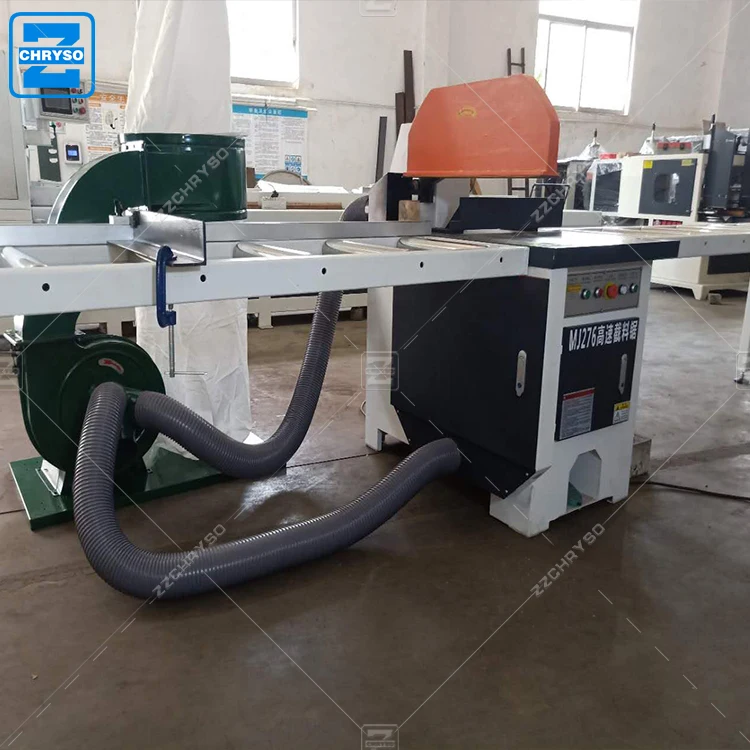

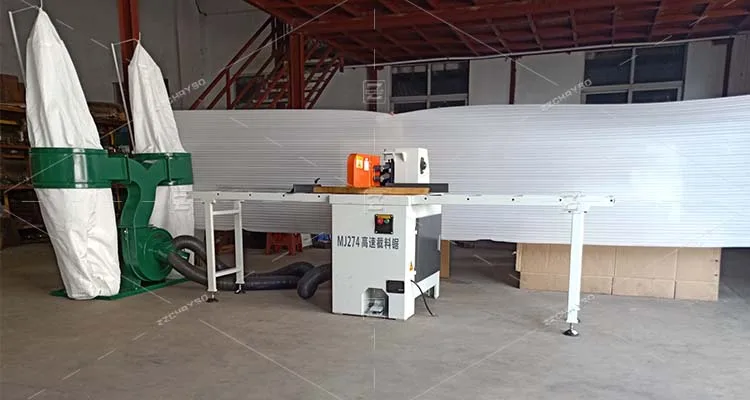

Dust collector for option
Simple and high efficiency dust collector matched with pneumatic cut off saw machine,Environmental friendly.
Customized length of feeding and discharge conveyor
The feeding and discharge conveyor is customized according to raw wood length.
Smaller package size save shipping cost
The package for cross cut off saw machine is smaller, save shipping cost for you.

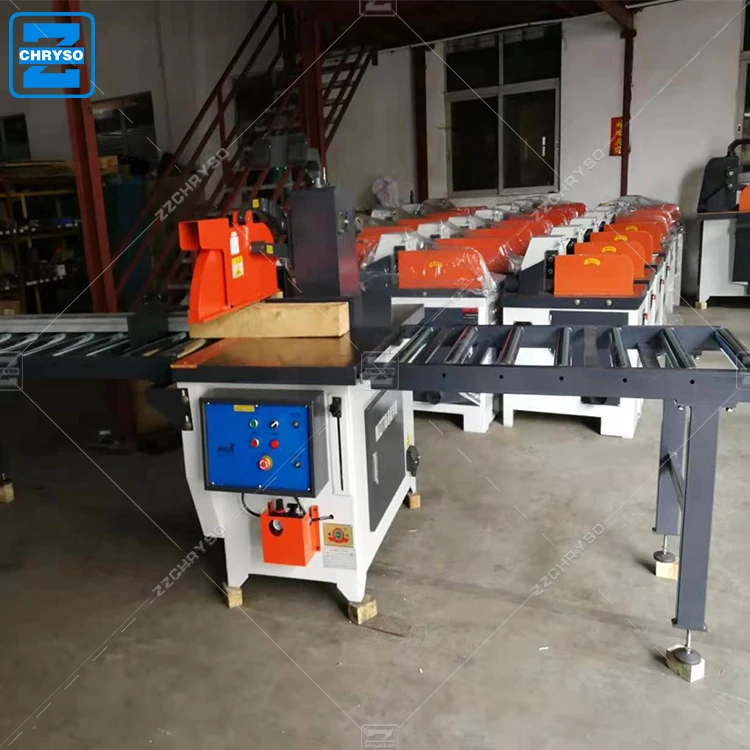

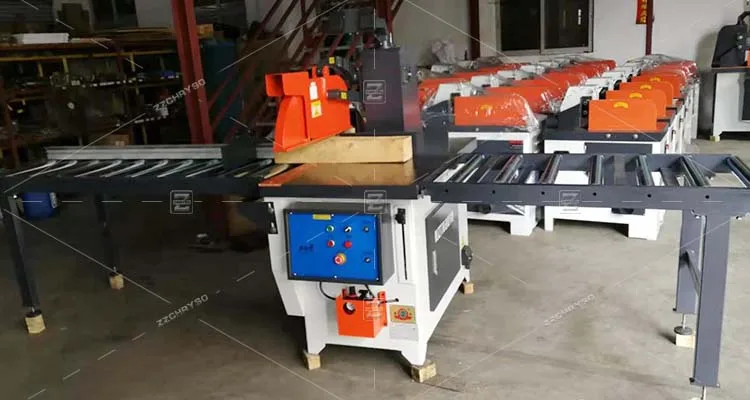

Factory View
Engineering case for clients:

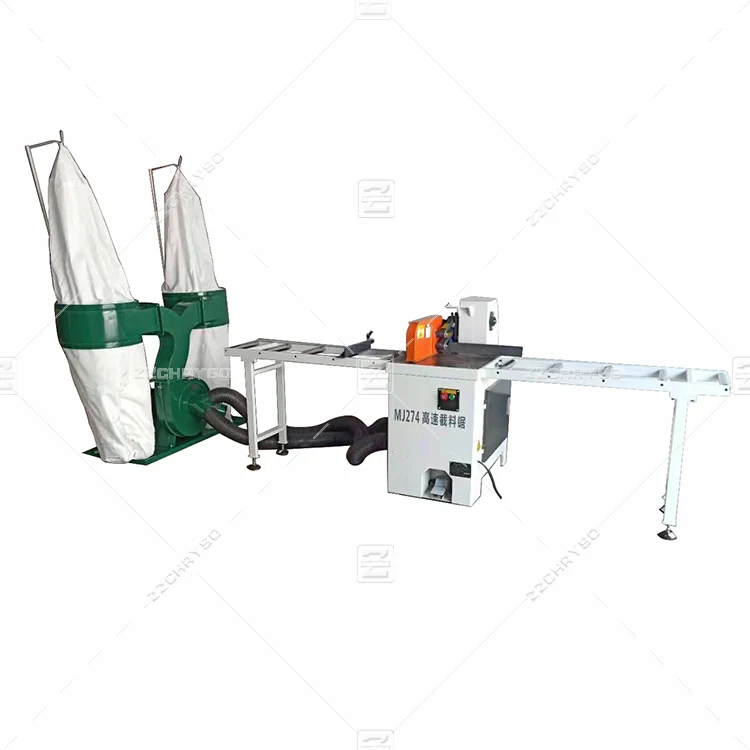

Customized for clients whole set of cut off saw machine equipped with dust collector:
Wood cut off saw machine,cross cut off saw,pneumatic cut saw,truncation saw,274,275,276 saw,cut saw
Bigger customized CRS277 Model, higher level:
Packing & Delivery

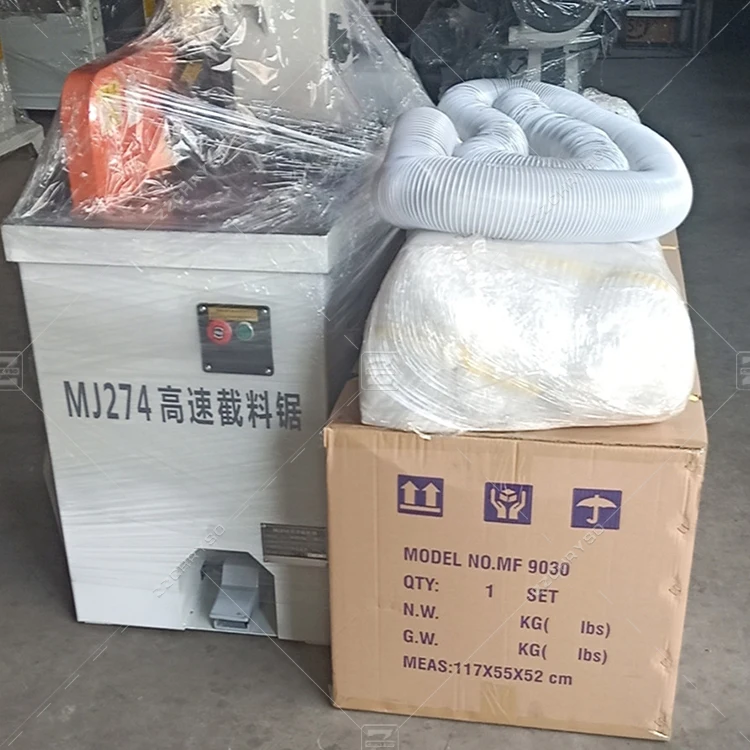

Inner packing machine with wrapping film.
Outer packing with seaworthy fumigation-free wooden case or Plywood box
High speed pneumatic crosscut wood cut off saw machine wood log cutting circular saw machines
Outer packing with seaworthy fumigation-free wooden case or Plywood box
High speed pneumatic crosscut wood cut off saw machine wood log cutting circular saw machines
Wood cut off saw machine,cross cut off saw,pneumatic cut saw,truncation saw,274,275,276 saw,cut saw
Related Product

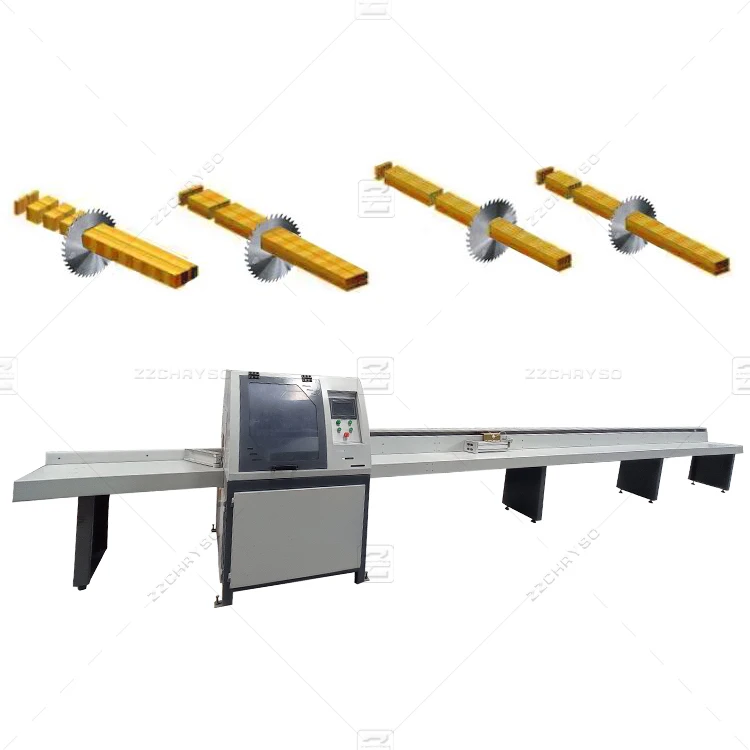

PLC automatic CNC cut off saw machine

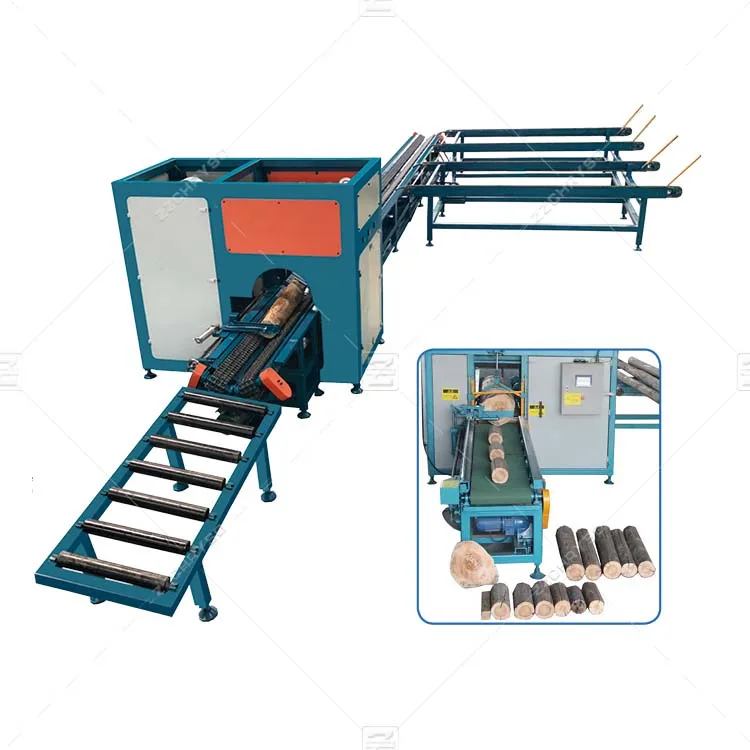

Large diameter log 800mm cut off saw machine
