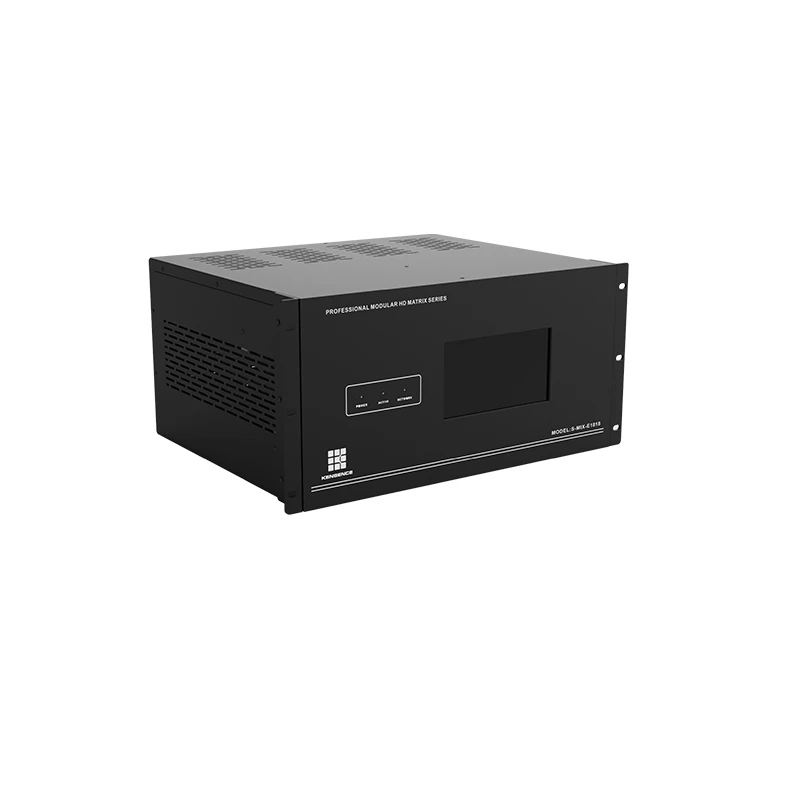

Lcd HDMI 10.2Gbps 4K60 Video Wall Controller video signal matrix switcher system Video matrix switch

Share on (1600939194334):


Price:

Quantity:


Product Overview

Description



Related Product





























banner1 750.png






Product Description


 Note: The specific price should be configured according to your needs, the price is different for different configurations, please consult our customer service for details!


Product  Introduction of  matrix for projector



  • Ø AVCTimes innovative S-Mix-E series Matrix Switcher supports Super definition of 4K/30fps resolution. Its a high-performance, high bandwidth, flexible and reliable solution for 4K Super definition digital video display system

  • Ø This series of Matrix Switcher make it into fact that various forms of signal such as CVBS,YPbPr,VGA,HDMI,DVI,3GSDI+ AUDIO,3GSDI,HDBaseT and Fibel can switch arbitrarily. It applies self-researched K-OC image technology to make sure signal and signal can switch rapidly, without black field and jitter

  • Ø This kind of matrix ranges from 8*8,18*18,32*32 to 72*72 to meet different needs of different users.



Product Features  of  matrix switcher

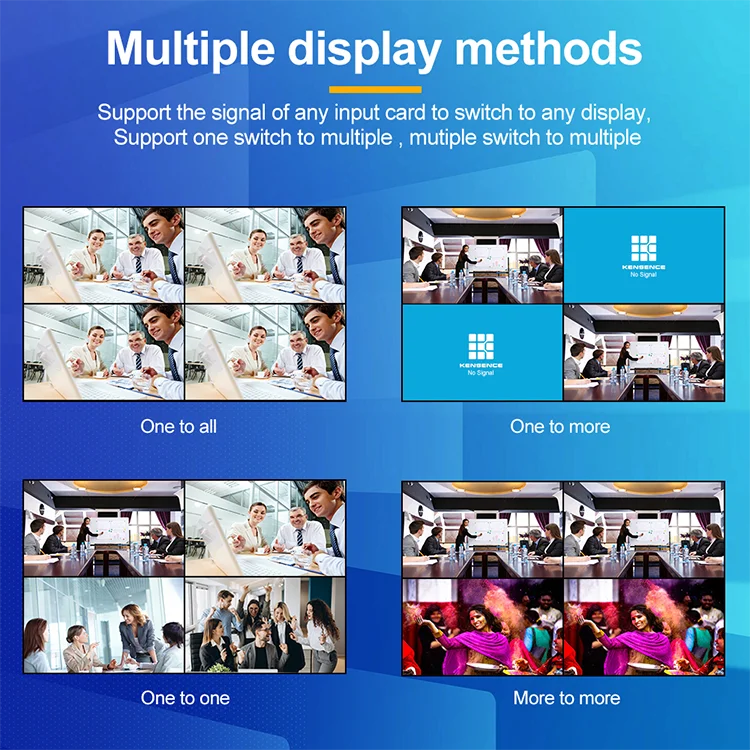

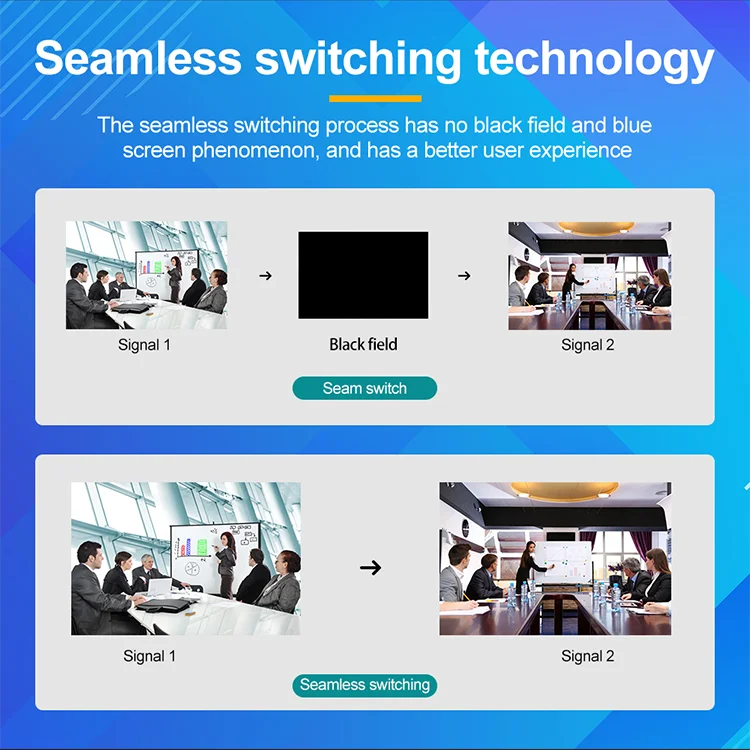

  • Ø Supports arbitrary switch between multiple video signals ,Supports Seamless switch

  • Ø Supports CVBS,YPbPr,VGA,HDMI,DVI, 3GSDI+AUDIO,HDBaseT,Fibel,RS232 and IR signal input

  • Ø Supports CVBS,YPbPr,VGA,HDMI,DVI, 3GSDI+AUDIO,HDBaseT and Fibel signal output.

  • Ø Every input channel supports Scaler adjustment.

  • Ø Every output channel supports 16 kinds of common resolution fixed outputing.

  • Ø Supports Deep Color 48/36/30/24-bit,YUV4:2:2/4:4:4

  • Ø HDBaseT cards can extend common audio video signals up to 100 meters with twisted pair

  • Ø Fibel cards can extend common audio video signals up to 2 kilometers with single mode optical fiber.

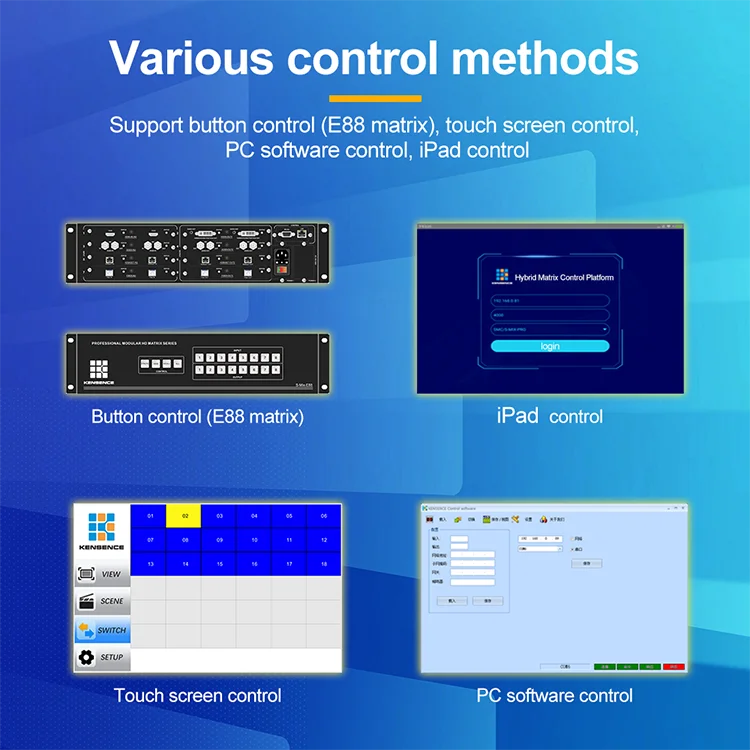

  • Ø Supports RS-232,remote control, panel control and TCP&IP control.

  • Ø 7 inch high-definition, true color touch screen on front panel can display real-time status.

  • Ø LCD display screen on front panel can display real-time status. (S-Mix-E88)


Product Specification  of  video  switcher


Matrix mainframe specification:





































































































Model



S-Mix-E88



S-Mix-E1818



S-Mix-E3232

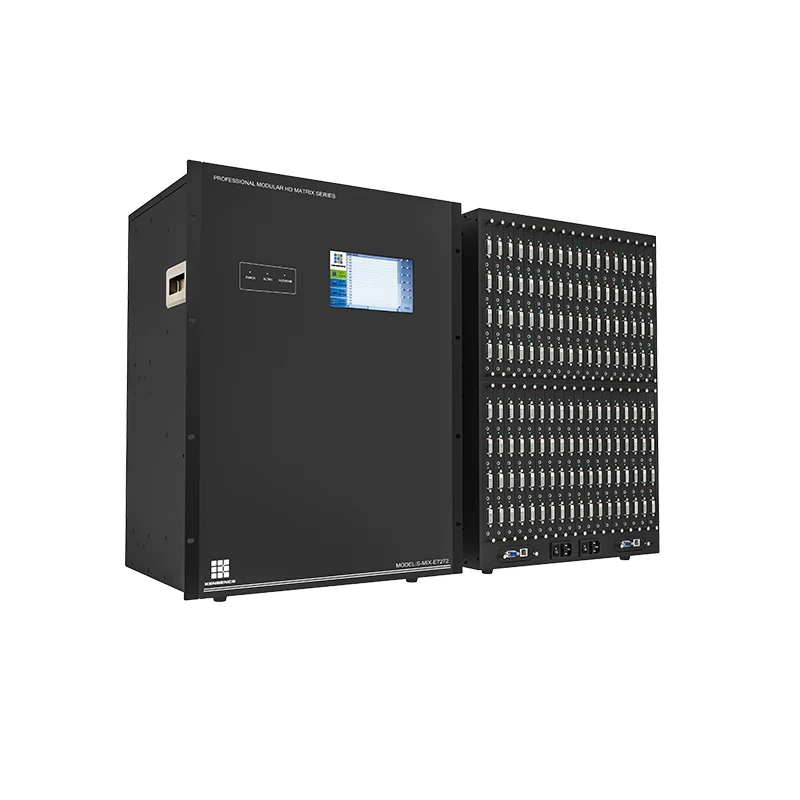

S-Mix-E7272



Interface



Input signals/Input cards



8/4



18/9



32/16



72/36



Output signals/ output cards



8/4



18/9



32/16



72/36

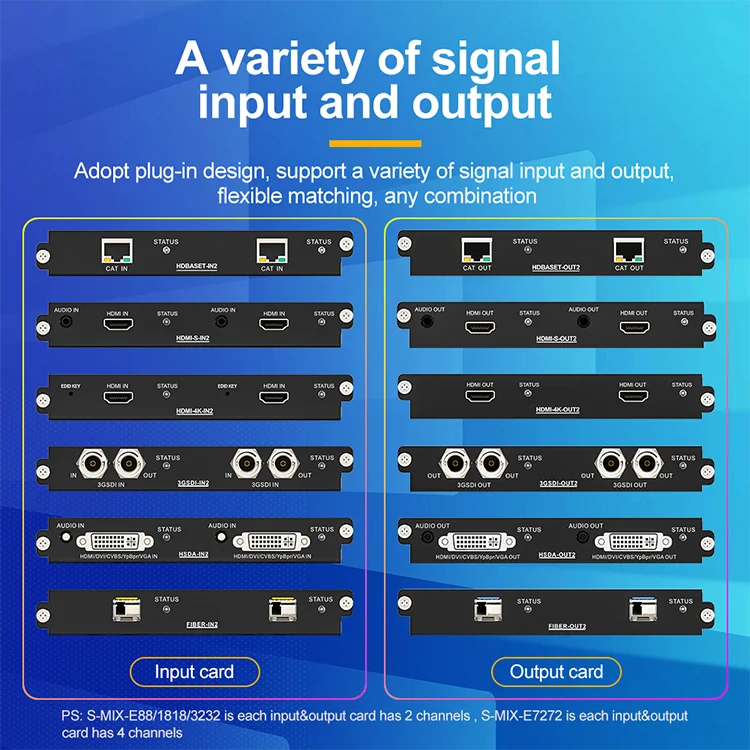

Input modes



HDMI-4K-IN2,HSDA-IN2,3GSDI-IN2,HDBaseT-IN2,FIBER-IN2



Output mode



HDMI-4K-OUT2,HSDA-OUT2,3GSDI-OUT2,HDBaseT-OUT2,FIBER-OUT2



Bandwidth



10.2Gbps



Control



RS232 control



Control protocol



RS232(Baud rate :115200, Data Bits:8, Stop Bits:1,no parity bit)



Connector



needleD-sub(DE9F) outlet 3=TX 2=RX 5=GND



TCP&IP control



Control protocol



TCP/IP



Connector



RJ45 joint   10/100Base-T Ethernet



Size



Width



483mm



483mm



483mm



483mm



Height



2.5U/110mm



6U/264mm



11U/484mm



25U/1100mm



Depth



370mm



350mm



370mm



370mm



Electrostatic protection



Human-body discharge pattern: ±8kV (Air-Gap Discharge)  ±4kV (Contact Discharge)



Power



12 V/3 A DC (US/EU Standard, CE/FCC Certified)



Input voltage



Power100VAC~260VAC,50/60 Hz, International adaptive power 23W (Maximum)


/ 0.5w(Standby)



Operating Temperature



0ºC~40ºC



Storage Temperature



20ºC~60ºC



 S-Mix-E8x8

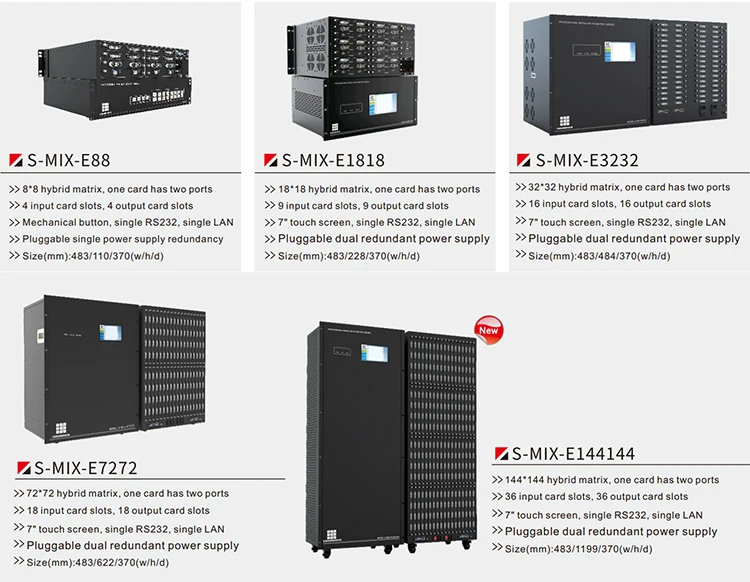

Product  Pictures  of cctv video switcher HD



8x8 matrix :


Kensence 88

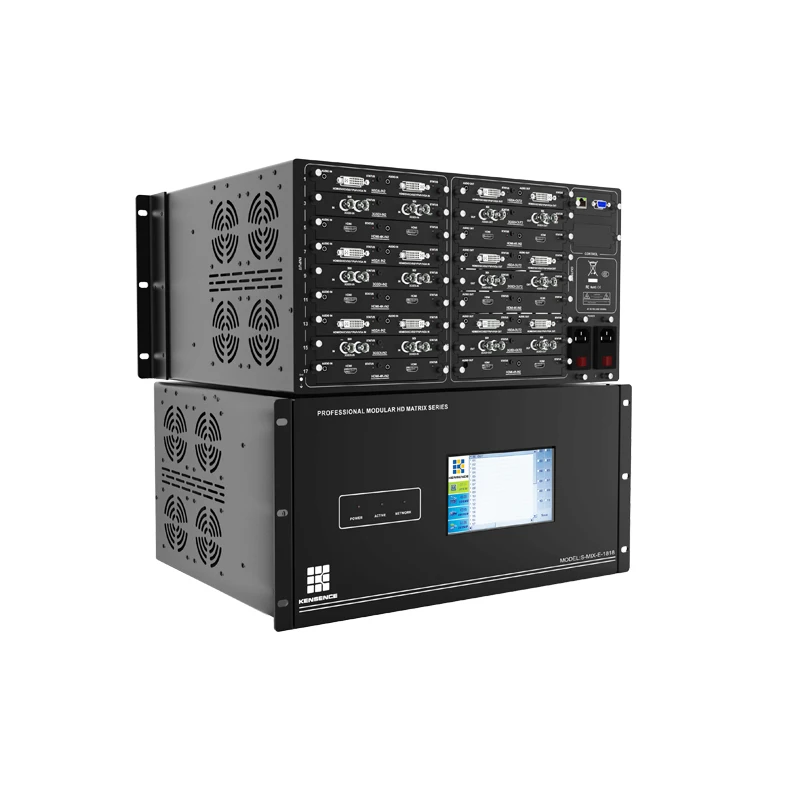

18x18 matrix




32x32 matrix

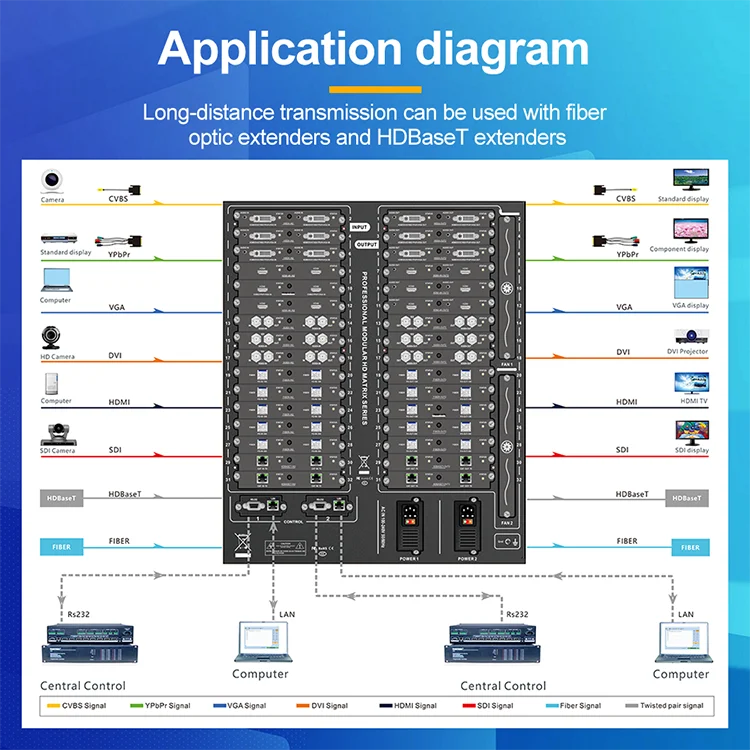

Application Example  of  matrix switcher

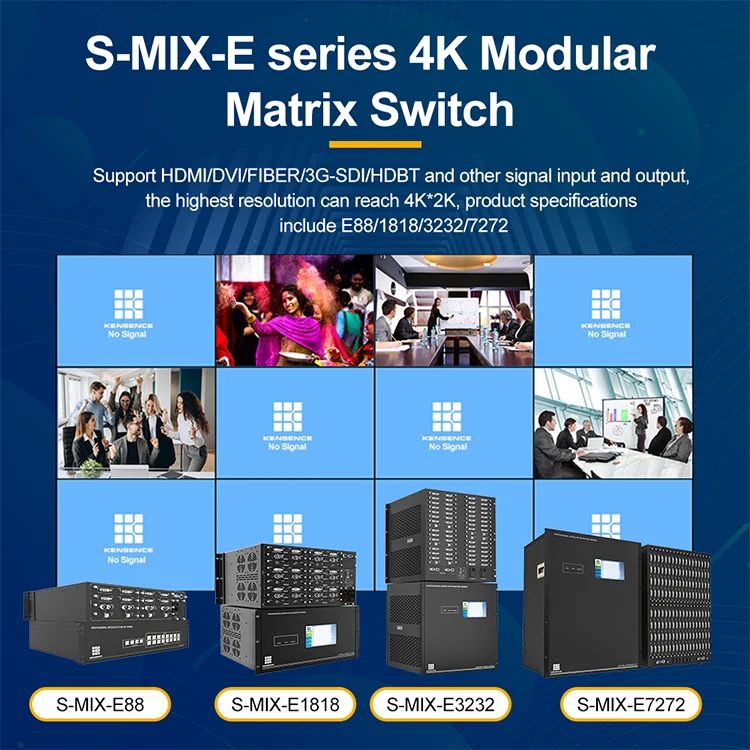

Hdmi Matrix -5Hdmi Matrix -1Hdmi Matrix -4Hdmi Matrix -2Hdmi Matrix -3Hdmi Matrix -8Hdmi Matrix -9


_20230807141928


 Hdmi Matrix -7




S-MIX-E750S-MIX-Pro 750SMC-750
