EW 3010 Cable manufacturing automatic stripping machine easy to operate full electrical thin small cable stripping equipment

Product Overview

Description

1. The EW-3010 belongs to our upgrade model automatic wire cutting and stripping machine series. It's designed to meet high demanding wire processing.

2. Hybrid stepper motor, integrated control board, mute subdivision driver, offers precise cutting and stripping, low noise, no noise pollution.

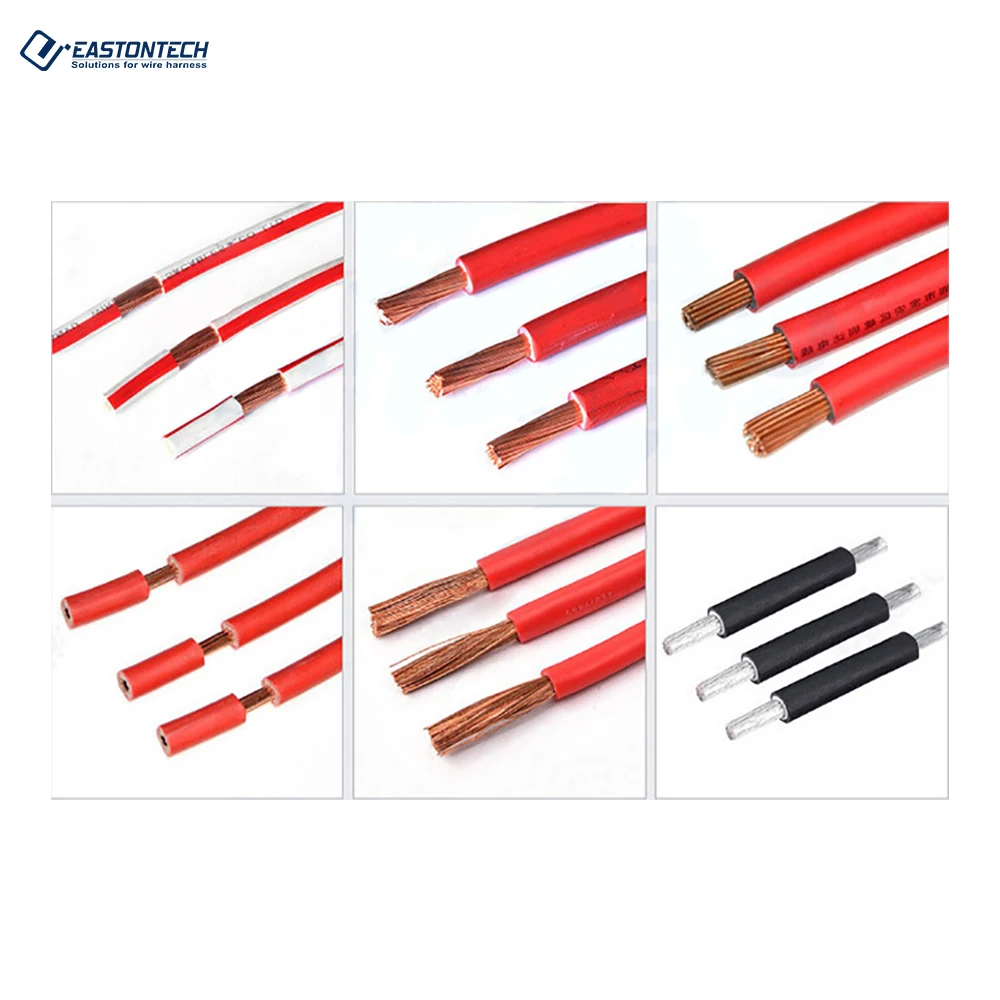

3. Processing capabilities: full strip, partial strip and multi-step stripping, max 13 steps.

4. The EW-3010 integrates new functions: - Instead of traditional pulse adjustment, the EW-3010 use innovative and intelligent way to measure wire size and set stripping diameter.

- Automatic correction of cutting length saves much time and ensure the cutting accuracy.

- STEP function show every single step clearly, it's very helpful for initial operation,training operator and troubleshooting.

- Detection of lack wire, when wire is used up, the machine automatically stops working and sounds alarm to report it.

Our wire stripping machine has CE certification

Model	EW-3010
Function	Wire cutting, double-end stripping, middle stripping
Wire range	0.1-6mm² (AWG30-12)
Cutting length	0.1mm-99999.9mm
Stripping length	Stripping head:0.1-250mm  Stripping tail: 0.1-70mm
Stripping accuracy	Silent hybrid stepper motor 0.01mm
Intermediate strip	16 (can be customized)
Capacity	3000-8000 / h
Blade material	Imported tungsten steel / high speed steel
Power	AC110V/220V  50/60HZ

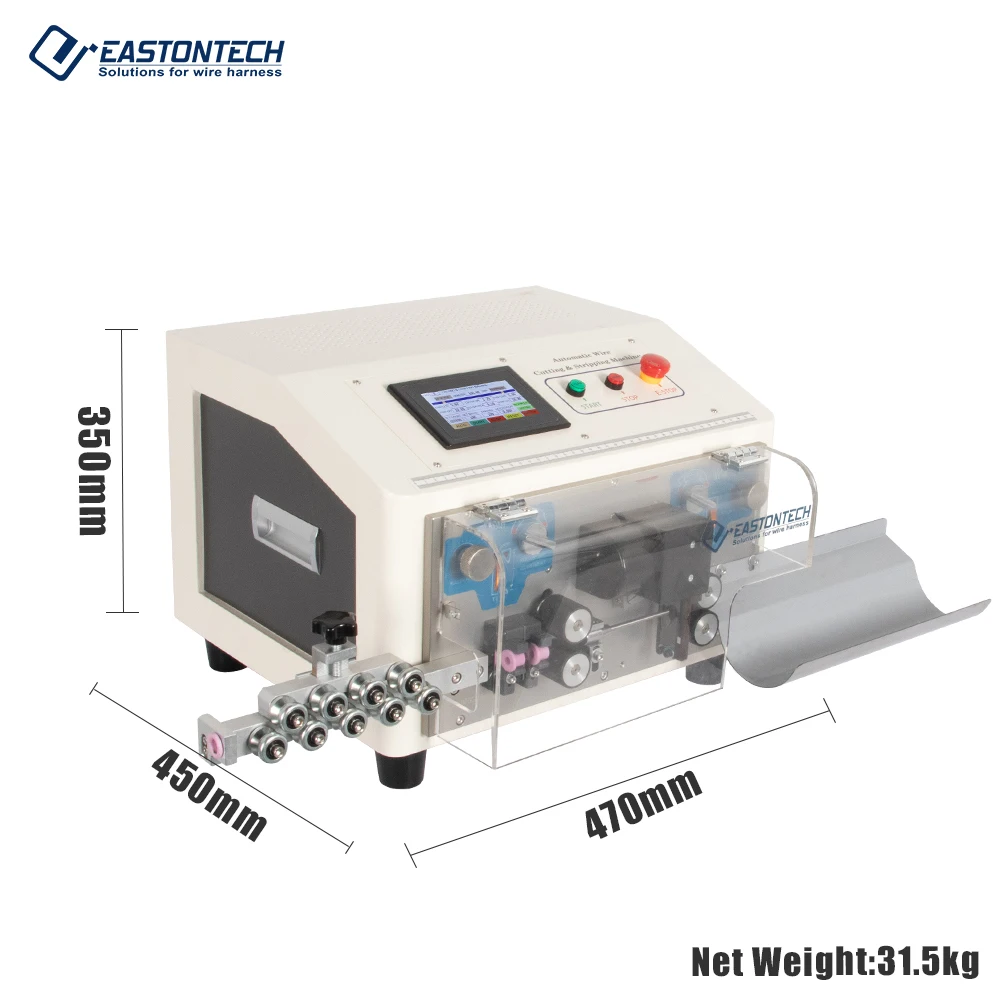

Dimension	470mm * 450mm * 350mm
Weight	31.5kg
Remark function	Automatic entry / exit, timing start, jog adjustment
