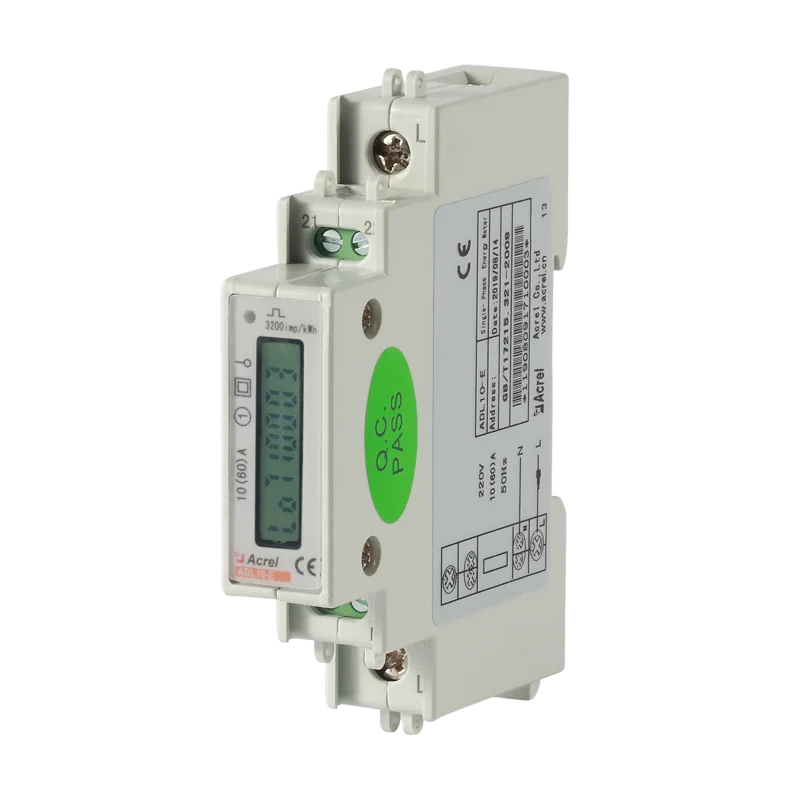

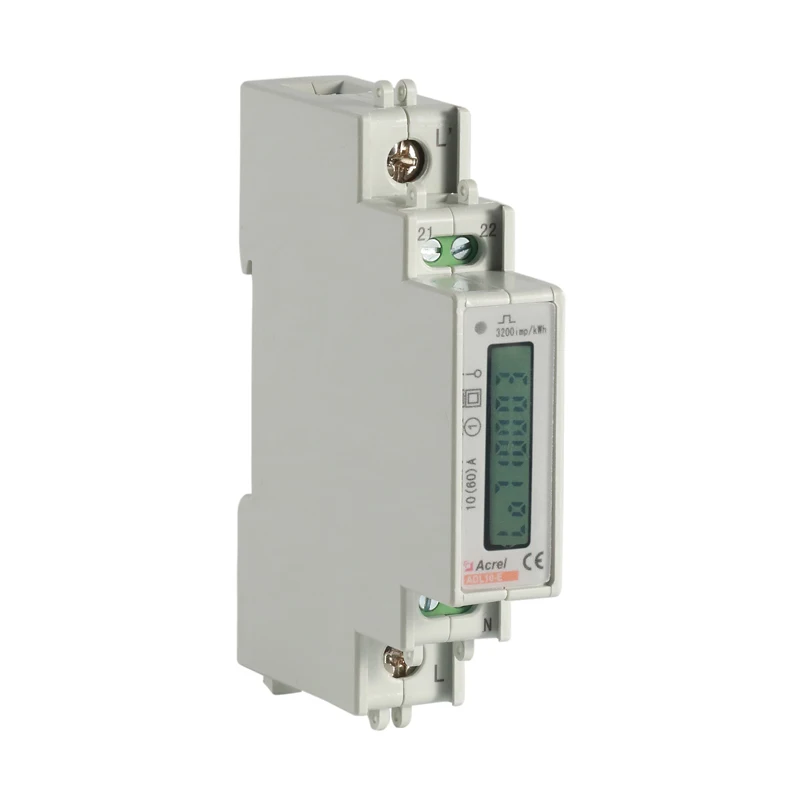

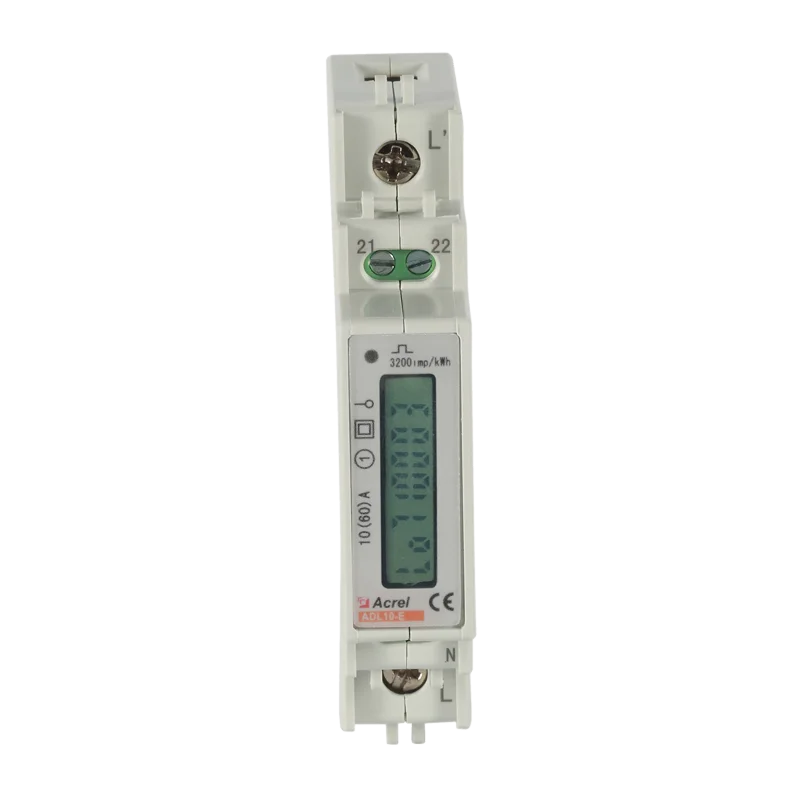

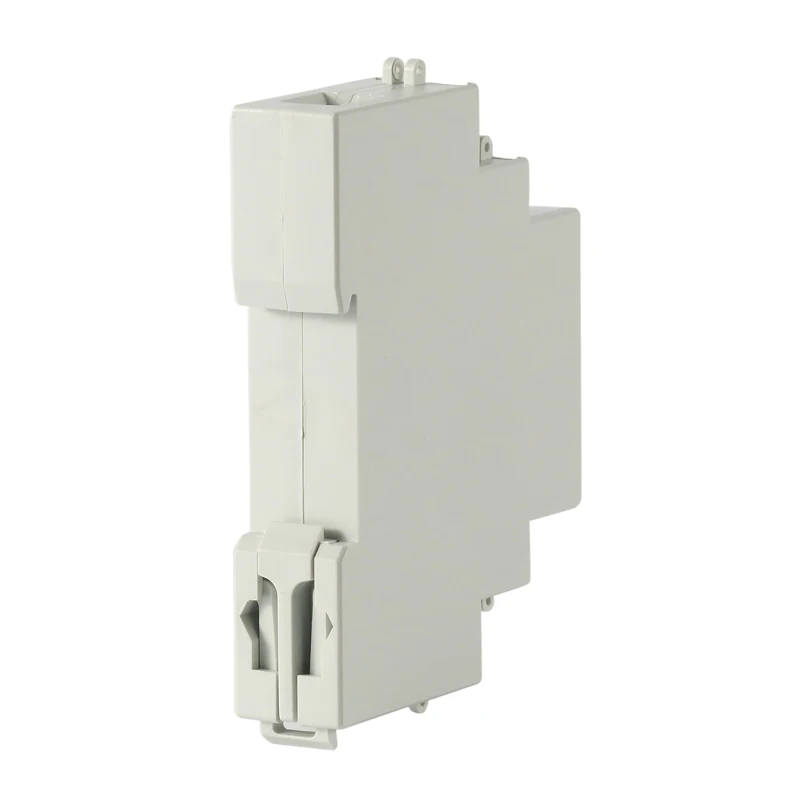

ADL10 E 35mm DIN Rail 1 phase 2 wire multifunction energy electricity meter monitor CE Certificates LCD
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1600939307472):
Product Overview
Description
Solutions & Applications

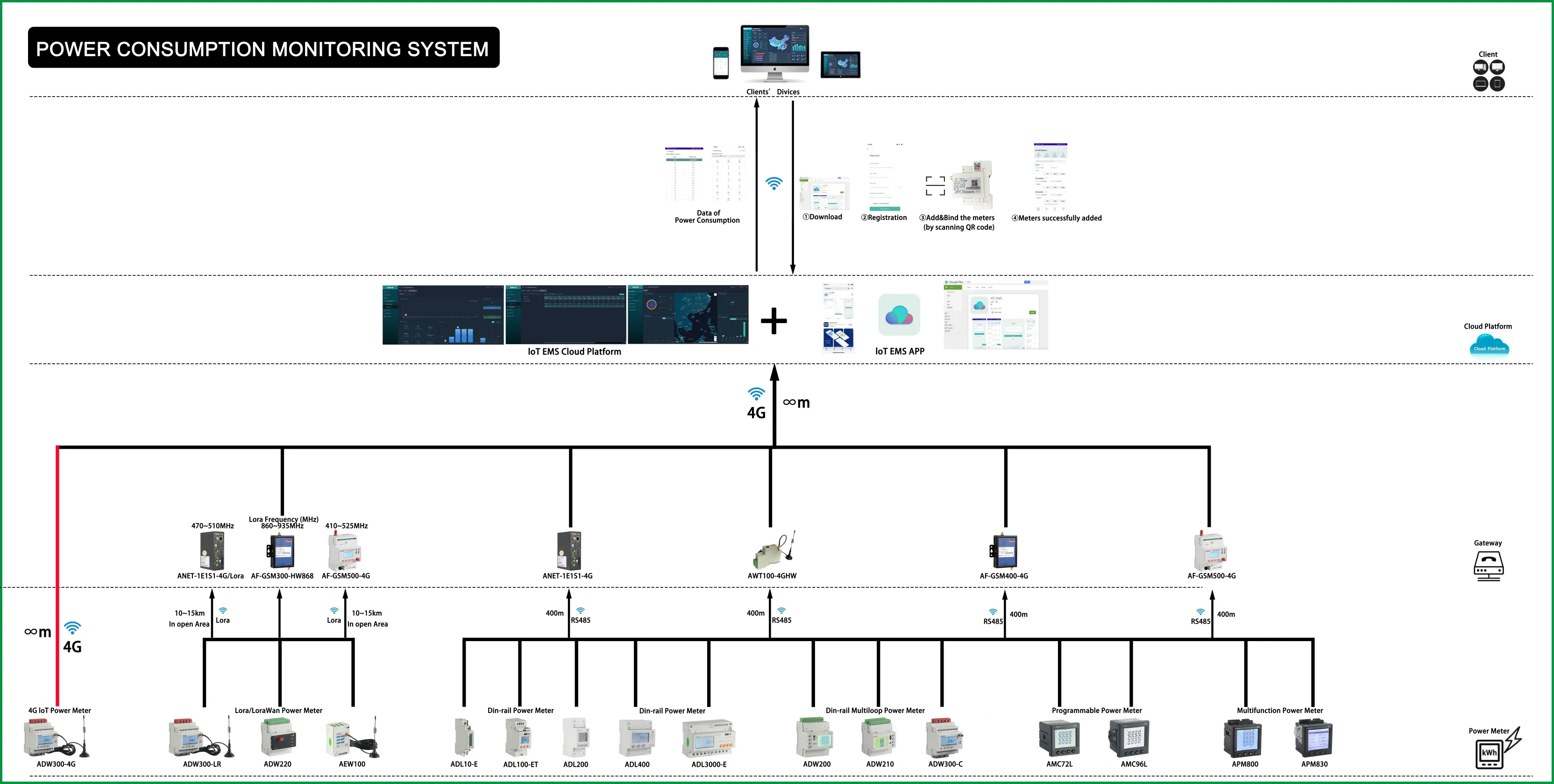

Power Consumption Monitoring System (Contact me for Clear View！)

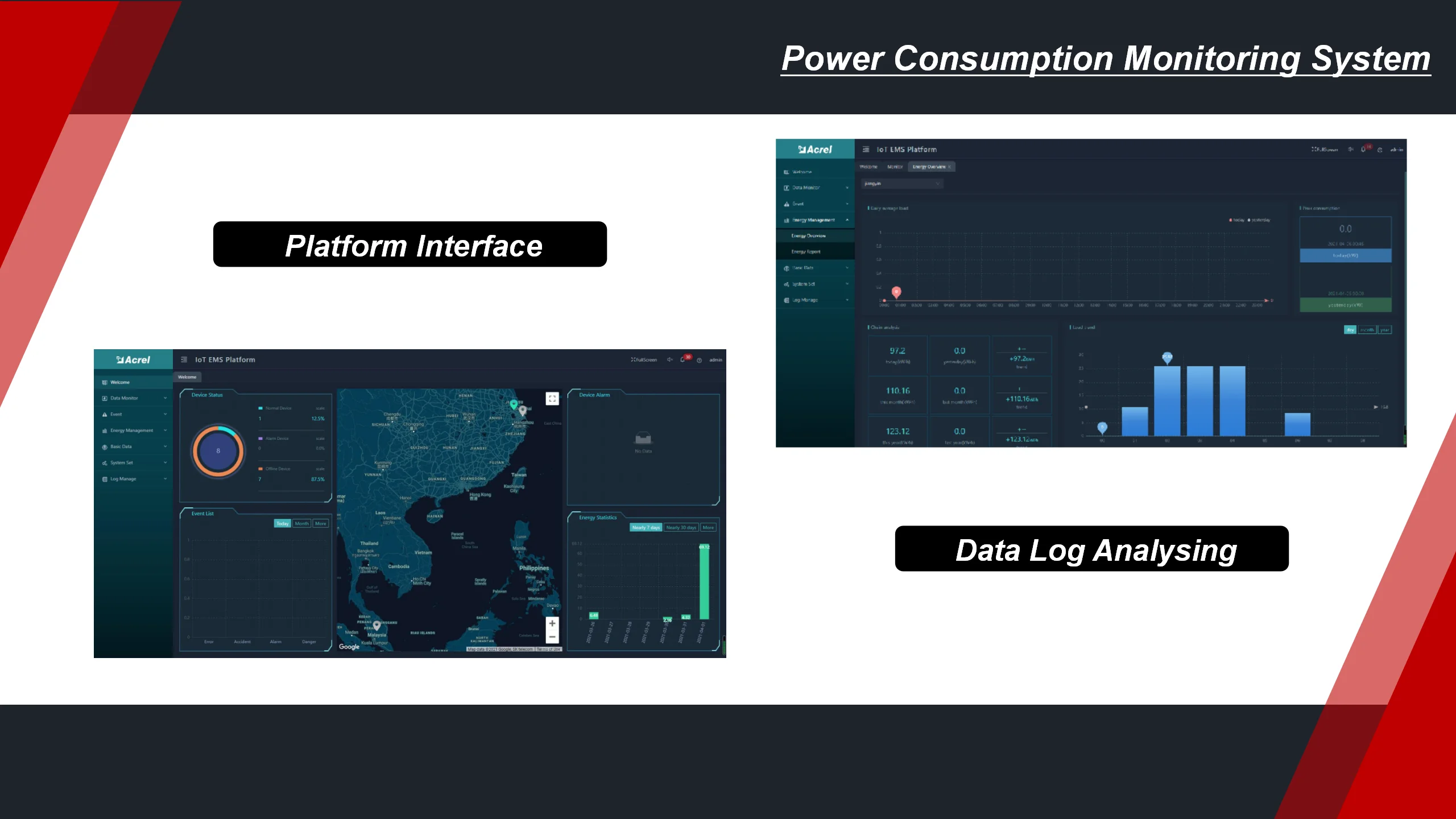

IoT EMS Platform

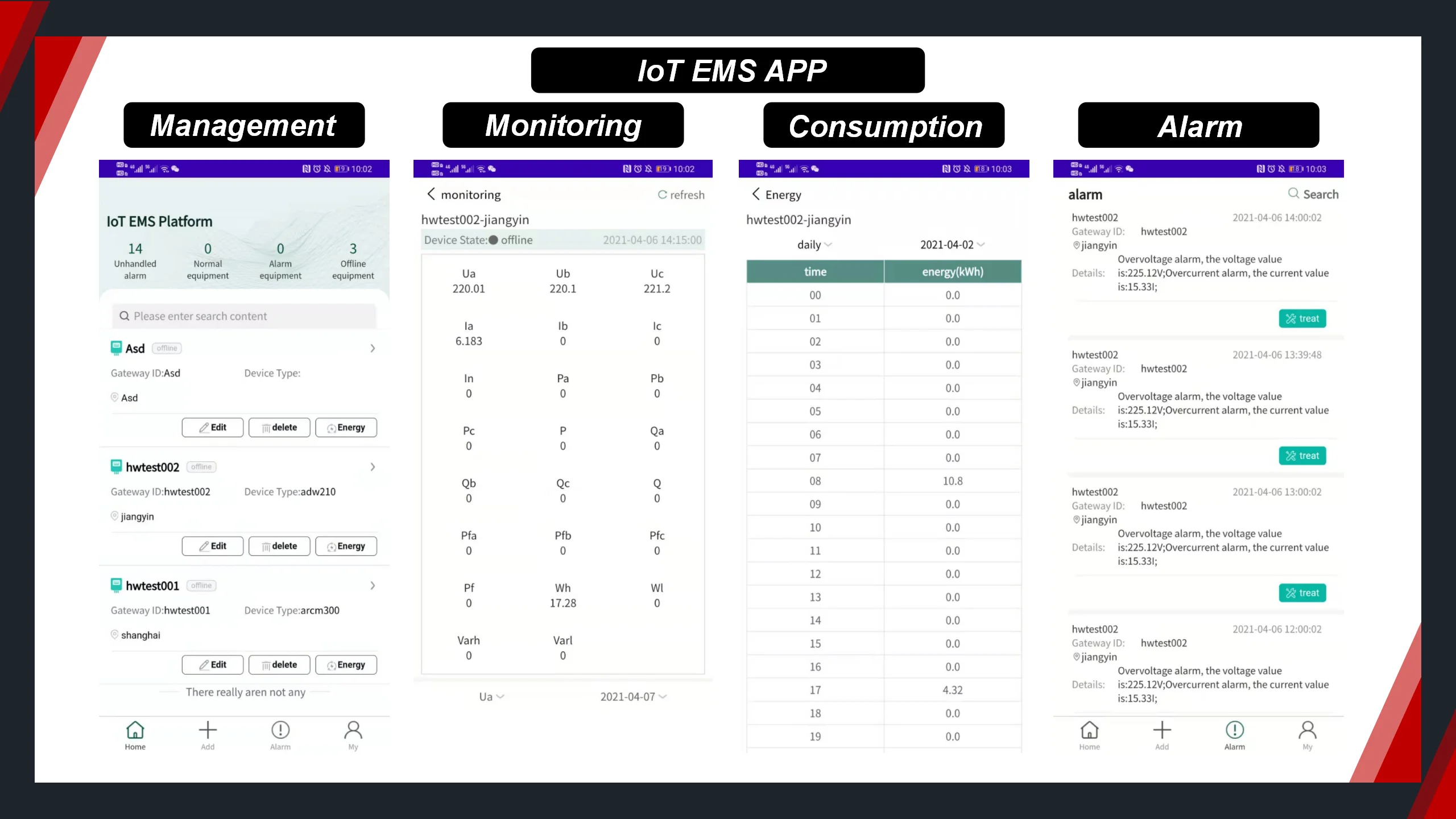

IoT EMS APP
Products Description

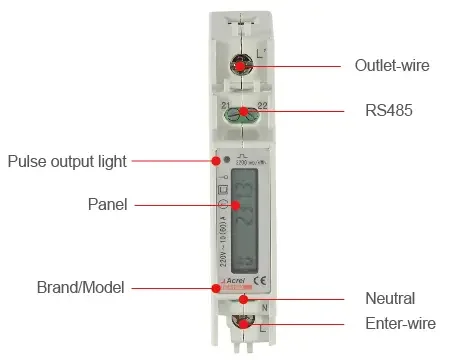

ADL10-E
ADL10-E single pahse electric meter is designed for single phases energy measurement on low voltage system. The meter follow the compliance of IEC62053-21,IEC62053-22 standars.
● Reference Voltage: 220V
● Input Current: 10（60）A
● Small Compact Size
● Diverse Electricity Parameters Measurement
● DIN Rail Installation
● LCD Display
● RS485 (MODBUS-RTU)
● IEC62053-21:2003; IEC62053-22:2003; CE; EAC
● Input Current: 10（60）A
● Small Compact Size
● Diverse Electricity Parameters Measurement
● DIN Rail Installation
● LCD Display
● RS485 (MODBUS-RTU)
● IEC62053-21:2003; IEC62053-22:2003; CE; EAC

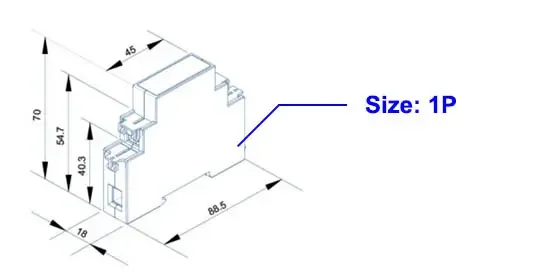

Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

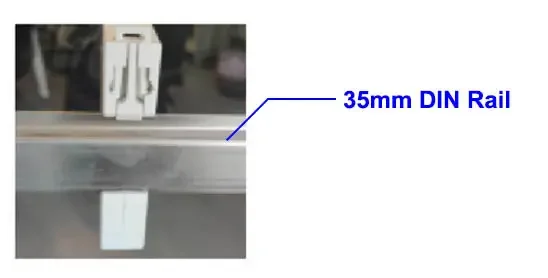

DIN Rail Installation
● 35mm standard DIN rail

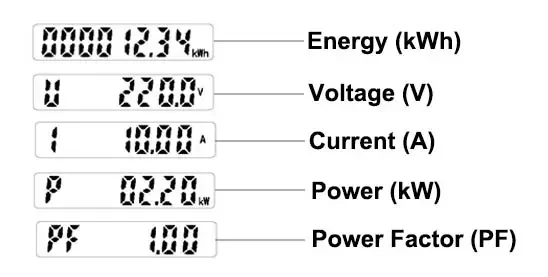

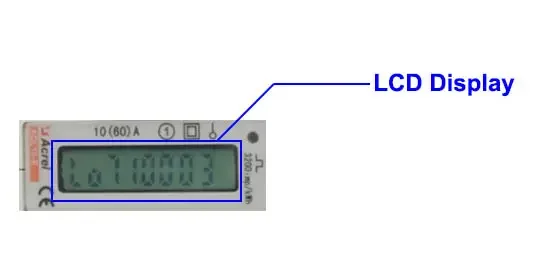

LCD Display
● 8 digits

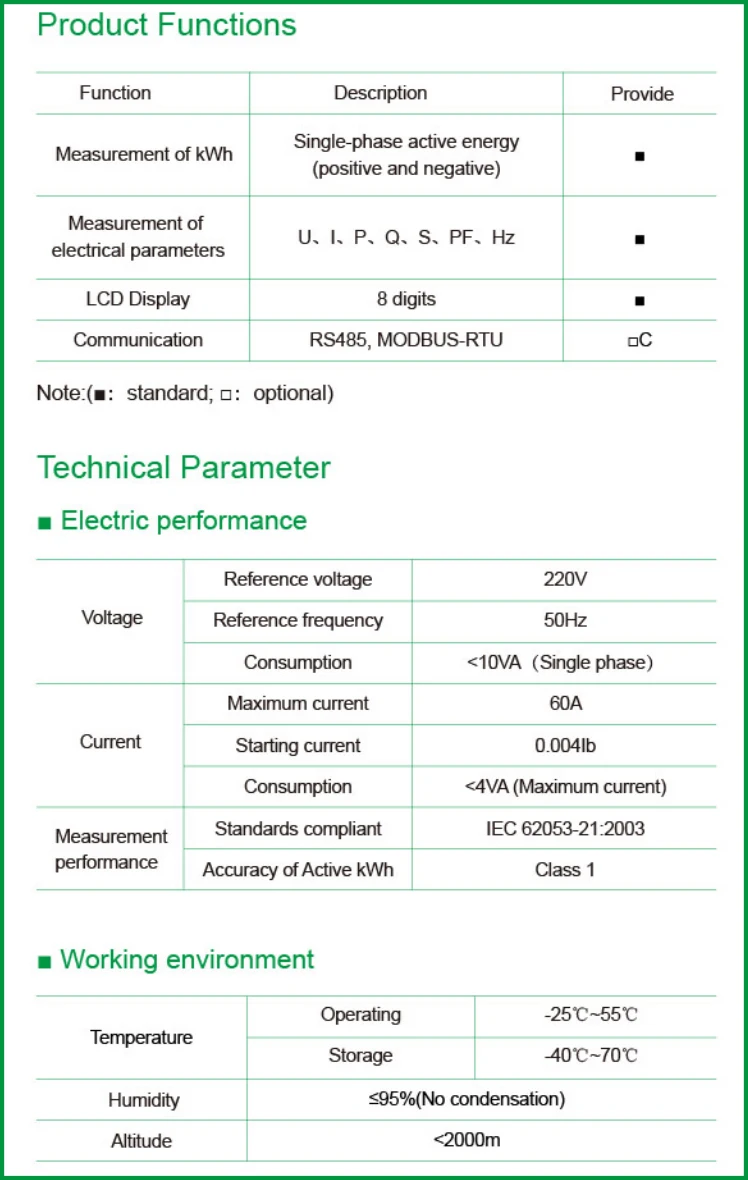

Function & Parameter
1.Functions
Function | Function description | Function provide | ||
Measurement of kWh | Single-phase active kWh (positive and negative) | ■ | ||
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency | ■ | ||
LCD Display | 8 bits section LCD display | ■ | ||
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | □C | ||

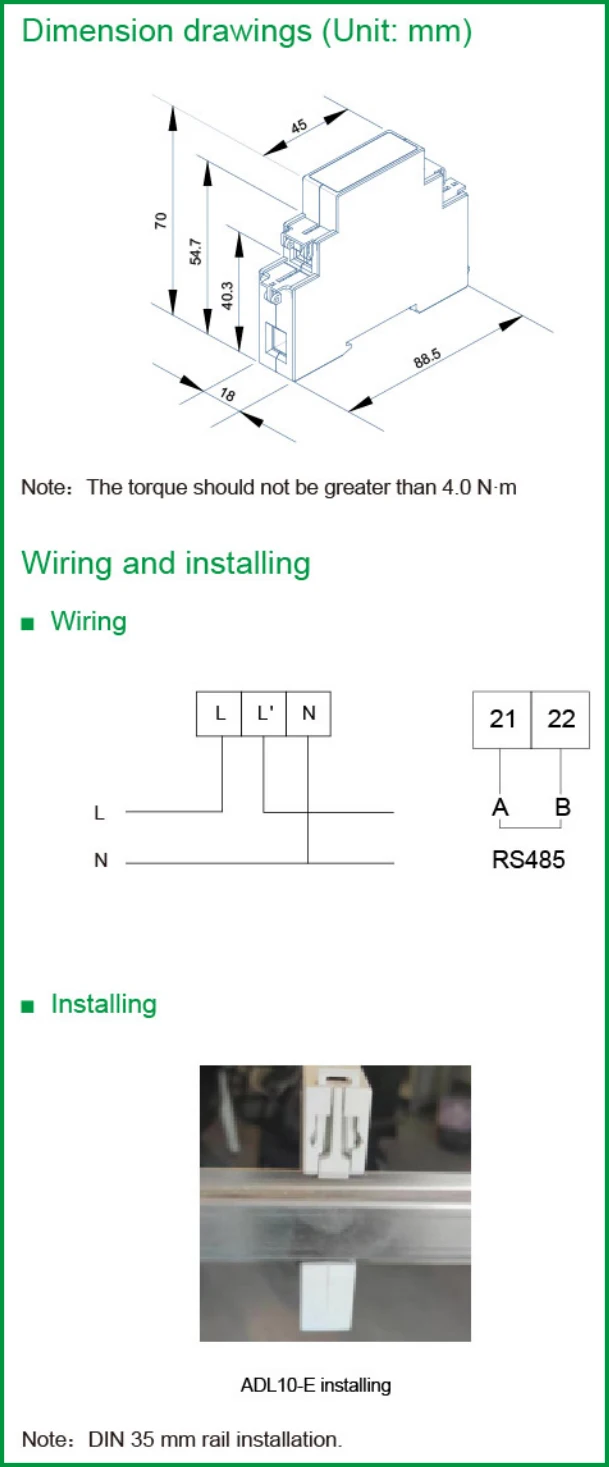

Dimension & Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
