diesel engine electric bird fish feed food floating pellets processing making machines manual small for fish high capacity maker

Share on (1600939355285):


Price:$2,000.00

Quantity:


Product Overview

Description



Product Description

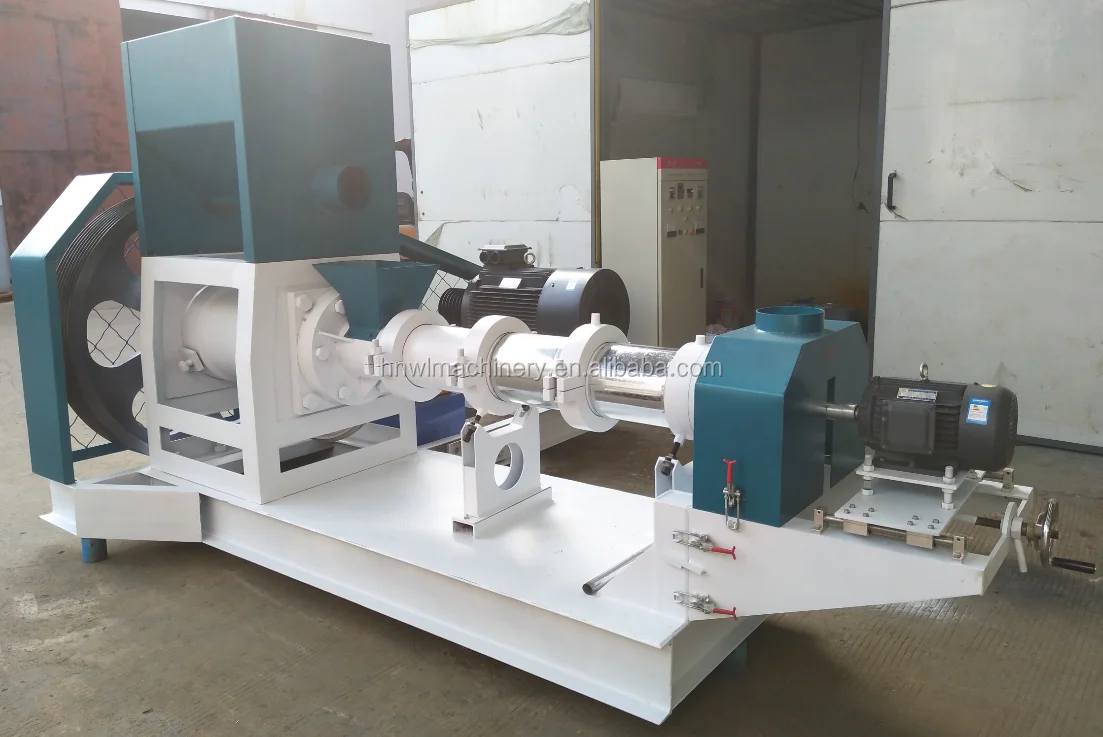

Description of pets and Fish extruder


 1 .png


Introduction of fish,dog ,cat and other pets extruder


  1: This machine is widely used in making food for animals such as dog , fish , duck ,birds , shrimp and so on .


2 : The main raw materials are  flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc .

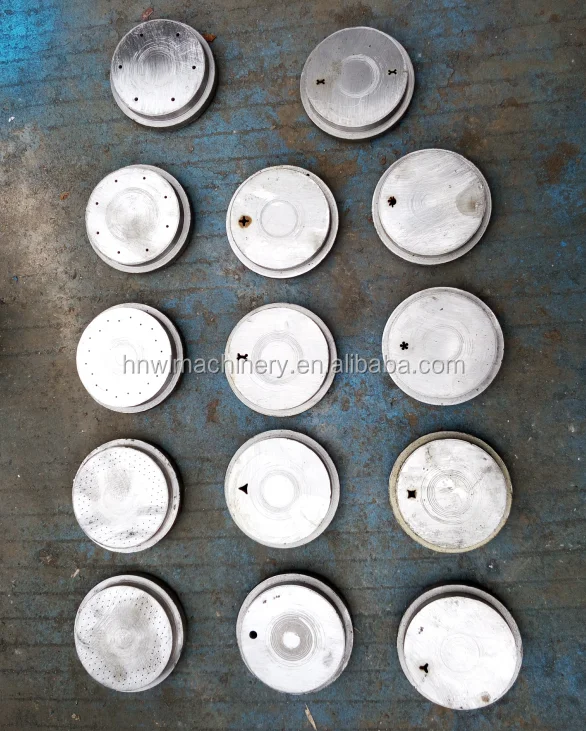

3 : The animals food shape after making can make different shape according to the ring die size . We can make the ring die according to the food shape you need    .jpg


1 .png


 Feature of  fish,dog ,cat and other pets extruder


1: It adopt soft knife to fit to form, realize infinite speed change, can cut the material into the required length arbitrarily, not easy to produce burr


 2: The unique supercharging punch device ensures the feed yield and quality, and the electric heating device increases the feed expansion rate  .


3 : The floating pellets can floating in the water  at least 15 hours without bubbling, fish and birds are easy to eat and digest, people can easy to observe the appetite of salmon class, will not cause waste of feed, not pollution water .


Floating fish,dog ,cat and other pets extruder parameters


  .jpg













































































































Item



Capacity t/h



Main motor kw



Feeder power kw



Screw diameter mm



Cutting power kw



Dimension mm



Weight


kg



VLFP50-C



0.06-0.08



11



0.4



Φ50



0.4



1470*1100*1250



320



VLFP60-C



0.10-0.15



15



0.4



φ60



0.4



1470*1120*1250



350



VLFP70-B



0.18-0.2



18.5



0.4



φ70



0.4



  1650*1400*1300



580



VLFP80-B



0.2-0.3



22



0.6



φ80



0.6



  1800*1450*1300



695



VLFP90-B



0.3-0.4



37



0.6



φ90



0.8



  2100*1450*1350



950



VLFP120-B



0.5-0.6



55



1.1



φ120



1.5



  2400*1950*1600



1700



VLFP135-B



0.7-0.8



75



1.1



φ133



2.2



  2550*2050*1650



1900



VLFP160-B



1.0-1.2



90



1.5



φ155



3.0



  3100*2650*1800



3200



VLFP200-B



1.8-2.0



132



2.2



φ195



3.0-4.0



  3100*2850*1900



3800

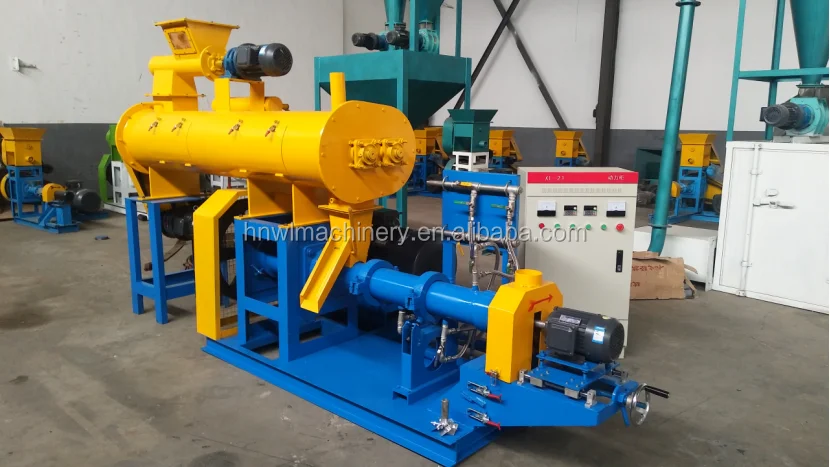

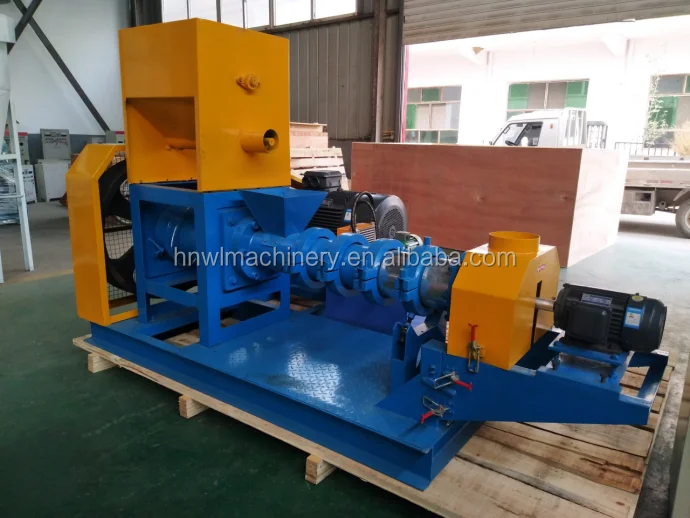

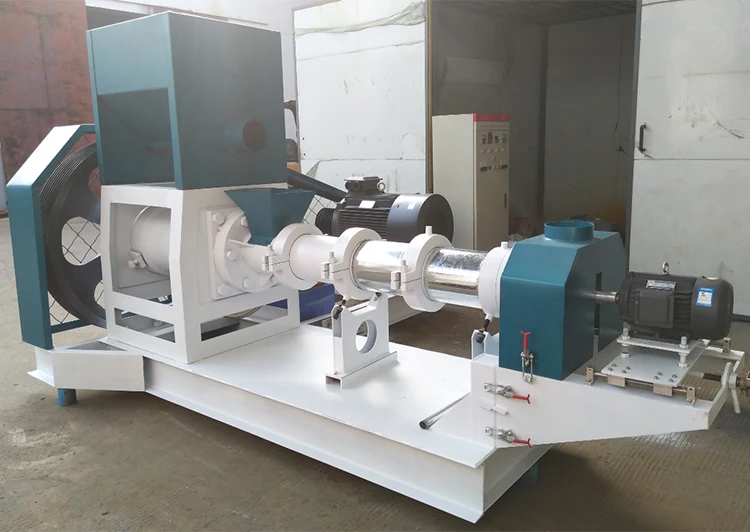

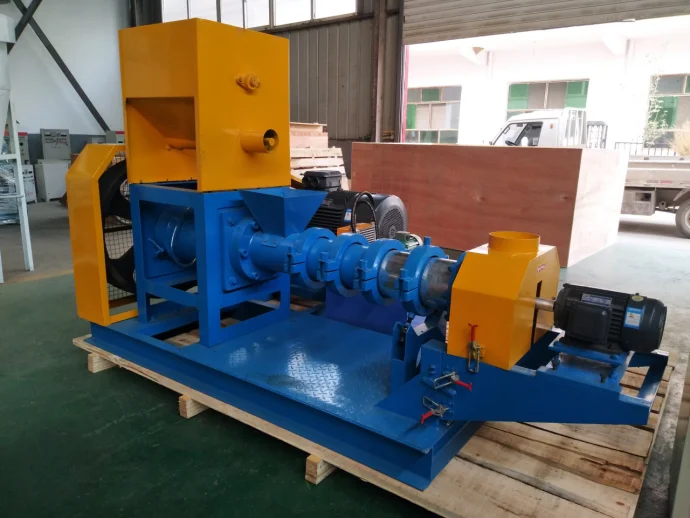

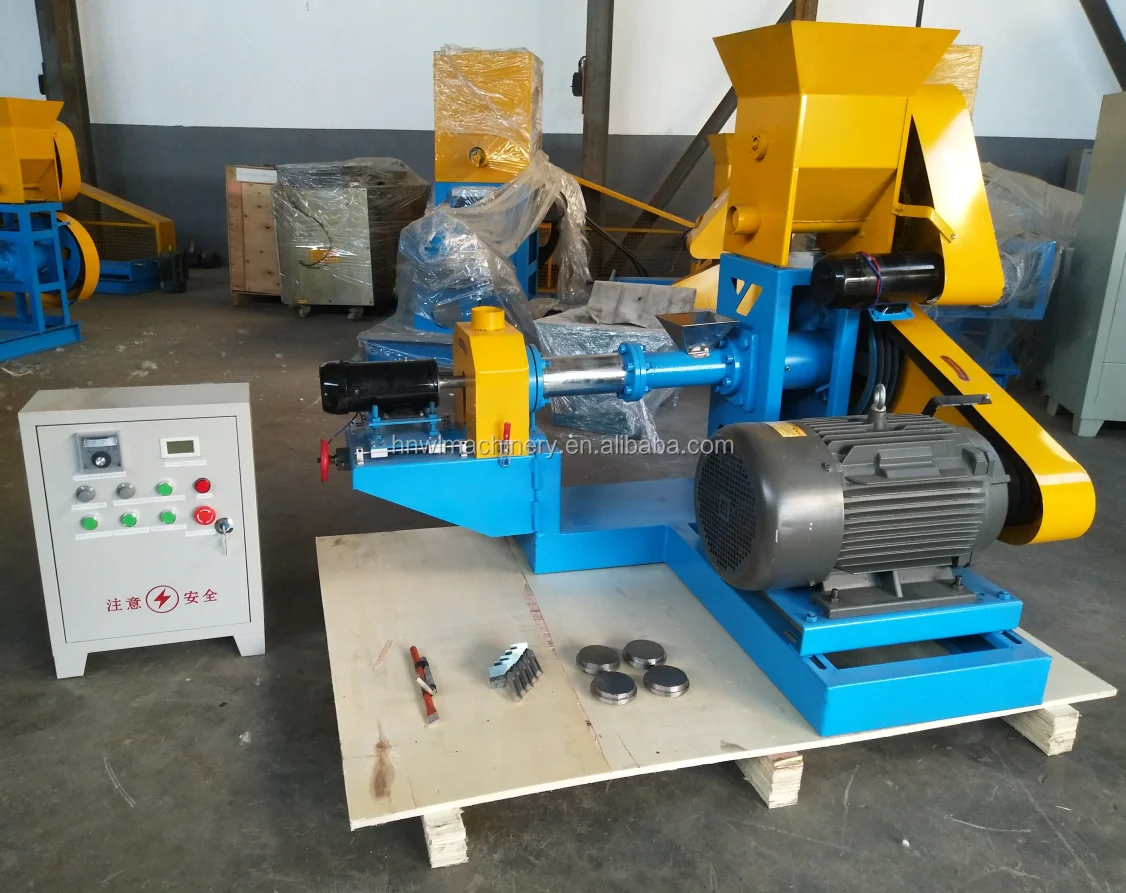

 Fish,dog ,cat and other pets extruder pictures


 34 (1).png34 (2).png1568431873(1).jpg1568431888(1).jpg











Company Information

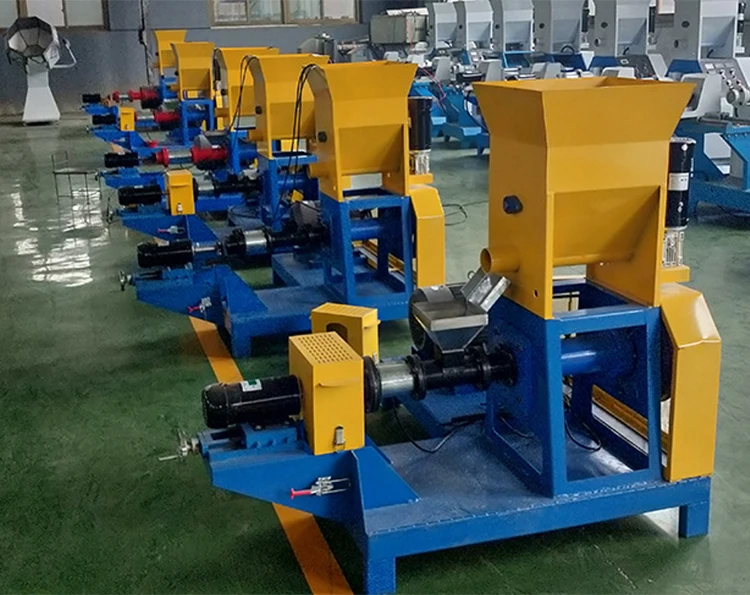

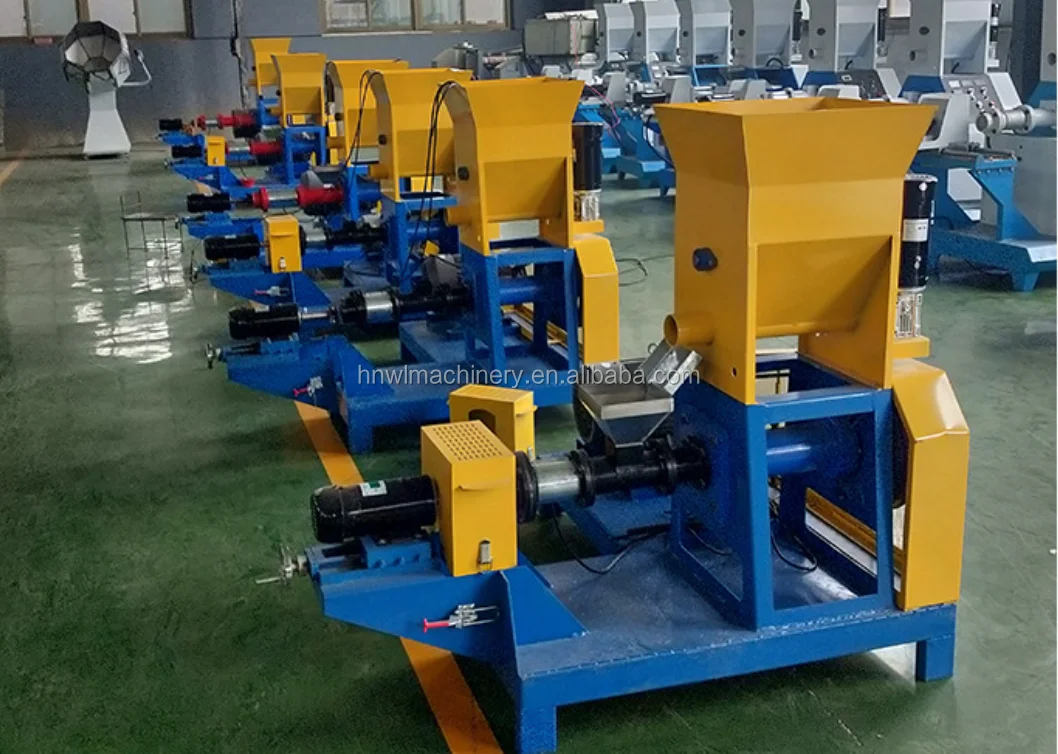

 Workshop of  fish,dog ,cat and other pets extruder







 Package and shipping


Packing : wooden case package


Deliver time :  one week .


Ship way : by sea











Contact us


For more machine details , contact with us freely !
