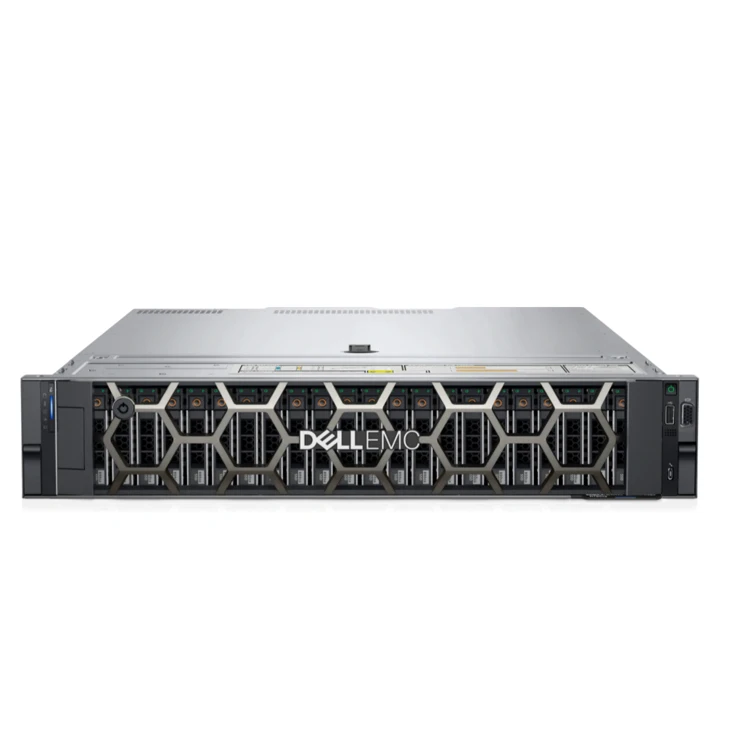

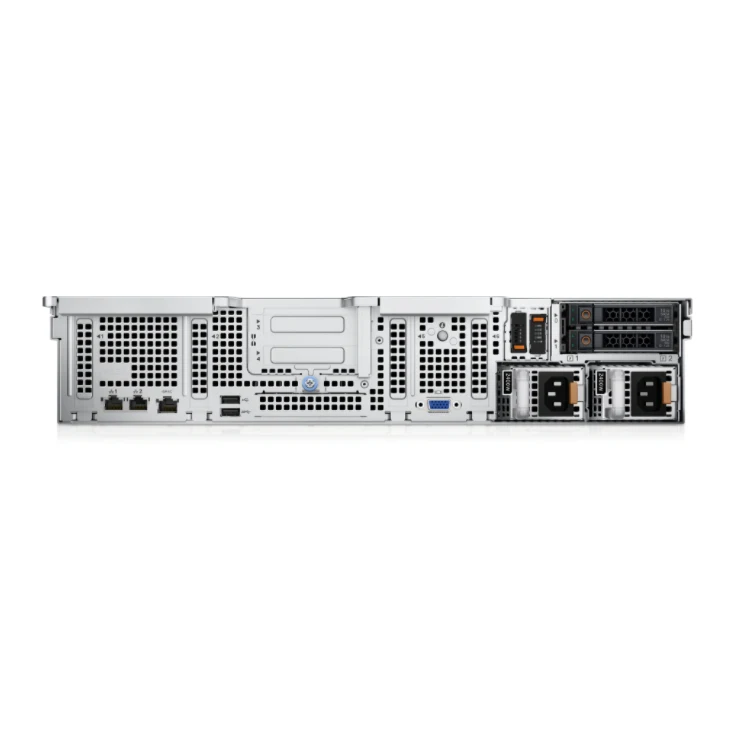

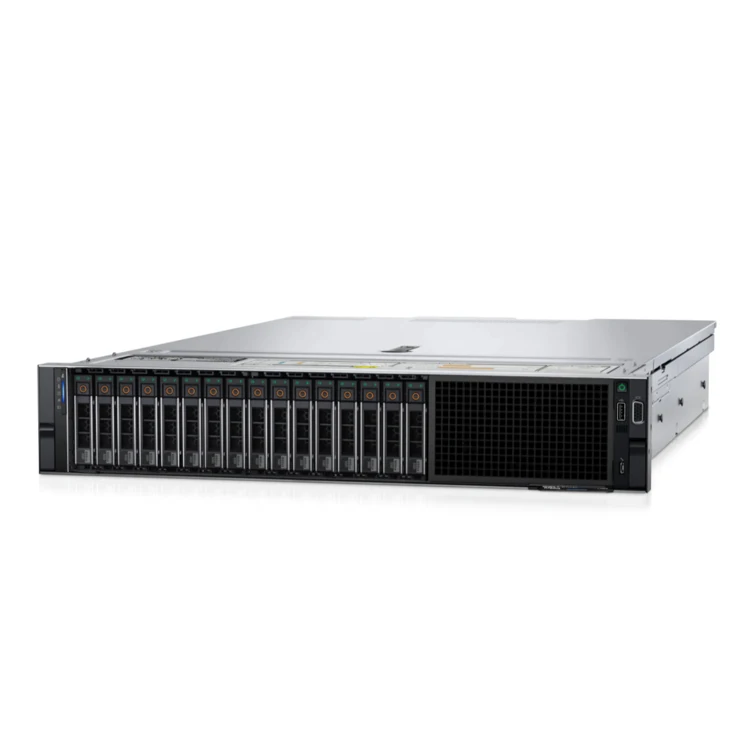

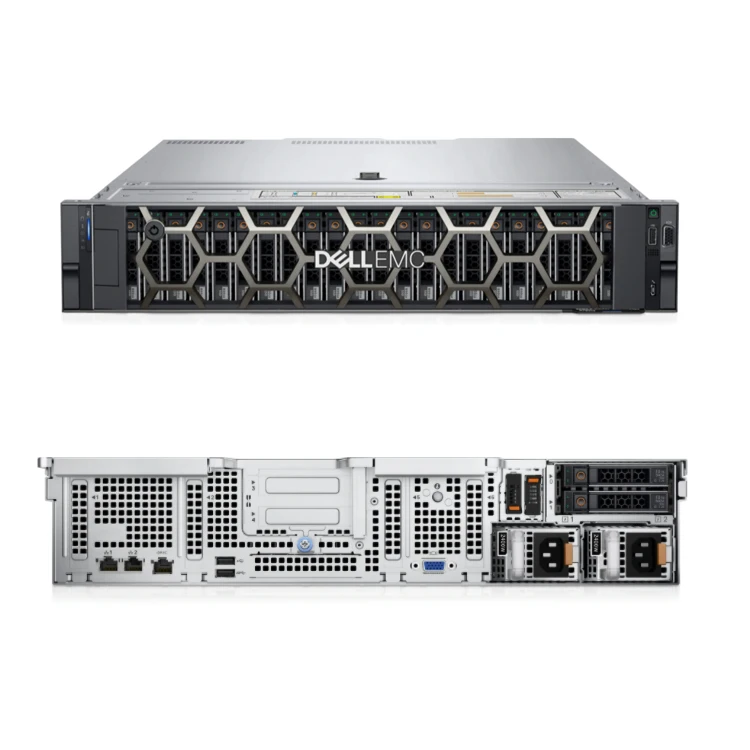

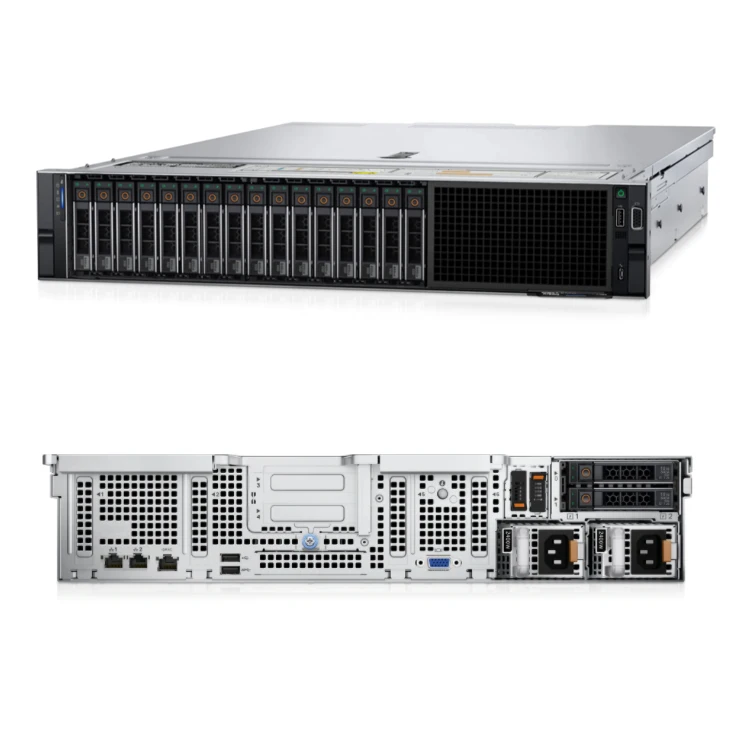

Dell poweredge r750XS 6348 CPU 28C 2.6GHz 2U rack server r750 XS raw server rack for
- Category: >>>
- Supplier: Beijing Meicheng Boshi Technology Co. Ltd.
Share on (1600939360540):
Product Overview
Description
product information
Model | Dell EMC PowerEdge R750XS |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
Power Supplies | • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W PlatinumAC/240 mixed mode |
Cooling Options | Air cooling, optional processor liquid cooling |
Fans | • Standard fan/High performance SLVR fan/High performance GOLD fan • Up to six hot plug fans |
Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm(30.39 inches) - with bezel |
Form Factor | 2U rack server |
Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
Embedded NIC | 2 x 1 GbE LOM |
Network Options | 1 x OCP 3.0 (x8 PCIe lanes) |
GPU Options | Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators |
