Manufacturer 12025 120x24.8 mm 12V 24V 48V Porous or Ball Bearing High Air Volume DC Cooling Fan for Amplifier
- Category: >>>
- Supplier: Shenzhen Feng Zhi Yuan Electronics Co. Ltd.
Share on (1600939362116):
Product Overview
Description

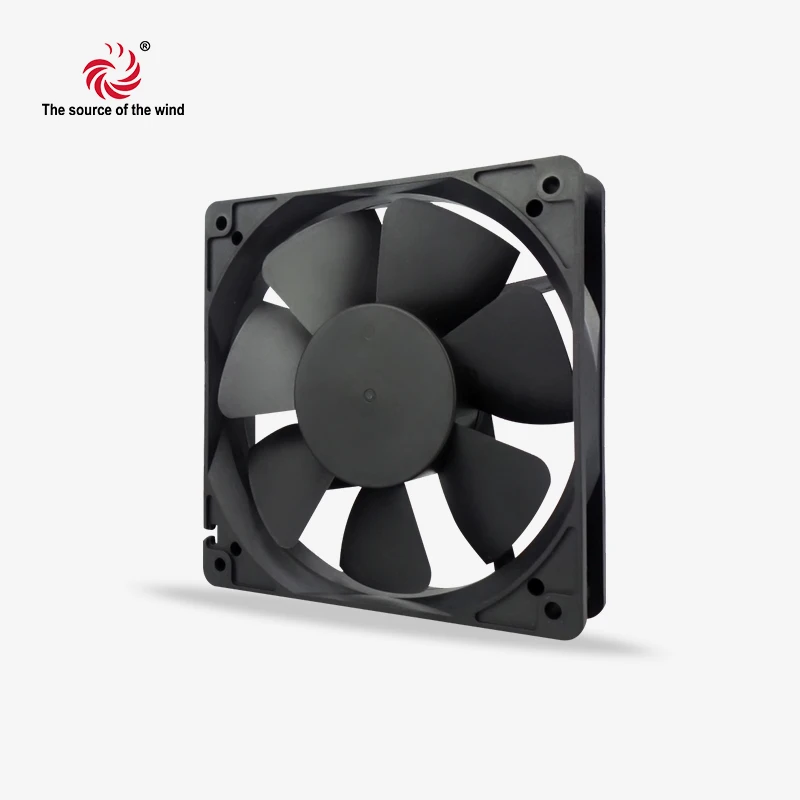

12025 DC Axial Cooling Fan
MODEL | VOLTAGE | SPEED | CURRENT | POWER | AIR FLOW | AIR PRESSSURE | NOISE | ||||
VDC | RPM | A | W | CFM | M3/h | mmH2O | InchH2O | dBA | |||
FD1225B6U | 48V | 5000 | 0.18 | 8.64 | 130.57 | 221.84 | 17.12 | 0.67 | 63.8 | ||
FD1225B6H | 4000 | 0.10 | 4.80 | 104.09 | 176.85 | 11.88 | 0.47 | 54.4 | |||
FD1225B6M | 3000 | 0.06 | 2.88 | 75.77 | 128.73 | 7.01 | 0.28 | 43.5 | |||
FD1225B6L | 2000 | 0.03 | 1.44 | 45.88 | 77.95 | 2.85 | 0.11 | 32.2 | |||
FD1225B4U | 24V | 5000 | 0.50 | 12.00 | 130.57 | 221.84 | 17.12 | 0.67 | 62.8 | ||
FD1225B4H | 4000 | 0.25 | 6.00 | 104.09 | 176.85 | 11.88 | 0.47 | 54.4 | |||
FD1225B4M | 3000 | 0.15 | 3.60 | 75.77 | 128.73 | 7.01 | 0.28 | 43.5 | |||
FD1225B4L | 2000 | 0.10 | 2.40 | 45.88 | 77.95 | 2.85 | 0.11 | 32.2 | |||
FD1225B2U | 12V | 5000 | 0.80 | 9.60 | 130.57 | 221.84 | 17.12 | 0.67 | 62.8 | ||
FD1225B2H | 4000 | 0.40 | 4.80 | 104.09 | 176.85 | 11.88 | 0.47 | 54.4 | |||
FD1225B2M | 3000 | 0.30 | 3.60 | 75.77 | 128.73 | 7.01 | 0.28 | 43.5 | |||
FD1225B2L | 2000 | 0.20 | 2.40 | 45.88 | 77.95 | 2.85 | 0.11 | 32.2 | |||

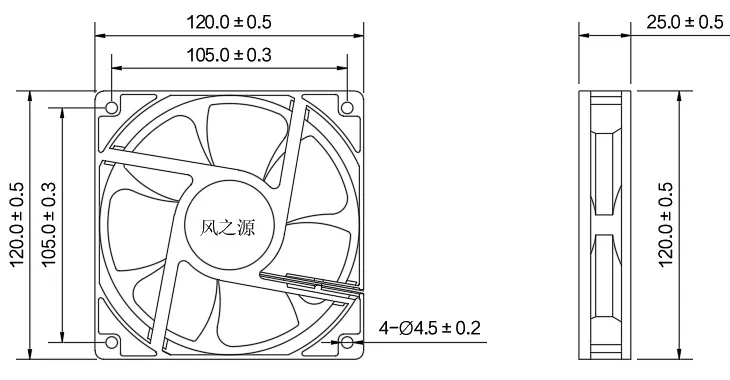

Unit:mm
1. Who is The source of the wind?
The source of the wind was founded in 2012, It is a technology company focusing on the R&D, manufacturing, sales and after-sales service of Computer fan, with ISO9001 and ISO14001 management system certification.
2. Why Choose The source of the wind?

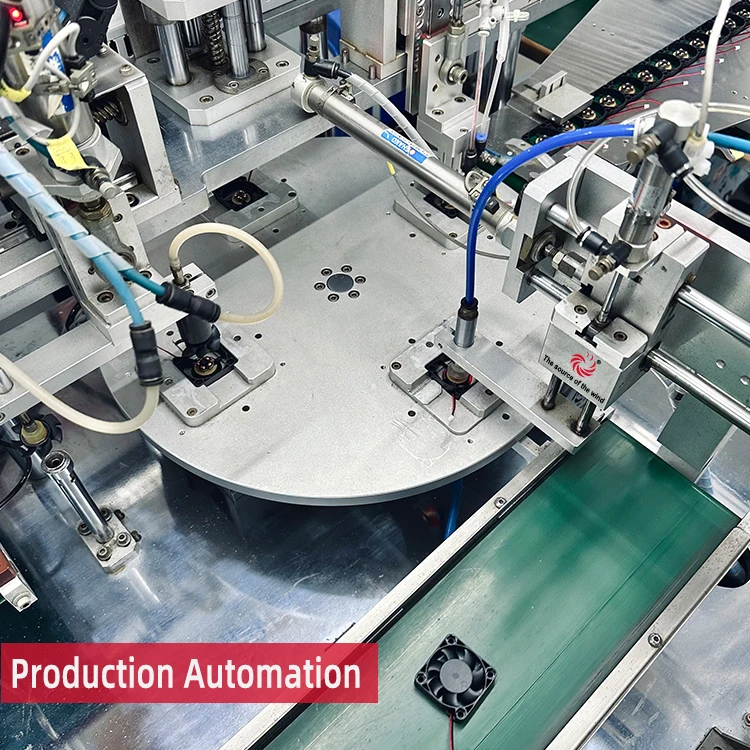

The source of the wind has 52 sets of its own product molds and 100+ fan products. Fans are produced using automated equipment and undergo intelligent equipment testing, meeting domestic and international testing standards such as UL CE FCC ROHS REACH.
3. What support can I get?
The source of the wind provides selection support, technical support, parameter customization, and after-sales support. You can contact us for more information.
4. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
5. What about the lead time?
Sample needs 3-5 days, mass production time needs 15-25days.
