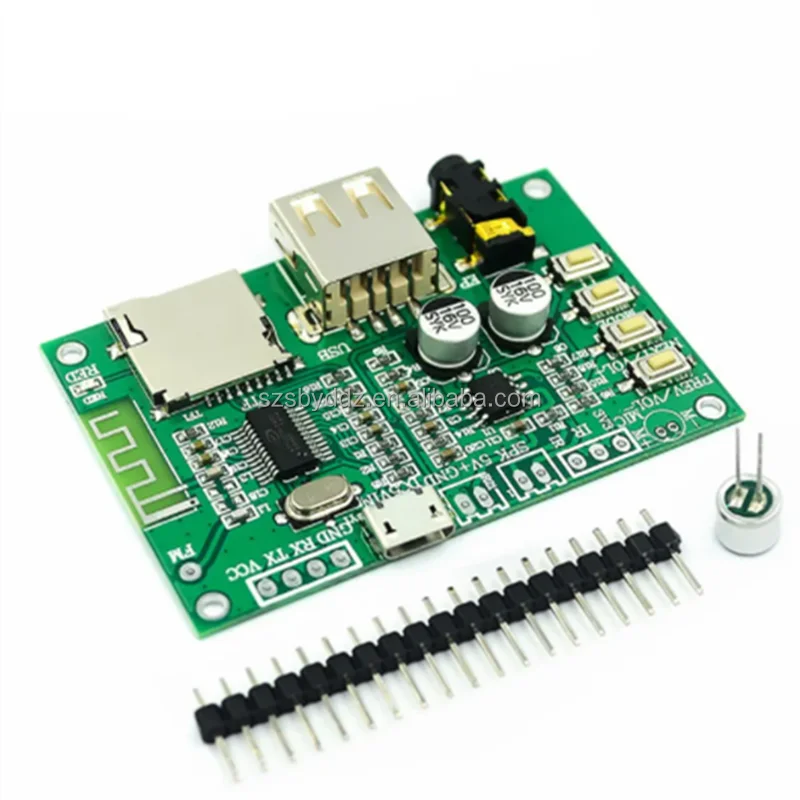

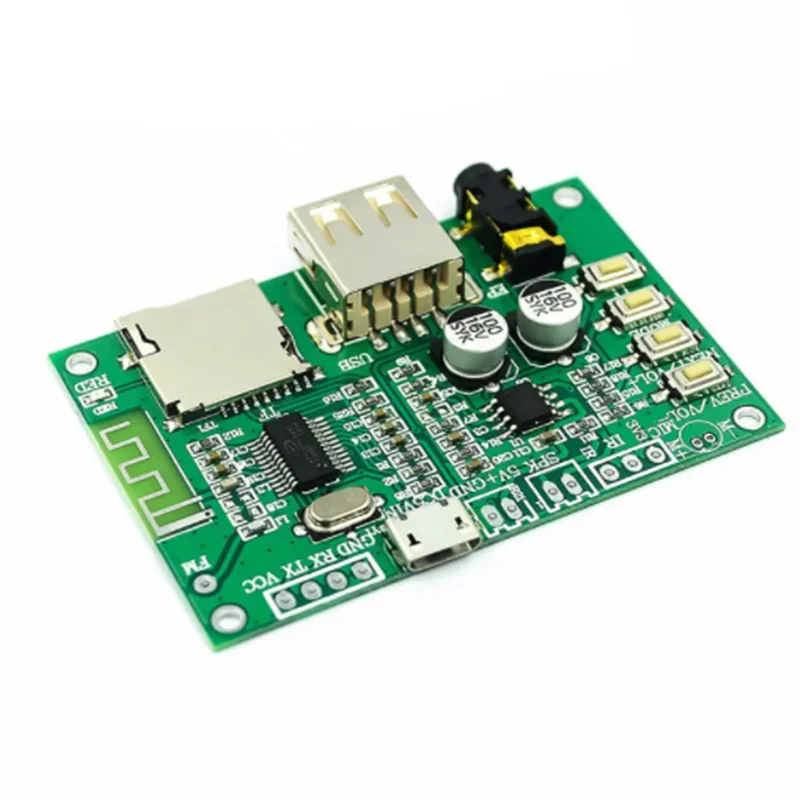

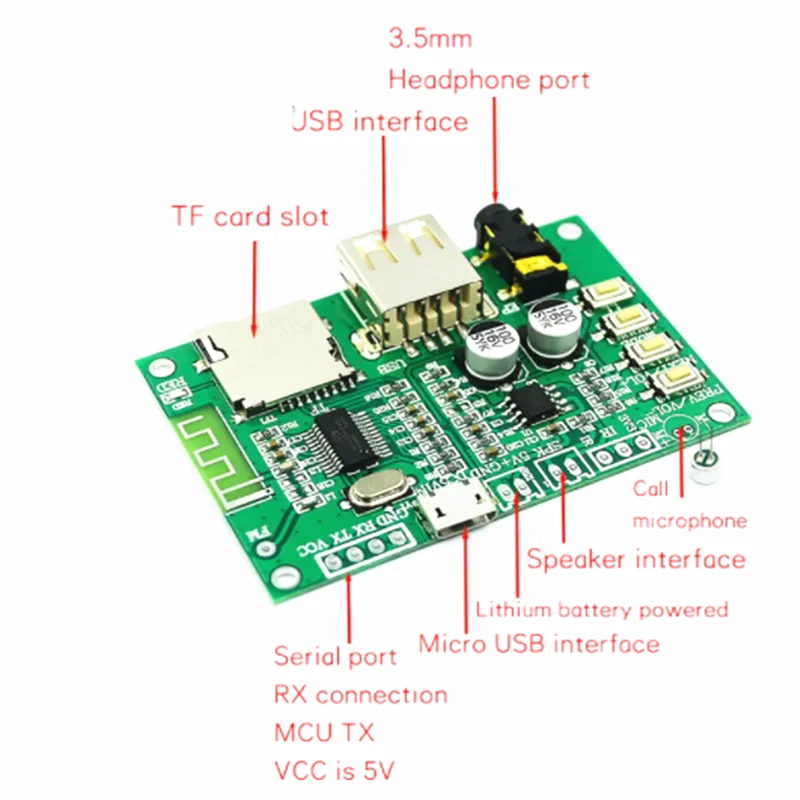

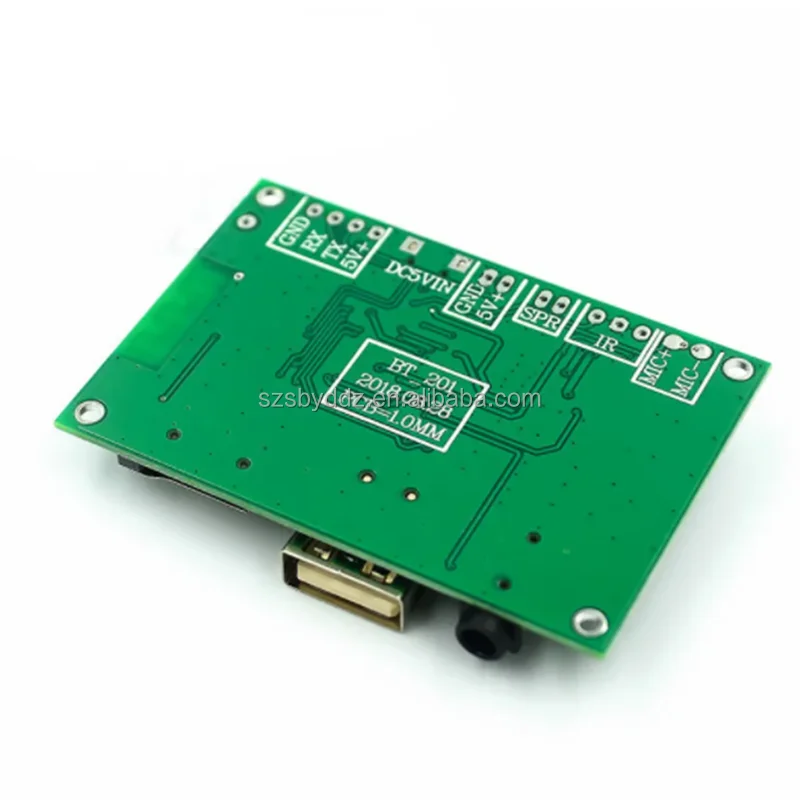

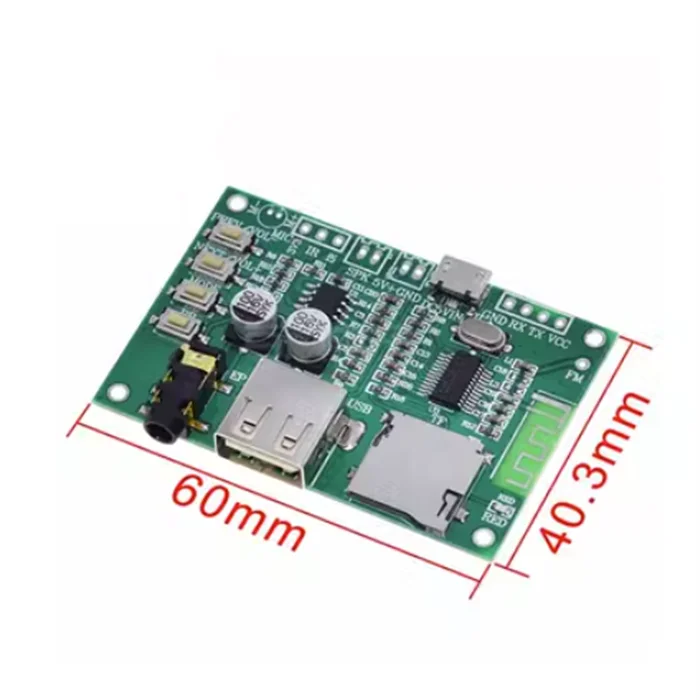

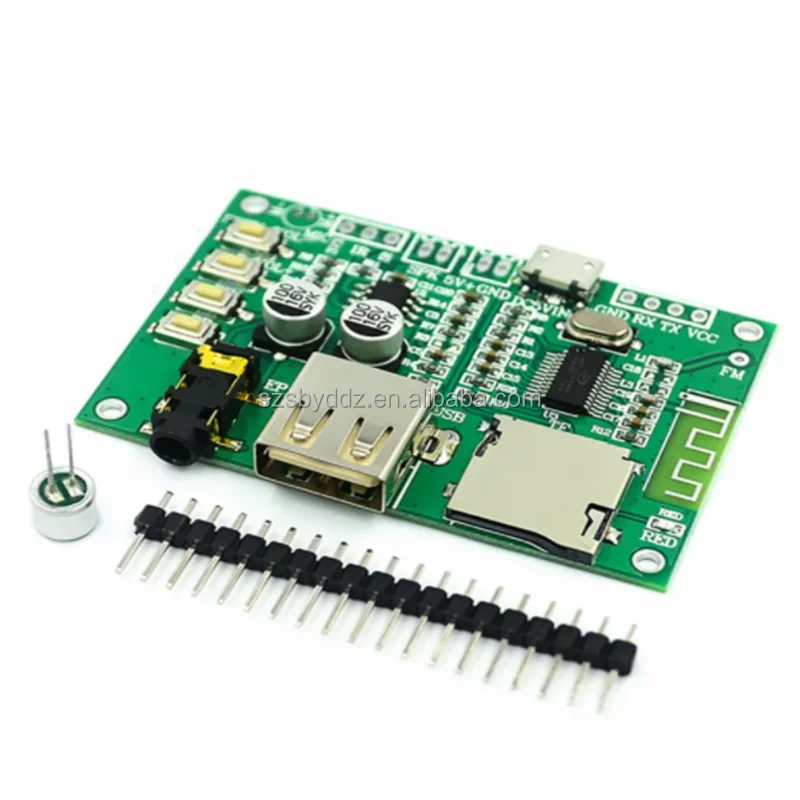

BT201 Dual Mode 5.0 BT Lossless Audio Power Amplifier Board Module Tf Card U Disk Ble Spp Serial Port Transparent Trans

BT201 Dual Mode 5.0 BT Lossless Audio Power Amplifier Board Module Tf Card U Disk Ble Spp Serial Port Transparent Trans BT201

Function introduction

1. Support bluetooth audio, BLE data transmission, U disk playback, TF card playback, SPIFLASH. hold MP3, WAV, FLAC, APE format decoding

2. Serial port AT command control.Support to modify baud rate to modify bluetooth name, specify device playback, and cell phone data passthrough

3, support BLE and SPP dual-mode data transmission, at the same time can play bluetooth audio, no conflict

4, support bluetooth call, multi-button control, last music, next music, play pause, tuning volume and other simple functions

5, support to get the full file name of play serial port specified path play, loop or single play

6. Support 128KBS recording function.Recording to TF card or U disk, recording delete playback and so on

7, rich use information, reference PCB, use video tutorial, mobile phone passthrough video tutorial, serial port AT video tutorial

8. Super simple peripheral,5 capacitors can be completed

9, easy docking already existing APP, or develop WeChat applet.Mobile phone control

10. We have made the functional firmware ourselves, which is very flexible. Even if there is a need that cannot be met, we can communicate and develop it

Functional description(Support AT serial command control)

1,16 bit Stereo dac with headphone amplifier, SNR > = 95 db
2,  no crystal vibration load capacitor, the chip automatically generates bluetooth MAC address, no rolling burning

Music features:
1, support MP3, WAV, WMA, FLAC, AAC, APE format decoding
2. The maximum support is 128G usb flash drive and TF card, supporting breakpoint memory and track memory functions

Bluetooth features:
1, support bluetooth audio transmission connection mobile phone transmission music, support play pause, up and down switch
2, support bluetooth call function, users can set to cancel, support receive, hang up, dial back, refuse to receive and other functions
3. Bluetooth version 5.0 supports HFP/A2 DP/AVRCP/HSP/ GAVDP/IoP/SPP/BLE with a distance of around 10M
4. The frequency range of Class24dbM is 2.4g -- 2.480g
5. Support pass-through function of BLE. Connect "bt201-ble" to support SPP pass-through function
