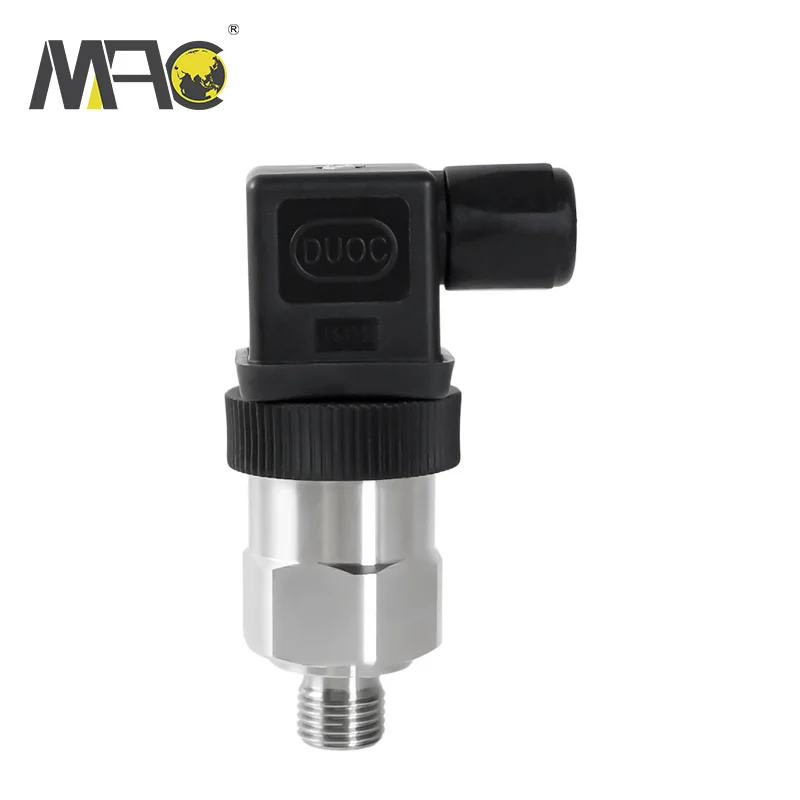

0 10 Bar Booster Carrier Sputtered Thin Film Pressure Sensor Transducer Transmitter
Product Description
PF001/002/003 series universal pressure sensors are packaged with our metal sputtering membrane cores, which can provide accuracy of 0.2%F.S, 0.5%F.S and 1%F.S in the pressure range of 0.5MPa to 250MPa. They have the advantages of long-term fatigue resistance, wide temperature range, shock resistance and high reliability, and can perform accurate measurements even under the most severe conditions. They are suitable for pressure measurement of various gases and liquids.

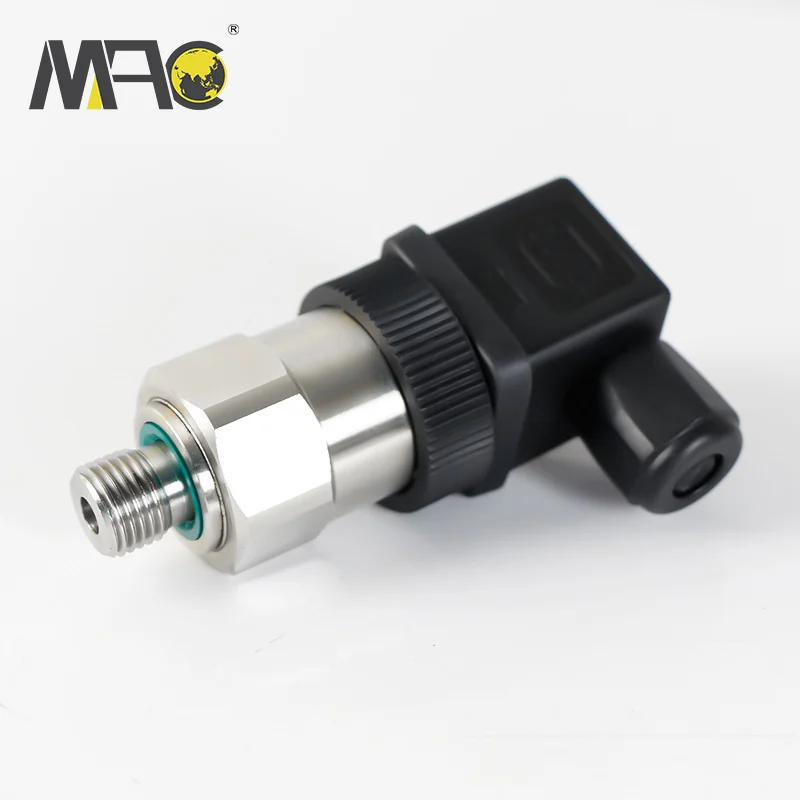

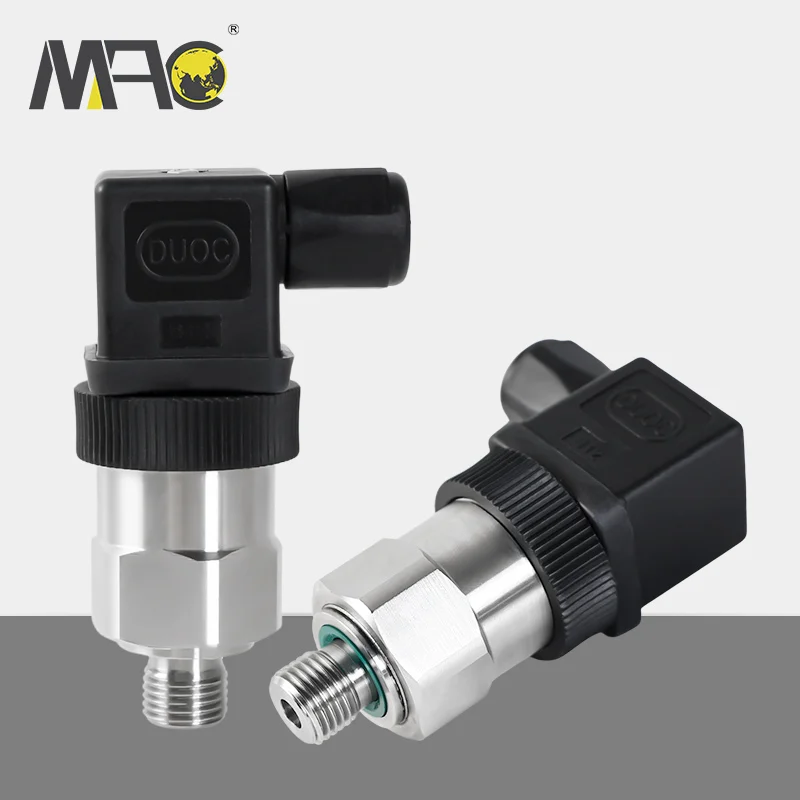

This series adopts sturdy all-welded stainless steel housing, which can effectively protect the sensor under harsh conditions. The electrical connectors are IP65 or IP67 rated. The robust internal structure ensures the sensor can work under a high vibration environment. Besides, it has a variety of outputs, pressure connectors and electrical connectors, meeting the needs of a wide range of applications.
Contact our dedicated sales team for a customized service now!
Features of PF000 series Universal pressure transmitter

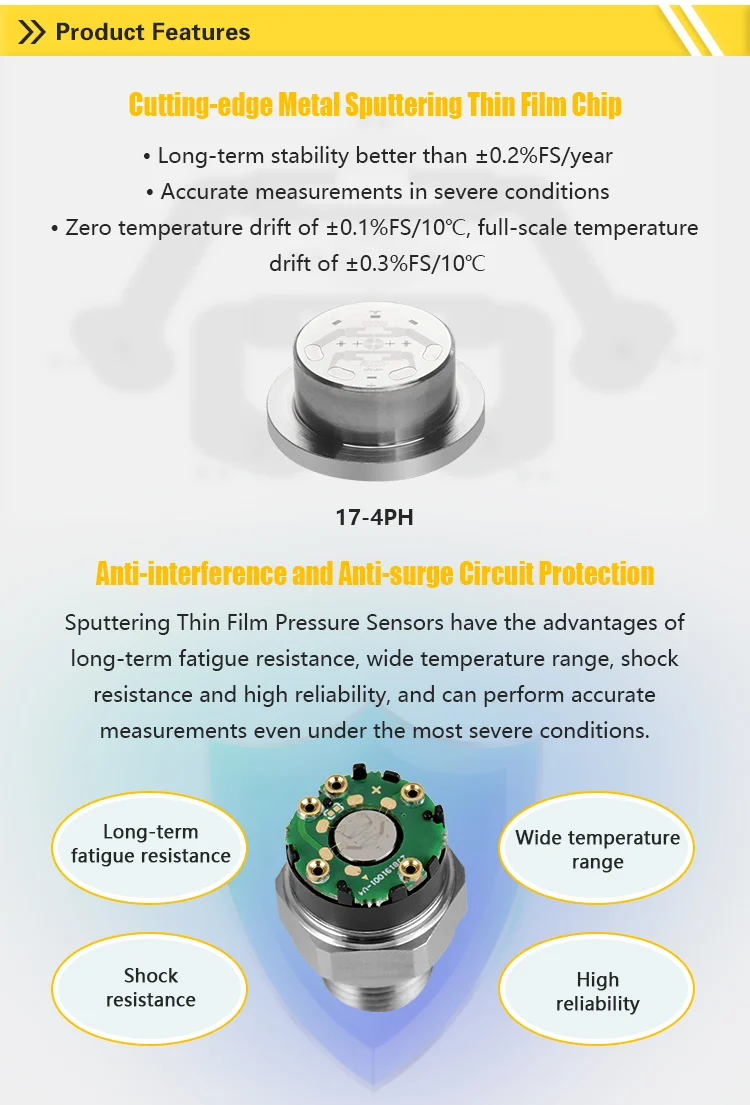

0.2%F.S,0.5%F.S,1%F.S accuracy optional.
Metal-based pressure-sensitive chip ensures long-term stability better than ±0.2%FS/year.
Advanced anti-interference, anti-surge circuit protection and high insulation and pressure-resistant film materials.

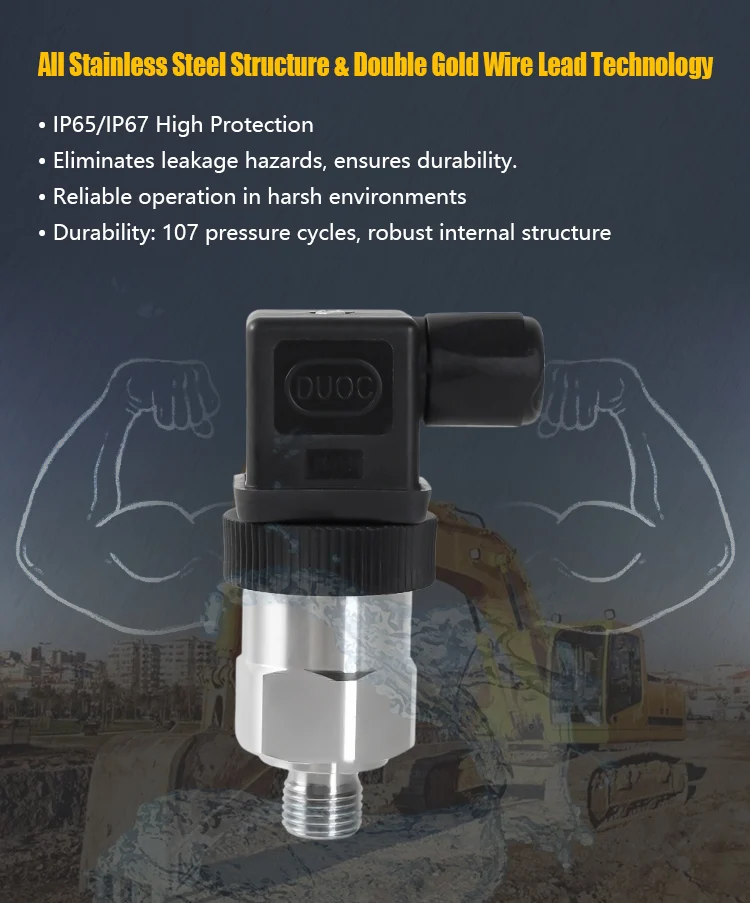

No oil filling, all S/s structure, no leakage hazard.
Firm & durable double gold wire lead technology.
Wide measuring range from 0.5MPa~25OMPa.
Fast response, response time less than 1ms.
Small hysteresis and good repeatability.
P65, IP67 high protection class.

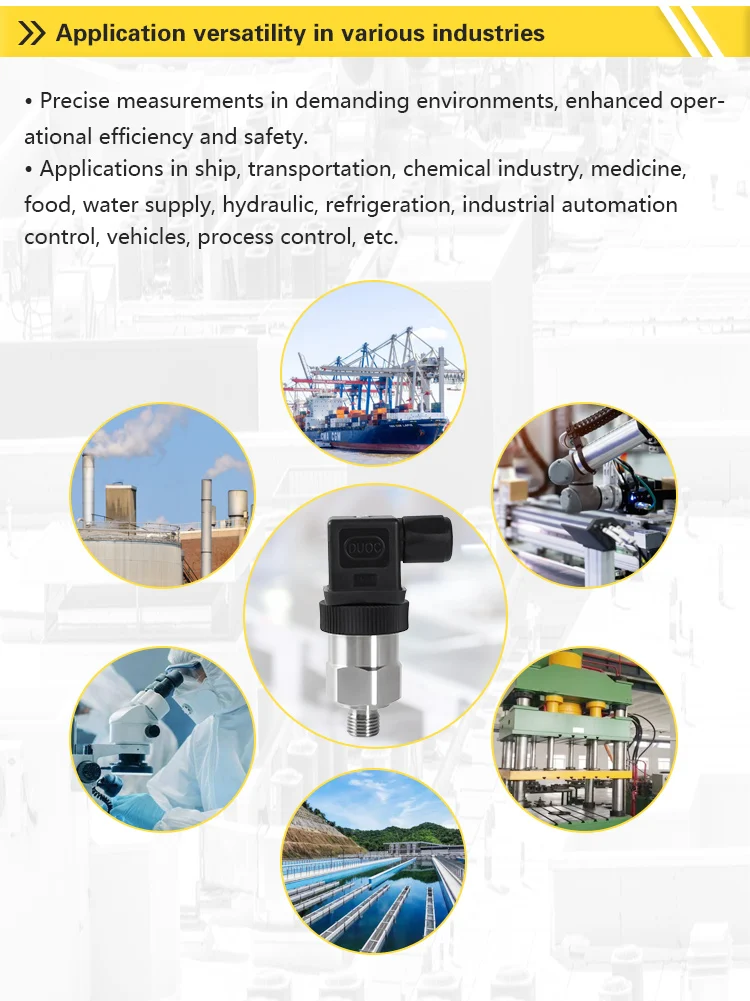

Applications of PF000 Universal pressure transmitter:
Ship, Transportation, Chemical industry, Medicine, Food, Water supply, Hydraulic, Refrigeration, Industrial Automation Control, Vehicles, Process control, etc.
Specifications
| Parameter | PF001/002/003 Series | ||||||||
| Measuring range(MPa) | 0.5-2.5 | 4-10 | 16-40 | 60 | 70 | 100 | 120-180 | 200 | 250 |
| Overload pressure | 200% | 200% | 150% | ≤300MPa | |||||
| Burst pressure | 4000% | 2000% | 1000% | ≤400MPa | ≤400MPa | ||||
| Accuracy | ±0.2%F.S,±0.5%F.S ,±1%F.S | ||||||||
| Long-term stability | ±0.2%F.S/year | ||||||||

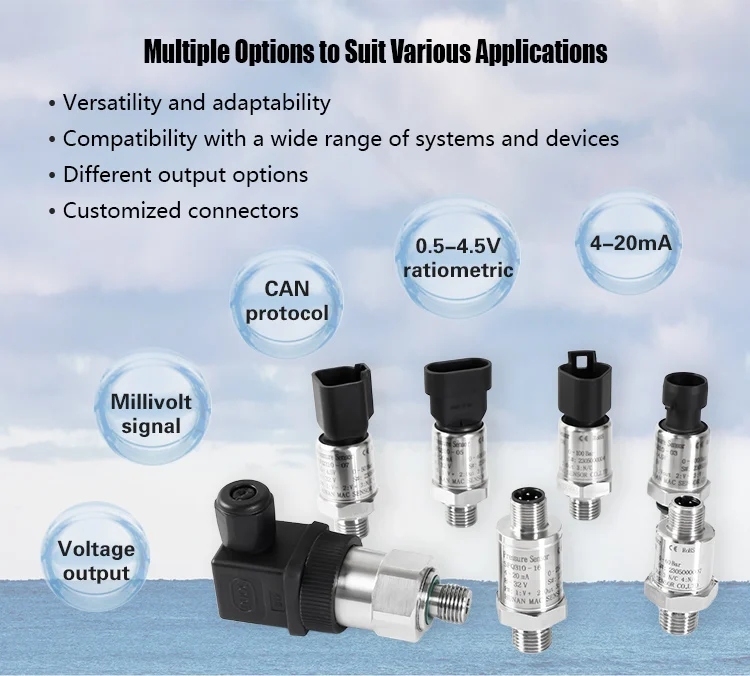

| Output | 4-20mA,0.5-4.5V,0.5-4.5V(ratiometric),0.5-2.5V,0-5V, 0-10V, | ||||||||
| CAN protocol digital output, millivolt signal | |||||||||
| Power Supply | 8-32VDC, 5VDC | ||||||||
| Load | Current output type: RL≤50×(Vcc-8)Ω,Voltage output type: RL≥2 KΩ | ||||||||
| Zero-point temperature drift | ±0.1%F.S/10℃ or by customized | ||||||||
| Full-range temperature drift | ±0.3%F.S/10℃ or by customized | ||||||||
| Response time | ≤1ms | ||||||||
| Durability | 108 pressure circles | ||||||||
| Insulation resistance | ≥1000MΩ/500VDC | ||||||||
| Sensitive component material | 17-4PH | ||||||||
| IP rating | IP65, IP67 | ||||||||
| Medium temp. range | -40~+85℃ | ||||||||
| Ambient temp. range | -40~+85℃ | ||||||||
| Storage temp. range | -40~+85℃ | ||||||||
| Random vibration | 14.1g, GB/T2423.56-2006 | ||||||||
| Sinusoidal vibration | 10g,GB/T2423.10-2008 | ||||||||
| Shock | 20g,11ms GB/T2423.5-1995 | ||||||||
| EMC-electromagnetic field radiation immunity | GB/T 17626.3-2016 | ||||||||
| EMC-electrostatic discharge immunity | GB/T 17626.2-2018 | ||||||||
Quick Quotation
How to order sensors?
To recommend a suitable pressure sensor for you, please kindly confirm the following questions before ordering:
1. Measuring range?
2. Signal Output
3. What's the application? Measuring Medium? Hydraulic oil, gas or others?
4. Process connection?
5. Other special requirements?
The price here is just for reference. Each product will be customized based on your project demand, please send an inquiry to get the optimized product solutions and the best price. Please leave your email address so that our sales engineer can offer one-to-one service for you!
PF100 (Model) Item | 01 | A | S3 | G2 | 055 | 1 |
Electrical Connection | 01=M12X1 02=Direct cable outlet |
|
|
|
|
|
Output | A= 4-20mA |
|
|
|
| |
Power Supply | S3=24Vdc |
|
|
|
| |
Pressure connection | G2=G1/4-19 N2=NPT 1/4 M6=M20X1.5 M3=M12X1.5 G1=G1/8 G5=G1/4-19A G4=G1/2 M4=M14X1.5 M1=M8X1.25 female |
|
|
| ||
Pressure Measurement | 055=0.5 MPa 105=1 MPa 165=1.6 MPa 255=2.5 MPa 046=4 MPa 066=6 MPa 106=10 MPa 166=16 MPa 256=25 MPa 406=40 MPa 606=60 MPa 706=70 MPa 107=100 MPa 127=120 MPa 147=140 MPa 167=160 MPa 187=180 MPa 207=200 MPa 257=250 MPa |
|
| |||
Accuracy | 0=1%F.S 1=0.5%F.S 7=0.2%F.S | |||||
