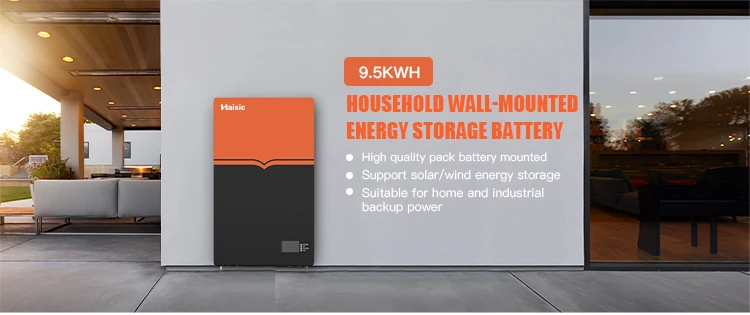

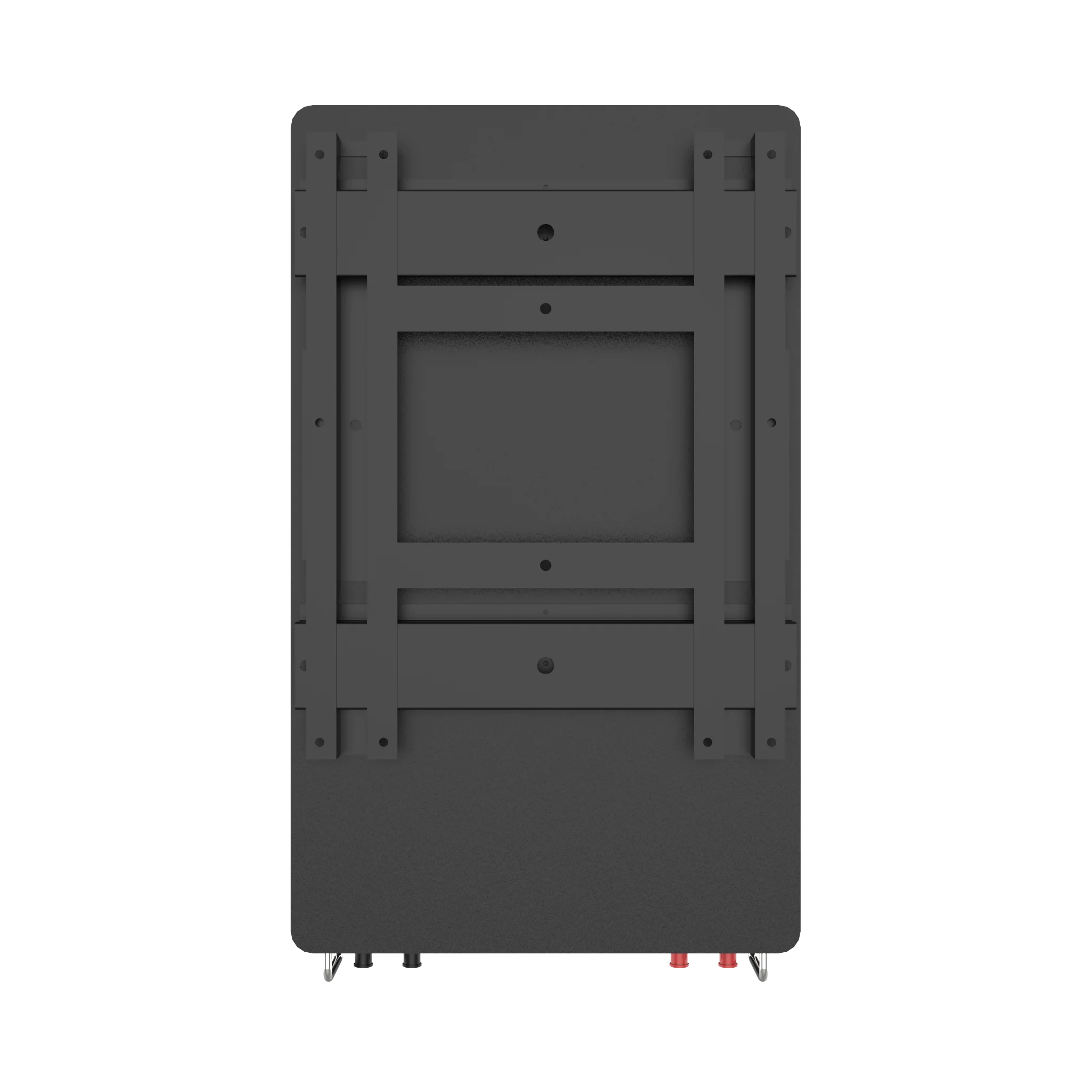

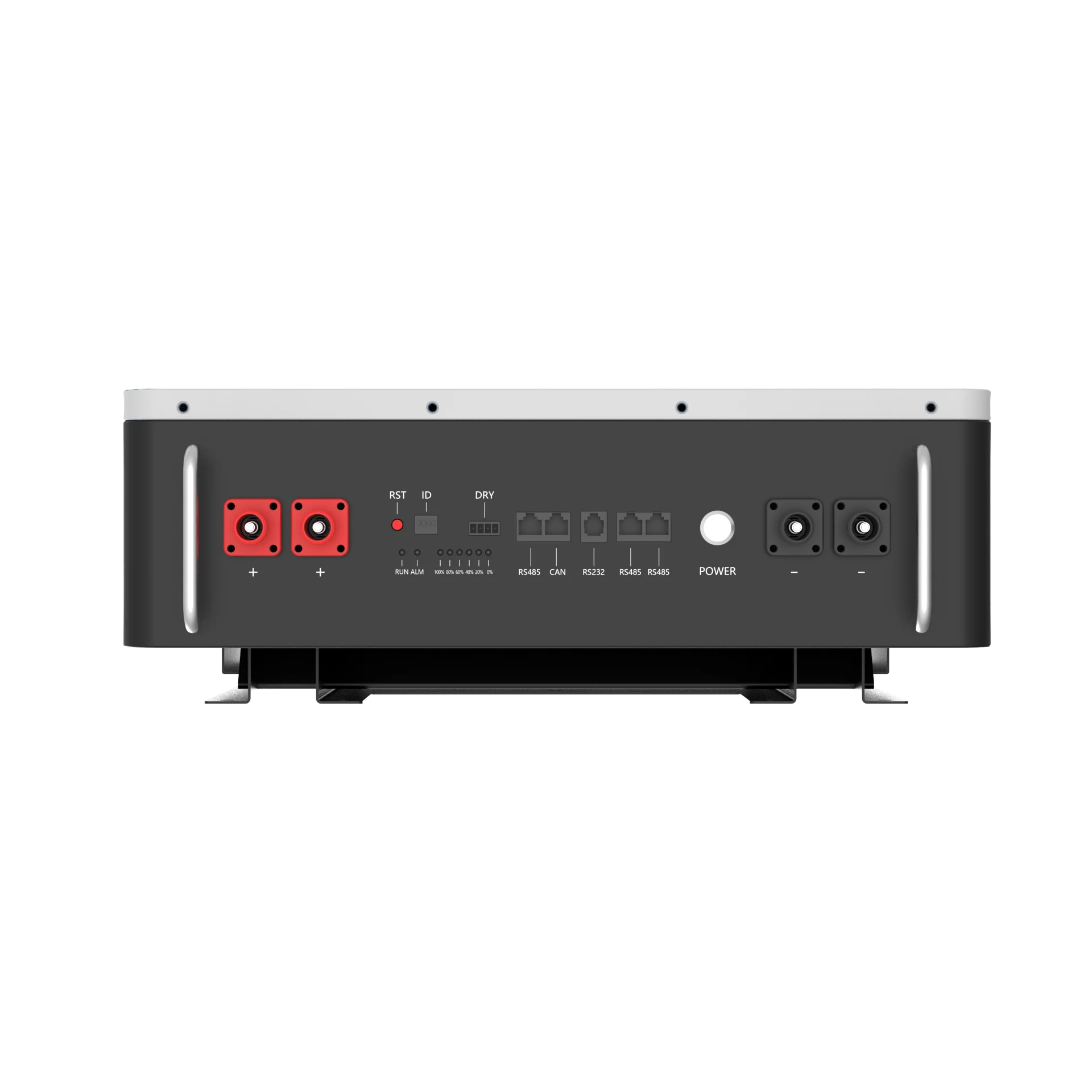

10kWh Wall Mounted Solar Energy Storage System Lithium 51.2V 48V 200Ah Battery LifePO4 with CAN and RS485 Ports
- Category: >>>
- Supplier: Shenzhen Haisic Technology Co. Ltd.
Share on (1600939418656):
Product Overview
Description
Products Description
What is a Powerwall Battery?
The powerwall battery is an integrated battery system that can store your solar energy for backup protection when the grid fails. In short, the Powerwall battery is a home energy storage device that can store energy directly from the grid, or it can store electricity generated by renewable energy sources such as wind and solar energy. Households can install a single battery, or couple them together for greater storage capacity.
Our solar wall battery uses lithium iron phosphate battery (LiFePO4 or LFP) technology, which has the characteristics of long service life, no maintenance, extremely safe, lightweight, high discharge, and charging efficiency, LiFePO4 battery is not the cheapest battery on the market, but due to the use of Long life and zero maintenance, so over time, it is the best investment you can make.
Our solar wall battery uses lithium iron phosphate battery (LiFePO4 or LFP) technology, which has the characteristics of long service life, no maintenance, extremely safe, lightweight, high discharge, and charging efficiency, LiFePO4 battery is not the cheapest battery on the market, but due to the use of Long life and zero maintenance, so over time, it is the best investment you can make.
Products Features
\\uD83D\\uDC4DWider Temperature Range: -20℃~60℃
\\uD83D\\uDC4Dlonger Cycle Life:＞6000 Cycles
\\uD83D\\uDC4DMore Safer:Bulit in BMS system
\\uD83D\\uDC4DSafe and Gree:no fire and no explosions.
\\uD83D\\uDC4DMore Reliable:CE,EMC,TUV（IEC62619）,UL1973 Certification.
\\uD83D\\uDC4DPlug in and play:plug in battries then working.
Model | HS-BG9500W |
Basic Parameter | |
Rated Voltage（V） | 51.2 |
Rated Capacity（Ah） | 186 |
Rated Energy（Wh） | 9523 |
Operation Parameter | |
Voltage Range（V） | 44.8-56 |
Charge Voltage Range（V） | 55.2-56 |
Cut-off Voltage（V） | 44.8 |
Recommend Charge Current（A） | 100 |
Max Charge Current（A） | 166 |
Max Discharge Current（A） | 166 |
Physical Parameter | |
Dimension：L*W*H（mm） | 457*163*760 |
Weight（kg） | 70 |

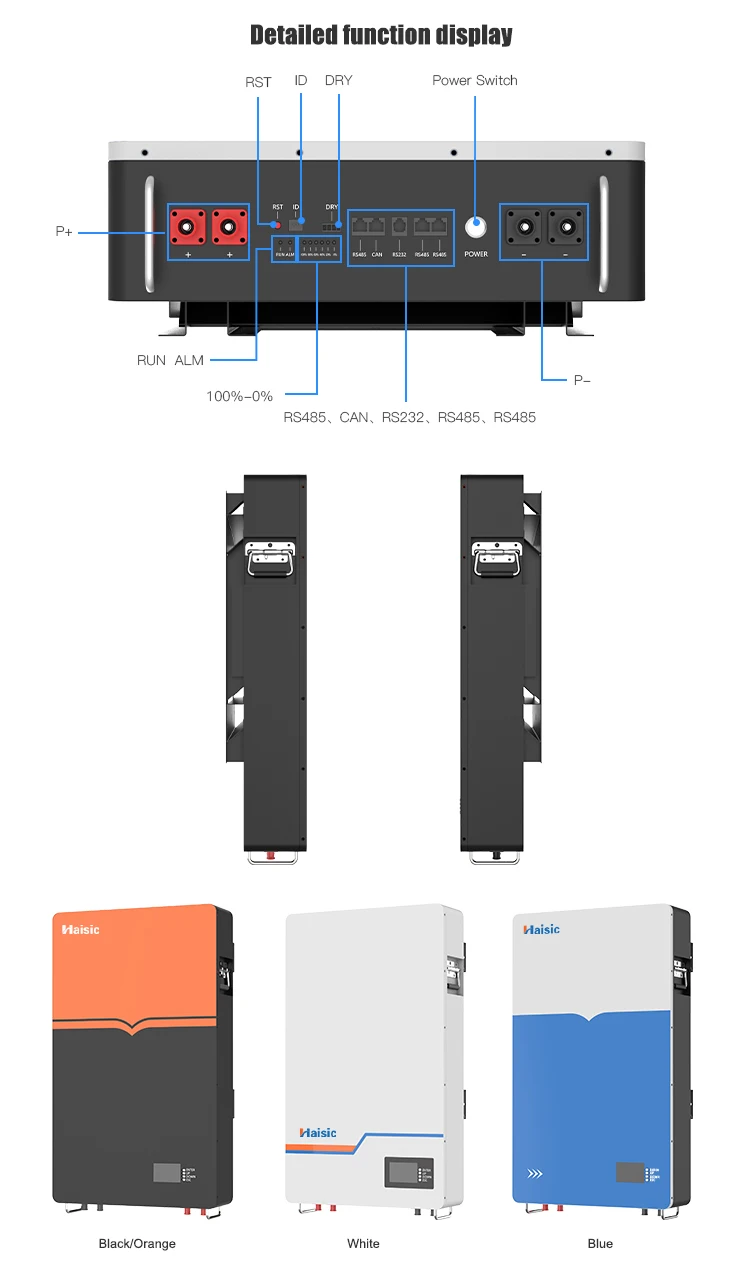

Communication Port | RS485，CAN |
Display | LED+LCD |
Terminal | Plug-in |
Compatible inverter | Growatt,Goodwe,Sol-Ark,SRNE, DEYE |
Environment Parameter | |
Humidity（%） | 5-95% RH |
Charge Temperature Range（℃） | 0-45 |
Discharge Temperature Range（℃） | -20-60 |
Storage Temperature Range（℃） | -20-45 |
Service Life | |
Cycle Life | ＞6000 （0.5C@ 25℃，80% DOD） |
Certification | |
Safety & Certification | CE，EMC，TUV（IEC62619），UL1973 |
Transportation | UN38.3 |

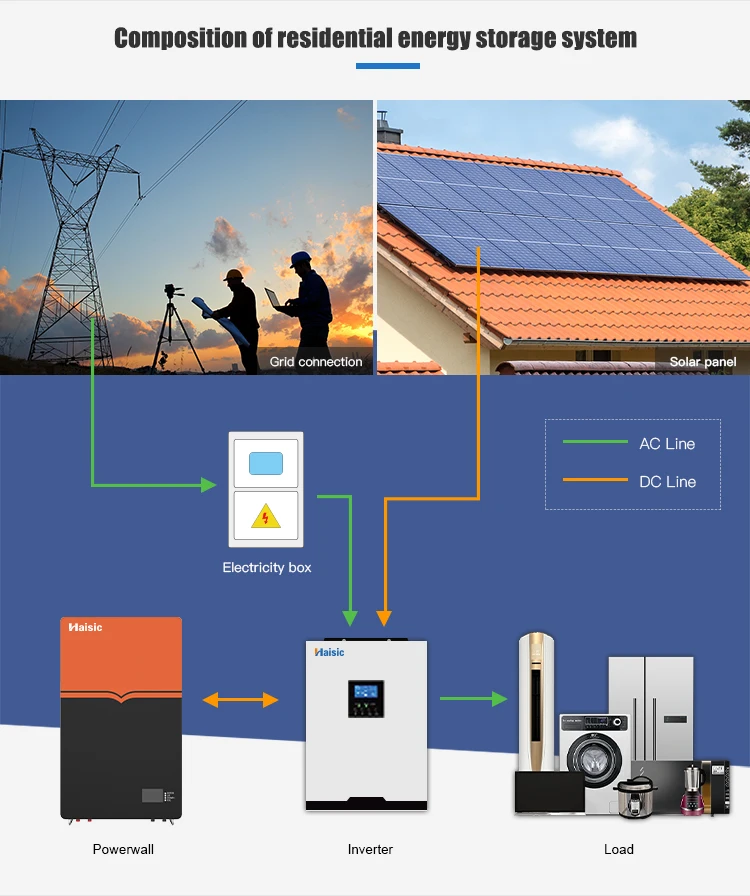

How does the Solar Powerwall work?
The Solar Powerwall works like most Home Battery Banks. It stores energy from sources such as solar panels or the grid or even a generator and can release the redirected energy for more flexible use in the future when it is needed.
With the increase in residential solar energy storage installations in recent years, Solar Powerwall batteries are often paired with solar panels to store excess energy production. This provides a clean source of energy that can power homes during the day and night, on cloudy days, and dark days in the winter.
Not only does the Solar Powerwall work in off-grid solar systems, but it is equally important in grid-tied solar systems, and we are excited to see more and more homeowners choosing the Solar Powerwall to provide greater flexibility for their solar systems and their home energy.
With the increase in residential solar energy storage installations in recent years, Solar Powerwall batteries are often paired with solar panels to store excess energy production. This provides a clean source of energy that can power homes during the day and night, on cloudy days, and dark days in the winter.
Not only does the Solar Powerwall work in off-grid solar systems, but it is equally important in grid-tied solar systems, and we are excited to see more and more homeowners choosing the Solar Powerwall to provide greater flexibility for their solar systems and their home energy.

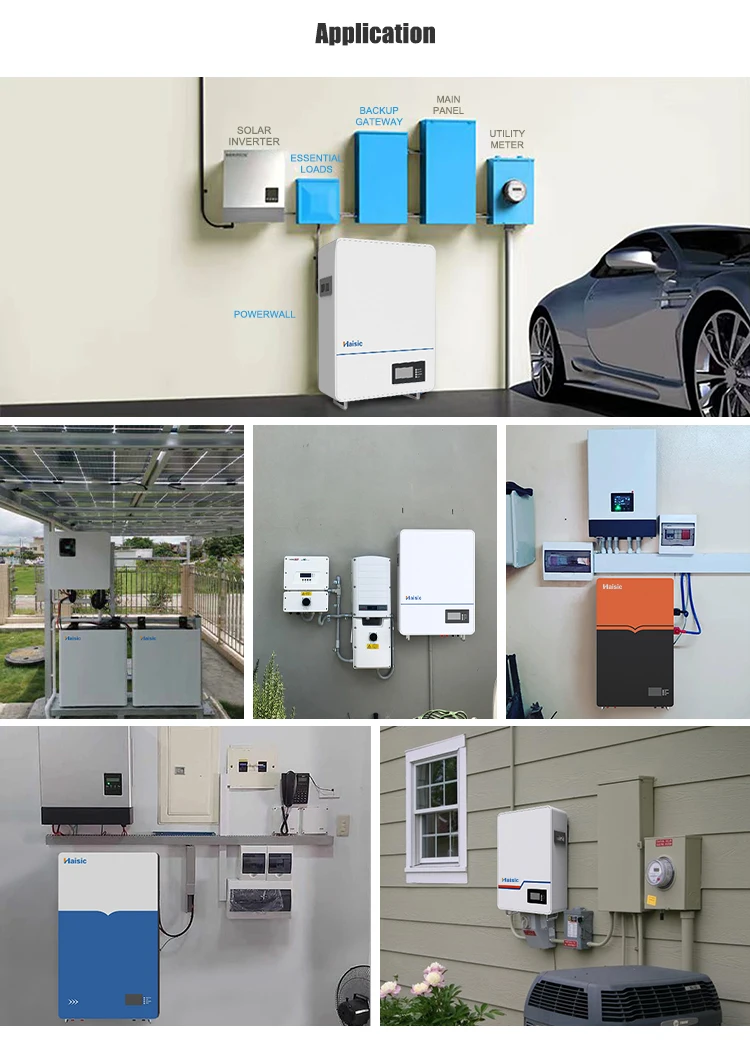

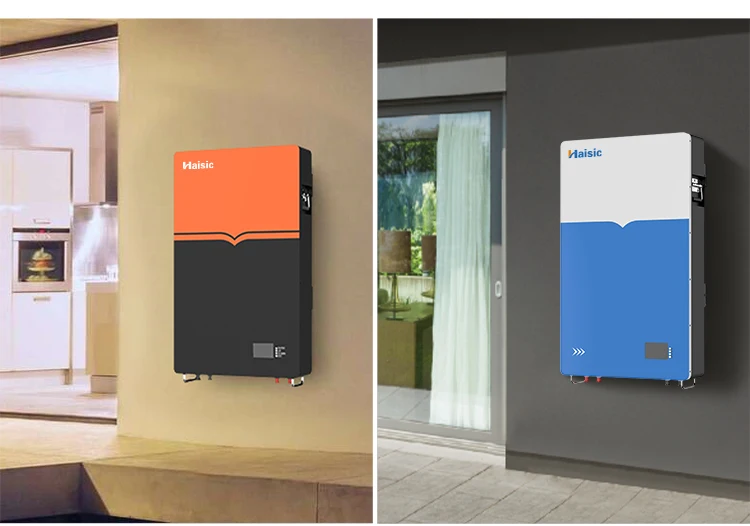

Product Applications
Client Feedback
Certifications
Company Profile

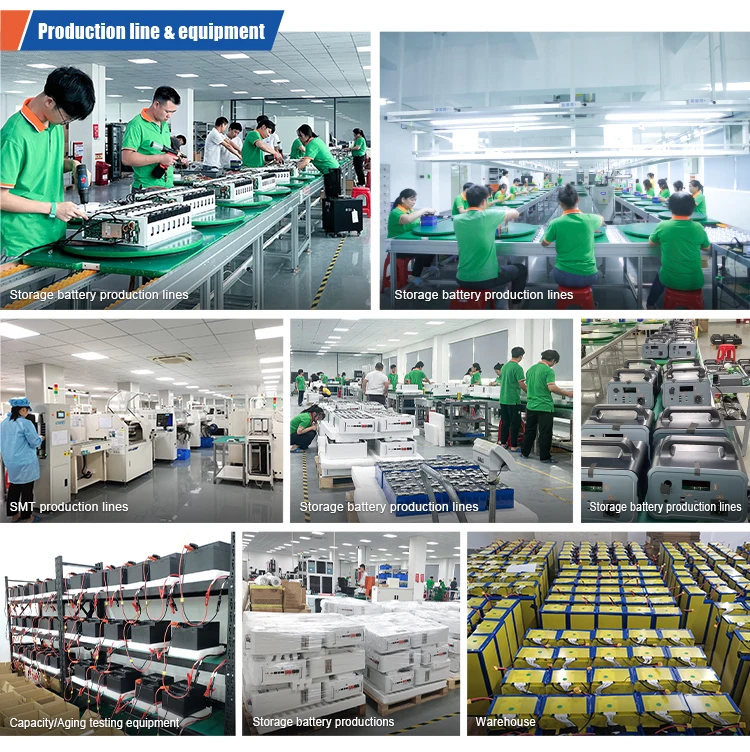

Factory Show
Exhibition
FAQ
Q1:Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: What's your MOQ？
A. MOQ：1PC
Q3:What payment methods are supported?
A:Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.
Q4: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's
confirm when you send inquiry.Shipped from Germany and US warehouses, arrive in 2-5 days
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q6:How can I do if I need more help for the order?
A:You can chat our sales online or send inquiry email,we will respond you ASAP.
Q7:How can I place the order?
A:Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping informtion to our sales they will creat online order for you.
