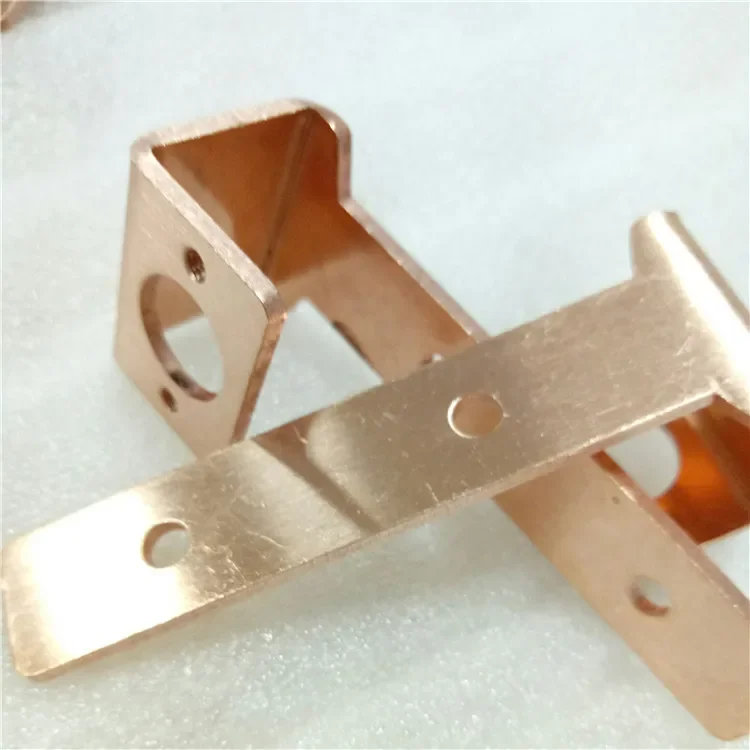

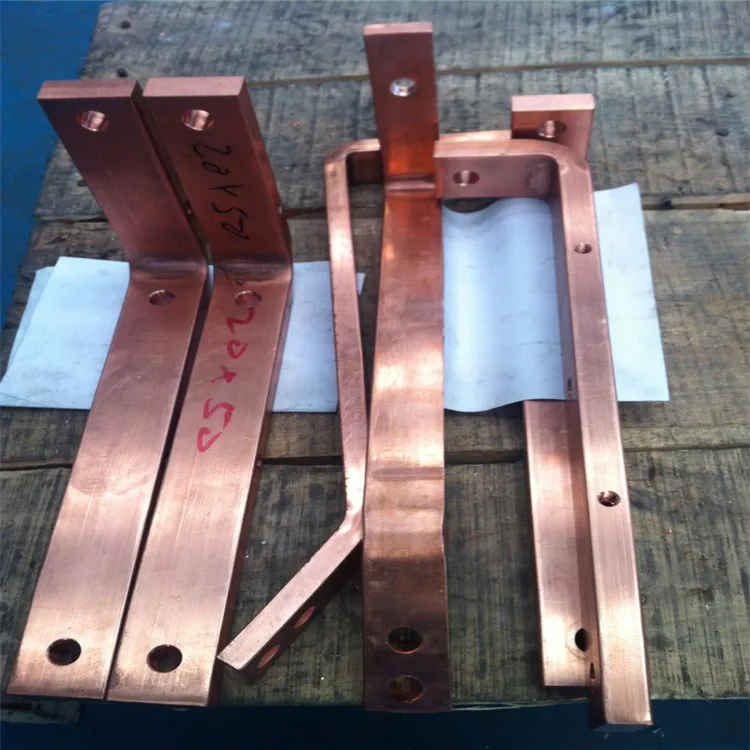

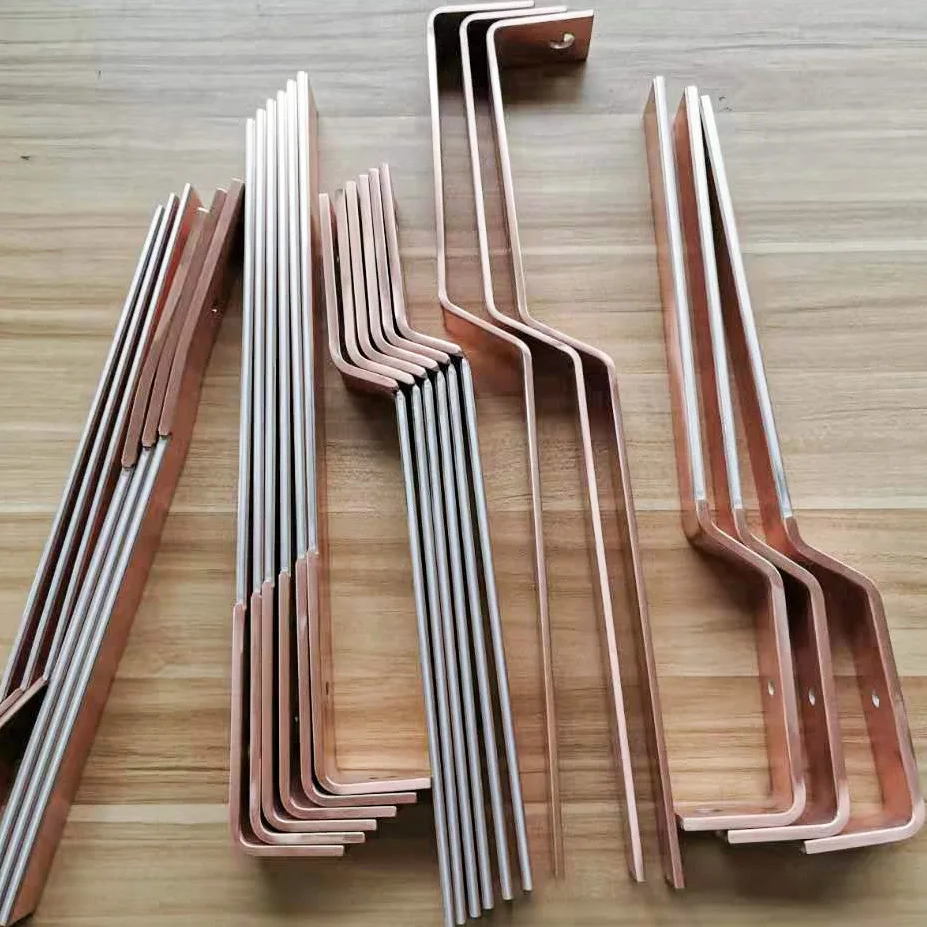

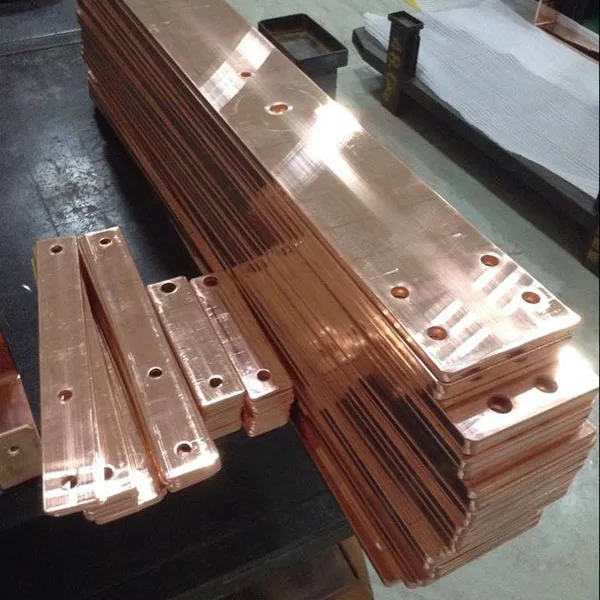

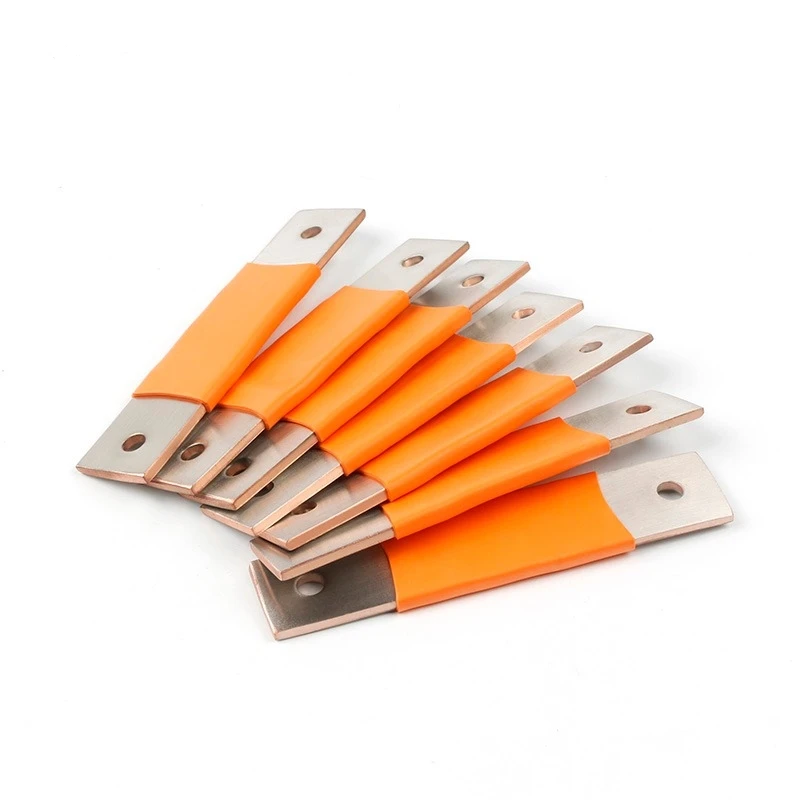

High quality electrically grounded copper busbar/flat pure busbar connectors
- Category: >>>
- Supplier: Kunbian Power Equipment (Shandong) Co. Ltd.
Share on (1600939422769):
Product Overview
Description
Products Description
Definition
Purple copper is named as red copper,which contain pure copper, has good electrical and thermal conductivity, excellent plasticity, easy to hot and cold pressure processing.
Copper due to high purity, fine organization, very low oxygen content, no pores, trachoma, cracks, impurities, good electrical conductivity. Electrode out of the mold surface finish is high, by the heat treatment process, the electrode is non-directional, suitable for fine hitting, fine hitting.
Elemental content:
Zn：≤0.005 Ni：≤0.005
Pb：≤0.005 Fe：≤0.005
Pb：≤0.005 Sb ：≤0.002
S ：≤0.005 As ：≤0.002
Bi：≤0.001 O：≤0.06
note：≤0.1(impurities)
Pb：≤0.005 Fe：≤0.005
Pb：≤0.005 Sb ：≤0.002
S ：≤0.005 As ：≤0.002
Bi：≤0.001 O：≤0.06
note：≤0.1(impurities)
Mechanical properties:
Tensile strength ≥275 Mpa
Tensile strength ≥275 Mpa
Elongation δ10 (%)：≥5
Elongation δ5 (%)：≥10
Chemical composition:
★T1 chemical composition: Cu + Ag99.95%, P0.001%, Bi0.001%, Sb0.002%, As0.002%, Fe0.005%, Ni0.002%, Pb0.003%, Sn0.002%, S0.005%, Zn0.005%, O0.02%
★T2 chemical composition: Cu+Ag99.95%,Bi0.001%,Sb0.002%,As0.002%,Fe0.005%,Pb0.005%,S0.005%.
T2 purple copper row mechanical properties 镀锡紫铜排
Grades | Condition | Thickness (mm) | Tensile strength (Mpa) | Elongation (%) | Vickers hardness (HV) |
T2 T3 TU1 TU2 TP1 TP2 | M Y4 Y2 Y T | ≥0.2 | ≥195 | ≥30 | ≤70 |
215-275 | ≥25 | 60-90 | |||
245-345 | ≥8 | 80-110 | |||
295-380 | ≥3 | 90-120 | |||
≥350 | - | ≥110 |
Optional Specifications of T2 Copper row
List of T2 Copper row Specifications thickness*wideth (mm*mm) | ||||||||
2*15 | 3*70 | 5*25 | R5*140 | R6*40 | R8*20 | 8*160 | 10*140 |
2*20 | R3*80 | 5*10 | 6*18 | 6*50 | 8*25 | 8*200 | R10*140 |
2*25 | R3*160 | R5*25 | 5*60 | R6*50 | R8*25 | 9*45 | 10*150 |
2*30 | R3*170 | 5*30 | R5*60 | 6*60 | 8*30 | 10*10 | 10*160 |
3*10 | 4*10 | R5*30 | 5*63 | R6*60 | R8*30 | 10*12 | 10*170 |
3*12 | 4*15 | 5*35 | R5*63 | 6*70 | 8*40 | 10*15 | 10*180 |
3*15 | 4*20 | 5*40 | 5*70 | 6*80 | R8*40 | 10*20 | 10*200 |
R3*15 | R4*20 | R5*40 | 5*80 | R6*80 | 8*50 | R10*20 | R10*200 |
3*16 | 4*25 | 5*45 | 5*90 | 6*100 | R8*50 | 10*25 | 12*12 |
3*18 | 4*30 | 5*50 | 5*100 | R6*100 | 8*60 | 10*30 | 12*20 |
3*20 | R4*30 | R5*50 | R5*100 | 6*120 | R8*60 | R10*30 | 12*30 |
rR3*20 | 4*40 | 5*60 | 5*120 | R6*125 | 8*60 | 10*40 | 12*40 |
3*25 | R4*40 | R5*60 | R5*120 | R6*140 | R8*63 | R10*40 | 12*50 |
R3*25 | 4*50 | 5*63 | 5*125 | R6*145 | 8*70 | 10*45 | 12*60 |
3*30 | R4*50 | R5*63 | R5*140 | R6*150 | 8*80 | 10*50 | R12*60 |
R3*30 | 4*60 | 5*70 | 6*18 | R6*160 | R8*80 | 10*60 | 12*80 |
R3*35 | 4*80 | 5*80 | 6*20 | R6*170 | 8*90 | 10*63 | R12*80 |
Brass row product parameter description 黄铜排
Physical Properties
1.Material:
H62, H62, H63, H65, H68, H70, H80, H85, H90, H96, T1, T2, C1100, C5111, C5101, C5191, C5210, TU1, TP1, TP2, TAg0.08, TAg0.1, C1100, C1020, C1201, C1220, C 1271, C2100, C2200, C2300, C2400, C2600, C2680, C2700, C2720, C2800, C2801, C3604w, etc
2.Thickness: 1.0-200mm
3.Width: 305-600mm
4.Hardness: O, 1/2H, 3/4H, H, EH, SH, etc
4.Hardness: O, 1/2H, 3/4H, H, EH, SH, etc
Chemical composition:
Copper Cu:60.5~63.5
Copper Cu:60.5~63.5
Zinc Zn: Balance
Lead Pb:≤0.08
Boron P:≤0.01 Iron
Fe:≤0.15
Beryllium Sb :≤0.005
Bismuth Bi:≤0.002
Note: ≤0.5
(impurity)
(impurity)
Mechanical properties:
Tensile strength ≥335
Elongation ≥24
Note: Longitudinal room temperature tensile mechanical properties of bar
Elongation ≥24
Note: Longitudinal room temperature tensile mechanical properties of bar
Features and scope of application:
Good mechanical properties, good plasticity in hot state, fair plasticity in cold state, good machinability, easy brazing and welding, corrosion resistance.

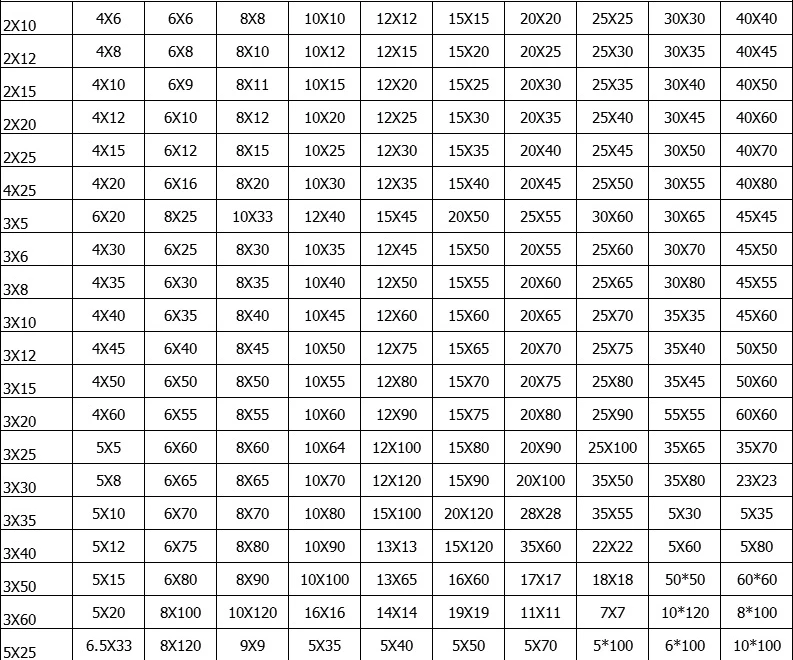

List of Brass Row Specifications thickness*wideth (mm*mm) | ||||||||

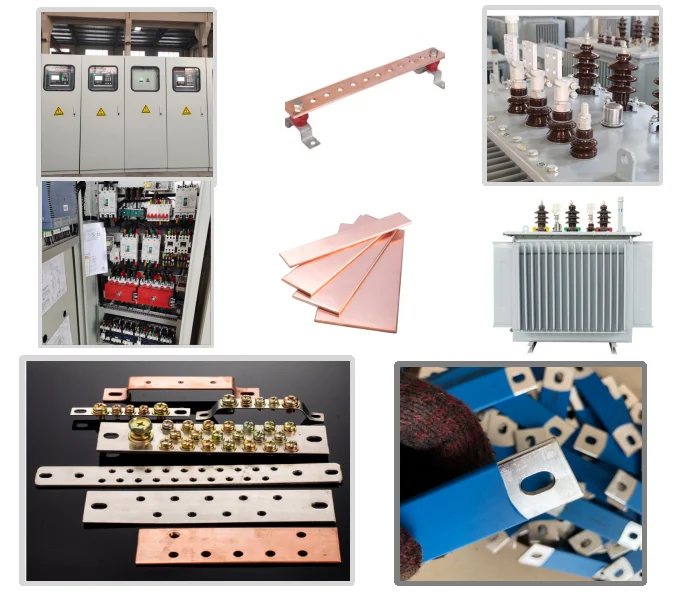

Scope of Application
Copper row are available in tinned and bare copper options. Copper bars are often used in electrical projects such as upper and lower voltage appliances, switch contacts, power distribution equipment, bus ducts, etc., and are widely used in super large electrolytic smelting projects such as metal smelting, electrochemical plating, and chemical caustic soda.

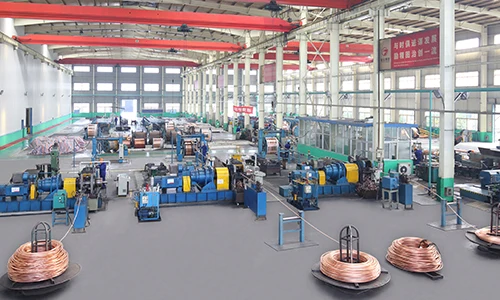

Workshop

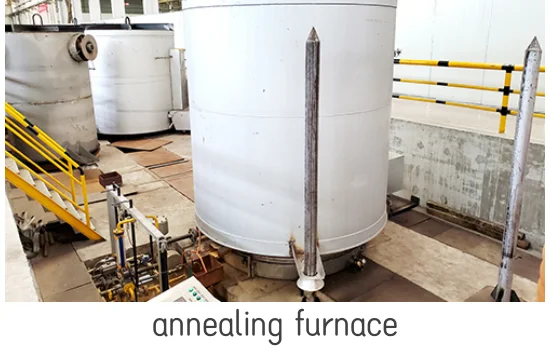

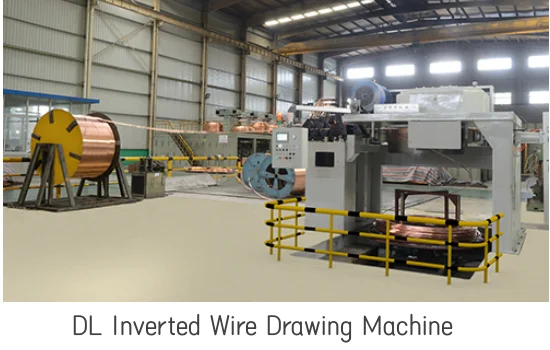

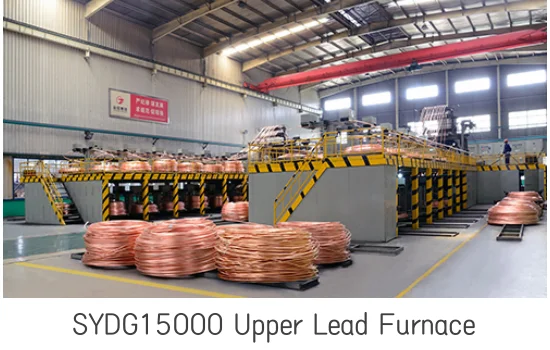

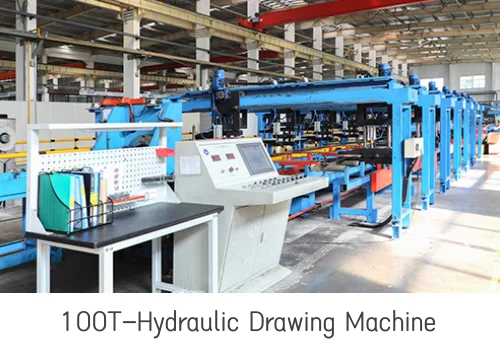

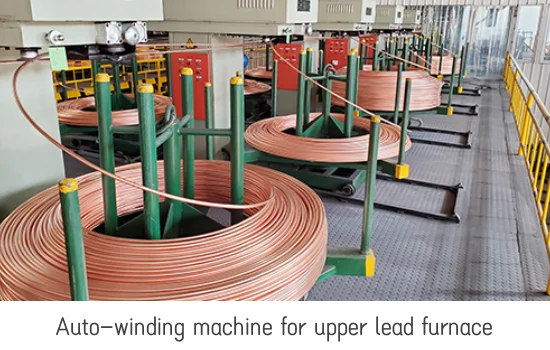

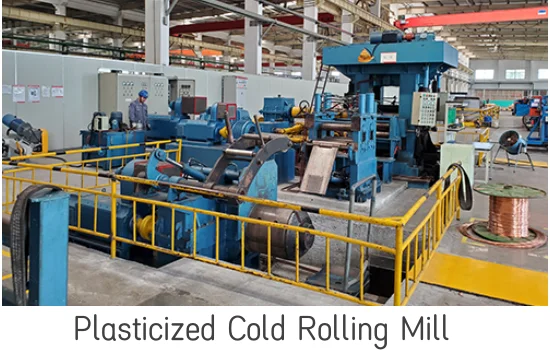

Production equipment
Certifications
Packing & Delivery
According to the quantity of the order, when the quantity is large, use the plastic film to pack, and use the tie to fix; when the quantity is small, use the film to pack, and the carton pack.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg.Customer need to take the international express freight.
Q4: Can we be your distributor ?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package ?
A5: Normally are cartons, but also we can pack it according to your
requirements.
requirements.
Q6: How’s the delivery time ?
A6: It depends on the quantity you need, 1-25 days usually.
