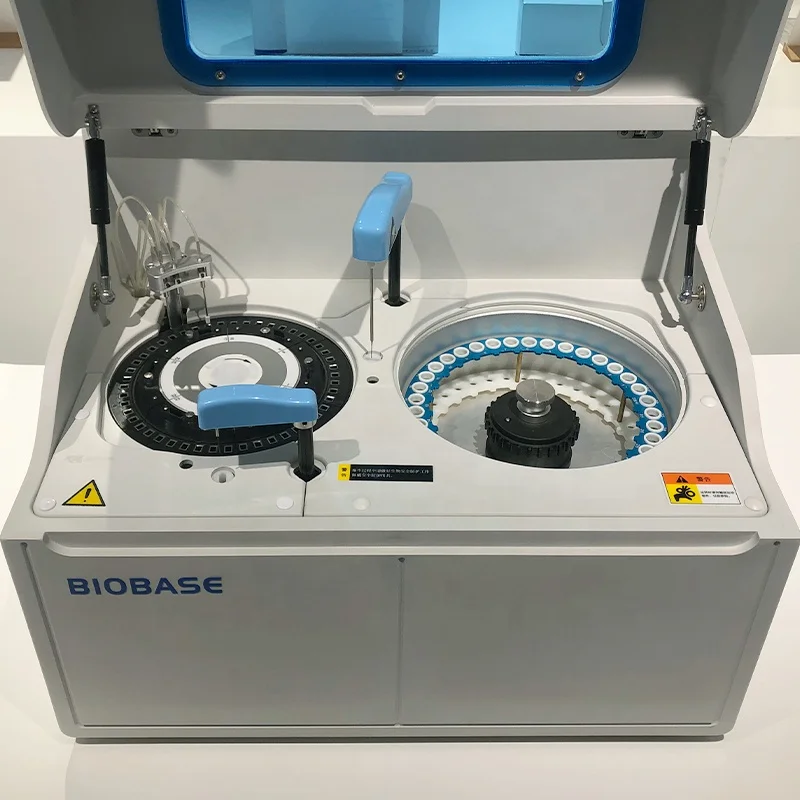

Biobase China VET Chemistry Analyzer 200T/H Veterinary Biochemistry Analyzer for Pet Animals
- Category: >>>
- Supplier: Biobase Biozone Co. Ltd.
Share on (1600939435207):
Product Overview
Description
Product Description

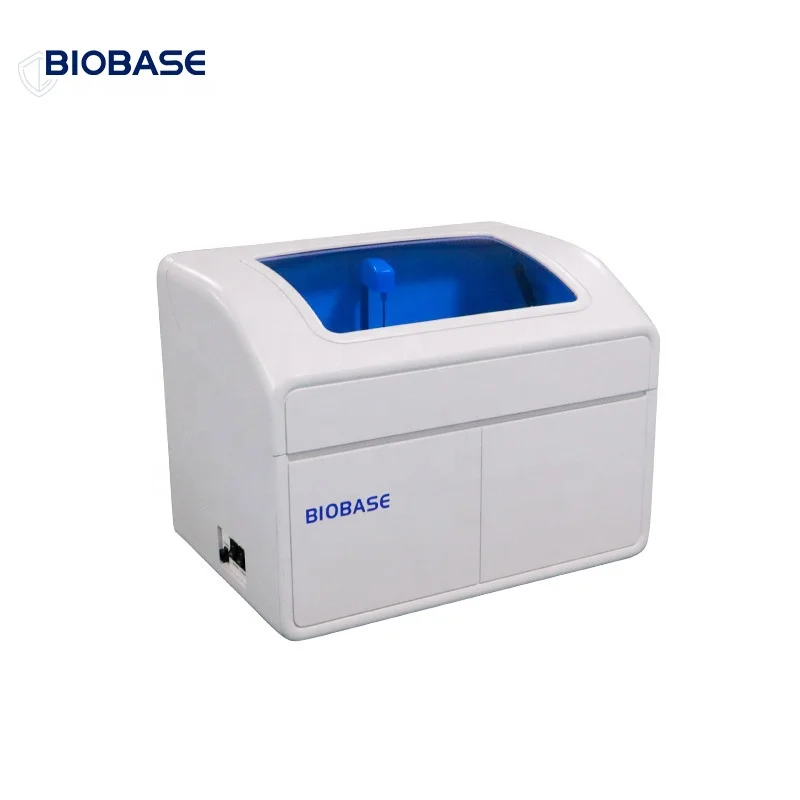

BK-200
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
Features＆Specification
FEATURES
1. 37 Sample positions.
2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.

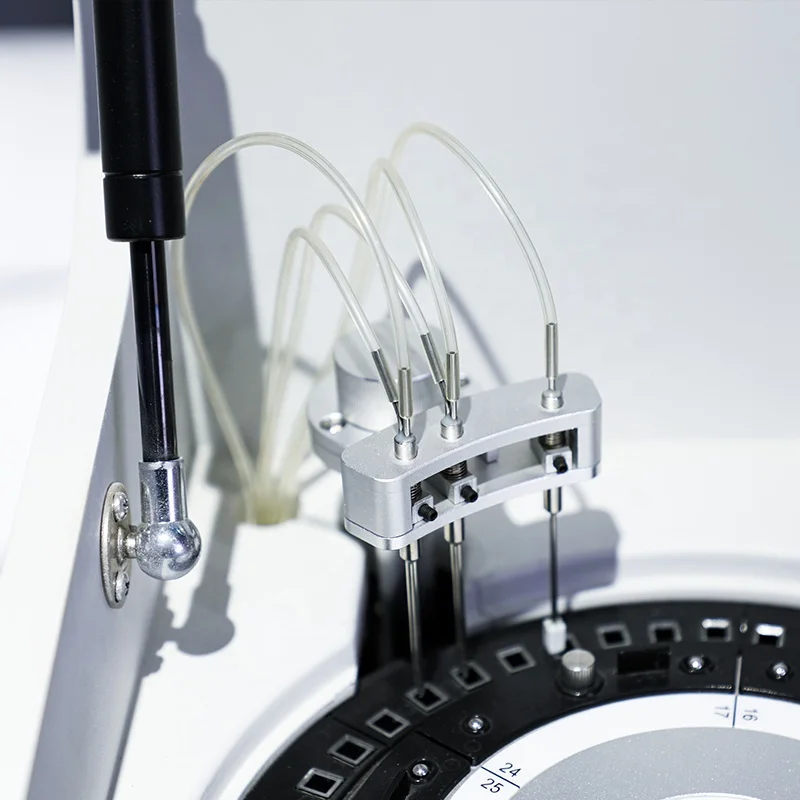

5. Probe anti-collision function,liquid level dectection function.
2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.
5. Probe anti-collision function,liquid level dectection function.
SPECIFICATION
Model | BK-200 | ||
Overall Performance | Throughput | 200 Tests/hour | |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | ||

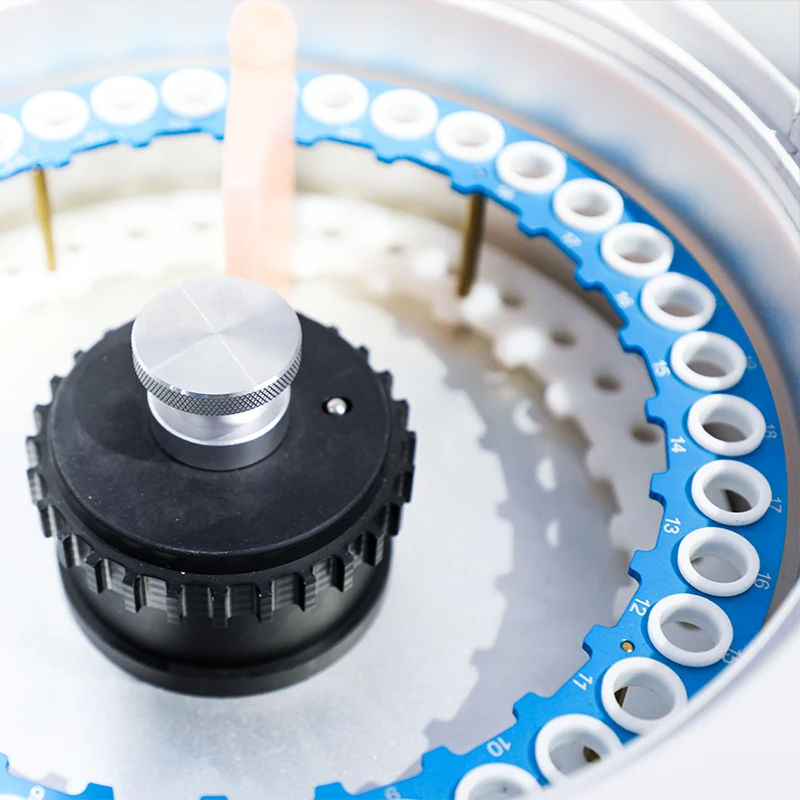

Sample & Reagent System | Sample Positions | 37 sample positions | |
Reagent Position | 28 reagent positions | ||
Sample Volume | 2-70µl | ||
Reagent Volume | 20-350µl | ||

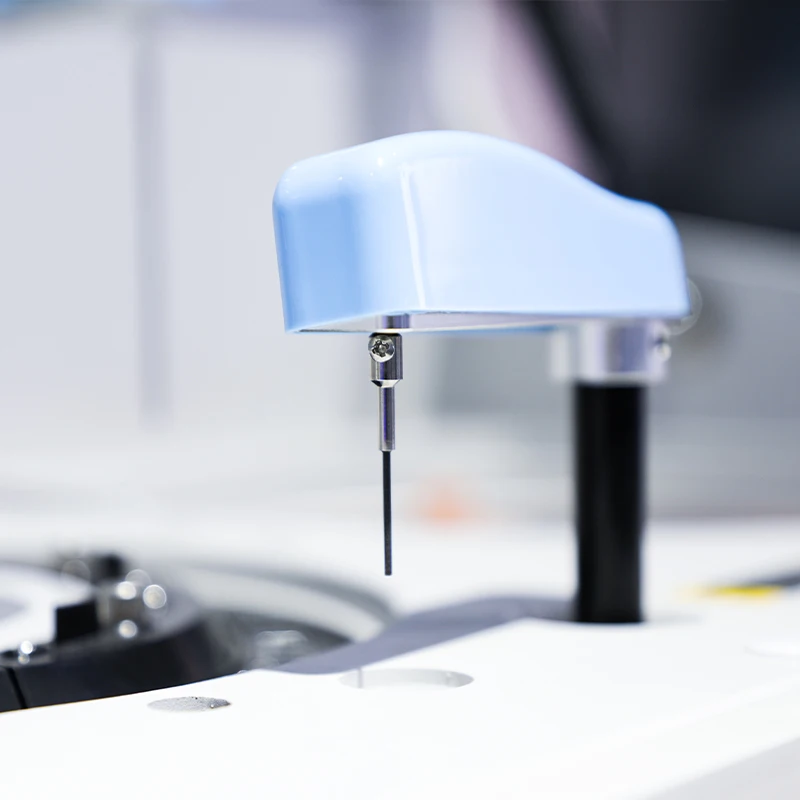

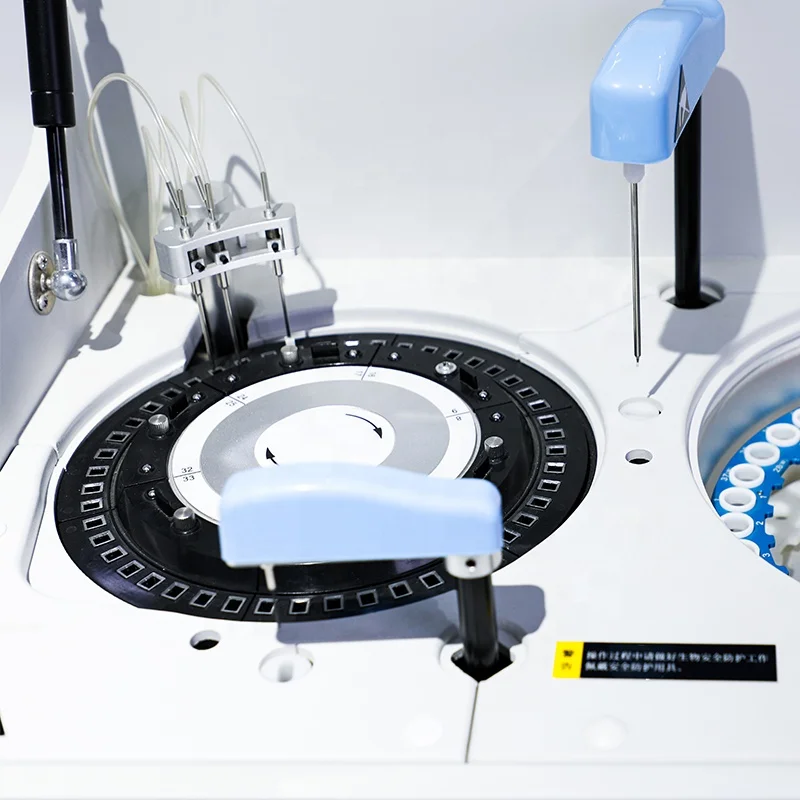

Probe | Teflon coating, with anti-collision function, liquid level detection function | ||
Probe Washing | Automatic washing interior and exterior | ||
Reagent Cooling | Refrigerated tray with independent switch | ||
Reaction System | Temperature Control | 37+0.2℃, real-time monitoring | |

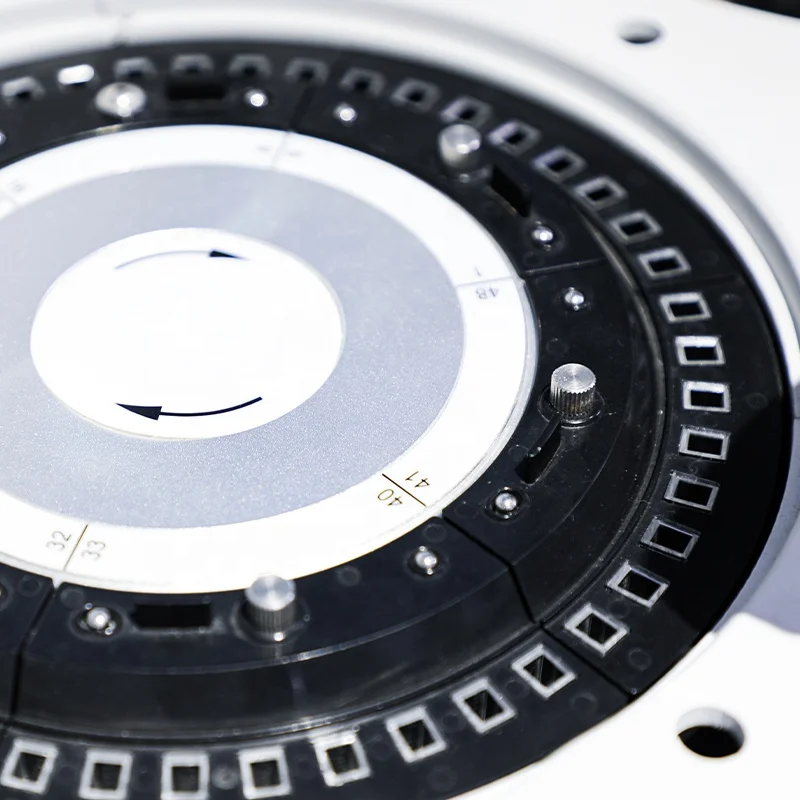

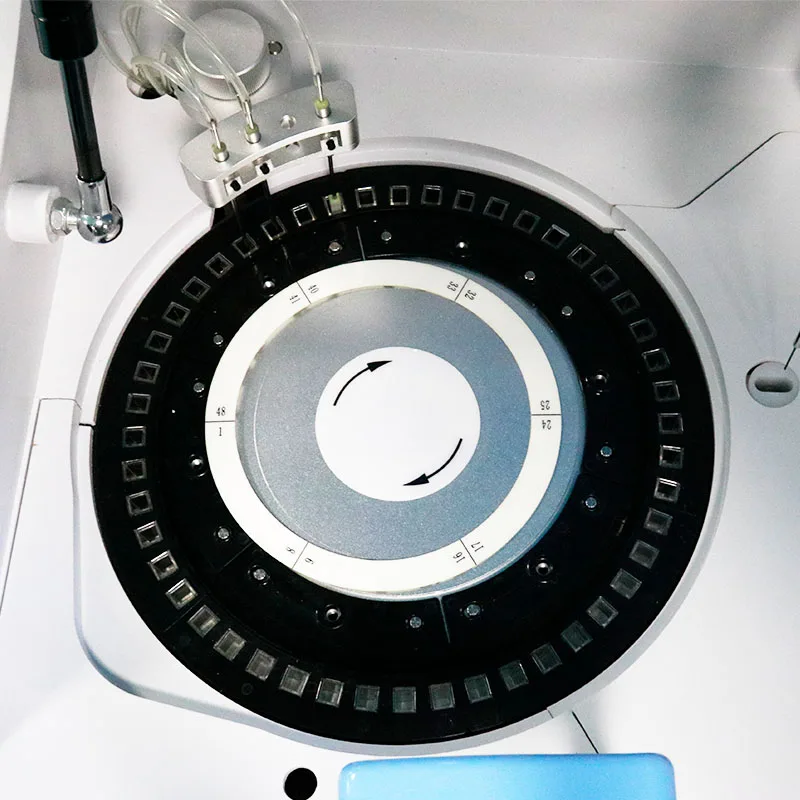

Cuvettes | 48 reusable cuvettes,optical length 6mm | ||
Mixer Probe | Independent stirring | ||
Washing | Automatic cuvettes washing | ||
STAT function | YES | ||
Optical System | Light Source | 6V/10W halogen lamp | |
Spectrophotometry | Post-spectral spectrophotometry | ||
Wavelength | 340,405,450,480,505,546,570,600,,630,700,750,800nm | ||
Absorbance | 0-3.0Abs | ||
Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | ||
Data Management | Software | Windows 7/8/10 , 32or 64bit | |
LIS System | Bi-direction,support HL7 protocol | ||
Interface | LAN port access | ||
Printer | External,multiple reporting mode available | ||
Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W | |
Temperature | 15～30℃ | ||
Water Consumption | Deionized water:＜5L/H | ||
Humidity | 40-85% | ||
Size & Weight | External Size (W*D*H) | 625*425*460mm | |
Net Weight | 36kg | ||
Package Size (W*D*H) | 750*560*900mm | ||
Gross Weight | 55kg | ||
Company Profile
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
Packing & Delivery

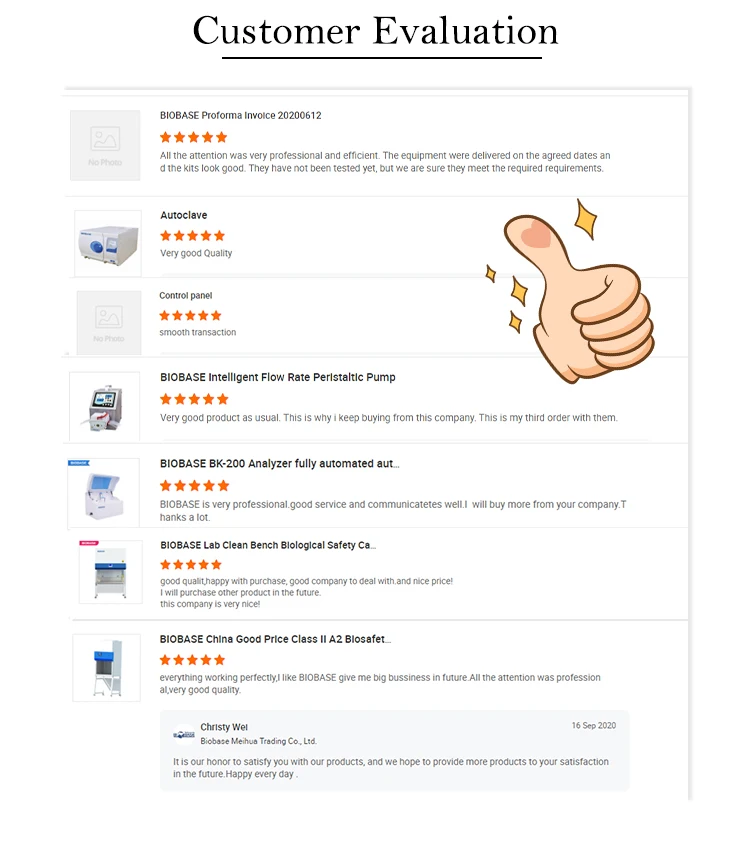

Customer Evaluation
