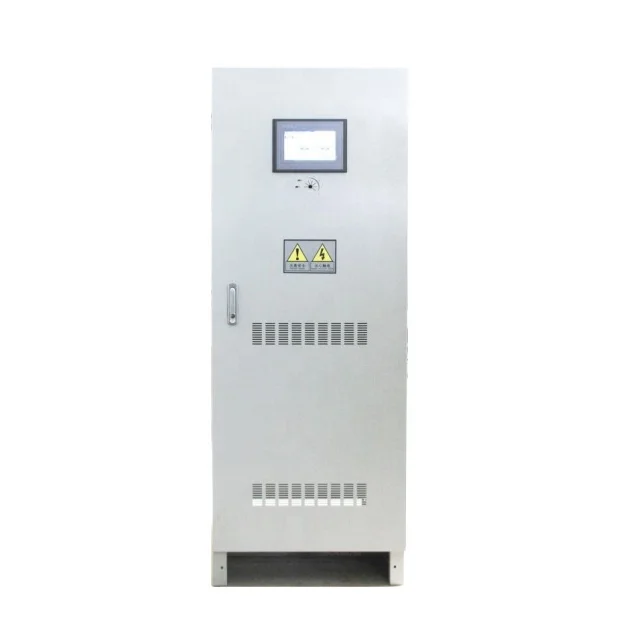

JCL CCR 2300 Constant Current Regulator

Product Overview

Description

JCL-CCR-2300 Constant Current Regulator



Description:

  Our JCL-CCR2300 regulator utilizes Silicon Controlled Rectifier (SCR) technology to deliver a constant and regulated current to the airport lighting system. This advanced technology allows for precise control over the current flow, ensuring that the lights operate at optimal levels at all times. With its robust design and high-performance capabilities, our regulator is the ideal choice for maintaining the integrity and functionality of airport lighting systems.

  The thyristor-based design of our regulator enables accurate and reliable current regulation, ensuring consistent illumination levels across the entire airport lighting network. This level of precision is essential for meeting the strict regulatory standards and operational requirements of modern airports.

  By maintaining a constant current output, the regulator minimizes the risk of sudden fluctuations or dimming of the lighting fixtures, thereby enhancing safety for aircraft operations during takeoff, landing, and taxiing.

  Built to withstand the rigors of airport environments, it is constructed using high-quality components and materials, ensuring long-term durability and reliable performance. With its robust design, the regulator can withstand the challenges of continuous operation in demanding conditions, making it a dependable solution for airport lighting control.

  We offer a range of customizable options to meet specific airport lighting requirements, including different current ratings and control features.



Major functions & features

• This product provides a standard SCR constant current power supply for the airport lighting system, which can extend the service life of the airport lighting fixtures

• The maximum output current can be set to 6.6A, meeting the power supply and dimming needs of traditional airport lighting fixtures

• Variable output frequency to meet the power supply and dimming needs of variable frequency LED airport lights

• SCR constant current output can reduce the power frequency noise of step-up transformers

• Wide input voltage range to avoid the impact of unstable power supply on equipment

• Five light-outputs, 1-5 selectable upon actual application

• High EMC indicators can reduce pollution to the power grid and interference with other equipment

• High power density, saving installation space

• User friendly interface, providing LCD touch screen display. Flexible system operation parameters can be set through LCD to query current alarm information and historical event records

• Provide ModBus communication protocol for upper computer query and control

• Din-rail terminal blocks save wiring time and enhance wiring safety.

• High reliability, iterative upgrade for 20 years, applications at the same time from east to west and south to north.

• LCD touch screen user interface

• Optional circuit insulation resistance detection module

• Support CAN bus remote control

• Complete over temperature, open circuit, and over current protection alarm functions

• Standard SCR constant current output, and with frequency conversion output function

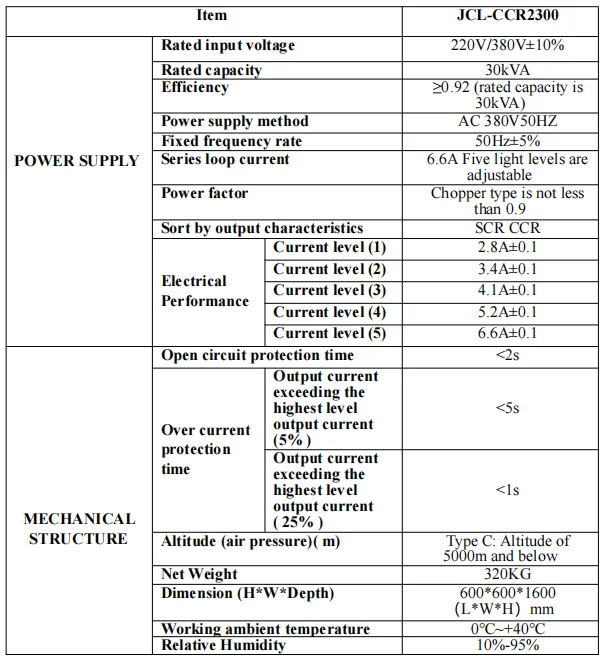

Specifications:

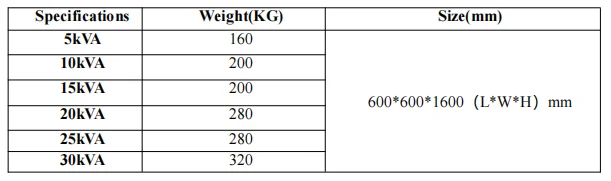

Packing Data Sheet
