2HP cooling system for water tank chiller machines price chiller brand
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600939527243):
Product Overview
Description
Product Description

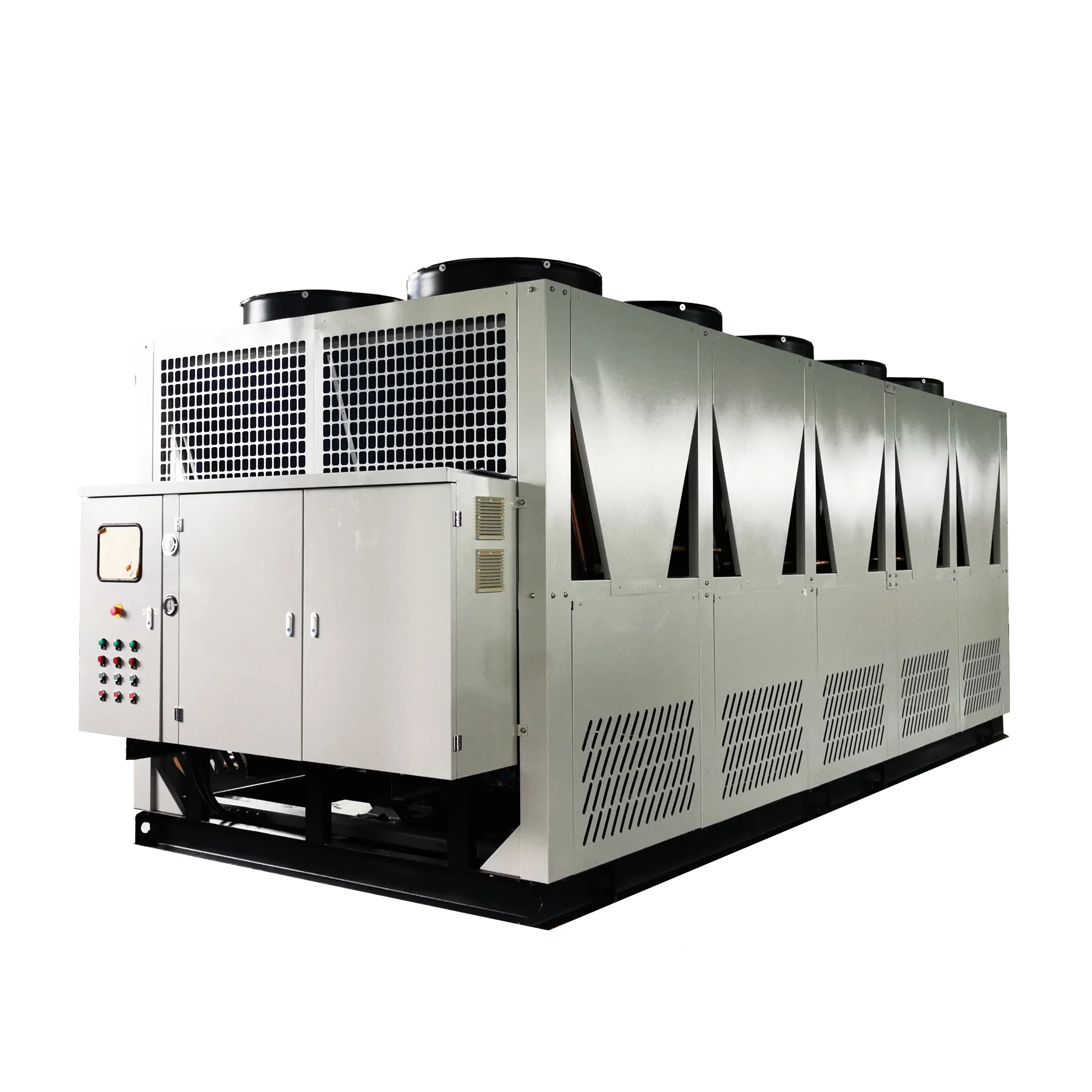

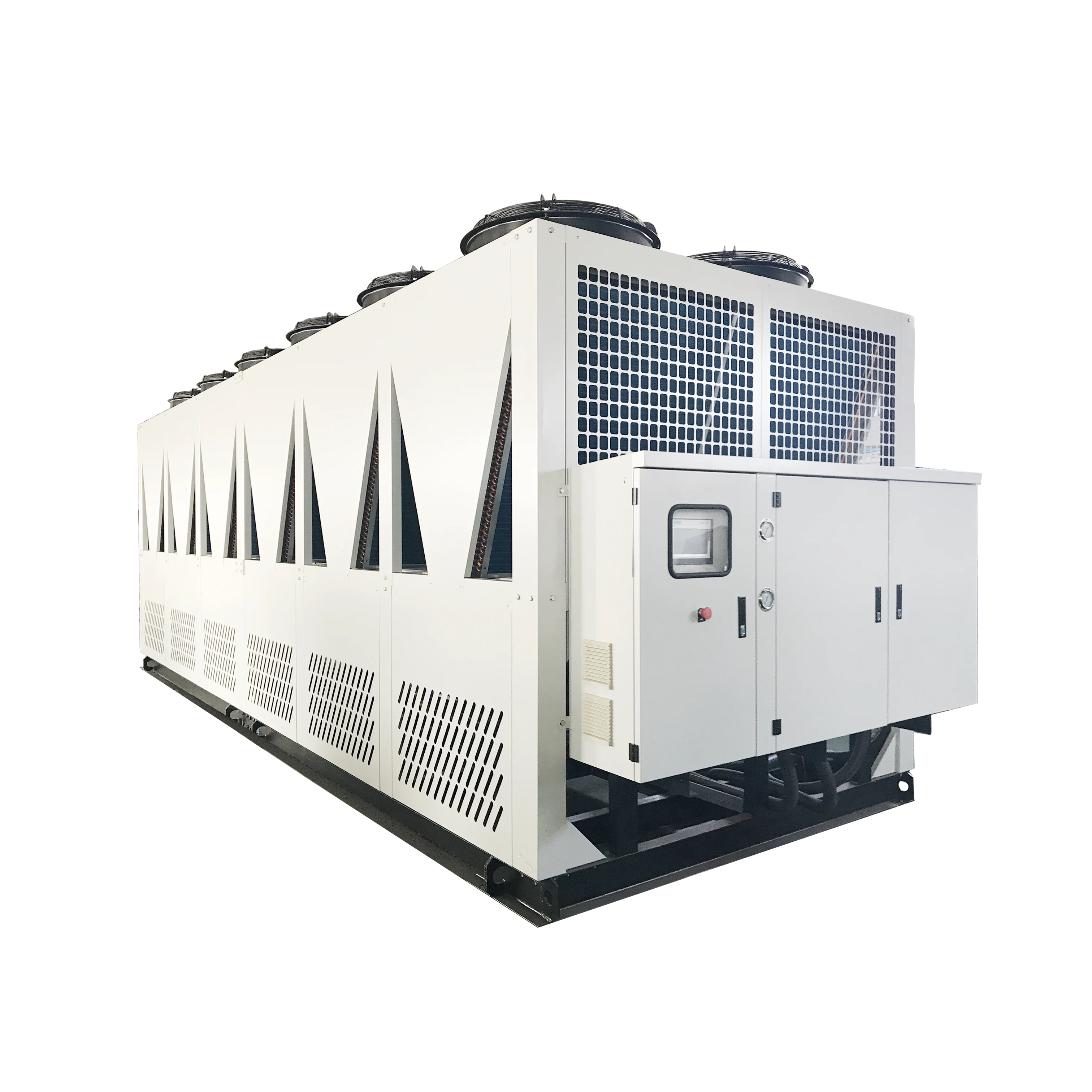

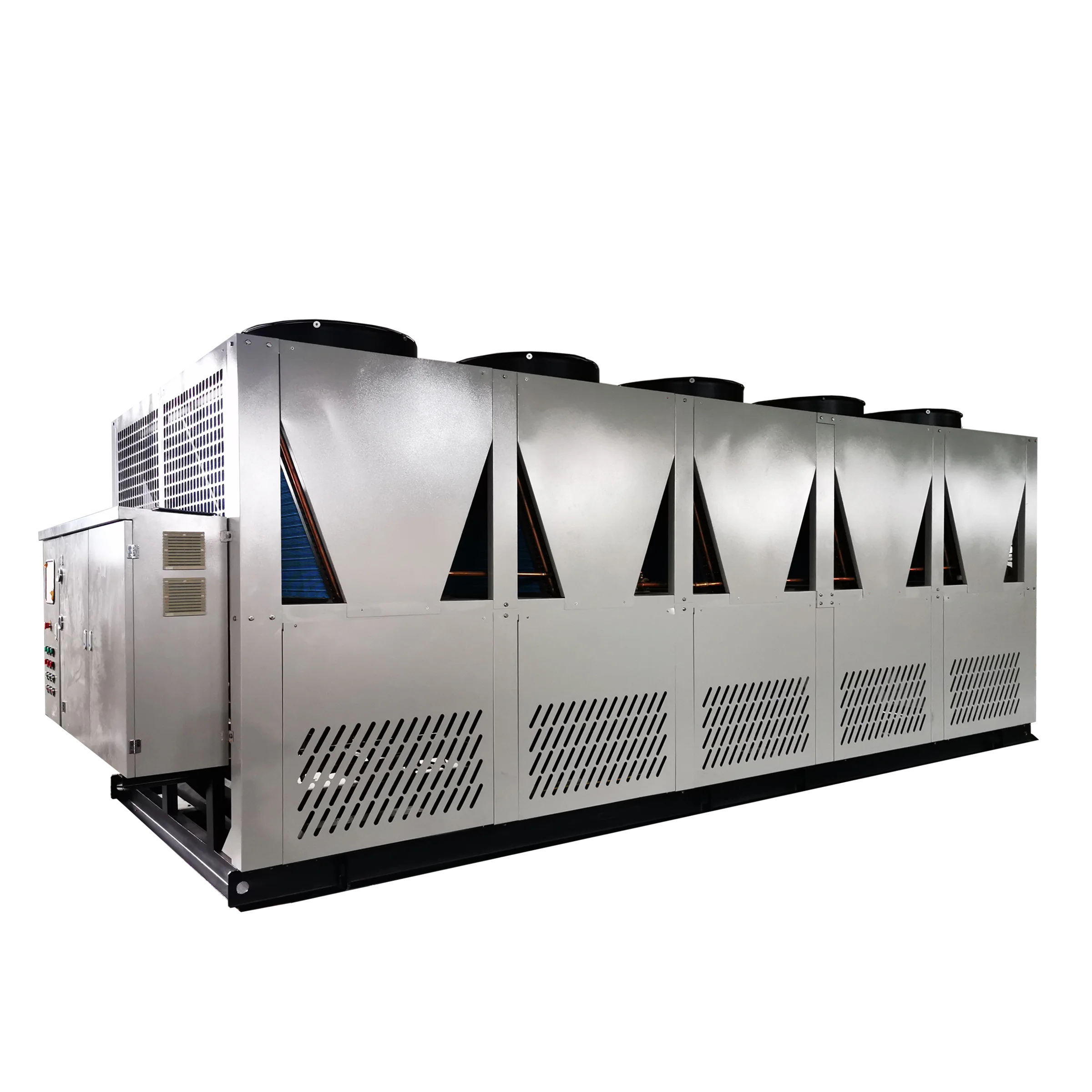

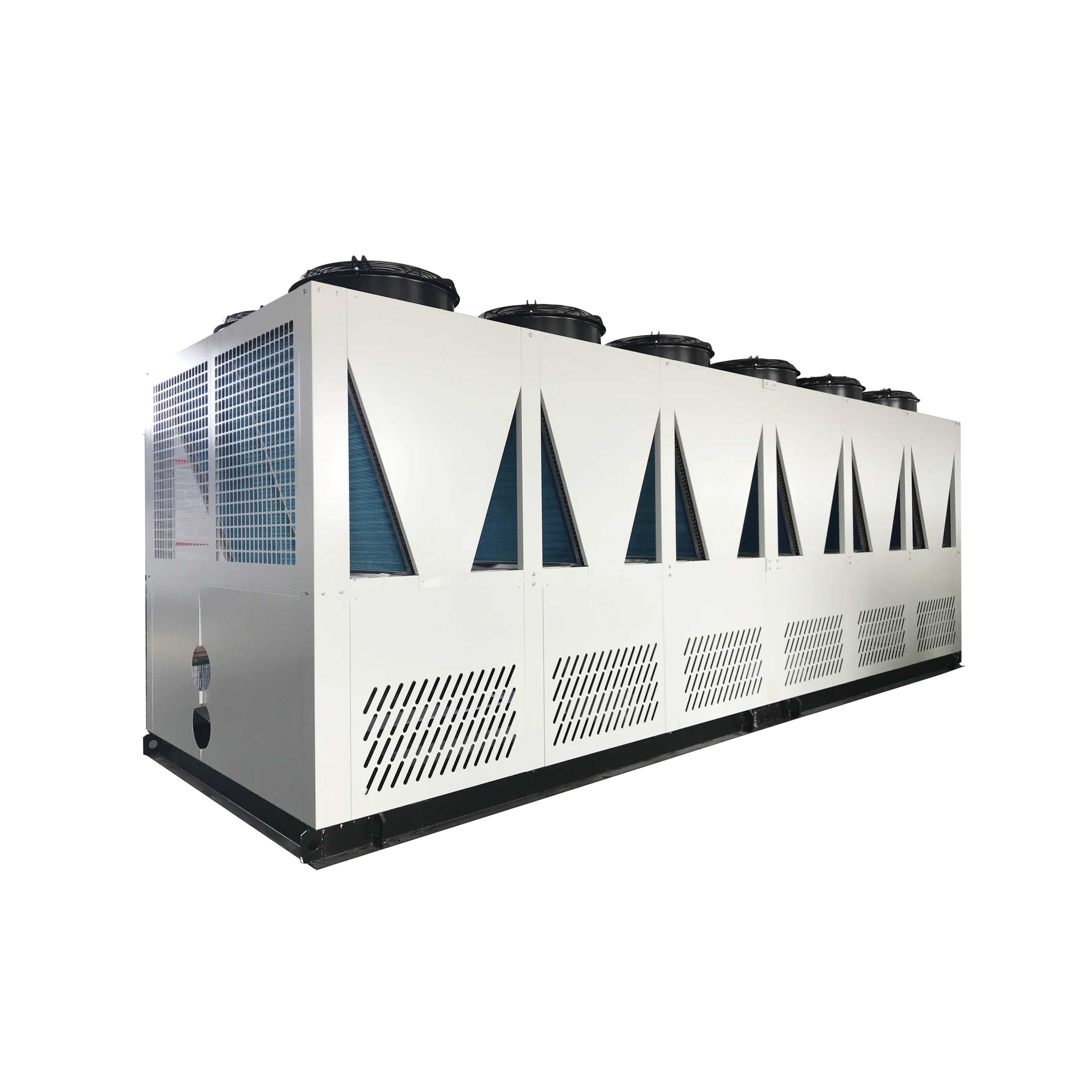

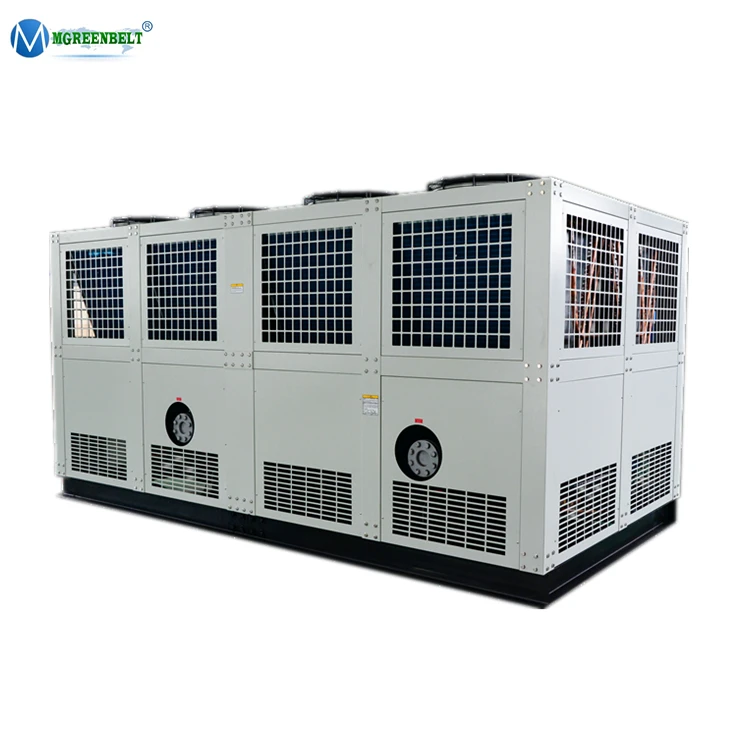

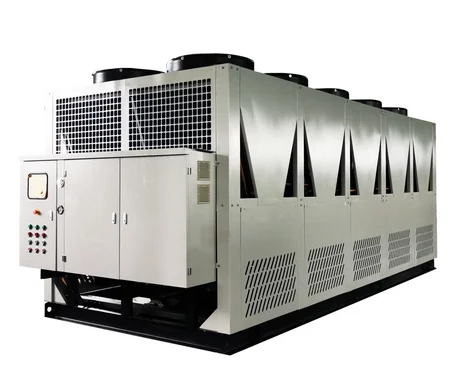

Air Cooled Screw Chiller Features：
1. Regular case color
All grey cabinets. (Color can be customized)
2. Condenser fan
Low noise external rotor high volume axial fan. The main brand fans are Mull, Donli, Shimmer, Yonghan and so on.
3. Control system
The controller of Bump screw chiller includes the controller of single machine and double machine system. All the electrical components are Schneider brand. Electric control box waterproof design. Independent and precise control system makes the system run stably and accurately.
4. Two main machines
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency; Compact structure, saving space. Adopt high efficiency shell and tube evaporator (directly connected to the user's equipment).
5. The chilled water pump of air-cooled screw chiller generally needs to be external due to the limitation of internal space.
1. Regular case color
All grey cabinets. (Color can be customized)
2. Condenser fan
Low noise external rotor high volume axial fan. The main brand fans are Mull, Donli, Shimmer, Yonghan and so on.
3. Control system
The controller of Bump screw chiller includes the controller of single machine and double machine system. All the electrical components are Schneider brand. Electric control box waterproof design. Independent and precise control system makes the system run stably and accurately.
4. Two main machines
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency; Compact structure, saving space. Adopt high efficiency shell and tube evaporator (directly connected to the user's equipment).
5. The chilled water pump of air-cooled screw chiller generally needs to be external due to the limitation of internal space.

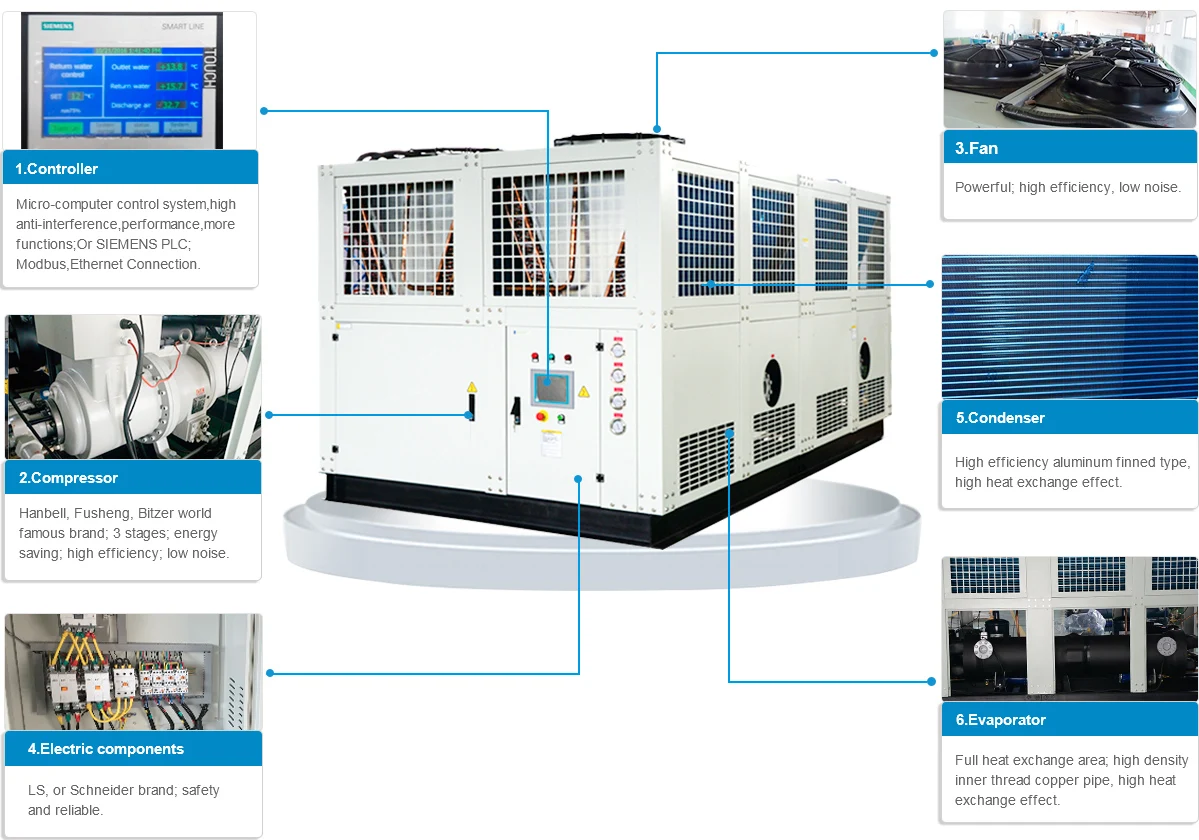

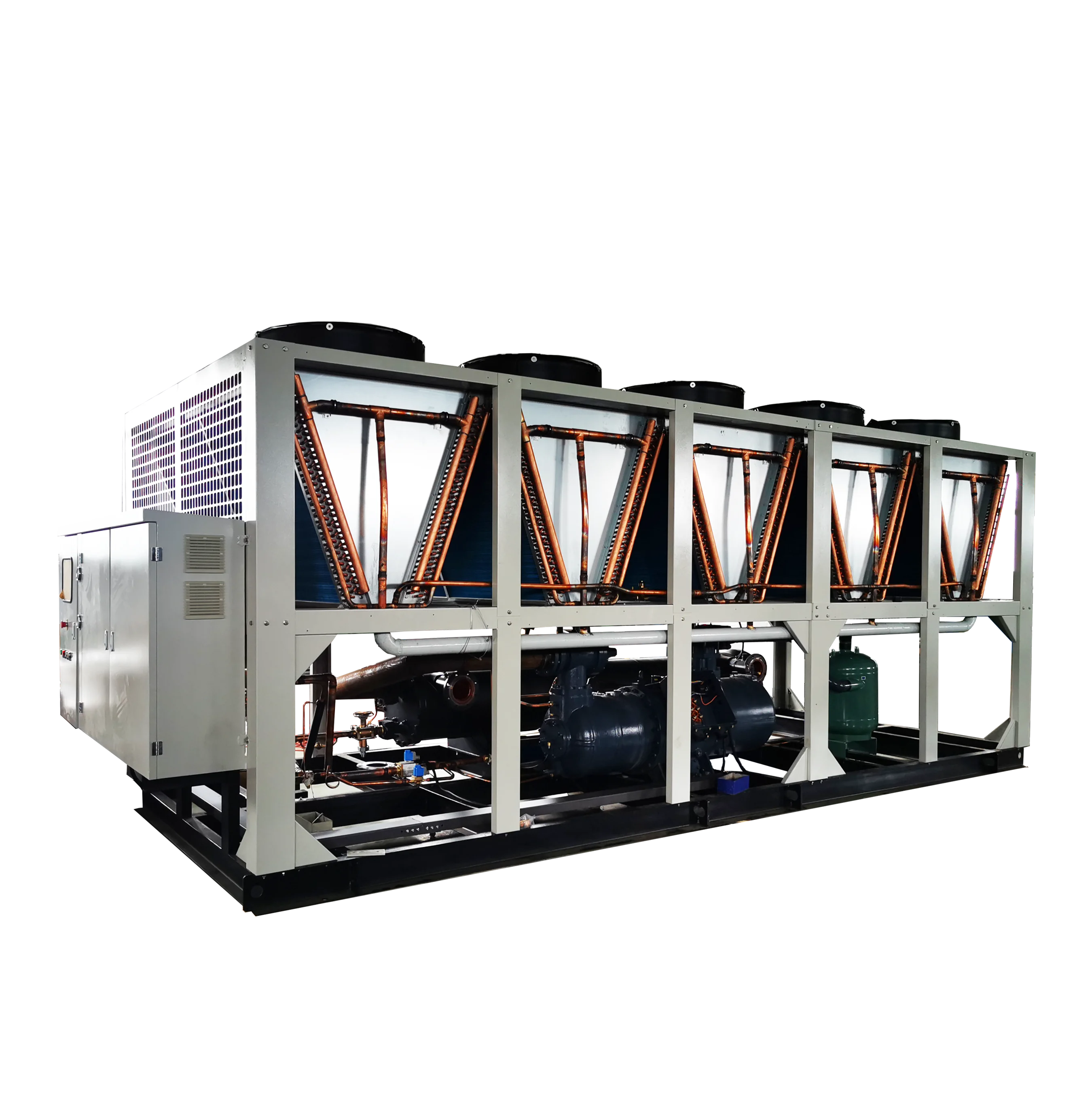

Product Details
HANBELL / BITZER COMPRESSOR
MAER FAN
“V" Type Condeser
Shell and tube evaporator

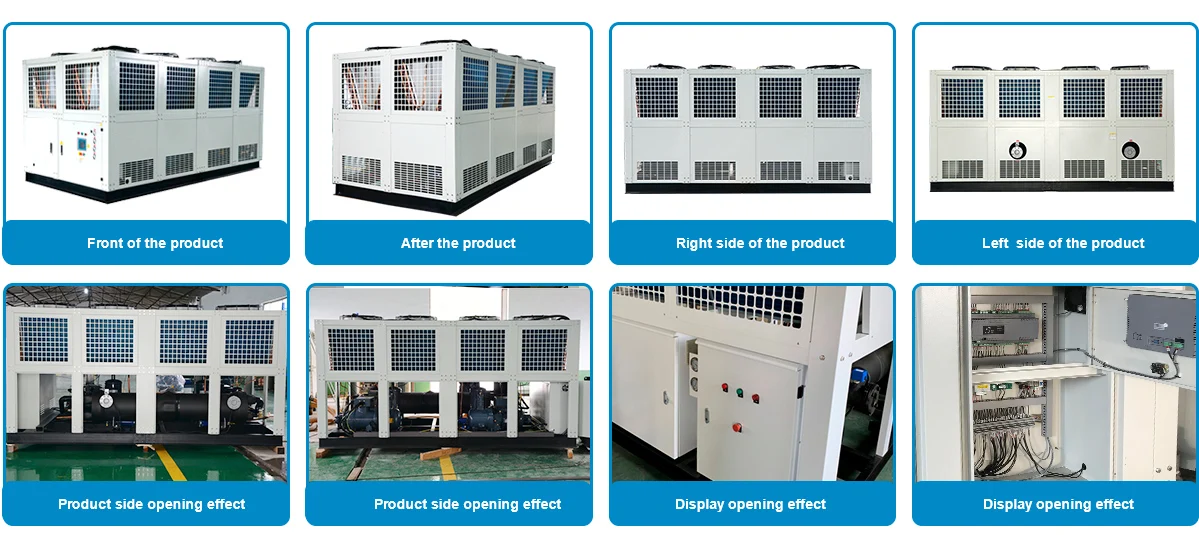

Side Details
Centrifugal pipe pump
Main Brands

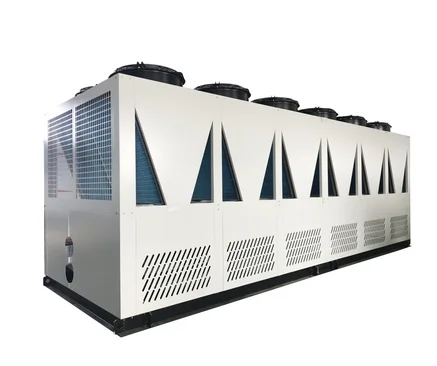

Products Show
Air Cooled Screw Chiller Normally Temperature Series( Single System) | ||||||||||||||||
Model | MG-80C | MG-110C | MG-140C | MG-155C | MG-200C | MG-260C | MG-300C | |||||||||
Cooling Capacity | USRT | 22.2 | 31.0 | 40.4 | 43.5 | 57.7 | 72.2 | 86.7 | ||||||||
Kcal/h | 67080 | 93740 | 122120 | 131580 | 174580 | 218440 | 262300 | |||||||||
KW | 78 | 109 | 142 | 153 | 203 | 254 | 305 | |||||||||
Power | 3PH-380V-50Hz | |||||||||||||||
Refrigerant | Type | R22/R407C | ||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Comperssor | Type | semi-closed screw type | ||||||||||||||
kw Power | 28 | 37 | 46 | 51 | 66 | 79 | 94 | |||||||||
Start | Y-△ | |||||||||||||||
Capacity | 33%-66%-100% | 25%-50%-75%-100% | ||||||||||||||
Evaporator | Type | High efficiency copper tube shell and tube type | ||||||||||||||
m³/h Flow | 13 | 19 | 24 | 26 | 35 | 44 | 52 | |||||||||
Inlet/outlet | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN80 | |||||||||
Condenser | Type | efficiency hydrophilic aluminum foll finned type | ||||||||||||||
m³/h Flow | 30000 | 40000 | 50000 | 60000 | 80000 | 100000 | 120000 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||||||||
Dimension | L(mm) | 2700 | 2300 | 2300 | 3300 | 3900 | 3900 | 3850 | ||||||||
W(mm) | 1120 | 1860 | 1860 | 2300 | 2010 | 2010 | 2200 | |||||||||
H(mm) | 1800 | 1800 | 1800 | 2400 | 2000 | 2000 | 2350 | |||||||||
weight | kg | 1800 | 1900 | 2300 | 2480 | 3200 | 3800 | 3300 | ||||||||
Other Products
Other different models chiller in our factory:
1. Air cooled water chiller from 1HP to 40HP scroll type
2. Air cooled screw chiller from 40HP to 200HP
3. water cooled scroll chiller and water cooled screw chillers with cooling tower.
Air Cooled Scroll Chiller
Cooling Capacity: 2.7 Kw~128 Kv
Cooling Capacity: 2.7 Kw~128 Kv
Out Temp Range:-15 C~+35 C
Compressor: Hermetic Scroll type
Compressor Quantity:
From 2.7Kw~21Kw, 1circuit
From 2.7Kw~21Kw, 1circuit
From 28Kw~63Kw, 2 circuits
83.6kW, 3 Circuists
From 116.4Kw~128Kw, 4circuits
From 116.4Kw~128Kw, 4circuits
Compressor brand: Panasonic/ Copeland
Air Cooled Screw Chiller
Cooling Capacity:78Kw~600 Kw
Out Temp Range:-30 C~+35C
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 78Kw~600Kw, 1 circuits
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 78Kw~600Kw, 1 circuits
From 150Kw~600Kw, 2 circuits
Compressor brand:Hanbell/Bitzer
Compressor brand:Hanbell/Bitzer
Water Cooled Scroll Chiller
Cooling Capacity: 14 Kw~176 Kw
Out Temp Range:-15 C~+35C
Compressor: Hermetic Scroll type
Compressor Quantity: 14Kw, 1 circuit
From 30Kw~70Kw, 2 circuits
From 30Kw~70Kw, 2 circuits
92kW, 3 Circuists
From 120Kw~176Kw, 4 circuits
From 120Kw~176Kw, 4 circuits
Compressor brand: Panasonic/ Copeland
Water Cooled Screw Chiller
Cooling Capacity:92Kw~1400 Kw
Cooling Capacity:92Kw~1400 Kw
Out Temp Range:-30C~+35C
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 92Kw~700Kw, 1 circuits
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 92Kw~700Kw, 1 circuits
From250Kw~1400Kw, 2circuits
Compressor brand:Hanbell/Bitzer
Compressor brand:Hanbell/Bitzer

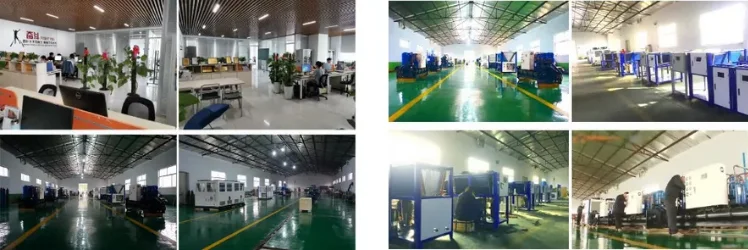

Our Company
Shandong Mgreenbelt Machinery Co., Ltd. mainly specialized in the research and manufacturing of industrial chiller, refrigeration unit and other refrigeration equipment. After more than ten years of innovation and development, our company has passed ISO9001 quality system certification, EU CE certification, international BV, SGS and other third-party certification bodies inspection and testing, and gradually grown into a manufacturer committed to one-stop refrigeration solutions, providing customers with systematic and supporting industrial chiller. Our products are exported at home and abroad, covers more than hundreds of countries and regions in the world. It provides a stable, efficient, intelligent and environmental solutions for the food, beverage, plastics, electroplating, electronics, concrete, vacuum pump, power generation equipment and ultrasonic cleaning and other industries.
Our Certifications
Our company has passed ISO9001 quality system certification, EU CE certification, international BV, SGS and other third-party certification bodies inspection and testing,
Customer Photo
Our products are exported at home and abroad, covers more than hundreds of countries and regions in the world and we have established cooperative relations with many countries and customers
Our Service
Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After-sale service
1. where the purchase of our company's products will be implemented in three guarantees: debugging, training and guidance installation. All products are free warranty for 12 months, lifelong maintenance, fully ensure that customers have no worries.
2. The company has a perfect after-sales system to ensure that customers' after-sales problems are solved in time to achieve customer satisfaction and recognition.
3. Timely and considerate on-site maintenance services.
4. Lifelong free pre-sales, sales, after-sales technical support.
Packing & Delivery
Package:
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
