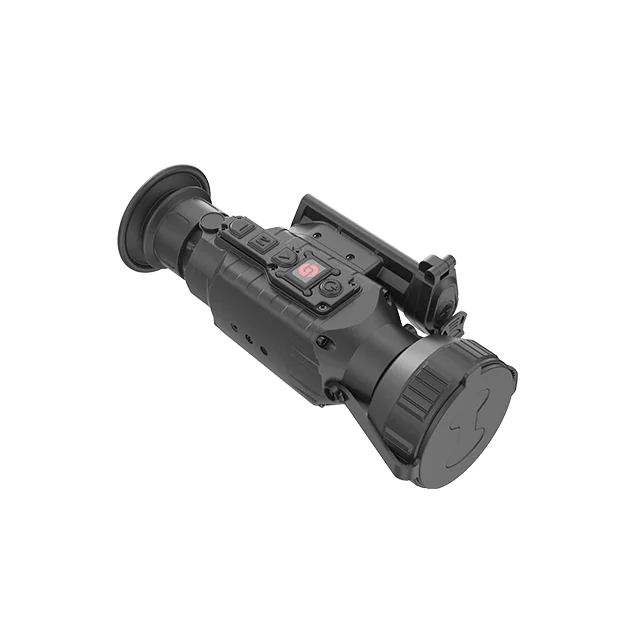

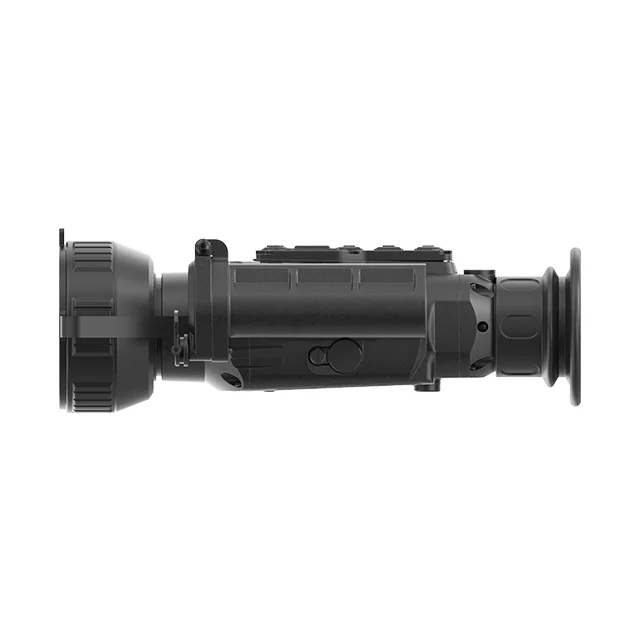

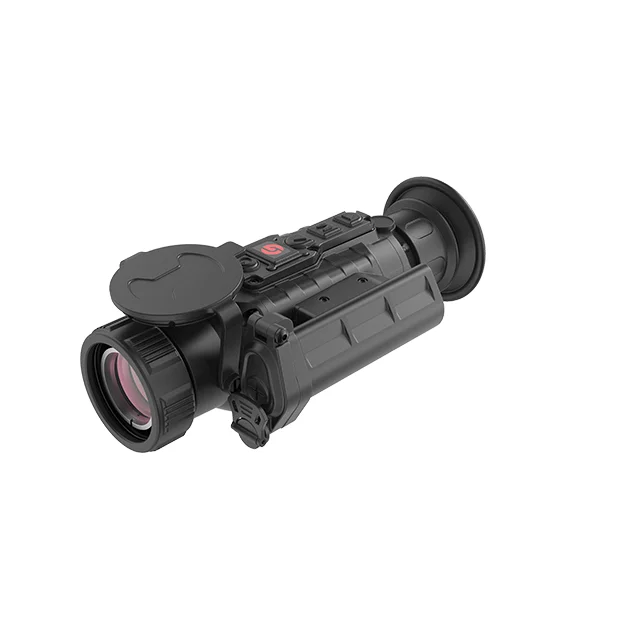

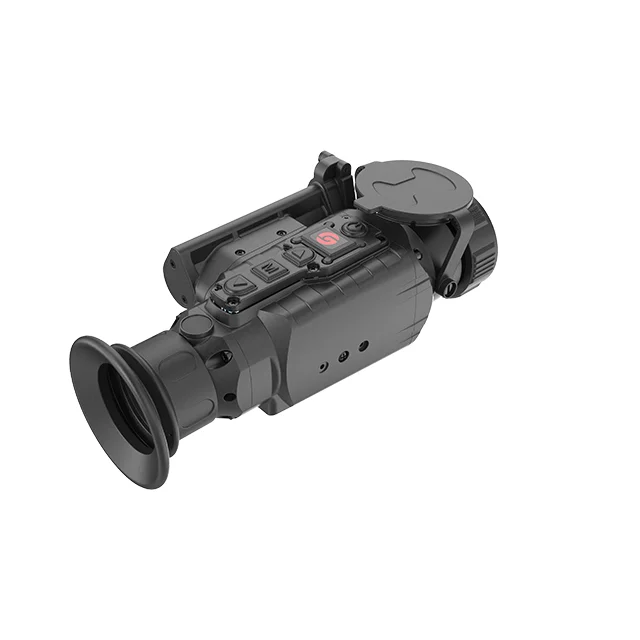

Guide Sensmart TA651 thermal Clip on 800*600 OLED wild adventure no re zeroing Shutter and scene compensation Attachment
- Category: >>>
- Supplier: Wuhan Guide Sensmart Tech Co. Ltd.
Share on (1600939535669):
Product Overview
Description
Products Description
Guide TA Gen2 Series Clip-on Thermal Imaging Attachment
Based on the self-developed 17 µm and 12 µm thermal detectors with 400×300 and 640x480 pixel resolutions repsectively, the TDETech, PureIR algorithm, and HD OLED displays, the TA Gen2 Series offers sharp and detailed images while retaining the accuracy of the day scope. Suitable for scopes with different calibers from 40 mm to 70 mm, the TA Gen2 makes a thermal upgrade that transforms day scopes into potent thermal imaging aiming systems for 7 hours of non-stop operation in harsh conditions.
Product Paramenters
Product model | TA421 | TA651 | ||
Sensor | ||||
Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |||
Resolution | 384 × 288, 17 μm | 640 × 480, 12 μm | ||
NETD | ≤40mK | |||
Frame rate | 50 Hz | |||
Lens | ||||
Focal length | 25 mm; F1.1 | 50 mm; F1.0 | ||
Field of angle | 14.9°×11.2° | 8.8°×6.6° | ||
Optical zoom | 1x | |||
Digital zoom | 1x, 2x and 4x | 1x, 2x, 4x and 8x | ||
Focus | Manual | |||
Display | ||||
Display type | 0.39’’ AMOLED | |||
Resolution | 1024 × 768 | 800 × 600 | ||
Eyepiece | Exit pupil distance ≥ 10 mm | Exit pupil distance ≥ 20 mm | ||
Video output | Analog video | |||
Detection Range | ||||
Detection range | 700 m | 2000 m | ||
Functions | ||||
Scene modes | Enhanced, Highlight and Natural | |||
Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot | |||
Supported Application | TargetIR | |||
Others | Hot spot tracking | |||
Power | ||||
Battery type | Single 18650 battery | |||
Operating time | ≥ 7 hours | |||
Interface | ||||
Video interface | LEMO | |||
Environmental | ||||
Operating temperature | -30°C to 50°C | |||
Storage temperature | -45°C to 70°C | |||
Humidity | 10 % to 95 % non-condensing | |||
Shock | 500 G at 1 ms half sine pulse (as per IEC60068-2-27) | |||
Encapsulation | IP67 | |||
Certification | IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport | |||
Physical | ||||
Weight | ≤475 g | ≤660 g | ||
Size (L × W × H) | 153 × 57 × 79 mm | 177 × 66 × 87 mm | ||
Standard | Device×1, Eye mask×1, Carry bag×1, 7-pin LEMO to USB cable×1, Battery charger×1, 18650 battery×1, Quick start guide×1, Warranty card×1 | |||
Optional | External eyepiece, Adapter ring, Bluetooth remote control (with hook-and-loop fastener), 7-pin LEMO to USB and AV cable | |||
Company Profile
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal imaging industry.
Market Share
NO. 2 market share in the global commercial infrared thermal imaging products markets according to Yole report.
Reliable
Guide's self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.
Transport
FAQ
1. Are you the manufacturer or trading company?
A: We, Guide Sensmart, design, develop, manufacture, and distribute the infrared-related products around the world.We are NO.1 manufacturer of commercial thermal imaging devices in China with an annual production capacity of over 500,000 units.
2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification and more.
Furthermore, we have over 216 patents so far.
3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.
4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
5. What is the shipping method?
A: Usually shipped by express(DHL, FEDEX UPS and etc).
6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.
7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.
8. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.
For other questions we will reply you as soon as possible while receiving your inquiry.
