How Sale Aluminum Arch Bending Machine for Window Door
- Category: >>>
- Supplier: Jinan Huashinuo Cnc Machinery Co. Ltd.
Share on (1600939593232):
Product Overview
Description

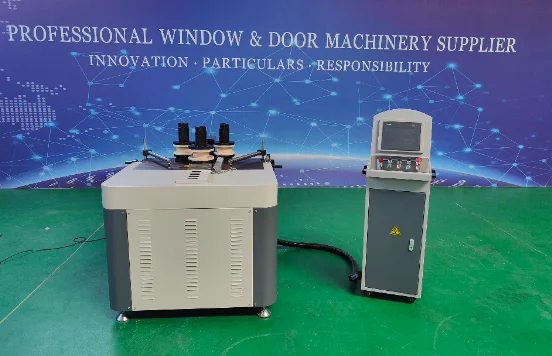

How Sale Aluminum Arch Bending Machine LW-CNC-100
Product Description

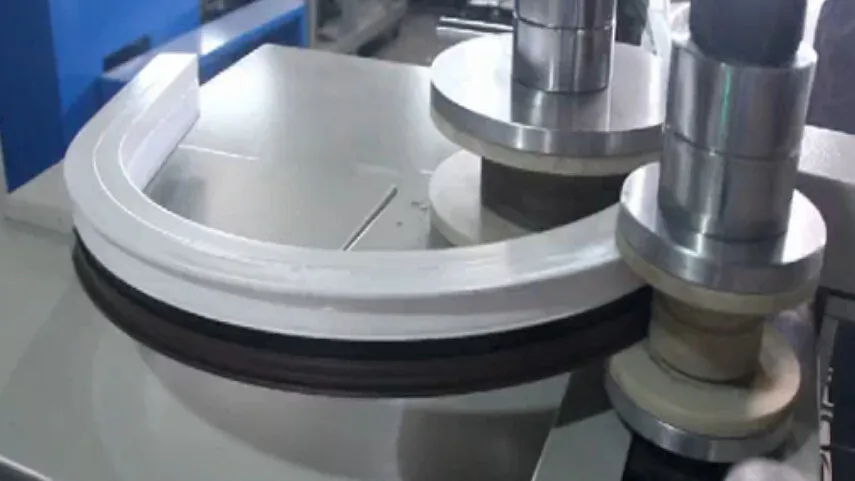

1.The machine is mainly used for bending for metal materials such as Iron, copper and aluminum and special-shaped material. It’s ideal equipment of curved process for furniture manufacturers, wrought iron engineering manufacturers, aluminum alloy doors and Windows manufacturers, decorative steel structure enterprise.

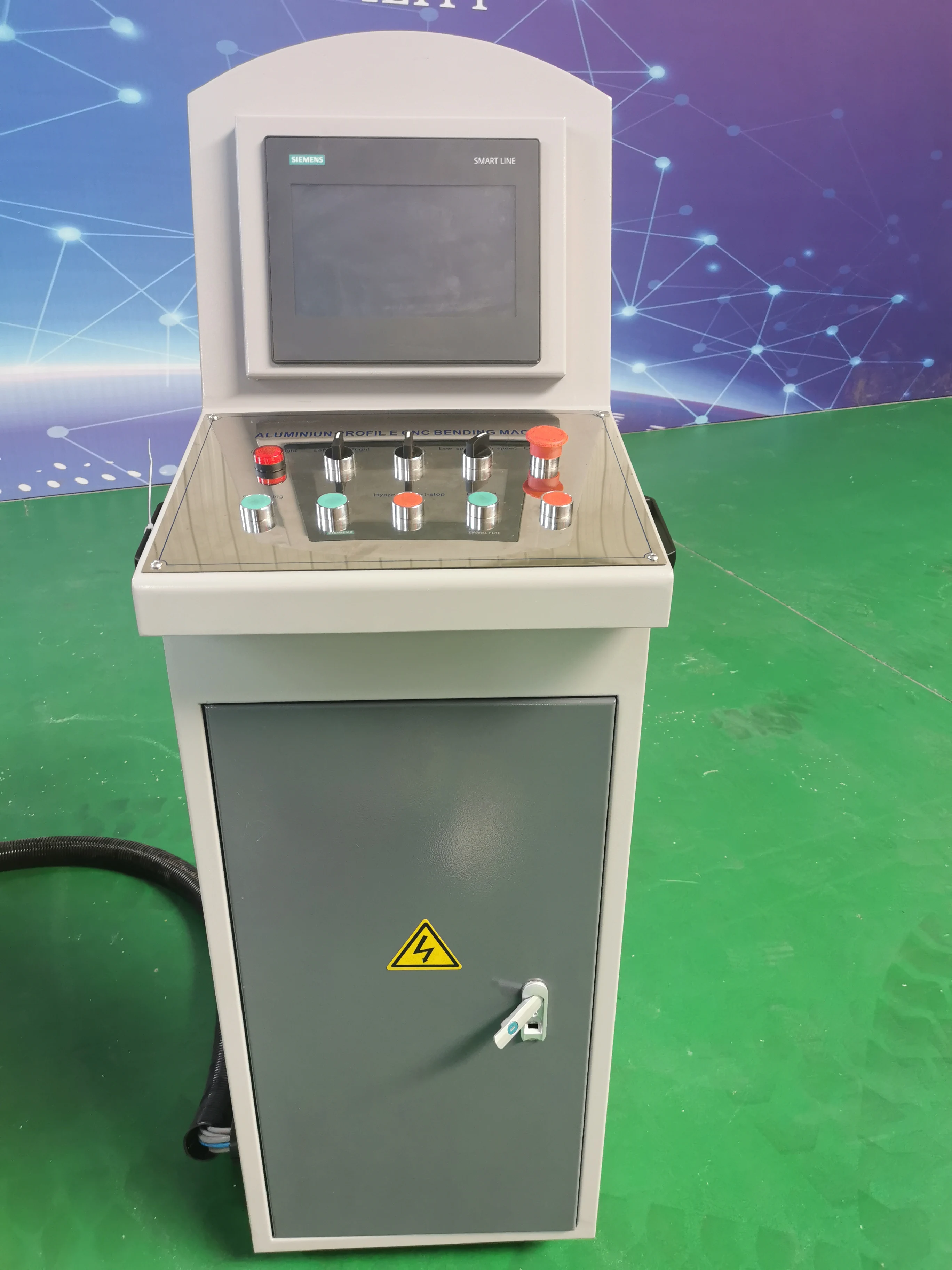

2.The machine adopts CNC controller, which make the machine features easy handling and high precision.
3.Using CNC software, makes the bending operation very simple. -Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
4.Capable of detecting material rebound data, eliminate rebound.
2.The machine adopts CNC controller, which make the machine features easy handling and high precision.
3.Using CNC software, makes the bending operation very simple. -Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
4.Capable of detecting material rebound data, eliminate rebound.
5.Need profiles sample to make the mould with price about 500$ for each set.
Specification
Voltage | 380V 50Hz |
Power | 4kw |
Dimension(L*W*H) | 1150*1050*1050mm |
Function | Aluminium Profile Bending |
Color | Optional |
Min.diameter of bending | 180mm |
Max.diameter of rolls | 200mm |
Hydraulic Cylinder Pressure | 20T |
Rotation speed of shaft | 1~8r/min |
Roller-holding shaft diameter | 60mm |
Top roll stroke | 200mm |
Details Images
Related Machines
Packing & Delivery
Delivery Time
Normal Voltage: 7 Working Days
Customized Voltage: 20 Working Days
Package
LCL: Stretch Film And Plywood Case
FCL: Stretch Film And Loading Container
Normal Voltage: 7 Working Days
Customized Voltage: 20 Working Days
Package
LCL: Stretch Film And Plywood Case
FCL: Stretch Film And Loading Container
Company Profile
Jinan Huashinuo CNC Machinery Co., Ltd. is a modern private enterprise specializing in technology development, machinery manufacturing and product sales.We are a leading manufacturer of window&door machinery with 17 years experiences in China, and exported to more than 20 countries all over the world.
Our main products including full set machines for aluminum &PVC window door making and insulating glass making, such as cutting machines, PVC welding machines, aluminum drilling and milling machines, etc.
Our engineers have more than 15 years experience in machine production, which makes the machine precision and stability better. After the machine is produced, the product is professionally tested to ensure its performance.
If you are a window manufacturer looking for new machines to expand your business, if you are interested in upvc window production line as your new business, or you have any questions about window machines, the Huashinuo team is already here to support you！
Our main products including full set machines for aluminum &PVC window door making and insulating glass making, such as cutting machines, PVC welding machines, aluminum drilling and milling machines, etc.
Our engineers have more than 15 years experience in machine production, which makes the machine precision and stability better. After the machine is produced, the product is professionally tested to ensure its performance.
If you are a window manufacturer looking for new machines to expand your business, if you are interested in upvc window production line as your new business, or you have any questions about window machines, the Huashinuo team is already here to support you！
Customer Visiting
Our Service
1.Warranty time will be 12 months, lifetime maintenance.
2.Within 7 days from your local customs clearance: If any part of the machine has any problem, we will change it for free.
3. Exceed 7 days from your local customs clearance but within warranty period: If the machine parts have any problem, we can exchange the old machine parts for new one for free.
4. Exceed warranty period: If the machine parts have any problem, we can offer new machine parts with cost price but you pay all the shipping cost.
2.Within 7 days from your local customs clearance: If any part of the machine has any problem, we will change it for free.
3. Exceed 7 days from your local customs clearance but within warranty period: If the machine parts have any problem, we can exchange the old machine parts for new one for free.
4. Exceed warranty period: If the machine parts have any problem, we can offer new machine parts with cost price but you pay all the shipping cost.
FAQ
Are you manufacturer?
Yes,we are a professional manufacturer which have more than 15 years experience in this industry.\t
What’s the guarantee ?
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or phone
3).English manual and video tutorial
4).We will provide the consumable parts at agency price
6).free technical support.\t
How long is the delivery time ?
For standard machines, it would be 3-15 days;
For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
I want to buy machines for aluminum/upvc window door, what suggestion can you give?
1) How many square meters of window and door will be planned to produce in one day?
2) What’s the section of your profile?
3) Which kind of window door will be produced ?\t
This is the first time I use this kind of machine, is it easy to operate?
1) there are English manual or guide video that teach you how to use the machine.
2) If you need ,our engineer will do the installation and training service when the machine arrival.customer will be responsible for air ticket and local accommodations (food,stay room,etc).
3) We supply 365*7*24 online service.Any question ,please contact us directly.\t
What accessories do you offer?
1.We will send you standard accessories with the machine.
2.We will send you free accessories for change.
3.We will provide the consumable parts at an agency price.
If I want whole production line for upvc windows, what machines do I need?
At least 7 machines, they are
1. Double / single head cutting machine
2. Welding machine
3. V cutting / end milling machine
4. Glazing bead machine
5. Lock hole machine
6. Water slot milling machine
7. Corner cleaning machine

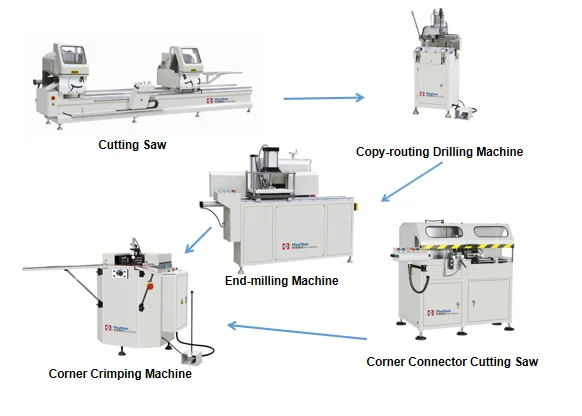

If I want whole production line for aluminum window, what machines do I need?
At least 5 machines, they are
1. Double / single head cutting machine
2. End milling machine
3. Copy routing machine
4. Punching machine
5. Corner crimping machine
Yes,we are a professional manufacturer which have more than 15 years experience in this industry.\t
What’s the guarantee ?
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or phone
3).English manual and video tutorial
4).We will provide the consumable parts at agency price
6).free technical support.\t
How long is the delivery time ?
For standard machines, it would be 3-15 days;
For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
I want to buy machines for aluminum/upvc window door, what suggestion can you give?
1) How many square meters of window and door will be planned to produce in one day?
2) What’s the section of your profile?
3) Which kind of window door will be produced ?\t
This is the first time I use this kind of machine, is it easy to operate?
1) there are English manual or guide video that teach you how to use the machine.
2) If you need ,our engineer will do the installation and training service when the machine arrival.customer will be responsible for air ticket and local accommodations (food,stay room,etc).
3) We supply 365*7*24 online service.Any question ,please contact us directly.\t
What accessories do you offer?
1.We will send you standard accessories with the machine.
2.We will send you free accessories for change.
3.We will provide the consumable parts at an agency price.
If I want whole production line for upvc windows, what machines do I need?
At least 7 machines, they are
1. Double / single head cutting machine
2. Welding machine
3. V cutting / end milling machine
4. Glazing bead machine
5. Lock hole machine
6. Water slot milling machine
7. Corner cleaning machine
If I want whole production line for aluminum window, what machines do I need?
At least 5 machines, they are
1. Double / single head cutting machine
2. End milling machine
3. Copy routing machine
4. Punching machine
5. Corner crimping machine
