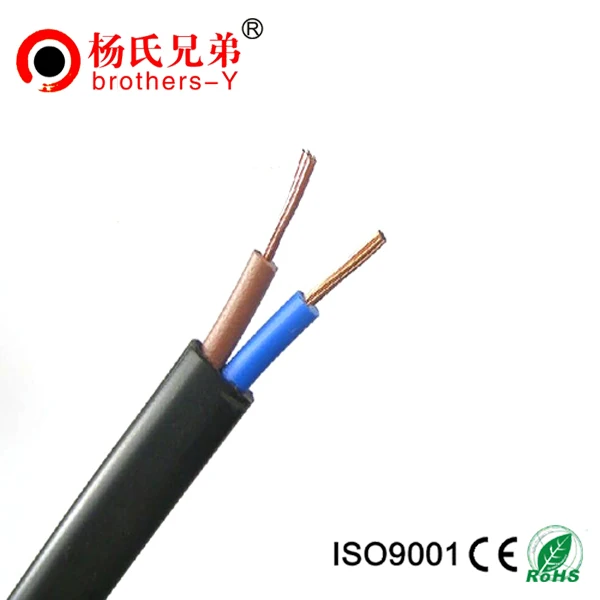

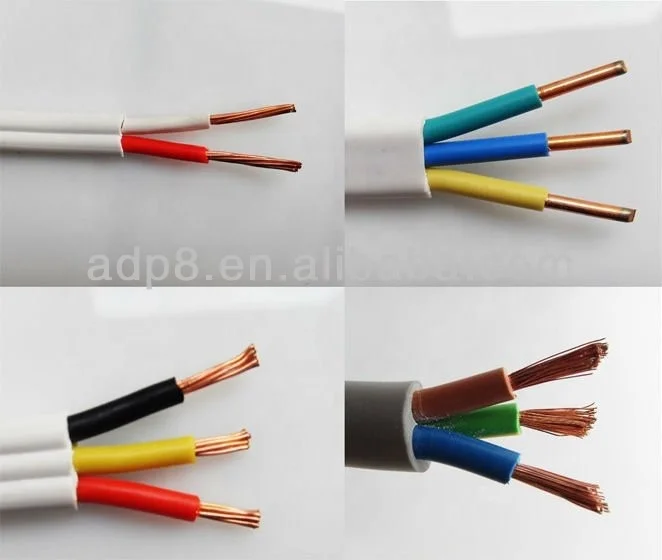

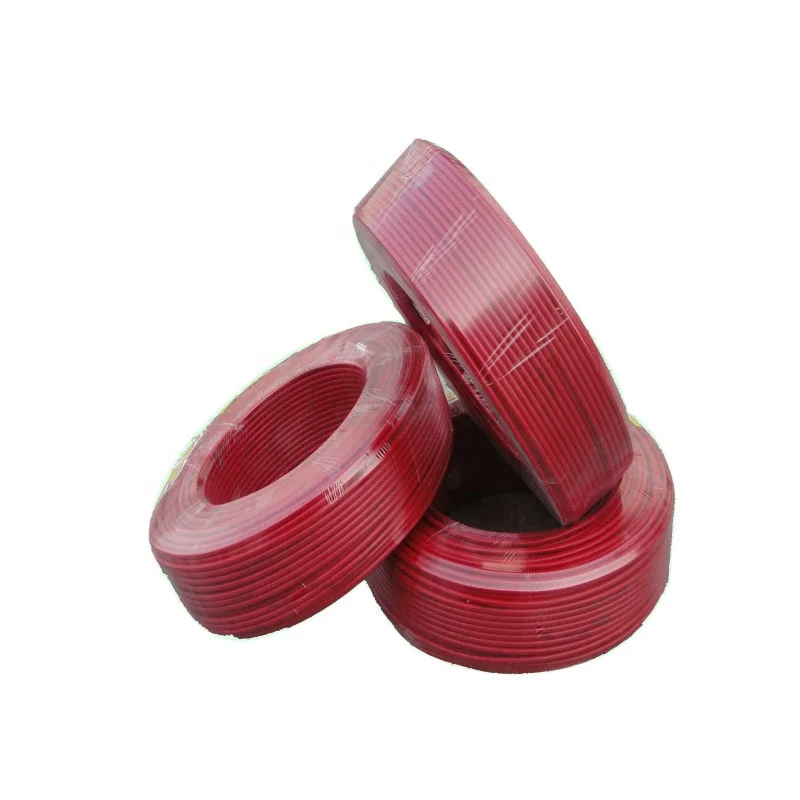

electrical wires BV/BVR/BVV/BVVB/RVV Flat TPS Cable Twin and Earth Electric Wire 1MM 1.5MM 2.5MM 4MM 6MM 10MM Earth Cable
- Category: >>>
- Supplier: Shenzhen Brother Young Development Co. Ltd.
Share on (1600939637463):
Product Overview
Description
Electrical wiresBV/BVR/BVV/BVVB/RVV Flat TPS Cable Twin and Earth Electric Wire 1MM 1.5MM 2.5MM 4MM 6MM 10MM Earth Cable
Product Description
Specification
Specification
1.Rated Voltage: 450/750V
2.Rated temperature: 70 'C
3.Standard: GB, IEC. etc.
4.Testing Voltage: 6KV
5.Min. insulation resistance at 70°C(Mohm.km): 0.010
6.ISO9001:2008, CCC certification
7.20 years manufacturing experience
8.Specialized in electric/electrical; construction; industrial appliance
9.Customer wire cable
10.Stock available, Free sample
11.Small profits, quick returns
12.High quality and competitive price
13.Convenient transportation (One hour drive to Shanghai) )and timely delivery
14.Application: Electrical Instruments, Lighting, Equipment, Household appliances, Railway, Computer, Industrial, Industrial Car, Telecommunication, Military, Mining, Power Station; Construction and Of AC, DC electrical installations
1.Rated Voltage: 450/750V
2.Rated temperature: 70 'C
3.Standard: GB, IEC. etc.
4.Testing Voltage: 6KV
5.Min. insulation resistance at 70°C(Mohm.km): 0.010
6.ISO9001:2008, CCC certification
7.20 years manufacturing experience
8.Specialized in electric/electrical; construction; industrial appliance
9.Customer wire cable
10.Stock available, Free sample
11.Small profits, quick returns
12.High quality and competitive price
13.Convenient transportation (One hour drive to Shanghai) )and timely delivery
14.Application: Electrical Instruments, Lighting, Equipment, Household appliances, Railway, Computer, Industrial, Industrial Car, Telecommunication, Military, Mining, Power Station; Construction and Of AC, DC electrical installations
The standards
The power cable is mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.
The construction of the power cable for different voltage grade
1 low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.
2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
The power cable's characteristic:
1 long time operating temperature for cable conductor is 90 degrees.
3.2 the highest temperature of the conductor in short circuit (no longer than 5 seconds) in not more than 250 degrees,
if a joint is in the cable, the temperature of the tinning welding joint is not more than 120 degrees, compressing joint not more than 150 degrees and electro-welding joint not more than 250 degrees.
3 no drop in limited provided there is full mechanical tention when cable is laid. It si forbidden to lay cable in iron-pipe or
to fix cable by circling around the cable with iron materials.
4 being laid, the minimum temperature of the cable shall not be lower than zero degree. In the case of lower temperature, heating measures shall be taken.
We can also supply the OEM and customized products according to your request
The power cable is mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.
The construction of the power cable for different voltage grade
1 low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.
2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
The power cable's characteristic:
1 long time operating temperature for cable conductor is 90 degrees.
3.2 the highest temperature of the conductor in short circuit (no longer than 5 seconds) in not more than 250 degrees,
if a joint is in the cable, the temperature of the tinning welding joint is not more than 120 degrees, compressing joint not more than 150 degrees and electro-welding joint not more than 250 degrees.
3 no drop in limited provided there is full mechanical tention when cable is laid. It si forbidden to lay cable in iron-pipe or
to fix cable by circling around the cable with iron materials.
4 being laid, the minimum temperature of the cable shall not be lower than zero degree. In the case of lower temperature, heating measures shall be taken.
We can also supply the OEM and customized products according to your request
More technical data:
The information attached below is just for your reference. We can produce electric copper wire completely according to your requirement, please contact us with your specifications that you need
The information attached below is just for your reference. We can produce electric copper wire completely according to your requirement, please contact us with your specifications that you need
In addition, all the product are listed for your reference:
* 60227IEC01(BV): 1.5;2.5;4;6;10;16;25;35;50;70;95.etc.
* 60227IEC05(BV): 0.5; 0.75; 1. etc.
* 60227IEC07(BV-90): 0.5; 0.75; 1; 1.5;2.5. etc.
* 60227IEC02(RV): 1.5; 2.5; 4; 6; 10; 16; 25; 35. etc.
* 60227IEC06(RV): 0.5; 0.75; 1. etc.
* 60227IEC08(RV-90): 0.5; 0.75; 1; 1.5;2.5. etc.
* RVV : 0.75; 1; 1.5; 2.0; 4.0. etc.
* 60227IEC52(RVV): 0.5; 0.75. etc.
* 60227IEC53(RVV): 0.5; 0.75; 1; 1.5;2.5. etc.
* BVR: 2.5; 4; 6; 10; 16; 25; 35; 50. etc.
* BLV: 1.5;2.5;4;6;10;16;25;35;50;70;95.etc.
* BVVB,BLVVB: 0.75; 1; 1.5; 2.5; 4; 6; 10. etc
* 60227IEC01(BV): 1.5;2.5;4;6;10;16;25;35;50;70;95.etc.
* 60227IEC05(BV): 0.5; 0.75; 1. etc.
* 60227IEC07(BV-90): 0.5; 0.75; 1; 1.5;2.5. etc.
* 60227IEC02(RV): 1.5; 2.5; 4; 6; 10; 16; 25; 35. etc.
* 60227IEC06(RV): 0.5; 0.75; 1. etc.
* 60227IEC08(RV-90): 0.5; 0.75; 1; 1.5;2.5. etc.
* RVV : 0.75; 1; 1.5; 2.0; 4.0. etc.
* 60227IEC52(RVV): 0.5; 0.75. etc.
* 60227IEC53(RVV): 0.5; 0.75; 1; 1.5;2.5. etc.
* BVR: 2.5; 4; 6; 10; 16; 25; 35; 50. etc.
* BLV: 1.5;2.5;4;6;10;16;25;35;50;70;95.etc.
* BVVB,BLVVB: 0.75; 1; 1.5; 2.5; 4; 6; 10. etc

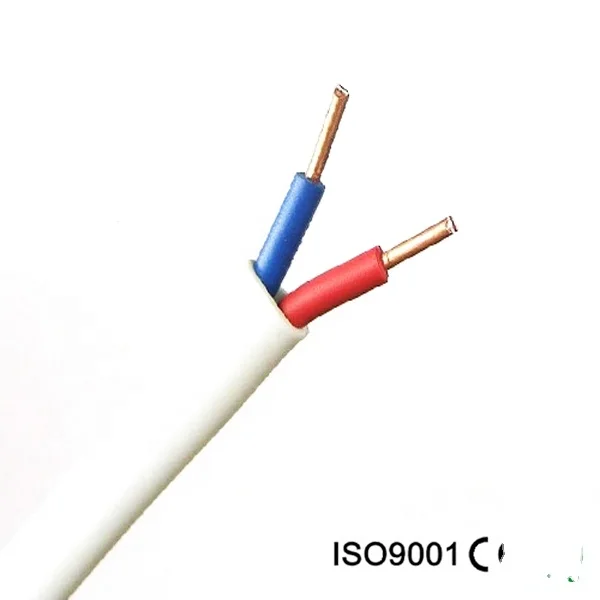

BVVB 300/500V (2 core solid copper conductor pvc insulation pvc sheath power wire) | ||||||||||
Nominal section(mm2) | Number/diameter of core(mm) | Average dia.(mm) | Reference weight(kg/km) | Conductor resistance at 20℃（Ω/km) | ||||||
min | max | |||||||||
2x0.75 | 2x1/0.97 | 3.8x5.9 | 4.6x7.1 | 44 | 24.5 | |||||
2x1.0 | 2x1/1.13 | 3.9x6.1 | 4.8x7.4 | 51 | 18.1 | |||||
2x1.5 | 2x1/1.38 | 4.4x7.0 | 5.3x8.5 | 66 | 12.1 | |||||
2x2.5 | 2x1/1.78 | 5.1x8.4 | 6.2x10.1 | 96 | 7.41 | |||||
2x4 | 2x1/2.25 | 5.6x9.2 | 6.7x11.1 | 126 | 4.61 | |||||
2x6 | 2x1/2.76 | 6.2x10.4 | 7.5x12.5 | 170 | 3.08 | |||||
2x10 | 2x7/1.70 | 7.9x13.4 | 9.5x16.2 | 323 | 1.83 | |||||
3x0.75 | 2x1/0.97 | 3.8x7.9 | 4.6x9.6 | 63 | 24.5 | |||||
3x1.0 | 2x1/1.13 | 3.9x8.4 | 4.8x10.1 | 74 | 18.1 | |||||
3x1.5 | 2x1/1.38 | 4.4x9.6 | 5.3x11.7 | 96 | 12.1 | |||||
3x2.5 | 2x1/1.78 | 5.4x11.6 | 6.2x14 | 140 | 7.41 | |||||
3x4 | 2x1/2.25 | 5.8x13.1 | 7.0x15.8 | 200 | 4.61 | |||||
3x6 | 3x1/2.76 | 6.2x14.5 | 7.5x17.5 | 275 | 3.08 | |||||
3x10 | 3x7/1.70 | 7.9x19.0 | 9.5x23 | 485 | 1.83 | |||||
Model No. | IEC52(RVV) 300/300V | ||||||
line-core structure root number / mm, (mm) | Min. Dia. mm | Ma mm x. | Max. Resistance at 20°C MΩ/km | ||||
2×0.50 | 16/0.20 | 4.8 | 6.0 | 39.0 | |||
2×0.75 | 24/0.20 | 5.2 | 6.4 | 26.0 | |||
3×0.50 | 16/0.20 | 5.0 | 6.2 | 39.0 | |||
3×0.75 | 24/0.20 | 5.4 | 6.8 | 26.0 | |||
Model No. | IEC53(RVV)300/500V rated voltage | ||||||
line-core structure root number / mm, (mm) | Min. Dia. mm | Ma mm x. | Max. Resistance at 20°C MΩ/km | ||||
RVV 2×0.75 | 24/0.20 | 6.0 | 7.6 | 26.0 | |||
RVV 2×1.0 | 32/0.2 | 6.4 | 8.0 | 19.5 | |||
RVV 2×1.5 | 30/0.25 | 7.4 | 9.0 | 13.3 | |||
RVV 2×2.5 | 49/0.25 | 8.9 | 11.0 | 7.98 | |||
RVV 3×0.75 | 24/0.20 | 6.4 | 8.0 | 26.0 | |||
RVV 3×1.0 | 32/0.20 | 6.8 | 8.4 | 19.5 | |||
RVV 3×1.5 | 30/0.25 | 8.0 | 9.8 | 13.3 | |||
RVV 3×2.5 | 49/0.25 | 9.6 | 12.0 | 7.98 | |||
RVV 4×0.75 | 24/0.20 | 6.8 | 8.6 | 26.0 | |||
RVV 4×1.0 | 32/0.20 | 7.6 | 9.4 | 19.5 | |||
RVV 4×1.5 | 30/0.25 | 9.0 | 11.0 | 13.3 | |||
RVV 4×2.5 | 49/0.25 | 10.5 | 13.0 | 7.98 | |||
RVV 5×0.75 | 24/0.20 | 7.4 | 9.6 | 26.0 | |||
RVV 5×1.0 | 32/0.20 | 8.3 | 10.0 | 19.5 | |||
RVV 5×1.5 | 30/0.25 | 10.0 | 12.0 | 13.3 | |||
RVV 5×2.5 | 49/0.25 | 11.5 | 14.0 | 7.98 | |||

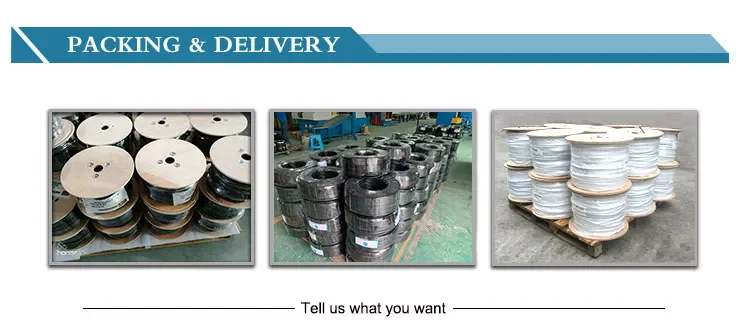

Packing & Delivery

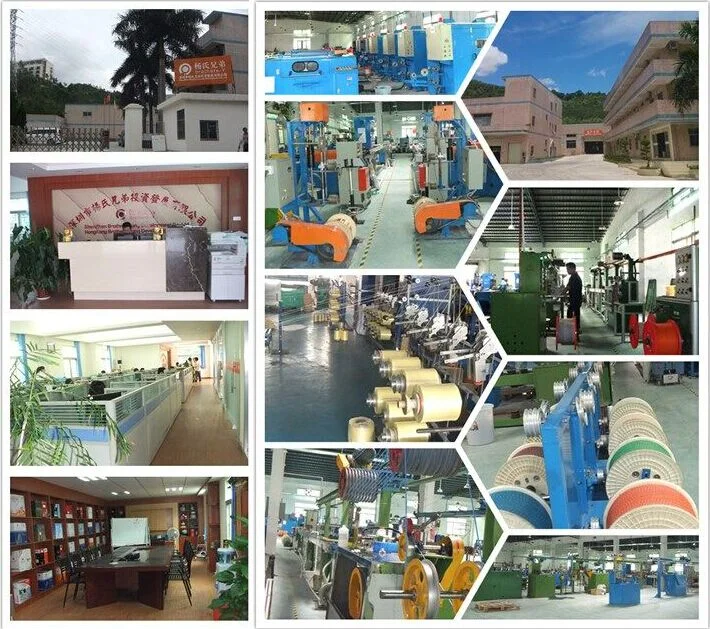

Company Profile
Founded in 2002,Shenzhen Brother Young Development Co., Ltd. enjoys a history of 19 years' development .After 19 years of constant effort and persistence, it has developed into a modern high-tech enterprise.Our main products include CAT5E CAT6 and CAT7 computer cable, patch cord cable,multi-pairs telephone cable, Power cable, Solar Cable,fiber optic cable,and other relative network accessories.We own two factories in Jiexi, and Tongle Park, Longgang District,Shenzhen,Guangdong Province.The factories cover an area of nearly 150,000 square meters.
Exhibition
Certifications
FAQ
Q1: Are you a factory or trading company?
A1: we are original manufacturer with 2 factories in Guangdong,China.
Q2: What's your payment and trade term?
A2:Payment:T/T in advance, TT 30% in advance and balance before shipment Trade term:FOB, CIF, CFR, EXW
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information willbe updated in time.
Q8: What’s the leading time? How long do you need to prepare my goods?
A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
A1: we are original manufacturer with 2 factories in Guangdong,China.
Q2: What's your payment and trade term?
A2:Payment:T/T in advance, TT 30% in advance and balance before shipment Trade term:FOB, CIF, CFR, EXW
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information willbe updated in time.
Q8: What’s the leading time? How long do you need to prepare my goods?
A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
