Automatic Precision Silk Screen Printing Machine Notebook Computer/Mobile Phone Soft Circuit Board
- Category: >>>
- Supplier: Shenzhen Vility Automatic Machinery Co. Ltd.
Share on (1600939639314):
Product Overview
Description
VT4560 5070 6090
FLEXIBLE PRINTED CIRCUITS SCREEN PRINTER
FPC SCREEN PRINTER, FLATBED SCREEN PRINTER, FULLY AUTOMATIC FPC ROLL-TO-ROLL SCREEN PRINTING LINE Specification
FPC SCREEN PRINTER, FLATBED SCREEN PRINTER, FULLY AUTOMATIC FPC ROLL-TO-ROLL SCREEN PRINTING LINE Specification
T Shirt Heat Transfer Sticker CCD Screen Printing Machine Roll to Roll Automatic
| Roll to roll CCD alignment screen printing machine | |||
| Product Parameters | |||
| Item \\ Type | VT4560PR-1 | VT5070PR-1 | VT6090PR-1 |
| Printing Table Size | 660mm*900mm | 760mm*1100mm | 860mm*1800mm |
| Printing Size | 450mm*600mm | 500mm*700mm | 660mm*900mm |
| Frame Size | 800mm*1100mm | 900mm*2100mm | 1000mm*2100mm |
| Machine Weight | 2000kg | 2500kg | 3000kg |
| Dimension(L*W*H) | 3300*1600*2200mm | 4300*1700*2200mm | 4600*1700*2200mm |
| Frame Thickness | 25-50mm | ||
| Alignment Precision | ±0.02mm | ||
| Printing Precision | ±0.05mm | ||
| Air Pressure | 4-6kg/psi | ||
| Air Consumption | 2.6L/cycle | ||
| Voltage | 380V/50HZ | ||
| Power | 40KW | ||
| CCD Distance | 330mm adjustable range, mold direction ±80mm, longitudinal direction±50mm, customized support | ||
| Name | Roll to roll CCD screen printing machine |
| Custom | Yes |
| Usage | flexible roll material printing |
| Advantage | High Efficiency |
| Control system | PLC |
| Printing precision | 0.02mm |
| Packing | Wooden Package |
| Power | 40KW |
| Volatge | 380V/50Hz |
| Registration method | CCD visual alignment |
| Product Keywords | Industrial Screen Printing Machine Transfer Paper Screen Printer Membrane Switch Screen Printer Automotive Dashboard Screen Printer Nameplate & Cards Screen Printer Stationery Souvenir Toy Screen Printer Recycle Bag Screen Printer Automotive Engine Gasket Screen Printer |
The above parameters are for our standard Roll to roll CCD alignment screen printing machine. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.
PrintingMachine
Fully Automatic CCD Registering Screen Printer
Roll to roll CCD alignment screen printing machine Product Overview:

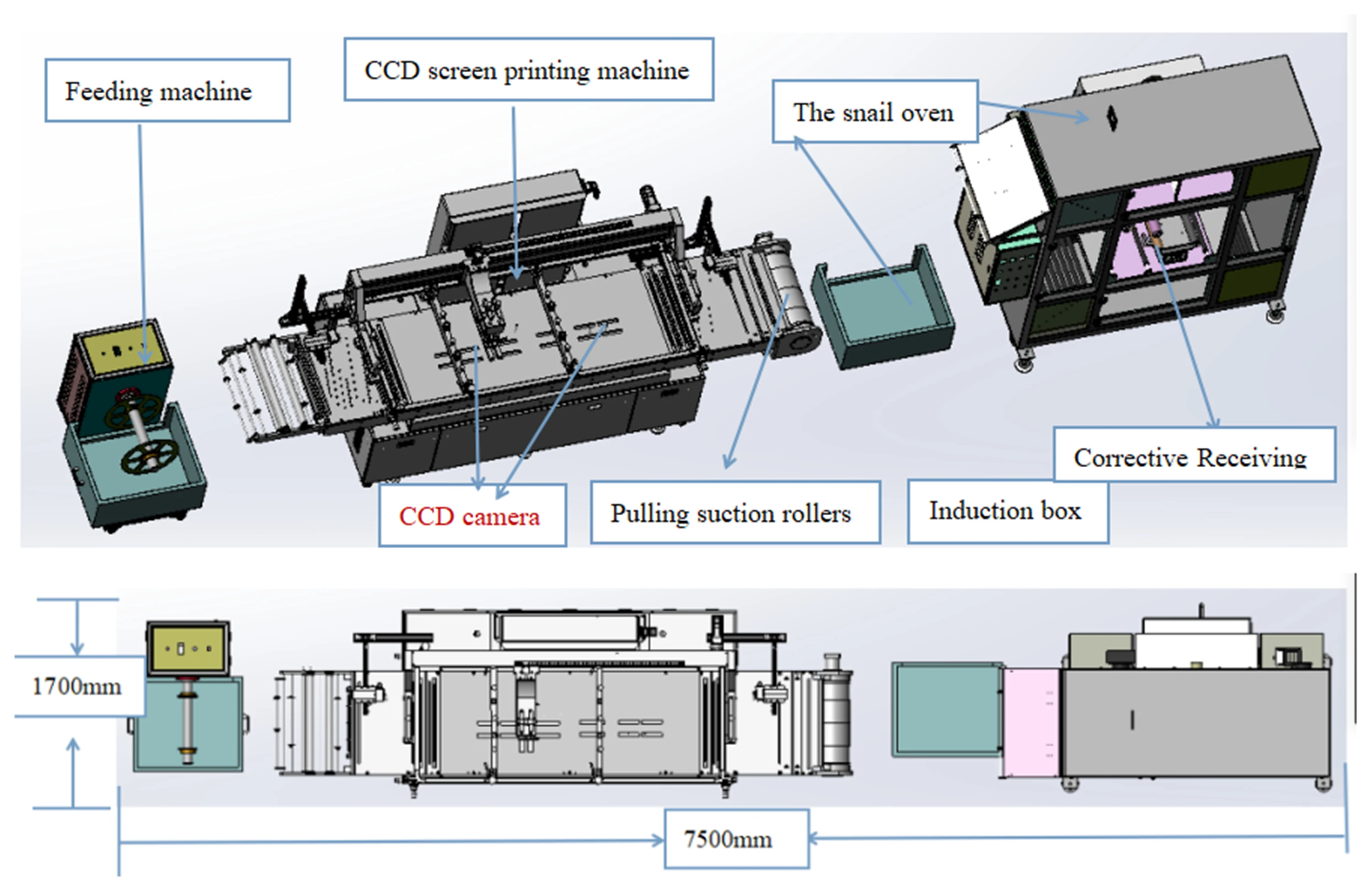

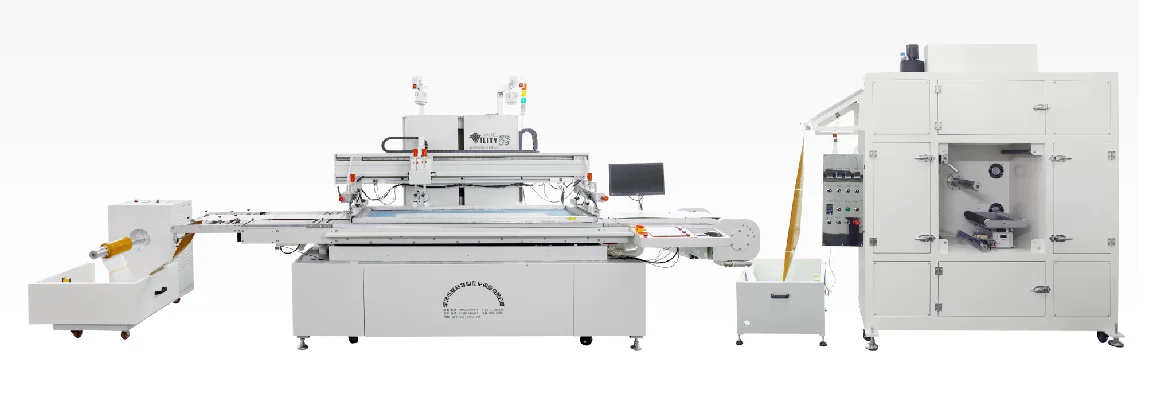

Roll to roll CCD alignment screen printing machine consists of three main parts: automatic feeding machine, CCD precision printing machine and automatic oven.
The whole production line can be controlled by one person, no pause in the printing process, high precision.
The alignment error shall not exceed 0.02mm.
Roll to roll CCD alignment screen printing machine Application Scope |
This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
High precision CCD vision alignment with 0.02mm error. Suitable for all flexible roll material printing.

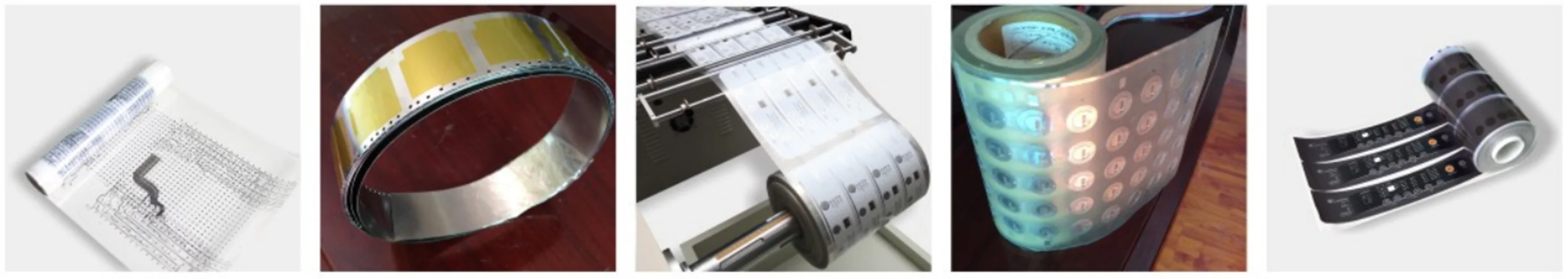

Sample picture after printing
Roll to roll CCD alignment screen printing machineProcess |
Raw material →Automatic feeding machine (anti-dusting, removing film, electrostatic eliminating)→Automatic printing ( automatic punching, printing, QC, automatic feeding )→Automatic oven (be self-polishing , protective film, attach tape, release paper ) →Automatic receiving →Automatic punching machine( cut)→End product.
|
1,Automated equipment for roll-to-roll printing;
2,Industrial computer control,Servo motor transportation,HD CCD image positioning;
3,Automatic printing production.Meet the needs of high volume orders;
4,Dramatically reduce costs, Increase productivity;
5,CCD high-precision alignment,Guaranteed high-precision printing;
6,Equipment can make production schedule,Automatic alarm after production completion;
7,Automatic machine shutdown alarm after printing material is completed;
8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;
9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;
10,Use automatic dust and static elimination function,Cleaner materials;

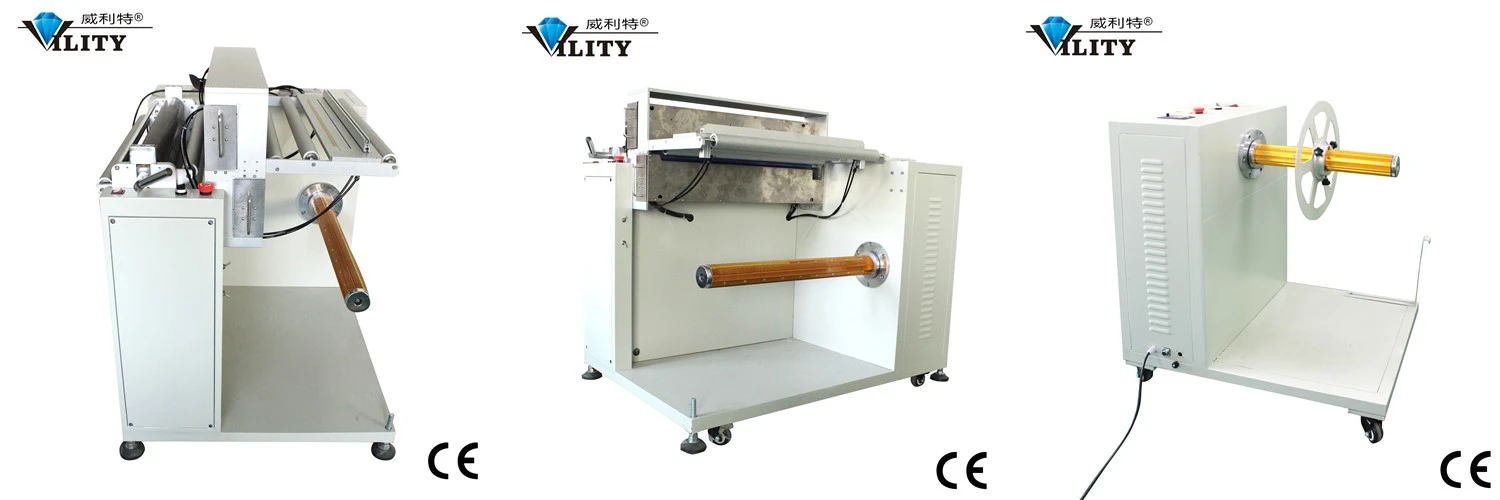

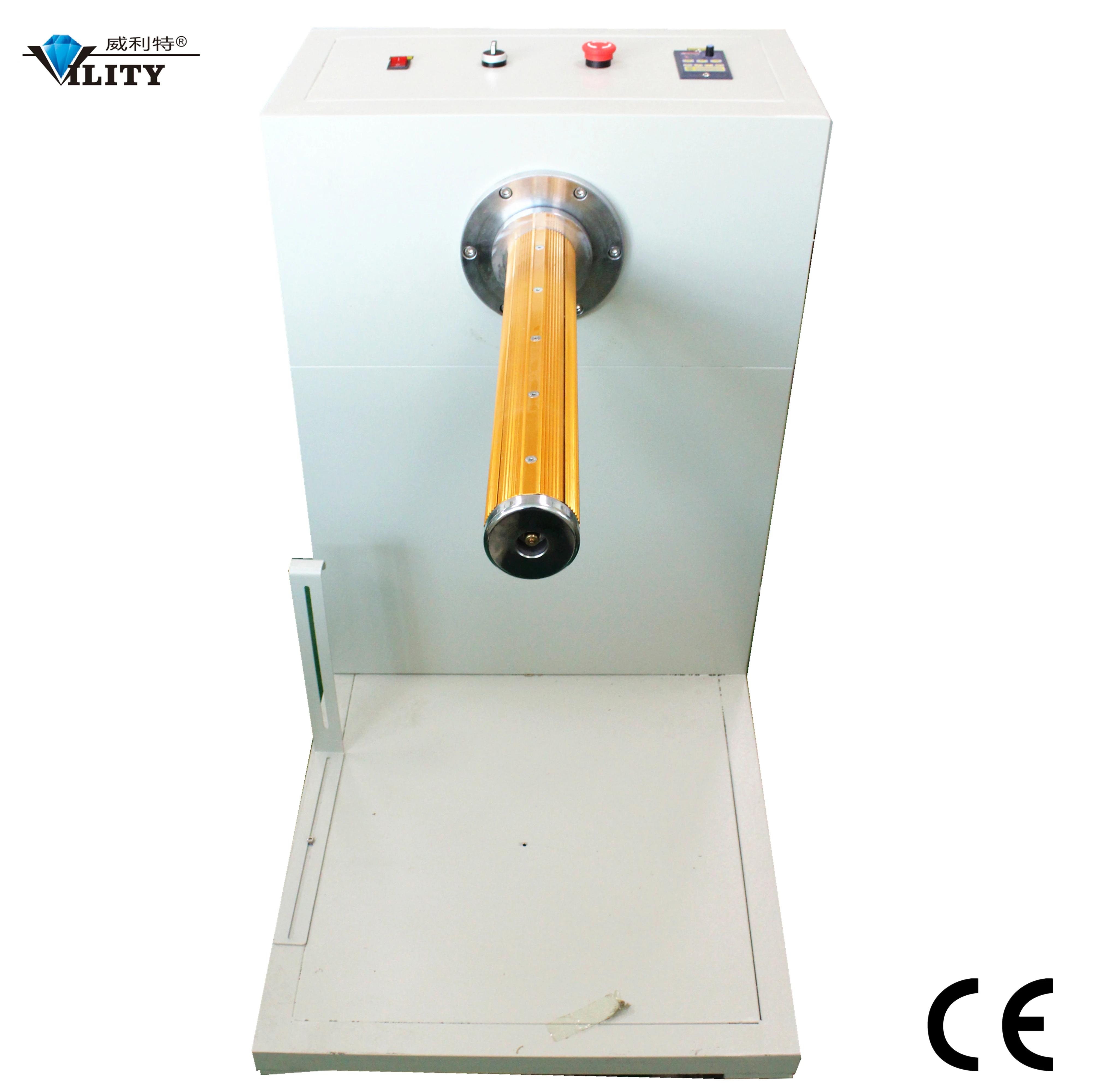

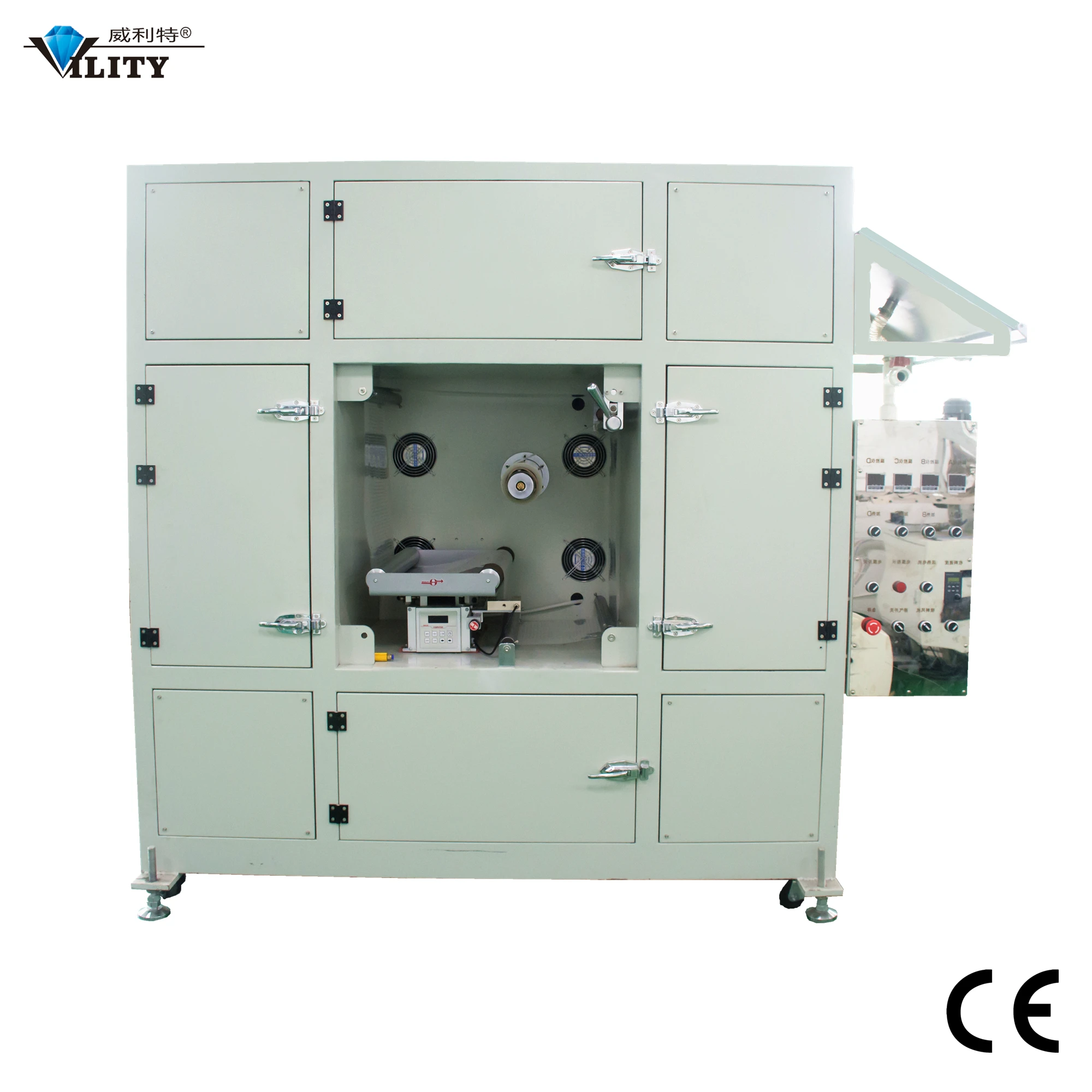

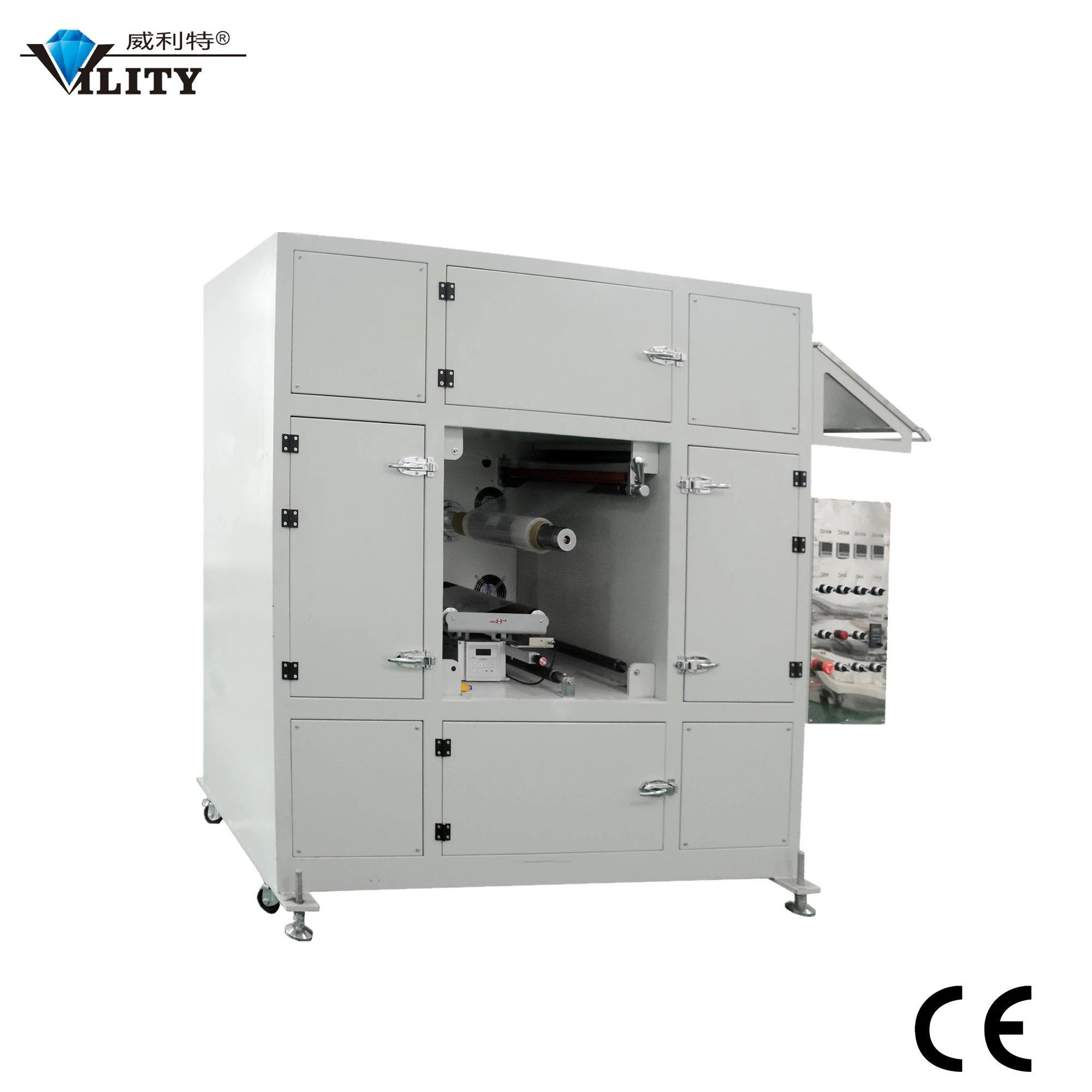

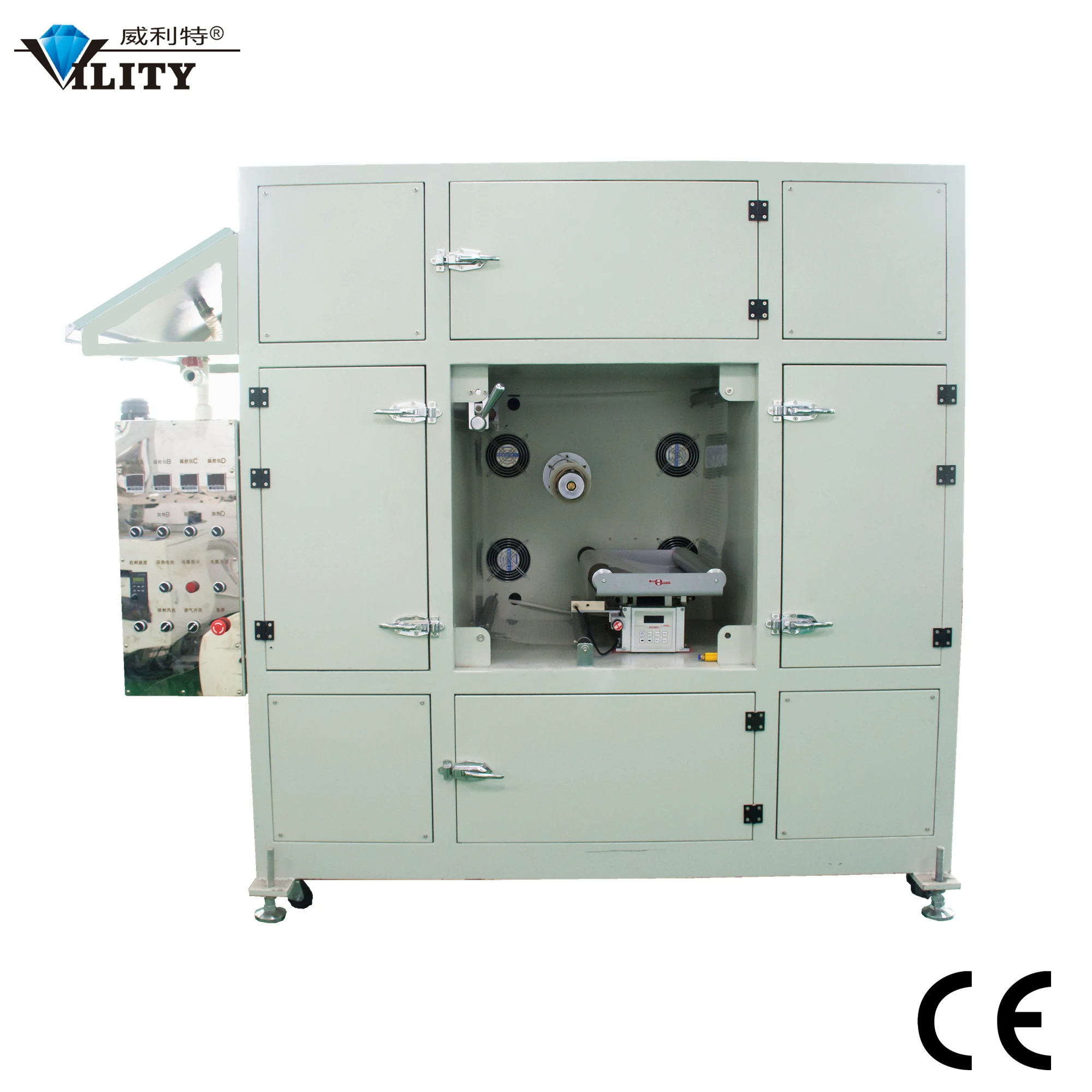

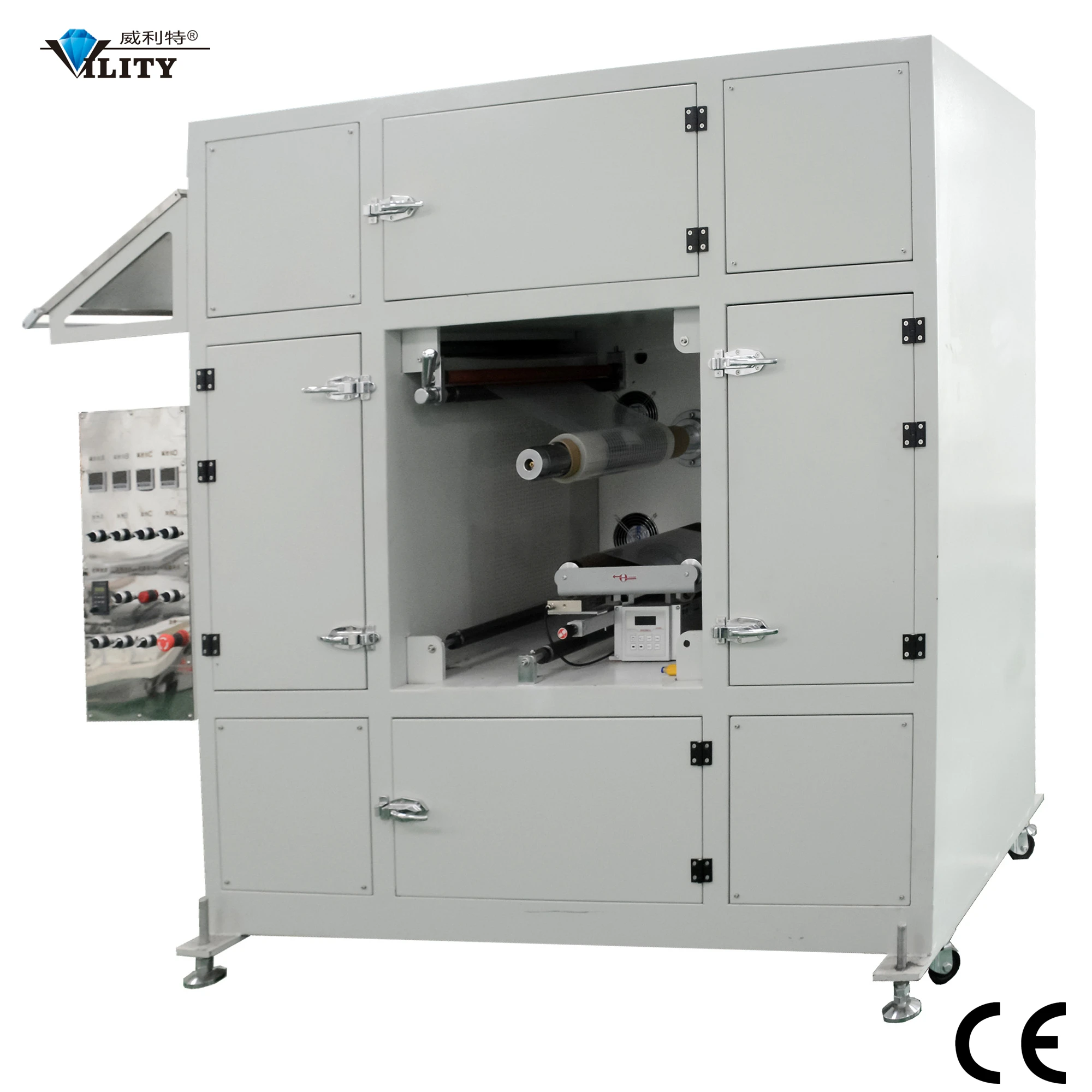

The Feeder features:
(1) photoelectric control feeding, avoid the surface damage of the material.
(2) feeding speed, time, can adjust at will.
(3) the feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.
(4) equipped with an automatic protective device.

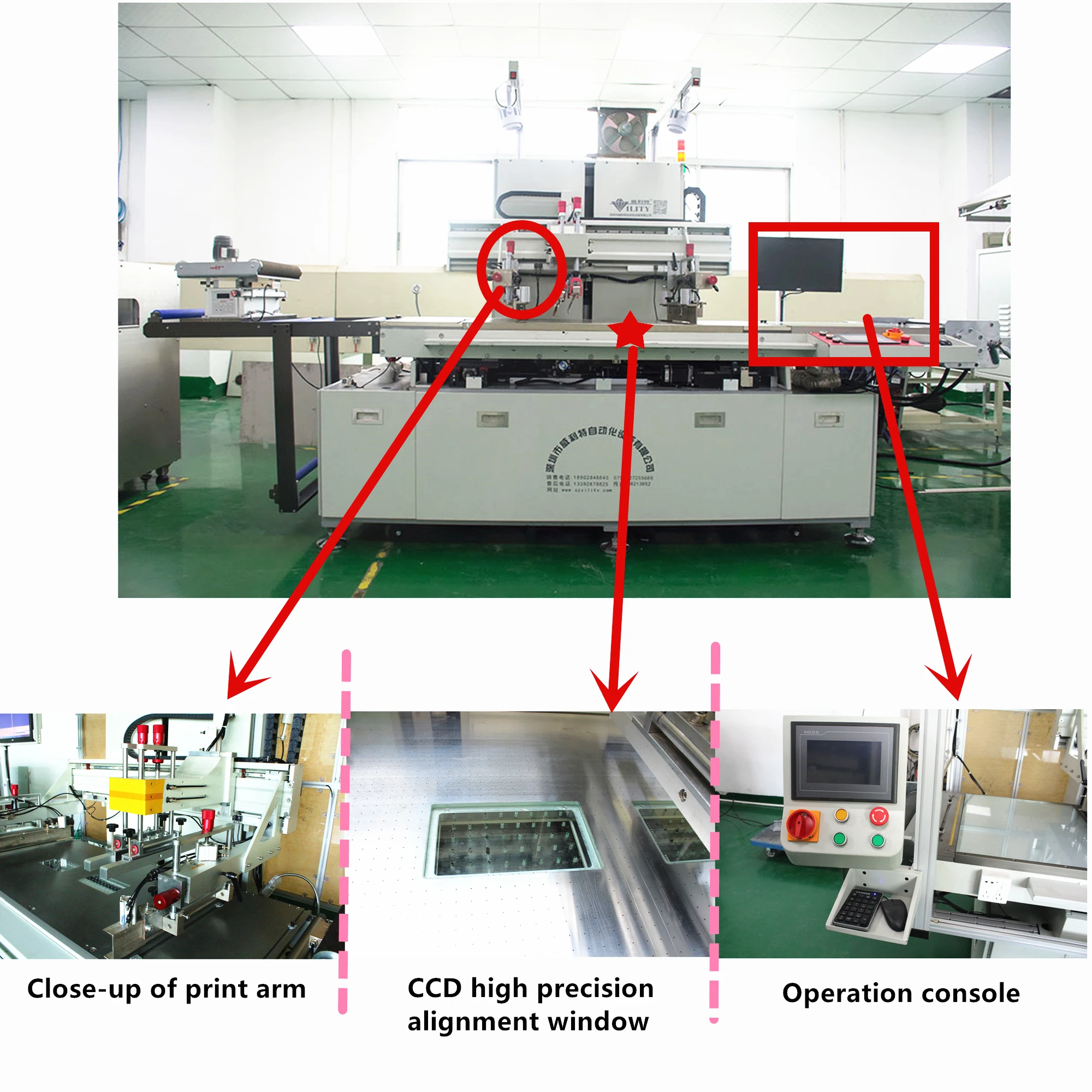

Main machine feature---screen printing machine
(1) Multicolor printing, automatic photocell eye counterpoint, computer control, automatic detection color code, if have any abnormal , it will stop automatic.
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3) Using numericalcontrol motor, printing distance, return to the ink distance can be set in a random data.
(4)Automatic computing printing, andcalculate the qty, and printing can be set automatically stop.
(5)photoelectric control feeding and discharging to avoid thesurface damage of substrates, can improve the printing quality.
(6)Setting of printing speed and cycle run can be controlled via touch panel.
New Technology (CCD automatic XYθ rotary alignment printing)
1.CCD automatic XYθ rotation alignment adjustment .
2.Quick screen changer, high production efficiency .
3.CCD high precision alignment ±0.02mm .
4.No pause at halfway, electric eye cursor .
5.No requirements for the accuracy of pulling materials .
6.Provincialworkers, one person can take care of 3 machines.

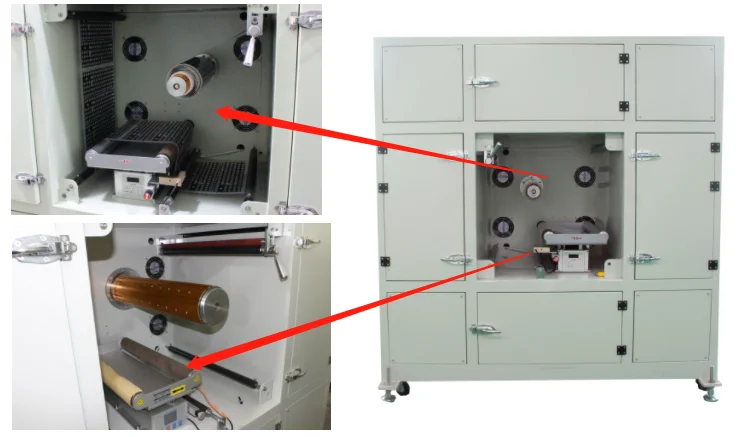

Main machine feature-The dryer features:
(1) Circulating hot air drying, temperature adjustable, automatic winding.
(2) The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.
Packaging & Shipping
PACKAGE:

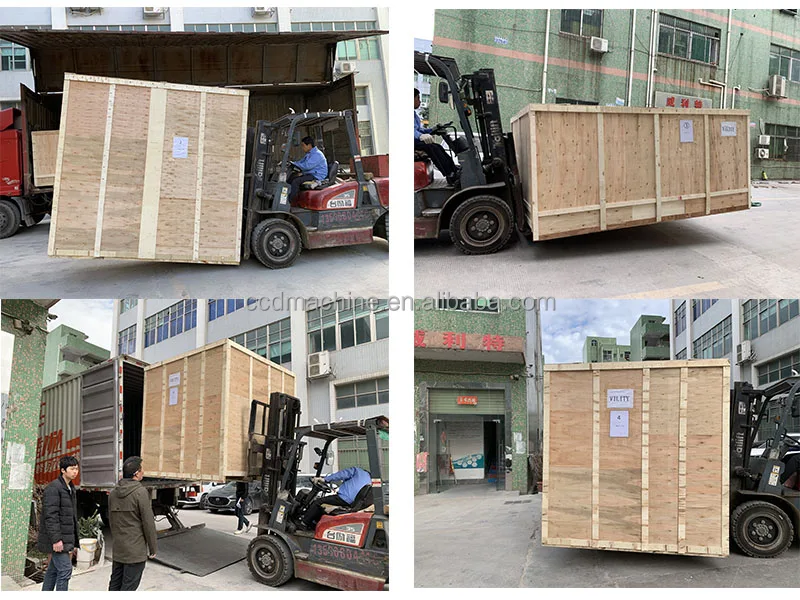

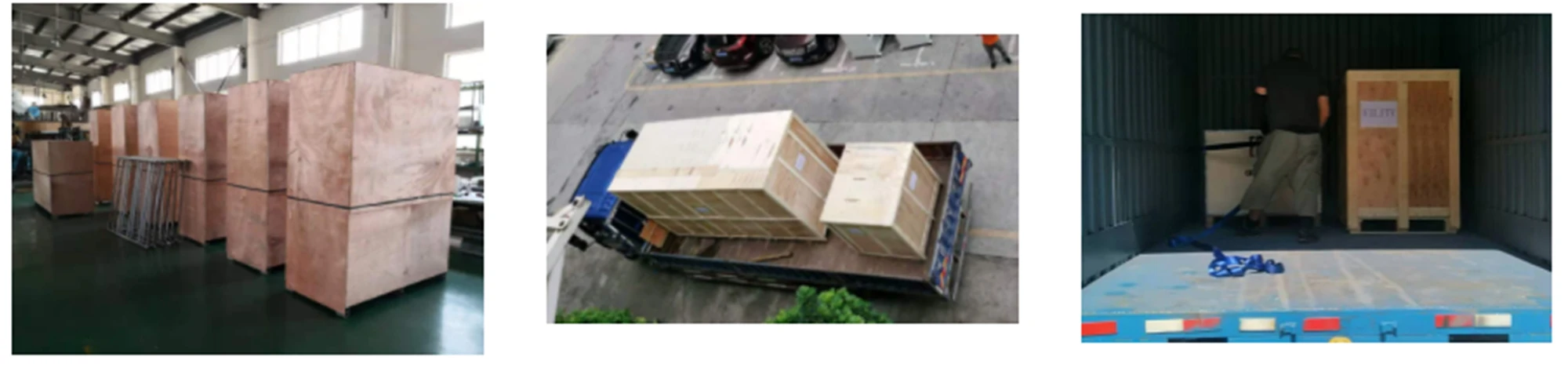

The Automatic CCD alignment screen printing machine will be packed in strict safety before transportation.As shown in the figure above.Try to ensure that no damage occurs in the course of transportation.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
We've exported machines to Europe, Southeast Asia, Southeast etc.
Representitive companies have CCL, SJS, Excel, Saule ect.
Company Information
| Company History |
Shenzhen Vility Automation Machinery Co., Ltd,established in 2010, is located in Baoan District, Shenzhen, where high-tech industries are concentrated in R & D and production, Covers an area of 5000 square meters and has around over 10 years history and experience of making machinery. People-oriented, technological progress and service-oriented are the company's development guidelines. VILITY is composed of two groups of words, Victory & Ability, Victory & Quality, and contains our corporate spirit to win with strength and win with quality.
Vility has total 3 workshops so far, about 60 workers, established sales department, purchasing department, R&D department, production department and after-sales department.
with perfect import and export qualifications, and more than 10 years of experience in the production and operation of automation equipment.
Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material.And all products have obtained the domestic and international quality product certification,such as CE,ISO,CCC.
If you have any other requirements for product certification, please let us know.We will cooperate with you in accordance with your requirements to ensure that the products can go through the customs smoothly in the later testing and certification.

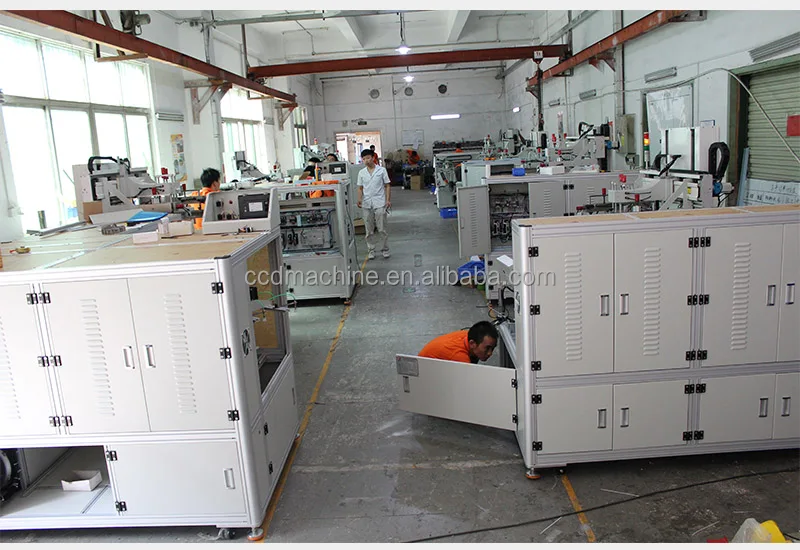

| Factory workshop |
