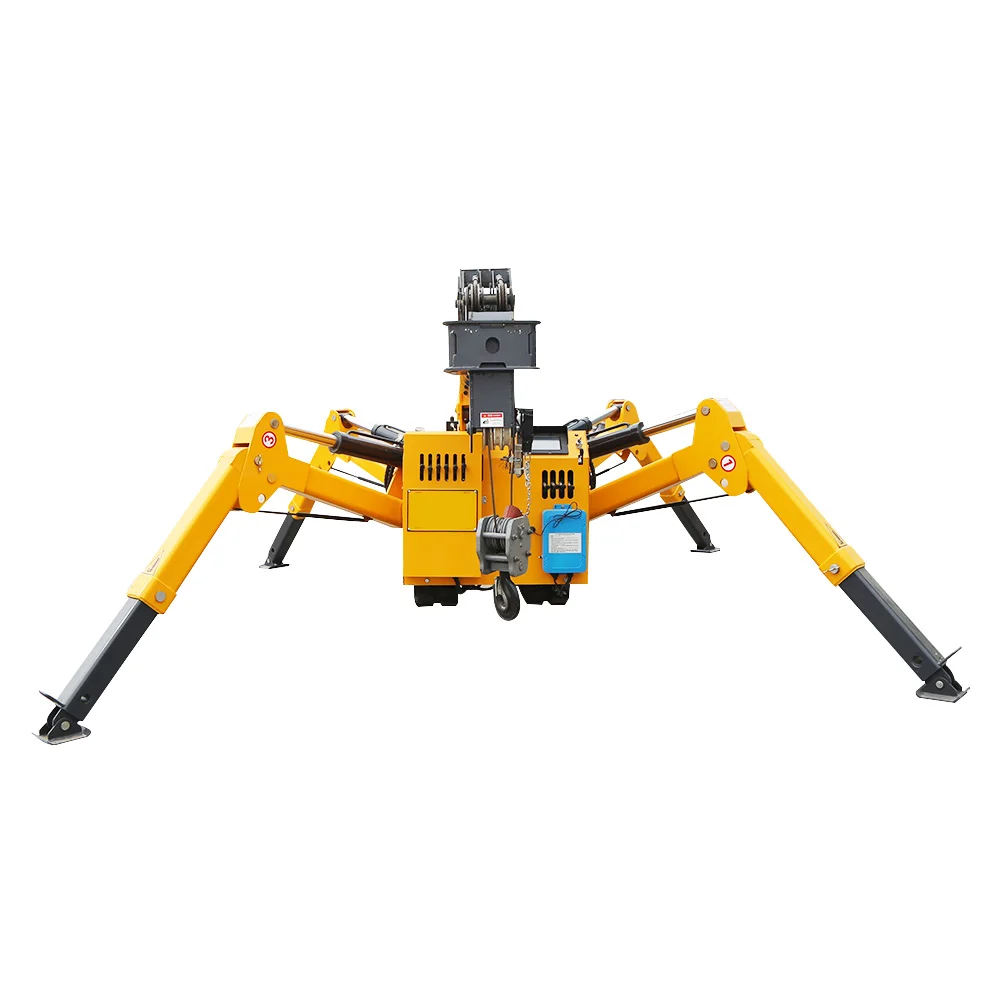

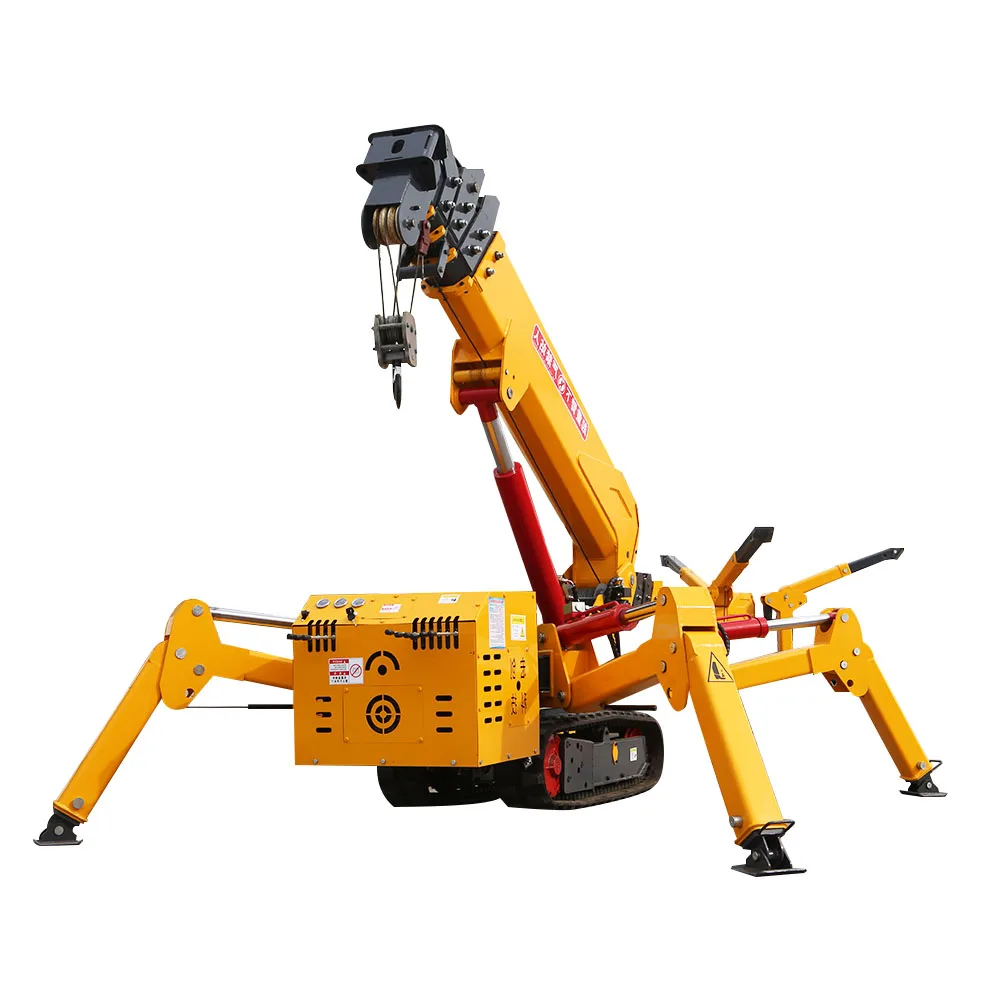

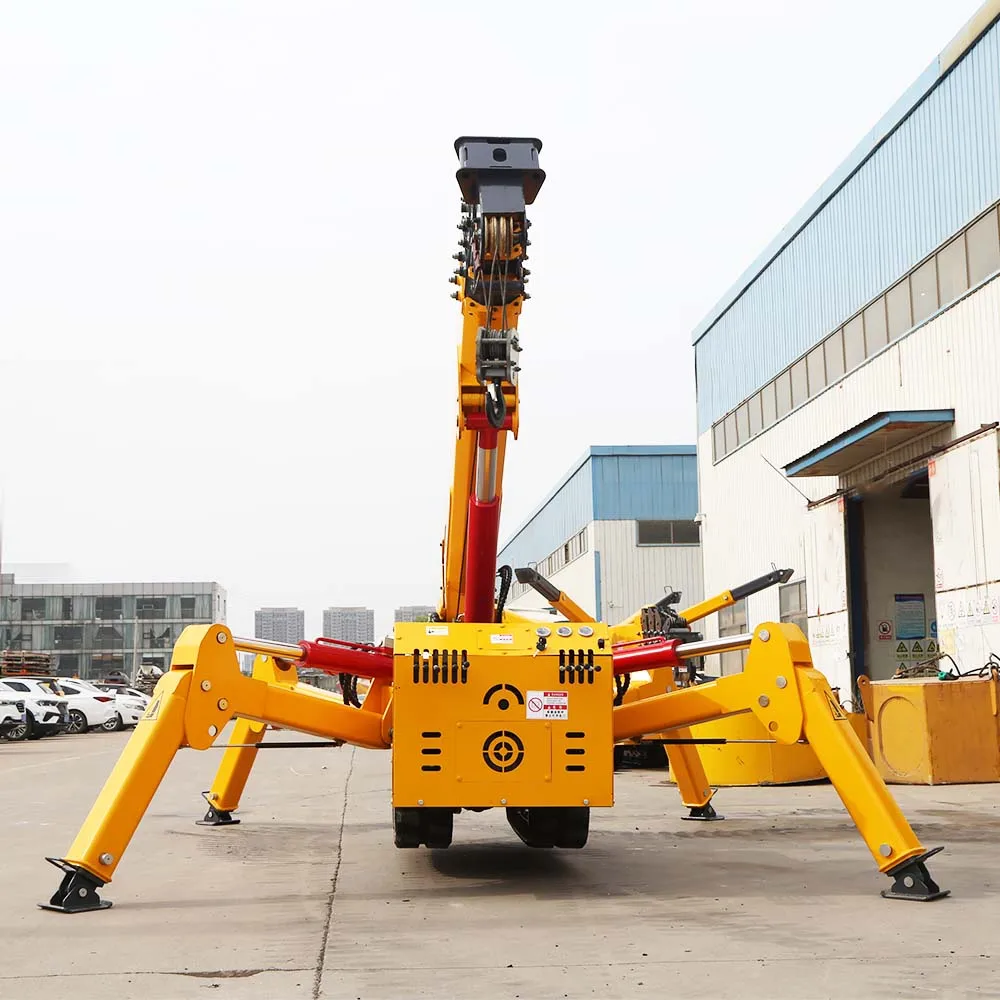

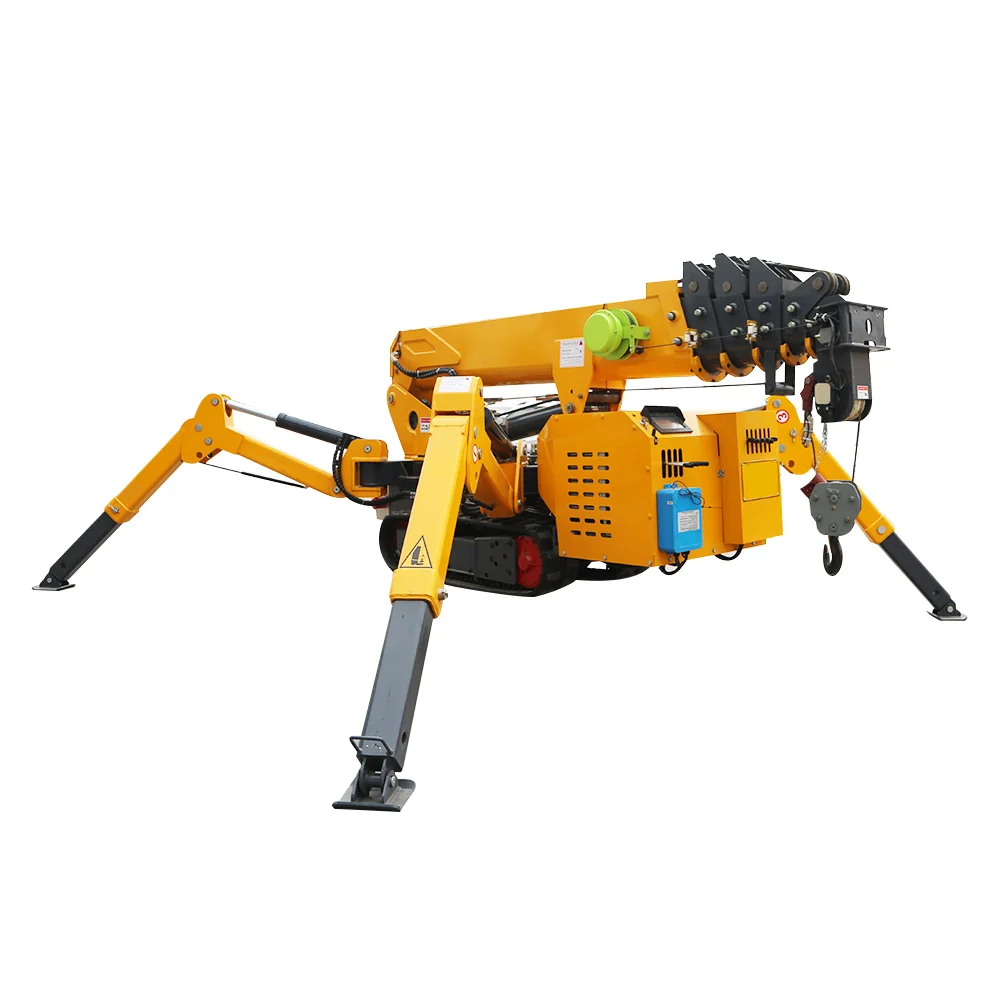

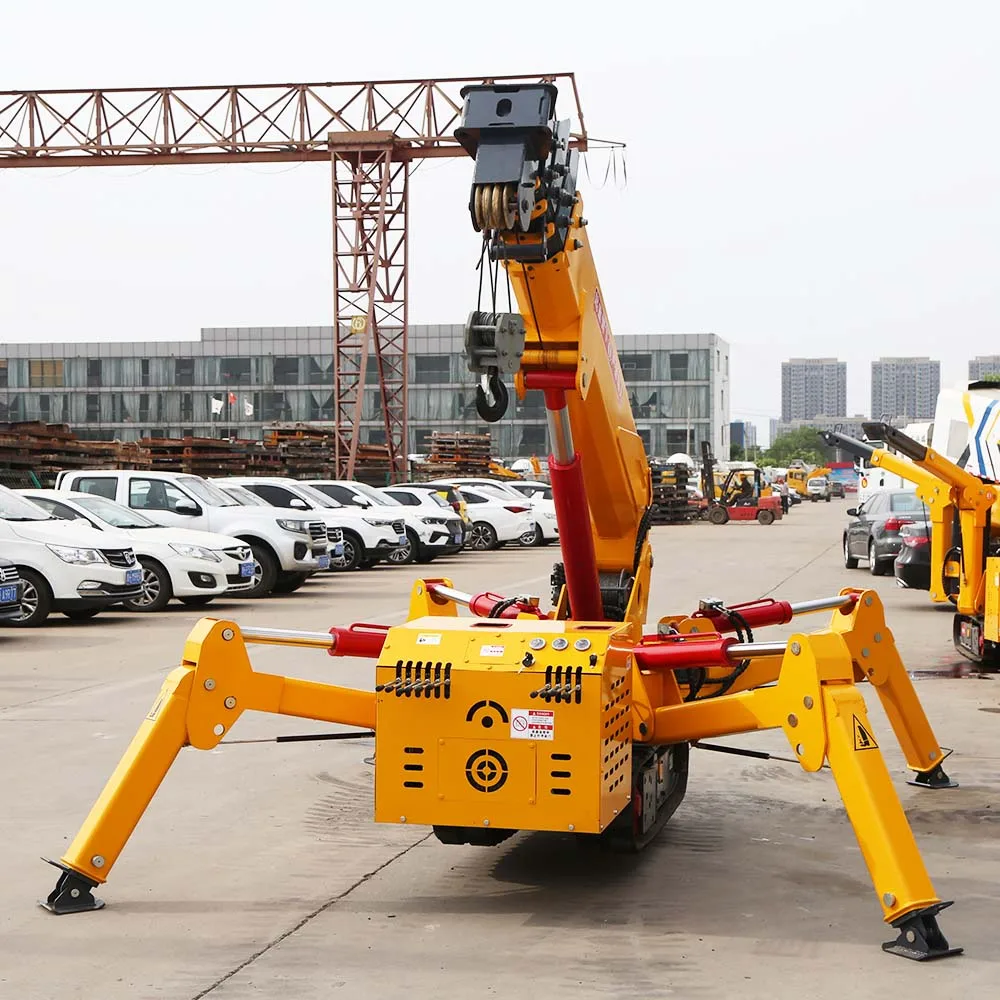

Safe And Reliable Work 3000kg Spider Crane Mobile Spider Crawler Lift Mini Hydraulic Crane Lifting Crawler Cranes
- Category: >>>
- Supplier: Zhong Yun Intelligent Machinery (yantai) Corp. Ltd.
Share on (1600939851237):
Product Overview
Description
Products Description
Introduction of Hot Sale Foldable Spidercrane Chinese Small Size Diesel Engine Spider Crane Spider Crawler Cranes With Attachments
The spider crane is a supplement to the traditional crane, which solves some hoisting and construction problems in special environments and complex spaces. With excellent accessibility, the safety and efficiency of the operation are significantly improved. With the development and progress of society, hoisting and handling are becoming more and more mechanized, and more and more commercial plazas are rising. Spider crane rental can move and transform in a small space, and let the machinery help us to complete the hoisting and handling smoothly. zmwm16
Product Paramenters
Parameter of Hot Sale Foldable Spidercrane Chinese Small Size Diesel Engine Spider Crane Spider Crawler Cranes With Attachments
Specification | 2.95t _ | ||
Maximum working radius | 7.8m × 0.2t _ | ||
Maximum ground lift | 9.2mX0.8t _ _ _ | ||
Max underground lift | --- | ||
winch | Hook up speed | 0-8m/min | |
Wire Rope Specifications | Φ8mm×45m | ||
Telescopic device | Boom form | 5 -section boom , U-shaped high-strength manganese | |
Boom length/time | 2.8 m- 8.2 m/2 2 sec | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) | |
Maximum extension (mm) | 4010 (long) X 3260 (rear) , (front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed | |
Walking speed | 0-2.5km/h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | AC380V | |
engine | Producer | Chang Chai | |
Type/displacement | EV80/F195 | ||
Start method | Electric start | ||
Startup performance | -5°C~40°C | ||
fuel/volume | Diesel / 8 L | ||
battery capacity | 12v 45AH | ||
Fuel consumption | 274g/kW-h | ||
noise level | Rated speed≤81.5dBA (1m) | ||
Emission Standards | Country II | ||
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
Operating characteristics | Comai hydraulic system (optional) | ||
The standard configuration | Diesel engine and electric motor (dual power) | ||
Vehicle size | Length 2830*width 800*height 1650 | ||
Craftsmanship | Paint assembly process | ||

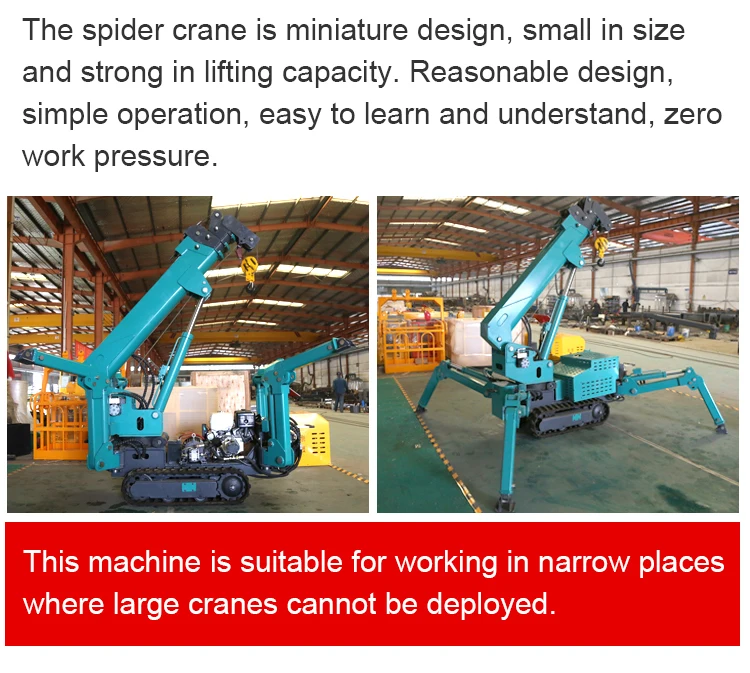

Product Show
Photos of Hot Sale Foldable Spidercrane Chinese Small Size Diesel Engine Spider Crane Spider Crawler Cranes With Attachments
