Product Overview

Description

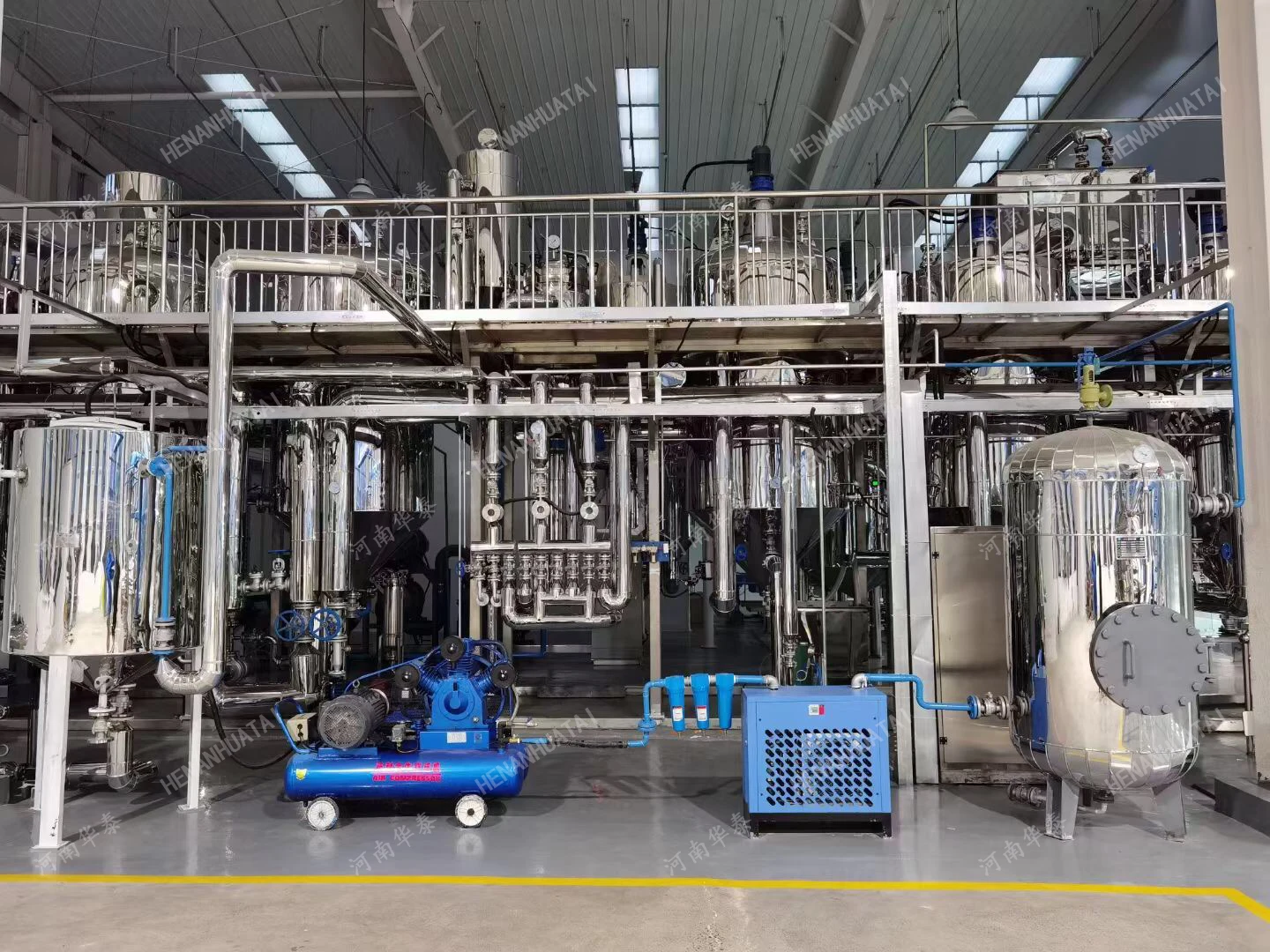

peanut oil making machine Cooking oil refining production linevegetable oil extraction plant

Peanut oil making machine

 1.The whole peanut oil making machine contains three workshops:

 peanut pretreatment and prepressing workshop, peanut oil extraction workshop and

 peanut oil refining workshop.

 2.main features

 Saving Labor: it can save 60% labor for the equal output and 40% labor cost per day, for one or two people are able to make production.

 Widely used: it can used to completely press more than 20 kinds of oil crops, such as peanuts, sesames, vegetable seeds, soybean, oil sunflower and so on

 Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine

 Small land-using: an area of 10-20m2 workshop can meet the need of production.



3.main dada of the peanut oil making machine

                                   the specification of crude peanut oil

Item	Standard
Smell and taste	The original smell and taste of peanut oil
Moisture and volatile matter (%)           ≤	0.20
Insoluble impurities (%)                 ≤	0.20
Acid value (mgKOH/g)                 ≤	4.0
Peroxide value (mmol/kg)              ≤	7.5

                                the specification of refined peanut oil

Item	Standard
Color (Lovibond Cell 133.4mm)          ≤	R1.5  Y15
Smell and taste                        ≤	No smell and good taste
Transparence                         ≤	Clear and transparent
Moisture and volatile matter (%)          ≤	0.05
Insoluble impurities (%)                 ≤	0.05
Acid value (mgKOH/g)                ≤	0.20
Peroxide value (mmol/kg)              ≤	5.0
Smoke point (°C)                      ≥	215

 4.cottonseed capacity: 10-1000T/D

 5.craft flow:

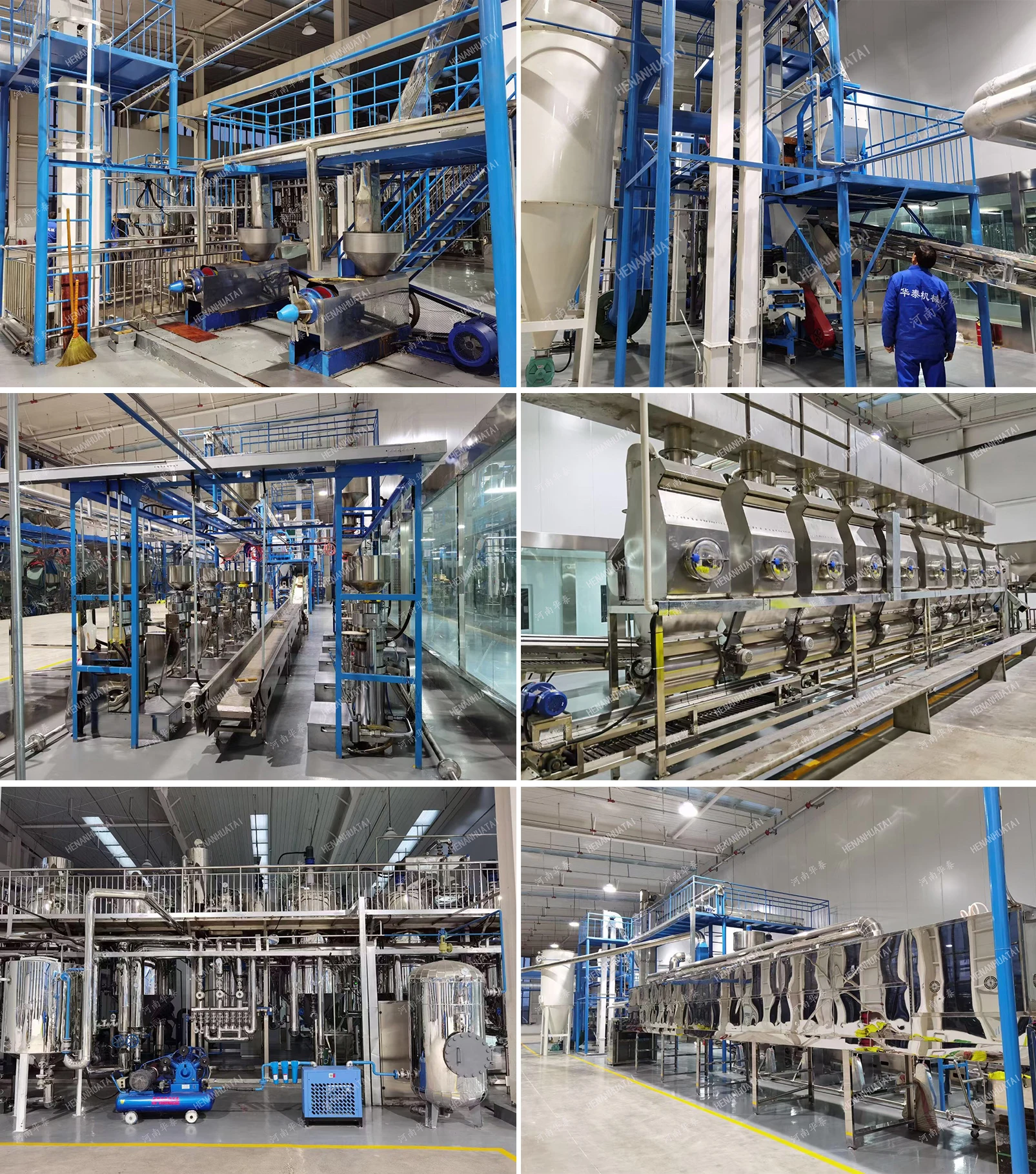

 peanut oil pretreatment and prepressing workshop

 peanut → magnetic box → cleaning → crusher → flaking roll → cooker →

 oil prepressing → to extraction workshop

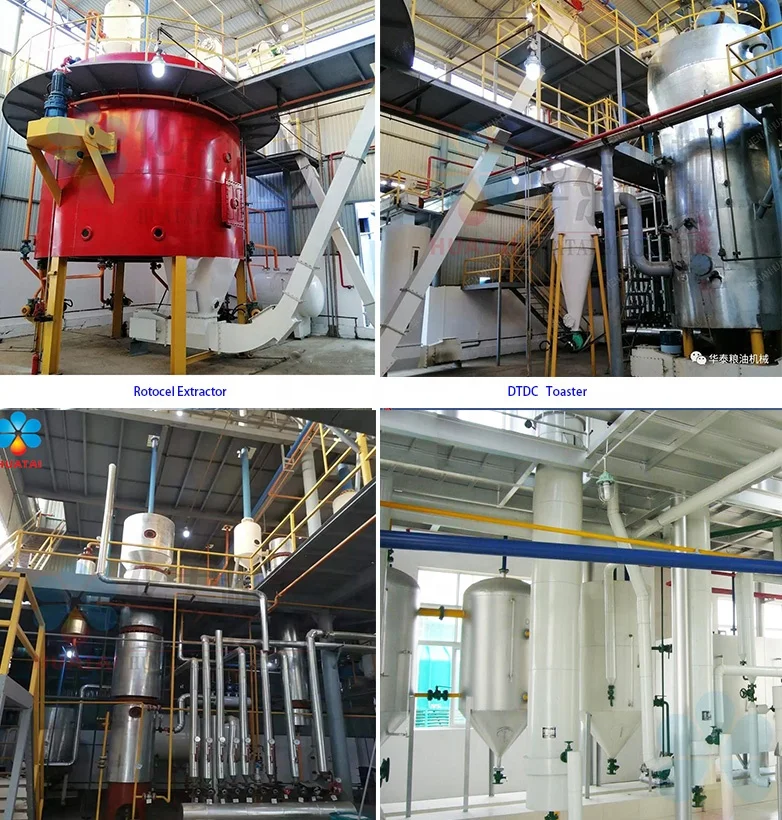

vegetable oil extraction plant

 solvent



      ↓

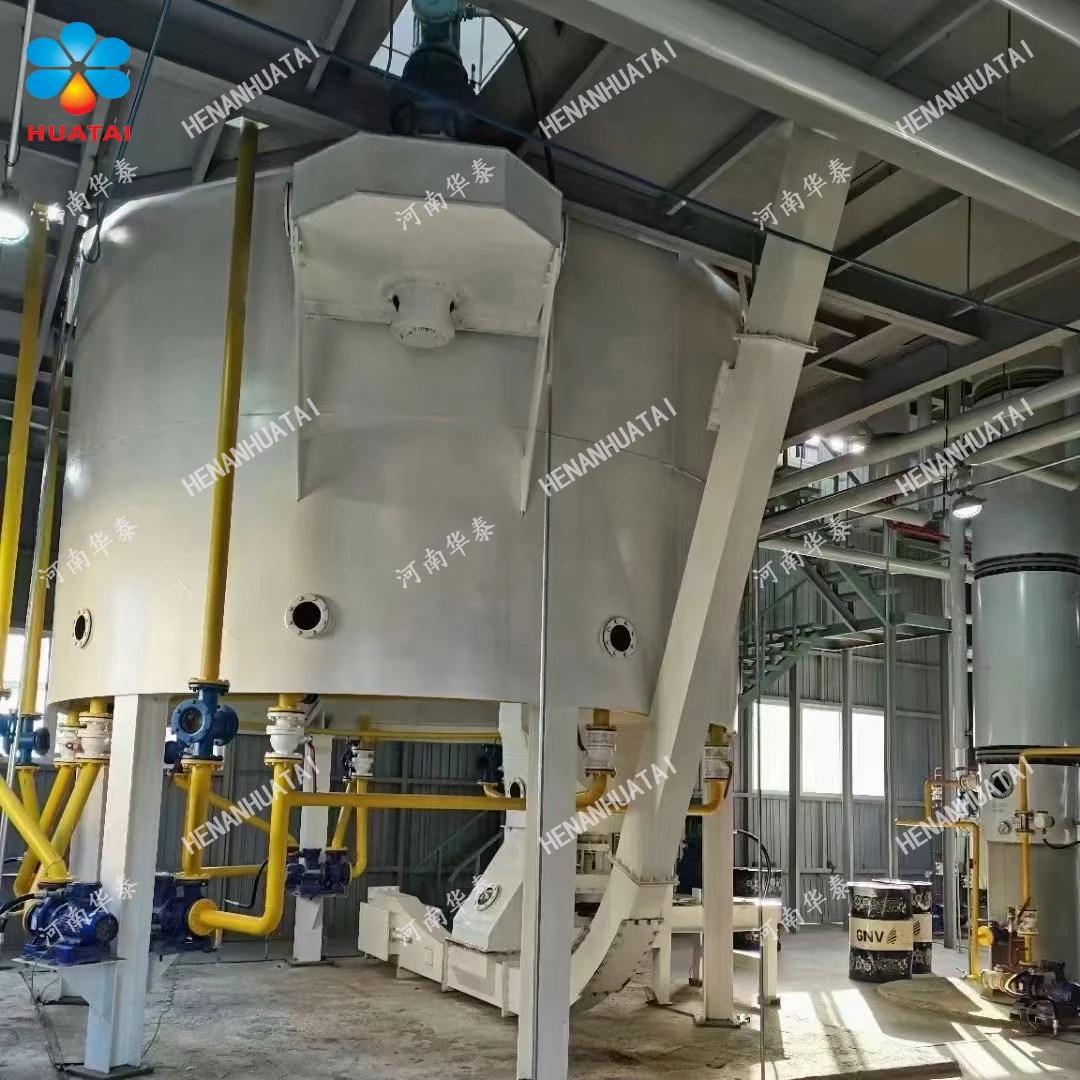

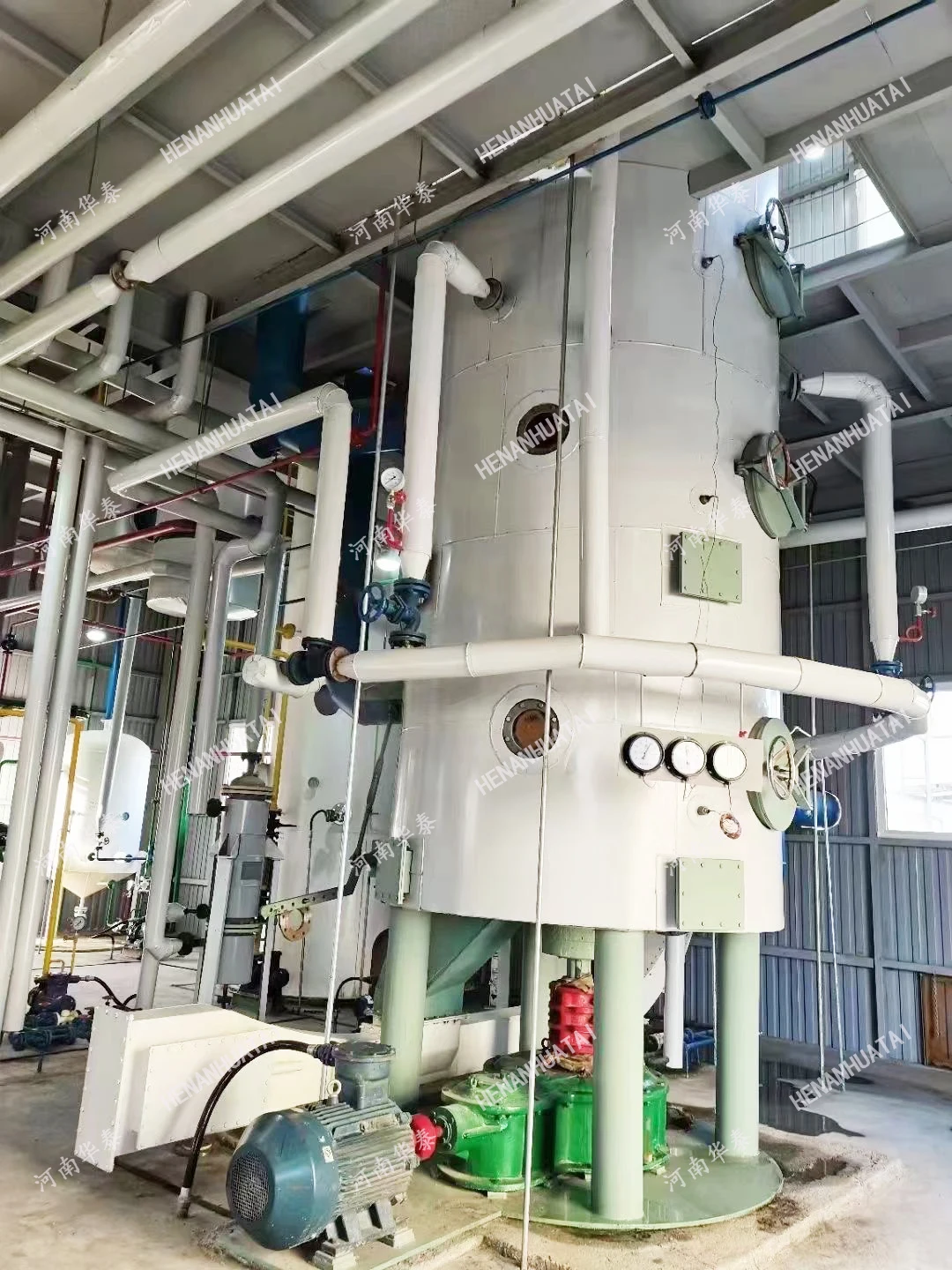

 extractor → mixed oil → 1st and 2nd evaporation  → stripping tower → crude peanut oil

 Wet meal → DTDC toaster → peanut cake

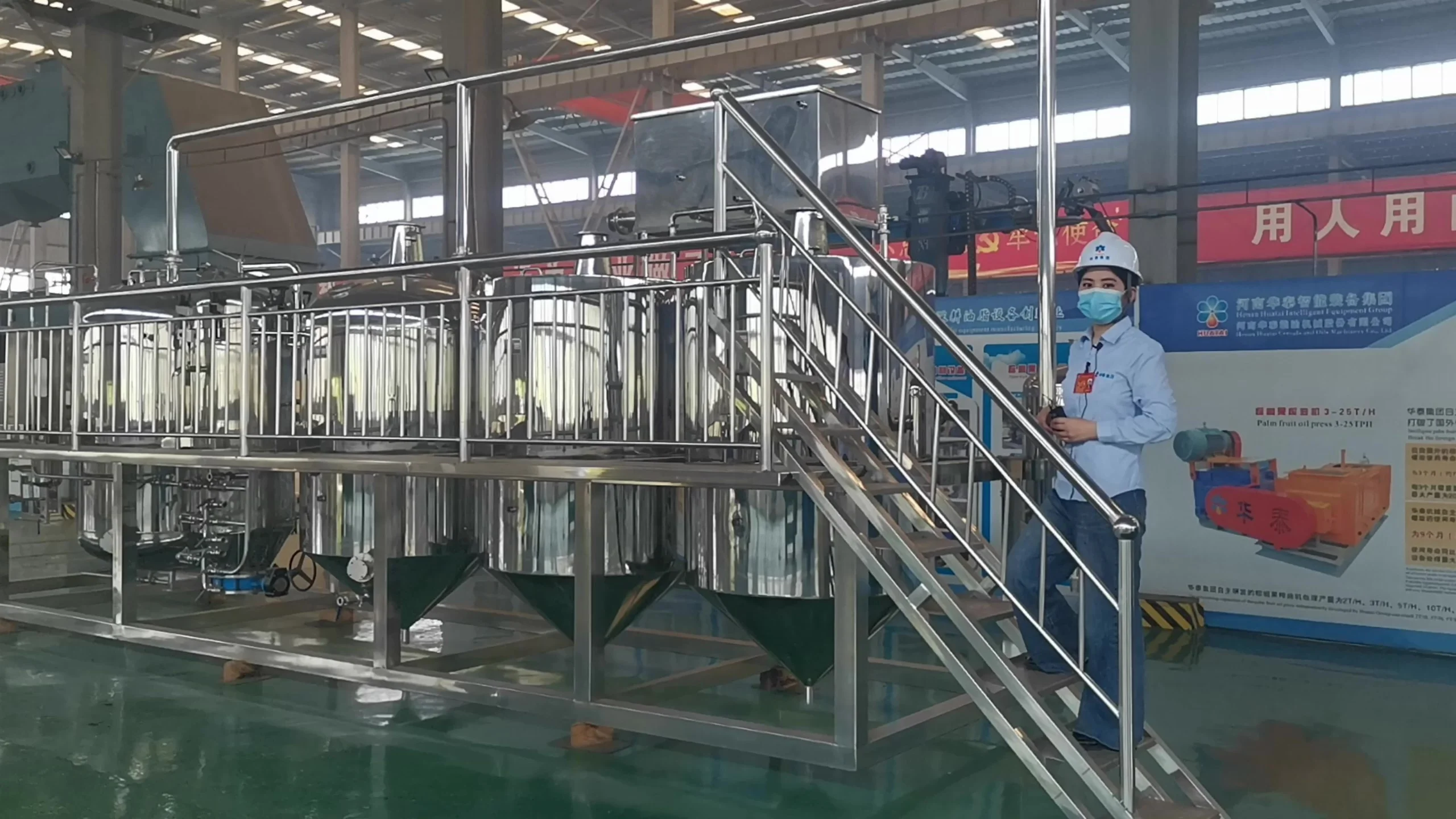

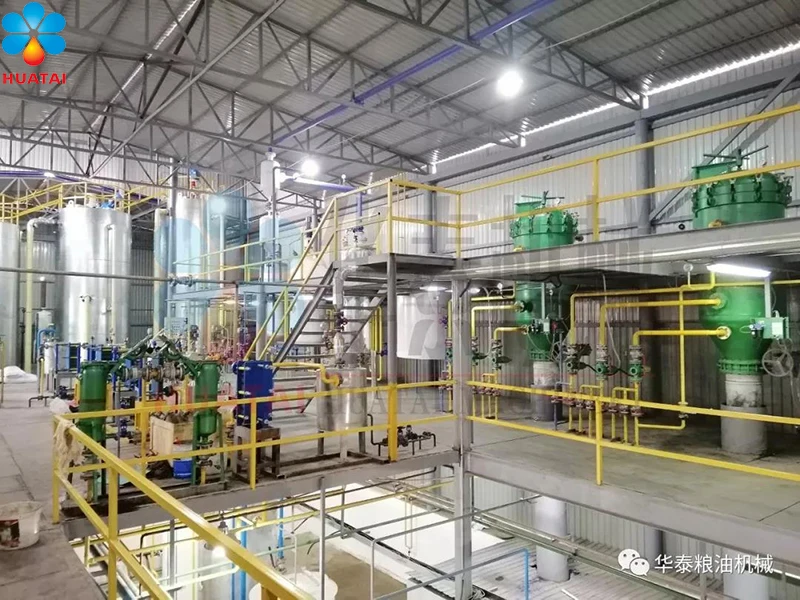

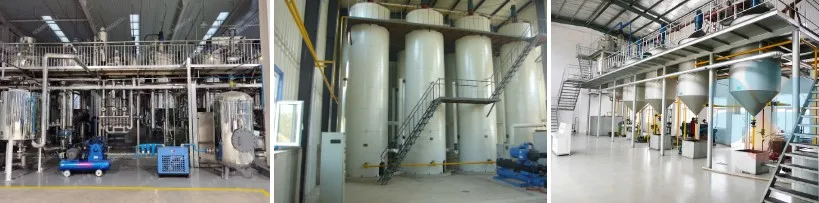

 peanut oil refining workshop

 Crude peanut oil → degumming and deacidification→ decolorization →deodorization → refined peanut oil
