Product Overview

Description

5g mini wifi router outdoor 5g router dual-sim with external dc socket 5g module router



• B70 is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data , and 802 .11b / g / n / ac High speed Wi-Fi access needs for residential , business and enterprise users . It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity .



    Built-in high gain 5G Sub6G antenna

    Full compliance to 3GPP 5G NR+4G LTE TDD/FDD-LTE

    RJ45 Gigabit Ethernet

    802.11b/g/n/ac/ax Wi-Fi support

    Router, bridge , IPv4 & IPv6

    FTP/HTTP Server and TR-069 client management support

    SIM card authentication







	Feature	Description	Compliance	Notes

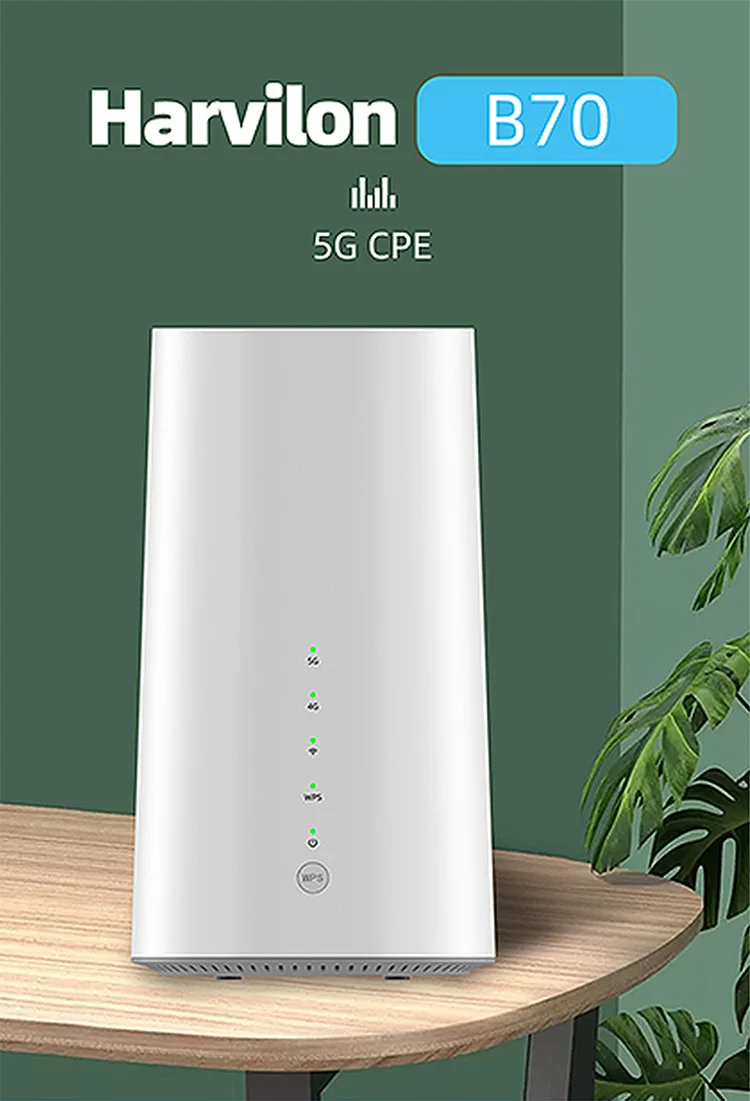

Basical Information	Model Name	B70
	Form Factor	5G IDU

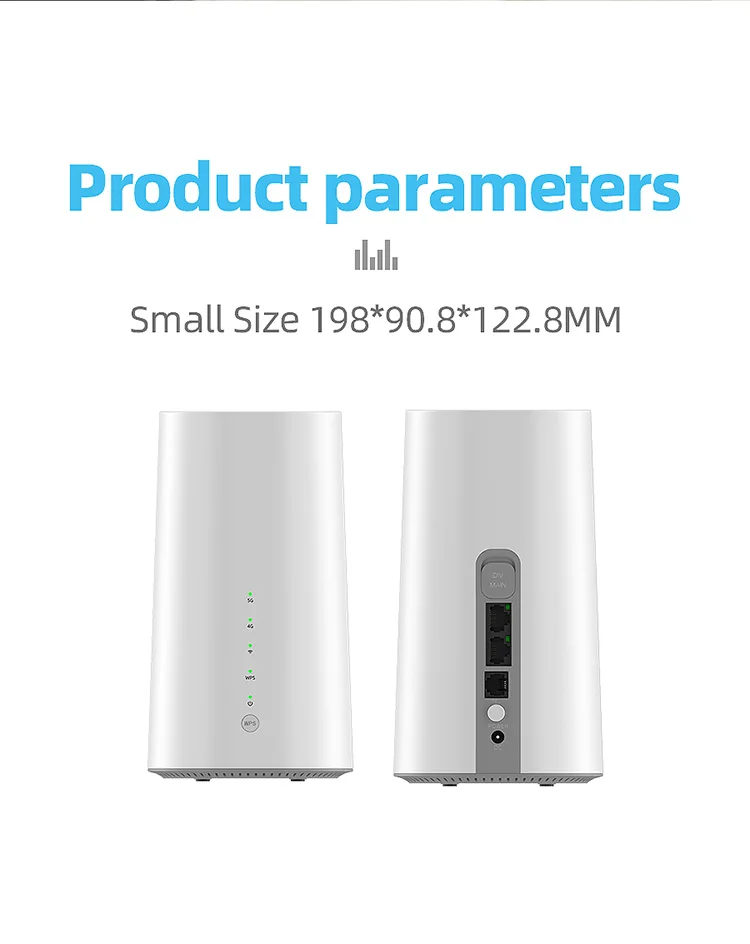

	Dimension	187*110*104MM
	Weight	About 534g
	Color	White, color can be customized
	Launch time(PP)
Solution	Wireless chipset supplier	MTK	Yes
	Routing and WiFi chipset supplier	MTK
	WAN/LAN	Supports 10/100/1000 Mbps in full duplex mode	Yes
Hardware	BB Chipset	MTK T750,Cortex-A55 Quad,2 GHz	Yes
	RF Chipset	MTK MT6190	Yes
	WiFi Chipset	MTK MT7915+MT7975	Yes
	Memory(DDR/NAND)	8Gb NAND Flash + 8Gb LPDDR4	Yes
	Buttons	Power, WPS, Reset(PIN hole)
	LED indicator	5G status, 4G status, WiFi status,ETH status, Power status	Yes
	SIM Slot	1*4FF SIM (nano card)	Yes

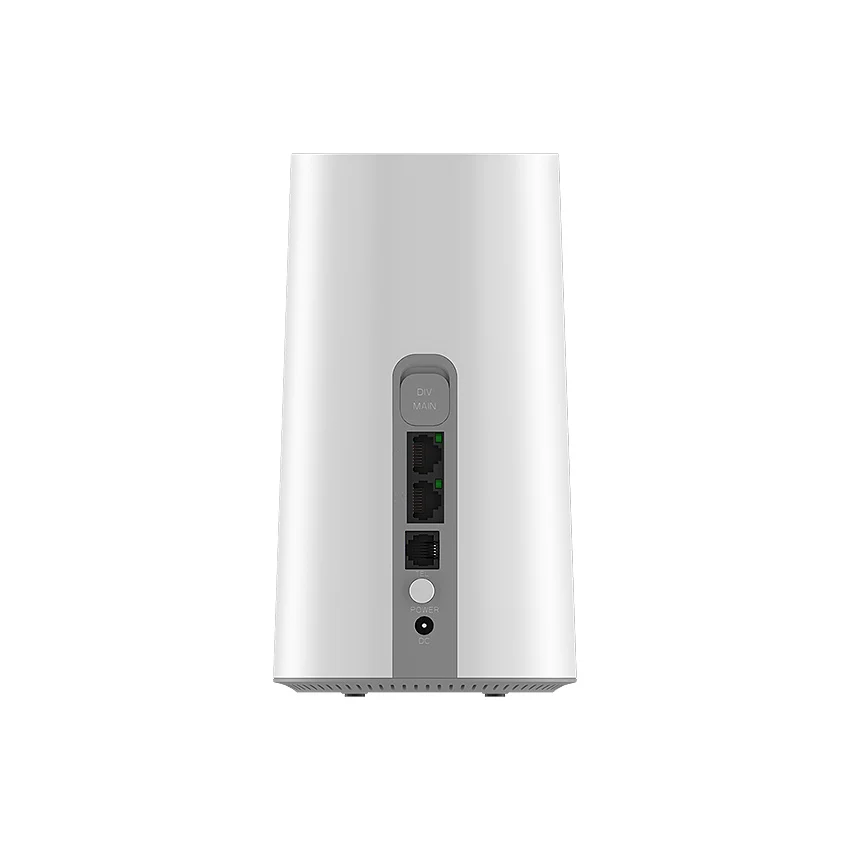

	Interface	RJ45 Port x 2 (Wan/LAN GE), RJ11 Port  x 1, CRC9 x 2 (External antenna)	Yes
RF	LTE 5G Main Antenna / MIMO Antenna	Internal	Yes
	WIFI Antenna	Internal	Yes
	UMTS Band	EU: B1/B2/B5/B8                                                                                                                       NA: /	Yes
	LTE band	EU: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 NA: B2/B4/B5/B7/B12(B17)/B13//B14/B25/B26/B29/B30/B66/B71/B41/B42/B43/B48/B46	Yes
	5G NR	EU: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 NA: n2/n5/n7/n12/n25/n41/n48/n66/n71/n77/n78	Yes
	GSM	/	TBD
	MIMO for Wireless	LTE MHB DL 4*4MIMO LTE LB DL 2*2MIMO LTE LMHB 1*1 SISO 5G NR MHB DL 4*4 MIMO 5G NR LB DL 2*2 MIMO 5G NR n40/n41/nn48/n77/n78 UL 2*2 MIMO	Yes
	Max. transmitter power	WCDMA: Class 3 (24 dBm +1/-3 dB) LTE-FDD: Class 3 (23 dBm ±2 dB) LTE-TDD: Class 3 (23 dBm ±2 dB) 5G NR: Class 3 (23 dBm ±2 dB) 5G NR n40/n41/n77/n78 bands UL MIMO HPUE 2: Class 2 (26 dBm +2/-3 dB)	Yes
	WiFi band	2400MHz-2483.5MHz/5150MHz-5850MHz	Yes
	MIMO for WiFi	2.4G 802.11.b/g/n MIMO 4*4 5G 802.11.ac/ax MIMO 4*4	Yes
	WCDMA/HSPA/DC-HSPA	DC-HSPA:DL 42Mbps HSPA: 21.6Mbps(DL)/5.76Mbps(UL) WCDMA: 384kbps(DL)/384kbps(UL)	Yes
	LTE	LTE  DL: 1.6Gbs (4*4 MIMO, 256QAM, 20 Layers) LTE  UL: 0.211Gbps (1*1 SISO, 256QAM, 2 Layers)	Yes
	5G  NR SA	5G NR DL: 4.67Gbps (4*4 MIMO, 256QAM) 5G NR UL: 1.25Gbps (2*2 MIMO, 256QAM)	Yes
	5G  NR NSA	5G NR NSA DL: 3.74Gbps (LTE 4*4 MIMO, 256QAM,20Layers; 5G NR 4*4MIMO,256QAM) 5G NR NSA UL: 1.26Gbps (LTE 1*1 SISO, 256QAM; 5G NR 1*1 SISO, 256QAM)	Yes
	WiFi Max Client Number	128	Yes
	Wi-Fi Standard	802.11 b/g/n/ac/ax (4*4 MIMO )	Yes
	WiFi Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;	Yes
	3GPP Release	3GPP Rel 15	Yes
SW features	FW upgrade	Firmware Upgrade via FOTA and Web GUI	Yes
	Voice	VoLTE	Yes
	Language	English by default, can be customized.	Yes
Power	Power adapter	12V2A	Yes
Envionment	Operating Temperature	-20 to 65 °C	Yes
	Storage Temperature	-40 to 80 °C	Yes
	Humidity	5% to 95%	Yes

















Partners













FAQ





1. Could we add French , Spainish , Japanese languages in the MiFi ?



[ Harvilon ] Yes , you can .There are about 20 languages you can choose .You can decide the languages according to your marketing .



2. We do not have designer , could you design our brand GB , ID , UI , labels for us ?



[ Harvilon ] Yes , Harvilon has more thenn 10 years experience in OEM / OEM ,we can help you on these designing until you are satified.



3. Could we as agent of your brand ?



[ Harvilon ] Of course , Harvilon welcome you to be as our agent . Harvilon will prepare stock for you after get your sales plan.



4. How long is the warranty ?



[ Harvilon ] One year . Usual use , no drop the water , we can help to repair for you .If need ,we send components to you AT FREE ,which not including PCBA , Battery and LCD .



5. How about 10K lead time ?



[ Harvilon ] About 25 -30 days .



6. I only want to buy 500pcs at first order , can I buy ?



[ Harvilon ] Yes , we can sale to you 500 pcs , but unit price is not as competitive as 5 K pcs .
