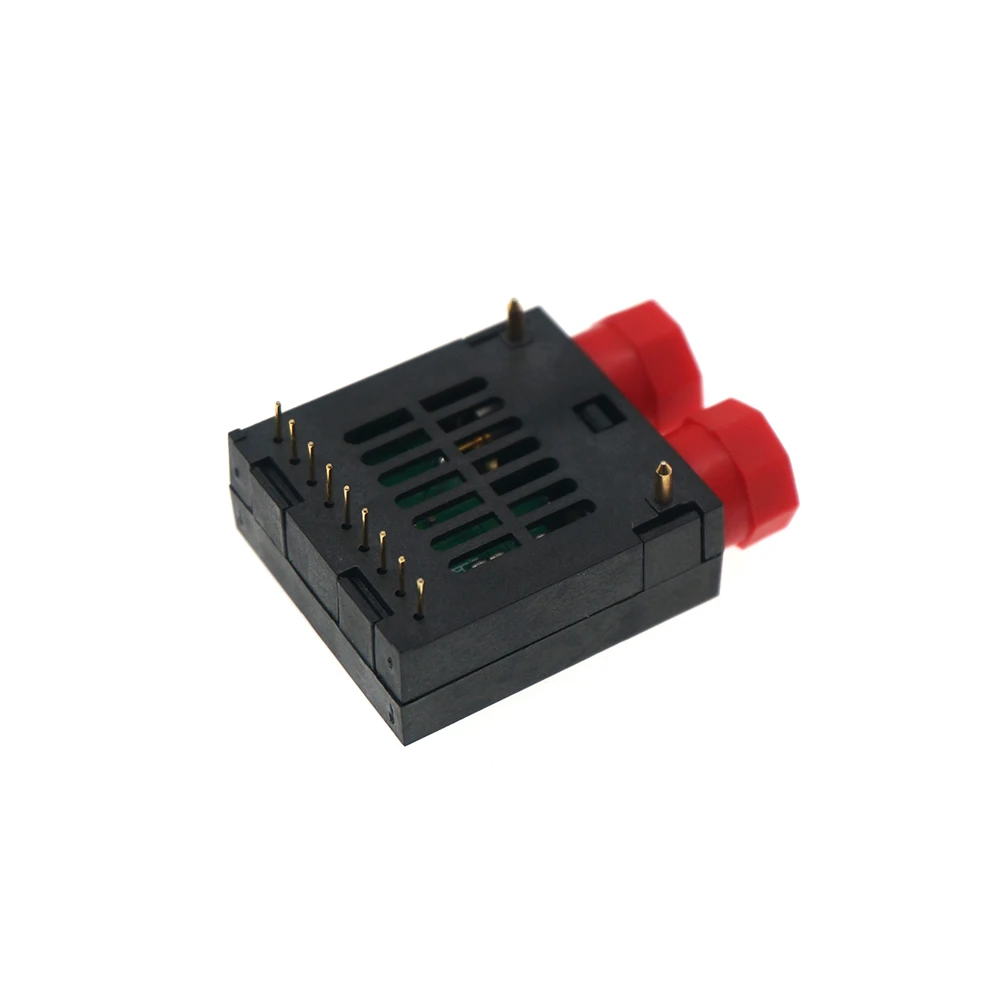

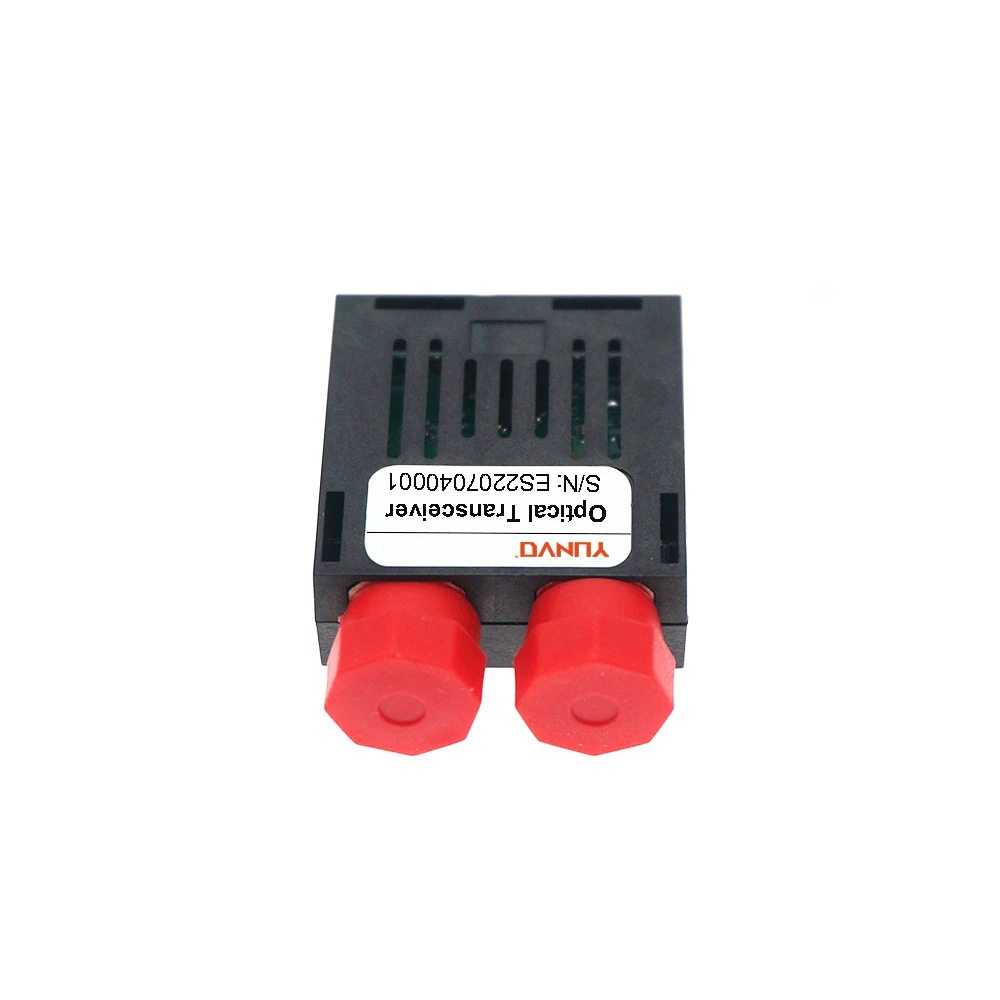

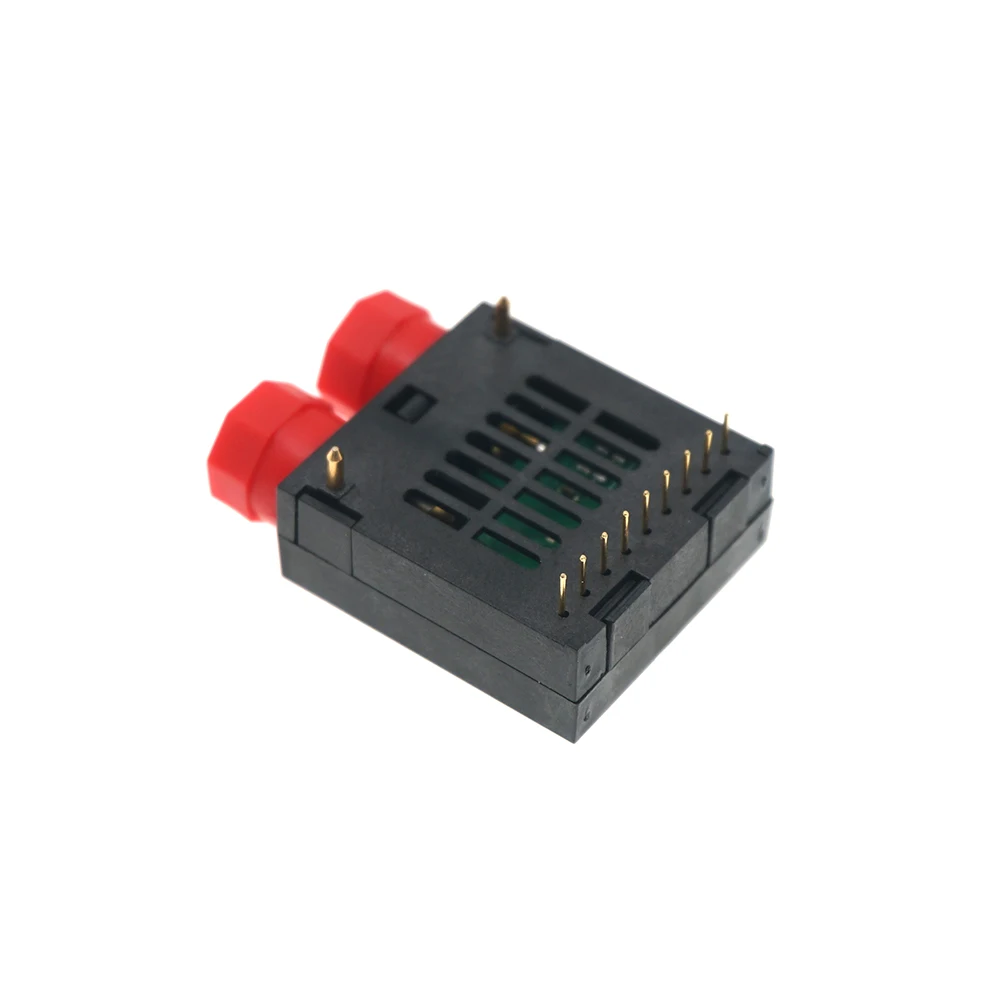

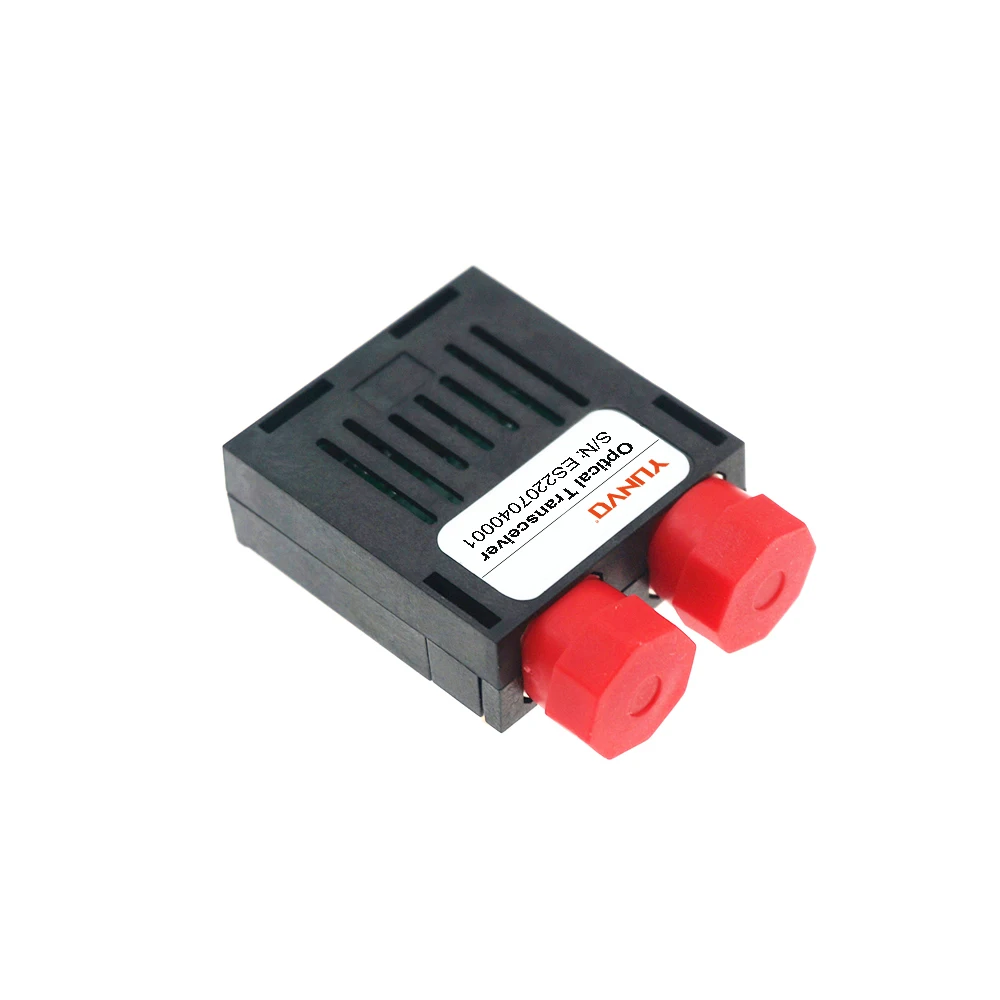

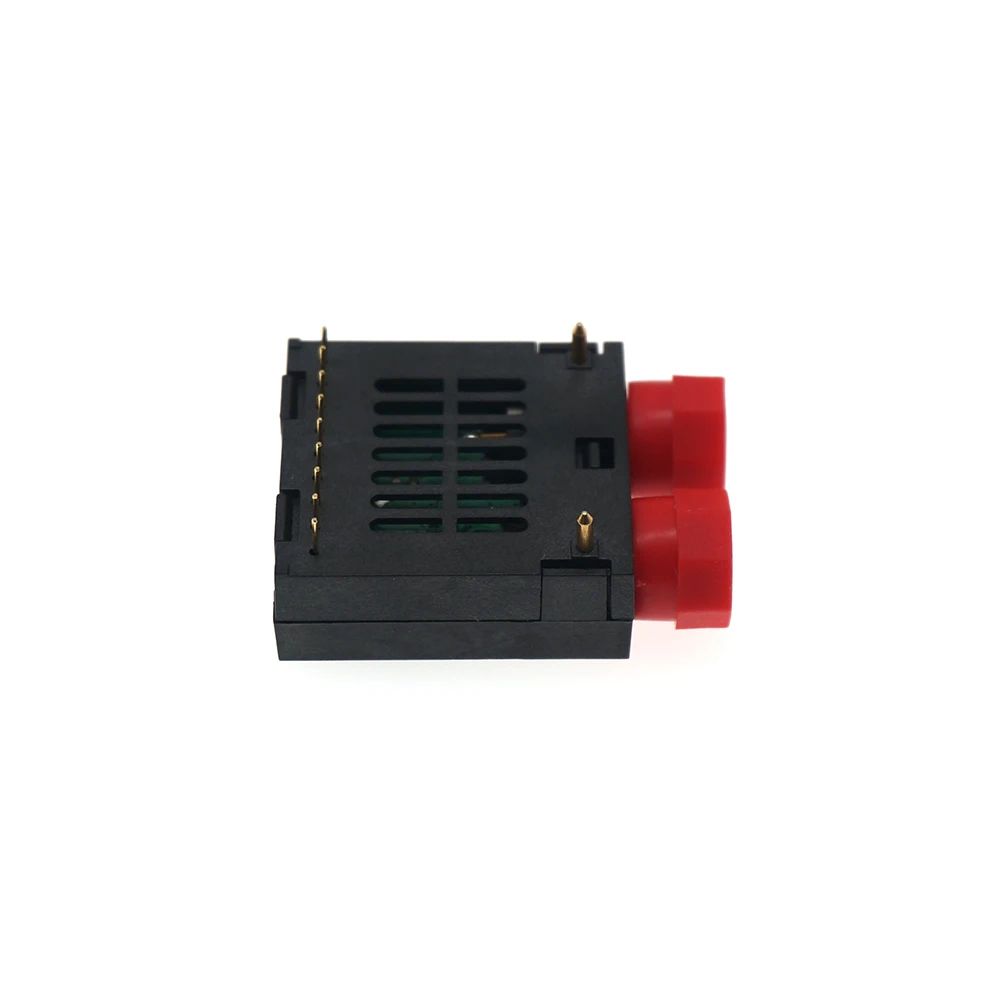

Yunvo Dual Fiber 1.25G 1x9 Transceiver FC Duplex connector 20km/40km/60km/80km/100km/120km 1000M FC 1*9 Optical Transceiver
PN: YV-1x9GE-20-FC


Features
* SC/FC/ST receptacle optical interface and pigtail optical interface
* Single-mode Dual transceiver
*+3.3V /+5V Power Supply
*Standard PECL data output with signal detect indication
*Multi-sourced 1x9 package
*High quality 1310nm MQW-FP LD/ 1550nm DFB LD
*Receiver has a planner InGaAsP PIN


Applications
Applied to optical fiber transmission systems,such as SDH and digital video optical terminal devices with bit-rate up to 1.25Gbps.


Parameter
Condition
Min
Type
Max
Wavelength(nm)
1310
1260
1310
1360
1550
1530
1550
1570
Power Supply(v)
Vcc
3.135
3.3
3.465
4.75
5
5.25
Signal Level
PECL
3.2~4
LVPECL
1.5~2.3
Output Spectral Width(nm)
FP-LD,RMS
4
DFB-LD,-20dB
1
Extinction Ratio(dB)
EX
10
13
Overload(dBm)
BER=1×10-10
-3
Current of transmitter section(mA)
Vcc=5V
100
Vcc=3.3V
100
Current of receiver section(mA)
Vcc=5V
110
Vcc=3.3V
110




Order information
1*9 Transceiver


Part Number
Data Rate
Wavelength
LD
Power Supply
Tx Power (dBm)
Rx Sens
Reach
1.25Gb/s Dual Fiber
YV-1x9GE-055-FC
1.25Gbps
850nm
VCSEL
3.3/5V
≥-12dBm
≤-24dBm
0.5km
YV-1x9GE-20-FC
1.25Gbps
1310nm
FP
3.3/5V
≥-10dBm
≤-24dBm
20km
YV-1x9GE-40-FC
1.25Gbps
1310nm
FP
3.3/5V
≥-4dBm
≤-25dBm
40km
YV-1x9GE-60-FC
1.25Gbps
1550nm
DFB
3.3/5V
≥-6dBm
≤-26dBm
60km
YV-1x9GE-80-FC
1.25Gbps
1550nm
DFB
3.3/5V
≥-1dBm
≤-27dBm
80km
1.25Gb/s Single Fiber
YV-1x9GE-3T-FC
1.25Gbps
T1310/R1550nm
FP
3.3/5V
≥-14dBm
≤-23dBm
3km
YV-1x9GE-3R-FC
1.25Gbps
T1550/R1310nm
FP
3.3/5V
≥-14dBm
≤-23dBm
3km
YV-1x9GE-5T-FC
1.25Gbps
T1310/R1550nm
FP
3.3/5V
≥-12dBm
≤-23dBm
5km
YV-1x9GE-5R-FC
1.25Gbps
T1550/R1310nm
FP
3.3/5V
≥-12dBm
≤-23dBm
5km
YV-1x9GE-20T-FC
1.25Gbps
T1310/R1550nm
FP
3.3/5V
≥-10dBm
≤-24dBm
20km
YV-1x9GE-20R-FC
1.25Gbps
T1550/R1310nm
DFB
3.3/5V
≥-10dBm
≤-24dBm
20km
YV-1x9GE-40T-FC
1.25Gbps
T1310/R1550nm
FP
3.3/5V
≥-4dBm
≤-25dBm
40km
YV-1x9GE-40R-FC
1.25Gbps
T1550/R1310nm
DFB
3.3/5V
≥-10dBm
≤-25dBm
40km
YV-1x9GE-60T-FC
1.25Gbps
T1490/R1550nm
DFB
3.3/5V
≥-6dBm
≤-26dBm
60km
YV-1x9GE-60R-FC
1.25Gbps
T1550/R1490nm
DFB
3.3/5V
≥-6dBm
≤-26dBm
60km
YV-1x9GE-80T-FC
1.25Gbps
T1490/R1550nm
DFB
3.3/5V
≥-1dBm
≤-27dBm
80km
YV-1x9GE-80R-FC
1.25Gbps
T1550/R1490nm
DFB
3.3/5V
≥-1dBm
≤-27dBm
80km


Related Products

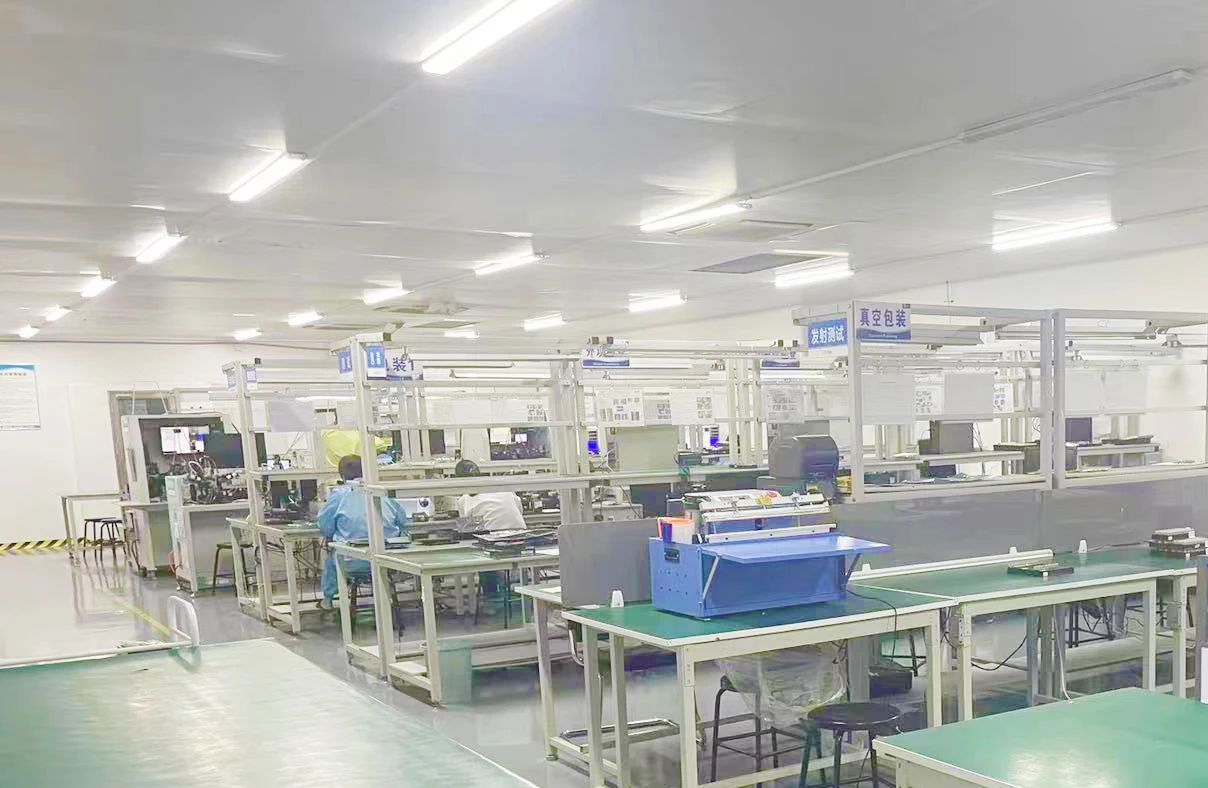

Company Profile
