Product Overview
Description
Products Description
We have two mature crushing plans tailored to the needs of our customers. Below are specific information on two crushing schemes.
Welcome to inquire
Welcome to inquire
Hammer crusher
Hammer crusher is one of the main equipment of fine crushed limestone, coal or other brittle materials below medium hardness in metallurgy, building materials, chemical industry and hydropower industry. It has the characteristics of large crushing ratio, high production capacity and uniform particle size of products
The common hammer crusher is mainly composed of frame, rotor, screen, striking plate and adjusting device. The motor drives the rotor to rotate at high speed through the coupling, and the ore entering the crusher is broken by the impact of the hammer head on the rotor. The broken ore obtains kinetic energy from the outside of the hammer head and rushes to the striking plate and screen bar in the frame at high speed. At the same time, the ore also collides with each other, thus suffering from multiple crushing.
The ore smaller than the mesh hole is discharged from the mesh hole; Individual larger ore blocks are crushed on the lattice plate by the combined effect of hammer impact, extrusion and grinding, and the ore is extruded from the lattice hole by the hammer to obtain the product of the required particle size.
A stage hammer crusher is mainly composed of machine, rotor, feed roller, grate, hydraulic opening device, foundation and other parts. The main motor drives a rotor with a flywheel directly through a coupling. The ore is fed into the crusher feed port by a heavy plate feeder, and the feeding is required to be carried out on the full width of the feeder to achieve uniform feeding.
After the bulk ore enters the crusher, it first falls on two shock-proof feed rollers supported by rubber. The speed of the two
feeding rollers is different to prevent the ore from wedging between the two rollers, the latter speed is higher than the former.
Part of the fine material in the feed is dropped directly between the two rollers, and the rest of the ore continues to be fed
into the crushing zone. The ore entering the crushing zone is smashed or discarded by the hammer on the high-speed rotating rotor.
The ore thrown up at high speed collides with the counter plate or the ore blocks collide with each other in the counter cavity of the frame, and then is brought into the crushing plate and grate part by the hammer head, and continues to break until the required particle size is reached, and is discharged by the grate gap. The discharged material is transported by the discharge tape machine. In order to prevent foreign objects such as iron from damaging the machine, there are two different grate bars for users to choose from. Hydraulic opening frame device, easy to repair, shorten the repair and stop time.
The ore smaller than the mesh hole is discharged from the mesh hole; Individual larger ore blocks are crushed on the lattice plate by the combined effect of hammer impact, extrusion and grinding, and the ore is extruded from the lattice hole by the hammer to obtain the product of the required particle size.
A stage hammer crusher is mainly composed of machine, rotor, feed roller, grate, hydraulic opening device, foundation and other parts. The main motor drives a rotor with a flywheel directly through a coupling. The ore is fed into the crusher feed port by a heavy plate feeder, and the feeding is required to be carried out on the full width of the feeder to achieve uniform feeding.
After the bulk ore enters the crusher, it first falls on two shock-proof feed rollers supported by rubber. The speed of the two
feeding rollers is different to prevent the ore from wedging between the two rollers, the latter speed is higher than the former.
Part of the fine material in the feed is dropped directly between the two rollers, and the rest of the ore continues to be fed
into the crushing zone. The ore entering the crushing zone is smashed or discarded by the hammer on the high-speed rotating rotor.
The ore thrown up at high speed collides with the counter plate or the ore blocks collide with each other in the counter cavity of the frame, and then is brought into the crushing plate and grate part by the hammer head, and continues to break until the required particle size is reached, and is discharged by the grate gap. The discharged material is transported by the discharge tape machine. In order to prevent foreign objects such as iron from damaging the machine, there are two different grate bars for users to choose from. Hydraulic opening frame device, easy to repair, shorten the repair and stop time.
Reversible-type hammer-type crusher
1. Body section
2. Adjustment Department
3. Rotor
4. The grate section
2. Adjustment Department
3. Rotor
4. The grate section
Irreversible hammer crusher
1. Rack department
2. Rotor
3. Screening section
4. Crackdown board
2. Rotor
3. Screening section
4. Crackdown board
Product Paramenters

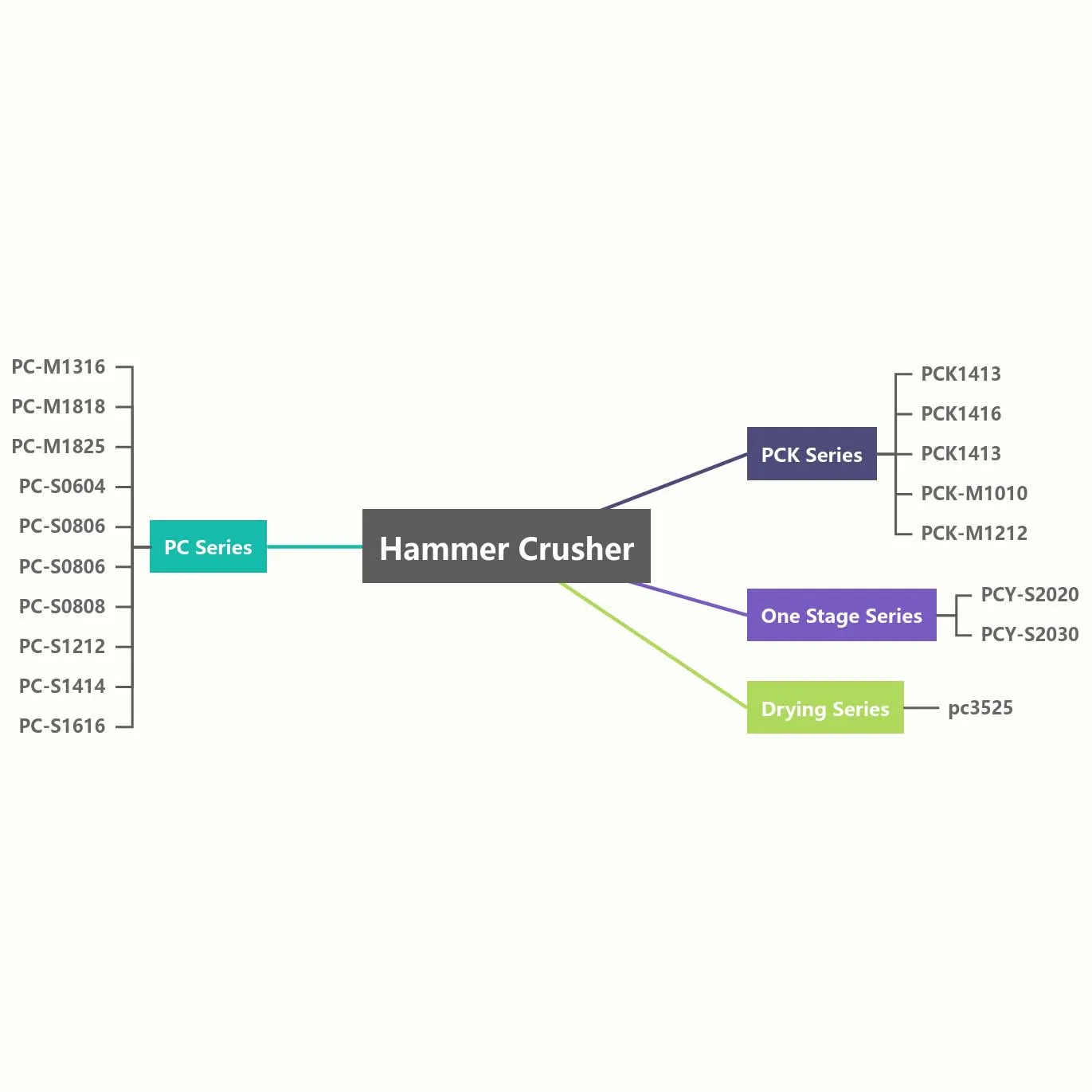

Performance Parameter Table Of Reversible Hammer Crusher
ts | Feed particle size mm | Finishing particle size mm | output t/h | Rotor diameter mm | rotor length mm | rotor speed r/min | Main motor | ||||
Power kW | Speed r/min | Voltage v | |||||||||
PCK1413 | <80 | ≤3 | 400 | 1430 | 1300 | 985 | 520 $50 | 985 | 3000 6000 | ||
PCK1416 | <80 | 3 | 400 | 1410 | 1608 | 985 | 560 | 985 | 6000 | ||
PCK1413 | <80 | <3 | 200 | 1430 | 1300 | 735 740 | 370 380 | 735 740 | 3000 6000 | ||
PCK 4-M1010 | ≤80 | ≤3 | 100~150 | 1000 | 1000 | 980 1000 | 280 | 980 1000 | 3000 6000 | ||
PCK-M1212 | <80 | <3 | 150~200 | 1250 | 1250 | 740 | 310 320 | 735 740 | 3000 6000 | ||
Performaance Parameter Table Of Irreversible Hammer Crusher
ts | Feed particle size mm | Finishing particle size mm | output t/h | Rotor diameter mm | rotor length mm | rotor speed r/min | main motor | ||||
power kw | speed r/min | voltage v | |||||||||
PC -M1316 | <300 | 0~10 | 150~200 | 1300 | 1600 | 740 590 735 | 200 200 210 | 740 590 735 | 6000 3000 380 | ||
PC -M1818 | <300 | <40 | 500 | 1800 | 1800 | 590 | 480 | 590 | 6000 | ||
PC -M1825 | <300 | <25 | 700~750 | 1800 | 2500 | 590 | 800 | 590 | 6000/3000 | ||
PC-S0604 | <100 | <35 | 12~15 | 600 | 400 | 1019 | 22 | 1470 | 380 | ||
PC-S0806 | ≤120 | ≤15 | 20~25 | 800 | 600 | 980 | 55 | 980 | 380 | ||
PC-S0806 | ≤12 | 18~24 | 600 | 1100 | 75 | 1480 | |||||
PC-S0808 | ≤15 | 35~45 | 800 | 980 | 75 | 990 | |||||
PC-S1212 | ≤200 | ≤20 | 100 | 1250 | 1250 | 735 | 180 | 735 | 380 | ||
PC-S1414 | ≤250 | ≤20 | 170 | 1400 | 1400 | 740 | 280 | 740 | 6000 | ||
PC-S1616 | ≤350 | ≤20 | 250 | 1600 | 1600 | 595 | 480 | 595 | 6000 | ||

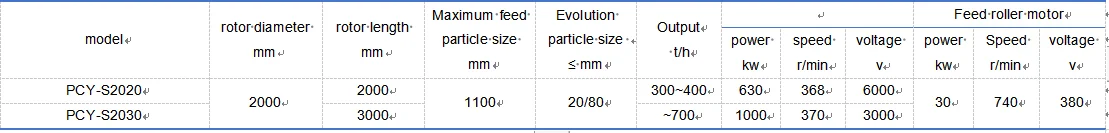

Performance Parameter Table Of One Stage Of Hammer Crusher
Performance Parameter Table OF Drying Hammer Crusher
ts | PC-3525 Drying hammer-type crusher |
Product code | K1620.00 |
out | 100t/h(drier) |
Feed particle size | 150~280mm |
Finishing particle size | 1~3mm |
Power of motor | 630kW |
motor speed | 750r/min |
Material category | Cement raw material filter cake, clay, chalk man |
Machine total weight | 118t |
Company Profile
Shenyang Heavy Machinery Group has produced China's first crusher since 1951 for 40 years, 40 years for the development of China's national economy, and foreign aid, export has provided various forms, specifications of the crusher more than 4000 sets. Our company is the leading factory of crusher design and manufacture, in the past 40 years from small to large, from single variety to foreign advanced technology; has become the design, manufacture, varieties and specifications and most advanced technology in China; is also one of the manufacturers with the most complete varieties and specifications in the world; is a hundred garden of
crusher.
In this hundred garden:
After several updates and won the national silver medal award of 12 specifications of complex, simple pendulum E type crusher series.
After years of test, research and development, advanced and reliable and won the national Science and Technology Progress Award of 14 specifications of light and heavy hydraulic rotary crusher series.
There is the introduction of the United States FULLER world famous brand "TRAYLOR" the world's largest 72-90,60-110 and other five specifications of hydraulic rotary crusher series.
After many improvements, the production of the largest batch of spring insurance, hydraulic adjustment of the 15 specifications of the cone crusher series.
There are 12 specifications single cylinder hydraulic cone crusher series developed by itself, imitating the United States A-C and won the National Science and Technology Conference award.
There are the introduction of American Nordberg global reputation "Symons" 25 specifications of spring insurance, hydraulic adjustment cone crusher series.
There is the introduction of the United States Nordberg newly developed 12 specifications of rotary disk crusher series.
There are self-developed high efficiency of 5 specifications counterattack crusher series.
There are continuously improved, structurally advanced spring or hydraulic adjustment of the five gauge roller crusher series.
There are years of continuous improvement of advanced and reliable crushing coal, limestone and other 20 specifications of hammer crusher series.
There are imitation beauty PC advanced, efficient 10 specifications of the ring coal crusher series.
In addition to providing the above various types and specifications of the crusher, the company can also timely design and manufacture a variety of non-standard crusher for users with special needs.
crusher.
In this hundred garden:
After several updates and won the national silver medal award of 12 specifications of complex, simple pendulum E type crusher series.
After years of test, research and development, advanced and reliable and won the national Science and Technology Progress Award of 14 specifications of light and heavy hydraulic rotary crusher series.
There is the introduction of the United States FULLER world famous brand "TRAYLOR" the world's largest 72-90,60-110 and other five specifications of hydraulic rotary crusher series.
After many improvements, the production of the largest batch of spring insurance, hydraulic adjustment of the 15 specifications of the cone crusher series.
There are 12 specifications single cylinder hydraulic cone crusher series developed by itself, imitating the United States A-C and won the National Science and Technology Conference award.
There are the introduction of American Nordberg global reputation "Symons" 25 specifications of spring insurance, hydraulic adjustment cone crusher series.
There is the introduction of the United States Nordberg newly developed 12 specifications of rotary disk crusher series.
There are self-developed high efficiency of 5 specifications counterattack crusher series.
There are continuously improved, structurally advanced spring or hydraulic adjustment of the five gauge roller crusher series.
There are years of continuous improvement of advanced and reliable crushing coal, limestone and other 20 specifications of hammer crusher series.
There are imitation beauty PC advanced, efficient 10 specifications of the ring coal crusher series.
In addition to providing the above various types and specifications of the crusher, the company can also timely design and manufacture a variety of non-standard crusher for users with special needs.
Our company has designed and manufactured hammer crusher for more than 30 years, with advanced product structure, reliable performance, stable work and low energy consumption. The hammer crusher produced by our company has formed a series and is welcomed by users at home and abroad.
In 1980, our company produced a first-stage crusher for Guangxi Litang Cement Factory. After several years of operation, it wasalso well received by users.
In 1980, our company produced a first-stage crusher for Guangxi Litang Cement Factory. After several years of operation, it wasalso well received by users.
Our Advantages

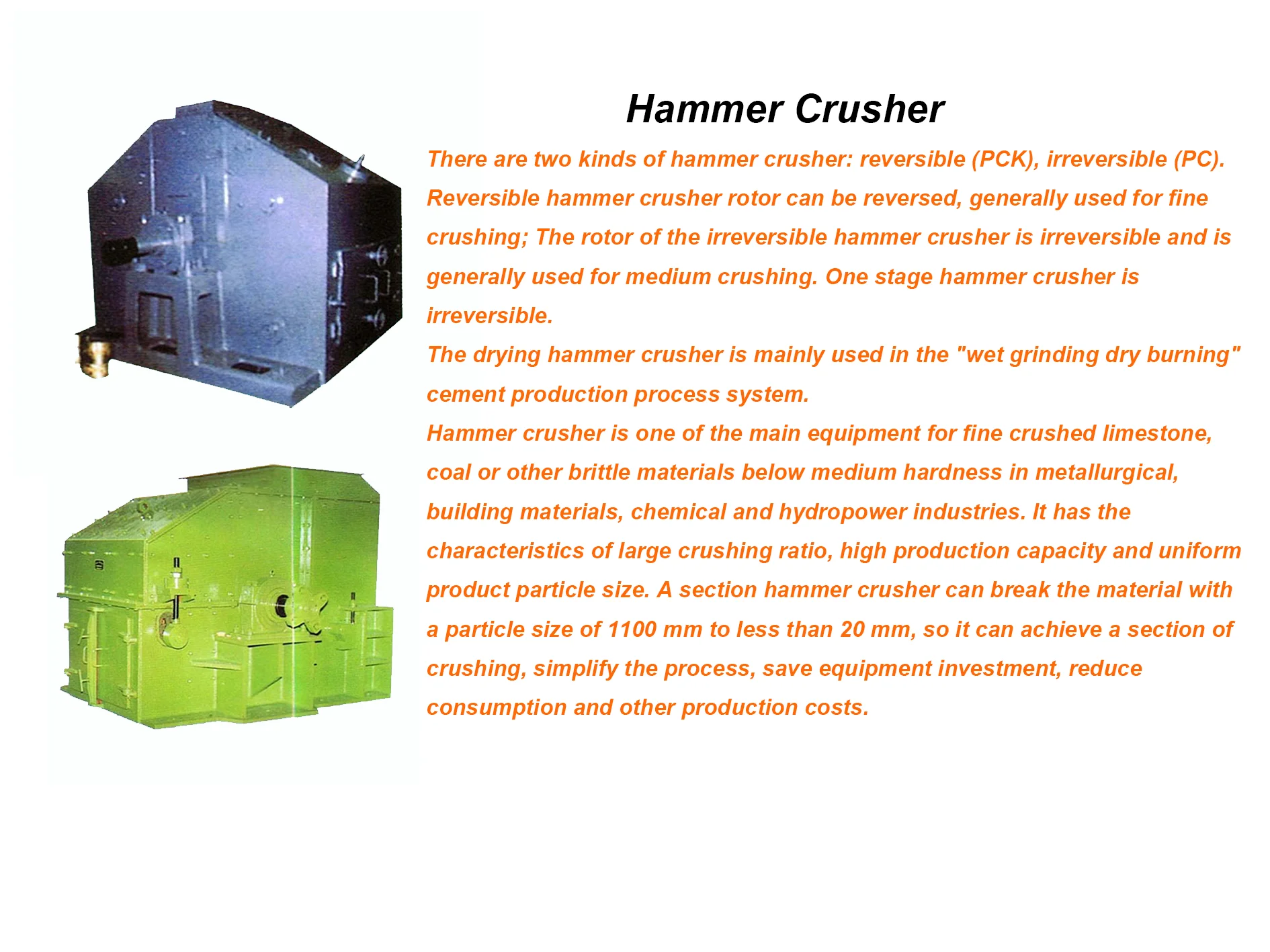

Hammer crusher can be divided into reverse and irreversible types. The rotor of hammer crusher can be reversed and generally used for crushing; the rotor of irreversible hammer crusher is not reversed and generally used for crushing. A section of the hammer crusher is irreversible.
One hammer crusher can break the material with particle size of 1100mm to less than 20mm at a time, so the traditional two-stage or three-stage crushing can be changed into one crushing, simplify the process, save equipment investment, reduce consumption and other production costs.
Reversable hammer crusher
Irreversable hammer crusher

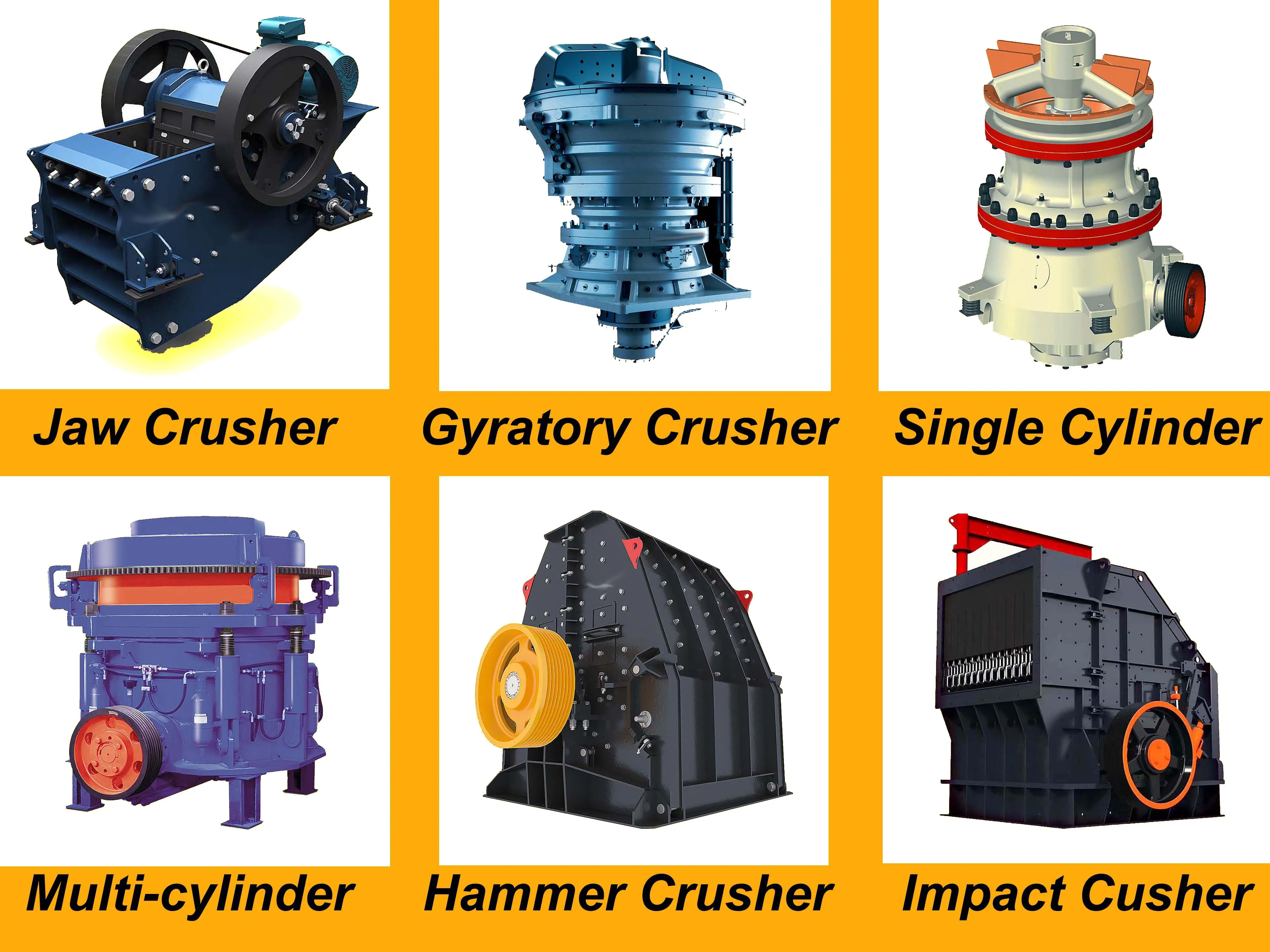

Recommend Products
Solution 1
Solution 2
Symons cone crusher
Jaw crusher
Ball mill
Single cylinder hydraulic cone crusher
Spring cone crusher
Multi-cylindder hydraulic conecrusher
Oscillating screen
Coal mill
Heavy palte feeder
Certifications
FAQ
How to install?
We will provide a detailed installation process diagram, or feel free to ask our service personnel
If you would like us to recommend products to you, please provide the following information:
Broken material
Maximum material size (mm)
Desired output size
Maximum material size (mm)
Desired output size
Warranty period, whether to provide relevant accessories?
The warranty period of the machine is one year, and we will provide the relevant accessories at the best price
