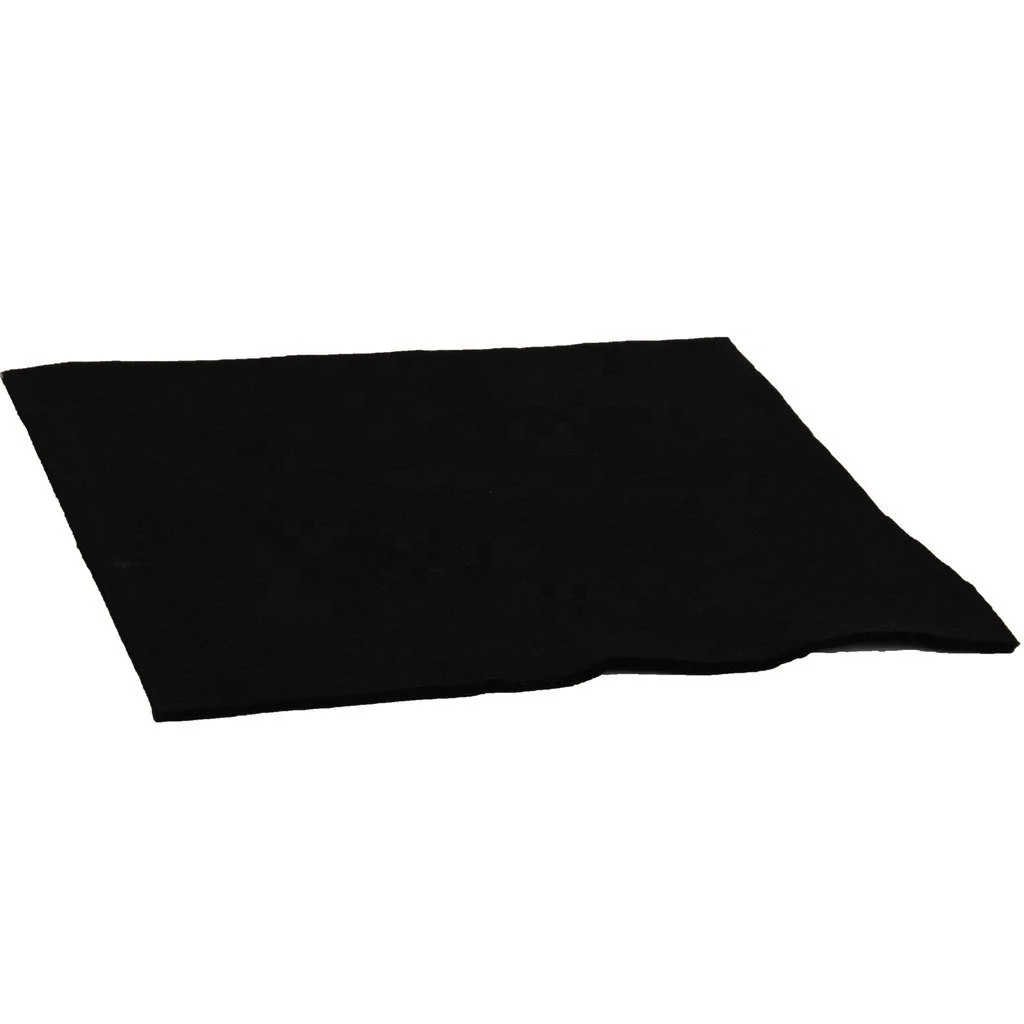

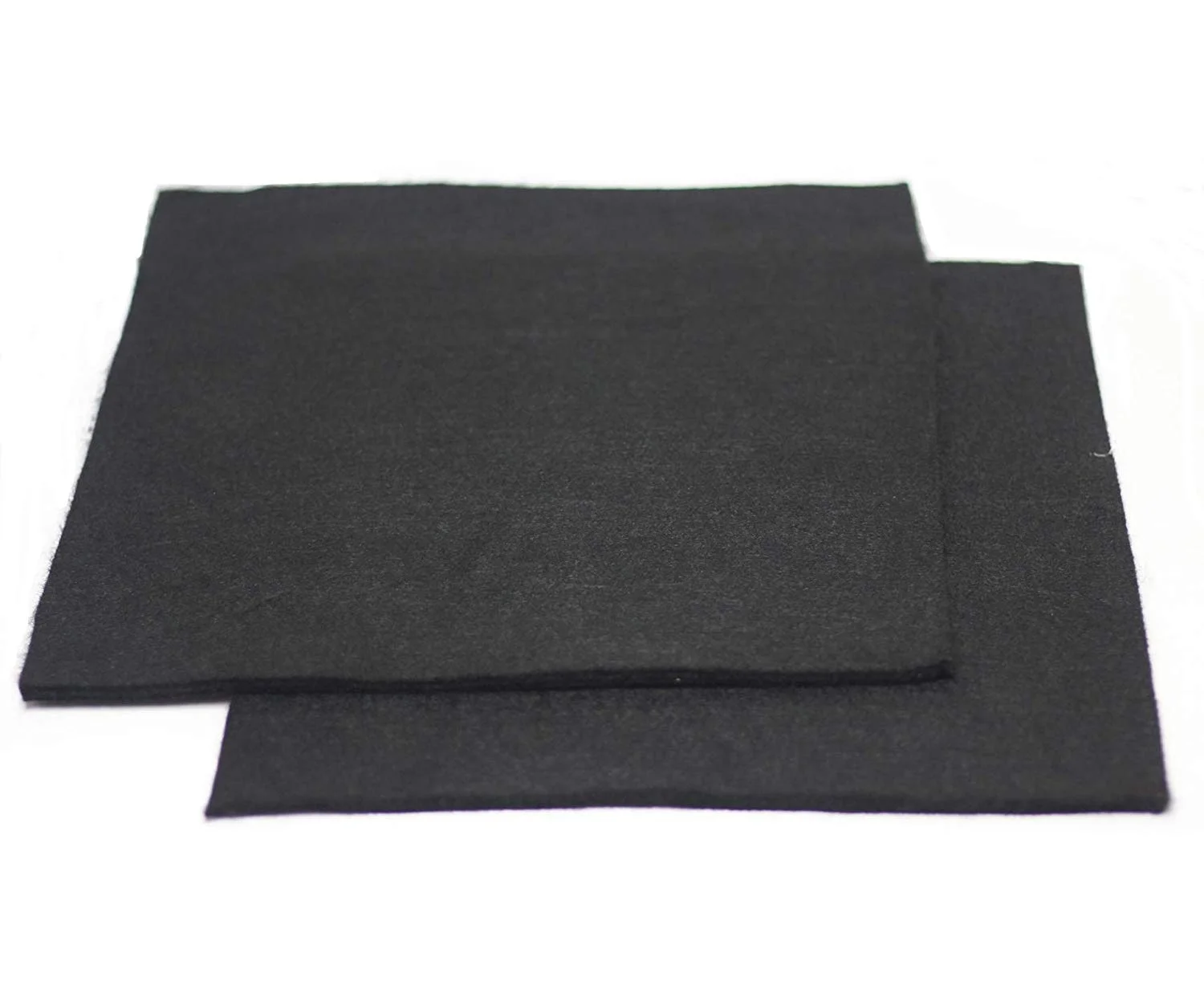

fireproof aerogel panel 10mm with low thermal conductivity 6mm 10mm CE

Product Overview

Description

Product description

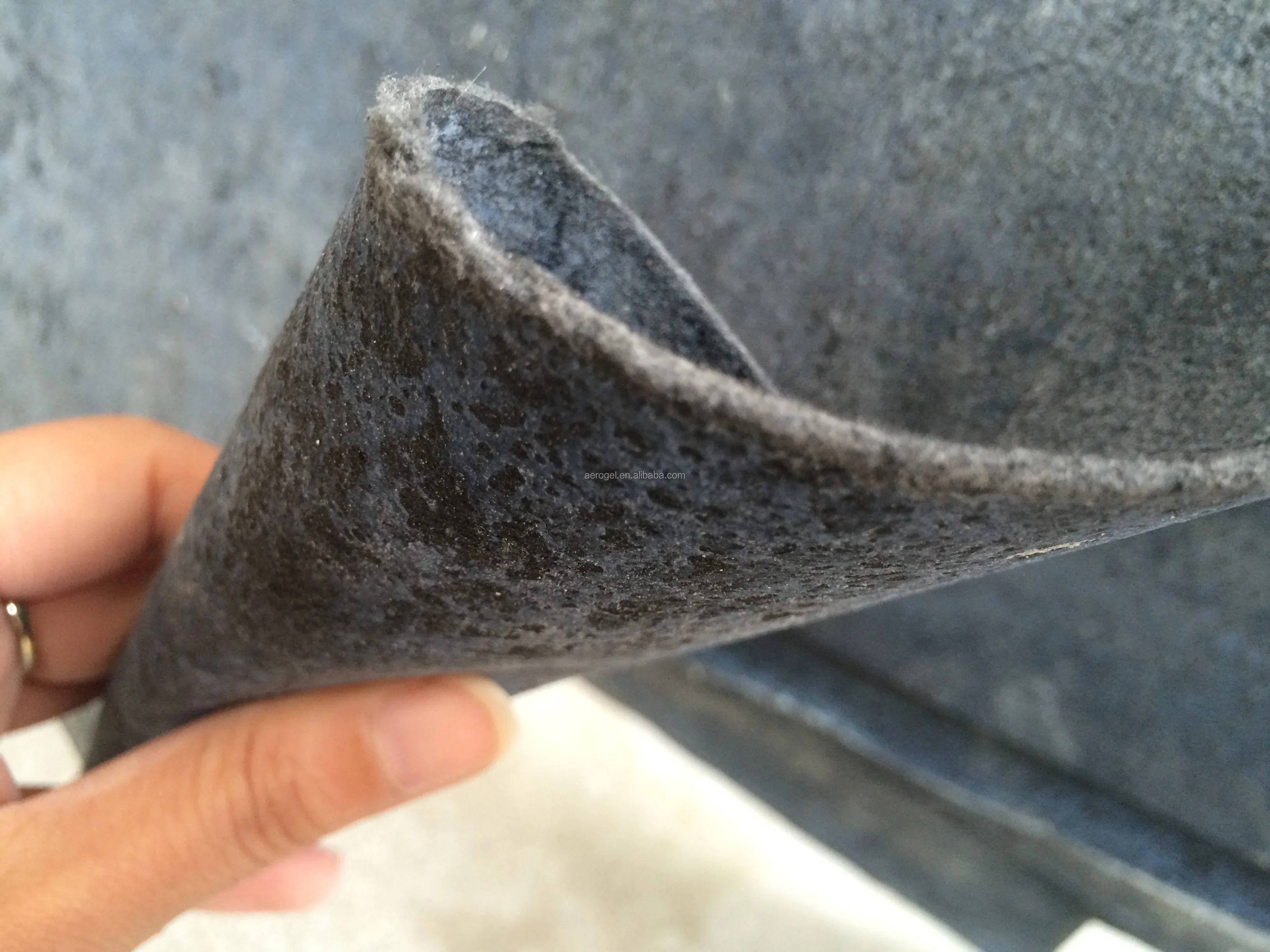

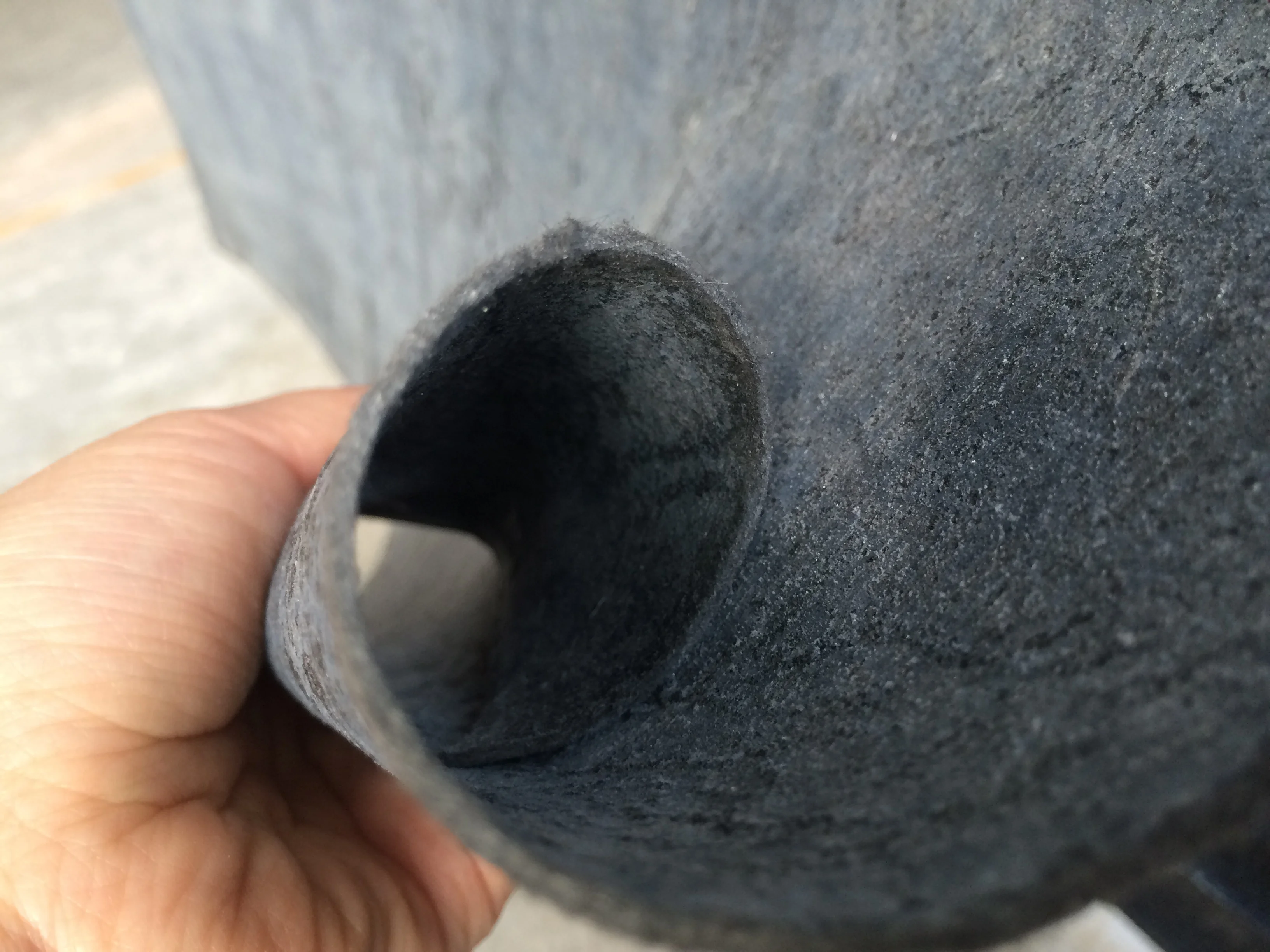

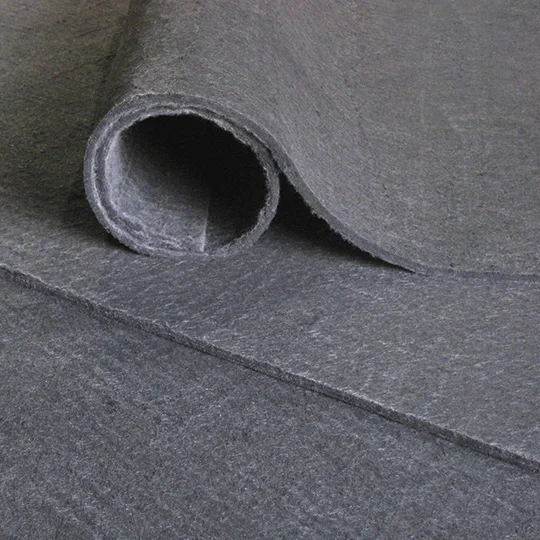

Aerogel Insulation Blanket
Item No.	FMB350
Thermal Conductivity(25℃)	0.018w/(m*k)
Working temperature	-50℃ to 350℃
Hydrophobic Rate	≥99.5%
Fire ratiing	Class S5
Tensile Strength	1000KPa
Density	170kg/m³
Width	1.5m
Length	34m
Thickness	6mm
Service life	>20years



Application overview

• Oil Exploration


• Refinery and Petrochemical Industry


• Power Generation and City Heating System


• LNG project


• Exterior Wall


• Thermal Insulation for Roof and Floor

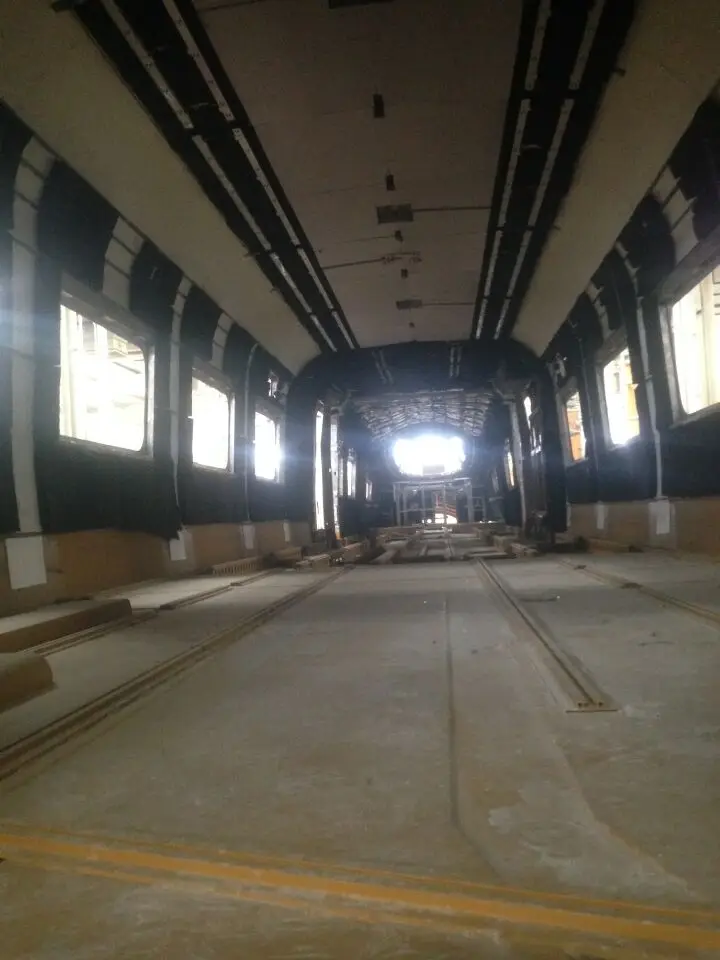

• Train, Vessel and Automobile


• New Energy Battery



About Aerogel

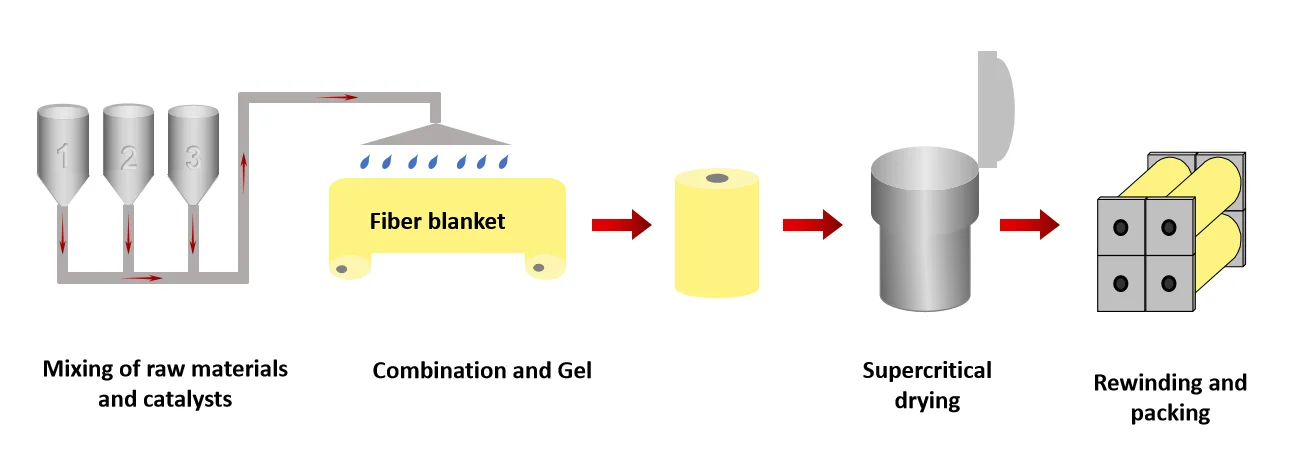

Aerogel is a synthetic porous ultralight material derived from a gel, in which the liquid component of the gel has been replaced with gas. The result is a solid with extermely low density and low thermal conductivity.

Despite the name, aerogel is solid, rigid, and dry material that do not resemble a gel in their physical properities: the name comes from the fact that they are made from gels and the air content can reach 99.8%.







• Thermal Conductivity: less temp. drop, higher thermal efficiency


• Super fire protection rating


• Extreme water proofing


• Sound reduction property


• Long service life



Company Profile

Nano Tech CO., Ltd. is a global professional supplier of new insuliation material solutions who has been committed to the research and development ,production and sales of silica aerogel. The factory not only owns 32,000 square meters and all kinds of auxiliary facilities, but for highly-automatic sets of aerogel production lines with independent intellectual property as well. It is earliest, biggest and most reliable developer and manufacturer of nanoporous thermal insulation material "silica aerogel" in China.





Our customer



Our service

• Heat loss inspection


• Insulation calculation


• Solution Submission


• Test and Verification


• After-sale service
