Многофункциональный испаритель с падающей пленкой Ruiyuan
- Category: >>>
- Supplier: Shanghai Ruiyuan Michinery Co. Ltd.
Share on (1600940360631):
Product Overview
Description
Product Description

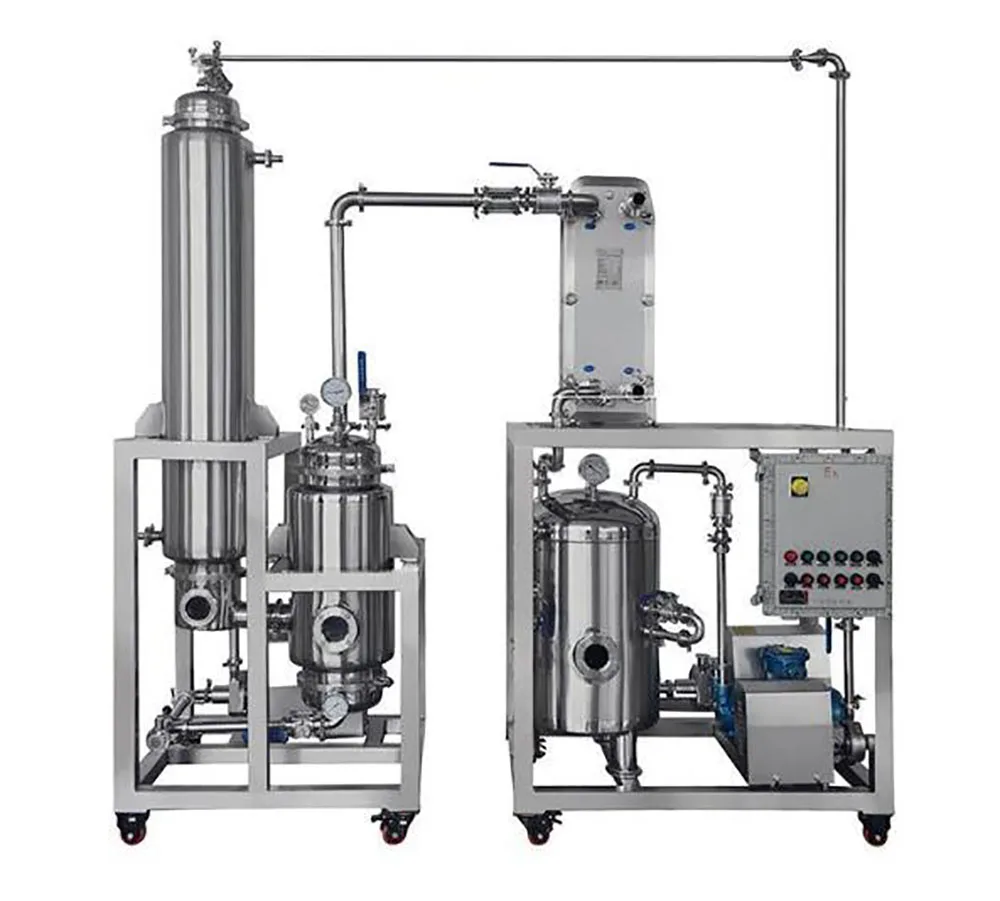

Equipment overview:
Falling film evaporation is to add the feed liquid from the upper tube box of the heating chamber of the falling film evaporator, and distribute it evenly into each heat exchange tube through the liquid distribution and film forming device. Under the influence of gravity and vacuum induction and air flow, it forms a uniform film. Flow up and down. During the flow process, it is heated and vaporized by the shell-side heating medium, and the generated steam and liquid phase enter the separation chamber of the evaporator together. After the vapor and liquid are fully separated, the steam enters the condenser to condense (single-effect operation) or enters the next-effect evaporator as The medium is heated to achieve multi-effect operation, and the liquid phase is discharged from the separation chamber.
They are widely used in the evaporation and concentration of water or organic solvent solutions in the pharmaceutical, food, chemical, light industry and other industries, and can be widely used in the treatment of waste liquids in the above industries.Especially suitable for heat-sensitive materials. The equipment is continuously operated under vacuum and low temperature conditions. It has high evaporation capacity, energy saving and low consumption, low operating costs, and can ensure the invariability of materials during the evaporation process.

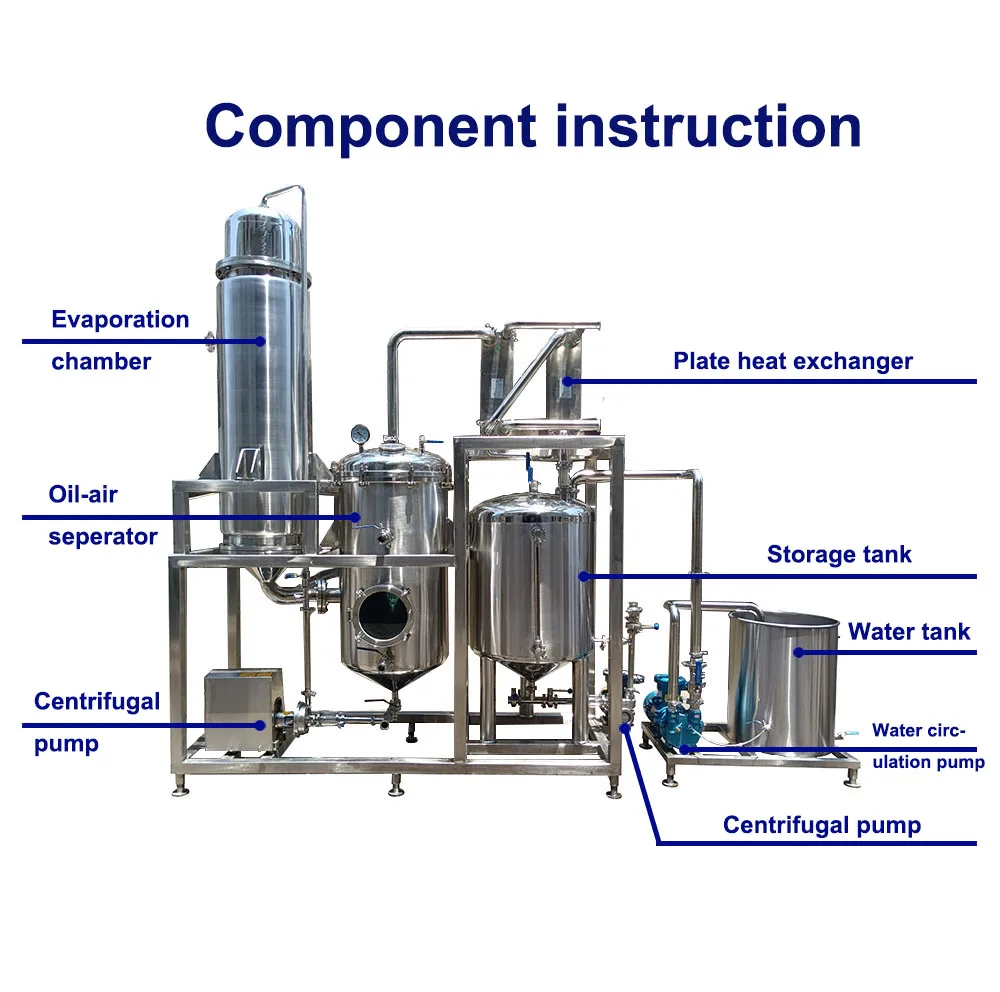

It consists of single-effect heater, single-effect evaporative separator, condenser, vacuum pump, feed pump, circulating discharge pump, condensate pump, control box, stainless steel support, pipelines and valves.
It consists of single-effect heater, single-effect evaporative separator, condenser, vacuum pump, feed pump, circulating discharge pump, condensate pump, control box, stainless steel support, pipelines and valves.
Specification
Specifications of 100L 200L 300L 500L Falling Film Evaporator | ||||||||
Model | RY-FFE-100L | RY-FFE-200L | RY-FFE-300L | RY-FFE-500L | ||||
Evaporation Rate | 100L/hr | 200L/hr | 300L/hr | 500L/hr | ||||
Feeding Pump | Flow:1m³/h, Lift:14m, Power:0.55kw,explosion-proof | Flow:1m³/h, Lift:18m, Power:0.55kw,explosion-proof | Flow:1m³/h, Lift:18m, Power:0.75kw,explosion-proof | Flow:2m³/h, Lift:24m, Power:1.5kw,explosion-proof | ||||
vacuum pump | Model:2BV-2060 Max pumping speed:0.45 m2/min, Ultimate vacuum:-0.097MPa, Motor power:0.81kw,explosion-proof Speed:2880r.min, Working fluid flow:2L/min, Noise:62dB(A) | Model:2BV-2061 Max pumping speed:0.86 m2/min, Ultimate vacuum:-0.097MPa, Motor power:1.45kw,explosion-proof Speed:2880r.min, Working fluid flow:2L/min, Noise:65dB(A) | Model:2BV-2071 Max pumping speed:1.83 m2/min, Ultimate vacuum:-0.097MPa, Motor power:3.85kw,explosion-proof Speed:2860r.min, Working fluid flow:4.2L/min, Noise:72dB(A) | Model:2BV-5110 Max pumping speed:2.75 m2/min, Ultimate vacuum:-0.097MPa, Motor power:4kw,explosion-proof Speed:1450r.min, Working fluid flow:6.7L/min, Noise:63dB(A) | ||||
Height | Around 2.53m | Around 2.75m | Around 4.3m | Around 4.6m | ||||
Electricity | 380V/220V(Customizable) | |||||||
Raw material | SUS 304 | |||||||
Heating source | Electricity | Steam | Electricity | Electricity | ||||
Features
1.Ompact structure with small area.
2.High recovery rate, plate heat exchanger for higher condensation efficiency, the recover rate is more than 97.5%.
3.It runs continuously.
The height is not high, it's easy to install and operate.
Modular design, maintenance is convenient.
The height is not high, it's easy to install and operate.
Modular design, maintenance is convenient.
4.Sight-glasses to observe material situation during evaporation process.
5.High-quality durable 304 stainless steel connection components.
6.Real-time monitoring: vacuum gauge, thermometer.
