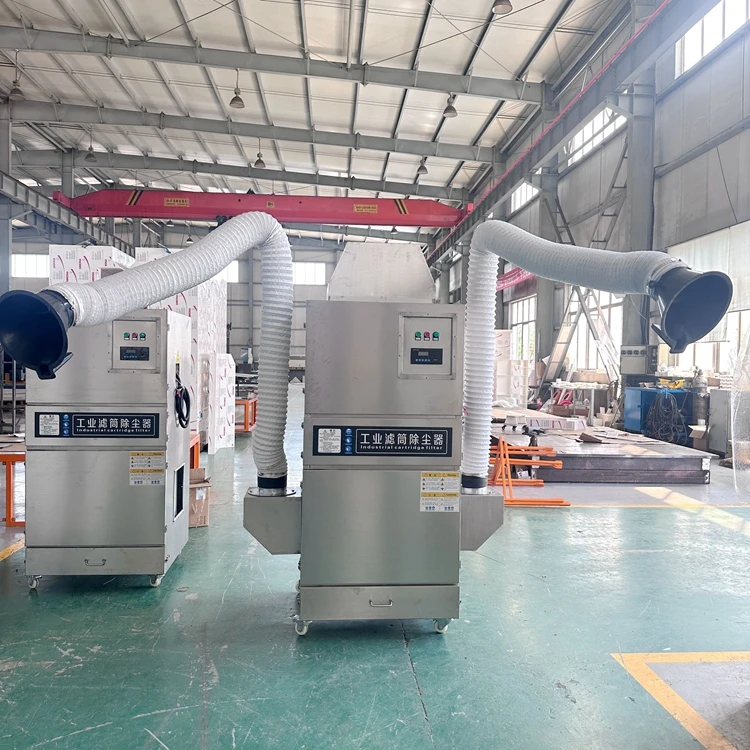

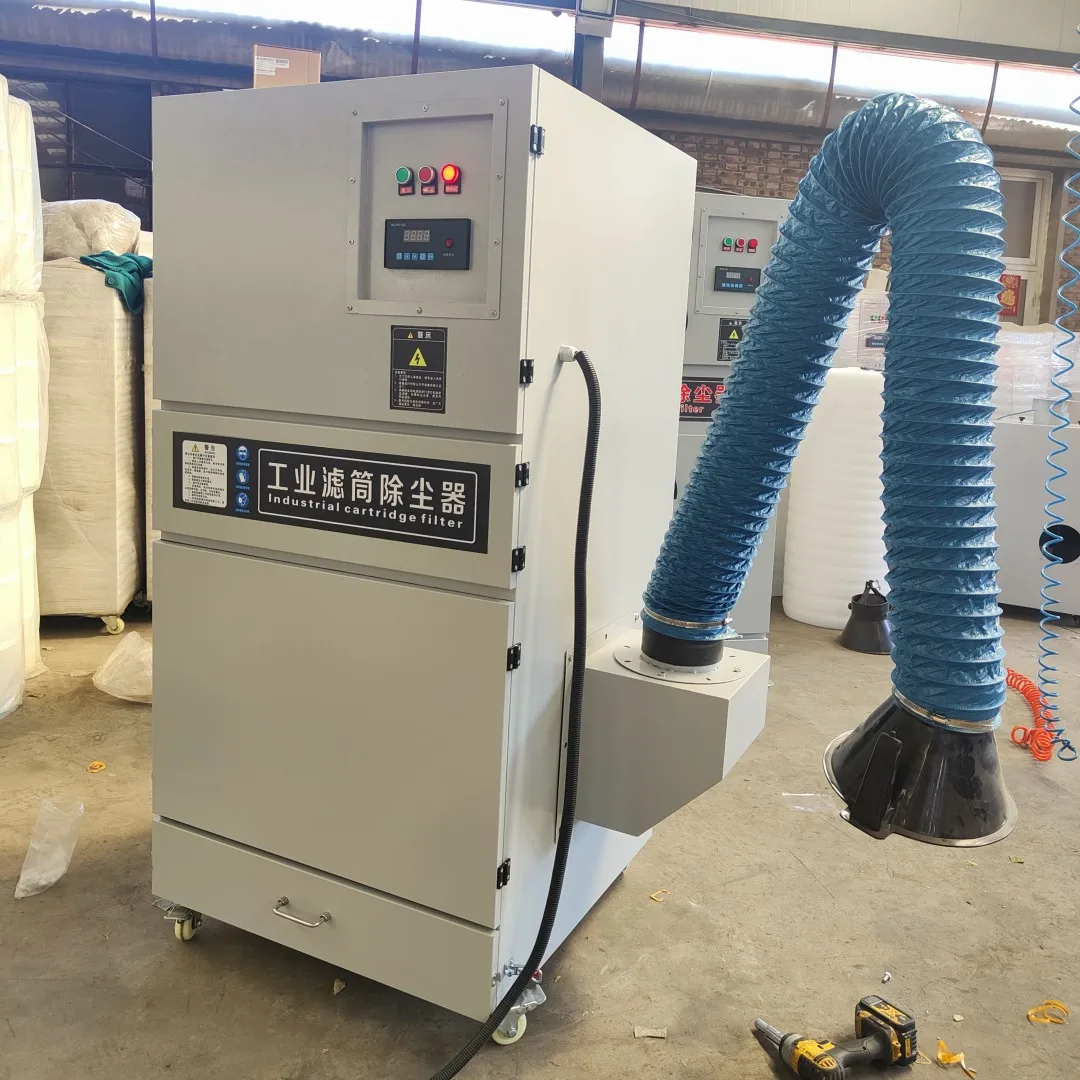

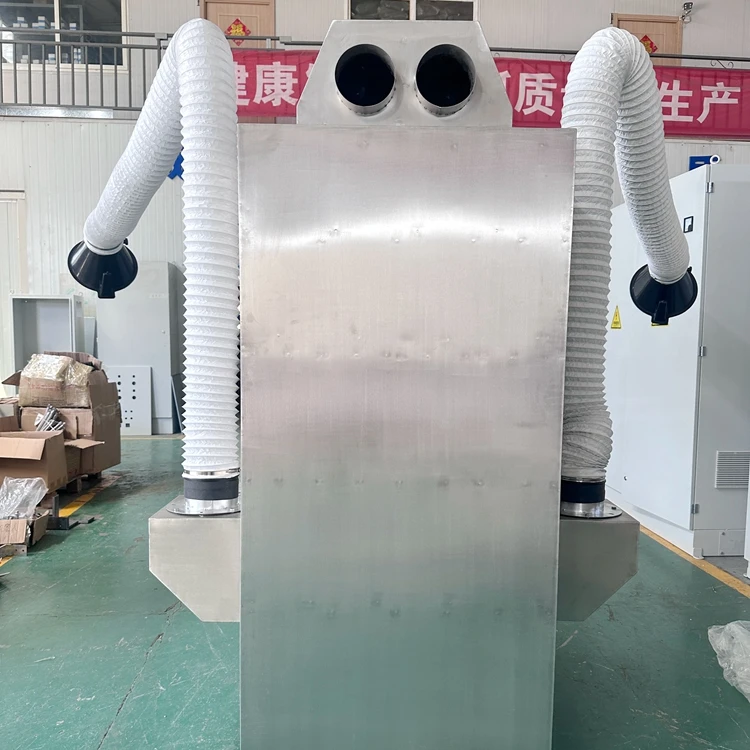

self cleaning industrial welding fume smoke collector purifier extractor
- Category: >>>
- Supplier: Qingdao Allway Tech Co. Ltd.
Share on (1600940364100):
Product Overview
Description
Product Description
3.0 kw welding fume extractor parameters
1.Outside Size:800*600*1700mm;

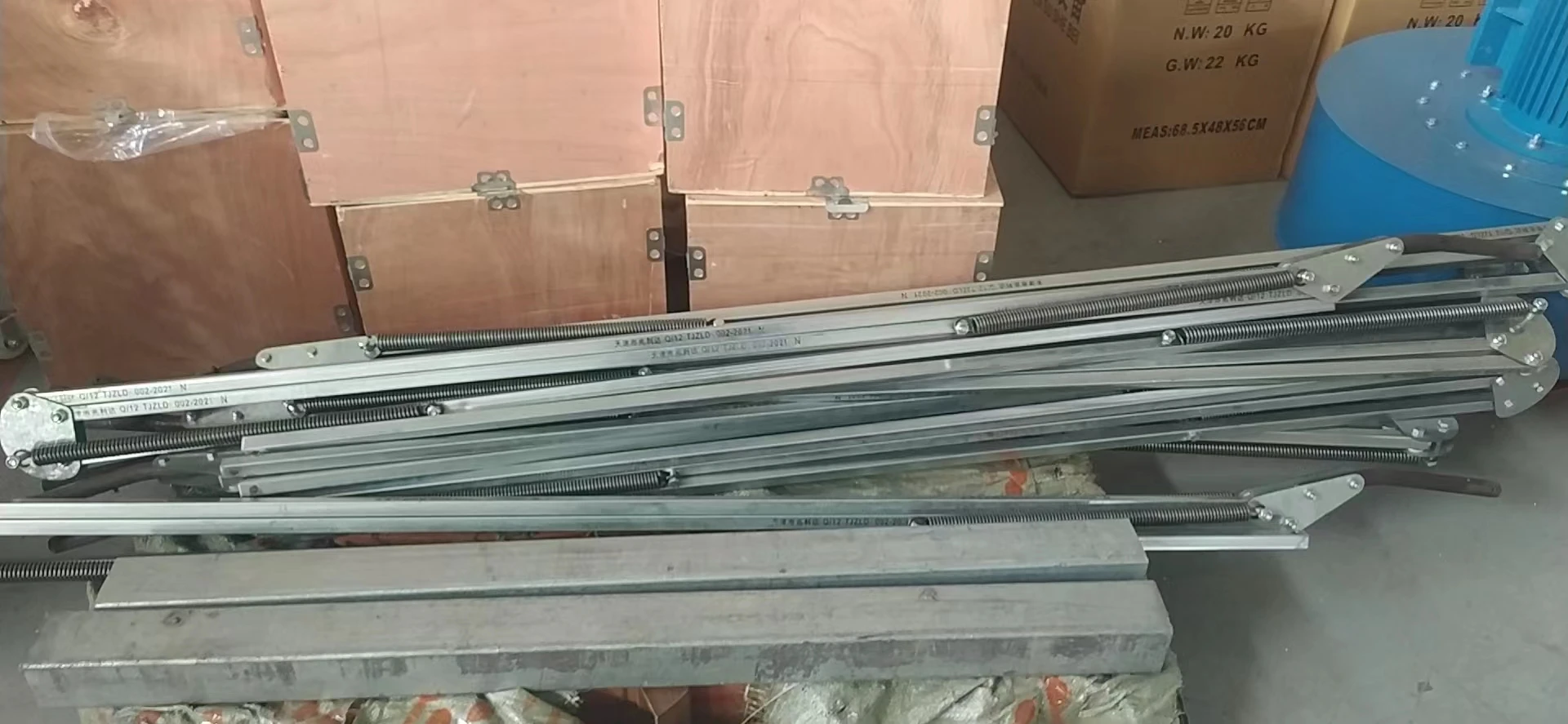

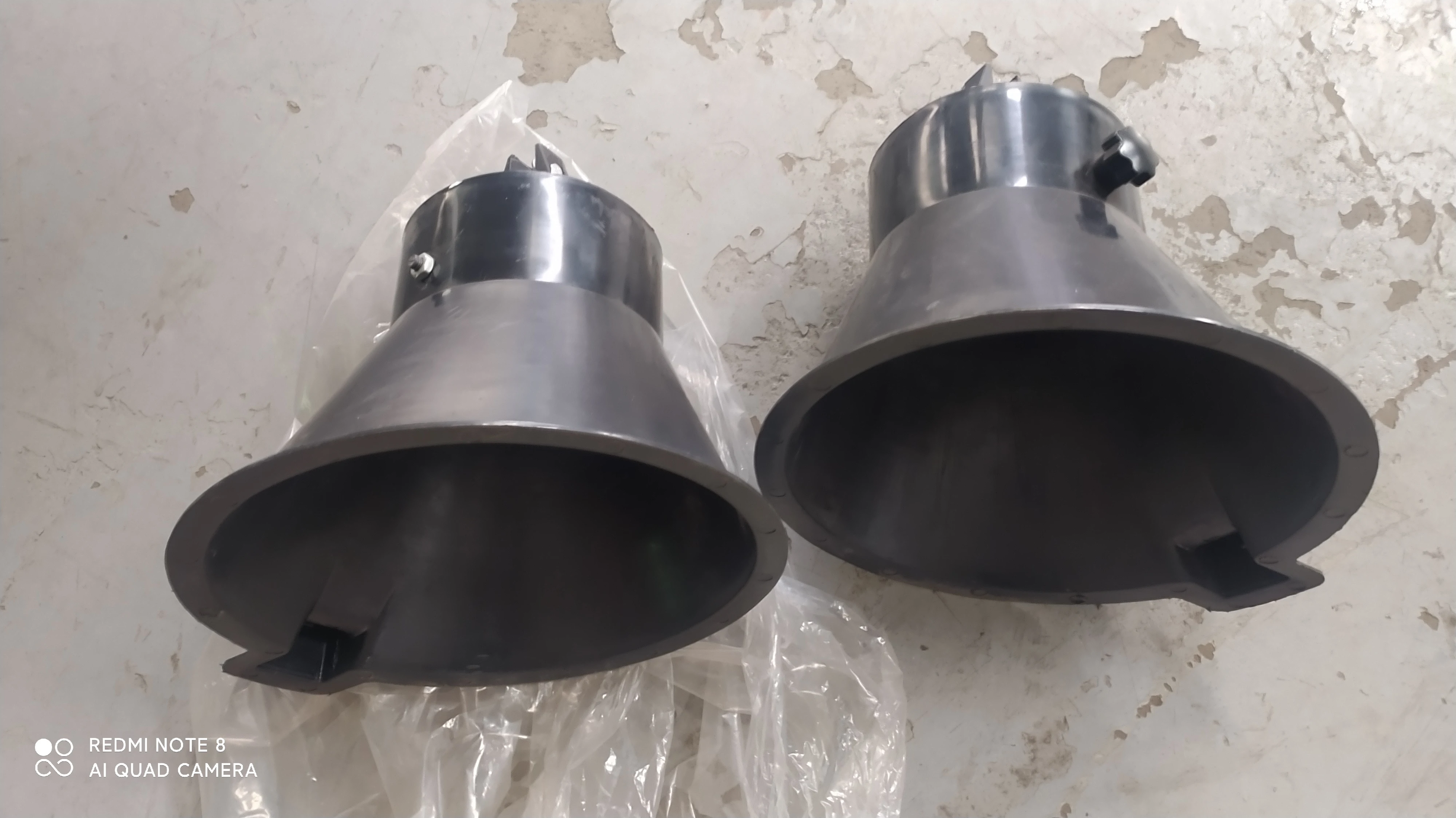

2.Arms:2sets of arms,Φ160*2000mm each with horn mouth;

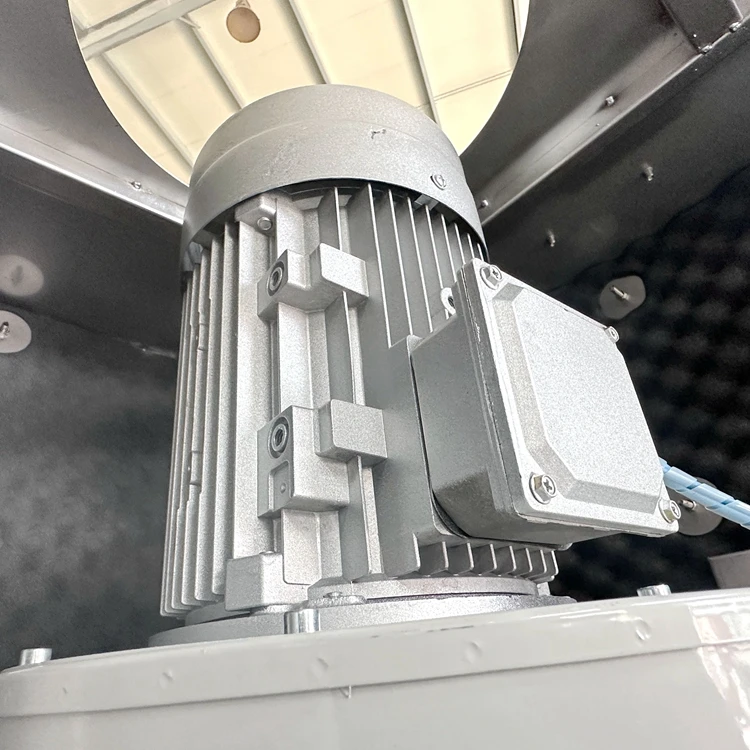

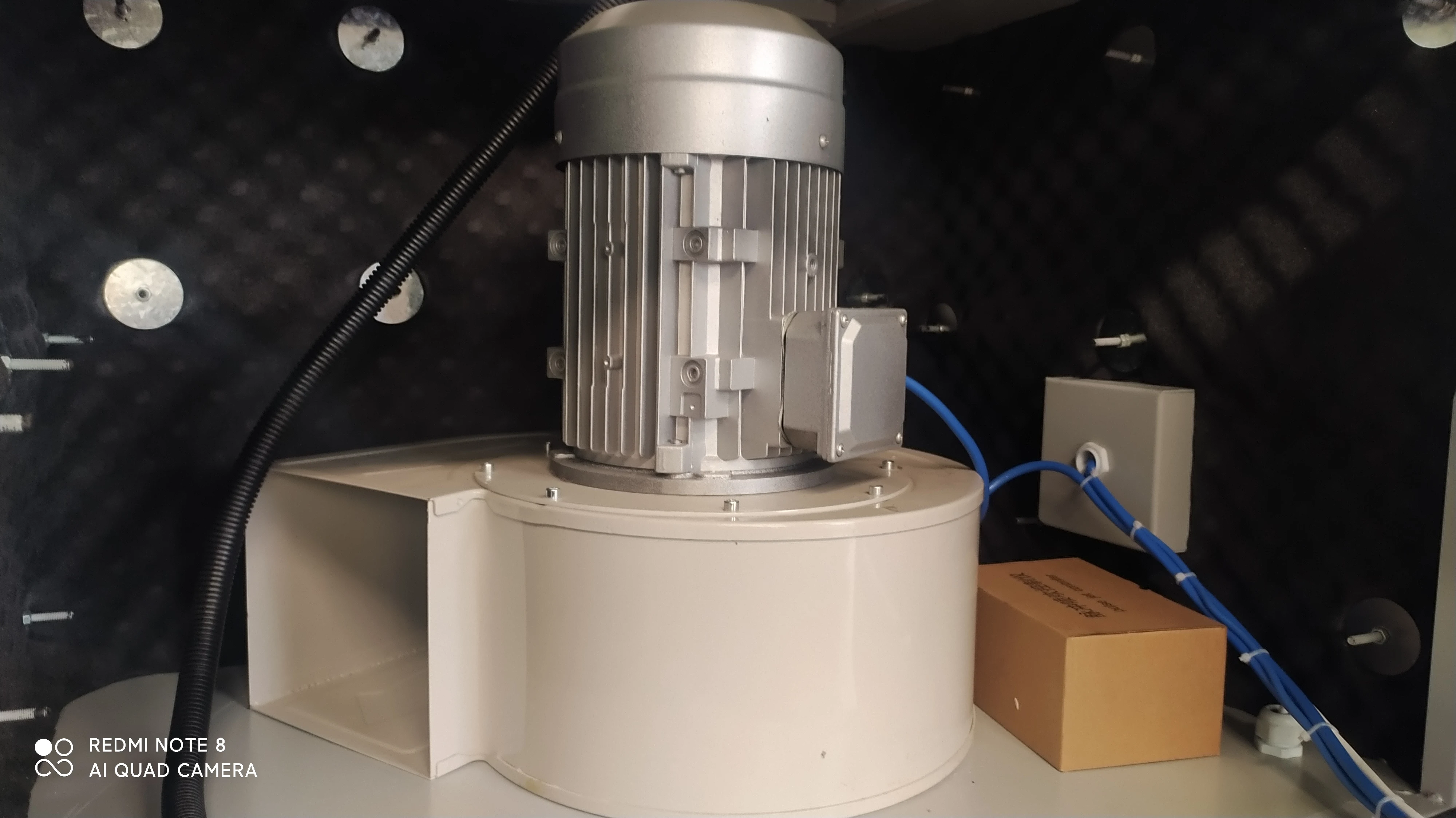

3.Air exhaust system:1 set of 3kw outlay motor fan.
2.Arms:2sets of arms,Φ160*2000mm each with horn mouth;
3.Air exhaust system:1 set of 3kw outlay motor fan.
Each fan air flow capacity:4000m³/h,pressure is 800Pa, speed is 2900r/min,

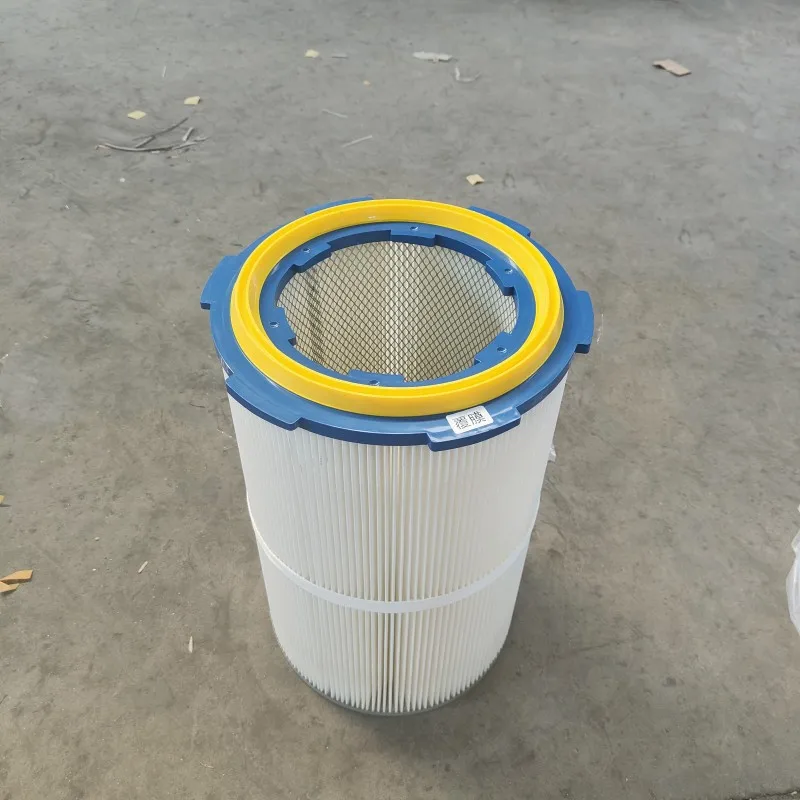

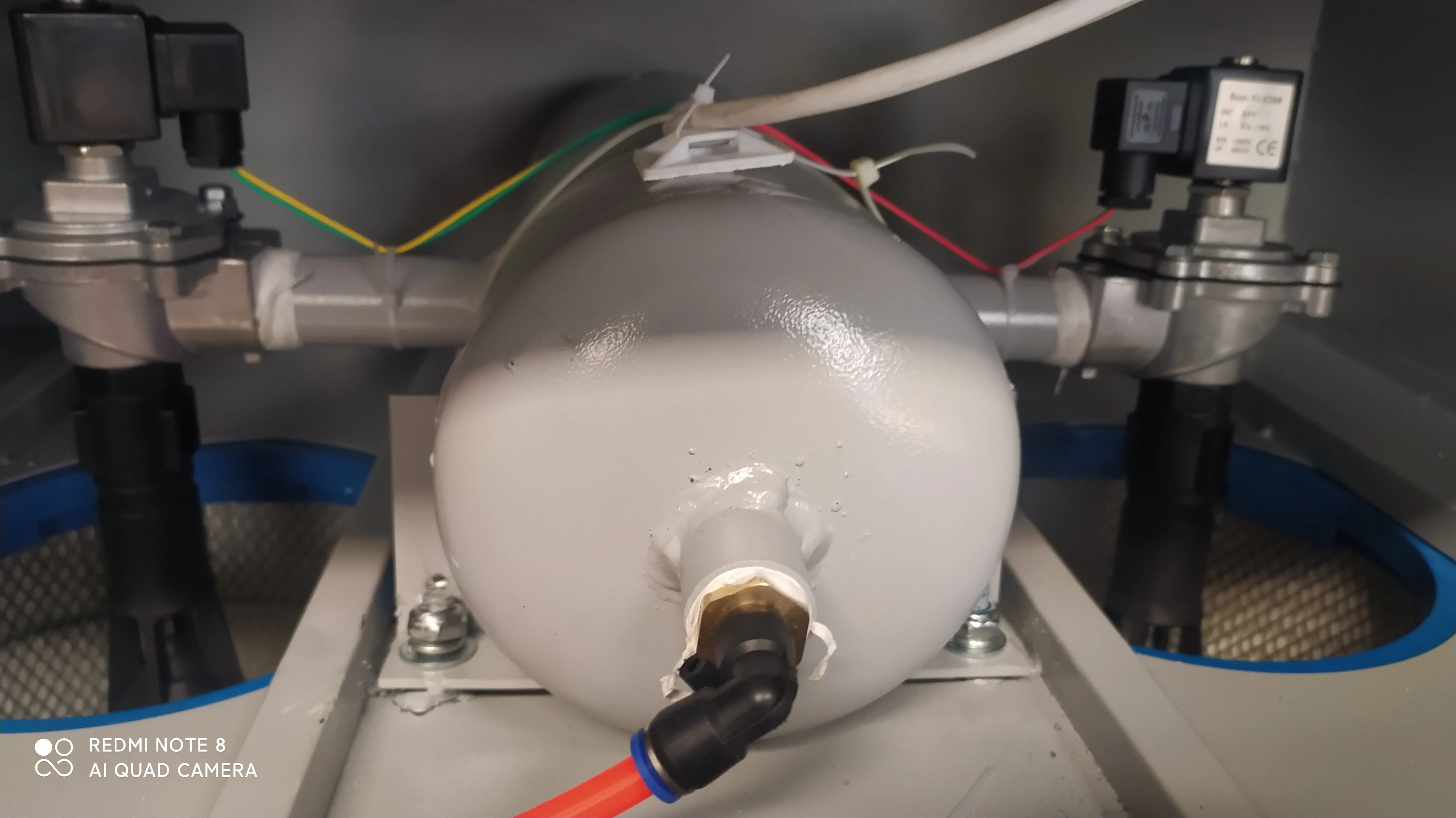

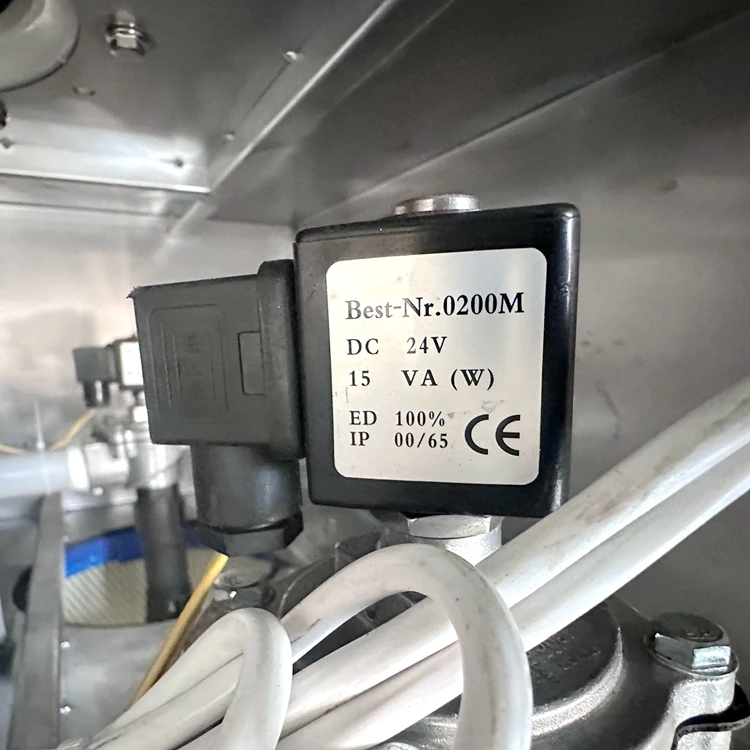

4.Filters:2pcs filter cartridge inside, each filter size: φ325mm*500mm, 0.5um,with pulse shaking device for clean the filter in time.
5.Control system:Electric control panel.Power on/off control, fan controls, pulse controls, emergency stop.
4.Filters:2pcs filter cartridge inside, each filter size: φ325mm*500mm, 0.5um,with pulse shaking device for clean the filter in time.
5.Control system:Electric control panel.Power on/off control, fan controls, pulse controls, emergency stop.
6.electric components : Delixi Brand;
7.Wall panel:Carbon steel board with powder coating, the main body is 1.2mm thick
8.Bottom wheel:Four universal wheels on bottom for moving the machine easily;
9.Power:3.2kw,380V 3phase 50Hz;
8.Bottom wheel:Four universal wheels on bottom for moving the machine easily;
9.Power:3.2kw,380V 3phase 50Hz;
Specification
product name | welding fume extractor |
motor power | 3kw |
air flow capacity | 3800m³/h |
filter cartridge | 325*500mm |
filter area | 25㎡ |
2Suction Arm | 2Unit x Ø160mm x 2000mm |
Filtration Efficiency | >99.9% |
outside size | 800 * 600 * 1700 mm |
Input Voltage | 380v 3 phase 50Hz |

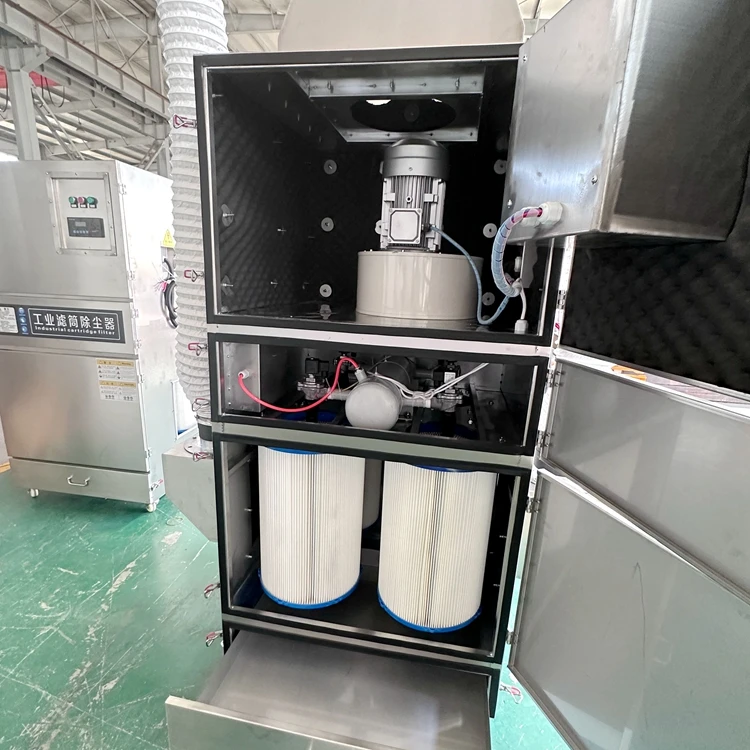

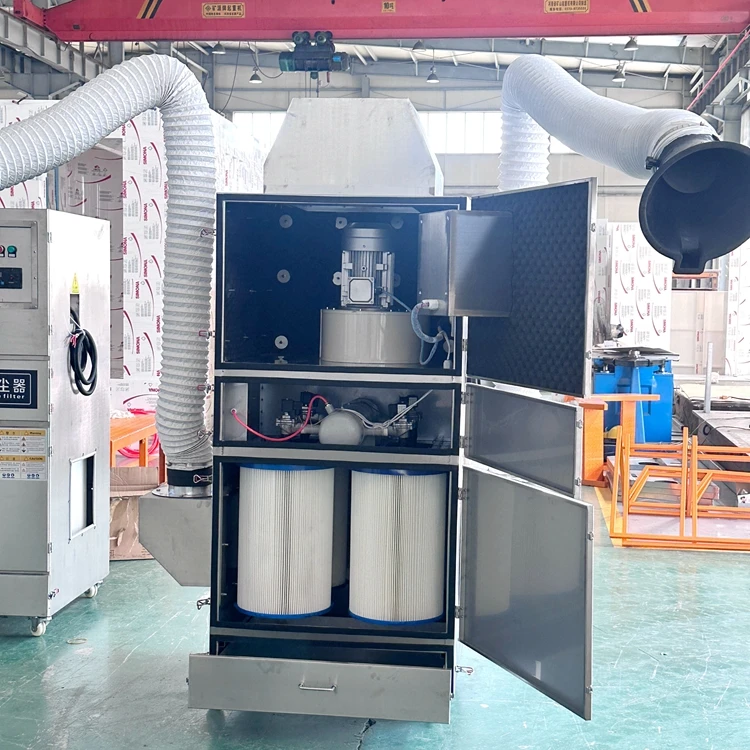

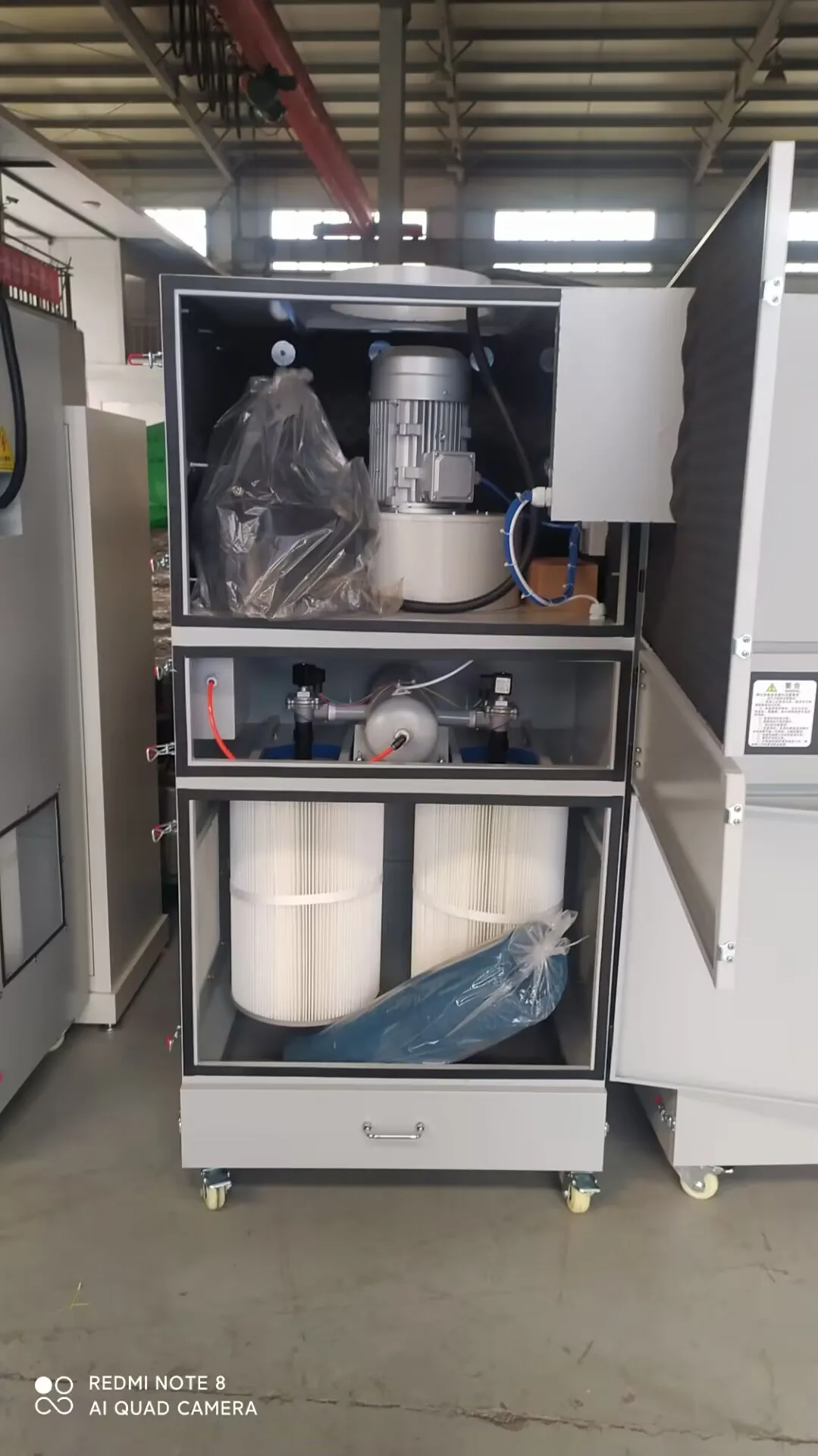

Product structure
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We have 8000 square meter production workshop ,we have laser cutting machine,shearing machine,bending
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project
designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total 52 office stuff.
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project
designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total 52 office stuff.
Certifications
Customer visiting
FAQ
1.Installation?
Deliver with detailed specification of installation and operation
2.Payment terms?
T/T,40% for deposit and the balance 60% before loading into container
3.More products models?
Products showcase on Alibaba: allway99.en.alibaba.com
Official website: www.allway99.com
Whatsapp/Mobile:+86 15653857201
Tel: 86 0535 3609967 Nancy Guo
Deliver with detailed specification of installation and operation
2.Payment terms?
T/T,40% for deposit and the balance 60% before loading into container
3.More products models?
Products showcase on Alibaba: allway99.en.alibaba.com
Official website: www.allway99.com
Whatsapp/Mobile:+86 15653857201
Tel: 86 0535 3609967 Nancy Guo
