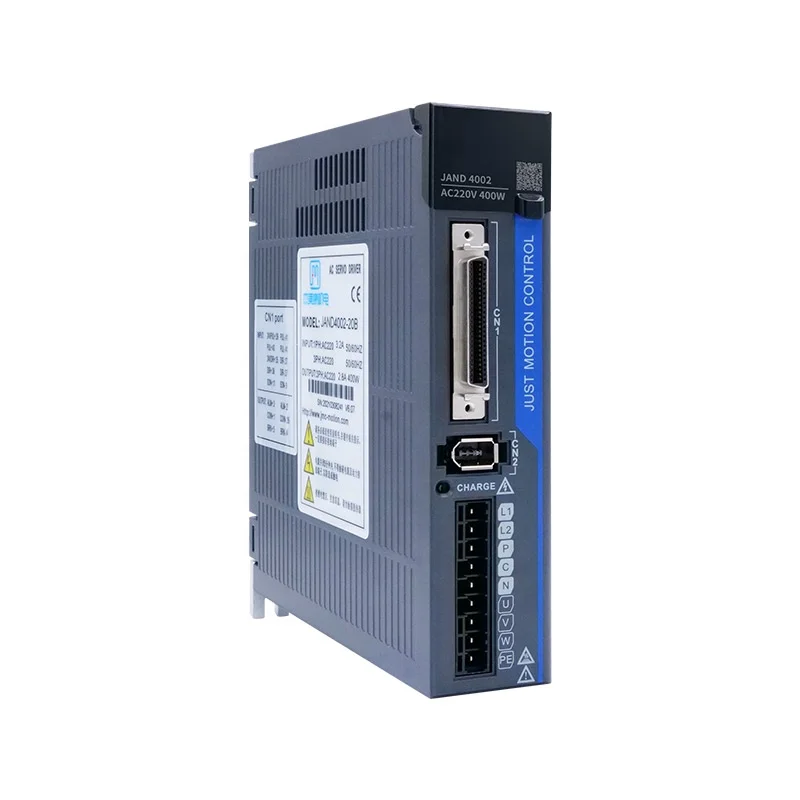

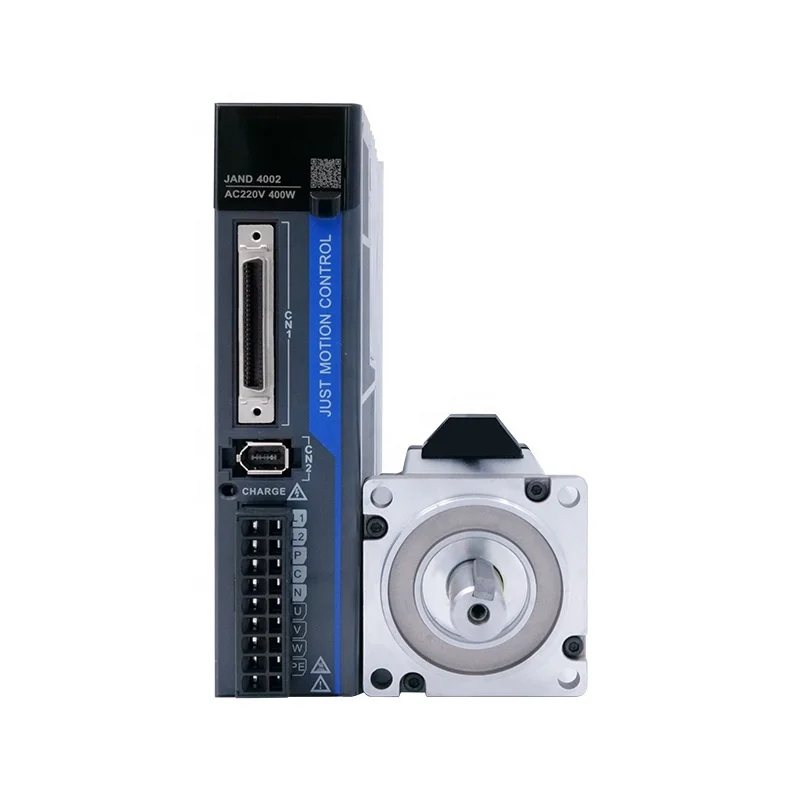

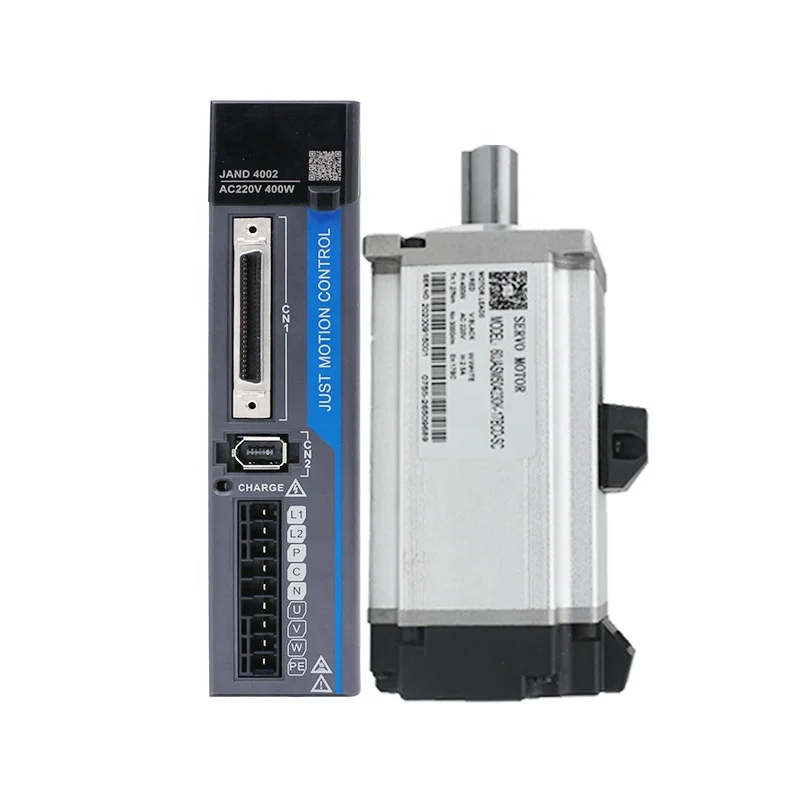

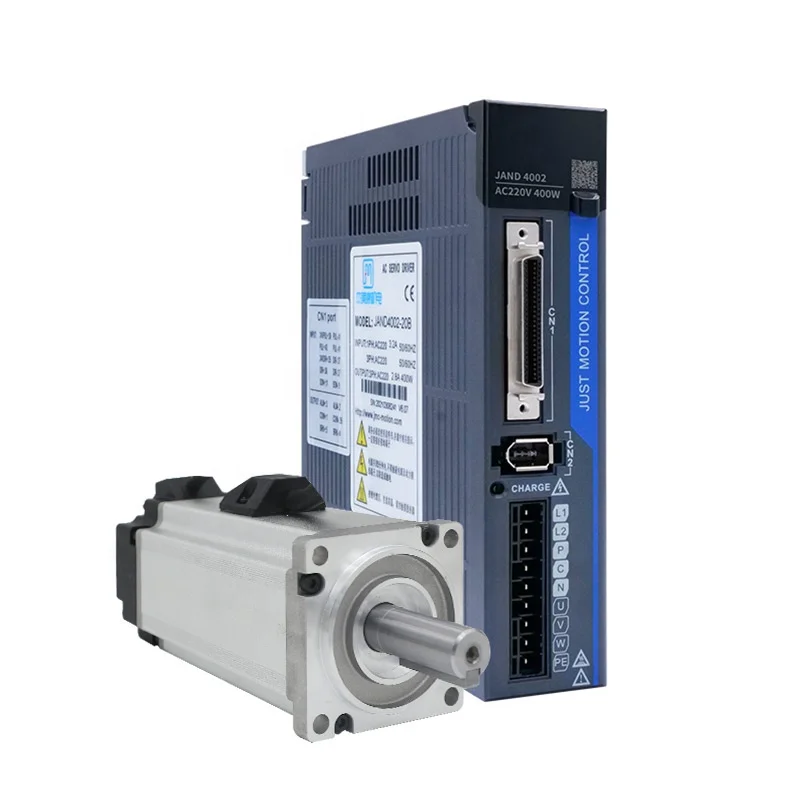

60JASM504230K 17B SC JAND4002 20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W
60JASM504230K-17B-SC+JAND4002-20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W

60JASM504230K 17B SC JAND4002 20B Factory Manufacture 220V 1.27N.m 3000rpm AC Servo Brake Motor and Drive 400W

Share on (1600940366773):


Price:$169.00 - $189.00

Quantity:


Product Overview

Description

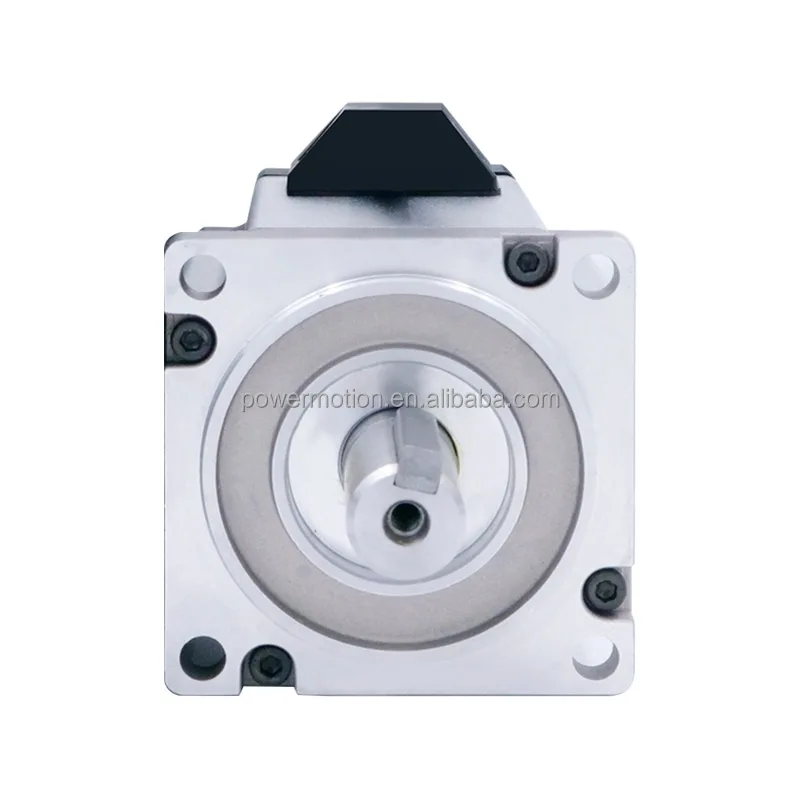

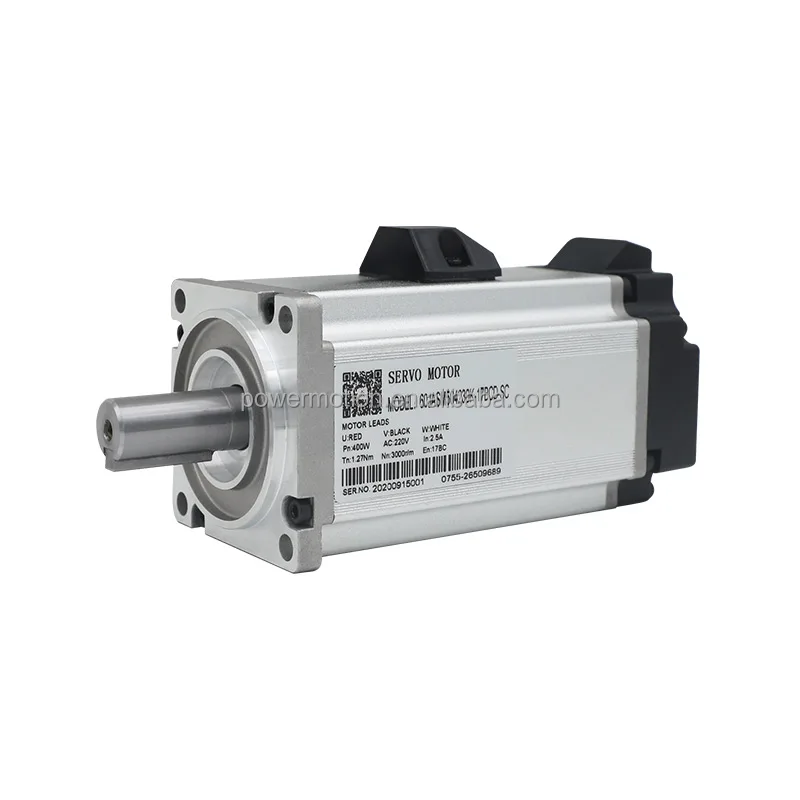

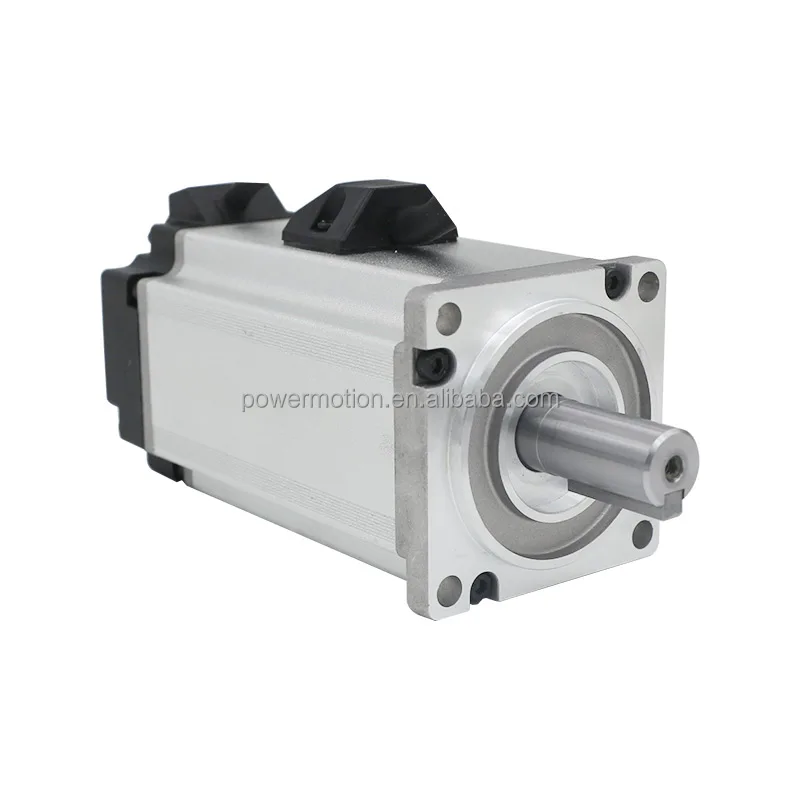

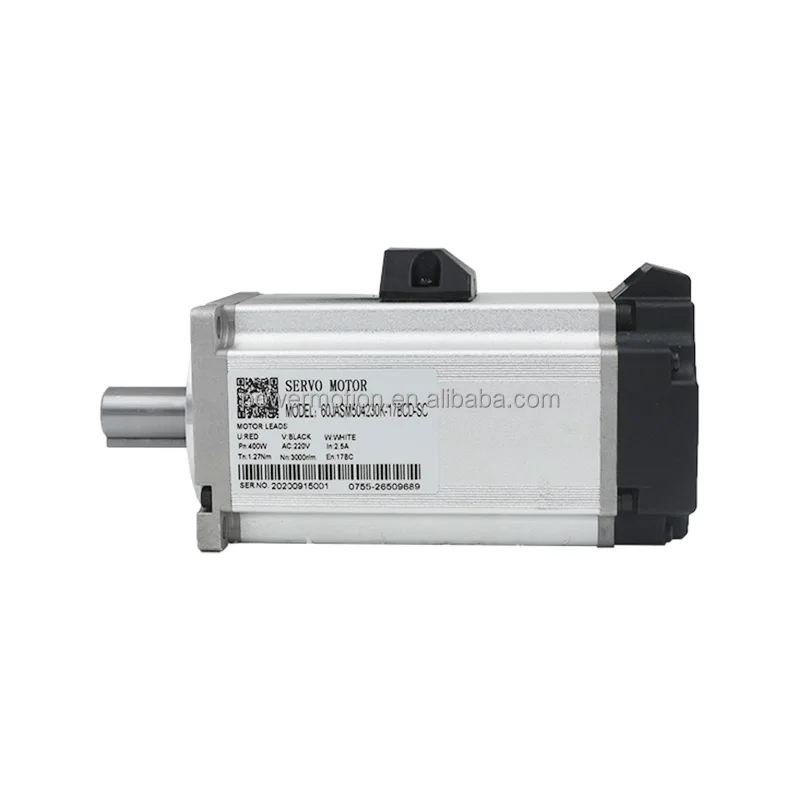

Details of Motor


Product
AC servo motor + servo driver
Brand
Just Motion Control
Model
60JASM504230K-17B-SC +
JAND4002-20B
Input Voltage
Single phase AC 180V-240V, 50/60Hz

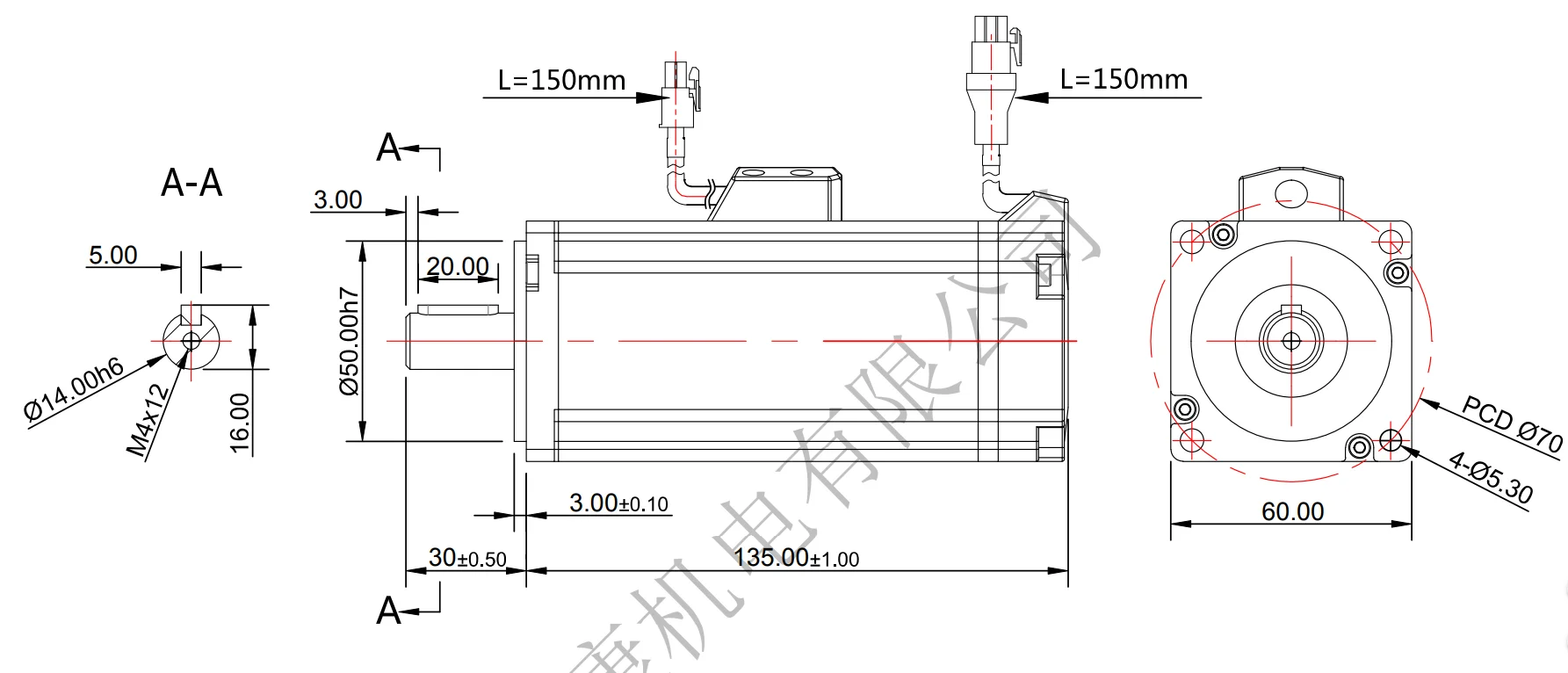

Motor Base
60*60mm
Motor Rated Power
400W
Rated Torque / Peak Torque
1.27Nm / 3.81Nm
Rated Speed / Peak Speed
3000rpm / 6000rpm
Encoder
17-bit single-turn absolute encoder (magnetic)
Control Type
Pulse type
Drive Features
Space-saving, Excellent performance, Good apperance








Models
Voltage
(V)
Rated Power (W)
Rated Torque (N.m)
Rated Speed
(rpm)
Rated Currect
(A)
Matching Driver
40JASM01230K-17B
220
100
0.318
3000
1.1
JAND2002-20B
60JASM502230K-17B
220
200
0.62
3000
1.7
60JASM504230K-17B
220
400
1.27
3000
2.8
JAND4002-20B
80JASM507230K-17B
220
750
2.39
3000
4.9
JAND7502-20B
80JASM510230K-17B
220
1000
3.18
3000
5.7
JAND10002-20B
Motor with brake is optional










Model
JAND2002-20B

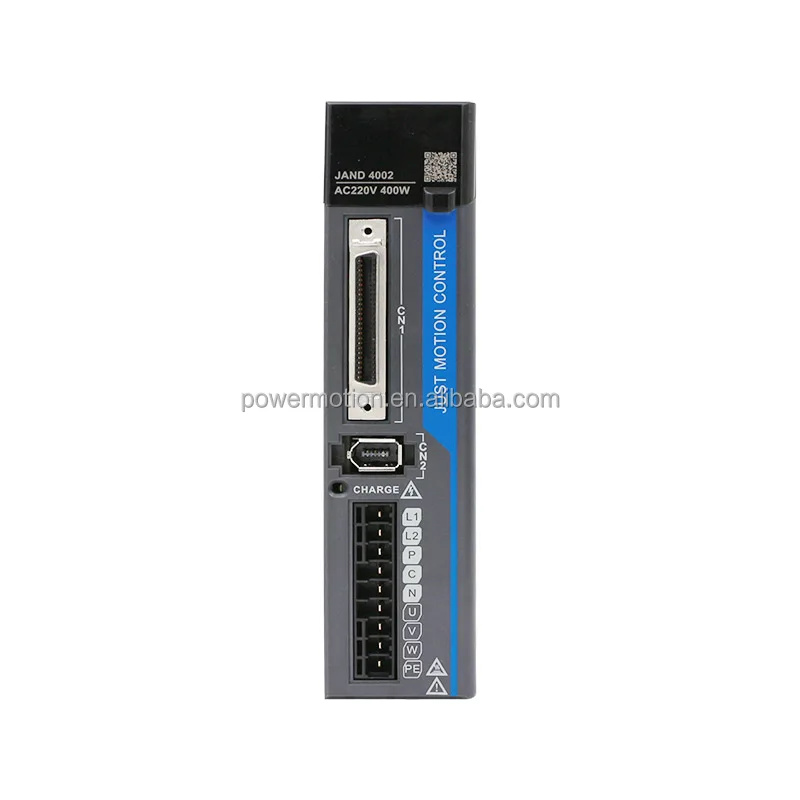

JAND4002-20B
JAND7502-20B
JAND10002-20B
Rated Power (W)
200
400
750
1000
Continuous output current (A)
1.6
2.8
5.5
7.6
Max output current (A)
5.8
9.6
16.9
23
Braking resistor
External braking resistor
Built-in braking resistor
Input voltage
Single phase AC 180V-240V, 50/60Hz

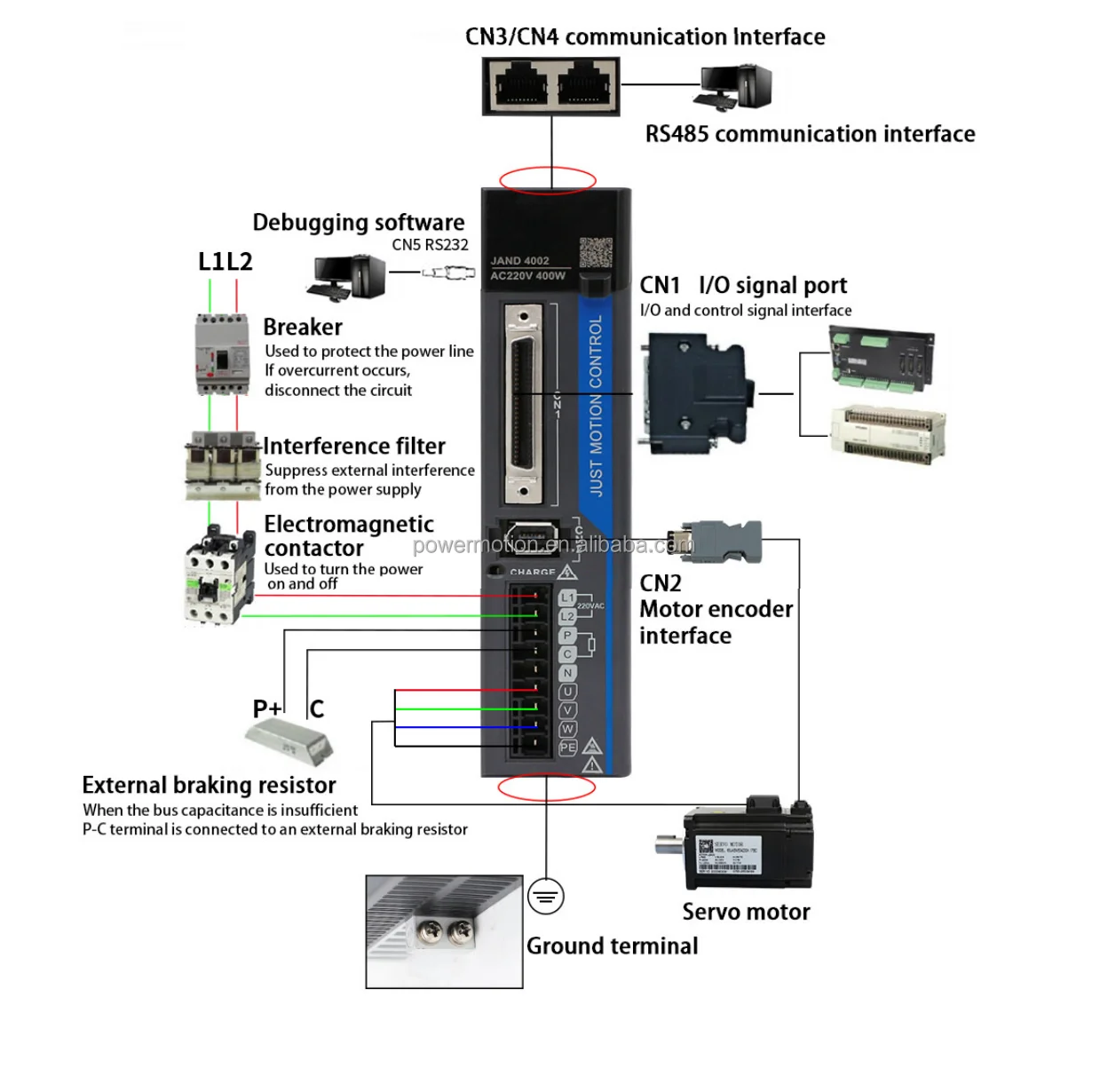

Communication function
RS232, for debugging on PC;
RS485, support modbus protocol (only for reading data)

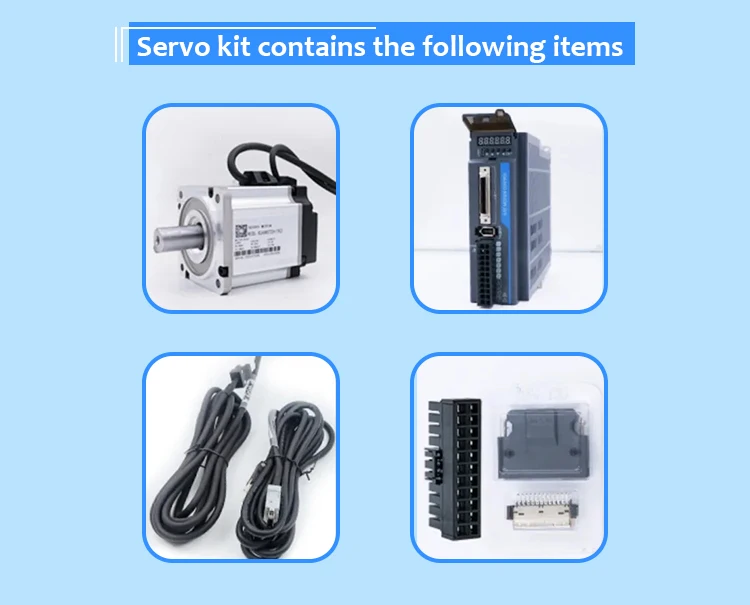

Product packaging




Application




Recommend Products




Why Choose Us






VR




Certificate




We have CE Certificate/ RoHS Certificate /Utility Model Patent Certificate/ Computer software copyright Registration Certificate and so on
